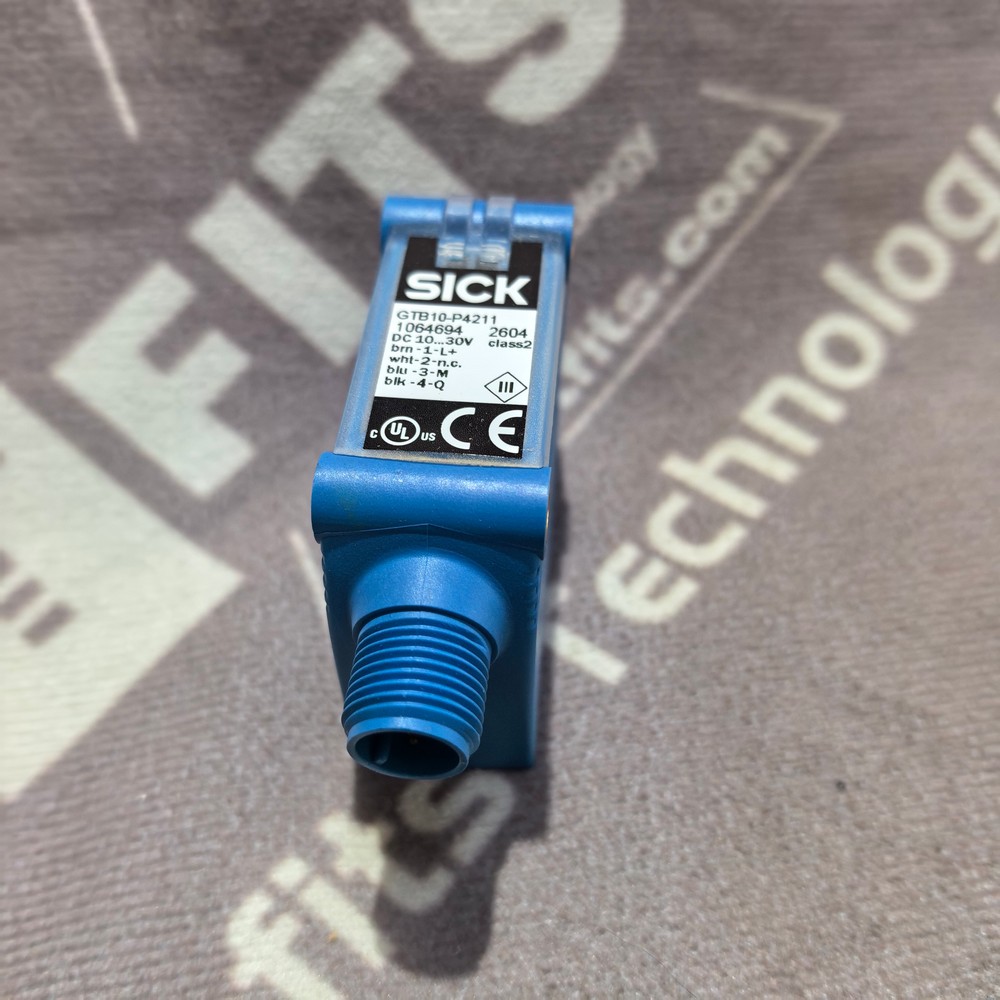

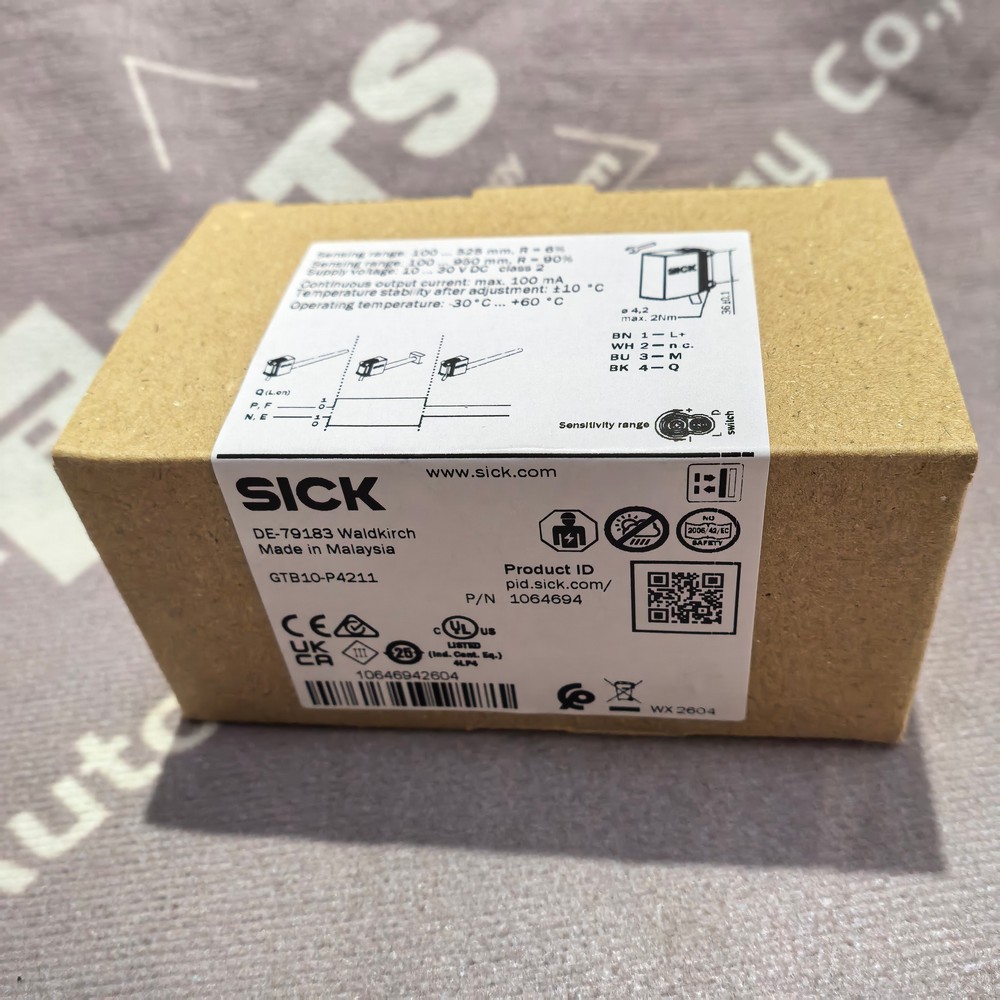

New Original SICK 1064694 GTB10-P4211 BGS Diffuse Reflection Photoelectric Switch
"*" indicates required fields
New Original SICK 1064694 GTB10-P4211 BGS Diffuse Reflection Photoelectric Switch
Product Overview
GTB10-P4211, Order No. 1064694, belongs to SICK GTB10 series compact Background Suppression (BGS) diffuse reflection photoelectric sensor. It adopts advanced background suppression optical technology and PinPoint red LED light source. Unlike ordinary diffuse sensors, this model can accurately detect target objects while ignoring interference signals from background surfaces. Equipped with PNP switching output, adjustable sensing range and standard M8 plug connection, the sensor delivers reliable detection regardless of variations in object color and reflectivity. With IP67 sealed plastic housing, built-in comprehensive circuit protection and compact rectangular outline, this sensor is widely applied in automated assembly equipment, packaging machinery, logistics conveyor lines, electronic production equipment and food processing systems for workpiece presence detection, position triggering and counting tasks. This product meets CE, UL and RoHS standards for global industrial automation deployment.
Main Technical Specifications
| Parameter Item | Detailed Specification |
|---|---|
| Complete Model | GTB10-P4211 |
| Order Code | 1064694 |
| Detection Principle | Background Suppression (BGS) Diffuse Reflection |

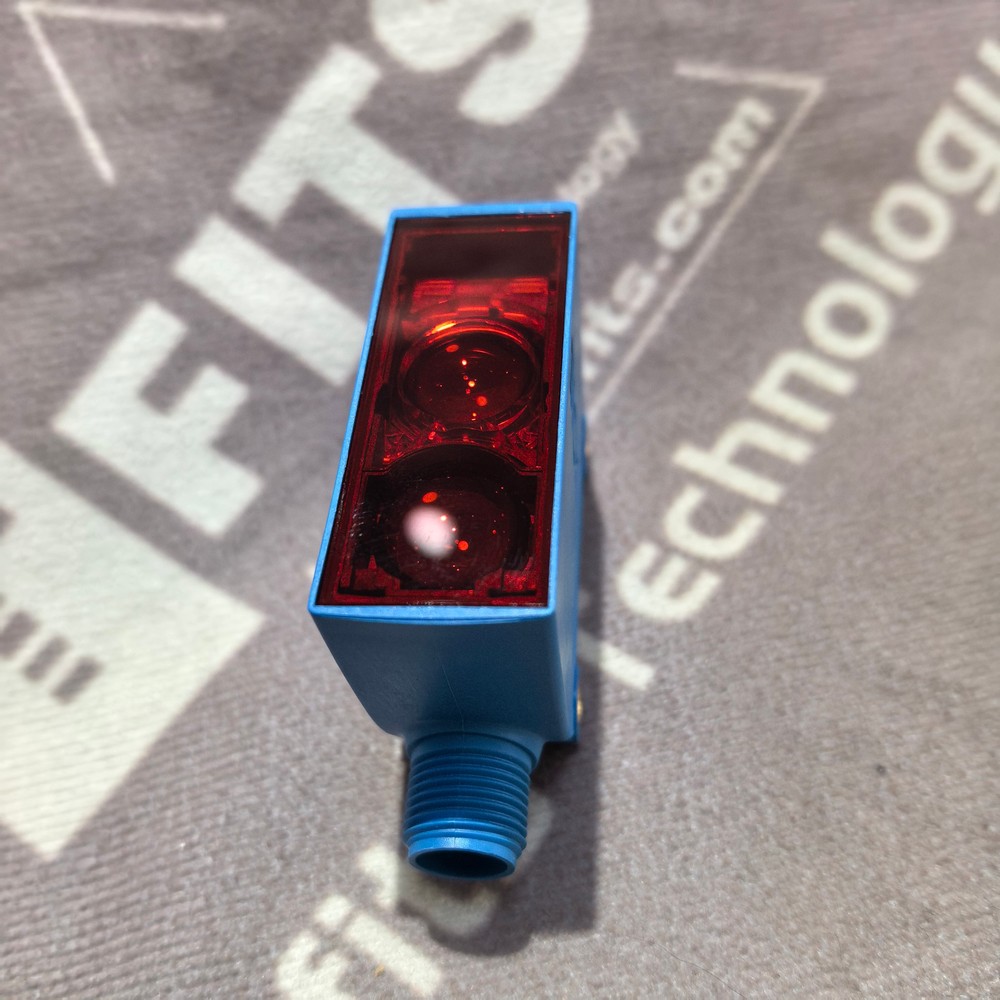

| Light Source | PinPoint Visible Red LED, 650 nm |
| Effective Sensing Range | 0 mm ~ 600 mm continuously adjustable |
| Supply Voltage | DC 10 V ~ 30 V, ripple tolerance ±10% |
| No-load Current Consumption | ≤ 35 mA |
| Output Type | PNP Open Collector, Max. load current 100 mA |
| Operation Mode | Light-ON / Dark-ON selectable via side switch |
| Response Time | ≤ 700 μs |
| Maximum Switching Frequency | 700 Hz |

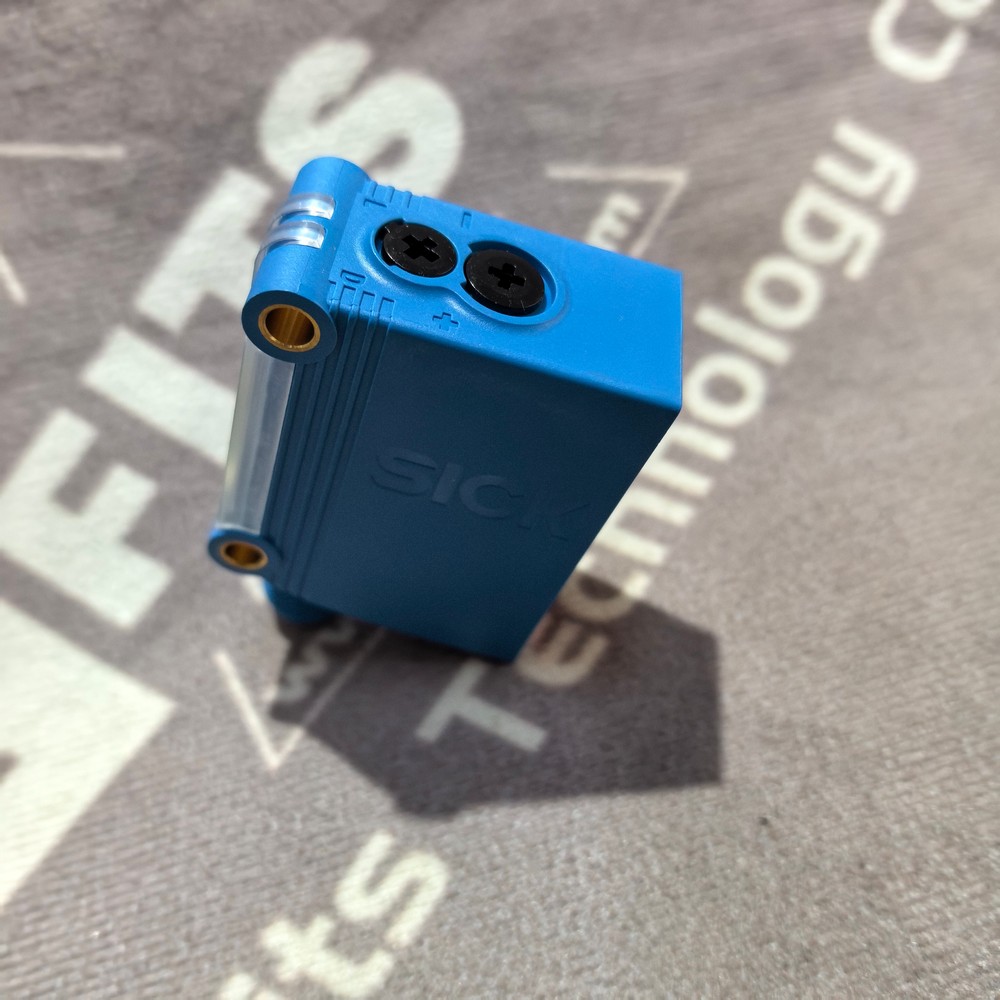

| Adjustment Mode | Rotary potentiometer for sensing distance setting |
| Built-in Protection | Reverse polarity protection, short-circuit protection, overload protection |
| Protection Class | IP67 |

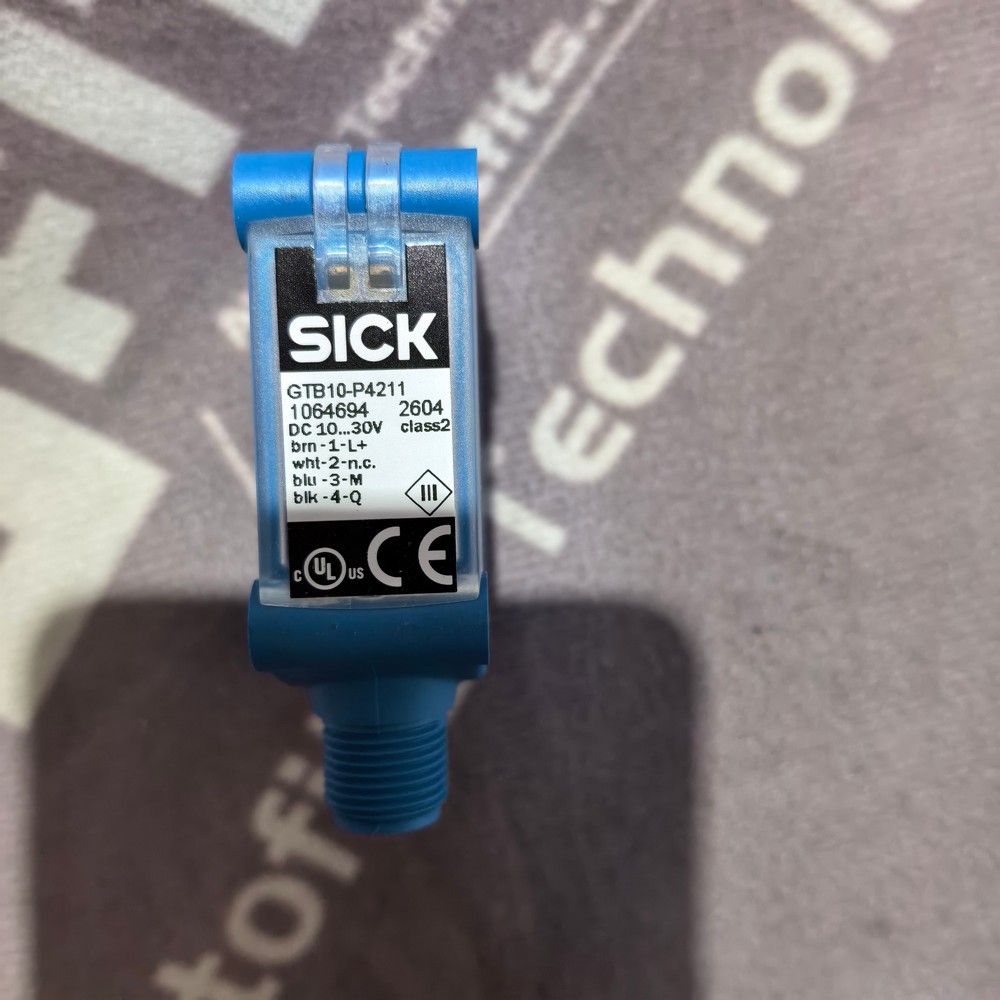

| Connection Interface | M8 4-pin male connector |
| Operating Ambient Temperature | -25 ℃ ~ +55 ℃ |
| Storage Temperature | -40 ℃ ~ +70 ℃ |
| LED Service Life | 100,000 hours under 25 ℃ ambient condition |
| Certifications | CE, UL, RoHS |
Overall Dimensions & Net Weight
| Dimension & Weight Parameter | Exact Data |
|---|---|
| Outer Dimensions | Width 16.5 mm × Height 31 mm × Depth 21 mm |

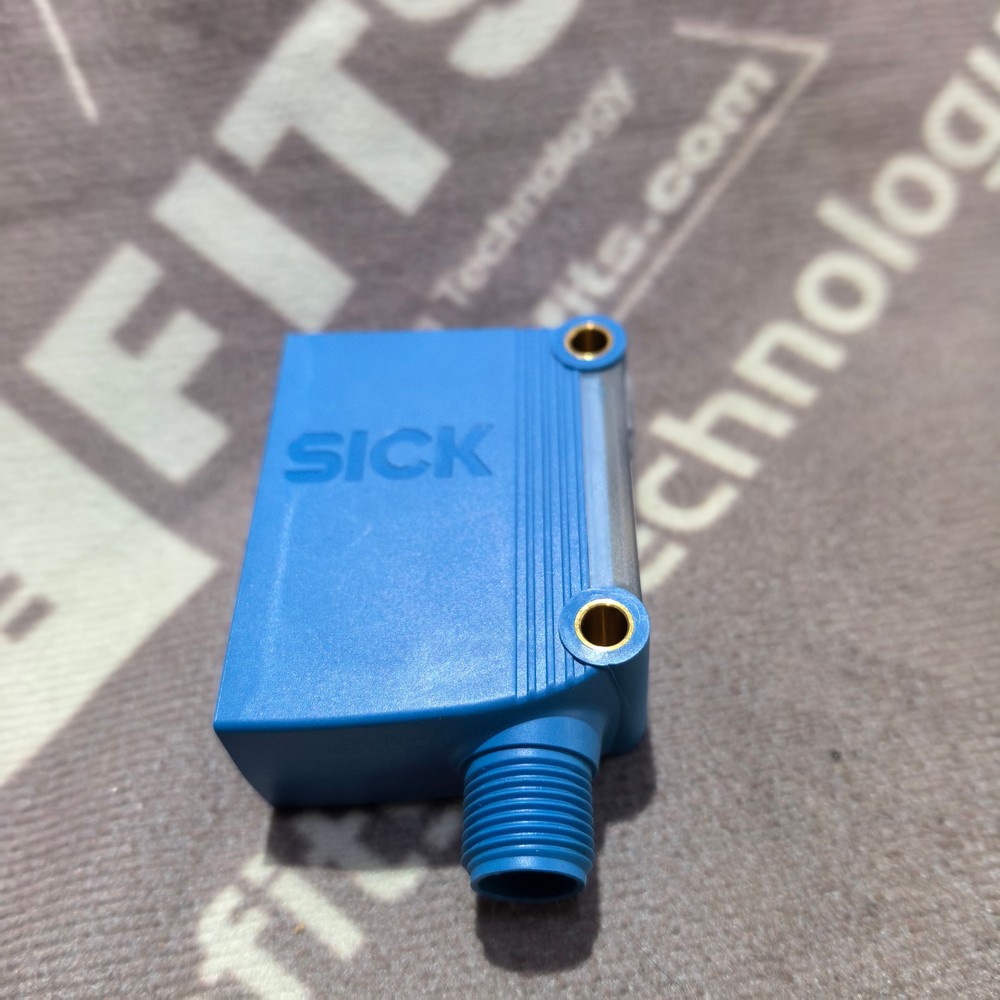

| Mounting Structure | Built-in M3 threaded inserts for fixing brackets |
| Single Unit Net Weight | 24 g |
| Packaged Gross Weight | Approximately 32 g |
| Housing Material | PC/ABS blended engineering plastic |
| Optical Window Material | Anti-scratch PMMA transparent plastic |
Primary Main Functions
- Target Detection with Background Suppression: Distinguish foreground objects and shield interference from background walls, metal plates and conveyor belts, avoiding false detection effectively.
- High-speed Dynamic Triggering: Support up to 700 Hz switching frequency, suitable for high-speed conveyor line counting and continuous workpiece detection.
- Flexible Output Logic Configuration: Switch freely between Light-ON and Dark-ON modes to match different PLC input logic requirements on site.
- Adjustable Detection Distance: Rotary potentiometer allows operators to set effective sensing range according to actual installation conditions.
- Multi-layer Circuit Protection: Prevent sensor damage caused by reverse power connection, output short circuit and overload current.
- Visual Working Status Indication: Integrated LED indicators show power supply status, received light signal and output action for fast field debugging and fault inspection.
- Harsh Environment Adaptability: IP67 sealed structure resists dust, water splashes and light oil mist in general industrial workshops.
- Anti-electromagnetic Interference: Optimized internal ASIC circuit maintains stable performance near inverters, servo drives and electromagnetic valves.
Key Technical Features
- Professional BGS background suppression optical design eliminates background reflection disturbance, achieving stable detection for objects with low reflectivity.
- PinPoint focused light spot realizes precise positioning and reduces detection error caused by uneven workpiece surfaces.
- Compact miniature body saves installation space, easy to install inside narrow fixtures and compact automation frames.
- Internal M3 metal threaded inserts improve vibration resistance, preventing loosening during long-term equipment operation.
- Wide DC input voltage range adapts to unstable industrial power grid without signal loss or abnormal reset.
- Standard M8 pluggable connector simplifies wiring and realizes quick replacement during maintenance, shortening equipment downtime.
- Color-independent detection capability minimizes influences brought by different workpiece colors.
- Unified mechanical dimension within SICK GTB10 series supports interchange installation of different output types and sensing models.
List of 10 Similar Functional SICK Photoelectric Sensors
- GTB10-N4211: NPN output background suppression sensor for NPN-type control systems
- GTB10-P1212: Cable outgoing version without M8 connector for fixed wiring installation
- GL6G-P4212: Polarized retroreflective photoelectric sensor for medium-distance detection
- GTE10-P4211: Standard diffuse reflection sensor without background suppression function
- GTB6-P4241: Miniature G6 series background suppression sensor for limited installation space
- GSE10-P4211: Through-beam photoelectric sensor for long-distance high reliability detection
- GTB10-P4221: Extended 1000 mm range background suppression diffuse sensor
- GTB10-P4211-HT: High-temperature resistant variant suitable for thermal processing workshops
- WT12-2B430: WT12 series background suppression sensor with alternative mechanical size
- GTB10-P4213: Enhanced model with extra diagnostic LED for comprehensive status monitoring
