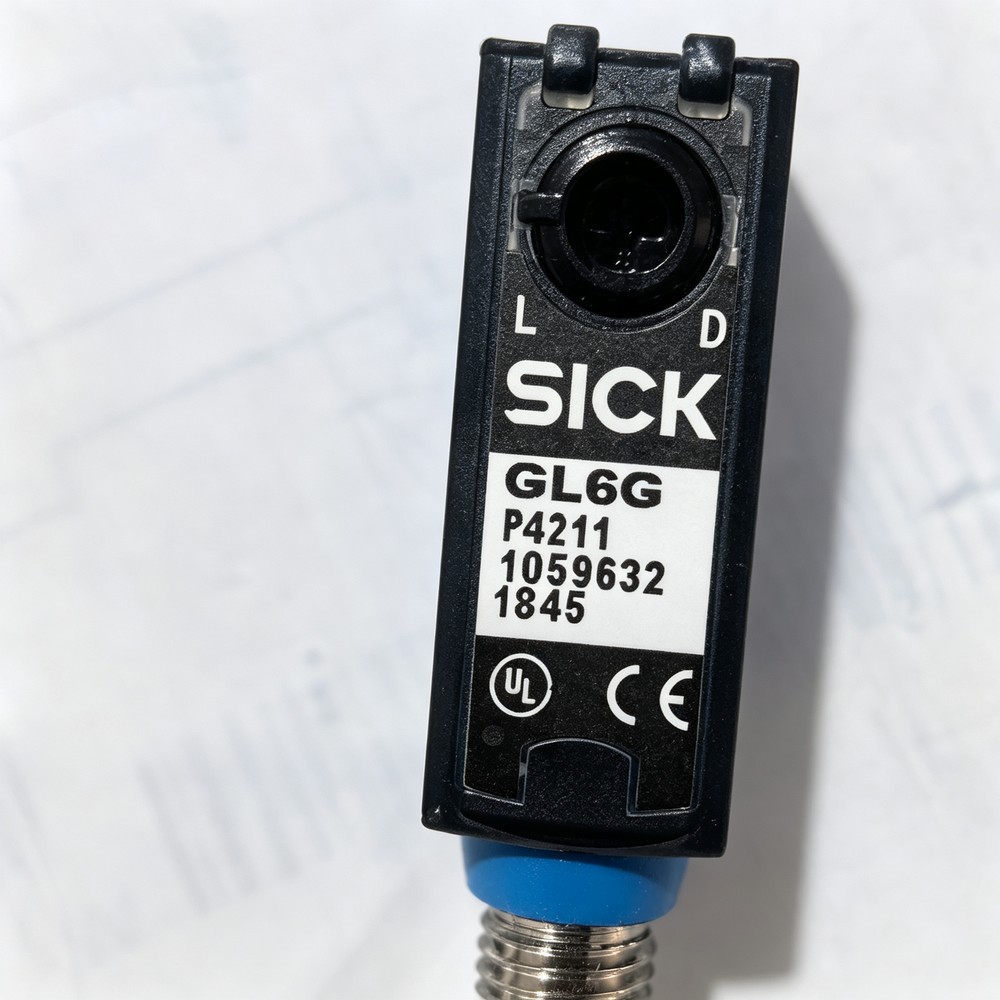

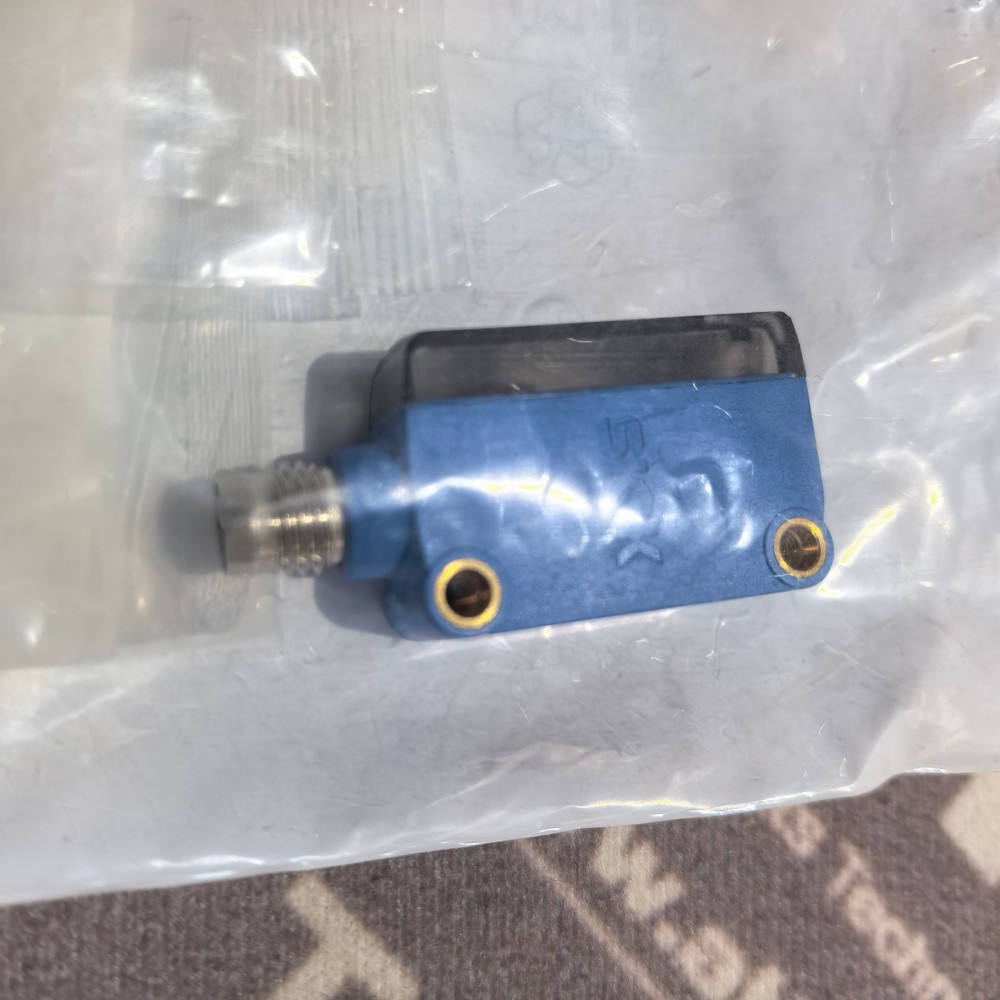

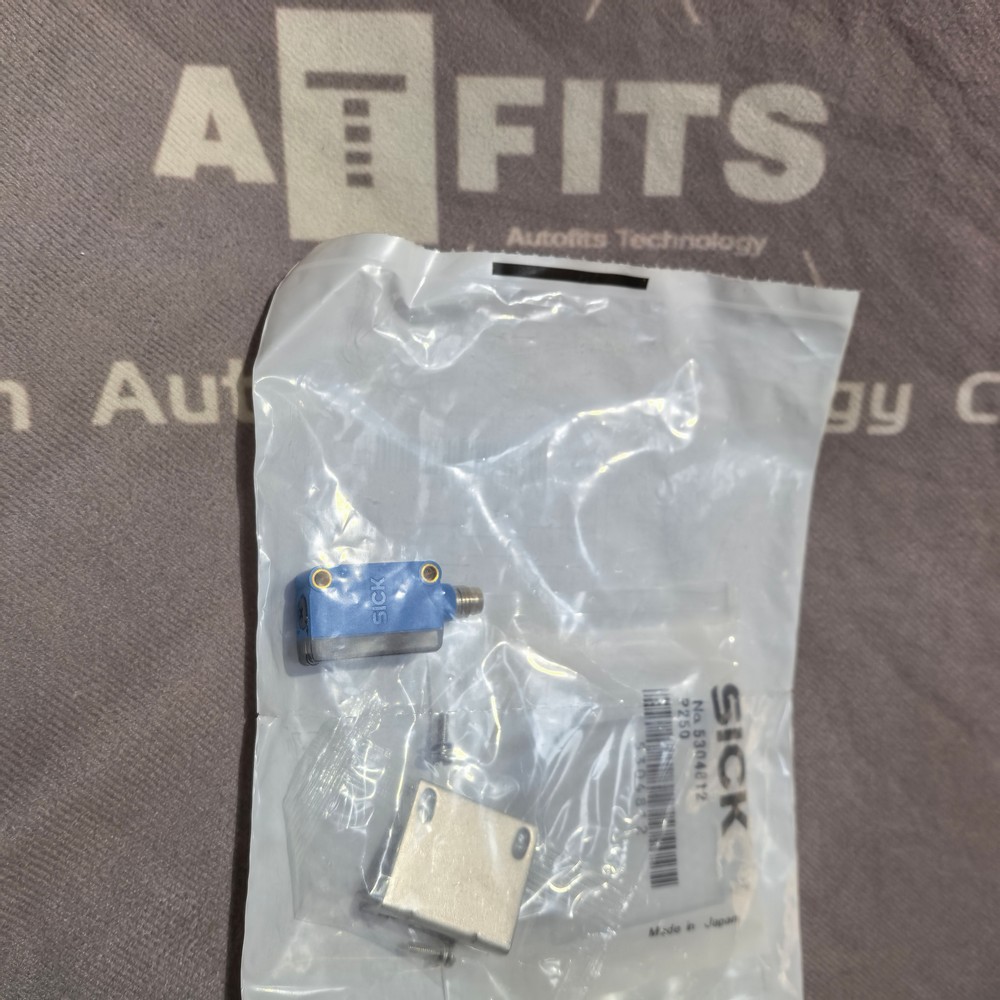

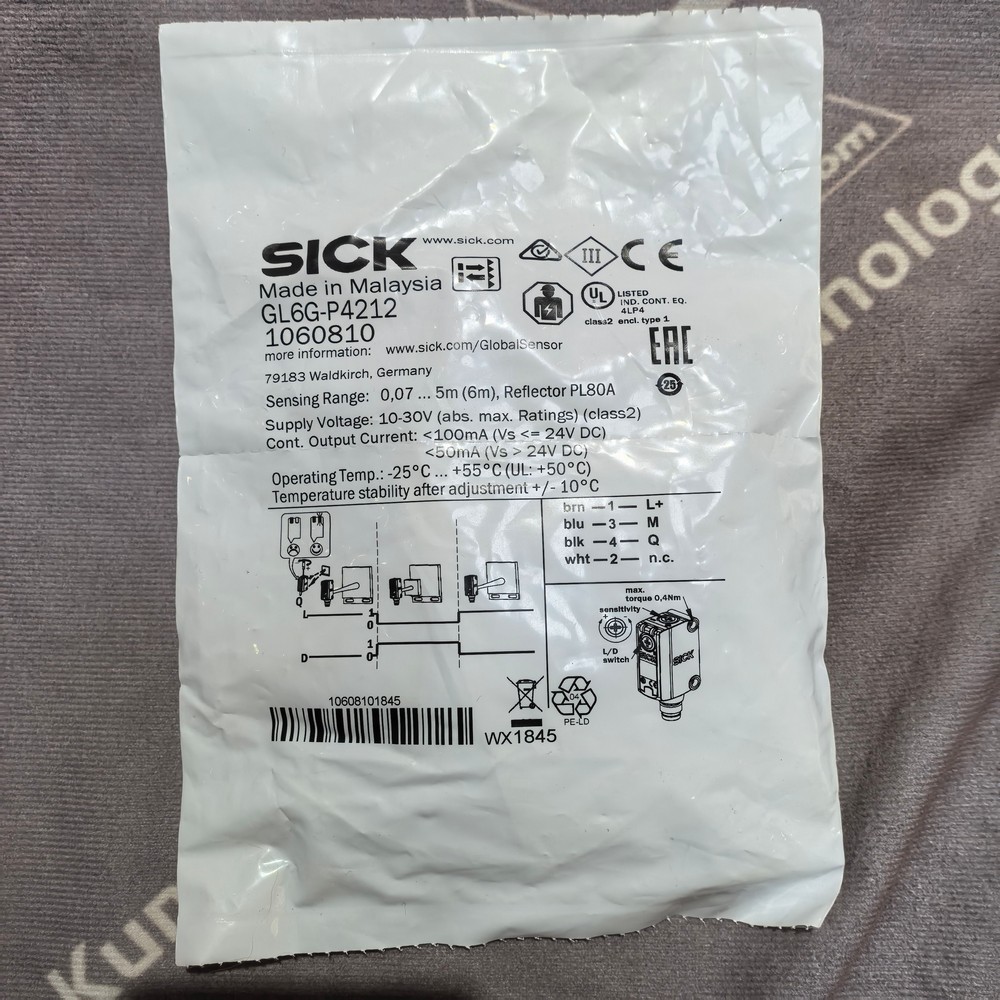

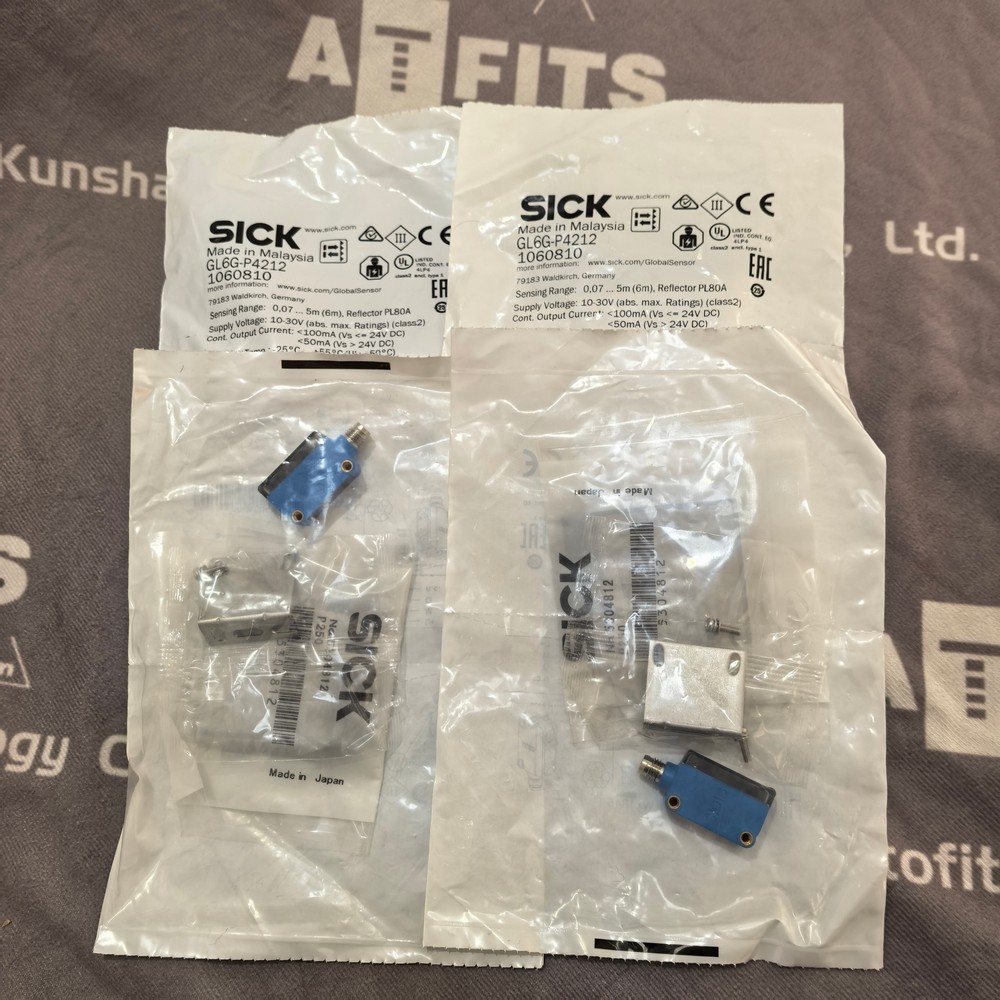

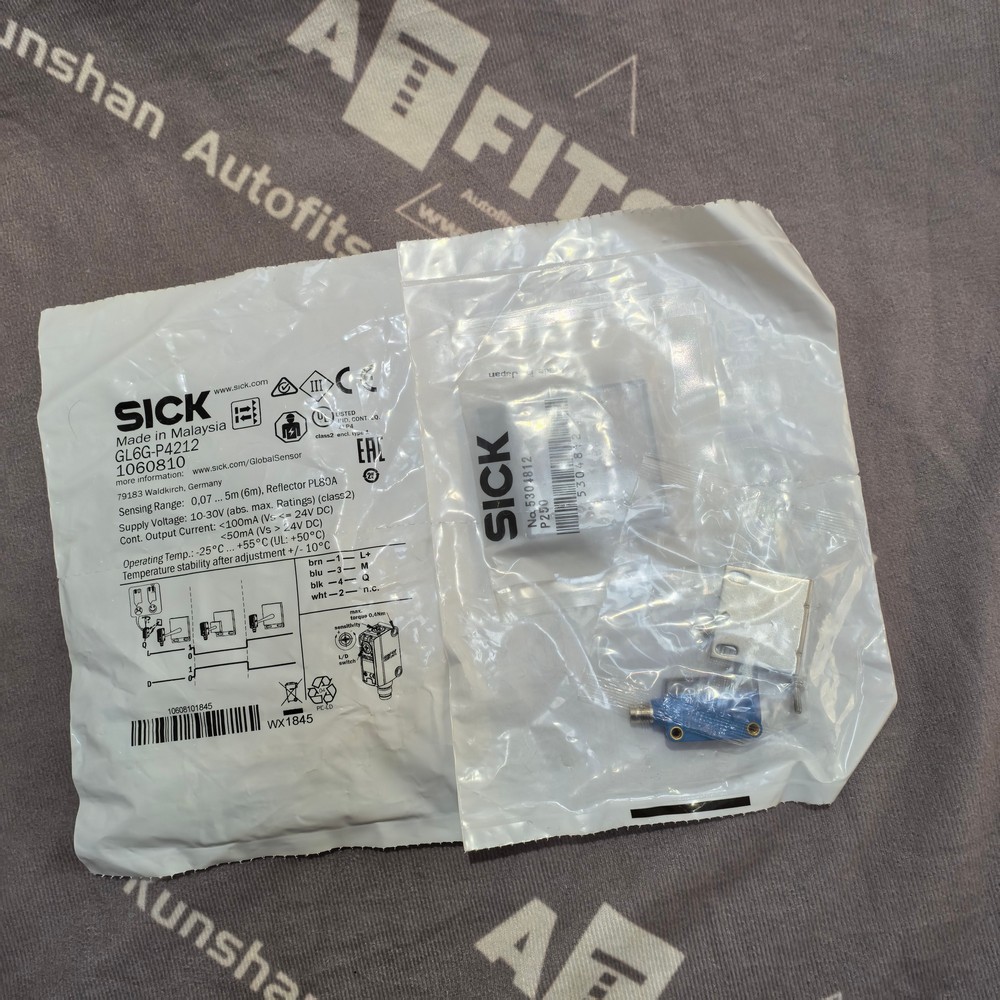

New Original SICK 1060810 GL6G-P4212 Industrial Retroreflective Photoelectric Detection Sensor
"*" indicates required fields
New Original SICK 1060810 GL6G-P4212 Industrial Retroreflective Photoelectric Detection Sensor
Product Overview
GL6G-P4212 with order number 1060810 belongs to SICK G6 compact miniature photoelectric sensor family. It is a polarization-type retroreflective sensor designed for industrial presence detection. Equipped with PinPoint focused red LED and integrated polarization filter, this sensor requires a matching reflector to form an optical detection path. It performs stable detection of opaque objects, glossy metal surfaces and transparent packaging materials including PET bottles and plastic films. The unit adopts PNP output, supports switchable Light-ON / Dark-ON operation mode, and is equipped with a rotary potentiometer for sensitivity adjustment. With IP67 sealed housing, built-in multi-circuit protection and M8 plug connection, the sensor is widely used in automated assembly machines, packaging equipment, logistics conveyor systems, electronic production lines and food processing machinery for workpiece counting, position limit and material monitoring. The product complies with CE, UL and RoHS international standards for global industrial automation applications.
Main Technical Specifications
| Parameter Item | Detailed Specification |
|---|---|
| Model | GL6G-P4212 |
| Order Code | 1060810 |
| Detection Principle | Retroreflective sensor with polarization filter |
| Light Source | PinPoint visible red LED, 650 nm wavelength |
| Operating Sensing Range | 0.07 m to 5 m; Maximum range 6 m (with standard PL80A reflector) |
| Supply Voltage | DC 10 V ~ 30 V (±10% ripple tolerance) |
| No-load Current Consumption | ≤ 30 mA |
| Output Type | PNP open collector output, maximum load current 100 mA |
| Operation Mode | Light-ON / Dark-ON configurable via side switch |
| Response Time | ≤ 625 μs |
| Maximum Switching Frequency | 1000 Hz |
| Adjustment Method | 270° rotary potentiometer for sensitivity tuning |
| Built-in Protection | Reverse polarity protection, short-circuit protection, overload protection |
| Protection Class | IP67 |
| Connection Type | M8, 4-pin male connector |
| Operating Ambient Temperature | -25 ℃ ~ +55 ℃ |
| Storage Temperature | -40 ℃ ~ +70 ℃ |
| LED Service Life | 100,000 hours at 25 ℃ environment |
| Certifications | CE, UL, RoHS |
Overall Dimensions & Net Weight
| Dimension & Weight Parameter | Exact Data |
|---|---|
| Outer Dimensions | 12 mm (Width) × 31.5 mm (Height) × 21 mm (Depth) |
| Mounting Structure | Internal M3 threaded inserts for bracket installation |
| Single Sensor Net Weight | 21 g |
| Packaged Gross Weight | Approximately 29 g |
| Housing Material | PC/ABS engineering plastic |
| Optical Window Material | Scratch-resistant PMMA |
Primary Main Functions
- Multi-type Object Detection: Reliably detect opaque workpieces, shiny metal parts, transparent plastic films and glass containers which are difficult for ordinary photoelectric sensors.
- High-speed Signal Triggering: Support high-frequency switching up to 1000 Hz, suitable for high-speed conveyor counting and dynamic position detection.
- Configurable Output Logic: Users can switch Light-ON or Dark-ON mode flexibly to match different PLC input logic requirements.
- Adjustable Detection Sensitivity: Rotary potentiometer realizes fine sensitivity adjustment to adapt to different detection distances and dusty workshop environments.
- Circuit Fault Self-protection: Prevent component damage caused by reverse wiring, output short circuit and overload current.
- Visual Status Feedback: Built-in LED indicators display power status, light receiving signal and output action state for convenient on-site debugging.
- Dust and Splash Resistance: IP67 sealing structure avoids damage from dust, water splashes and light oil mist in production workshops.
- Anti-interference Stable Operation: Dedicated ASIC chip reduces mutual interference between adjacent sensors and electromagnetic interference from servo motors and inverters.
Key Technical Features
- Ultra-slim 12 mm compact housing fits narrow installation space inside automation fixtures and compact mechanical frames.
- PinPoint focused light spot achieves precise optical alignment and effectively reduces false triggering caused by uneven workpiece surfaces.
- Polarization optical filter eliminates reflection interference from glossy metal surfaces, greatly improving detection stability.
- Built-in metal M3 thread inserts enhance vibration resistance, preventing loosening under long-term equipment operation.
- Wide DC voltage input adapts to voltage fluctuation of industrial power supply without signal abnormality.
- Standard M8 pluggable connector enables fast wiring and rapid replacement during maintenance.
- Optimized internal circuit structure ensures long-term continuous cyclic operation with low failure rate.
- Unified mechanical size of SICK G6 series supports interchangeable installation of different sensor types for equipment upgrade.
List of 10 SICK Similar Functional Products
- GL6G-N4212: NPN output retroreflective sensor, matching NPN control system
- GL6G-P4211: Basic version retroreflective sensor with different indicator layout
- GL6-P1212: Fixed cable type retroreflective sensor without M8 connector
- GTE6-P4211: General diffuse reflection photoelectric sensor for short-distance detection
- GTB6-P4241: Background suppression sensor for detecting objects with complex background
- GSE6-P4211: Through-beam sensor for long-distance high-precision detection
- GL6G-P4215: Long-range retroreflective sensor with maximum 8 m detection distance
- GL6G-P1211: Economical retroreflective sensor without transparent object detection function
- WT2S-P130: Miniature compact retroreflective sensor for limited installation space
- GL6G-P4212-HT: High-temperature resistant model for thermal processing production environment
