New Original SICK 1064923 GRTE18-P2417 M18 Diffuse Reflection Photoelectric Switch
Product Overview
GRTE18-P2417, Order No.1064923, belongs to the SICK GR18 series cylindrical energetic diffuse reflection photoelectric sensor. It adopts PinPoint visible red LED light source and axial optical layout with standard M18 threaded cylindrical housing. This energetic diffuse sensor realizes non-contact object detection by receiving reflected light from target surfaces without separate reflector accessories. Equipped with PNP switching output, switchable Light-ON/Dark-ON logic and 270° sensitivity adjustment potentiometer, it features IP67 waterproof and dustproof grade, built-in multiple circuit protection and M12 4-pin plug connection. Two fixing nuts are supplied together for convenient installation. Widely used in automated assembly machines, packaging equipment, logistics conveyor systems, plastic processing machinery and electronic production lines for workpiece presence detection, position limit triggering and part counting. The product complies with CE, UL and RoHS standards for global industrial automation applications.
Main Technical Specifications
| Parameter Item | Detailed Specification |
|---|---|
| Full Model | GRTE18-P2417 |
| Order Number | 1064923 |
| Detection Principle | Energetic Diffuse Reflection |
| Light Source | PinPoint Visible Red LED, wavelength 650 nm |
| Standard Sensing Range | 5 mm ~ 100 mm; Maximum range 3 mm ~ 115 mm |
| Light Spot Size | Ø 8 mm at 100 mm detection distance |
| Power Supply | DC 10 V ~ 30 V, ripple tolerance ±10% |
| No-load Current Consumption | ≤ 35 mA |
| Output Type | PNP open collector, maximum load current 100 mA |
| Switching Mode | Light-ON / Dark-ON configurable |
| Response Time | ＜ 1,000 μs |
| Maximum Switching Frequency | 500 Hz |
| Adjustment Mode | 270° rotary potentiometer for sensitivity tuning |
| Built-in Protection | Reverse polarity protection, short-circuit protection, overload protection |
| Protection Class | IP67 |
| Connection Type | M12, 4-pin male connector |
| Operating Ambient Temperature | -25 ℃ ~ +55 ℃ |
| Storage Temperature | -40 ℃ ~ +70 ℃ |
| Housing Material | ABS plastic |
| Optical Window Material | PMMA anti-scratch plastic |

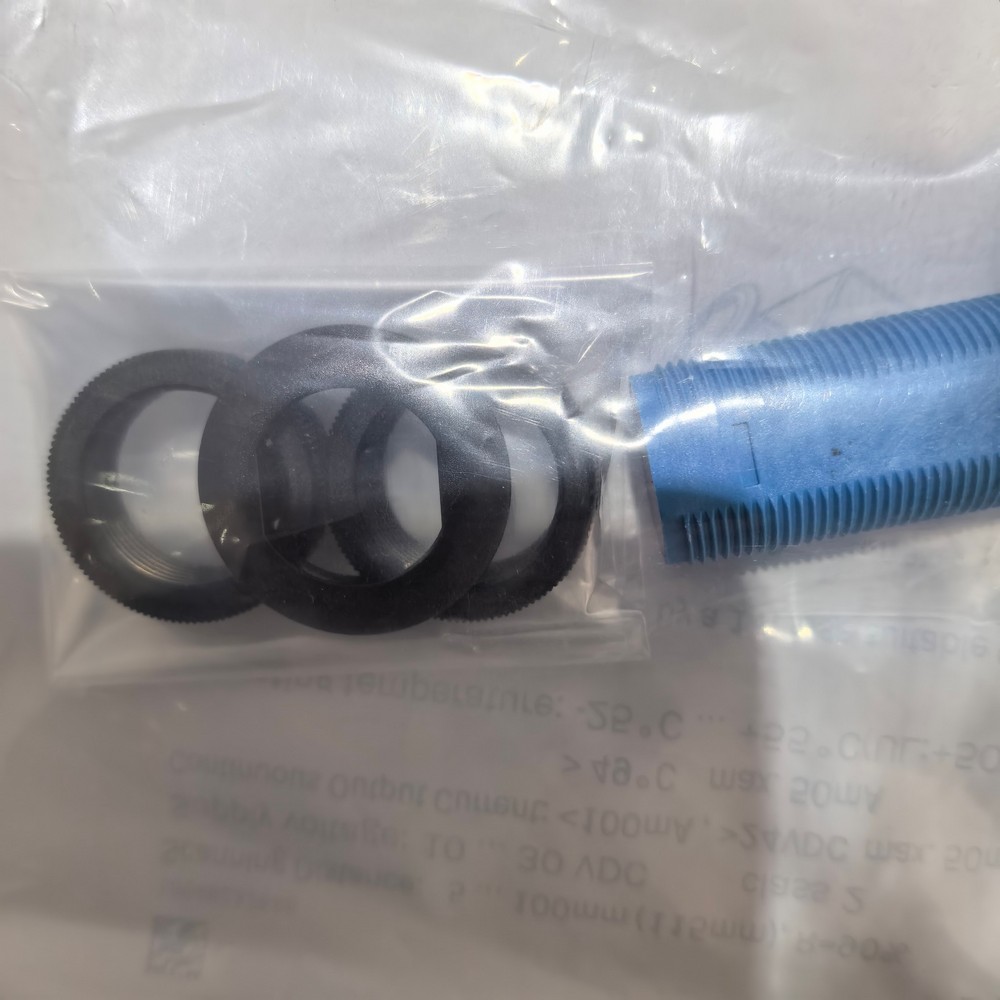

| Included Accessories | 2 sets of mounting nuts |
| Certifications | CE, UL, RoHS |
Overall Dimensions & Net WeighT
| Dimension & Weight Parameter | Exact Data |
|---|---|
| Body Dimensions | Diameter 18 mm × Length 71.5 mm |
| Thread Specification | M18 × 1 cylindrical thread |
| Optical Axis Direction | Axial (front emission) |
| Single Unit Net Weight | 42 g |
| Packaged Gross Weight | Approximately 55 g |
| Mounting Method | Thread installation with lock nuts or external mounting brackets |
Primary Main Functions
- Non-contact Object Presence Detection: Detect various solid objects including metal, plastic, carton and workpieces by receiving diffuse reflected light from target surfaces.
- Configurable Output Logic: Freely switch Light-ON or Dark-ON mode to match different PLC input logic requirements on site.
- Adjustable Detection Sensitivity: Rotary potentiometer enables flexible sensing distance setting according to actual installation environment and target reflectivity.
- High-speed Signal Triggering: Support up to 500 Hz switching frequency, suitable for dynamic counting and continuous position detection on conveyor lines.
- Built-in Circuit Self-protection: Avoid sensor damage caused by reverse wiring, output short circuit and overload current.
- Visual Status Diagnosis: Green LED indicates power supply status; yellow LED displays light receiving and output action state for fast debugging and troubleshooting.
- Adaptation to General Industrial Environments: IP67 sealed housing resists dust, water splashes and light oil mist inside production workshops.
- Stable Anti-interference Performance: Optimized internal ASIC circuit suppresses electromagnetic interference from inverters, servo motors and solenoid valves.
Key Technical Features
- Standard M18 cylindrical threaded housing, universal installation size compatible with most standard sensor brackets in automation industry.
- PinPoint focused tiny light spot improves positioning accuracy and reduces false detection caused by uneven workpiece surfaces.
- Axial optical design suits front-facing detection installation scenarios, easy layout for narrow mechanical structures.
- Compact integrated structure with pluggable M12 connector supports fast wiring and rapid replacement during maintenance.
- Wide DC voltage input range adapts to voltage fluctuation of industrial power grid without abnormal signal or reset.
- Robust ABS housing delivers excellent vibration resistance for long-term continuous operation of production equipment.
- No reflector required compared with retroreflective sensors, simplifying mechanical installation layout and reducing accessory costs.
- Unified GR18 series mechanical dimensions support interchange between different sensing principle models for equipment upgrading.
List of 10 Similar Functional SICK Photoelectric Sensors
- GRTE18-N2417: NPN output energetic diffuse sensor for NPN control systems
- GRTE18-P1117: Cable outgoing version without M12 plug for fixed wiring installation
- GRTE18S-P2417: Short body compact M18 diffuse sensor for limited installation space
- GRTB18-P2417: M18 background suppression diffuse sensor for complex background occasions
- GRSE18-P2417: M18 through-beam photoelectric sensor for long-distance high-reliability detection
- GRTE18-P2447: Extended range energetic diffuse sensor with maximum 500 mm sensing distance
- GL18-P2417: M18 polarized retroreflective sensor equipped with reflector
- GRTE18-P2417-HT: High-temperature resistant variant for thermal processing workshops
- WT18-2P430: WT18 series M18 diffuse reflection sensor with alternative circuit design
- GRTE18-P2442: Wide-range adjustable diffuse sensor for variable-distance detection requirements
