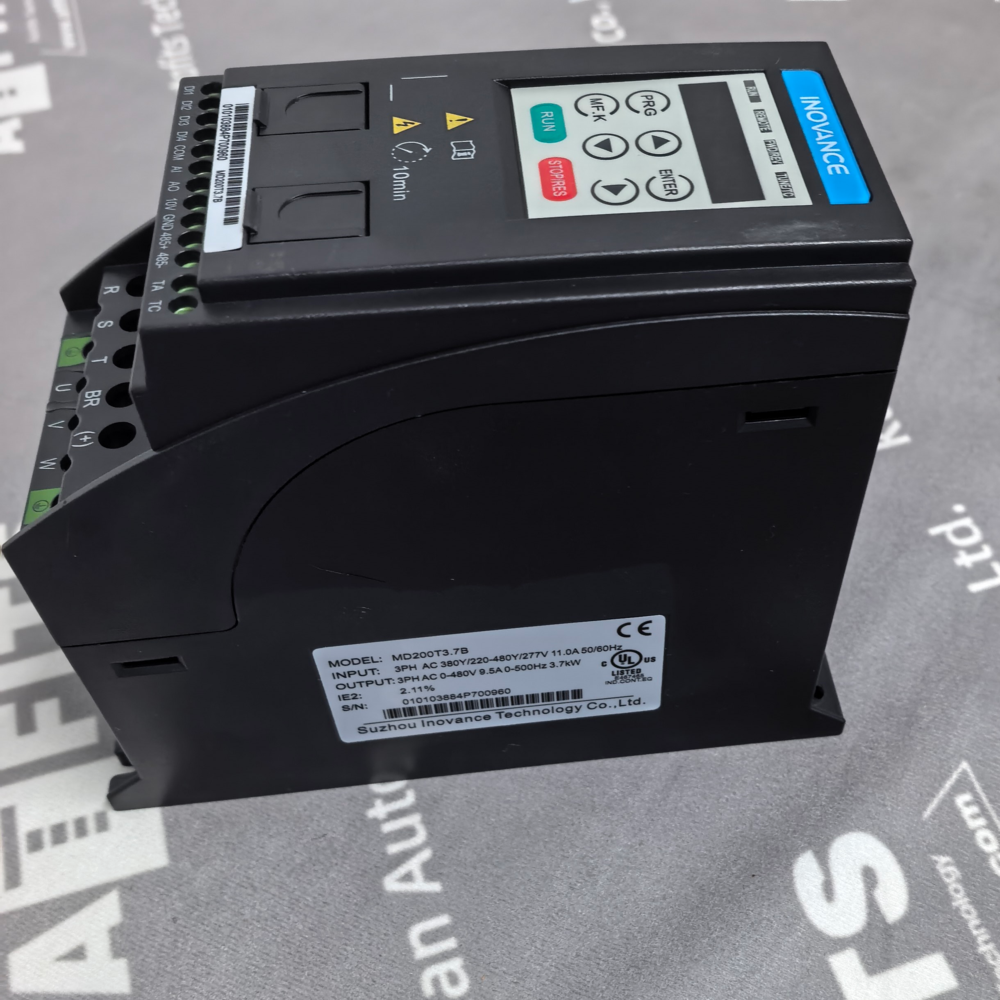

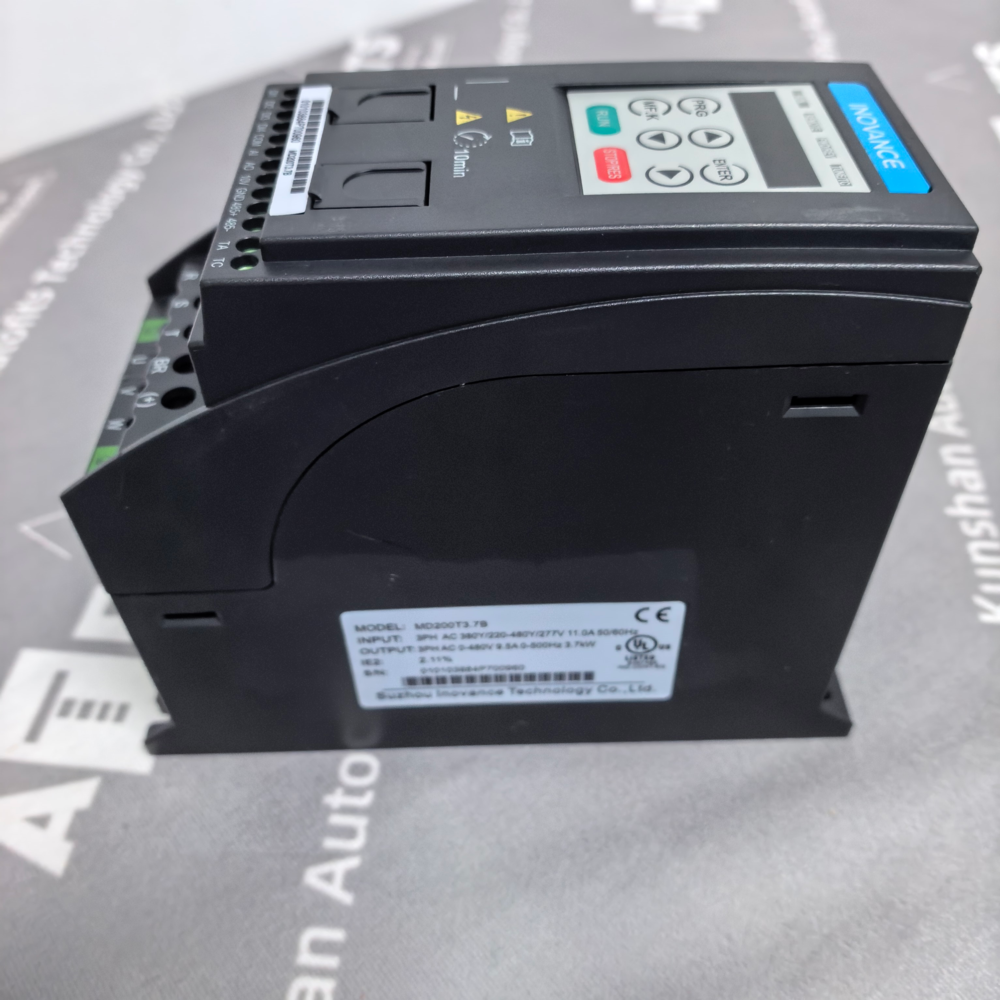

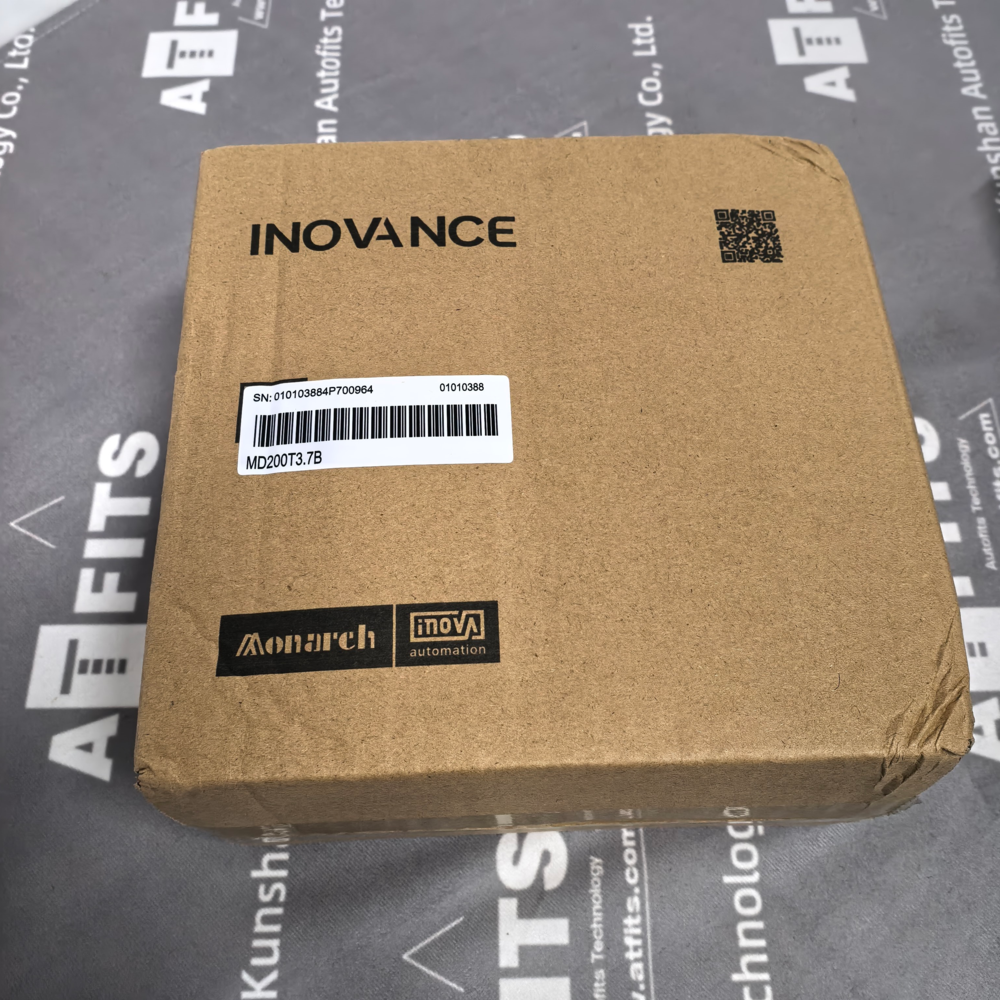

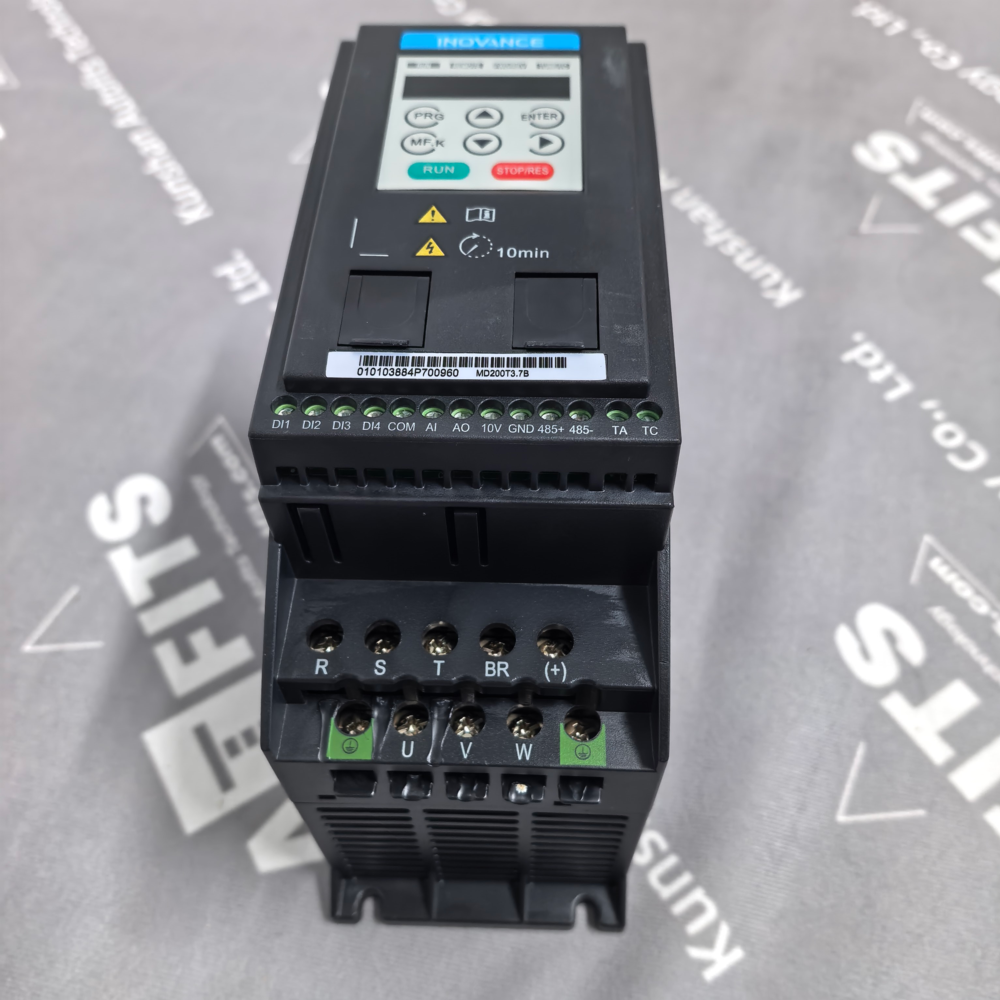

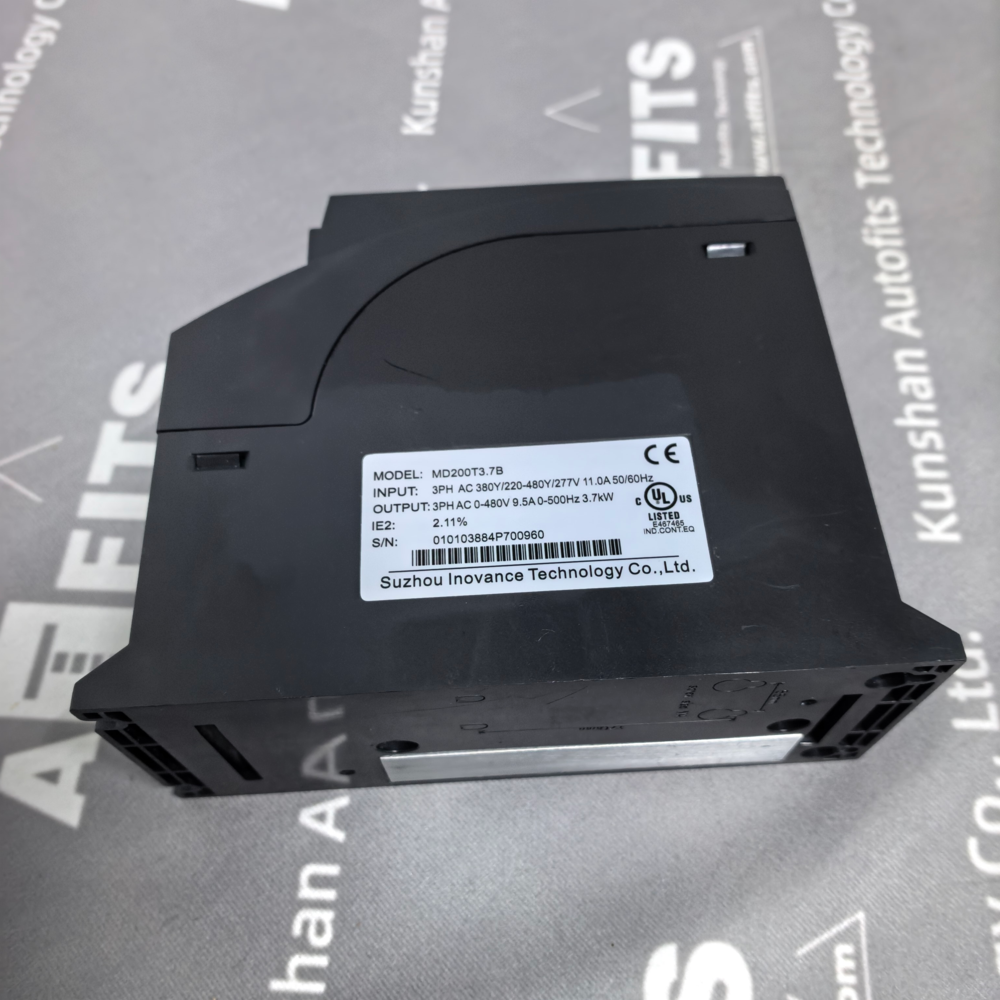

New Original Inovance MD200T3.7B MD200 Series Compact VFD
1. Product Overview
The Inovance MD200T3.7B belongs to the MD200 compact general-purpose variable frequency drive (VFD) series. It is a three-phase 3.7 kW low-cost AC drive designed for asynchronous motor speed regulation. Supporting both V/F control and sensorless vector control (SVC), this compact unit adopts high power density book-style housing and built-in EMC filter. It is widely deployed in packaging machinery, material conveying equipment, woodworking machines, fans, pumps and small automated production lines. The supplied unit is brand-new original genuine Inovance product.
2. Main Technical Specifications
| Item | Parameter |
|---|---|
| Model | MD200T3.7B |
| Series | MD200 Compact General-purpose VFD |
| Rated Power | 3.7 kW |
| Input Power | 3 Phase 380 ~ 480 VAC, 50/60 Hz |
| Rated Input Current | 11 A |
| Rated Output Current | 9.5 A |
| Control Mode | V/F Control, Sensorless Vector Control (SVC) |
| Max Output Frequency | 599 Hz |
| Overload Capacity | 150% rated current for 60 s; 180% for 3 s |
| Communication | Standard Modbus RTU; CANlink optional |
| I/O Terminals | Multi-programmable DI, DO, relay output, analog input/output |
| Braking Function | Built-in dynamic braking unit |
| Mounting Method | Vertical DIN rail / panel mounting |
| Overall Dimension (W × H × D) | 75 mm × 180 mm × 145 mm |
| Net Weight | Approx. 1.1 kg |
| Operating Temperature | -10 °C ~ +50 °C |
| Compliance | CE, RoHS, EMC Class C3 |
3. Main Functions
- Realize stepless speed regulation of three-phase asynchronous motors by adjusting output frequency and voltage.
- Sensorless vector control delivers high starting torque at low speed for stable motor startup.
- Multiple preset acceleration/deceleration ramps reduce mechanical impact during startup and shutdown.
- Built-in multi-segment speed function enables automatic cyclic speed switching for process automation.
- DC injection braking and dynamic braking support fast motor stop for positioning applications.
- Comprehensive fault protection including overcurrent, overvoltage, overload, overheat and phase loss protection.
- Modbus RTU communication supports networking with PLC and HMI for centralized system monitoring.
4. Technical Features
- Ultra-compact book-shaped structure saves cabinet space and supports side-by-side dense installation.
- High starting torque output ensures reliable operation under low-speed heavy-load conditions.
- Built-in EMC filter suppresses electromagnetic interference and simplifies wiring layout.
- Simplified parameter group facilitates quick commissioning for OEM equipment manufacturers.
- Multiple industry macro functions support one-click parameter setup for different machinery applications.
- Flexible programmable digital and analog terminals adapt to diverse external signal control modes.

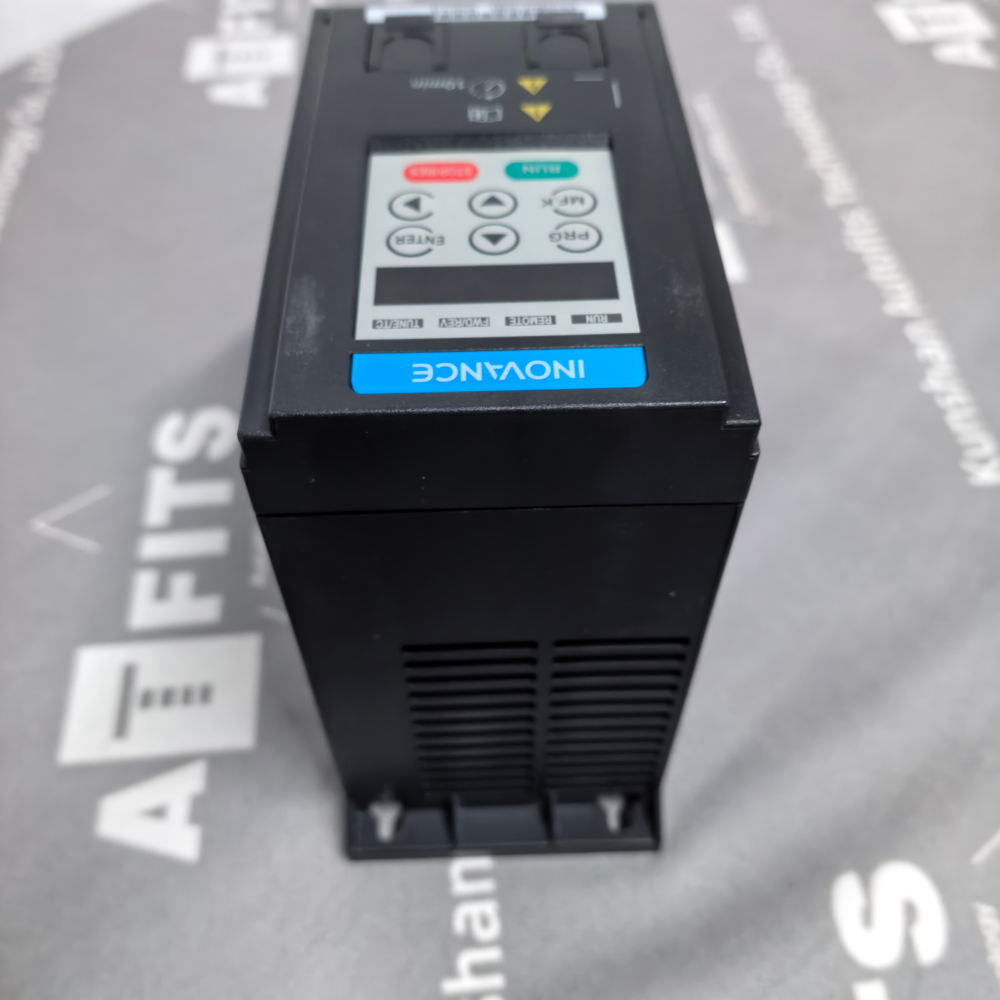

- Clear LED keypad panel supports local frequency setting, status monitoring and fault inquiry.
- Good thermal design and detachable dust filter extend service life under dusty workshop environments.
- Wide input voltage tolerance adapts to unstable power supply conditions on site.
- Cost-effective design suitable for low and medium power general automation driving scenarios.
5. 10 Inovance Similar Compact VFD Products
- MD200T0.4B, MD200 series 0.4 kW three-phase compact VFD
- MD200T0.75B, MD200 series 0.75 kW three-phase frequency inverter
- MD200T1.5B, MD200 series 1.5 kW three-phase compact VFD
- MD200T2.2B, MD200 series 2.2 kW three-phase general-purpose drive
- MD200S0.4B, single-phase 220V 0.4 kW MD200 series inverter
- MD200S1.5B, single-phase 220V 1.5 kW compact VFD
- MD290T3.7B, upgraded MD290 series 3.7 kW general-purpose AC drive
- MD605T3.7B, new generation compact VFD alternative for MD200 series
- MD200T3.7B-NC, MD200 variant with switchable NPN/PNP digital input
- MD310T3.7B, high-performance open-loop vector drive for heavy-duty applications
