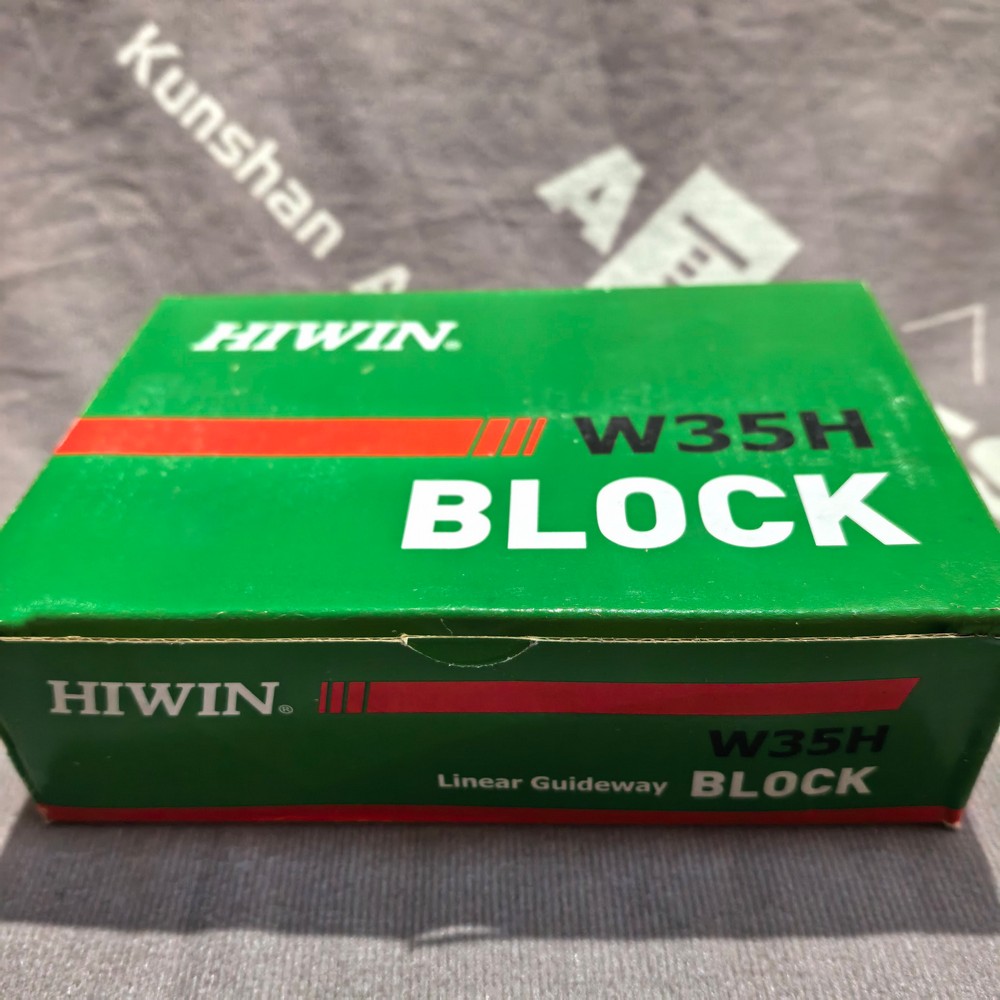

New Original HIWIN W35H HGW35HC Flange Linear Bearing Block
"*" indicates required fields

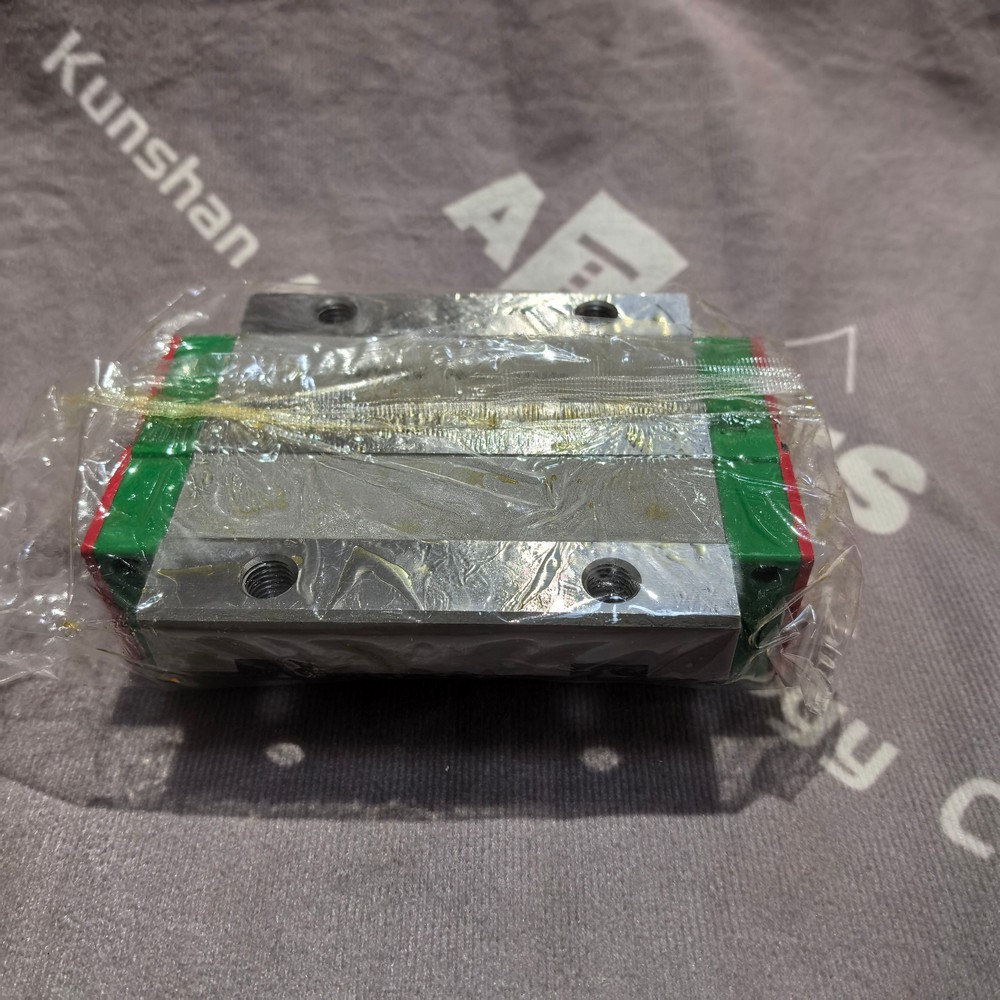

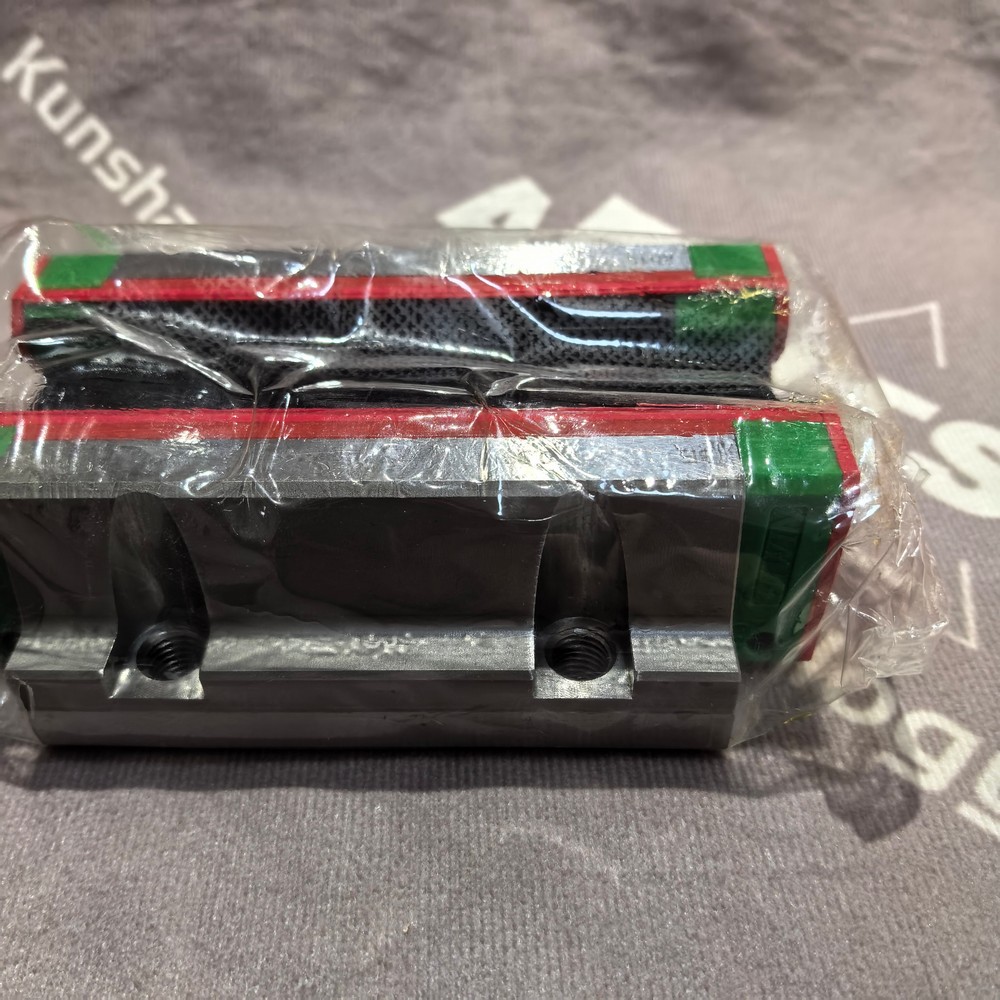

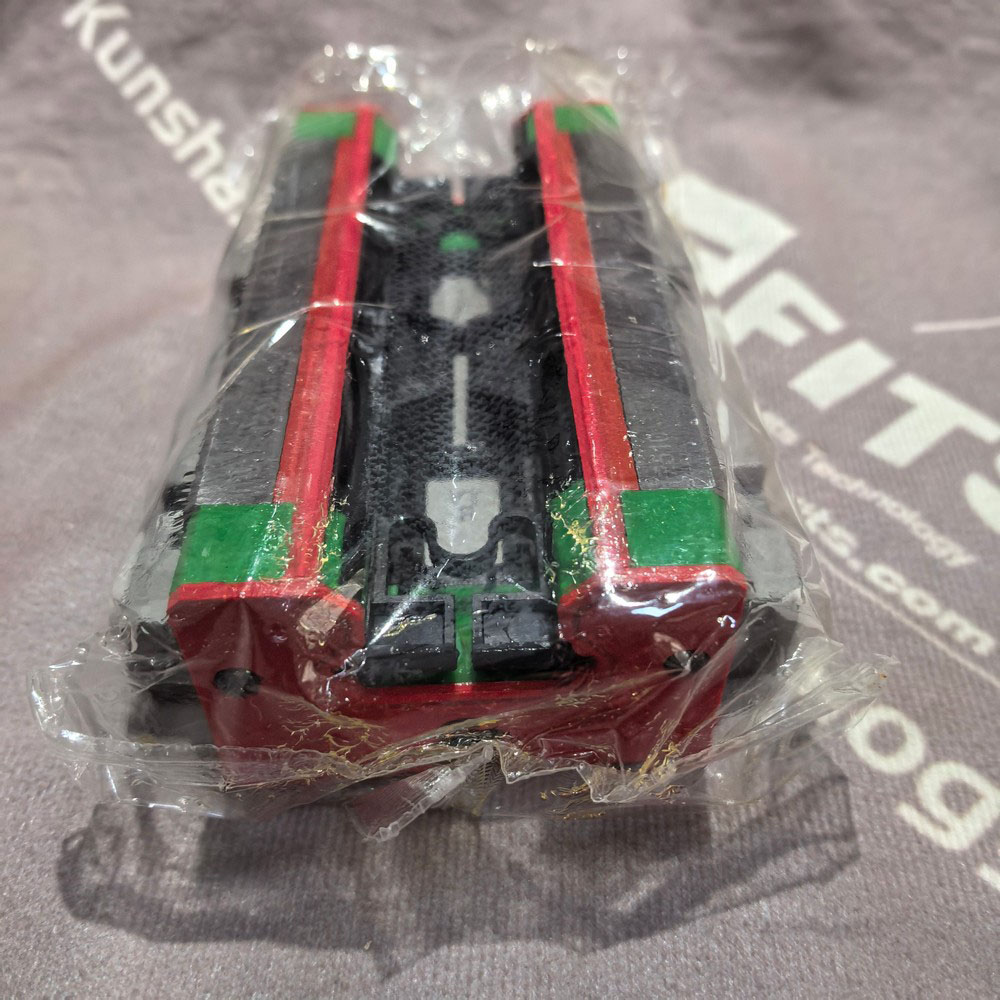

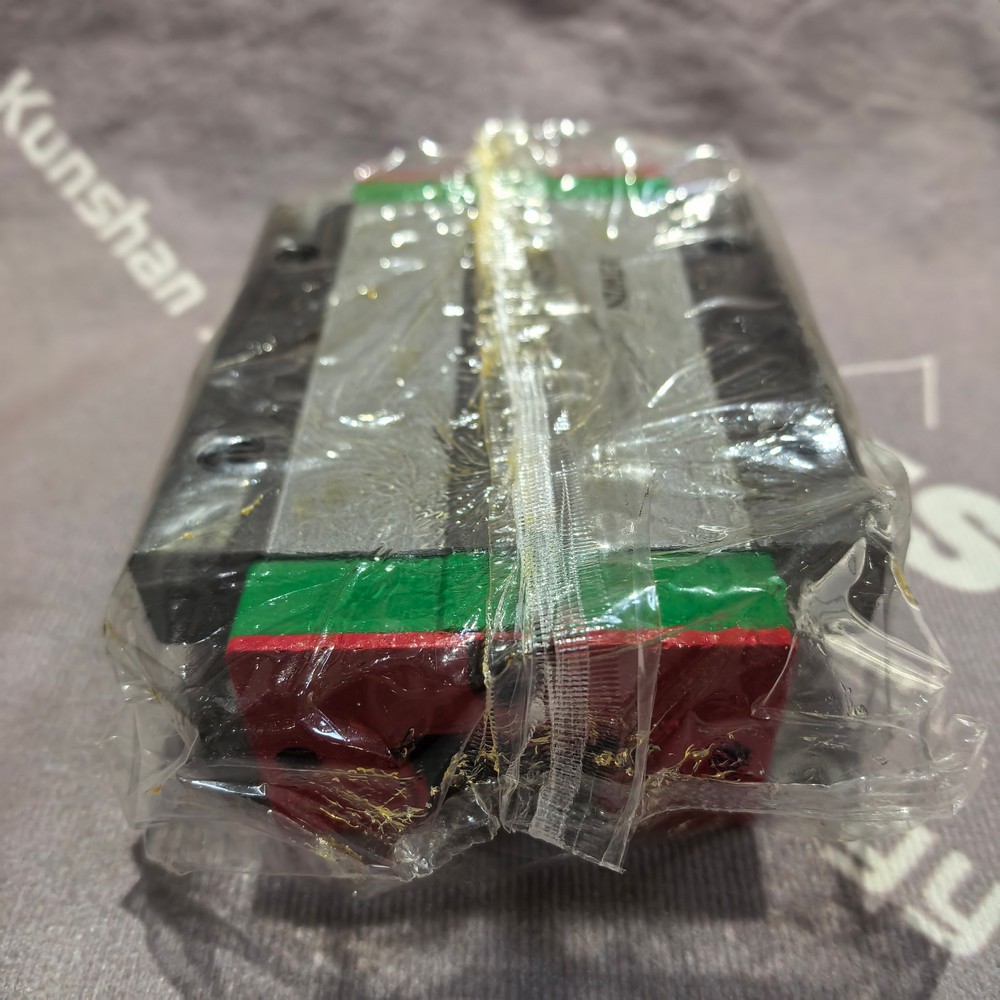

New Original HIWIN HGW35HC Flange Linear Guide Block
1. Product Overview
The HIWIN HGW35HC is a flange-type linear guide block belonging to the HG heavy-load linear guide series. It matches the HGR35 linear guide rail and adopts a four-row circular arc ball circulation structure. The wide flange mounting surface facilitates horizontal installation and offers excellent moment load capacity. This rolling linear guide block delivers high rigidity, high precision and low friction linear motion. Widely used in CNC machine tools, automation production equipment, laser processing machinery, injection molding machines and large precision automation platforms. The supplied unit is brand-new original genuine HIWIN product manufactured in Taiwan, China.
2. Main Technical Specifications
| Item | Parameter |
|---|---|
| Model | HGW35HC |
| Series | HG Series Flange Linear Guide Carriage |
| Matched Rail Model | HGR35 |
| Rail Width | 35 mm |
| Dynamic Load Rating (C) | 33.8 kN |
| Static Load Rating (C₀) | 52.9 kN |
| Mounting Type | Flange through-hole mounting |
| Lubrication Interface | Standard grease fitting port |
| Sealing Structure | Standard front seal, side seal and bottom seal optional |
| Accuracy Class | C (Normal), H (High), P (Precision), SP, UP |
| Preload Grade | Z0, ZA, ZB optional |
| Material | High-carbon chromium bearing steel |
| Operating Temperature | -20 °C ~ +80 °C |
| Net Weight | Approx. 780 g |
| Compliance Standards | ISO 14728, RoHS |
3. Main Functions
- Cooperate with HGR35 guide rail to realize high-precision straight reciprocating movement of mechanical structures.
- Bear radial, horizontal and overturning moment loads simultaneously with strong multi-direction load capacity.
- Recirculating steel ball structure reduces rolling friction and lowers driving force requirements.
- Reserved lubrication port facilitates regular grease replenishment to maintain stable operation.
- Multi-layer sealing structure prevents dust, cutting fluid and debris from entering the ball circulation area.
- Flange installation design allows downward penetration of screws, suitable for limited vertical installation space.
- Support multiple carriages arranged on one rail to achieve stable synchronous movement of multi-point loads.
4. Technical Features
- Four-row circular arc contact structure achieves high rigidity and strong load-carrying performance.
- Flange wide base design improves mounting stability and anti-torsion capacity.
- Low rolling friction ensures smooth movement and effectively avoids low-speed crawling phenomenon.
- Multiple accuracy grades and preload options satisfy different precision machining and automation demands.
- Standardized lubrication system extends service life under continuous cyclic operation.
- Interchangeable design allows convenient disassembly, maintenance and part replacement.
- High-hardness bearing steel body provides excellent wear resistance and impact resistance.
- Multiple sealing combinations can be selected according to dusty or liquid splashing working conditions.
- Compatible with various lubricants, applicable to dry or lubricated operating environments.
- Can be matched with customized length HGR35 rails to meet different travel stroke requirements.
5. 10 HIWIN Similar HG Series Linear Guide Blocks
- HGW15HC, HG series flange block matching HGR15 rail
- HGW20HC, HG series flange block matching HGR20 rail
- HGW25HC, HG series flange block matching HGR25 rail
- HGW30HC, HG series flange block matching HGR30 rail
- HGW45HC, HG series flange block matching HGR45 rail
- HGW55HC, HG series flange block matching HGR55 rail
- HGH35CA, square non-flange linear block matched with HGR35 rail
- HGW35HA, short-type flange carriage for compact installation space
- HGW35HC-ZA, HGW35HC variant with medium preload for high-precision equipment
- HGW35HC-QZ, enhanced dust-proof flange block for harsh workshop environments
