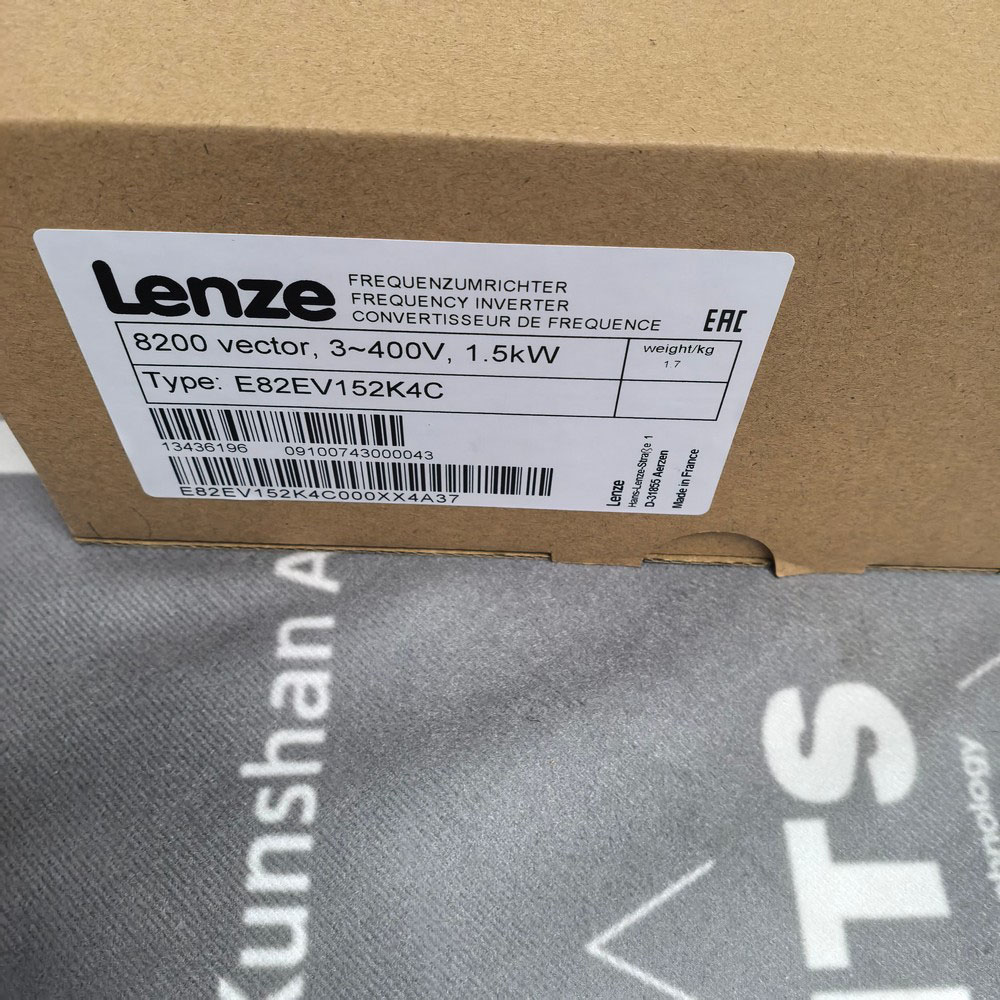

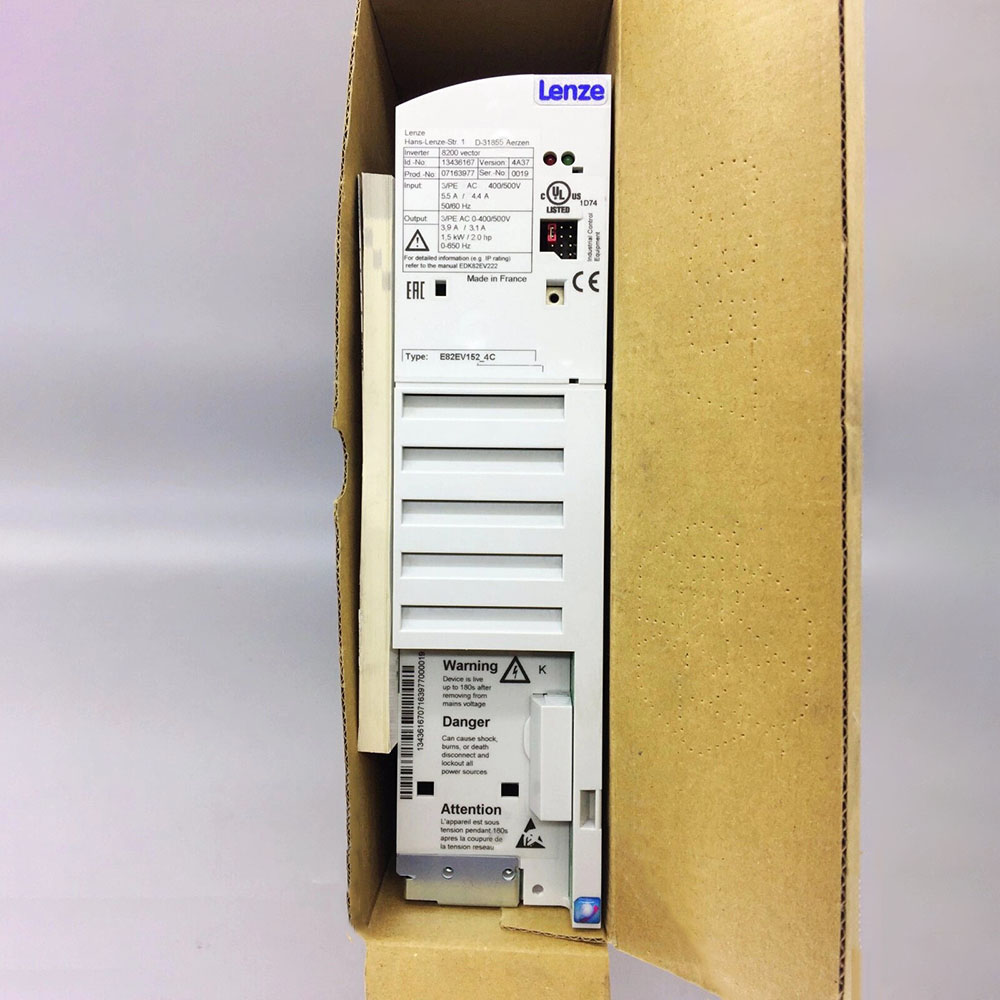

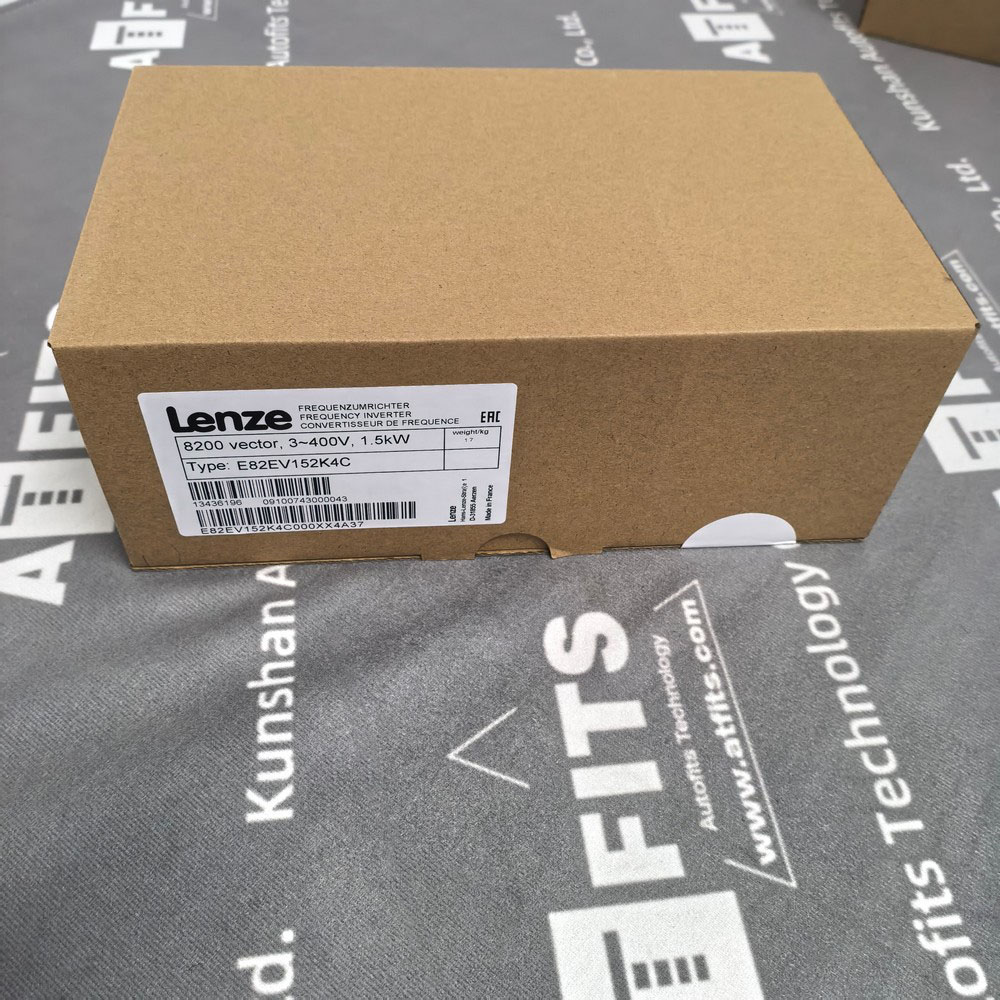

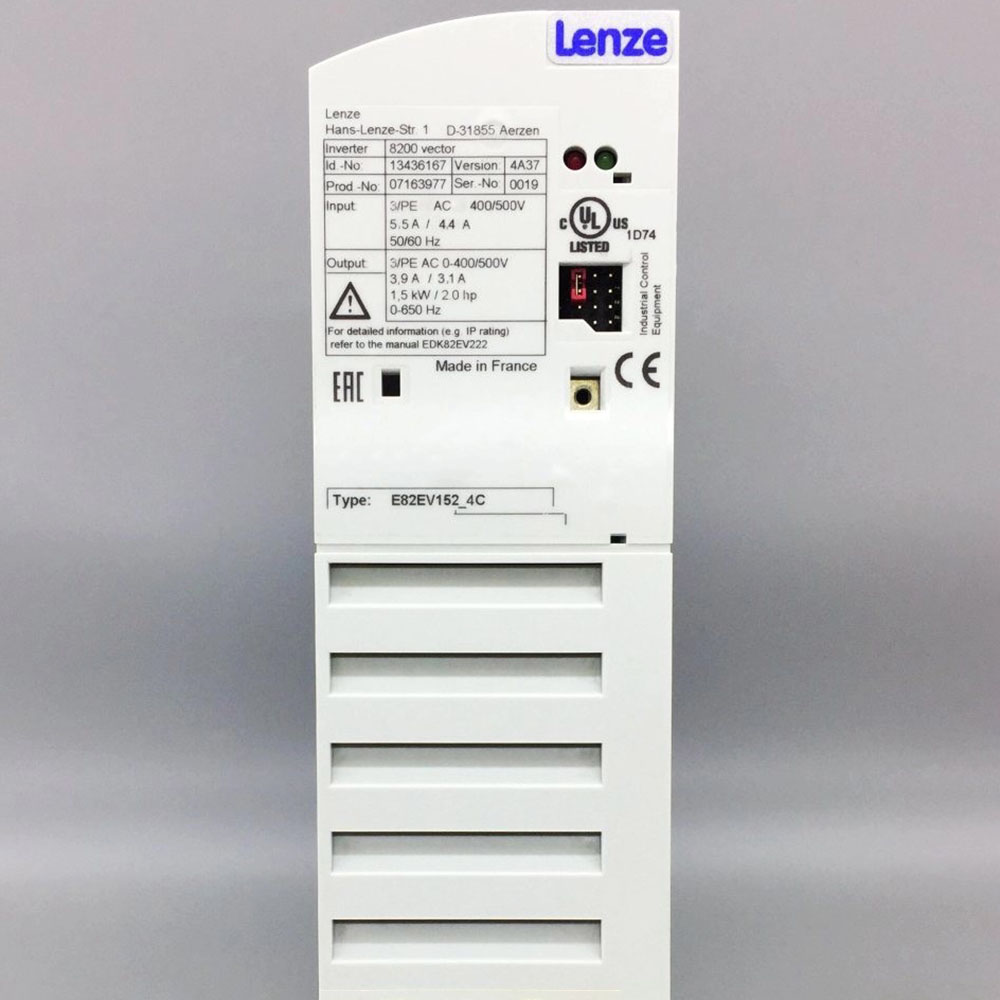

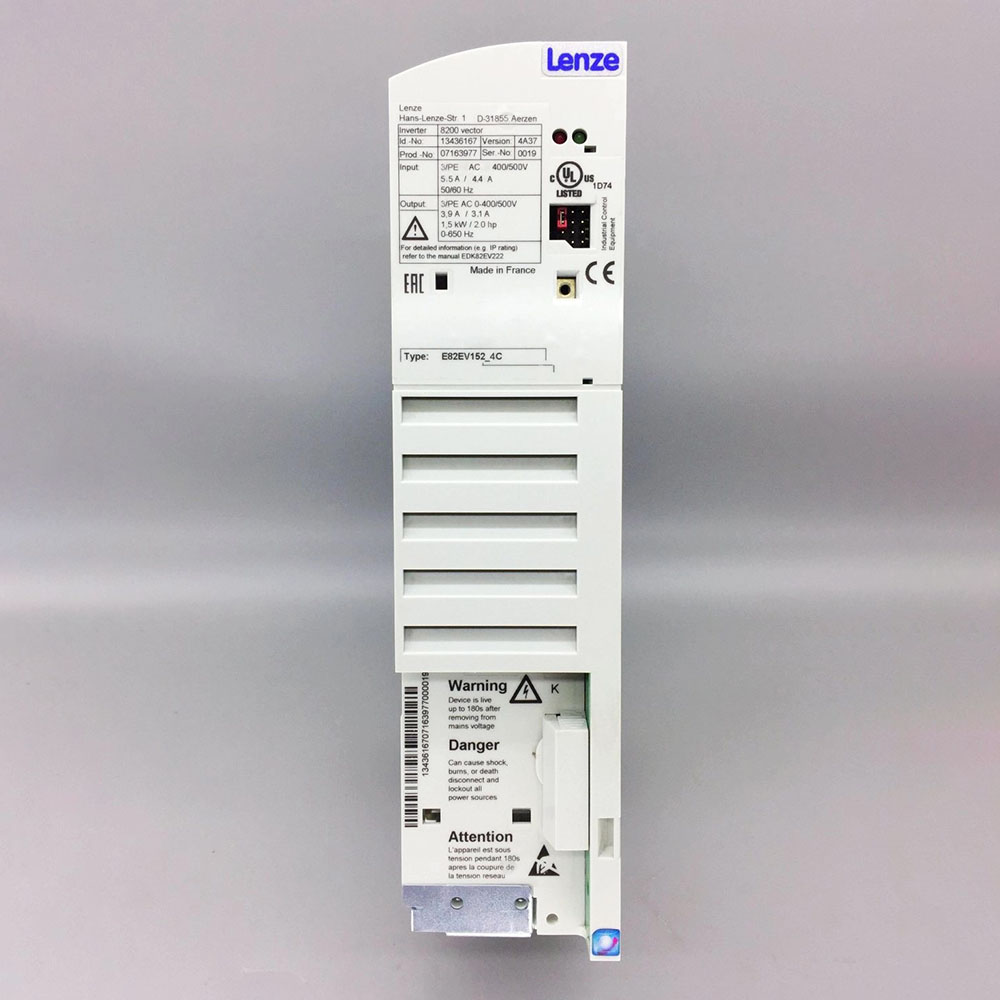

New Original Lenze E82EV152K4C 8200 Vector Frequency Inverter
1. Product Overview
E82EV152K4C is an original German-manufactured frequency inverter belonging to Lenze classic 8200 Vector series. It is a compact single-axis variable speed drive designed for three-phase asynchronous motors with rated power of 1.5 kW under 400 V grid. This unit supports both V/f control and sensorless vector control algorithms, delivering stable torque output at low speed without motor encoders.
Built with an integrated brake chopper, it handles frequent start-stop and deceleration load conditions. It adopts modular expansion architecture, compatible with optional operator panels, communication modules and I/O extension boards. Widely applied on conveyor systems, packaging machinery, pumps, fans, textile equipment and general automation OEM machines. The unit is designed for cabinet DIN rail installation, featuring robust anti-interference performance to adapt to various industrial workshop environments. This base version does not come with built-in mains filter and supports flexible peripheral configuration according to on-site EMC requirements.
2. Main Functions
- Multi-Mode Motor Speed Regulation Supports V/f characteristic control and sensorless vector control. Vector mode provides high starting torque at low speed to meet demanding dynamic load requirements. Output frequency range covers 0–650 Hz for standard and high-speed motor applications.
- Integrated Brake Chopper Function Internal brake transistor enables connection with external braking resistors to consume regenerative energy during rapid deceleration, avoiding overvoltage faults for lifting, conveying and reciprocating machinery.
- Comprehensive Multi-Level Protection Real-time monitoring triggers protective cutoff against overload, short circuit, overvoltage, undervoltage, overheating, motor phase loss and output earth faults. Fault codes are displayed for quick troubleshooting.
- Rich Digital & Analog I/O Interface Equipped with configurable digital inputs, relay outputs and analog signal terminals. It accepts 0–10 V and 4–20 mA external reference signals for speed setpoint and status signal exchange with PLC systems.
- Expandable Communication Function Optional plug-in communication modules support fieldbus protocols for centralized network control, realizing remote parameter modification, running status monitoring and fault feedback.
- Flexible Parameter Storage & Copy Function Parameter sets can be saved via external operating panels, supporting fast parameter copying for batch machine commissioning and reducing on-site debugging time.
- Adjustable Overload Capacity Supports 150% rated output current lasting 60 seconds to accommodate shock load and motor startup surge current.添加产品相册图片
3. Technical Characteristics
| Technical Parameter | Detailed Specification |
|---|---|
| Full Model | E82EV152K4C |
| Product Series | 8200 Vector Frequency Inverter |
| Rated Applicable Motor Power | 1.5 kW (3-Phase 400 V) |
| Rated Output Current | 3.9 A |
| Maximum Short-Time Output Current | 5.9 A |
| Input Power Supply | 3 × 320 … 550 V AC, 45–65 Hz |
| Alternative DC Supply Range | 450 V – 775 V DC |
| Control Mode | V/f Control, Sensorless Vector Control |
| Output Frequency Range | 0 Hz ~ 650 Hz |
| Built-in Brake Chopper | Yes |
| Overload Capacity | 150% In for 60 s |
| Protection Class | IP20 (for cabinet installation) |
| Operating Ambient Temperature | -10 ℃ ~ +55 ℃ (derating required above 40 ℃) |
| Storage Temperature Range | -25 ℃ ~ +60 ℃ |
| Mounting Method | DIN rail mounting or screw fixed installation |
| Recommended Wire Cross Section | 1.5 mm² |
| Compliance Certifications | CE, UL, RoHS |
| Built-in Mains Filter | No |
Core Technical Advantages
- Compact mechanical structure saves cabinet installation space;
- Excellent low-speed torque performance under sensorless vector control;
- Modular pluggable expansion design simplifies function upgrade;
- Complete fault diagnosis system lowers maintenance difficulty;
- High electromagnetic compatibility for general industrial control environments;
- Uniform software platform for consistent operation habits across the whole 8200 Vector series.
4. Product Dimensions and Weight
External Dimensions (Unit: Millimeter)
表格
| Dimension Item | Exact Size |
|---|---|
| Overall Height | 279 |
| Overall Width | 76 |
| Overall Depth | 152 |
Weight Parameters
表格
| Weight Category | Specific Value |
|---|---|
| Single Unit Net Weight | 1.32 kg |
| Original Packaged Gross Weight | 1.55 kg |
5. 10 Lenze 8200 Vector Series Similar Frequency Inverters
All models belong to 8200 Vector platform, supporting V/f and sensorless vector control, DIN rail mounting and modular expansion; differences lie in rated power, voltage class and built-in filter configuration:
- E82EV072K4C 0.75 kW 3-phase 400V Frequency Inverter
- E82EV222K4C 2.2 kW 3-phase 400V Vector Inverter
- E82EV302K4C 3.0 kW 3-phase 400V Drive
- E82EV402K4C 4.0 kW 3-phase 400V Frequency Inverter
- E82EV552K4C 5.5 kW 3-phase 400V Vector Drive
- E82EV752K4C 7.5 kW 3-phase 400V Inverter
- E82EV152K2C 1.5 kW 1-phase/3-phase 230V Low Voltage Inverter
- E82EV222K2C 2.2 kW 230V Class Vector Frequency Inverter
- E82EV152K4B Built-in Mains Filter Version, 1.5 kW 400V
- E82EV372K4C 3.7 kW 3-phase 400V 8200 Vector Inverter
