New Original SUNON MA2082-HVL GN MA Series Axial Fan
"*" indicates required fields
New Original SUNON MA2082-HVL GN MA Series Axial Fan
1. Product Overview

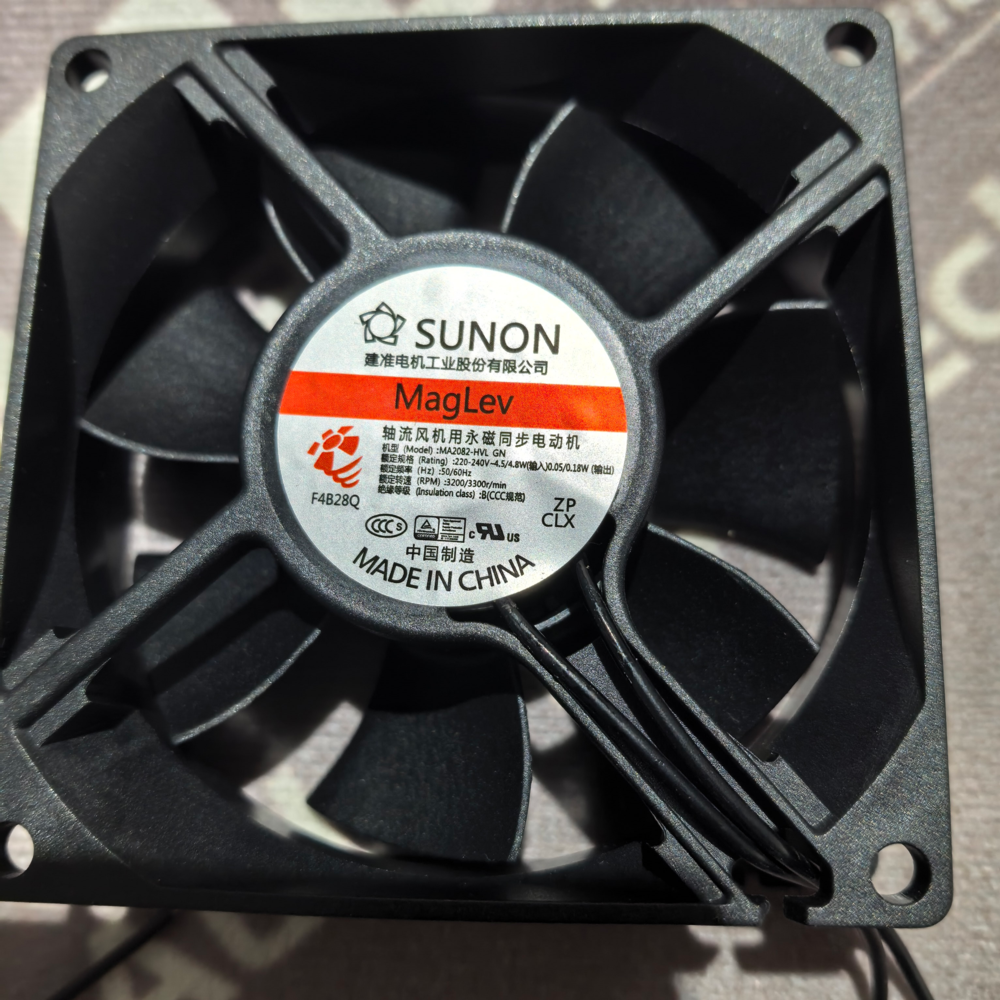

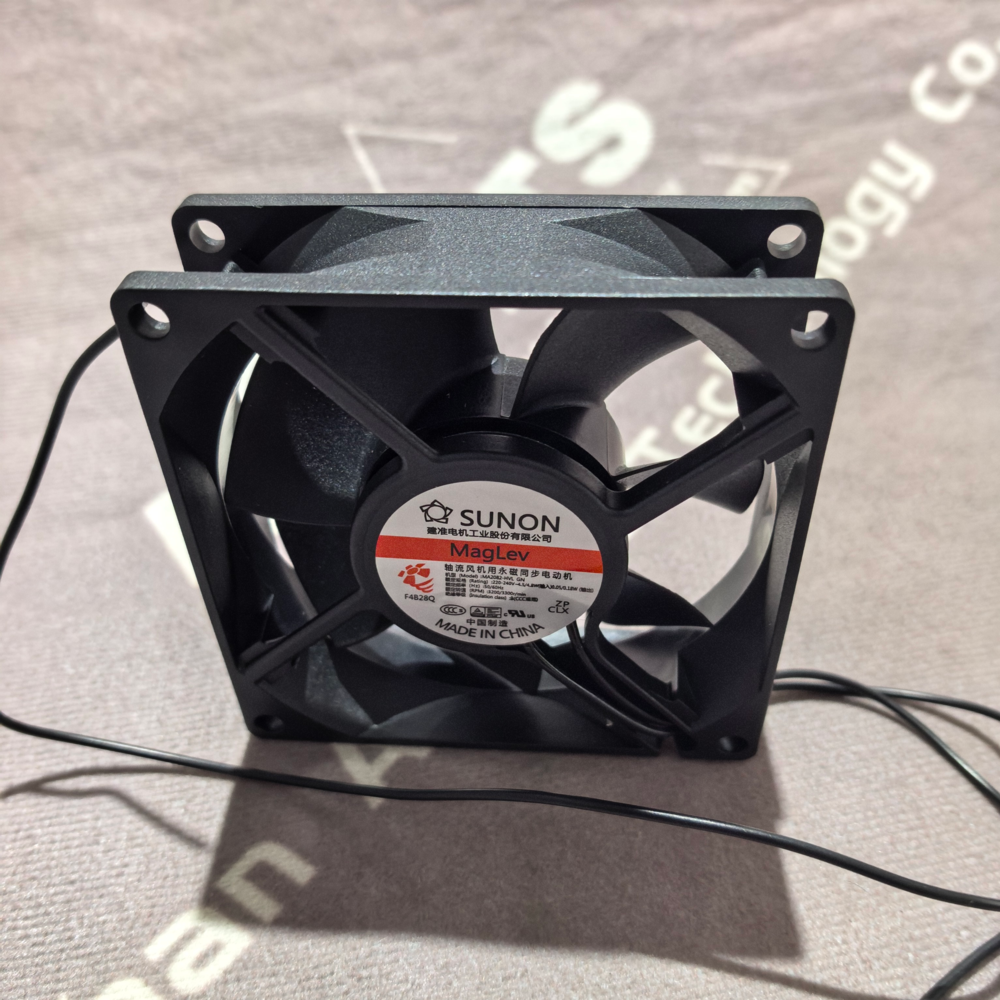

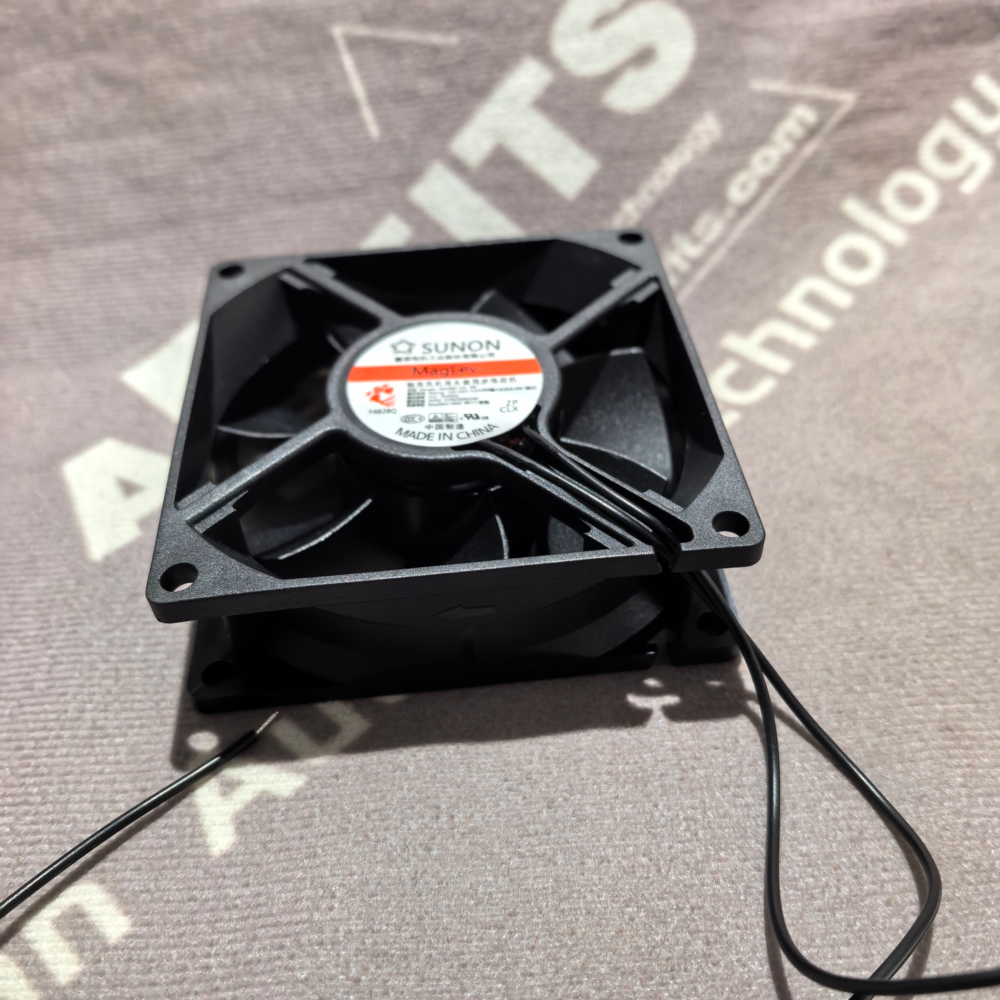

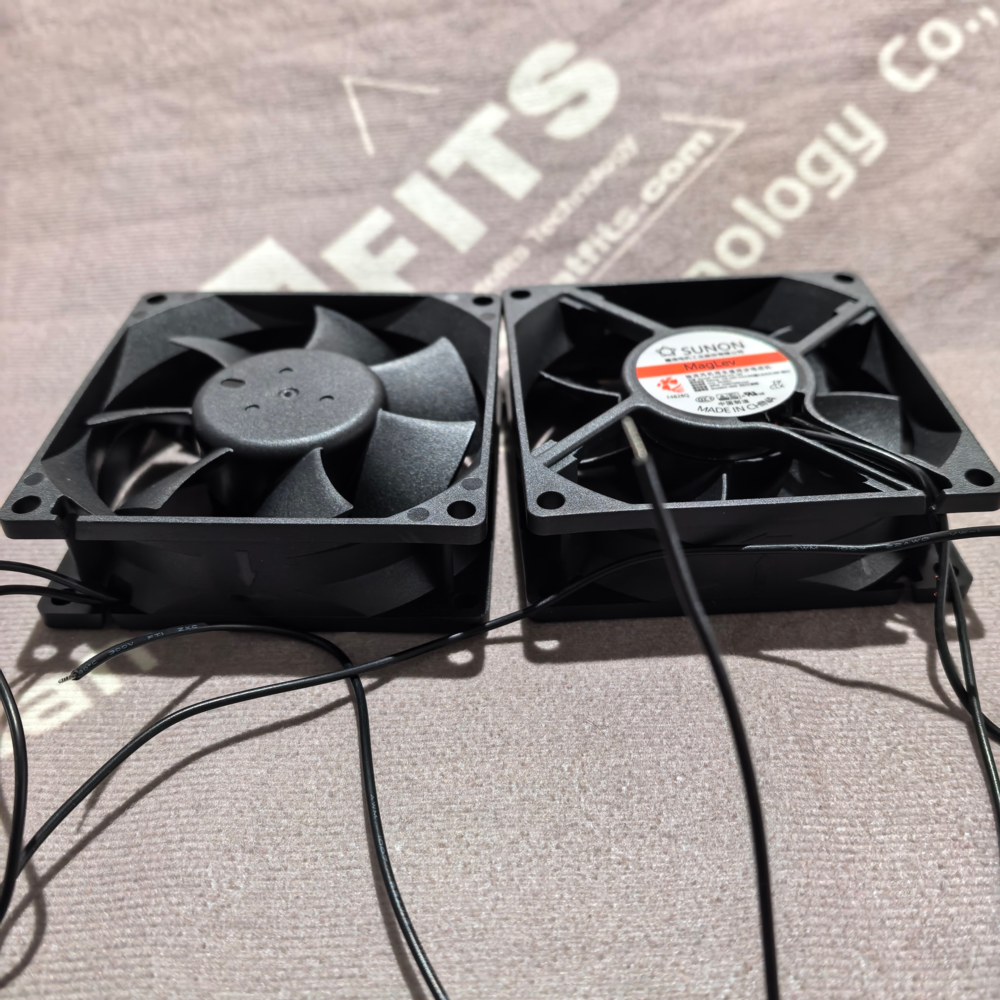

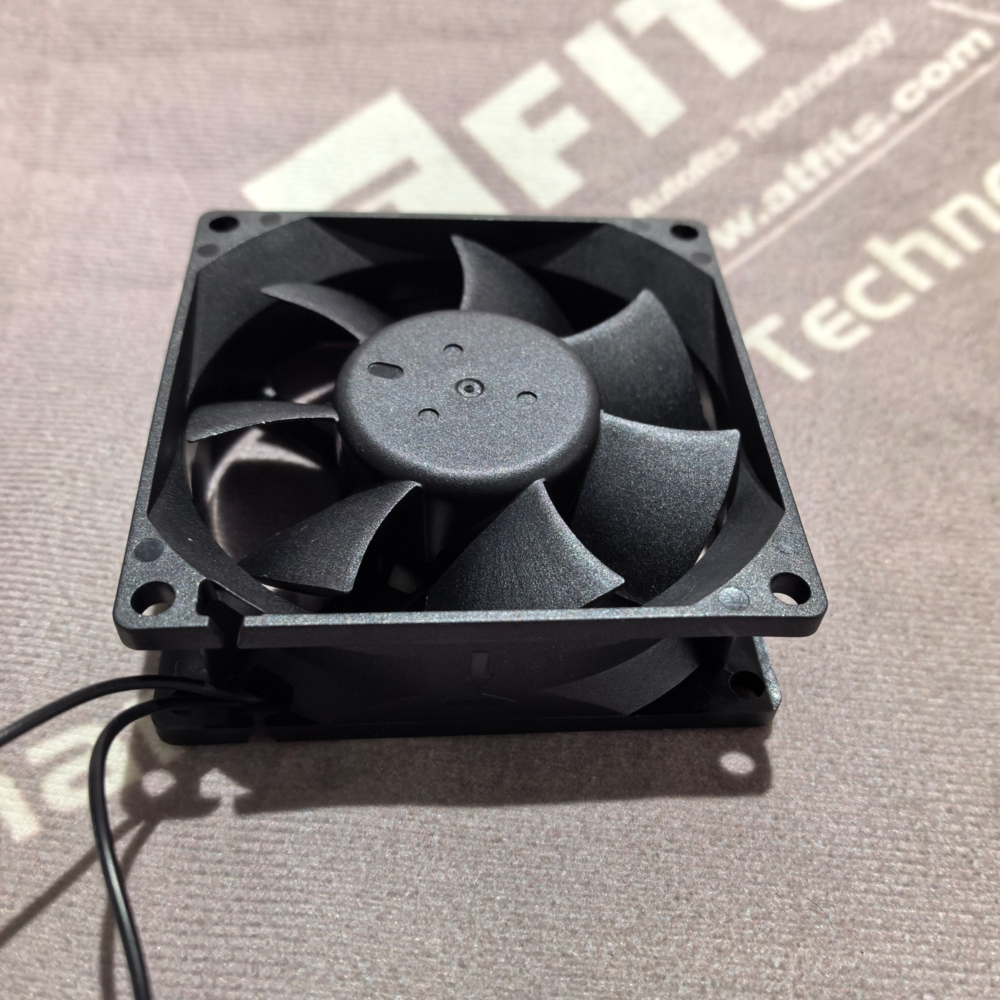

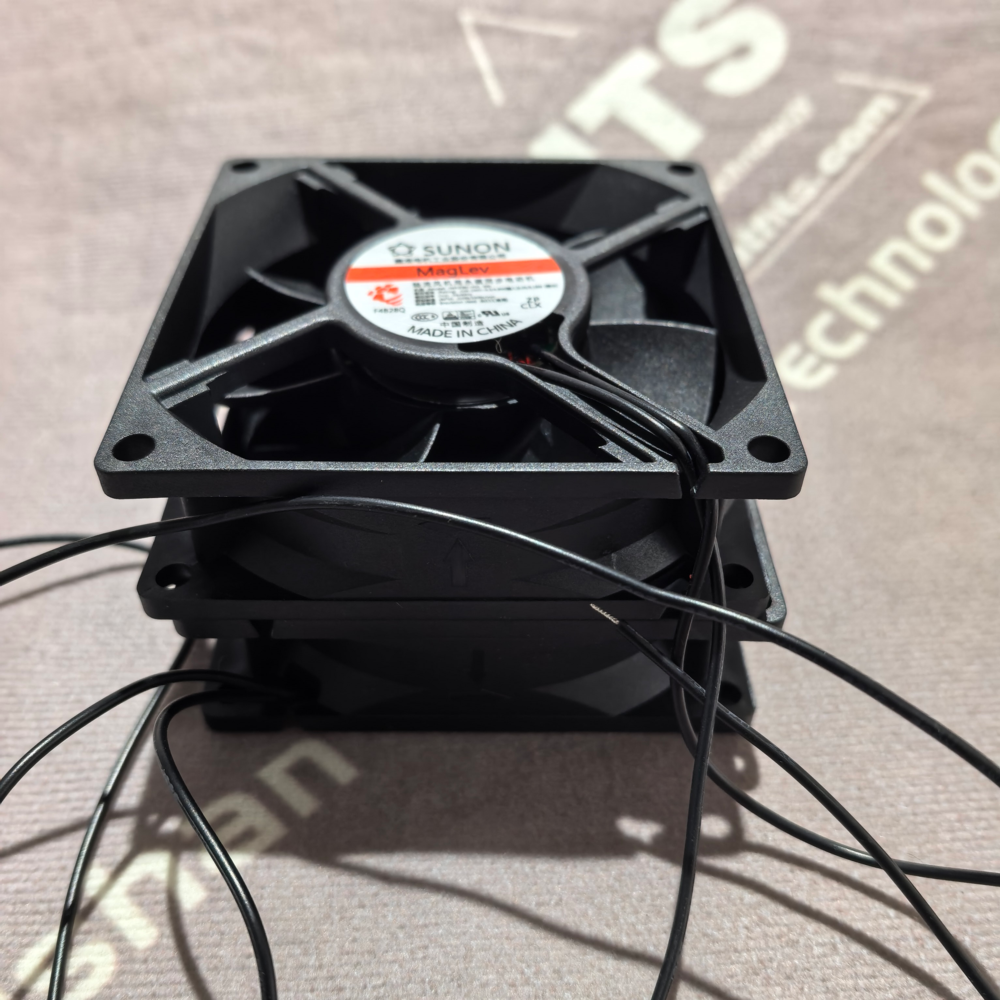

The SUNON MA2082-HVL GN is an AC axial cooling fan belonging to SUNON MA series, adopting advanced MagLev Vapo bearing technology. Operating at 220–240V AC, this 80×80×25mm square fan is designed for forced convection heat dissipation. It is widely installed inside electrical control cabinets, frequency converters, power supplies, industrial instruments, welding equipment and automation machinery to exhaust hot air and maintain stable operating temperature of electronic components. The supplied unit is brand new original genuine product with standard lead wire connection.
2. Main Technical Specifications
| Item | Parameter |
|---|---|
| Model | MA2082-HVL GN |
| Series | MA Series AC Axial Fan |
| Rated Voltage | 220–240 V AC |
| Frequency | 50 / 60 Hz |
| Rated Power | 4.6 W |
| Rated Current | 0.215 A / 0.225 A |
| Rotation Speed | 3200 RPM (50Hz) / 3300 RPM (60Hz) |
| Max Airflow | 40 CFM / 41 CFM |
| Noise Level | 32 dBA / 33 dBA |
| Bearing Type | MagLev Vapo Bearing |
| Overall Dimensions (W × H × D) | 80 mm × 80 mm × 25 mm |
| Net Weight | Approx. 102 g |
| Frame & Impeller Material | Flame-retardant PBT plastic (UL94V-0) |
| Termination | Free wire leads |
| Operating Temperature | -10 °C ~ +70 °C |
| Certification | CE, UL, TUV, RoHS compliant |
3. Main Functions
- Realize forced air circulation to discharge accumulated heat inside sealed electrical cabinets.
- Reduce surface temperature of power modules, circuit boards and other heat-generating electronic parts.
- Prevent equipment overheating failure caused by long-time continuous operation.
- Maintain balanced internal temperature and reduce humidity condensation inside enclosures.
- Support continuous 24-hour non-stop operation for industrial continuous production scenarios.
- Standard mounting hole layout for quick installation on cabinet panels and equipment housings.
- Provide stable airflow under normal static pressure conditions for general industrial ventilation.
4. Technical Features
- MagLev Vapo bearing design effectively reduces friction noise and extends service life.
- Long service life, up to 60,000 hours continuous operation under normal temperature environment.
- Flame retardant plastic housing improves safety and avoids ignition risk under abnormal working conditions.
- Compact 8025 size, suitable for equipment with limited internal installation space.
- Stable performance under wide voltage fluctuation of 220V to 240V AC power supply.
- Low vibration structure, avoiding secondary vibration interference to precision electronic components.
- Simple lead wire connection mode, convenient for on-site wiring and replacement maintenance.
- Optimized blade aerodynamic design to balance airflow performance and noise level.
- Strict factory dynamic balance testing to guarantee stable rotation without obvious shaking.
5. 10 SUNON Similar Axial Fan Products
- MA1082-HVL GN, 115V AC 80×80×25mm MA series axial fan
- MA2092-HVL GN, 230V AC 92×92×25mm axial cooling fan
- MA2122-HVL GN, 230V AC 120×120×25mm axial fan
- SP101AT-1122HBT.GN, 115V AC 120×120×38mm AC fan
- DP201A-2123HBL.GN, 230V AC 120×120×38mm axial fan
- MF20080V2-1000U-A99, 5V DC 80×80×25mm DC axial fan
- MF20082V2-1000U-A99, 24V DC 80×80×25mm cooling fan
- HA2060-HVL GN, 230V AC 60×60×25mm small axial fan
- MA2062-HVL GN, 230V AC 60×60×25mm MA series fan
- SP103AT-1122LBT.GN, 115V AC 120×120×25mm low speed axial fan
