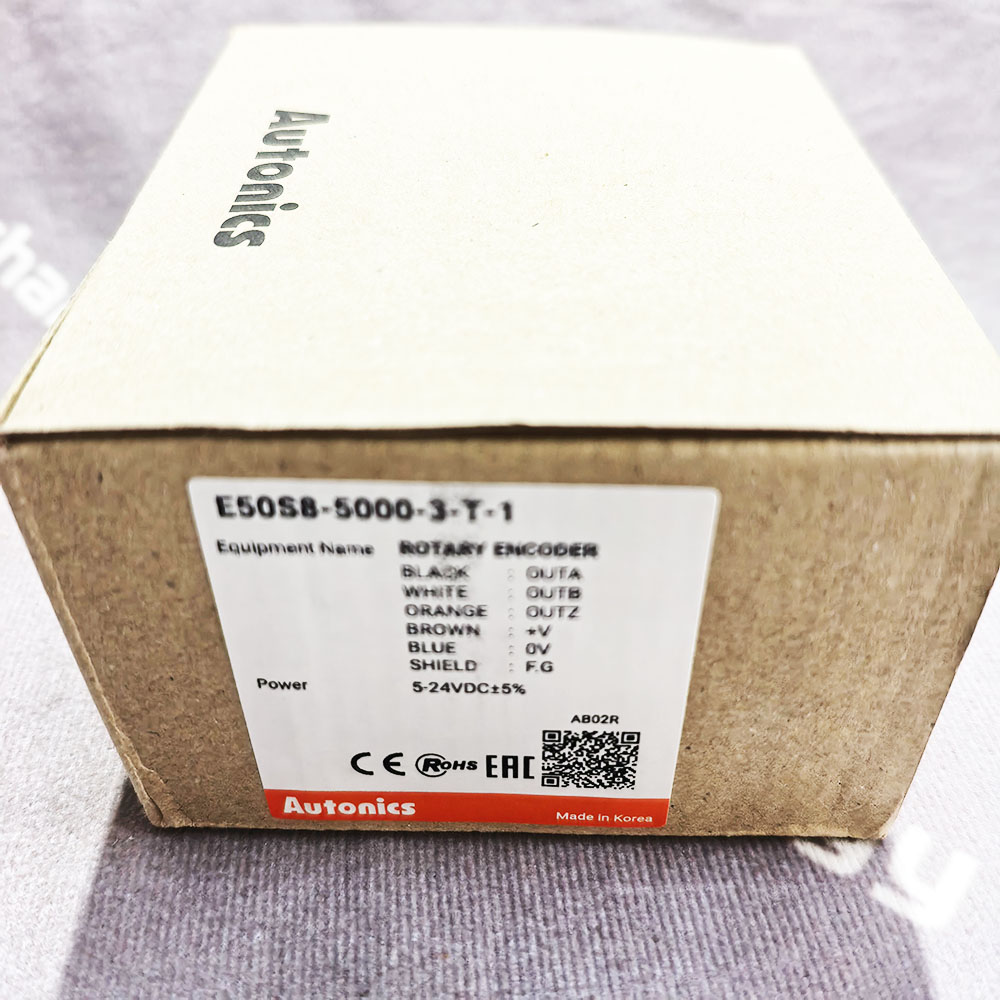

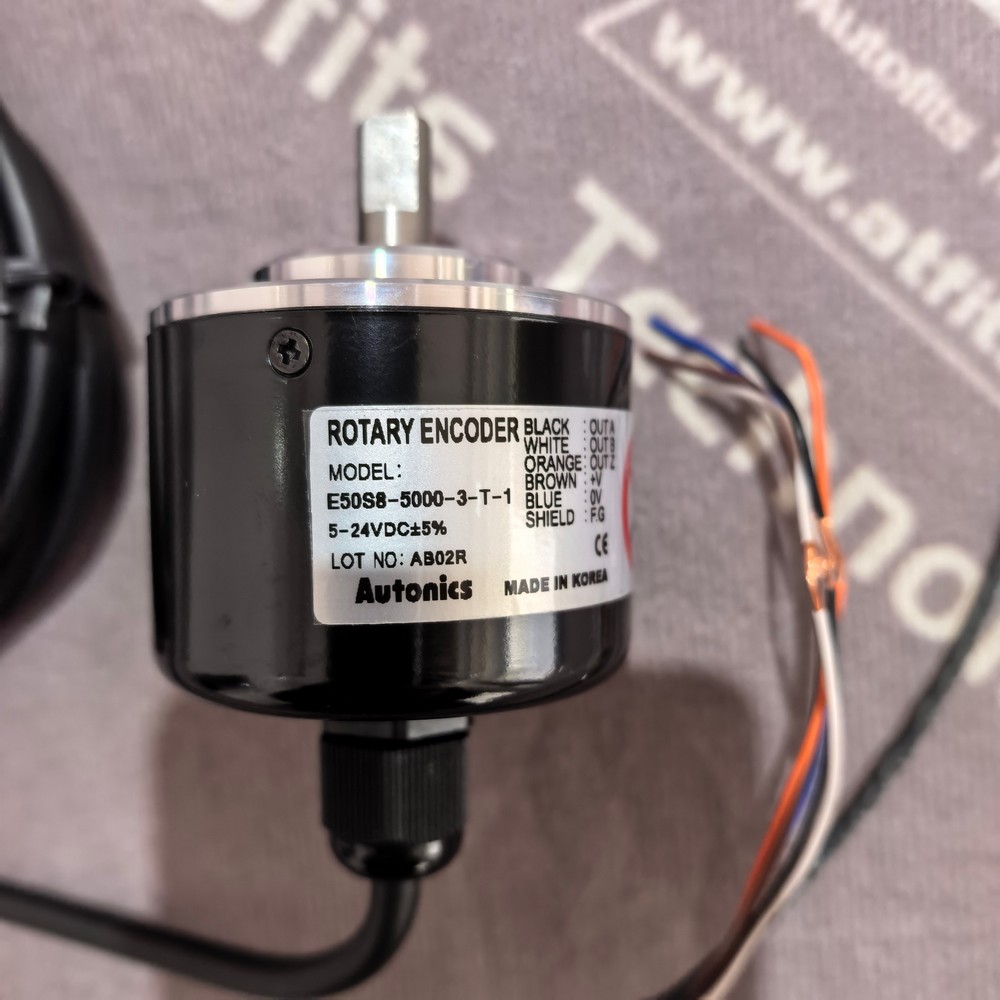

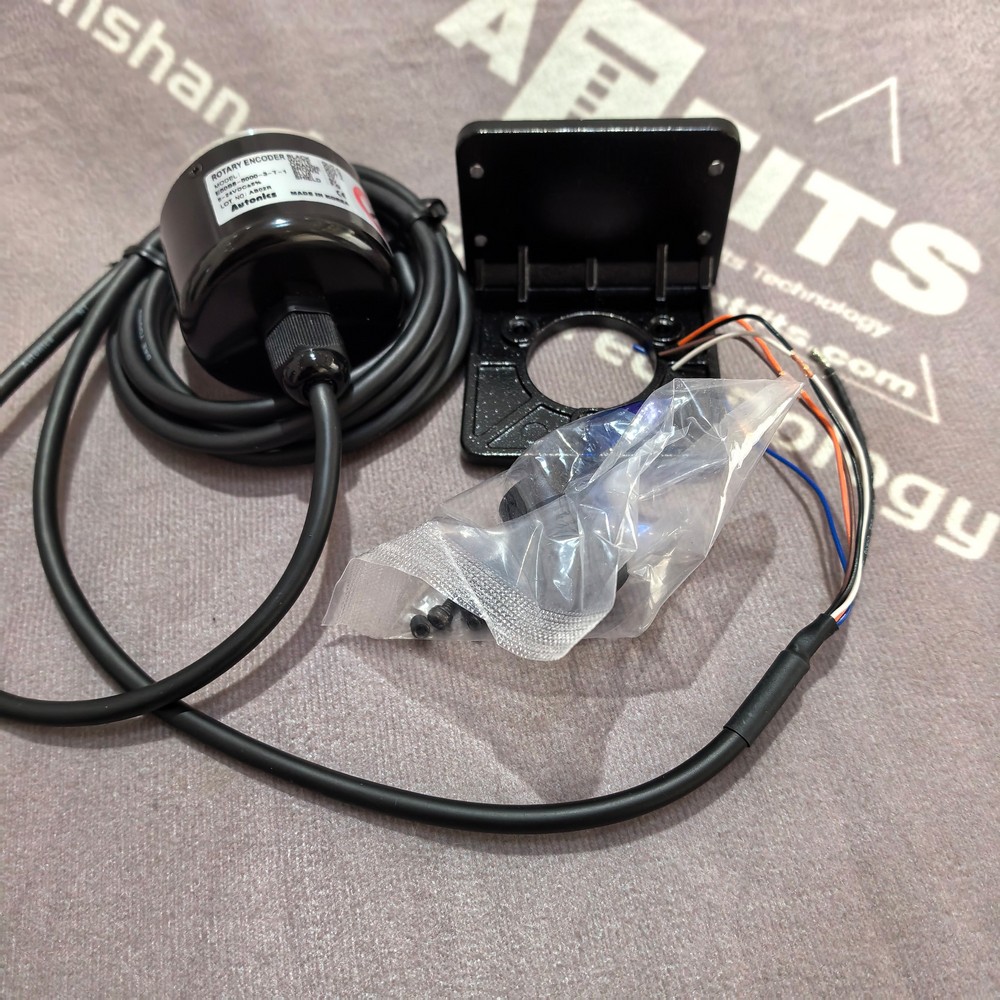

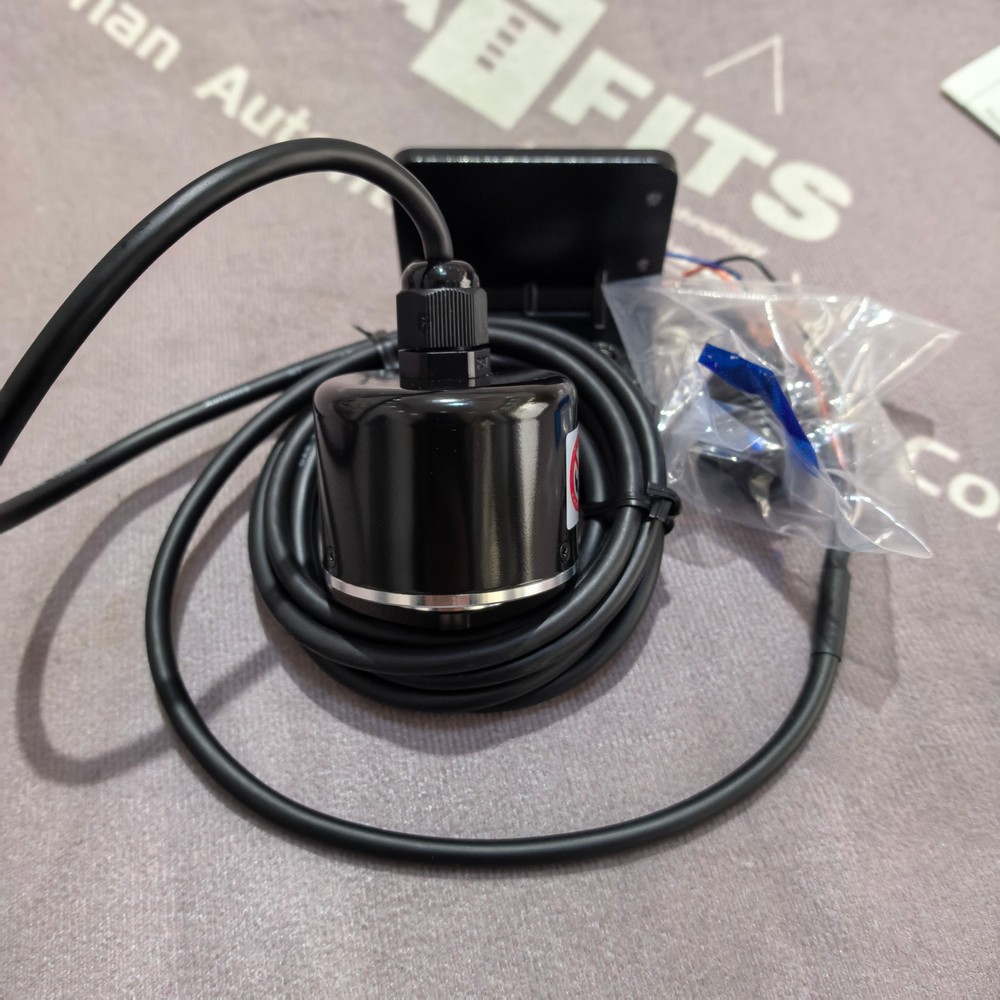

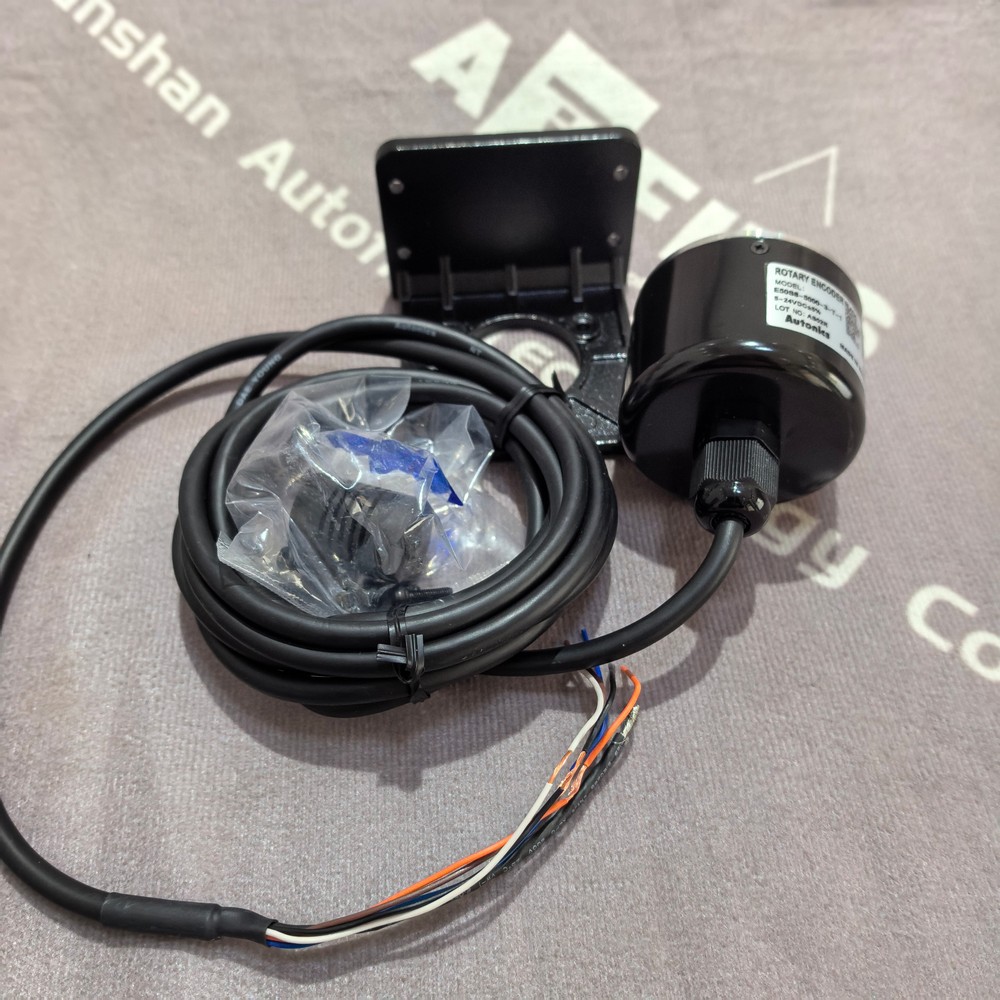

New Original Autonics E50S8‑5000‑3‑T‑1 E50 Series Solid Shaft Incremental Rotary Encoder
Product Overview
The Autonics E50S8‑5000‑3‑T‑1 belongs to the E50 series solid‑shaft incremental rotary encoder manufactured by Autonics. Incremental rotary encoders convert mechanical rotational displacement, rotational speed and rotational direction into digital pulse signals for industrial position monitoring, speed measurement and motion feedback. This model features a 5000 pulses per revolution resolution, solid shaft structure, compact metal housing, and is designed for general‑purpose factory automation equipment. It is widely applied in conveyor systems, packaging machinery, textile machines, CNC auxiliary equipment, material handling devices and other motion‑control scenarios. It outputs square‑wave incremental pulses and supports direction discrimination through phase‑difference signals, and works stably under ordinary industrial environmental conditions.
Main Functions
- Rotation position detection: Generates pulse output corresponding to rotating angle for relative position calculation.
- Rotational speed measurement: Calculates real‑time rotation speed by counting pulse frequency.
- Rotation direction identification: Provides A‑phase, B‑phase quadrature output to judge clockwise and counter‑clockwise rotation direction.
- Zero‑point reference signal: Equipped with Z‑phase index pulse signal for one reference position per full rotation.
- Digital signal output: TTL‑compatible square‑wave signal output for direct connection with PLC, motion controller and counter modules.
- Continuous dynamic operation: Supports long‑term continuous rotation monitoring under rated rotating‑speed range.
Technical Characteristics
- Optical sensing principle: Adopts non‑contact optical encoding core, reducing mechanical wear and extending service life.
- Quadrature A/B/Z phase output: Phase difference of 90° between A and B channels for direction judgment; Z‑phase provides home position mark.

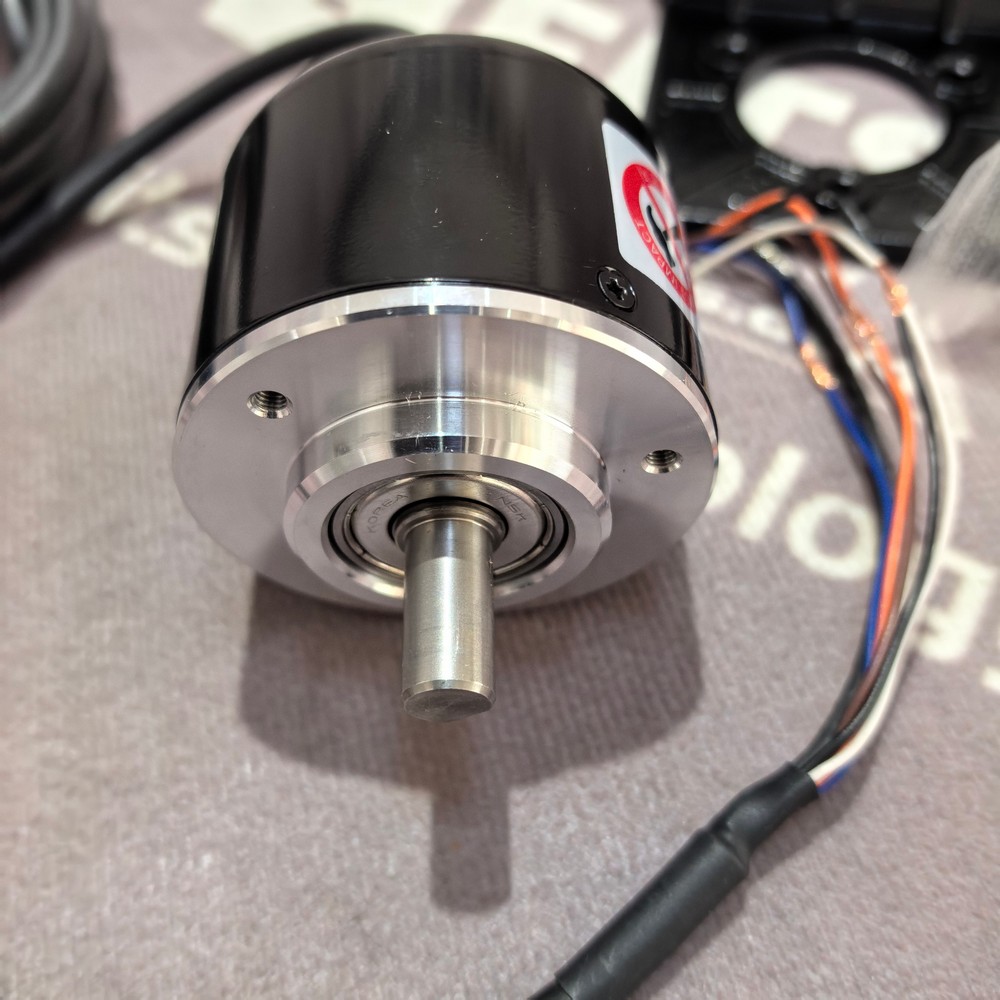

- Solid shaft installation mode: Direct shaft coupling connection with driven mechanical shafts.
- Metal casing structure: Enhances mechanical strength and basic anti‑interference performance for workshop environments.
- Wide operating voltage range, reverse‑connection protection for power supply circuit.
- Signal output form: Line‑driver TTL level output.
- Anti‑vibration and anti‑shock capability to adapt to vibration on production‑site equipment.
- Good temperature adaptability for indoor industrial working conditions.
Product Dimensions and Weight
| Item | Specification |
|---|---|
| Outer housing diameter | 50 mm |
| Shaft diameter | 8 mm solid shaft |
| Overall body length | 42 mm |
| Shaft extension length | 20 mm |
| Mounting flange type | Clamp‑type flange for E50 series |
| Net weight | Approx. 220 g |
Core Electrical Parameters
| Parameter | Value for E50S8‑5000‑3‑T‑1 |
|---|---|
| Resolution | 5000 pulses per revolution |
| Output type | Line‑driver TTL |
| Power supply | 5 VDC |
| Max mechanical rotating speed | 6000 rpm |
| Signal channels | A, B, Z phase |
| Z‑phase pulse width | 1/4 period of A‑phase signal |
10 Similar‑function Autonics Products of the E50 Encoder Series
- E50S8‑1000‑3‑T‑1：Solid‑shaft incremental encoder, 1000 PPR resolution, TTL line‑driver output, 8 mm shaft, 50 mm housing, for general‑purpose speed‑and‑position feedback.
- E50S8‑2000‑3‑T‑2：Solid‑shaft incremental encoder, 2000 PPR, TTL output, 8 mm shaft, modified cable direction variant for limited installation space.
- E50S8‑3600‑3‑T‑1：Solid‑shaft incremental encoder, 3600 PPR, TTL line‑driver output, 8 mm solid shaft, used for high‑precision angle‑monitoring applications.
- E50S8‑600‑2‑N‑24：Solid‑shaft incremental encoder, 600 PPR, open‑collector NPN output, 24 VDC power supply, suitable for 24‑V industrial control systems.
- E50S8‑1024‑3‑T‑1：Solid‑shaft incremental encoder, 1024 PPR, TTL output, 8 mm shaft, common for small‑size motion‑control equipment.
- E50S8‑2500‑3‑T‑1：Solid‑shaft incremental encoder, 2500 PPR, TTL line‑driver output, 50 mm outer diameter housing, medium‑high‑resolution model.
- E50S8‑500‑2‑N‑24：Solid‑shaft incremental encoder, 500 PPR, NPN open‑collector output, 24 V supply, low‑resolution cost‑effective variant.
- E50S8‑4096‑3‑T‑1：Solid‑shaft incremental encoder, 4096 PPR, TTL output, 8 mm solid shaft, applied in fine positioning auxiliary measurement.
- E50S8‑100‑2‑P‑24：Solid‑shaft incremental encoder,100 PPR, PNP open‑collector output, 24 VDC power input, for low‑speed large‑rotation‑volume detection.
- E50S8‑3000‑3‑T‑1：Solid‑shaft incremental encoder, 3000 PPR, TTL line‑driver output, same mechanical dimension series, intermediate high‑resolution incremental feedback device.
