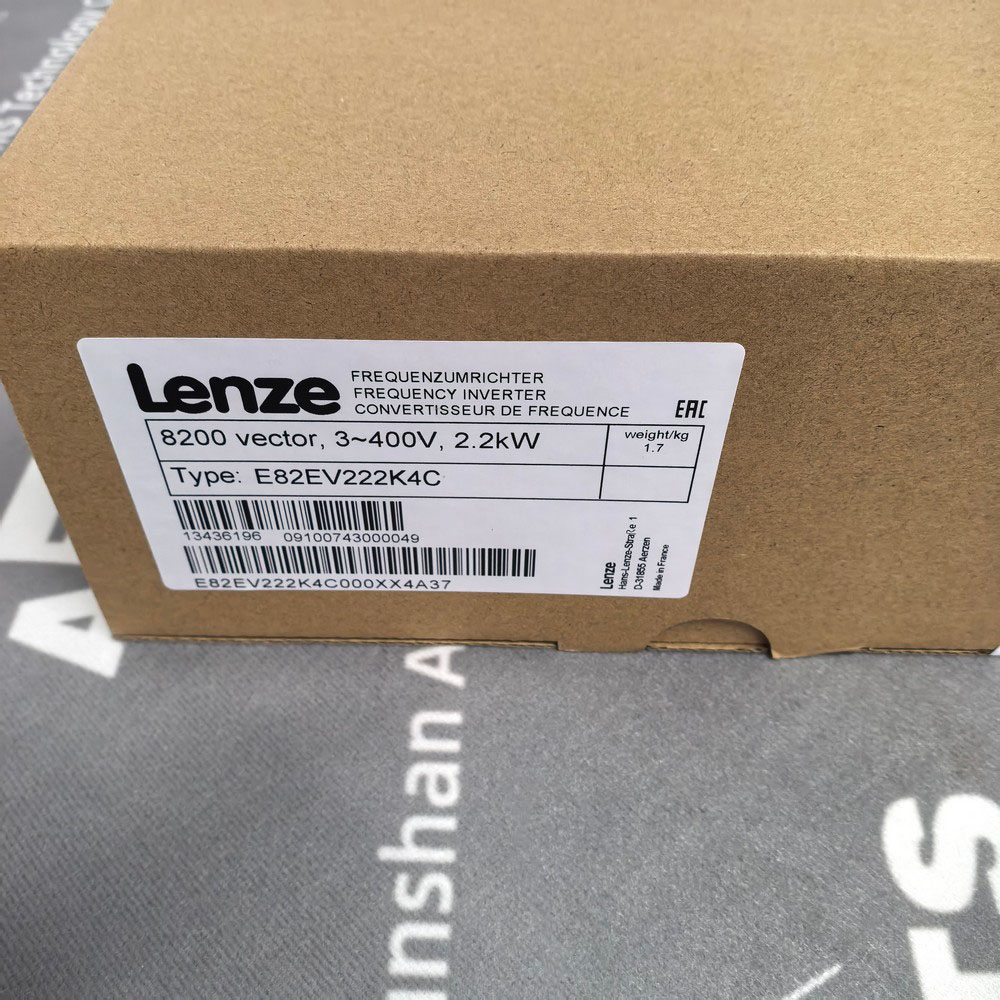

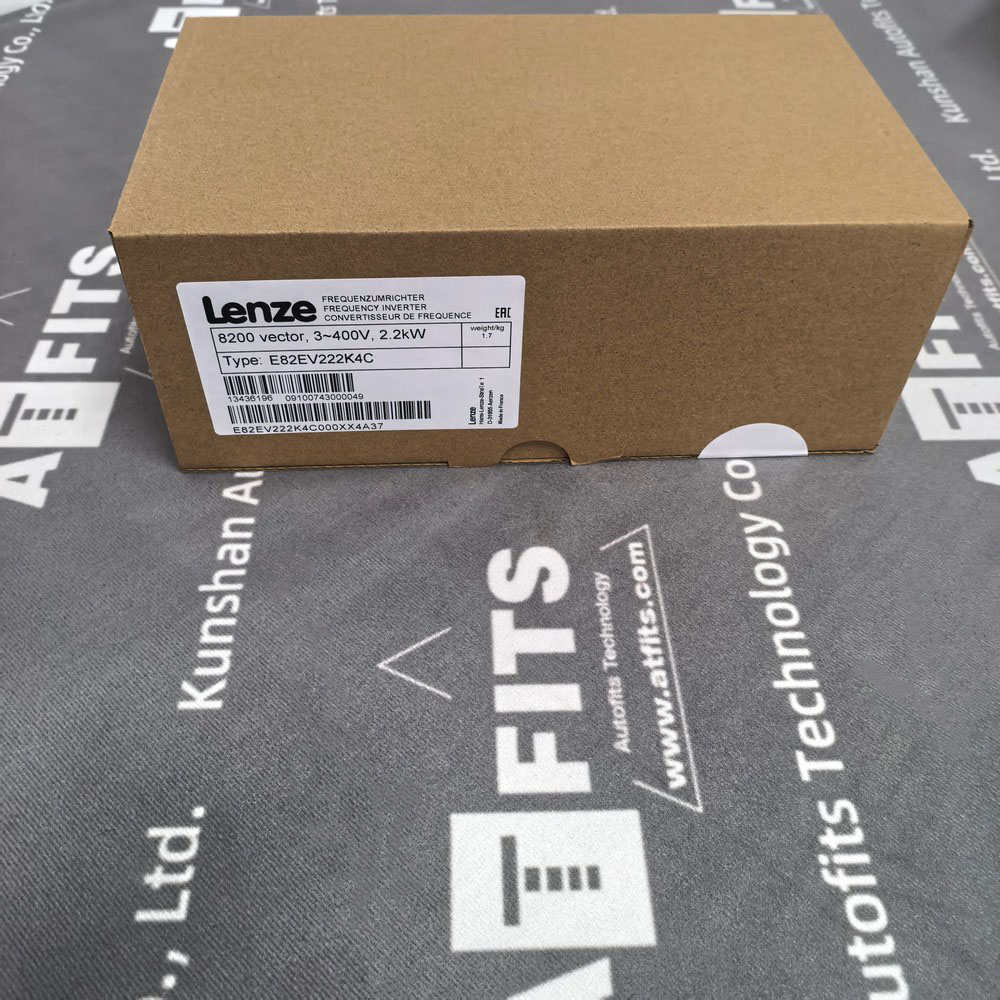

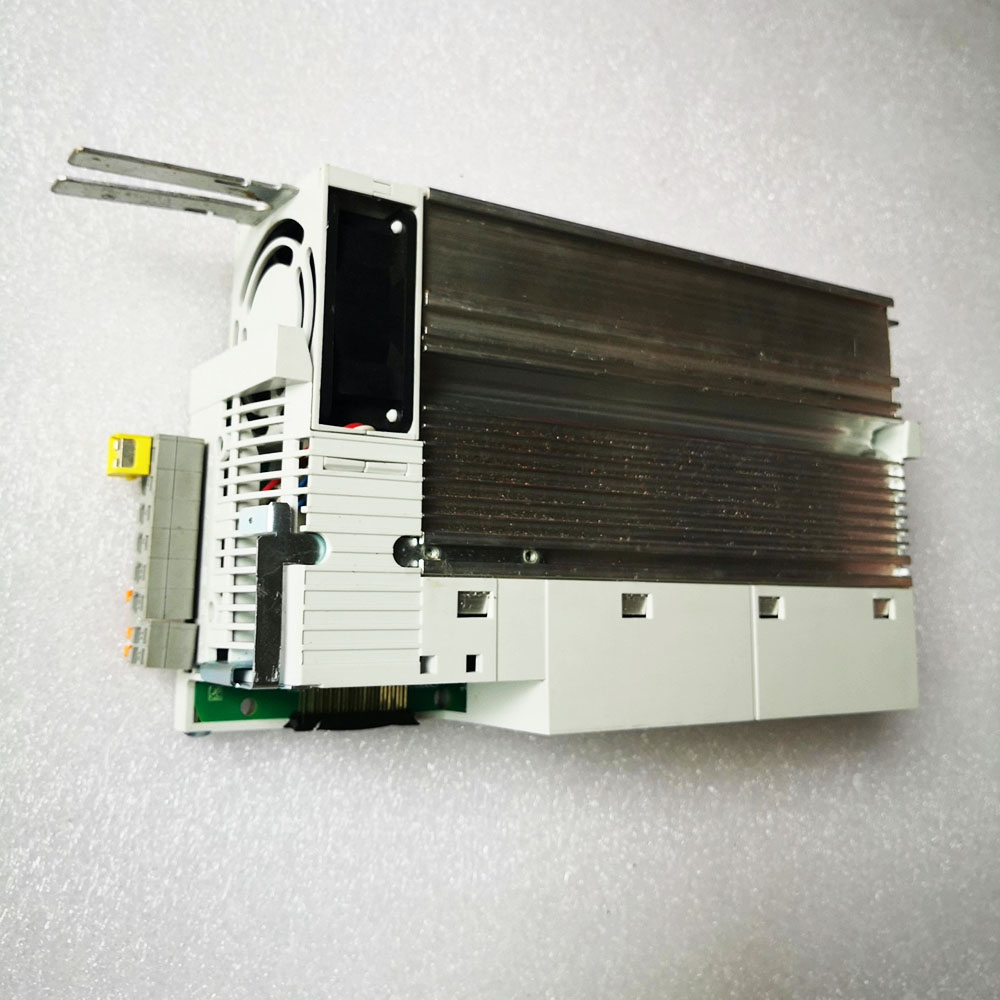

New Original Lenze E82EV222K4C 8200 Vector AC Drive Frequency Inverter
1. Product Overview

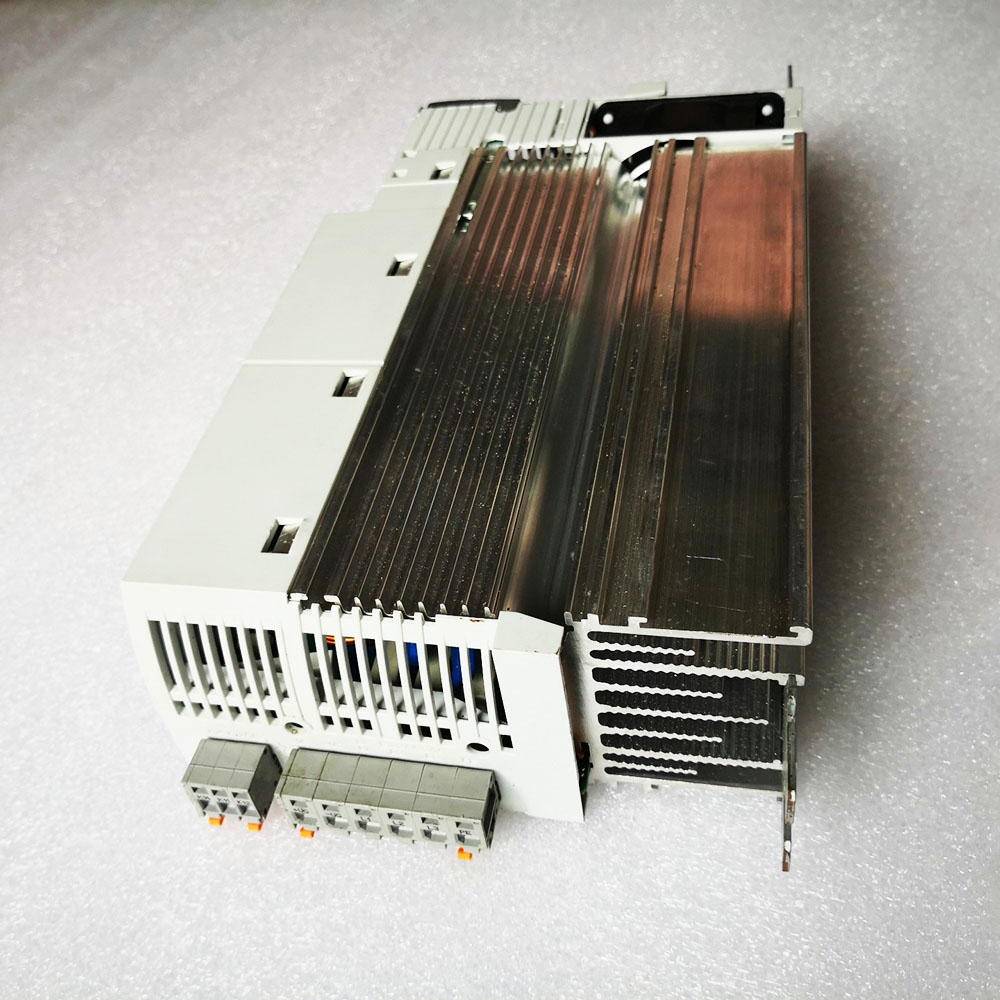

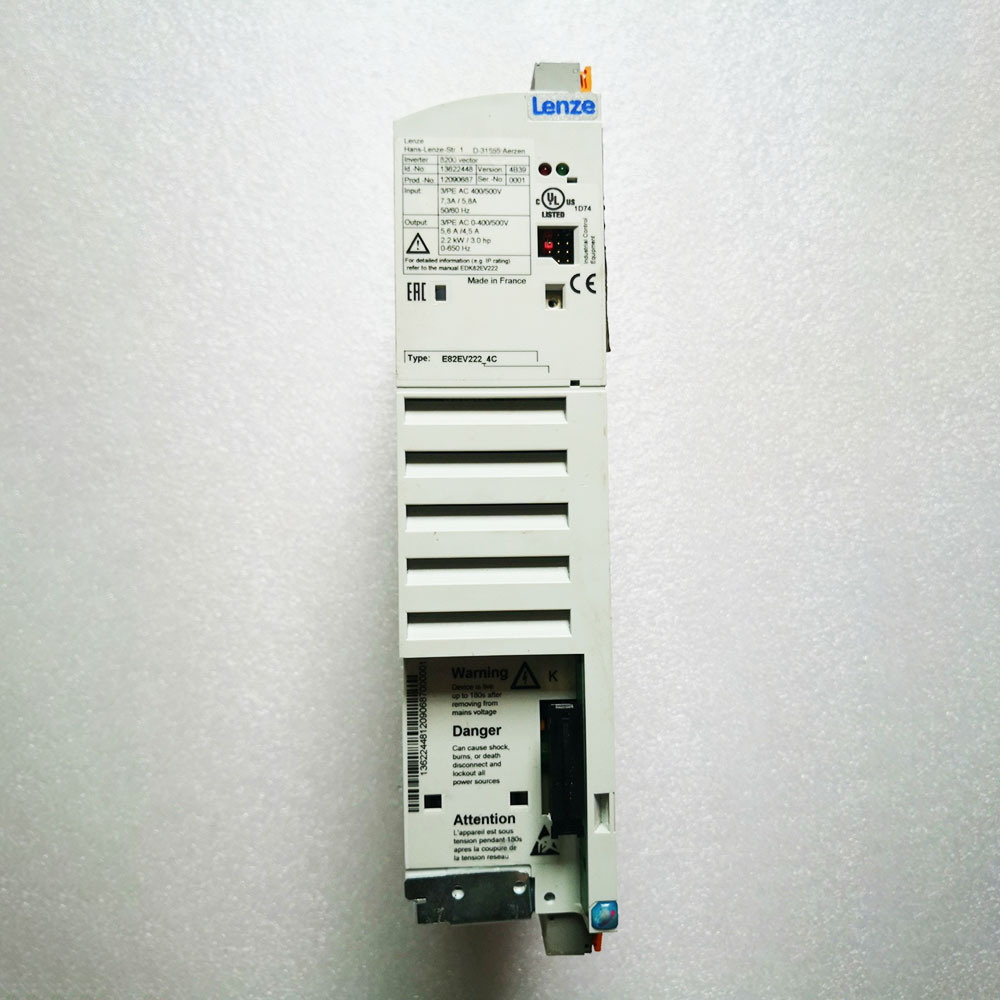

E82EV222K4C is an original European-manufactured variable frequency AC drive belonging to Lenze classic 8200 Vector series. It is designed for speed regulation of three-phase asynchronous motors with rated power of 2.2 kW under 3-phase 400 V mains supply. This unit supports both V/f characteristic control and sensorless vector control, delivering stable high torque output at low speed without motor encoder feedback.
The drive integrates an internal brake chopper to handle regenerative energy during rapid deceleration. It adopts flexible modular expansion architecture, compatible with external operating keypads, communication interface modules and I/O extension boards. Widely applied on conveyor equipment, packaging machinery, water pumps, fans, textile machines and general OEM automation systems. It supports DIN rail or screw fixed cabinet installation and features strong anti-electromagnetic interference performance. This base version does not come with built-in mains EMC filter, allowing customers to configure external filters according to on-site electromagnetic compatibility requirements.
2. Main Functions
- Multi-Mode Motor Speed Regulation Supports linear/quadratic V/f control and sensorless vector control. The vector control mode provides high starting torque under low-speed working conditions to satisfy dynamic load demands. Output frequency ranges from 0 Hz to 650 Hz, suitable for standard and high-speed motor applications.
- Built-in Brake Chopper Function The integrated brake transistor enables connection of external braking resistors to consume regenerative energy during fast deceleration, effectively preventing DC bus overvoltage faults for reciprocating, lifting and conveying equipment.
- Complete Multi-Level Fault Protection Real-time monitoring triggers protective shutdown against overload, short circuit, overvoltage, undervoltage, overheating, motor phase loss and output earth faults. Corresponding fault codes are displayed for quick maintenance and troubleshooting.
- Configurable Digital & Analog I/O Terminals Equipped with programmable digital inputs, relay outputs and analog signal interfaces. It accepts external 0–10 V and 4–20 mA setpoint signals to exchange speed commands and equipment status signals with PLC control systems.
- Expandable Fieldbus Communication Optional plug-in communication modules support mainstream industrial fieldbus protocols, enabling network centralized control, remote parameter modification, running status monitoring and fault feedback.
- Parameter Copy & Storage Function Drive parameters can be saved via external operator panels, supporting fast parameter duplication during mass machine commissioning to shorten on-site debugging cycles.
- Adjustable Overload Capacity Supports 150% rated output current lasting 60 seconds to cope with motor startup surge current and periodic impact loads.
3. Technical Characteristics
| Technical Parameter | Detailed Specification |
|---|---|
| Full Model | E82EV222K4C |
| Product Series | 8200 Vector AC Frequency Inverter |
| Rated Applicable Motor Power | 2.2 kW (3-phase 400 V) |
| Rated Output Current | 5.6 A |
| Maximum Short-Time Output Current | 8.4 A |
| Input Power Supply | 3 × 320 … 550 V AC, 45–65 Hz |
| DC Supply Input Range | 450 V – 775 V DC |
| Control Mode | V/f Control, Sensorless Vector Control |
| Output Frequency Range | 0 Hz ~ 650 Hz |
| Built-in Brake Chopper | Yes |
| Overload Capacity | 150% rated current for 60 s |
| Protection Class | IP20 (for cabinet installation) |
| Operating Ambient Temperature | -10 ℃ ~ +55 ℃ (power derating required above 40 ℃) |
| Storage Temperature Range | -25 ℃ ~ +60 ℃ |
| Mounting Method | DIN rail mounting or screw fixed installation |
| Built-in Mains EMC Filter | No |
| Compliance Certifications | CE, UL, RoHS |
Core Technical Advantages
- Compact vertical structure saves internal cabinet layout space;
- Outstanding low-speed torque performance under sensorless vector control;
- Modular pluggable expansion design facilitates function upgrade and later modification;
- Systematic fault diagnosis system reduces maintenance difficulty and downtime;
- Excellent EMC performance for most general industrial workshop environments;
- Unified software platform ensures consistent operation logic across the entire 8200 Vector series.
4. Product Dimensions and Weight
External Dimensions (Unit: Millimeter)
表格
| Dimension Item | Exact Size |
|---|---|
| Overall Height | 279 |
| Overall Width | 76 |
| Overall Depth | 152 |
Weight Parameters
表格
| Weight Category | Specific Value |
|---|---|
| Single Unit Net Weight | 1.36 kg |
| Original Packaged Gross Weight | 1.58 kg |
5. 10 Lenze 8200 Vector Series Similar AC Drives
All models belong to the 8200 Vector platform, supporting V/f and sensorless vector control, DIN rail installation and modular expansion; differences lie in rated power, voltage class and built-in filter configuration:
- E82EV072K4C 0.75 kW 3-phase 400V Frequency Inverter
- E82EV152K4C 1.5 kW 3-phase 400V Vector AC Drive
- E82EV302K4C 3.0 kW 3-phase 400V Frequency Inverter
- E82EV372K4C 3.7 kW 3-phase 400V Vector Drive
- E82EV402K4C 4.0 kW 3-phase 400V Frequency Inverter
- E82EV552K4C 5.5 kW 3-phase 400V AC Drive
- E82EV752K4C 7.5 kW 3-phase 400V Vector Inverter
- E82EV222K2C 2.2 kW Single/3-phase 230V Low Voltage Inverter
- E82EV152K4B 1.5 kW 400V Version with Built-in Mains Filter
- E82EV222K4B 2.2 kW 400V Inverter Equipped with Integrated EMC Filter
