New Original ACKSYS AIRLINKV2 AirLink_V2 Compact Industrial WiFi Access Point
1. Product Overview

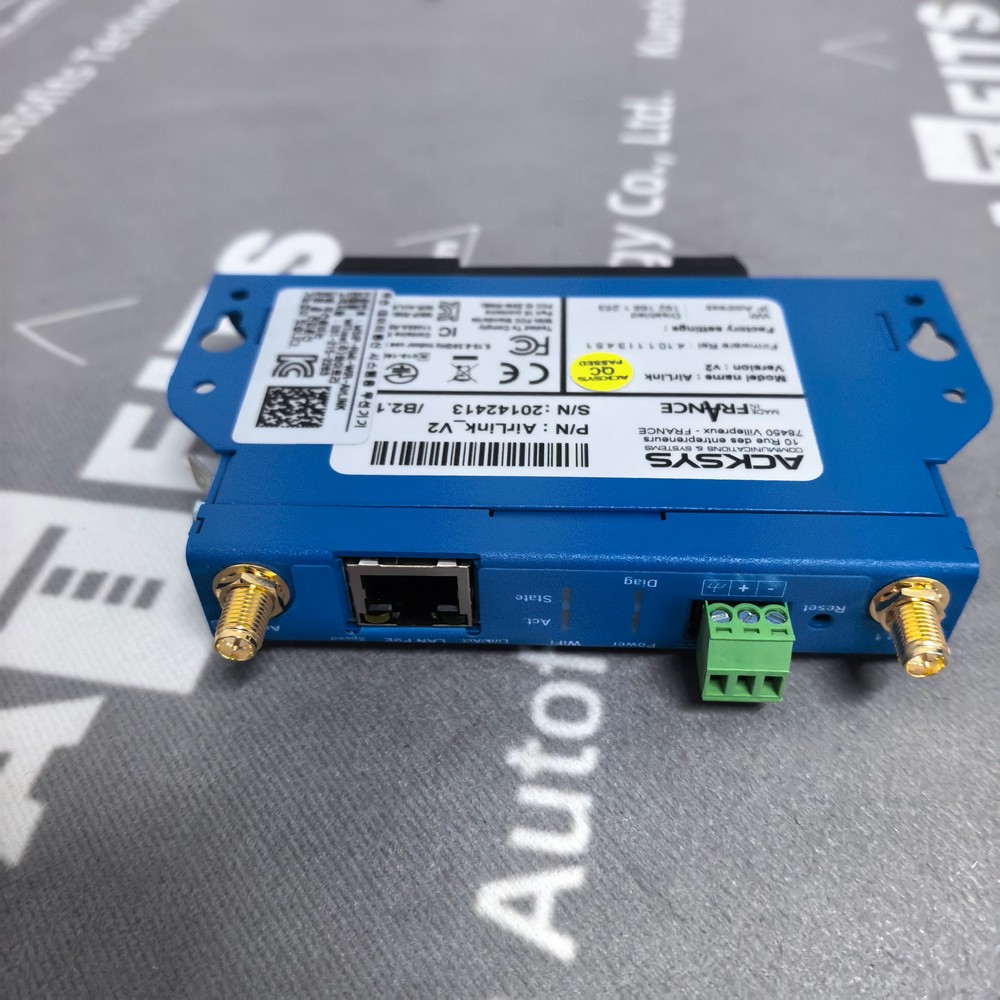

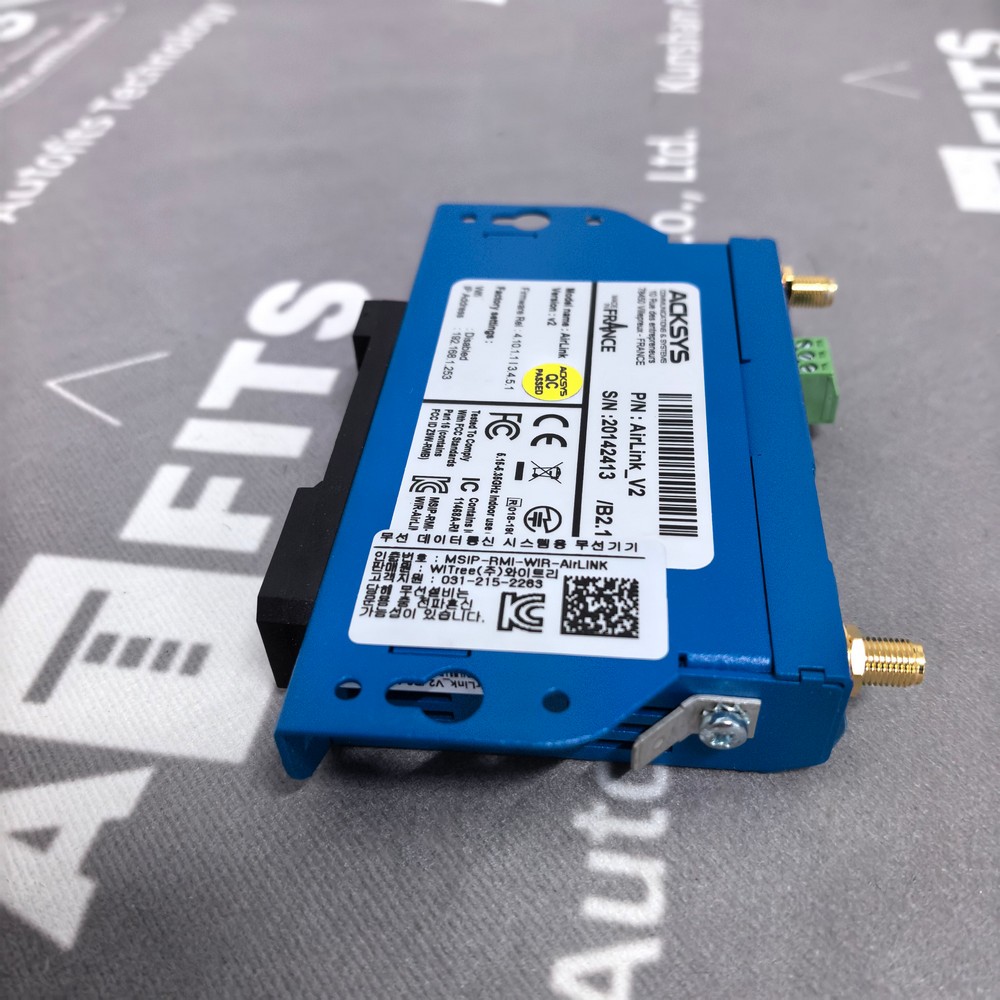

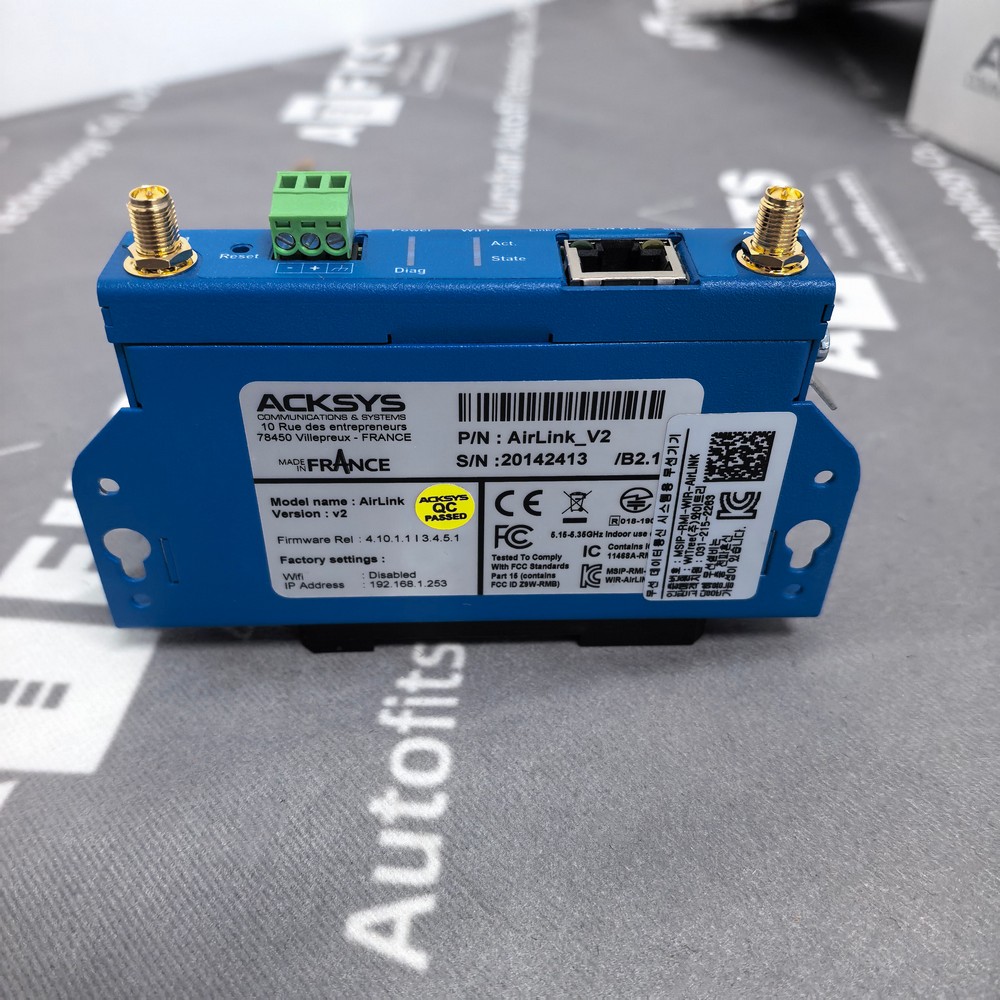

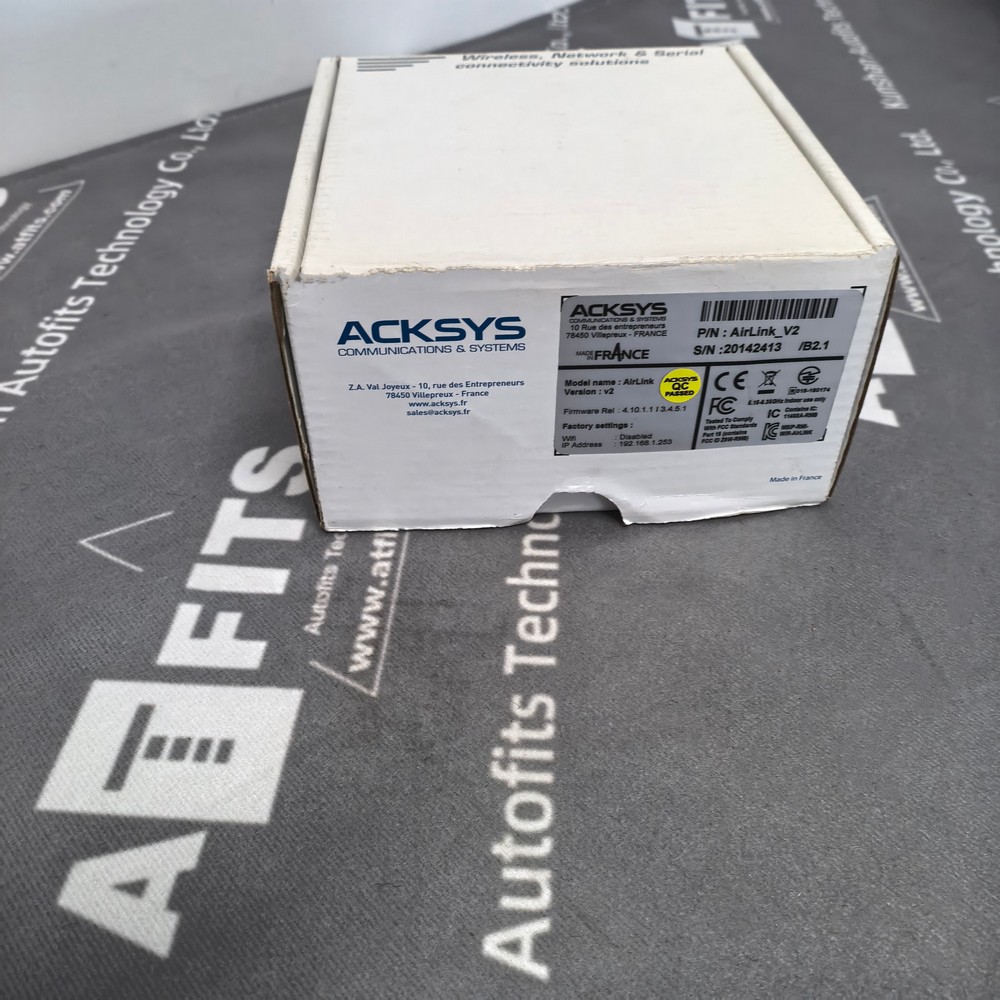

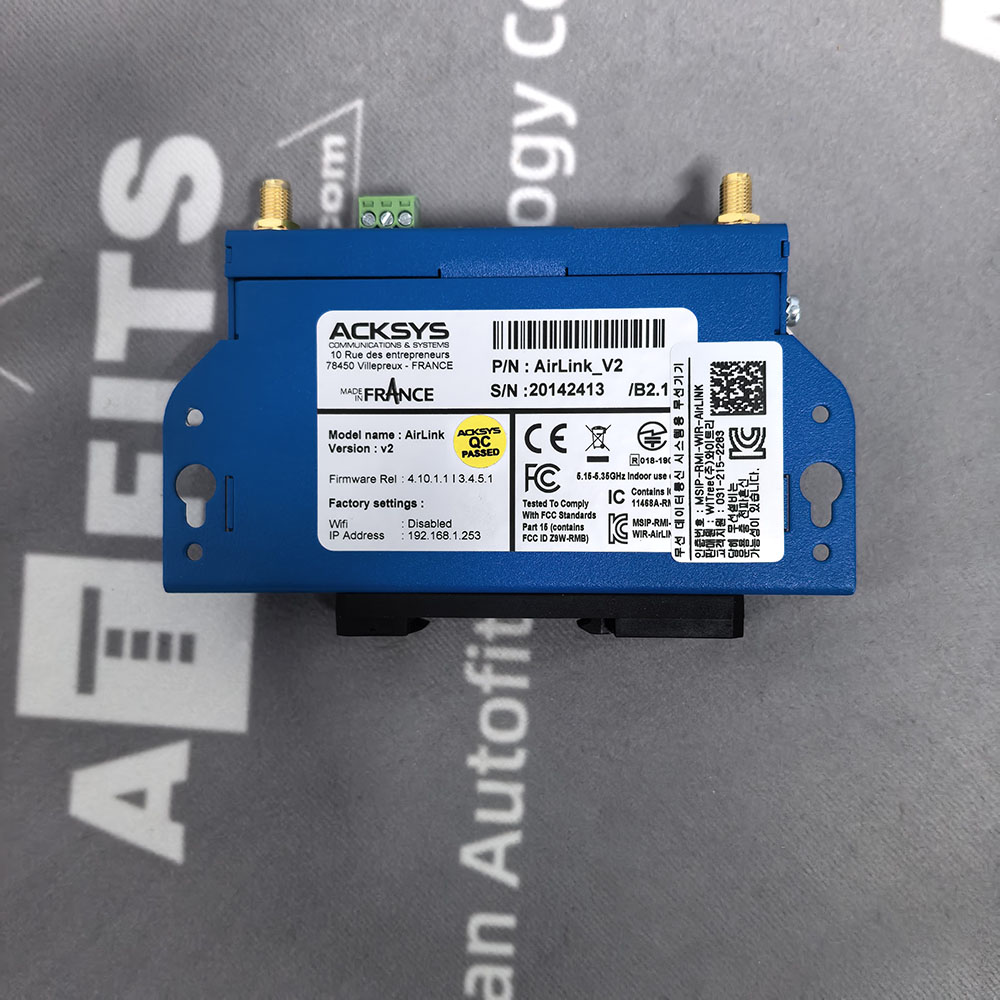

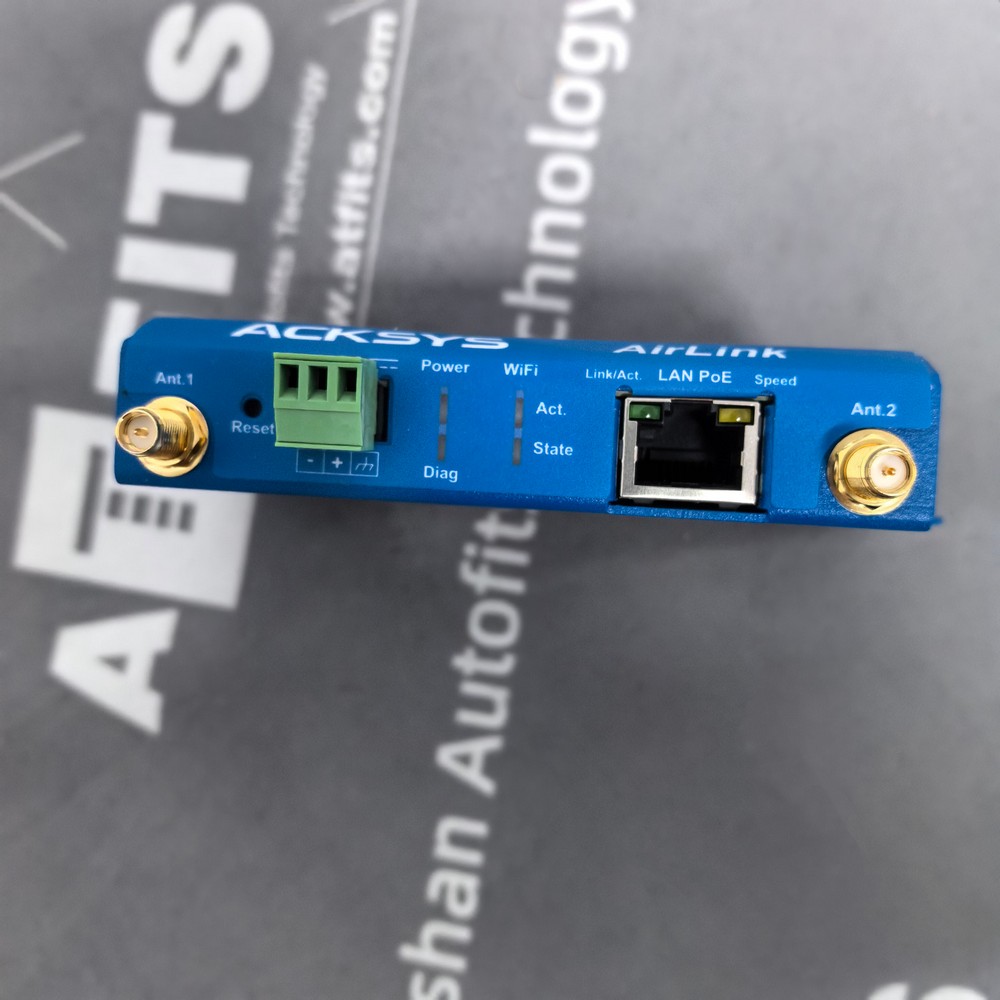

The ACKSYS AirLink_V2 (AIRLINKV2) is a compact multifunction industrial dual‑band WiFi communication unit, supporting multiple operation modes including access point, WiFi client, router, repeater, bridge and Mesh node. It adopts IEEE 802.11a/b/g/n MIMO 2T2R radio hardware, delivering maximum wireless throughput up to 300 Mbps. Equipped with one gigabit Ethernet port, it supports DC terminal‑block power input and PoE power supply. Designed for harsh industrial environments, this device provides stable wireless network connection for AGVs, automated assembly lines, production machinery and process‑control cabinets. It realizes seamless wireless transmission for industrial protocols such as Modbus‑TCP, PROFINET and EtherNet/IP. The supplied unit is brand‑new original genuine ACKSYS productACKSYS.
2. Main Technical Specifications
| Item | Parameter |
|---|---|
| Model | AIRLINKV2 (AirLink_V2) |
| WiFi Standard | IEEE 802.11 a/b/g/n, MIMO 2T2R |
| Frequency Band | Dual‑band 2.4 GHz & 5 GHz |
| Max Wireless Data Rate | 300 Mbps |
| Ethernet Interface | 1 × Gigabit RJ45, 10/100/1000 Mbps auto‑negotiation, PoE supported |
| Operation Modes | Access Point, WiFi Client, Router, Repeater, Bridge, Mesh |
| Antenna Interface | 2 × RP‑SMA external antenna connectors |
| Power Supply | 9‑36 V DC terminal block input; PoE 802.3af |
| Power Consumption | Idle 1.7 W, maximum 5.8 W |
| Security Mechanism | WEP, WPA‑PSK, WPA2‑PSK, 802.1X authentication, firewall, DoS protection |
| Management | Web‑based configuration, WaveManager tool, SNMP v2c / v3, factory reset button |
| Enclosure Protection Class | IP30 |
| Operating Temperature | -20 °C ~ +60 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Overall Dimensions (L × W × H) | 127 mm × 67 mm × 23 mm (without antennas) |
| Net Weight | 200 g (bare unit), 228 g with antennas and terminal block |
| Installation | Wall‑mount or DIN‑rail mounting with optional accessory kit |
| Compliance | CE, FCC, UL 62368‑1, RoHS |
3. Main Functions
- Work as industrial WiFi access point to build local wireless LAN for industrial IoT devices, sensors and controllers.
- Support WiFi client / bridge mode to convert wired Ethernet devices into wireless‑connected equipment.
- Built‑in routing and repeater functions extend WiFi coverage range for large‑scale factory workshops.
- Mesh networking capability enables multi‑node distributed wireless deployment for mobile‑device scenarios such as AGVs and AMRs.
- Support PoE and wide‑range DC power supply to adapt to different cabinet power‑supply architectures.
- Multiple industrial‑grade wireless security schemes prevent unauthorized network access and data tampering.
- Support transmission of mainstream industrial Ethernet protocols for automation system data exchange.
- Web‑browser and SNMP remote management simplify device configuration, status monitoring and firmware upgrade.
4. Technical Features
‑ Compact metal‑cased structure, small footprint suitable for installation inside control cabinets and on mobile robotic equipment.
‑ Dual‑band 2.4 GHz / 5 GHz radio design avoids signal interference in dense industrial‑radio environments.
‑ Adaptive Noise Immunity technology improves stability under heavy electromagnetic‑noise workshop conditions.
‑ Fast‑roaming function supports rapid seamless handover for moving industrial mobile terminals.
‑ Multiple installation options: direct wall mounting, or optional DIN‑rail adapter for standard cabinet installation.
‑ Wide DC input voltage range reduces requirements for on‑site power‑supply adaptation.
‑ Comprehensive firewall and DoS defence enhance security for industrial automation networks.
‑ Support HTTPS encrypted web management to prevent configuration‑information leakage.
‑ Rugged hardware tolerates mechanical vibration and shock typical for factory‑floor applications.
‑ WaveOS firmware platform reserves flexible configuration space for customized industrial networking requirements.
