New Original ABB 68469325 FPBA‑01 PROFIBUS DP Adapter Module
1. Product Overview

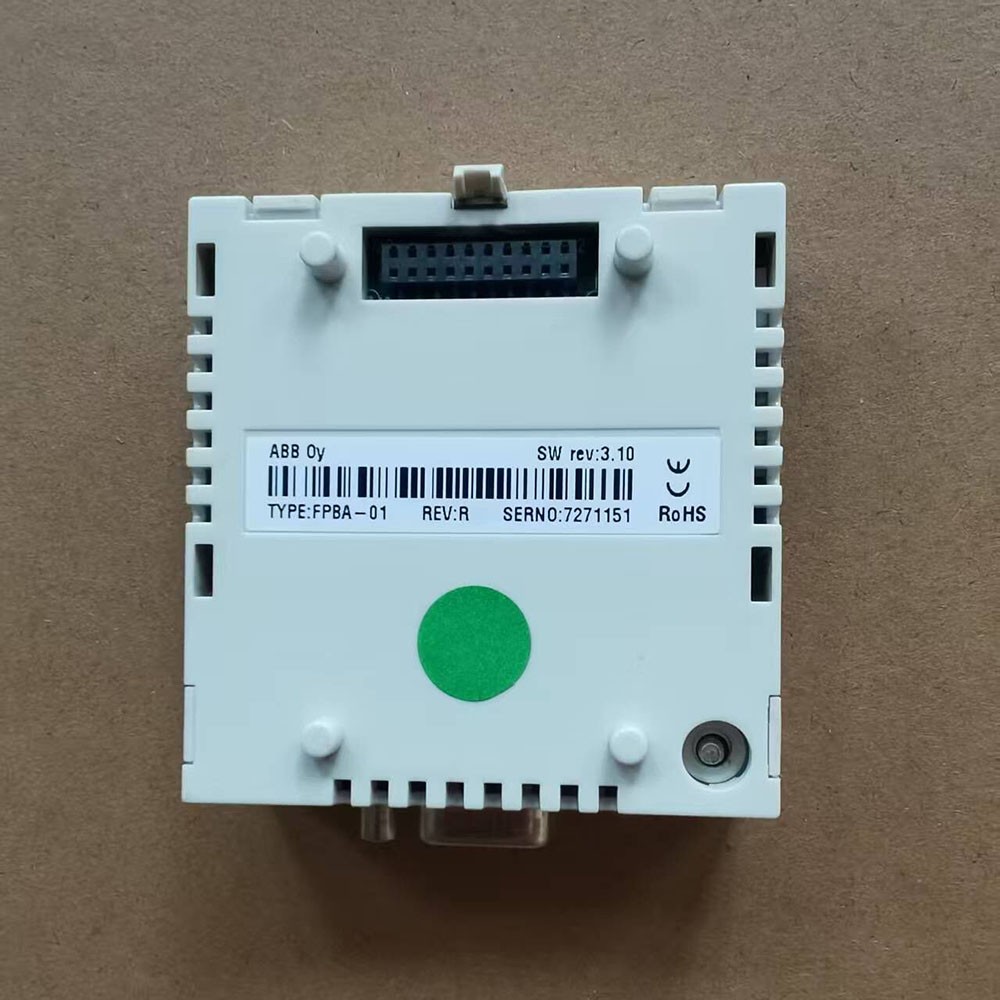

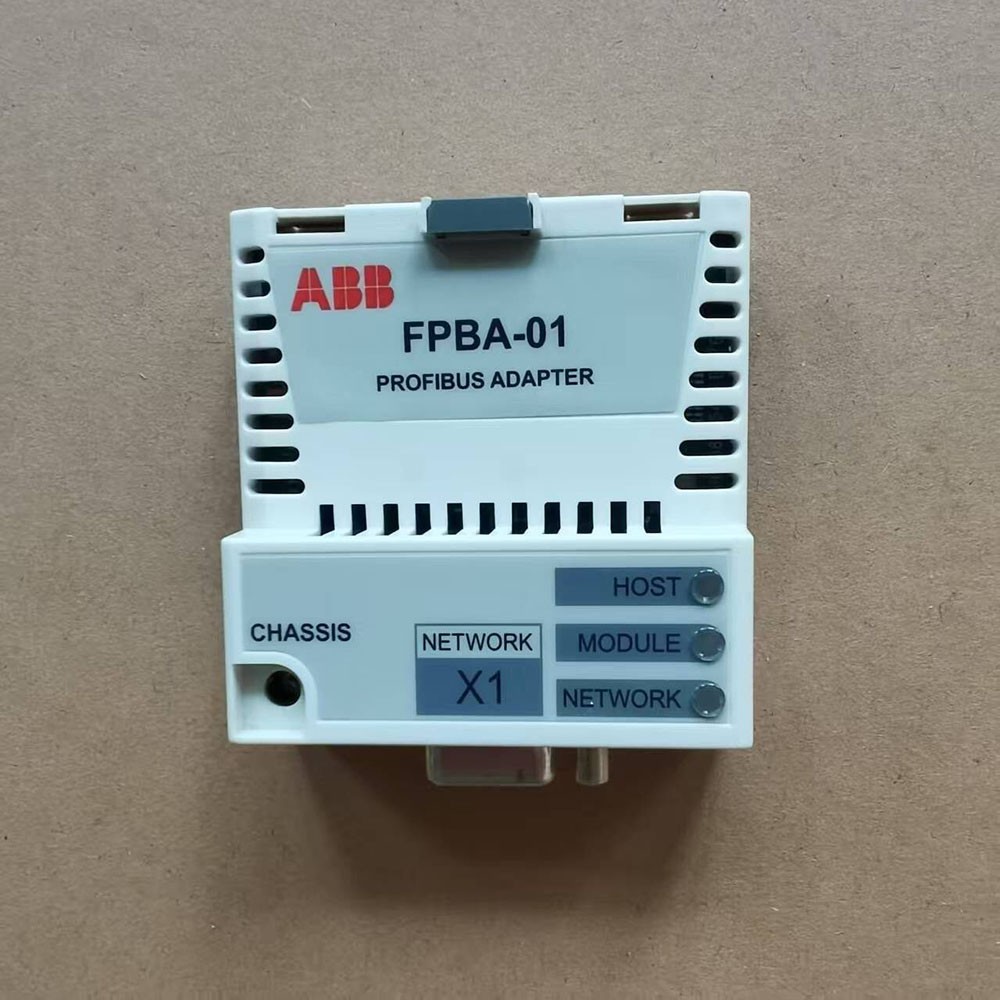

The ABB FPBA‑01, order code 68469325, is a fieldbus communication adapter module for ABB variable‑frequency drives. It is an option slot plug‑in module designed to connect ABB drives to PROFIBUS‑DP industrial fieldbus networks. It supports PROFIBUS DP‑V0 and DP‑V1 protocols, realizing real‑time data exchange between frequency converters and PROFIBUS master controllers. It enables remote drive control, parameter reading‑writing, status monitoring and fault diagnosis. This module is widely applied in automated production lines, material handling systems, machine tools, pumping and fan control systems and process‑oriented industrial automation projects. The delivered unit is brand‑new original genuine ABB product.
2. Main Technical Specifications
| Item | Parameter |
|---|---|
| Model | FPBA‑01 |
| ABB Order Number | 68469325 |
| Communication Protocol | PROFIBUS DP‑V0, DP‑V1 |

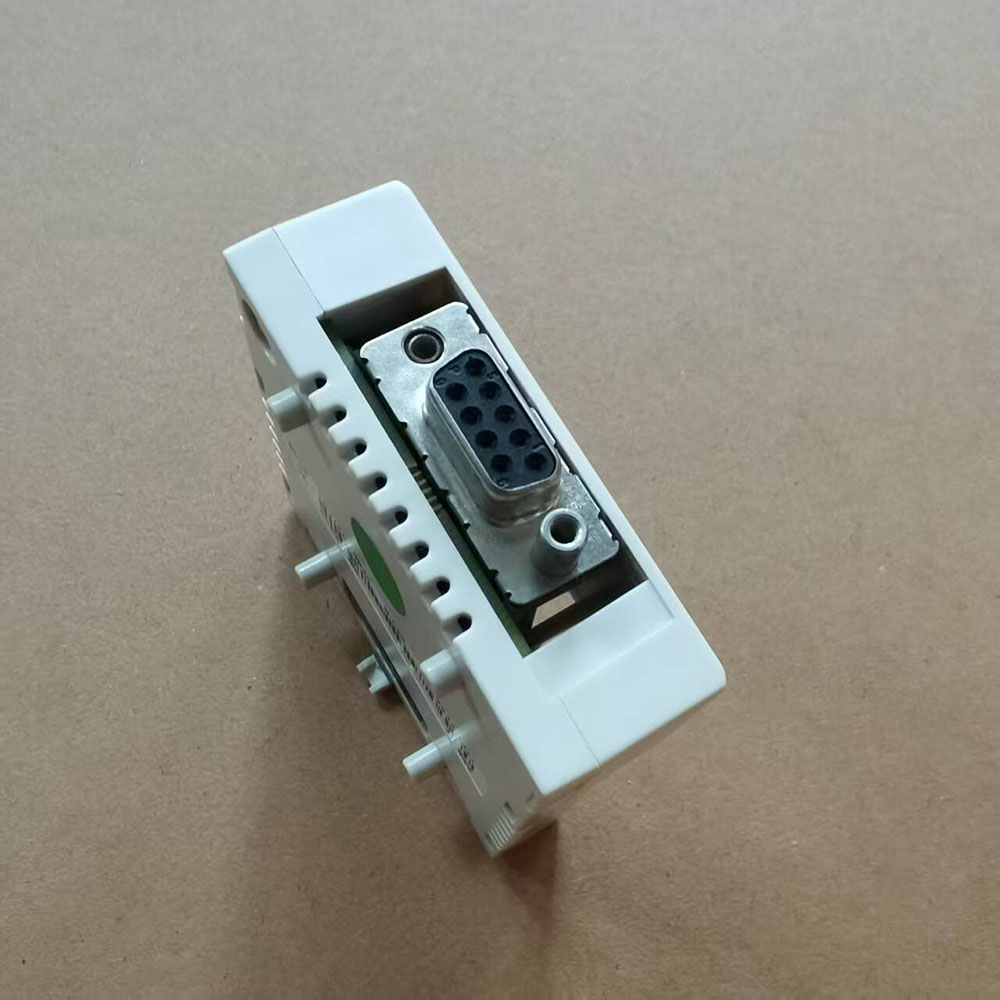

| Physical Interface | 9‑pin D‑SUB female connector |
| Supported Baud Rate | 9.6 kbps up to 12 Mbps, auto‑detection |
| Supported Profiles | PROFIdrive, ABB Drives profile, Transparent‑16‑bit, Transparent‑32‑bit |
| Supported Telegram Types | PPO 1‑8, STD 1‑2 |
| Module Power Supply | Supplied by drive internal option slot, 24 V DC |
| Power Consumption | Approx. 1.5 W |
| Compatible Drives | ACS355, ACS580, ACH580, ACQ580, ACS850, ACS880 series inverters |
| Indicator | Multi‑color LED for module status, bus activity and fault diagnosis |
| Installation Method | Plug‑in into drive internal option slot |
| Protection Class | IP20 (inside control cabinet) |
| Operating Temperature | 0 °C ~ +55 °C |
| Storage Temperature | -25 °C ~ +70 °C |
| Overall Dimensions (W × H × D) | 64 mm × 73 mm × 27 mm |
| Net Weight | Approx. 48 g |
| Compliance Standards | CE, RoHS, IEC 61158 |
3. Main Functions
- Realize PROFIBUS‑DP fieldbus connection for ABB frequency converters, supporting real‑time master‑slave data interaction.
- Accept remote control commands from PROFIBUS master station to realize drive start‑stop, speed setting and direction switching.
- Support remote reading and writing of drive parameters for remote configuration and parameter modification.
- Transmit real‑time operating data including output frequency, motor current, voltage and fault codes to upper‑level controllers.
- Multiple communication profiles meet different industrial drive application requirements.
- Built‑in LED indicators display module power‑on status, bus communication status and fault alarm information for on‑site debugging.
- Support automatic telegram detection to simplify fieldbus configuration work.
- Plug‑in installation without extra wiring, convenient for later upgrade and replacement of existing drives.
4. Technical Features
‑ Compact modular plug‑in structure, occupies only internal option slot space of the drive without extra cabinet installation space.
‑ Supports wide PROFIBUS baud rate range with automatic baud rate identification, compatible with mainstream PROFIBUS master equipment.
‑ Multiple selectable communication profiles adapt to different automation system architectures.
‑ High‑speed real‑time process data transmission ensures high‑precision motor speed control.
‑ Comprehensive diagnostic information output facilitates fast fault location of fieldbus and drive system.
‑ Short installation cycle, directly inserted into the drive option slot without additional tools.
‑ Optimized anti‑interference performance, stable operation under complex industrial electromagnetic environment.
‑ Compatible with multiple mainstream ABB drive families for unified spare‑parts management.
‑ Supports DP‑V1 acyclic parameter access for parameter modification during drive operation.
‑ Standard PROFIBUS GSD file support for convenient integration into PROFIBUS automation systems.
5. 10 ABB Similar Drive Fieldbus Communication Adapter Modules
- FENA‑21, Ethernet adapter supporting PROFINET IO, Modbus TCP/IP for ABB drives
- FENA‑01, Ethernet communication adapter for Modbus TCP and PROFINET
- FPNO‑21, PROFINET IO fieldbus adapter module for ABB inverters
- FSCA‑01, RS‑485 Modbus‑RTU communication adapter module
- FDNA‑01, DeviceNet fieldbus adapter for ABB variable‑speed drives
- FCAN‑01, CANopen fieldbus adapter module for ABB drives
- FEPL‑02, Ethernet POWERLINK communication adapter
- FBIP‑21, BACnet/IP fieldbus adapter for HVAC drive applications
- FMBA‑01, Modbus‑RTU RS485 adapter for ABB frequency converters
- RPBA‑01, PROFIBUS‑DP adapter for early‑generation ABB drive series
