Siemens 6ES7288-0ED10-0AA0 SIMATIC S7-200 smart Regulated power supply
"*" indicates required fields

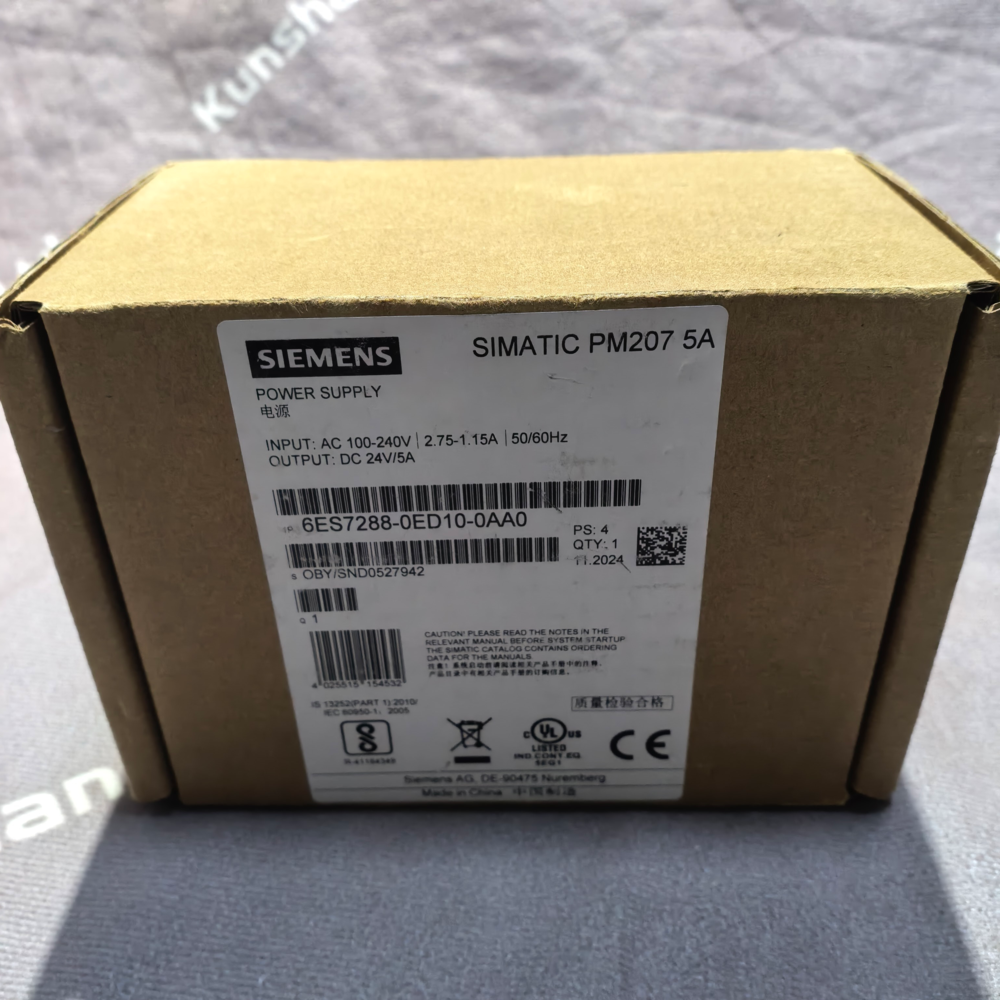

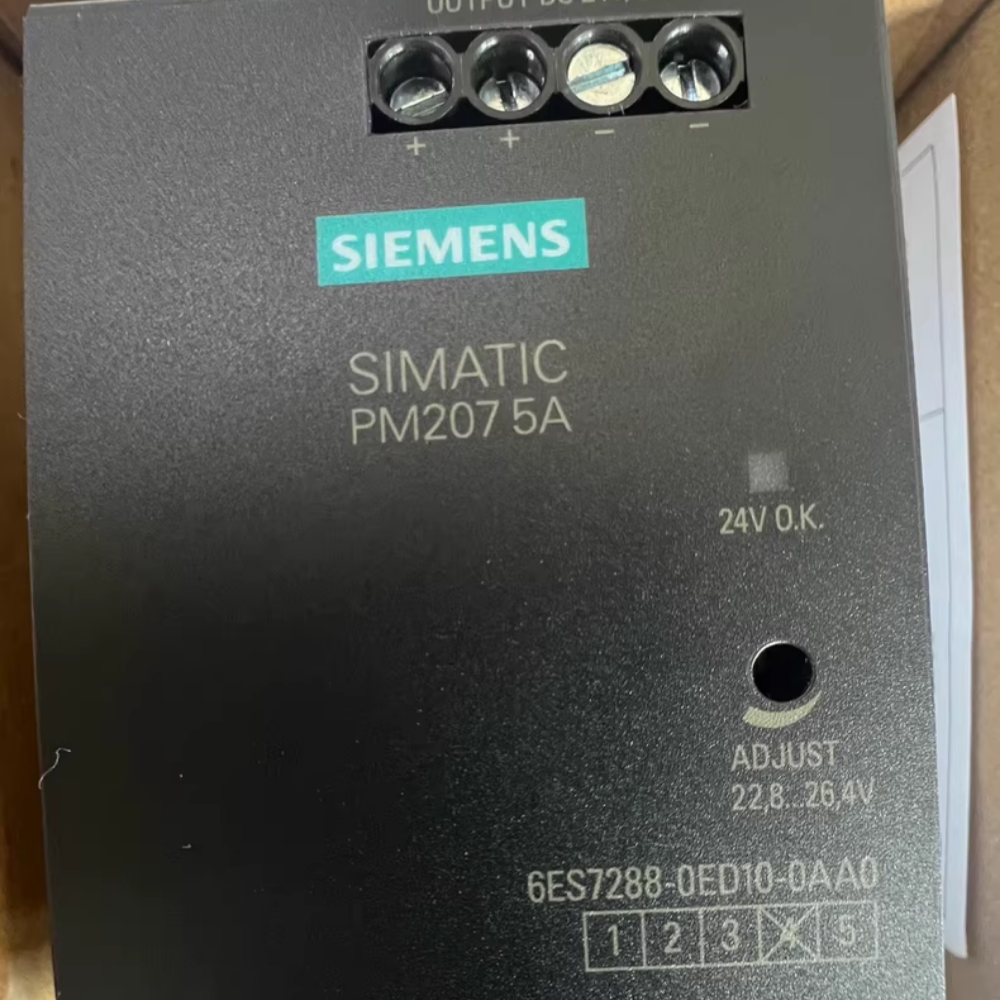

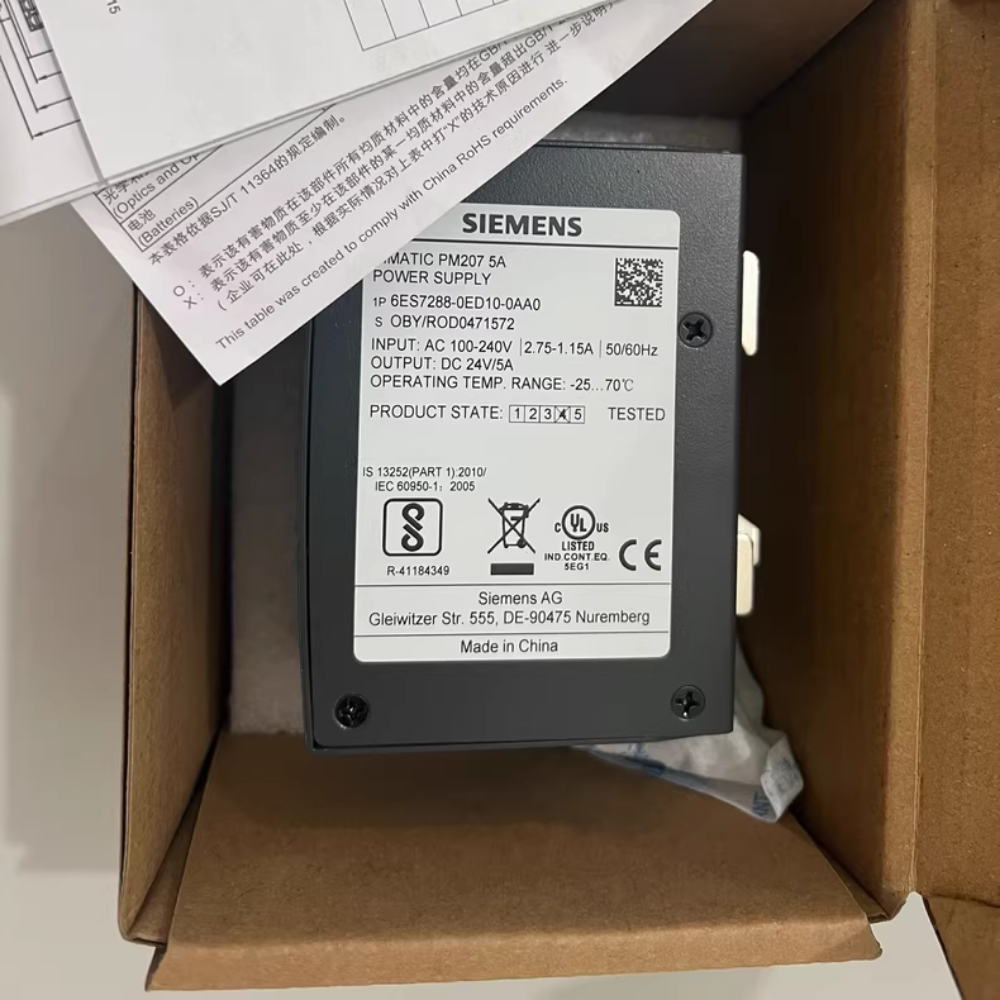

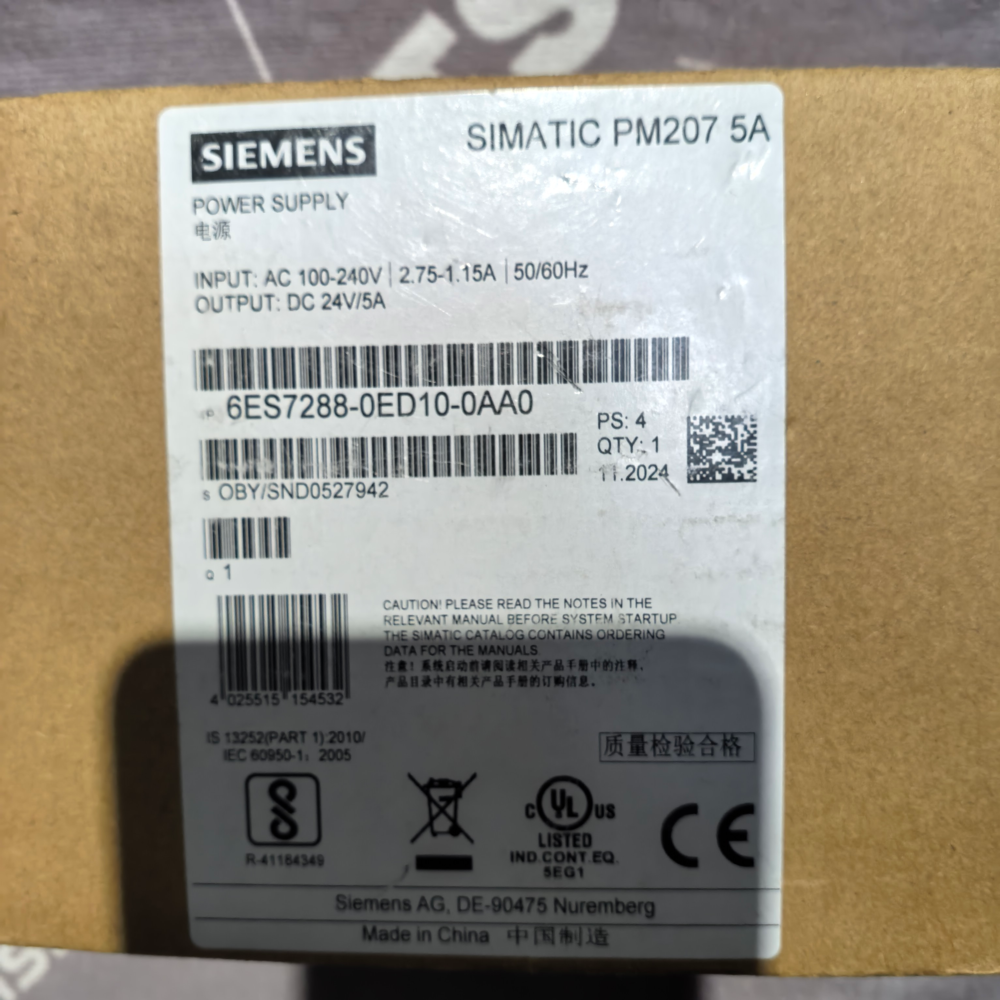

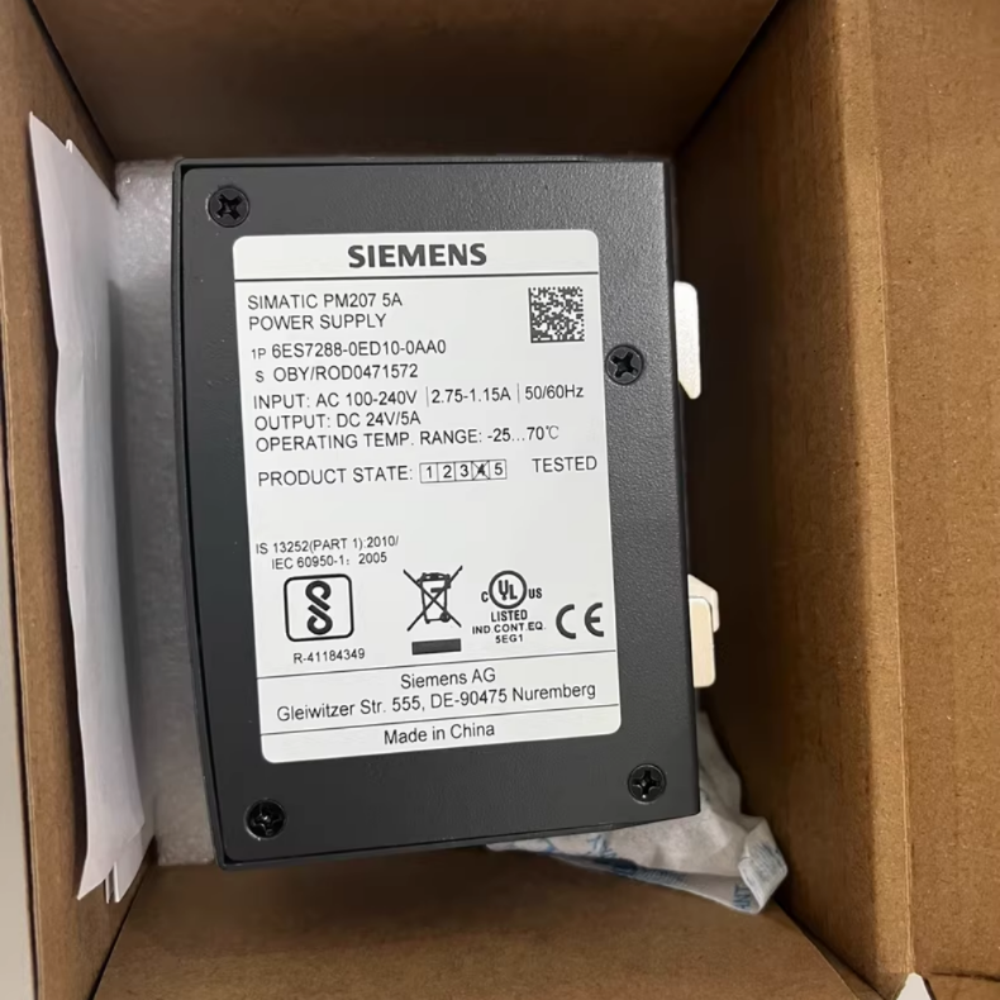

Siemens 6ES7288‑0ED10‑0AA0 SIMATIC S7‑200 SMART Regulated Power Supply Module
Product Overview
The Siemens 6ES7288‑0ED10‑0AA0 is a dedicated regulated switching‑mode power supply module for the SIMATIC S7‑200 SMART PLC series. It provides stable, isolated 24 V DC power supply for S7‑200 SMART CPUs, expansion modules, sensors, transmitters, relays and other low‑voltage industrial control components. Designed for industrial cabinet installation, this power supply features wide‑range AC input, high efficiency, complete protection functions and compact structure. It is specially matched with the S7‑200 SMART automation system to offer reliable power support for small‑scale machinery, packaging equipment, water treatment, HVAC and general factory automation applications.
Main Functions
- Stable 24 V DC Power Output
Converts single‑phase alternating‑current input into precisely regulated 24 V DC power for industrial control loads.
- Wide‑Voltage AC Input Adaptability
Accepts global standard AC voltage input to adapt to unstable power supply conditions in factory environments.
- Full‑range Protection Mechanisms
Built‑in short‑circuit protection, overload protection, over‑voltage protection and over‑temperature protection to protect the power supply and connected electrical devices.
- High‑Efficiency Energy Conversion
Low power loss and low heat generation, suitable for long‑term continuous operation inside closed electrical cabinets.
- Matching with S7‑200 SMART System
Optimized power design for S7‑200 SMART PLCs to ensure stable system operation without voltage fluctuation interference.
- Compact Cabinet‑Mount Design
Supports standard DIN‑rail mounting for neat layout in control cabinets and easy wiring maintenance.
Technical Characteristics
- Switch‑mode power supply topology with high energy efficiency and low standby power consumption.
- Industrial‑grade electromagnetic compatibility, strong anti‑interference capability for harsh factory environments.
- Compact slim housing, saving installation space inside control cabinets.
- Automatic recovery after fault removal for unattended continuous operation.
- Strictly matched with S7‑200 SMART series electrical parameters for stable system compatibility.
- Rugged mechanical structure with vibration resistance suitable for machinery‑side installation.
Technical Specifications
表格
| Item | Specification |
|---|---|
| Model Number | 6ES7288‑0ED10‑0AA0 |
| Input Voltage | AC 100 V – 240 V single‑phase |
| Input Frequency | 50 Hz / 60 Hz |
| Rated Output Voltage | 24 V DC |
| Rated Output Current | 4 A |
| Rated Output Power | 96 W |
| Efficiency | Up to 89% |
| Protection Functions | Short‑circuit, overload, over‑voltage, over‑temperature |
| Protection Class | IP20 |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | −40 °C to +85 °C |
| Compatible System | SIMATIC S7‑200 SMART PLC series |
| Mounting Type | Standard DIN‑rail mounting |
Product Dimensions and Weight
Overall Dimensions (Width × Height × Depth)
- Module Size: 60 mm × 90 mm × 58 mm
Weight
- Net Weight: Approximately 0.24 kg
- Gross Weight (with standard packaging): Approximately 0.30 kg
