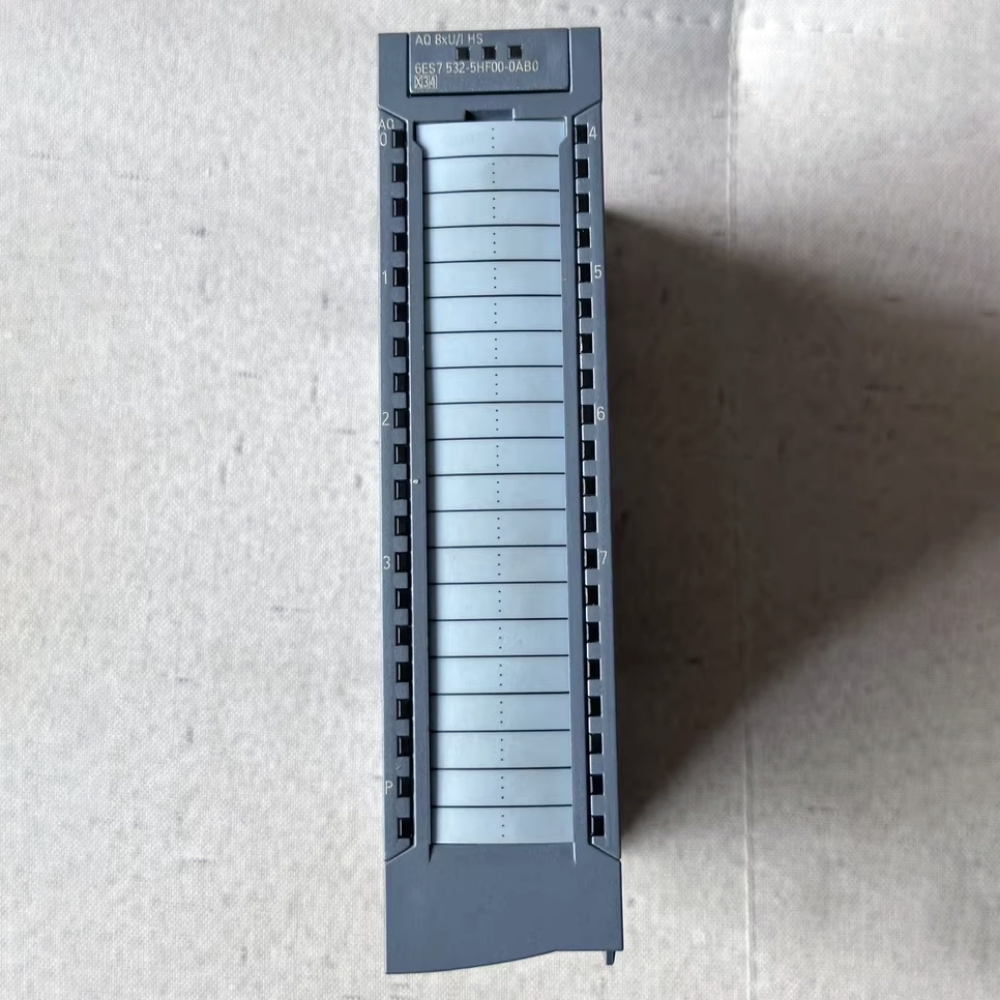

Siemens 6ES7 532‑5HF00‑0AB0 SIMATIC S7‑1500 / ET200 Analogue Output Module
Product Overview
The Siemens 6ES7 532‑5HF00‑0AB0 is a high‑performance analogue output module for SIMATIC S7‑1500 PLC and ET200 distributed I/O systems. It converts digital control signals from the CPU into standard analogue voltage or current signals to drive field actuators such as proportional valves, frequency converters, regulators and analogue indicators. Featuring high‑precision output, galvanic isolation, channel‑level diagnostics and robust industrial design, this module is widely used in process control, machinery automation, energy management and chemical industries for precise closed‑loop regulation and continuous control tasks.
Main Functions
- Digital‑to‑Analogue Signal Conversion
Converts digital control data from the controller into standard voltage or current analogue signals for continuous regulation of field equipment.
- Multi‑range Output Support
Provides multiple configurable output ranges to match different industrial actuators and control devices.
- Galvanic Isolation Protection
Offers electrical isolation between the internal bus and field circuits to avoid damage caused by ground potential differences and electromagnetic interference.
- Comprehensive Channel Diagnostics
Monitors short‑circuit, overload, wire break and module faults for each channel, feeding diagnostic information back to the CPU in real time.
- Flexible Parameter Configuration
Output type, range, safety behaviour and diagnostic functions can be individually configured per channel via TIA Portal software.
- Distributed and Centralised Application
Suitable for both central S7‑1500 rack installation and distributed ET200 I/O stations to extend analogue output capacity flexibly.
Technical Characteristics
- Compact modular design compatible with S7‑1500 backplane bus and ET200 distributed stations.
- High‑resolution D/A conversion ensures stable and accurate analogue output performance.
- Independent channel parameter setting allows mixed use of voltage and current outputs on one module.
- Excellent electromagnetic compatibility for stable operation in harsh industrial environments.
- Low power consumption and wide temperature range support long‑term continuous operation.
- Full compatibility with Totally Integrated Automation Portal (TIA Portal) engineering software.
Technical Specifications
表格
| Item | Specification |
|---|---|
| Model Number | 6ES7 532‑5HF00‑0AB0 |
| Module Type | 8‑channel analogue output module |
| Supported Output Signals | Voltage, Current |
| Resolution | 16‑bit |
| Galvanic Isolation | Yes, between field side and backplane bus |
| Diagnostics | Short‑circuit, overload, wire‑break, module error per channel |
| Protection Class | IP20 |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | −40 °C to +85 °C |
| Compatible System | SIMATIC S7‑1500, ET200 distributed I/O series |
| Programming Software | TIA Portal |
| Mounting Type | Standard DIN‑rail / S7‑1500 backplane bus mounting |
Product Dimensions and Weight
Overall Dimensions (Width × Height × Depth)
- Module Size: 35 mm × 130 mm × 115 mm
Weight
- Net Weight: Approximately 0.21 kg
- Gross Weight (with standard packaging): Approximately 0.26 kg
