Siemens 6ED1052‑1FB00‑0BA6 LOGO! Programmable Relay Display Module
Product Overview

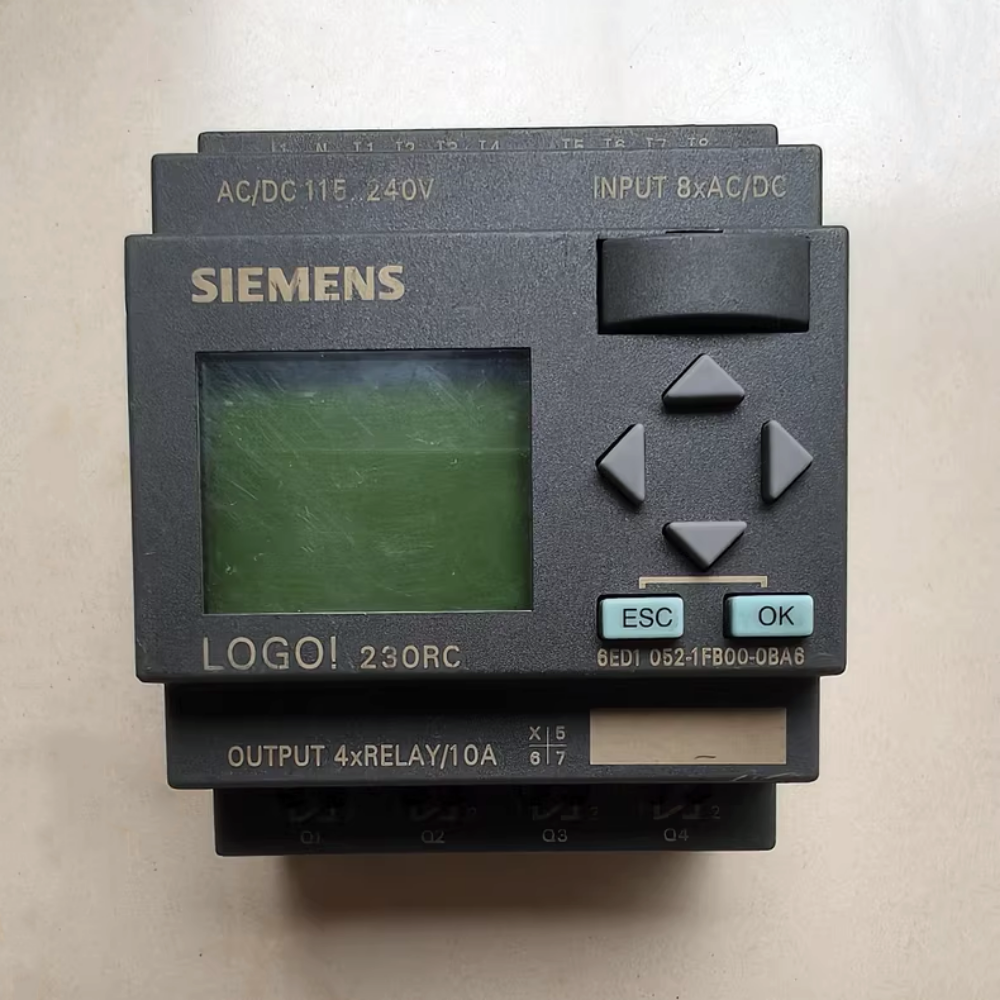

The Siemens 6ED1052‑1FB00‑0BA6 is a compact LOGO! 230RC programmable logic relay module with integrated display and operation buttons, belonging to the LOGO! basic control series. It is designed for simple automation tasks in small‑scale machinery, lighting control, pump control, ventilation systems, and building auxiliary equipment. This module combines logic control, timing functions, text display and manual operation in one unit, featuring relay output and wide‑voltage AC power supply. It is a cost‑effective standalone control solution without the need for complex PLC programming systems.
Main Functions
- Logic Control & Timing Functions
Supports standard logic operations, time delay, weekly timer, pulse relay, counter, and threshold control for automatic process regulation.
- Integrated Text Display & Manual Operation
Built‑in monochrome LCD screen and physical function buttons for parameter setting, status monitoring, and on‑site manual operation.
- Relay Output Control
Relay‑type switching outputs for driving contactors, small motors, solenoid valves, indicator lights and other low‑power actuators.
- Program Editing & Parameter Adjustment
Allows direct program creation, modification and debugging on the module display without external software.
- Status Monitoring & Fault Indication
Real‑time display of input/output status, program running state, and alarm information.
- Standalone Operation
Can work independently without connecting to upper‑level controllers or HMIs for simple automation systems.
- Password Protection
Supports password locking to prevent unauthorized modification of control programs and parameters.
Technical Characteristics
- Compact modular structure, easy for DIN‑rail mounting in standard electrical cabinets.
- Relay outputs with strong anti‑interference capability, suitable for inductive load control.
- Integrated display and keypad for local commissioning and maintenance.
- Wide AC power input range, stable operation under industrial power fluctuation conditions.
- Supports LOGO! Soft Comfort software for offline programming and simulation.
- Low power consumption and long service life for continuous‑run applications.
Technical Specifications
表格
| Item | Specification |
|---|---|
| Model Number | 6ED1052‑1FB00‑0BA6 |
| Power Supply | AC 115‑240 V |

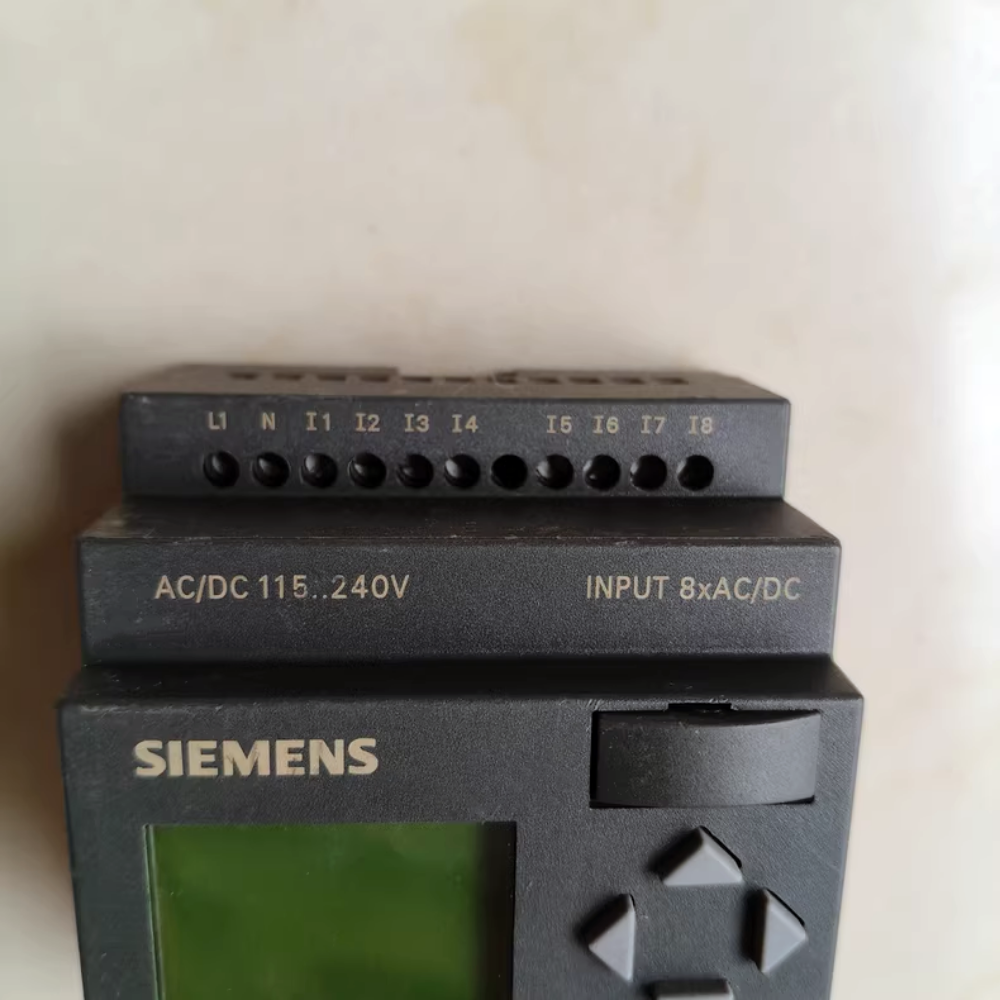

| Digital Inputs | 8 digital inputs (AC input) |

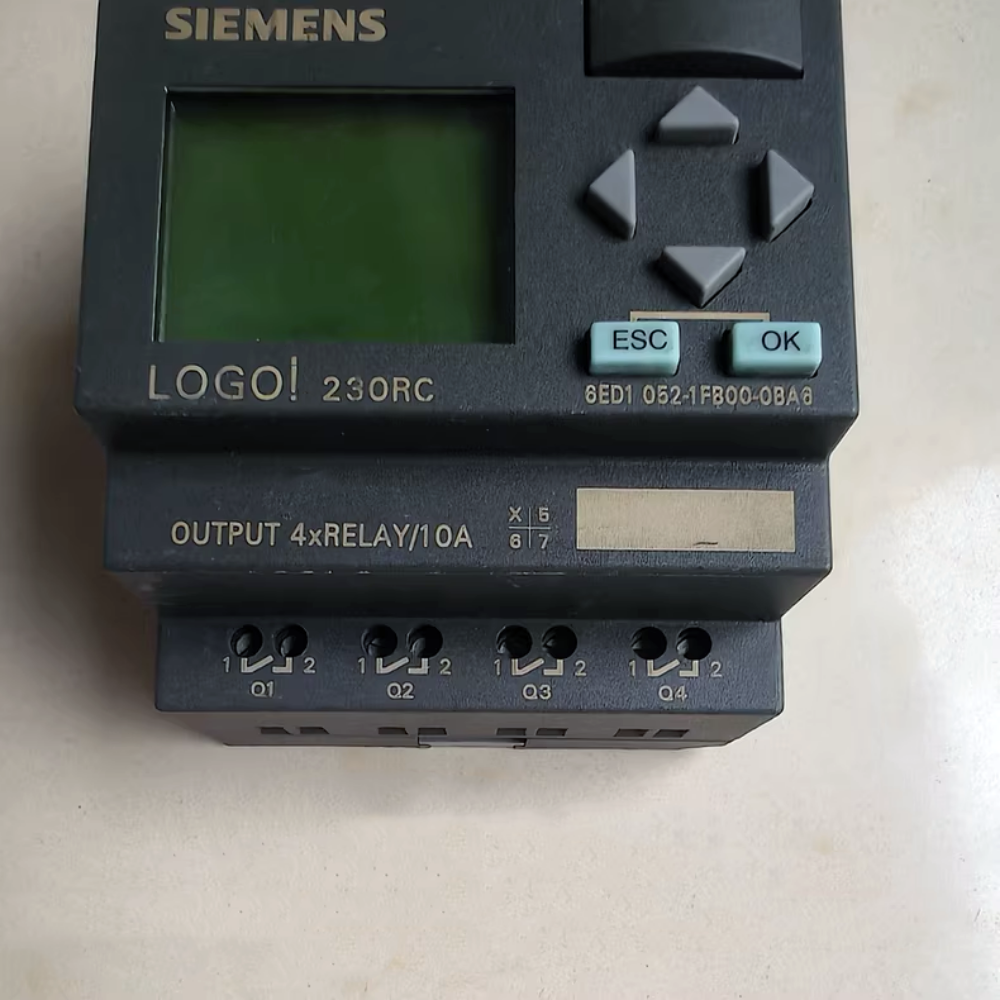

| Digital Outputs | 4 relay outputs |
| Output Type | Electromechanical relay |
| Display | Integrated monochrome LCD text display |
| Operation Buttons | 6 function keys for programming and setting |
| Program Memory | On‑board non‑volatile memory |
| Protection Class | IP20 |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | −40 °C to +70 °C |
| Mounting Method | Standard DIN‑rail mounting |
Product Dimensions and Weight
Overall Dimensions (Width × Height × Depth)
- Module Size: 72 mm × 90 mm × 55 mm
Weight
- Net Weight: Approximately 0.20 kg
- Gross Weight (with standard packaging): Approximately 0.25 kg
