Siemens 6AV6 648‑0CC11‑3AX0 SIMATIC HMI SMART 700 IE Touch Panel
Product Overview

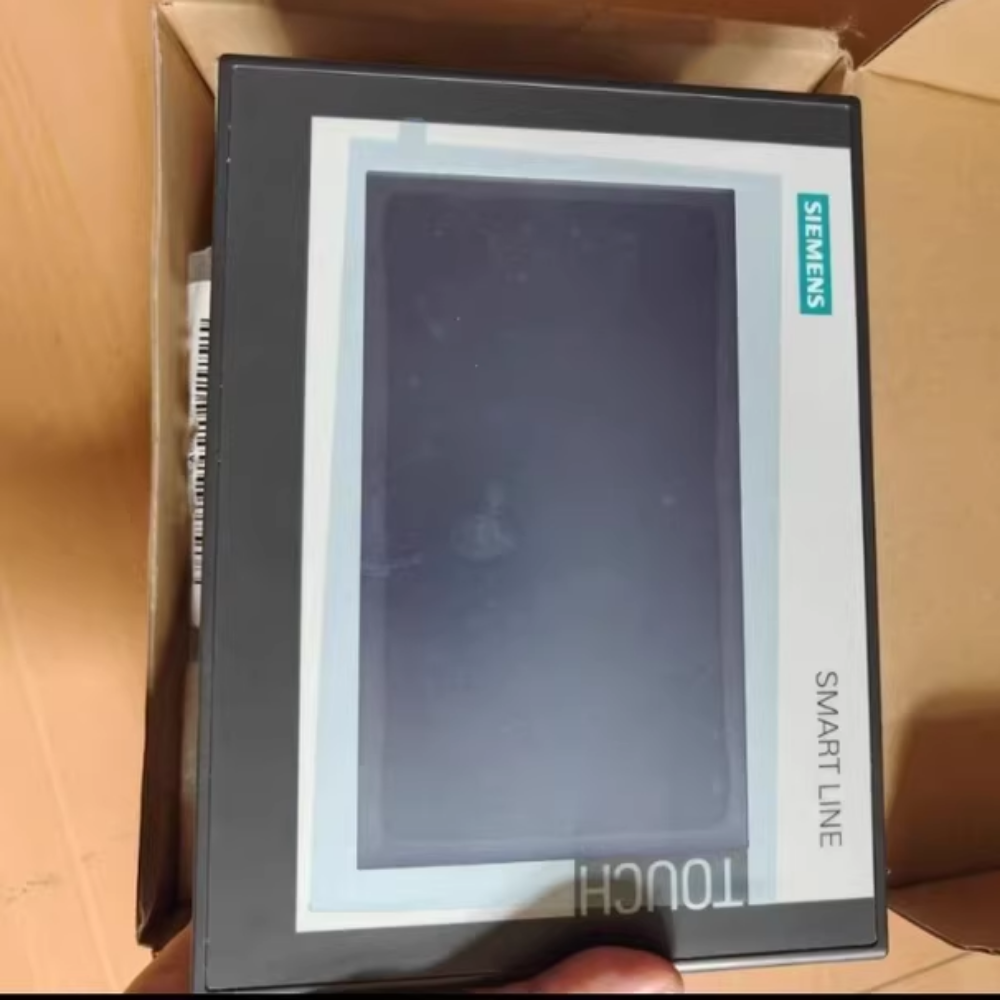

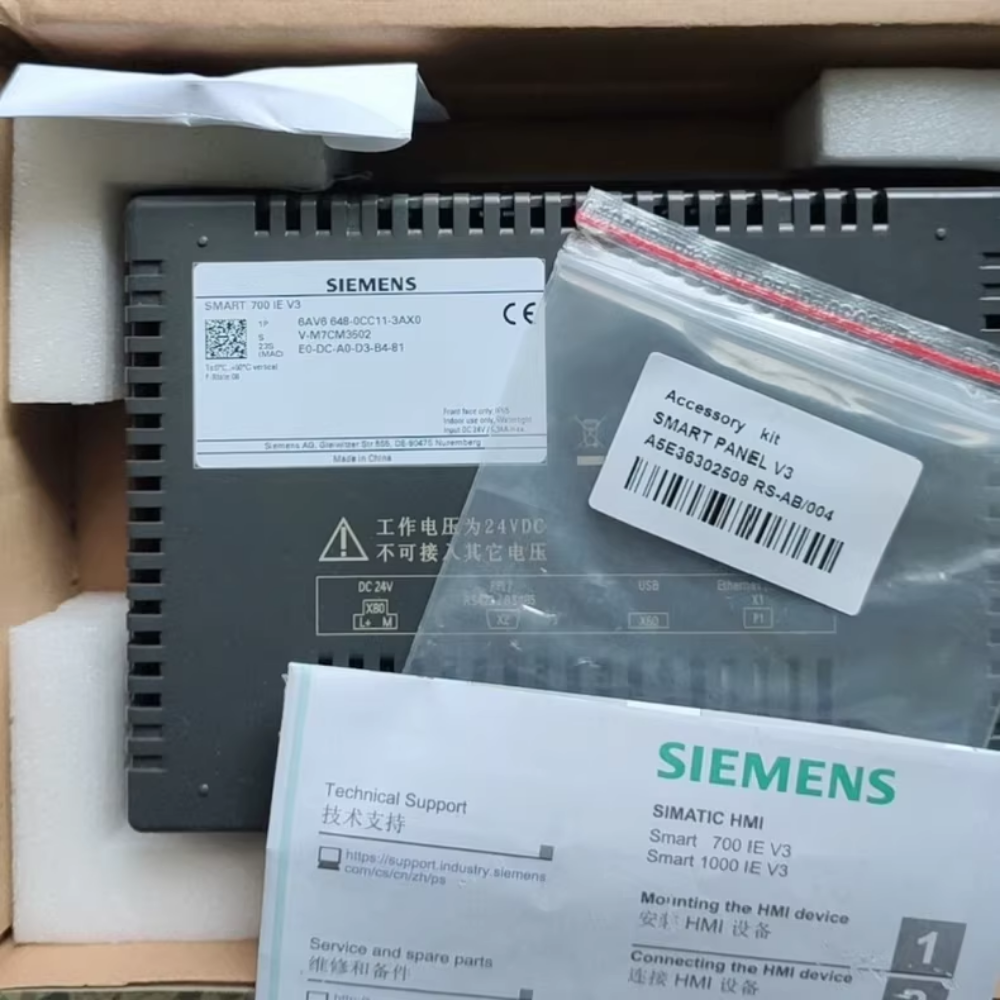

The Siemens 6AV6 648‑0CC11‑3AX0 is a cost‑effective, entry‑level SIMATIC HMI SMART 700 IE touch panel designed for basic industrial automation applications. Featuring a 7‑inch widescreen color display and integrated Ethernet communication, this panel is optimized for connection with Siemens S7‑200 SMART PLCs and other standard automation controllers. It provides reliable human‑machine interaction, on‑site monitoring, parameter setting and alarm management for small‑to‑medium machinery, production lines and auxiliary control systems. With compact structure, simple configuration and stable industrial performance, it is widely used in machinery manufacturing, water treatment, packaging equipment and building automation.
Main Functions
- Real‑time Process Visualization
Displays running status, operating parameters, device status and production data through intuitive graphical interfaces.
- Touch‑based On‑site Operation
Supports touch input for parameter modification, mode switching, start‑stop control and manual intervention.
- Ethernet Communication
Built‑in RJ45 Ethernet interface for high‑speed data exchange with PLCs and peripheral devices.
- Alarm and Event Management
Records real‑time alarms, fault messages and historical events for equipment troubleshooting.
- Recipe Function
Stores multiple groups of process parameters for quick switching of different production requirements.
- Multi‑language Support
Supports multiple international languages to adapt to global industrial application environments.
- User Access Control
Provides multi‑level password protection to avoid unauthorized operation and parameter changes.
- Data Logging and Backup
Supports data recording and project backup for production traceability and maintenance.
Technical Characteristics
- High‑definition TFT color display with clear visual effect under normal industrial lighting conditions.
- Resistive touch screen allowing operation with industrial gloves for on‑site convenience.
- Compact and thin housing suitable for standard cabinet panel mounting.
- Industrial‑grade anti‑interference design, stable operation in general factory environments.
- Configurable with WinCC flexible SMART engineering software.
- Low power consumption, wide voltage input range and long‑term continuous operation capability.
Technical Specifications
表格
| Item | Specification |
|---|---|

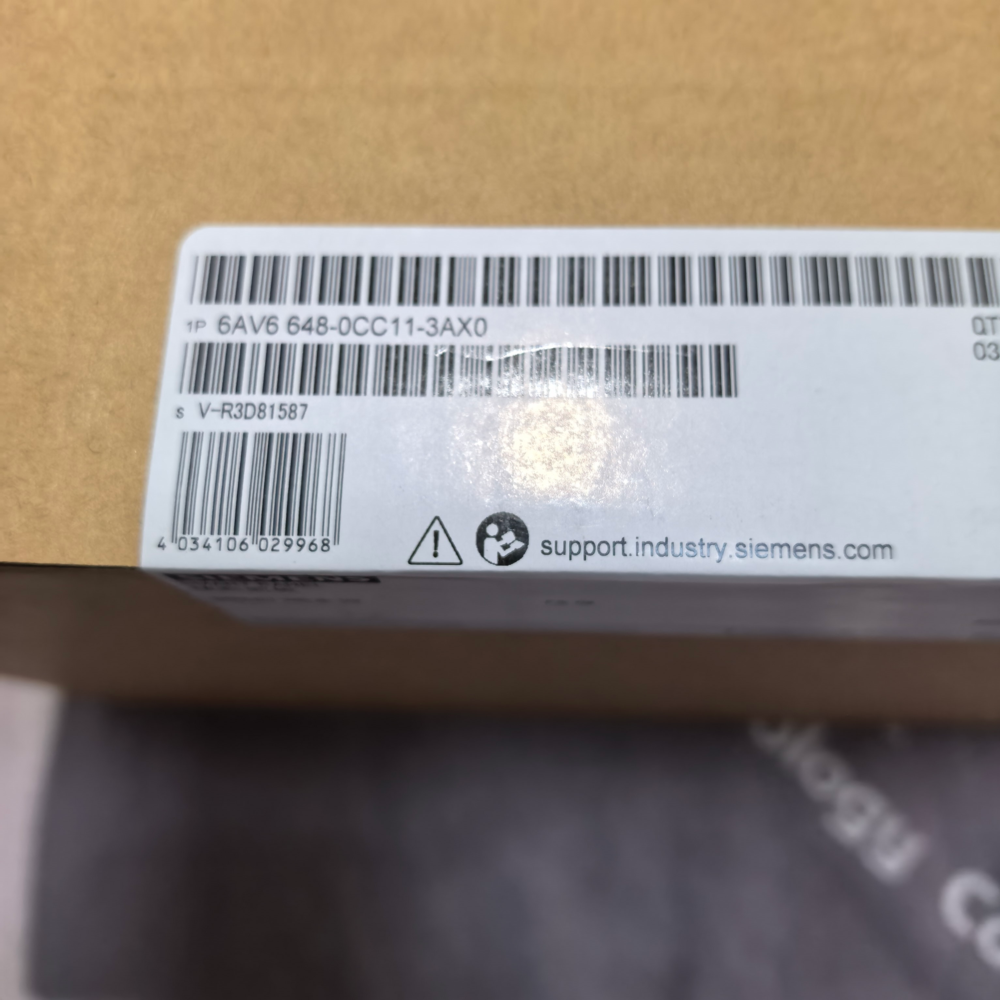

| Model Number | 6AV6 648‑0CC11‑3AX0 |
| Display Size | 7‑inch widescreen TFT color display |
| Resolution | 800 × 480 pixels |
| Display Colors | 65536 colors |
| Touch Type | Resistive touch screen |
| Communication Interface | 1 × RJ45 Ethernet port |
| Configuration Software | WinCC flexible SMART |
| Protection Class | Front: IP65; Rear: IP20 |
| Operating Temperature | 0 °C to +50 °C |
| Storage Temperature | −20 °C to +60 °C |
| Rated Power Supply | 24 V DC (19.2 V DC ~ 28.8 V DC) |
| Typical Power Consumption | Approx. 10 W |
Product Dimensions and Weight
Overall Dimensions (Width × Height × Depth)
- Front Panel Size: 204 mm × 150 mm × 46 mm
- Panel Mount Cutout Size: 192 mm × 138 mm
Weight
- Net Weight: Approximately 0.8 kg
- Gross Weight (with standard packaging): Approximately 1.1 kg
