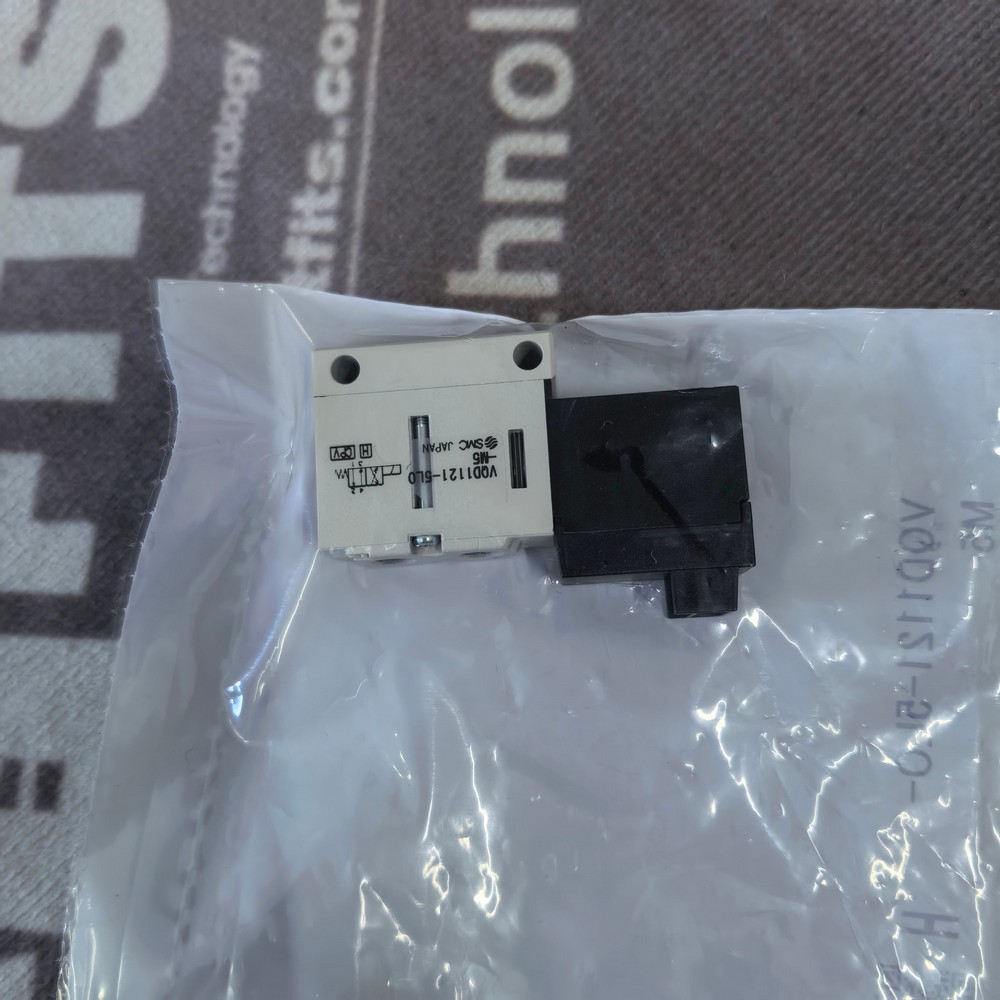

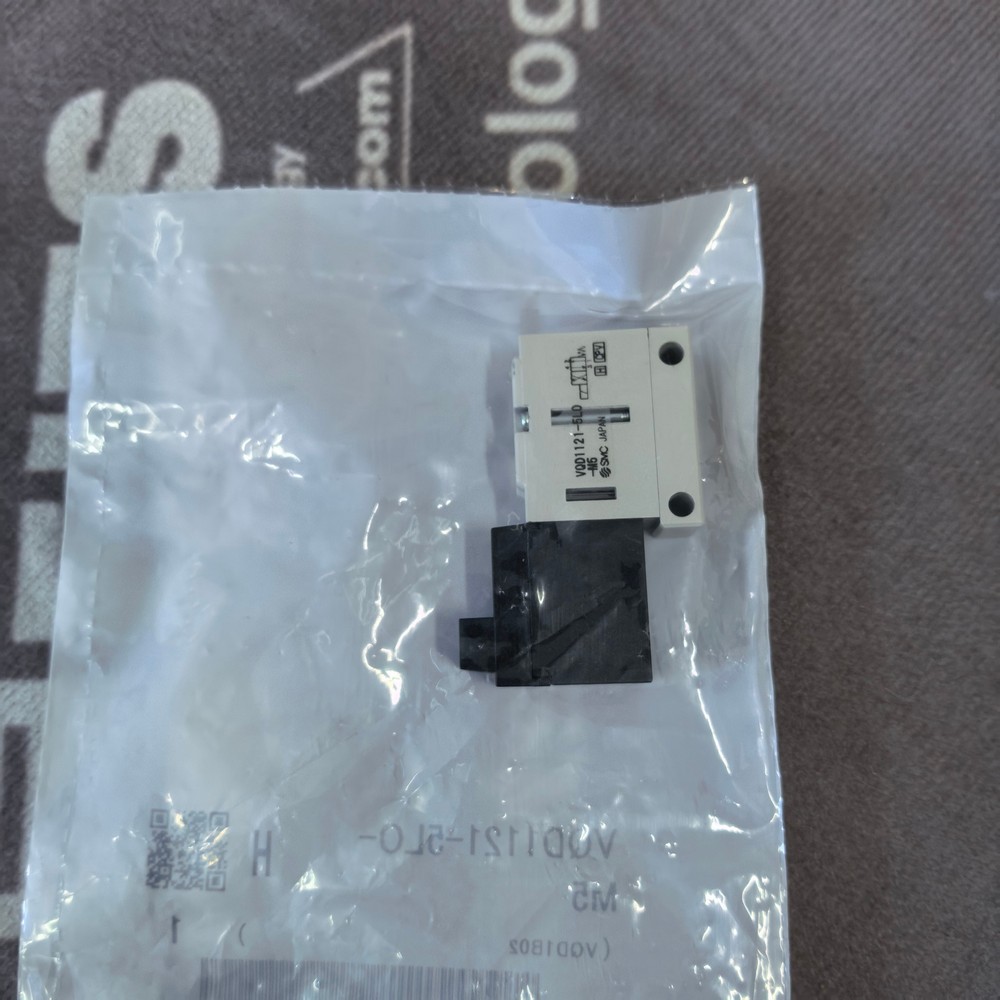

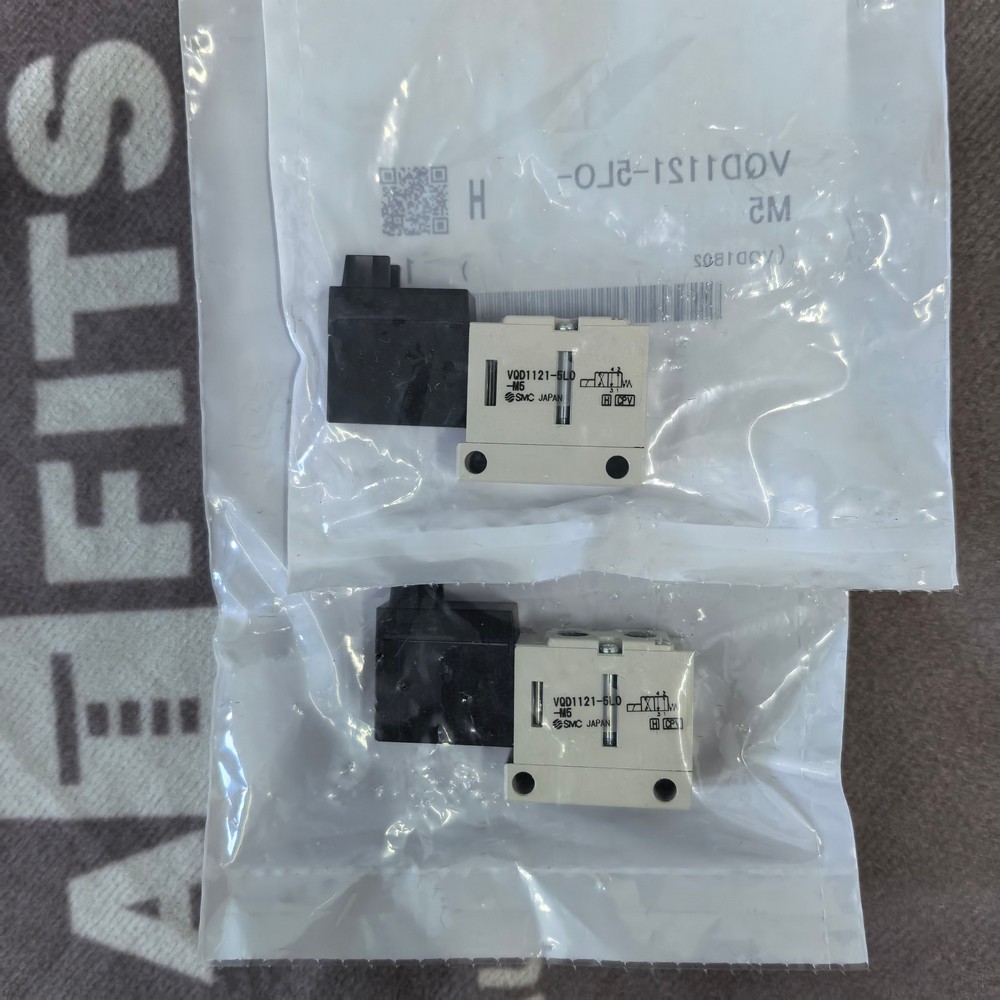

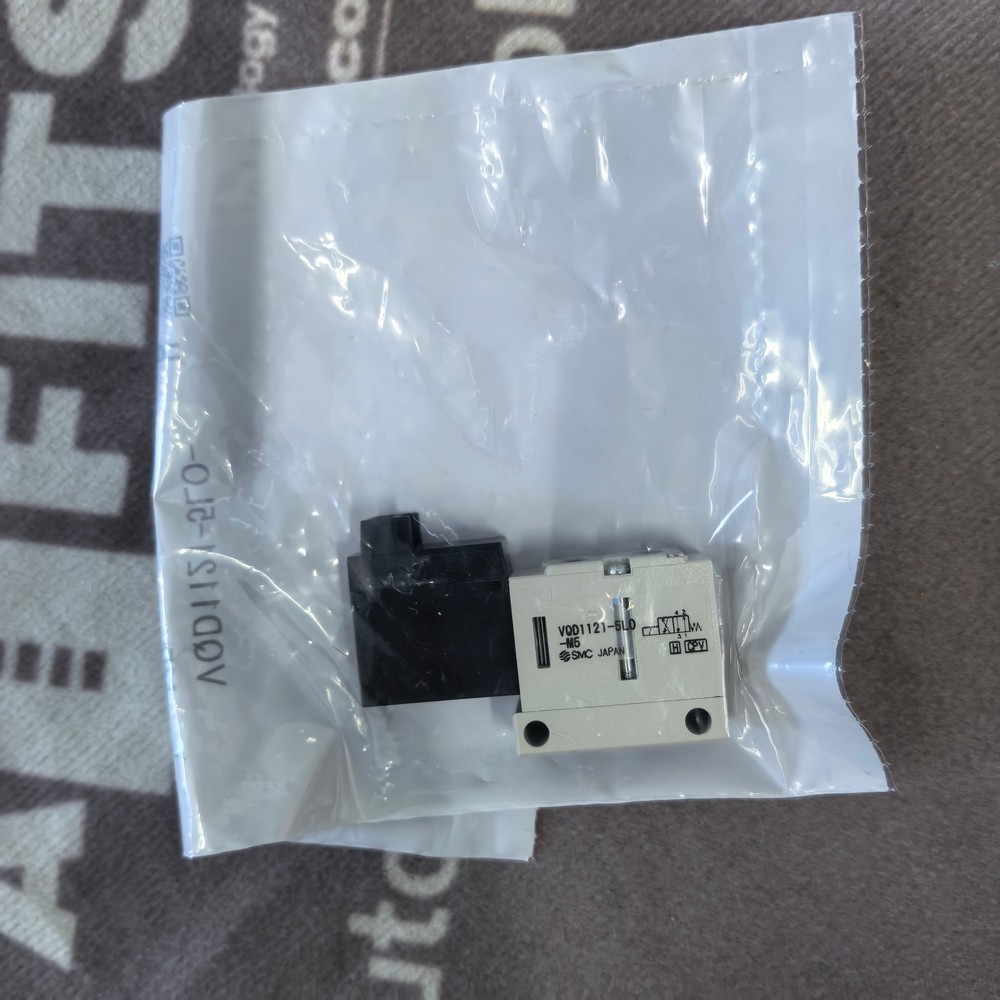

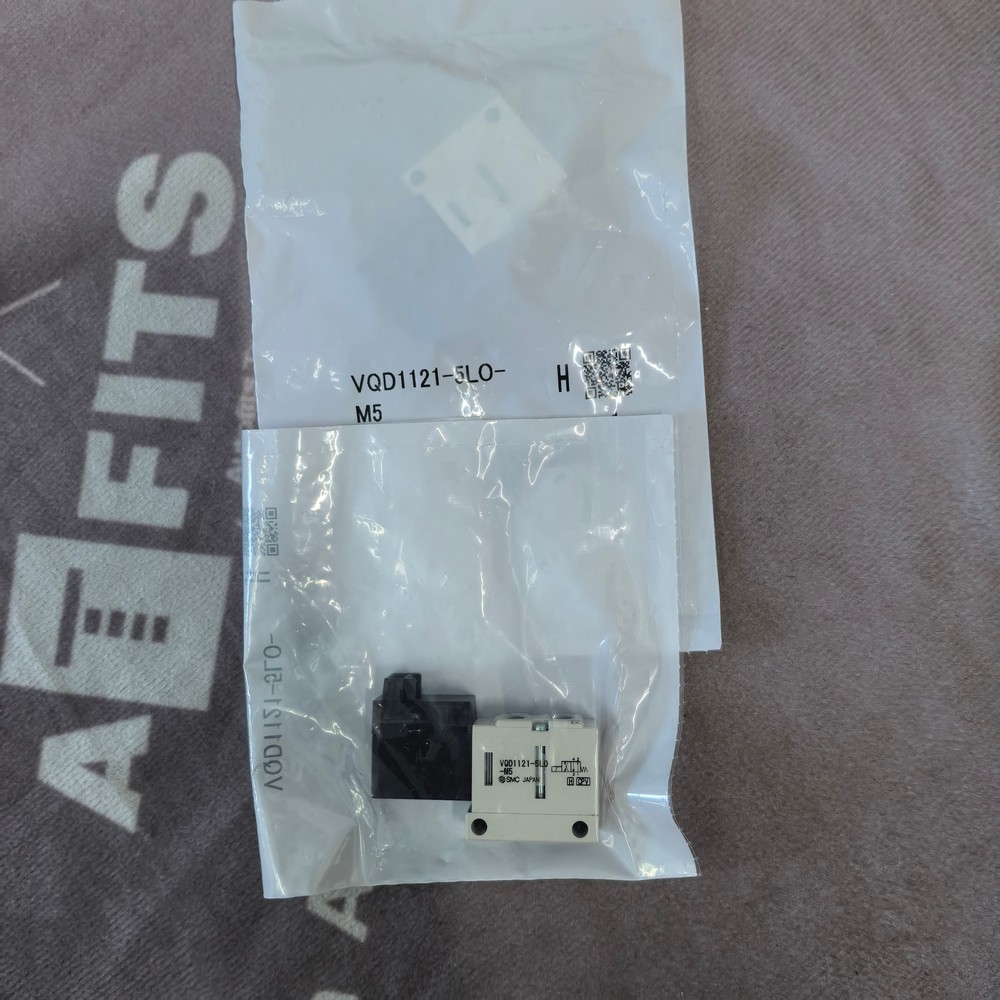

SMC VQD1121‑5LO‑M5 Miniature Pneumatic Solenoid Valve
Product Overview
The SMC VQD1121‑5LO‑M5 belongs to the VQD1000 series, it is a compact 4‑port direct‑operated poppet‑type miniature pneumatic solenoid valve. This body‑ported single solenoid valve adopts L‑plug connector with indicator light and surge suppression circuit, port thread is M5. It can be applied for compressed air and inert gas control, also supports vacuum working conditions. Characterized by ultra‑compact dimensions, fast response and low power consumption, it is widely used in small‑size automation equipment, testing instruments, pick‑and‑place mechanisms, semiconductor auxiliary equipment and compact pneumatic drive circuits. No lubrication oil is required for normal operation, and it delivers stable performance for high‑frequency switching applications.
Main Functions
- Directional air flow control: Realize 4‑port 2‑position air circuit switching to control the extension and retraction of small pneumatic actuators.
- Vacuum compatible control: Support vacuum circuit switching down to ‑101.2 kPa, suitable for vacuum suction and release applications.
- Fast high‑frequency switching: Ultra‑short ON/OFF response time to meet high‑cycle working requirements.
- Visual status indication: Built‑in LED indicator shows solenoid energized status for quick on‑site inspection.
- Surge protection: Integrated surge suppression circuit protects coil from voltage spike damage.
- Manual override: Non‑locking push‑type manual operation for commissioning and troubleshooting without power supply.
- Flexible installation: Mounting orientation is unrestricted, can be installed in any spatial angle.
- Oil‑free operation: Works with non‑lubricated compressed air, no lubricator required in air supply line.
Technical Characteristics
| Item | Specification |
|---|---|
| Order Number | VQD1121‑5LO‑M5 |
| Series | VQD1000 |
| Valve Structure | 4‑port 2‑position, direct operated poppet type |
| Fluid Media | Compressed air, inert gas |
| Port Size | M5 × 0.8 |
| Coil Rated Voltage | 24 V DC |
| Power Consumption | 2 W |
| Operating Pressure Range | 0 ~ 0.7 MPa; Vacuum: down to ‑101.2 kPa |
| Effective Area | 0.9 mm², Cv value 0.05 |
| Response Time | ON: 4 ms, OFF: 2 ms (at 0.5 MPa supply pressure) |
| Ambient & Fluid Temperature | ‑10 ℃ ~ +50 ℃ |
| Manual Override | Non‑locking push‑in type |
| Connector Type | L‑plug with LED indicator and surge suppressor |
| Shock Resistance | 150 m/s² |
| Vibration Resistance | 30 m/s² |
| Protection Class | IP40 |
| Lubrication | Not required |
Mechanical Specifications
| Mechanical Parameter | Value |
|---|---|
| Width | 11 mm |
| Height | 34 mm |
| Length | 50.5 mm |
| Net Weight | Approx. 34 g |
| Mounting | Free‑orientation mounting, body‑ported |
10 Similar‑function SMC Miniature Solenoid Valve Products
- VQD1121‑5M‑M5：VQD1000 series, M‑plug connector 4‑port miniature poppet solenoid valve, M5 port
- VQD1121W‑5LO‑M5：High‑flow version 4‑port direct poppet solenoid valve, body‑ported M5 thread
- VQD1151‑5LO‑M5：VQD1000 base‑mounted manifold‑type 4‑port miniature solenoid valve, M5 port
- VQD1131‑5LO‑M5：Manifold assembly type 4‑port miniature solenoid valve for multi‑valve stacking installation
- VQD1121U‑5LO‑M5：High‑flow enhanced model of VQD1121 series miniature directional valve
- V114‑5LO‑M5：V100 series compact 3‑port direct‑acting miniature solenoid valve for small vacuum and pilot control
- S070‑6BG‑M5：S070 series ultra‑thin 3‑port miniature solenoid valve, low‑power consumption for instrument automation
- VQD1121V‑5LO‑M5：Special variant VQD1000 4‑port poppet valve for clean‑room compatible working conditions
- VV100‑5LO‑M5：VV100 series compact direct‑operated multi‑purpose miniature solenoid valve for pilot circuits
- VQD1121‑5LO‑M5‑Q：VQD1000 series clean‑spec miniature solenoid valve for semiconductor and precision equipment
