New Original Siemens 6GK7243‑5DX30‑0XE0 CM 1243‑5 Communication Module
"*" indicates required fields

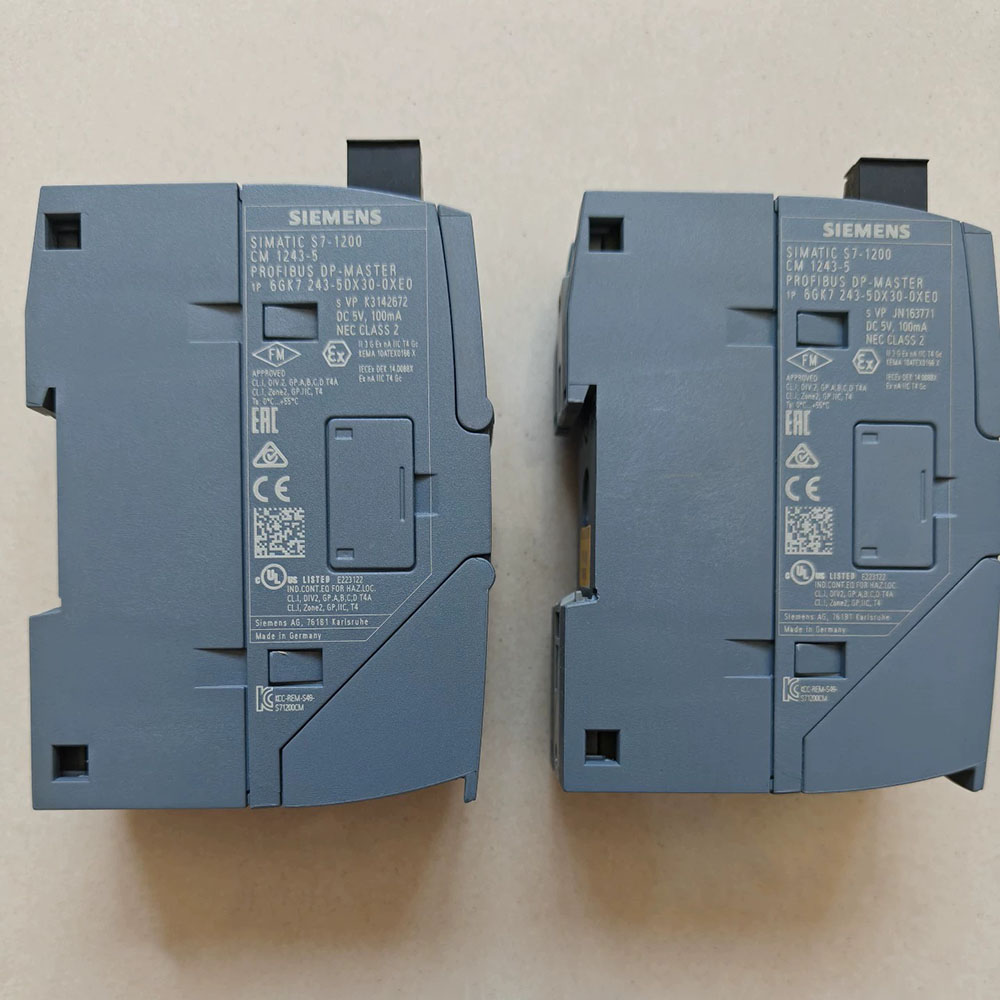

Siemens 6GK7243‑5DX30‑0XE0 CM 1243‑5 Communication Module
Product Overview
The Siemens 6GK7243‑5DX30‑0XE0 CM 1243‑5 is a PROFIBUS‑DP master communication expansion module for SIMATIC S7‑1200 PLC series西门子工业…. It connects to S7‑1200 CPU via internal backplane bus, enabling the S7‑1200 controller to act as a PROFIBUS‑DP Class 1 master station. It communicates with PROFIBUS‑DP slave devices such as remote IO stations, frequency converters and other PROFIBUS‑DP‑capable field equipment. Configuration, parameter assignment and diagnostic processing are completed in TIA Portal STEP 7 software. This module is widely used for retrofitting legacy PROFIBUS automation systems, production lines and machinery equipment. It requires external 24 V DC power supply and is designed for cabinet‑mount installation with industrial‑grade galvanic isolation for the PROFIBUS interfaceTIA Portal….
Main Functions
- PROFIBUS‑DP Master operation: Operate as DP Class 1 master station to control DP slave nodes on PROFIBUS‑DP bus, support DPV1 extended functions西门子工业….
- Cyclical I/O data exchange: Real‑time cyclic data interaction with PROFIBUS‑DP slaves, maximum 512‑byte input data and 512‑byte output data respectively西门子工业….
- Acyclic DPV1 service: Support non‑cyclic read‑write access to slave parameters and diagnosis data.
- S7 communication & PG/OP communication: Realize HMI monitoring, programming device access and cross‑station S7 data exchange over PROFIBUS bus.
- Galvanic isolation: Provide electrical isolation between PROFIBUS‑DP interface and internal PLC circuit to restrain field electromagnetic interferenceTIA Portal….
- Backplane bus interaction: Exchange configuration and process data with S7‑1200 CPU through backplane bus; maximum one CM 1243‑5 can be installed per single S7‑1200 CPU.

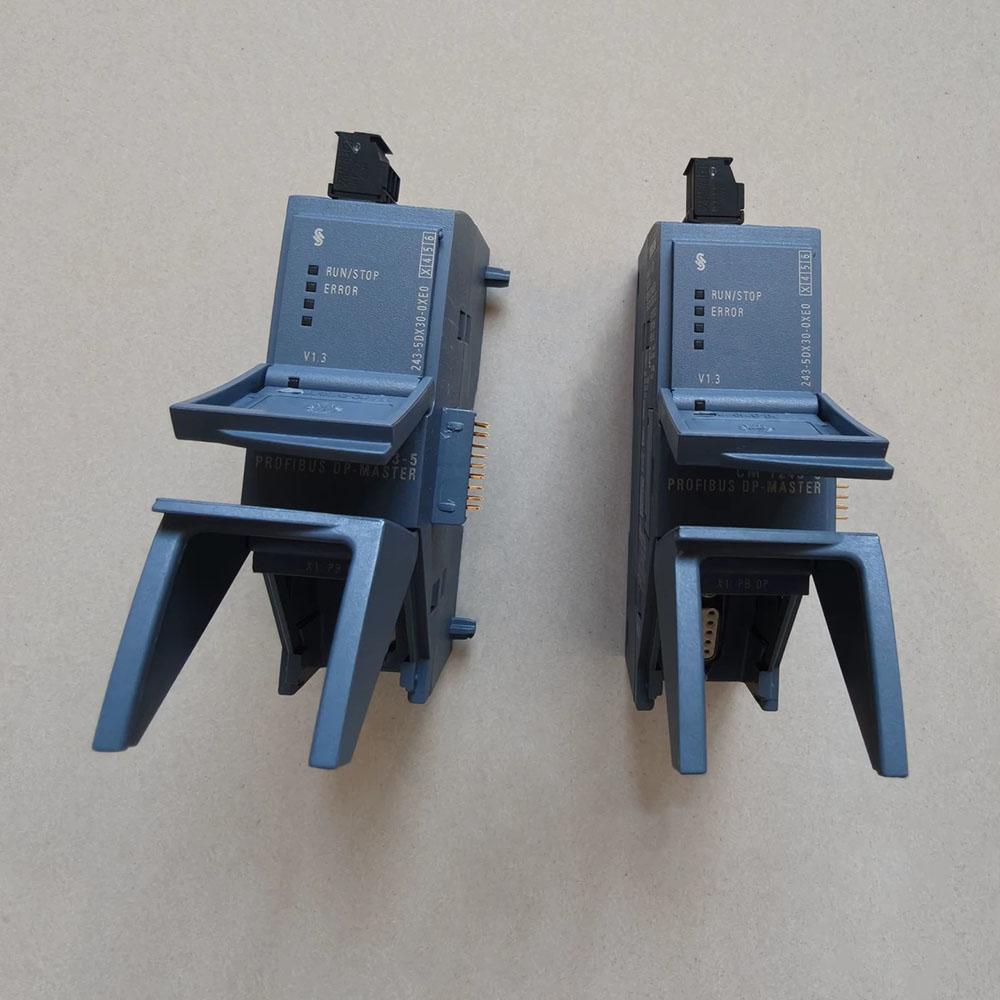

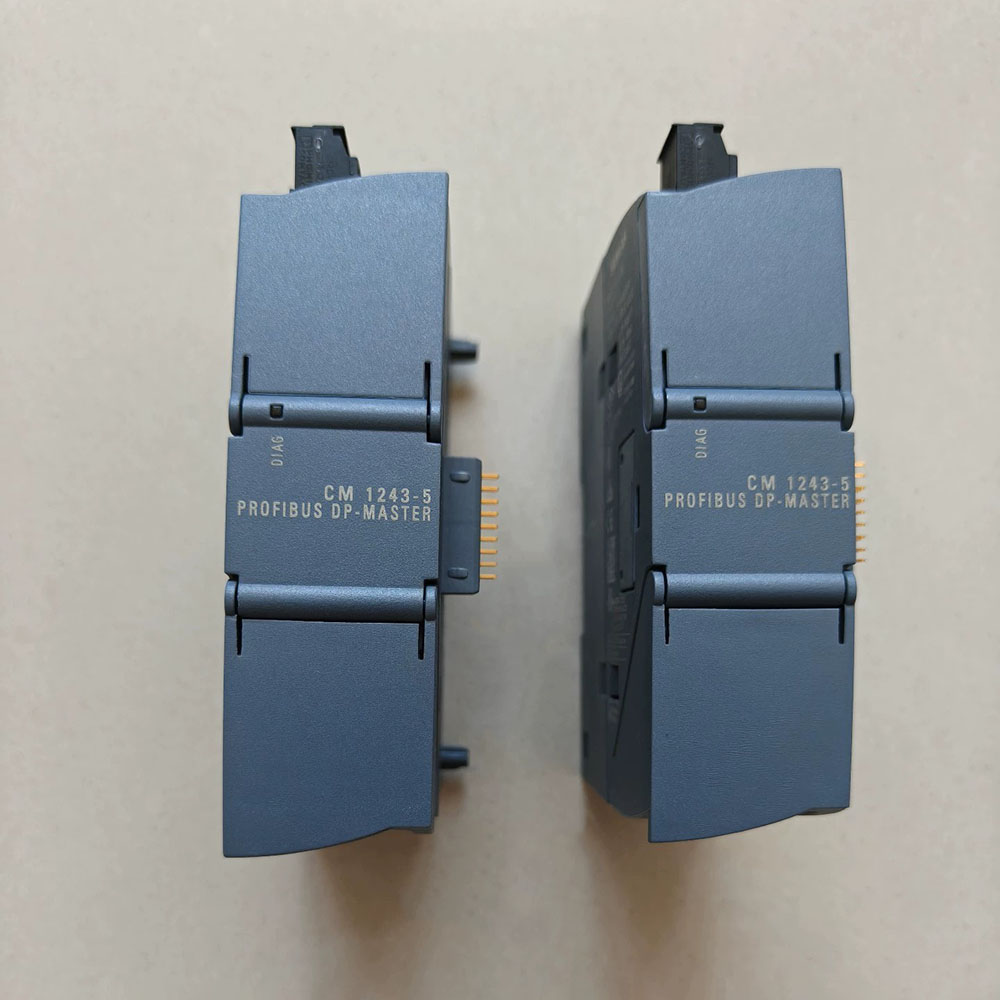

- Comprehensive diagnosis: LED status indicators and channel diagnostic information support fast bus fault and slave station troubleshooting.
- Flexible baud‑rate adaptation: Support full PROFIBUS‑DP baud‑rate range from 9.6 kbit/s up to 12 Mbit/s to adapt different field bus distances西门子工业….
Technical Characteristics
| Item | Specification |
|---|---|
| Order Number | 6GK7243‑5DX30‑0XE0 |
| Product Model | CM 1243‑5 |
| Compatible PLC Series | SIMATIC S7‑1200 |
| Bus Role | PROFIBUS‑DP Class 1 Master, support DPV1 |

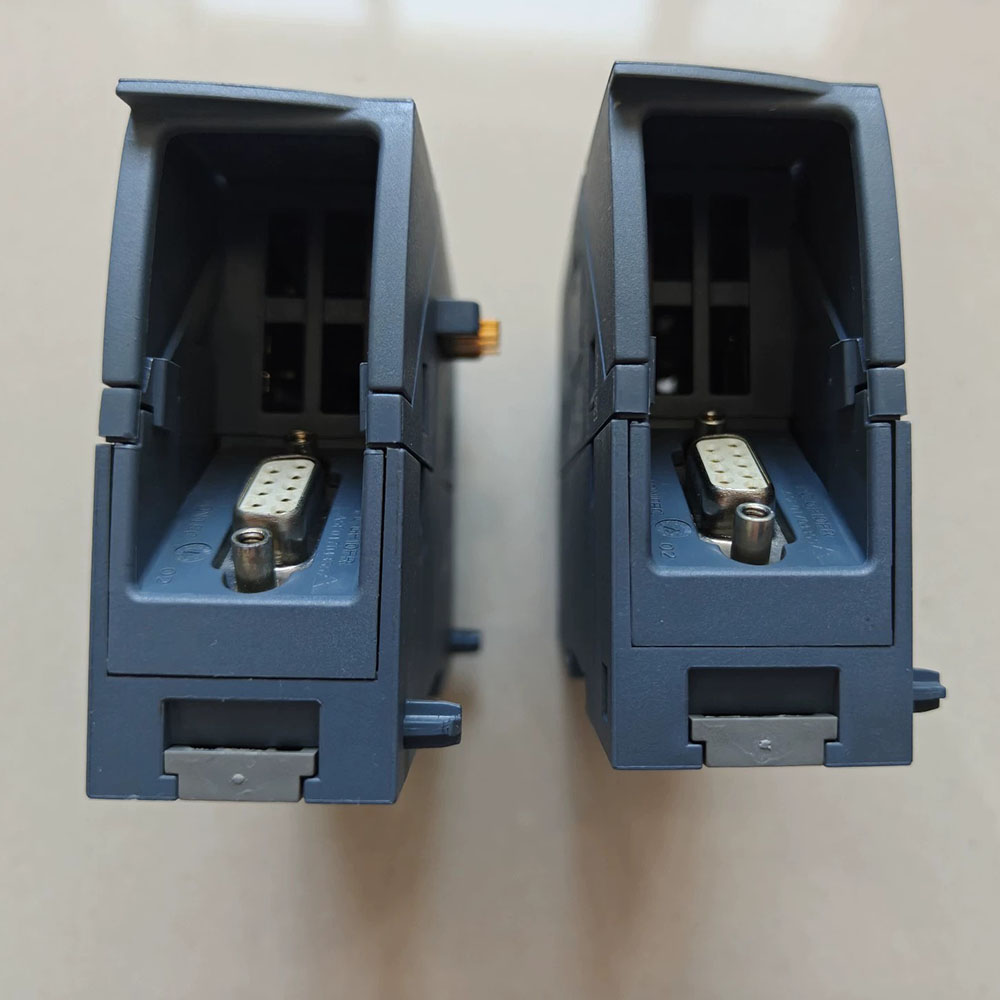

| Physical Interface | 9‑pin Sub‑D female connector for PROFIBUS‑DP |
| Supported Baud Rate | 9.6 kbit/s ~ 12 Mbit/s |
| Max. DP Slaves | Up to 32 DP slaves (depends on CPU firmware version)西门子工业… |
| Max Process Data | 512 bytes input, 512 bytes output |
| Power Supply | External 24 V DC (19.2 V‑28.8 V DC); no power drawn from backplane busTIA Portal… |
| Typical Current Consumption | 100 mA @24 V DC |
| Typical Power Dissipation | 2.4 W |
| Electrical Isolation | 710 V DC isolation between PROFIBUS interface and internal circuit |
| Operating Temperature | 0 ℃ ~ +55 ℃ horizontal mounting; 0 ℃ ~ +45 ℃ vertical mounting |
| Storage & Transport Temperature | ‑40 ℃ ~ +70 ℃ |
| Relative Humidity | 5%‑95%, non‑condensing |
| Protection Class | IP20 (installation inside electrical cabinet only) |
| Programming Tool | TIA Portal STEP 7 |
| Max Quantity per CPU | 1 piece |
Mechanical Specifications
| Mechanical Parameter | Value |
|---|---|
| Width | 30 mm |
| Height | 100 mm |
| Depth | 75 mm |
| Net Weight | Approx. 134 g |
| Mounting Method | DIN‑rail mounting or screw mounting inside control cabinet |
10 Similar‑function Siemens S7‑1200 Communication & Expansion Communication Products
- 6GK7242‑5DX30‑0XE0：CM 1242‑5, PROFIBUS‑DP slave communication module for S7‑1200 PLC西门子工业…
- 6ES7241‑1AH32‑0XB0：CM 1241 RS232 communication module, serial RS232 interface for S7‑1200
- 6ES7241‑1CH32‑0XB0：CM 1241 RS422/485 communication module, support Modbus RTU, USS protocol
- 6ES7278‑4BD32‑0XB0：SM 1278 IO‑Link master module for IO‑Link field device connection
- 6GK7243‑2AX30‑0XE0：CM 1243‑2 AS‑Interface master communication module
- 6GK7242‑7EX30‑0XE0：CP 1242‑7 GSM/GPRS communication processor for remote wireless communication
- 6GK7243‑1JX30‑0XE0：CP 1243‑1 communication processor for IEC 60870‑5‑104 telecontrol protocol
- 6AG1243‑5DX30‑7XE0：SIPLUS CM 1243‑5, conformal‑coated PROFIBUS‑DP master module for harsh environment
- 6ES7972‑0EB12‑0XA0：S7‑1200 supported PROFIBUS‑DP repeater for bus signal extension
- 6GK5005‑0BA10‑1AA0：SCALANCE XB005 unmanaged industrial Ethernet switch for PROFINET network expansion
