New Original Phoenix Contact 1442748 SAC-4P-10,0-PUR/M12FR P M12 Sensor Actuator Cable
1. Product Overview

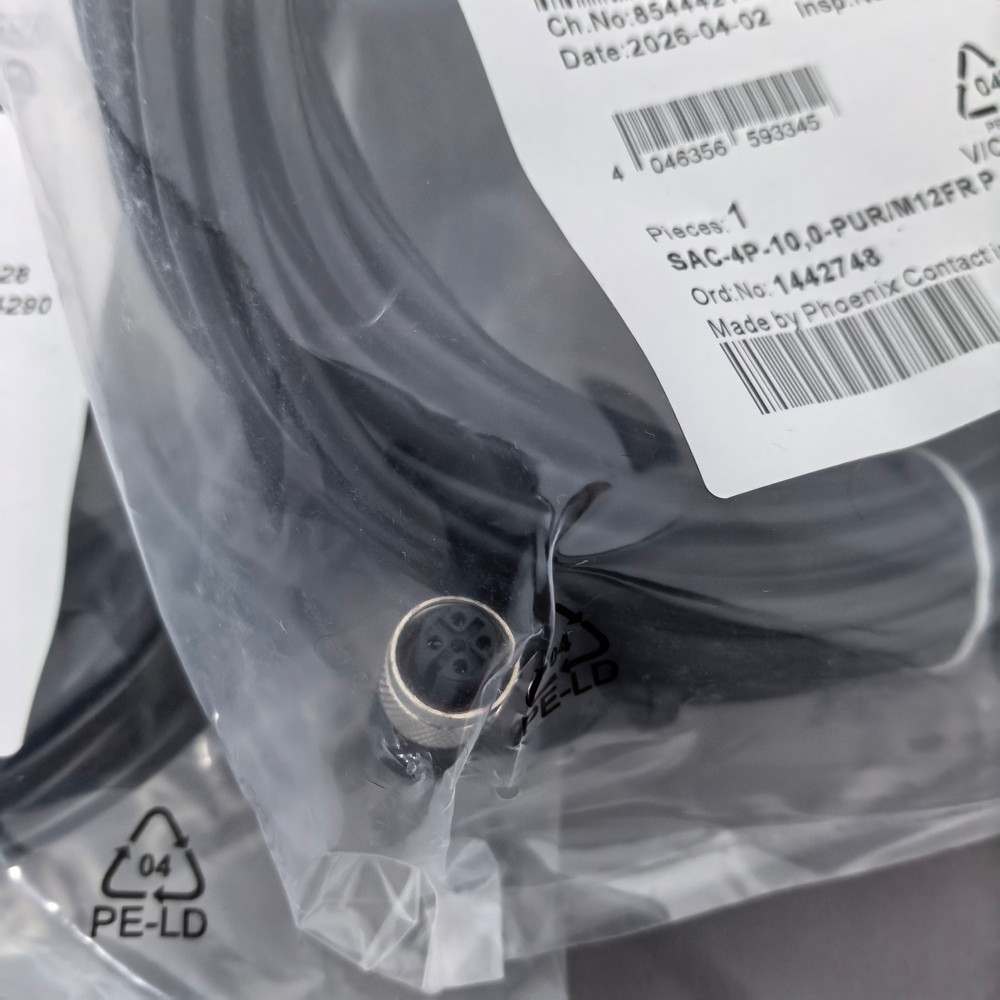

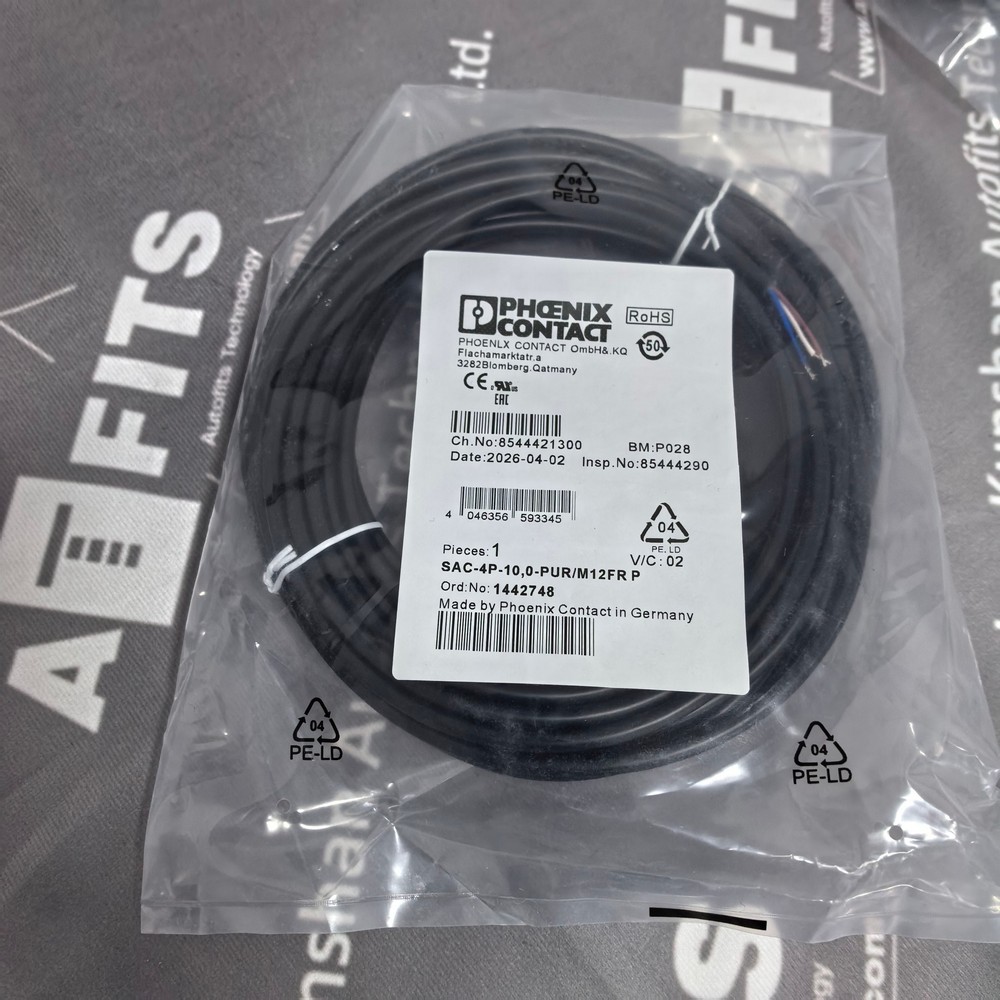

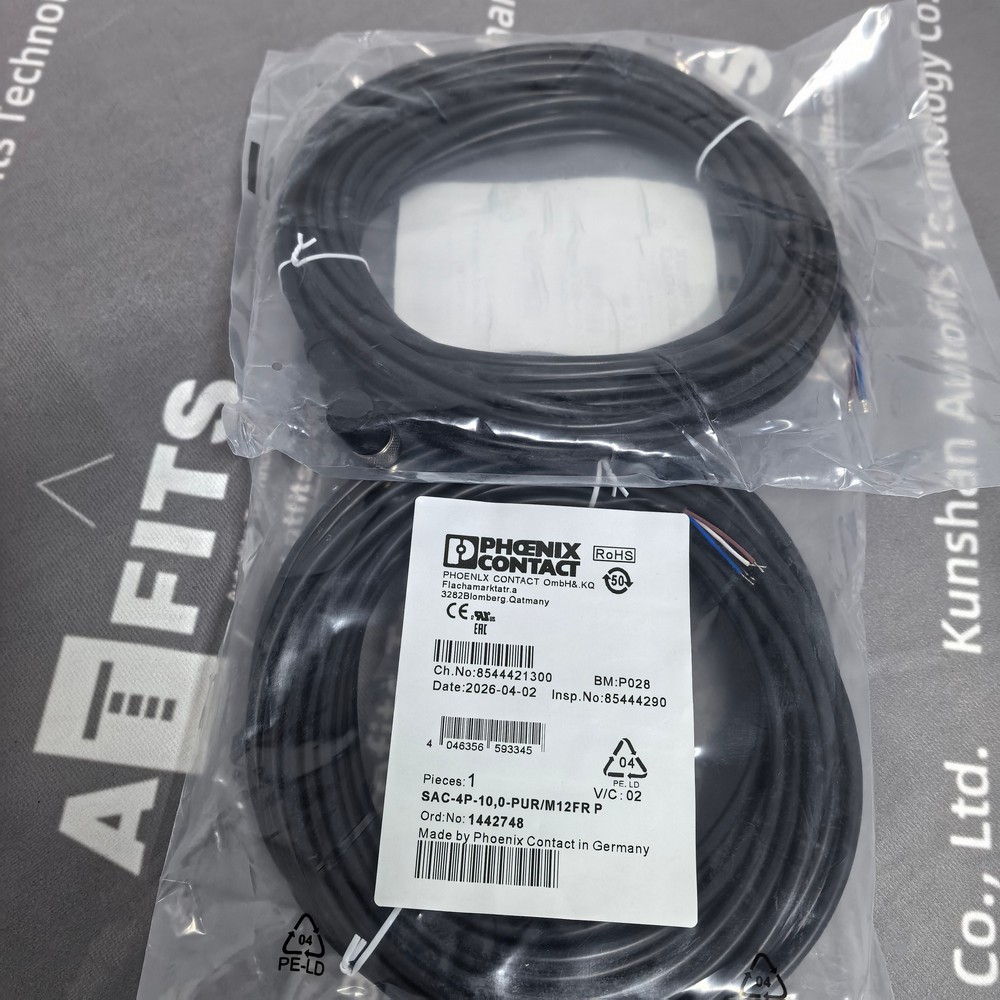

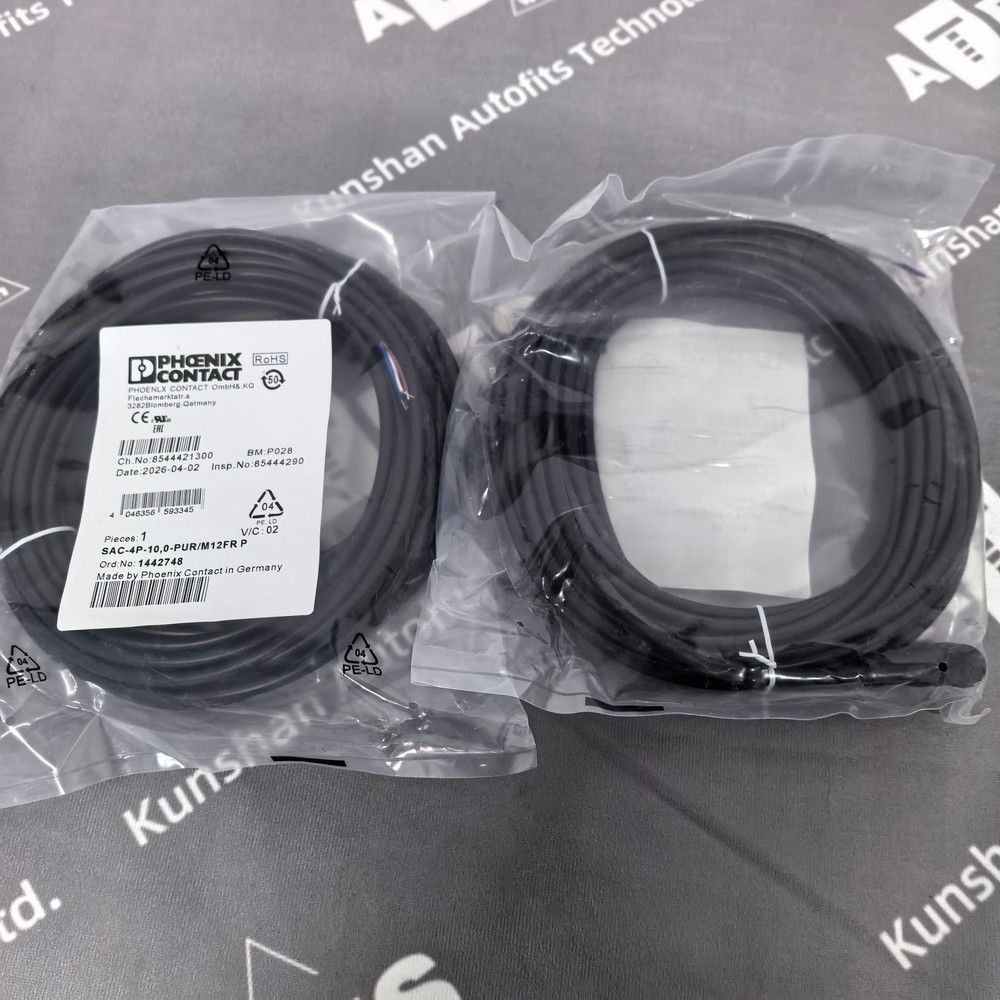

SAC-4P-10,0-PUR/M12FR P (Order No. 1442748) is a pre-assembled Phoenix Contact SAC series M12 sensor and actuator cable. It features a 4-position angled female M12 connector (A-coded) on one end and open free cable ends on the other. The cable length is 10 meters, constructed with halogen-free black PUR outer sheath and 4×0.34 mm² stranded copper conductors.
This cable is designed for signal transmission and power supply for photoelectric sensors, proximity switches, solenoid valves and small actuators in automated equipment. The angled M12 female connector saves installation space for tight mounting positions. The robust PUR jacket offers excellent resistance to oil, abrasion and mechanical stress, suitable for fixed installation and limited dynamic movement inside machine frames, conveyor lines and packaging machinery. Every finished cable undergoes full electrical testing before delivery.
2. Main Functions
- Sensor & Actuator Signal and Power Transmission Transmits DC control signals and supplies operating power to proximity sensors, photoelectric switches and small actuators within rated electrical parameters.

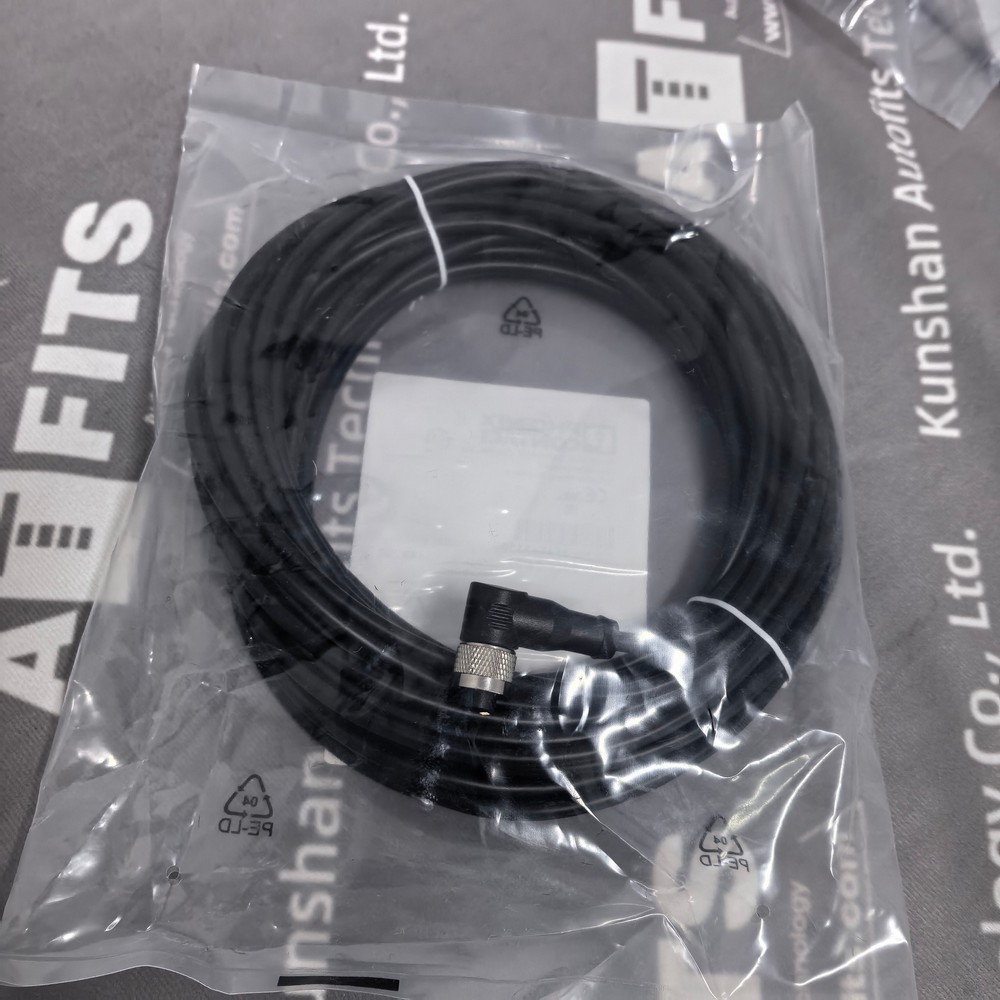

- Angled M12 A-Coded Connection Interface Standard M12 angled female socket fits all A-code M12 male plugs of industrial sensors, optimizing wiring layout in narrow installation spaces.

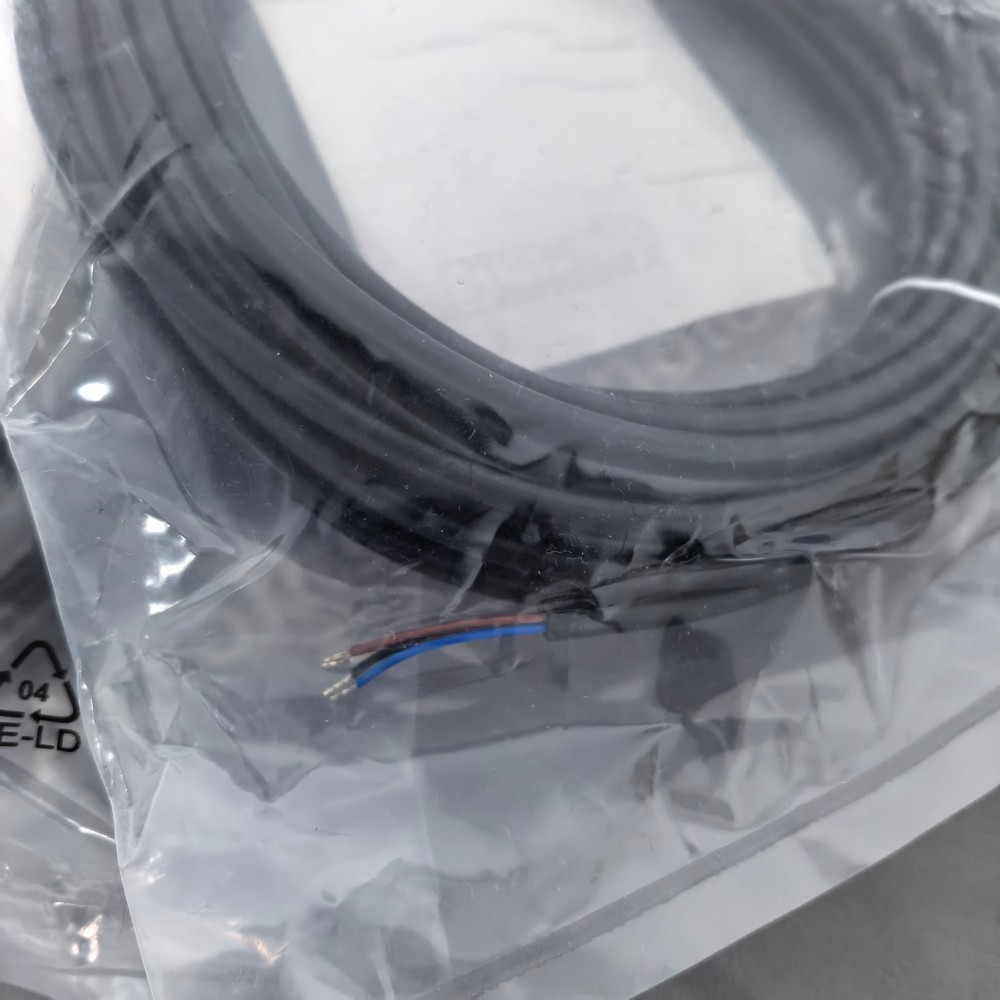

- Open Free Cable Termination Bare wire free end allows flexible direct wiring to terminal blocks, PLC modules or relay sockets without extra adapters.
- Highly Durable PUR Outer Jacket Halogen-free PUR material provides outstanding resistance to lubricating oil, abrasion, hydrolysis and microbial erosion.
- Stable Electrical Transmission Performance Stranded tinned copper conductors guarantee reliable signal transmission and low voltage drop for long-distance wiring.
- IP67 Waterproof & Dustproof Connector Sealed M12 connector achieves IP67 protection after proper locking, adapting to workshop environments with dust and splash water.
- Wide Temperature Operating Range Maintains stable mechanical and electrical performance under fluctuating industrial ambient temperatures.
3. Technical Characteristics
| Technical Parameter | Detailed Specification |
|---|---|
| Full Model | SAC-4P-10,0-PUR/M12FR P |
| Order Number | 1442748 |
| Product Series | SAC Pre-assembled Sensor-Actuator Cable |
| Number of Poles | 4 poles |
| Conductor Cross-section | 4 × 0.34 mm² (22 AWG) |
| Cable Length | 10 m |
| Connector Type | Angled Female M12, A-coded |
| Cable End | Open free wire ends |
| Outer Sheath Material | Halogen-free PUR, Black |
| Cable Outer Diameter | 4.2 mm ±0.15 mm |
| Nominal Voltage | 60 V DC / 48 V AC |
| Rated Current | 4 A per conductor |
| Connector Protection Class | IP67 (mated condition) |
| Minimum Bend Radius – Fixed Installation | 5 × cable outer diameter |
| Minimum Bend Radius – Dynamic Installation | 10 × cable outer diameter |
| Operating Temperature | -25 ℃ ~ +80 ℃ |
| Storage Temperature | -40 ℃ ~ +85 ℃ |
| Shielding | Unshielded |
| Contact Material | Copper alloy, nickel-gold plated |
| Compliance Standards | RoHS, IEC 61076-2-101 |
Core Technical Advantages
- Pre-assembled finished cable reduces on-site assembly time and avoids wiring errors;
- Angled M12 connector realizes space-saving installation for compact machine structures;
- Oil-resistant halogen-free PUR cable extends service life in environments with machine lubricants;
- Standard A-coded M12 interface supports universal matching with most industrial sensors;
- Strict factory electrical testing ensures consistent conductivity and insulation reliability.
4. Product Dimensions and Weight
Dimension Reference (Unit: Millimeter)
| Dimension Item | Exact Size |
|---|---|
| Cable Outer Diameter | 4.2 |
| M12 Connector Overall Length | 41 |
| M12 Connector Width | 18 |
Weight Reference
表格
| Weight Category | Specific Value |
|---|---|
| Cable Unit Weight | 30 kg/km |
| Single Cable Net Weight | 0.30 kg |
| Original Packaged Gross Weight | 0.36 kg |
5. 10 Phoenix Contact Similar SAC Series M12 Sensor-Actuator Cables
All models belong to SAC prefabricated M12 cable platform; variations include length, straight/angled connector, pole count and sheath material:
- SAC-4P-2,0-PUR/M12FR P 2m 4-Pole Angled Female M12 Cable
- SAC-4P-5,0-PUR/M12FR P 5m 4-Pole Angled Female M12 Cable
- SAC-4P-10,0-PUR/M12FS P 10m Straight Female M12 4-Pole Cable
- SAC-4P-10,0-PUR/M12MS P 10m Angled Male M12 4-Pole Cable
- SAC-3P-10,0-PUR/M12FR P 10m 3-Pole Angled Female M12 Cable
- SAC-5P-10,0-PUR/M12FR P 10m 5-Pole Angled Female M12 Cable
- SAC-4P-10,0-PVC/M12FR P 10m PVC Jacket Angled Female M12 Cable
- SAC-4P-10,0-PUR/M12FR SH 10m Shielded Angled Female M12 Cable
- SAC-4P-15,0-PUR/M12FR P 15m 4-Pole Angled Female M12 Cable
- SAC-4P-10,0-PUR/M12FR-3L VA Angled Female M12 Cable with LED Indicator
