New Original Panasonic AFPX-E16X 16 Points Digital Input Expansion Unit for FP-X PLC System
"*" indicates required fields
New Original Panasonic AFPX-E16X 16 Points Digital Input Expansion Unit for FP-X PLC System

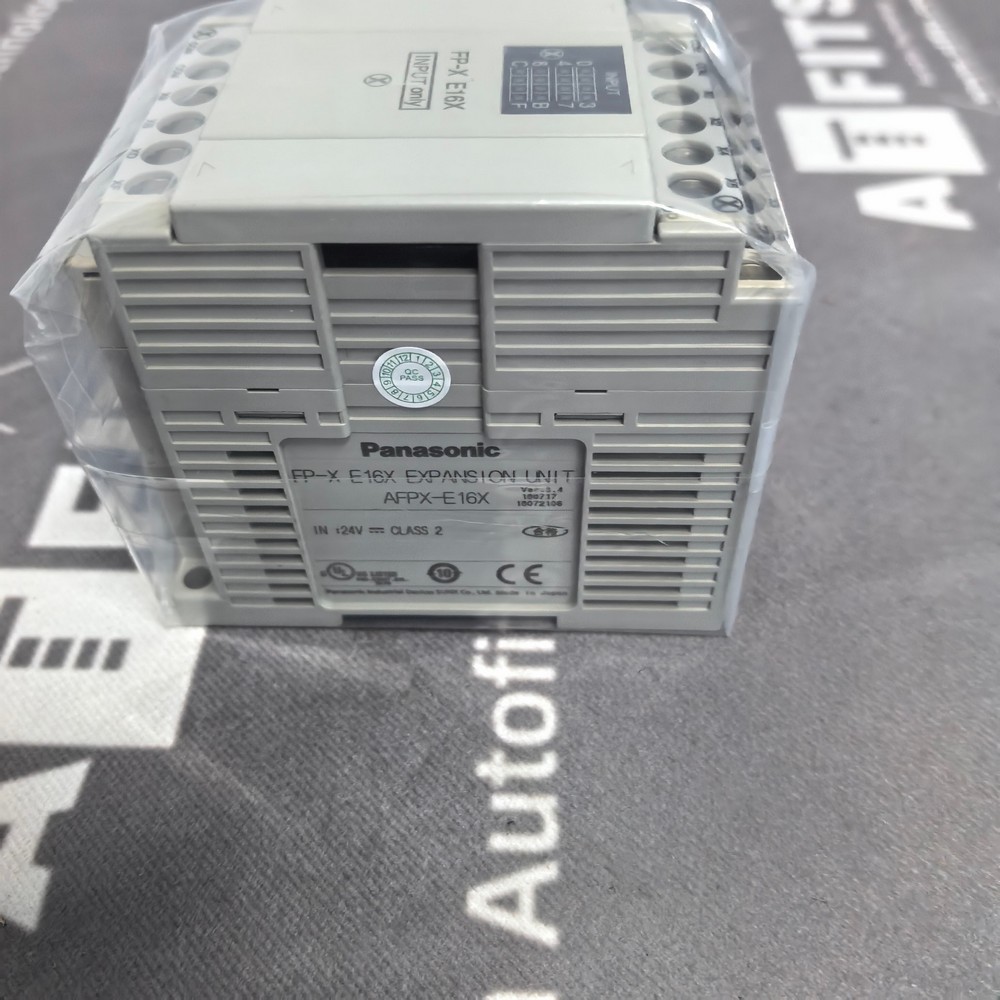

Product Overview
AFPX-E16X is an original dedicated digital input expansion module manufactured by Panasonic, specially designed to expand discrete input capacity for the FP-X series compact PLC controllers. This unit provides 16-channel DC digital input terminals, adopting photocoupler isolation circuit between field sensors and PLC internal bus to suppress industrial electromagnetic interference. It receives on-site switching signals from photoelectric sensors, proximity switches, limit switches and other detection components, then transmits digital signals to the main CPU for logic calculation and automatic sequence control. Powered directly through the backplane bus connected to the host PLC without an independent external power supply, it features compact DIN rail mounting structure, stable fast signal response and strict industrial reliability standards. Complying with CE certification and RoHS environmental directives, it is widely applied in small automated assembly machines, packaging lines, conveying equipment, food processing machinery and general factory automation control systemsPanasonic.
Main Technical Specifications
| Parameter Item | Detailed Specification |
|---|---|
| Model Number | AFPX-E16X |
| Product Category | Digital Input Expansion Module |
| Compatible Host | All FP-X / FP-XH Series PLC CPU Units |
| Total Input Points | 16 channels DC digital input |
| Rated Input Voltage | DC 24 V (operating range: DC 21.6 ~ 26.4 V) |
| Rated Input Current | Approx. 4.3 mA per channel |
| Input Grouping | 8 points per common terminal group (2 groups total) |
| Turn-On Condition | Min. 19.2 V / 3 mA |
| Turn-Off Condition | Max. 24 V / 1 mA |
| Input Impedance | 5.6 kΩ |
| Response Time | OFF ↔ ON: ≤ 0.6 ms |
| Isolation Mode | Photocoupler insulation between external terminals and internal circuit |

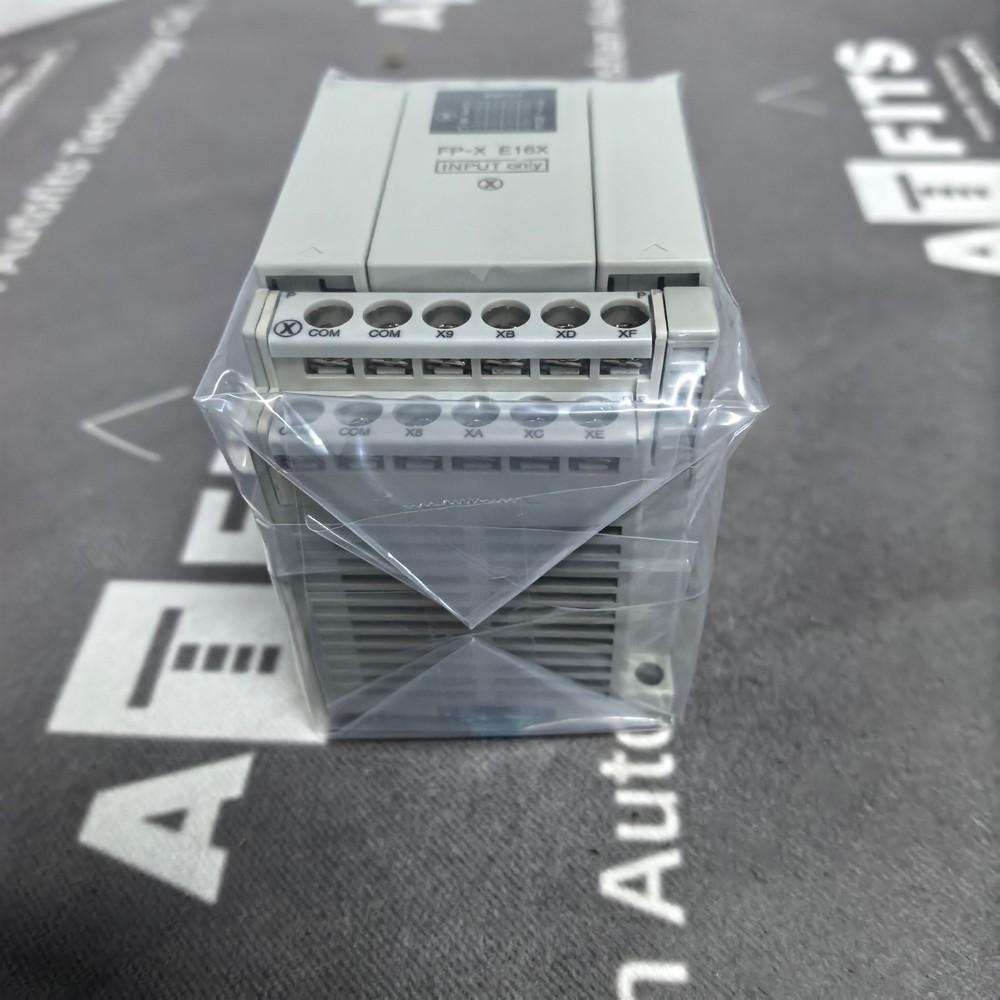

| Terminal Connection | Screw-type wiring terminals |

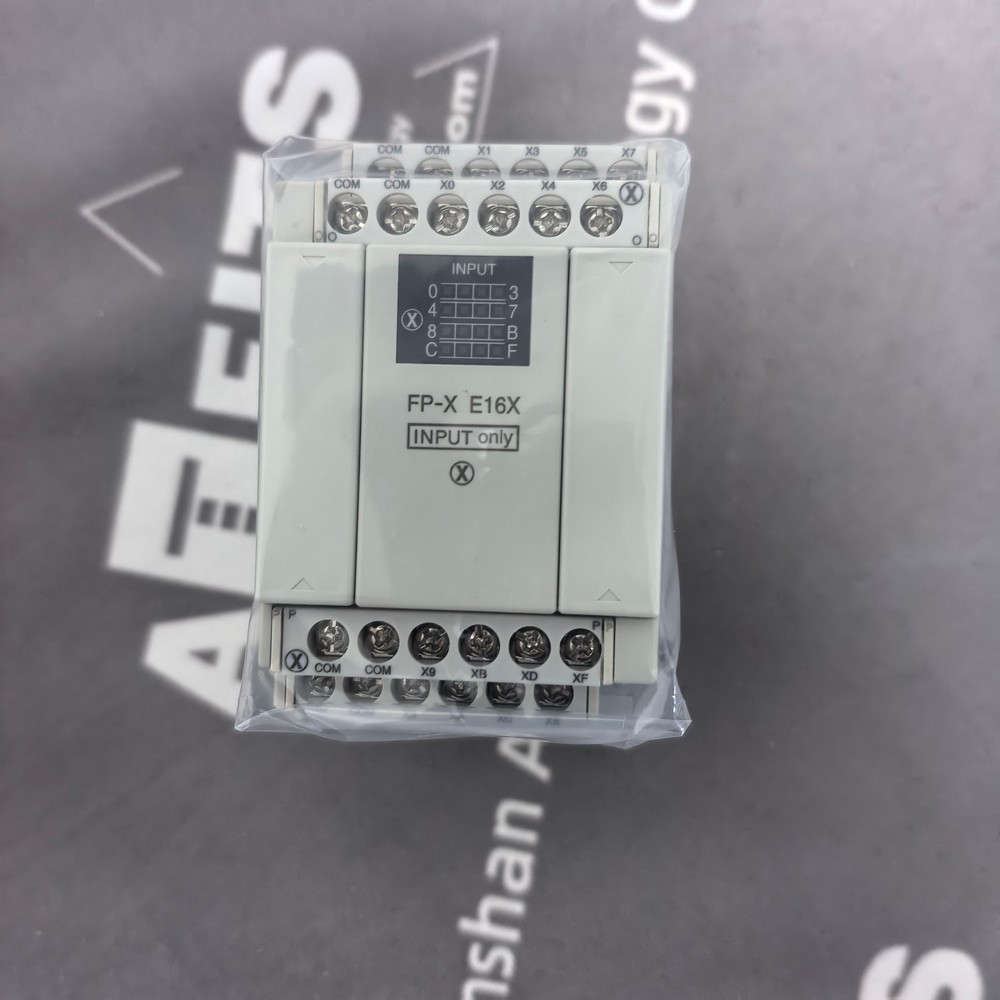

| Status Indicator | Individual LED indicator for each input channel |
| Power Supply Mode | Supplied via PLC backplane bus (no external power required) |
| Operating Ambient Temperature | 0 ℃ ~ +55 ℃ (non-condensing indoor cabinet installation only) |
| Storage Temperature | -20 ℃ ~ +70 ℃ |
| Vibration Resistance | 10–55 Hz, 1.5 mm double amplitude, 2 hours vibration test on X/Y/Z three axes |
| Shock Resistance | 500 m/s² acceleration impact resistance |
| Protection Class | IP20 |
| Compliance Standard | CE, RoHS |

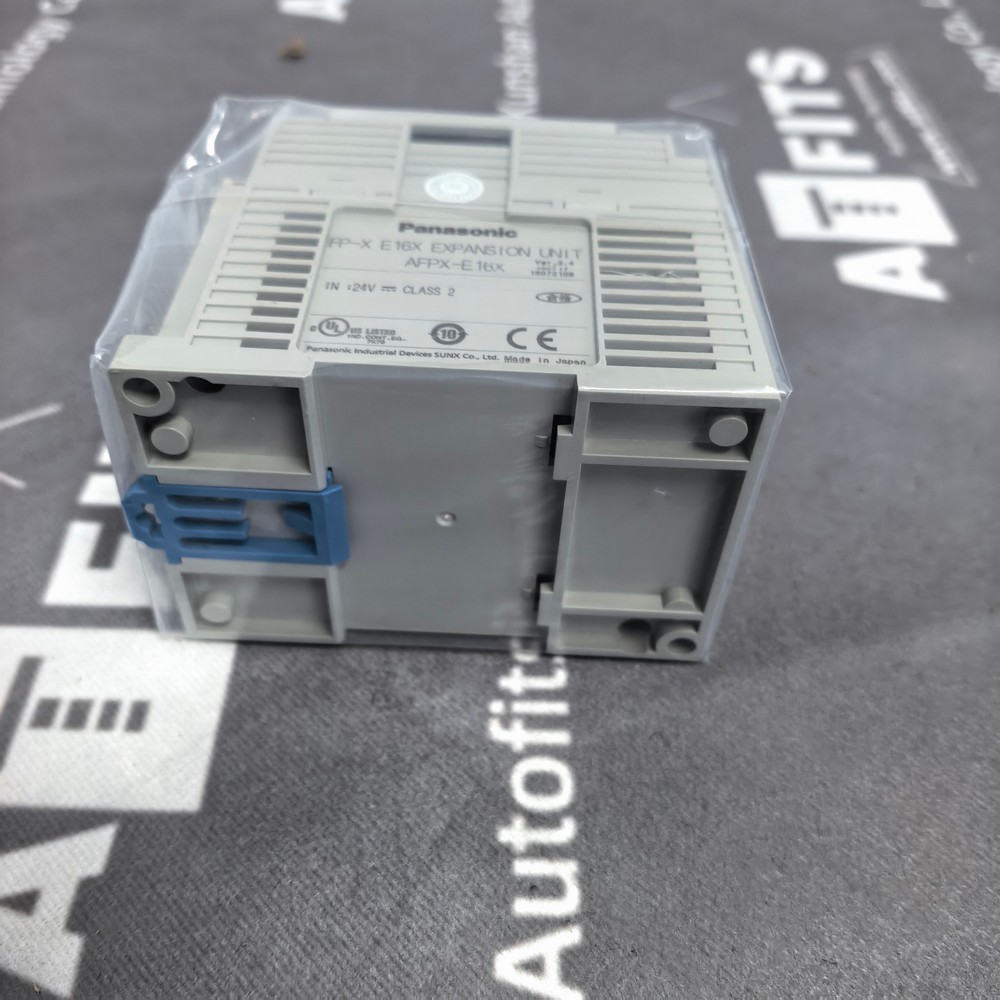

Overall Dimensions & Net Weight
- Overall External Size: 60 mm (width) × 90 mm (height) × 25 mm (depth)
- Mounting Standard: International 35 mm DIN rail snap-on mounting
- Single Unit Net Weight: Approximately 190 gPanasonic-…
- Connection Method: Side backplane connector directly docked with FP-X PLC main unit or other expansion modules
Primary Main Functions
- Mass Digital Switching Signal Collection: Collect 16-channel on-site binary switching signals simultaneously, including workpiece detection, position limit, equipment jogging and fault feedback signals for PLC logic judgment.
- Photocoupler Isolation Anti-Interference: Galvanic isolation blocks surge voltage, harmonic noise generated by inverters and servo motors, effectively preventing PLC internal circuit damage and false signal triggering.
- Ultra-Fast Signal Response: 0.6ms rapid response realizes high-speed sensor capture, matching intermittent positioning and high-speed counting control demands of automation equipment.
- Flexible Sink/Source Input Adaptation: Compatible with both NPN sinking and PNP sourcing DC24V sensors, adapting to mainstream global industrial sensor wiring standards.
- Real-Time Channel Status Visual Feedback: Each input channel is equipped with an LED indicator light to display ON/OFF working state, greatly simplifying on-site wiring inspection and equipment fault troubleshooting.
- Cascadable Multi-Module Expansion: Multiple expansion units can be sequentially connected to the FP-X main CPU to expand total I/O points according to system scale demands.
- Tool-Free Quick Installation: Direct snap-on DIN rail mounting and plug-type backplane docking shorten assembly and maintenance time without dismounting the entire control cabinet.
- Stable Long-Term Continuous Operation: Optimized circuit design ensures reliable signal acquisition under 24-hour uninterrupted cyclic operation in dusty and slightly oily workshop environments.
Key Technical Features
- Compact slim body design occupies minimal DIN rail space, perfectly matching the miniaturized integrated layout characteristics of Panasonic FP-X series micro PLCs.
- Grouped common terminal layout optimizes on-site wiring arrangement, reduces cable usage and lowers construction costs.
- Strict component screening and long-time aging testing guarantee consistent signal acquisition accuracy throughout the whole service cycle.
- No independent external power supply needed; power obtained via backplane bus simplifies cabinet internal wiring layout.
- Wide temperature working range maintains stable performance in both high-temperature sealed cabinets and low-temperature cold production workshops.
- Standard unified backplane interface is fully interchangeable with all FP-X series expansion modules, convenient for equipment upgrading and spare parts replacement.
- Built-in anti-static and surge protection circuit enhances adaptability to harsh industrial power grid fluctuation conditions.
- Low power consumption design imposes negligible load on the PLC internal power supply, ensuring overall system energy efficiency.
List of 10 Panasonic FP-X Series Similar Functional I/O Expansion Modules
- AFPX-E14YR: 14-point relay digital output expansion module
- AFPX-E16T: 8IN + 8OUT NPN transistor mixed I/O module
- AFPX-E16P: 8IN + 8OUT PNP transistor mixed I/O module
- AFPX-E30RD: 16-point input +14-point relay output large-capacity combined I/O unit
- AFPX-E30TD: 16-point input +14-point NPN transistor output DC-powered module
- AFPX-E8X: 8-point compact digital input mini expansion module
- AFPX-E8YR: 8-point small relay output expansion unit
- AFPX-E30PD: 16-point input +14-point PNP transistor output module
- AFPX-E16R: 16-point relay output only expansion module
- AFPX-EFP0: Extended base plate for stacking multiple expansion modules
