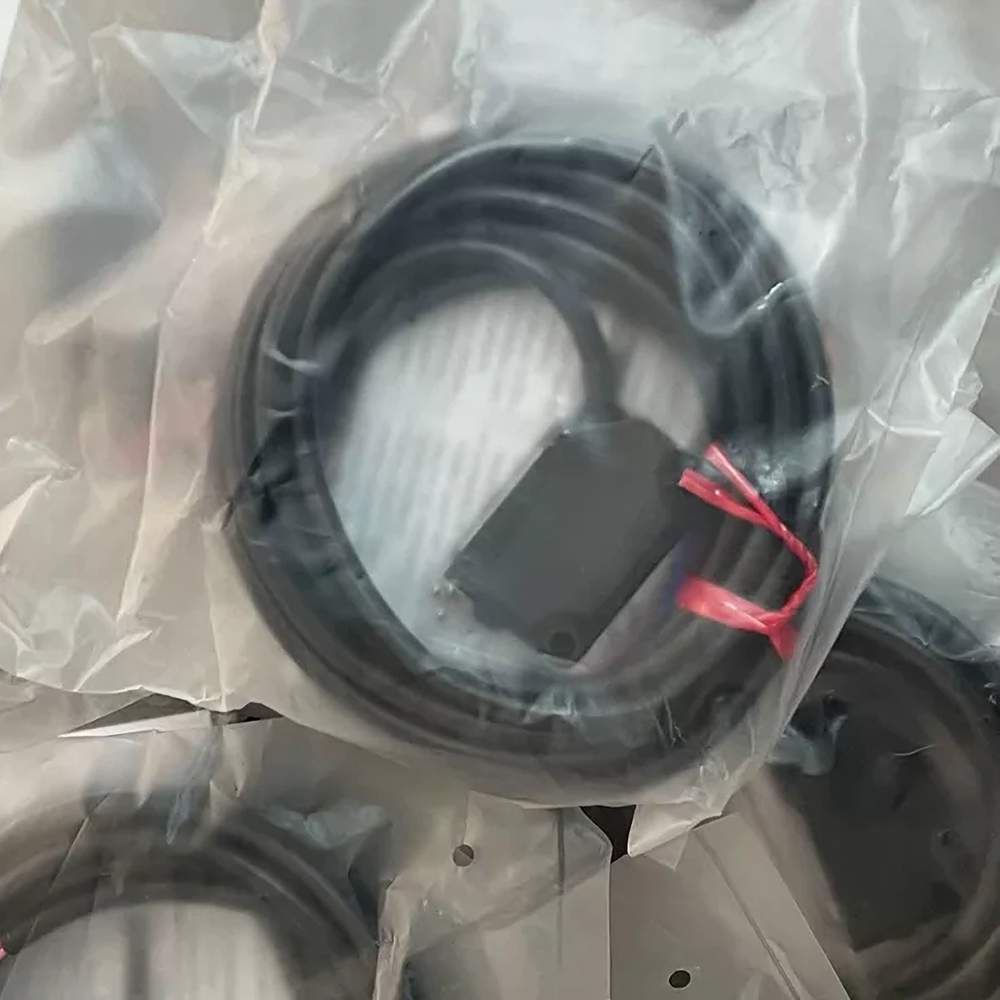

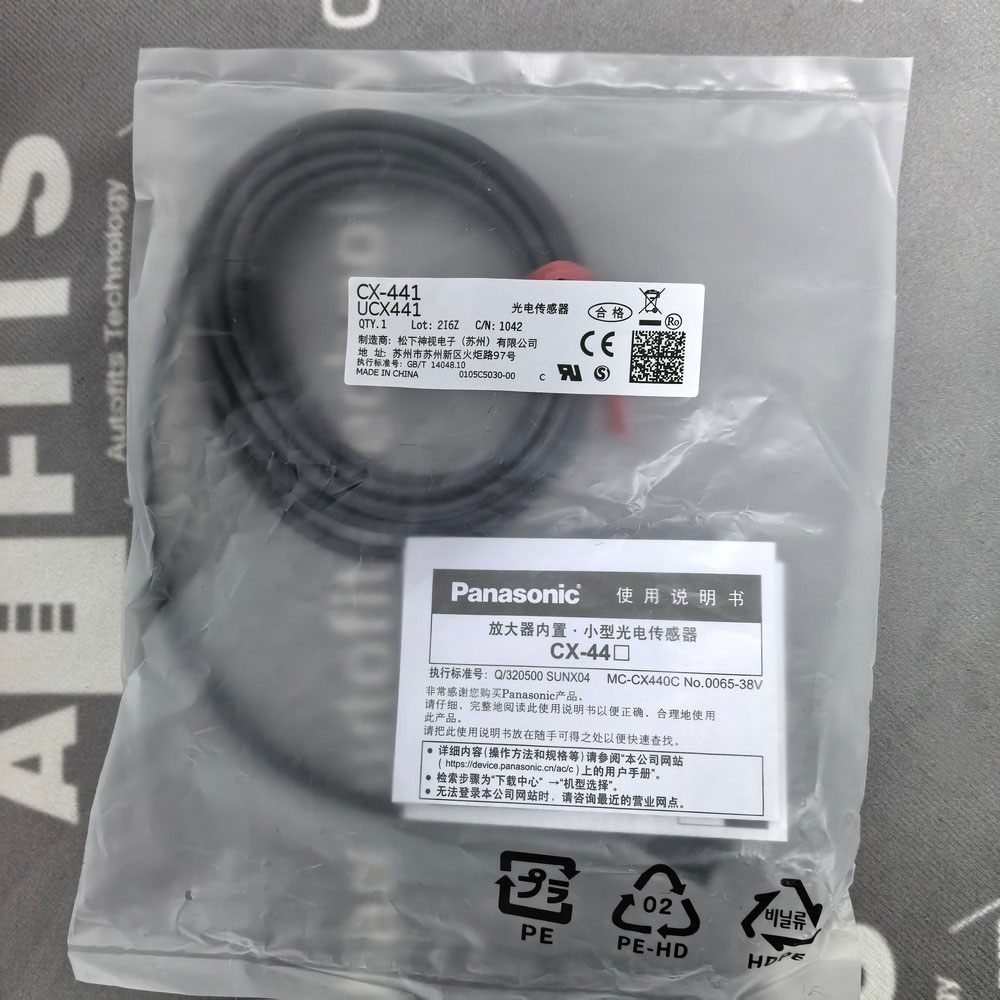

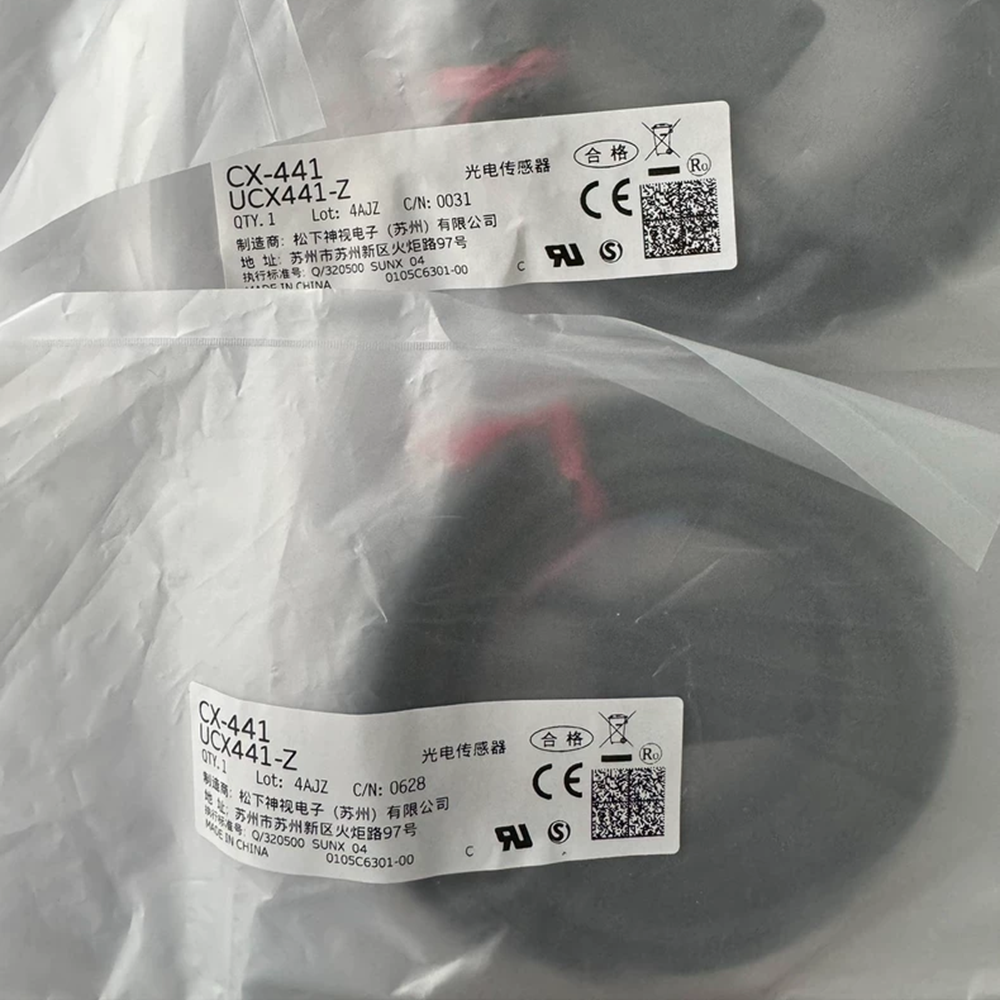

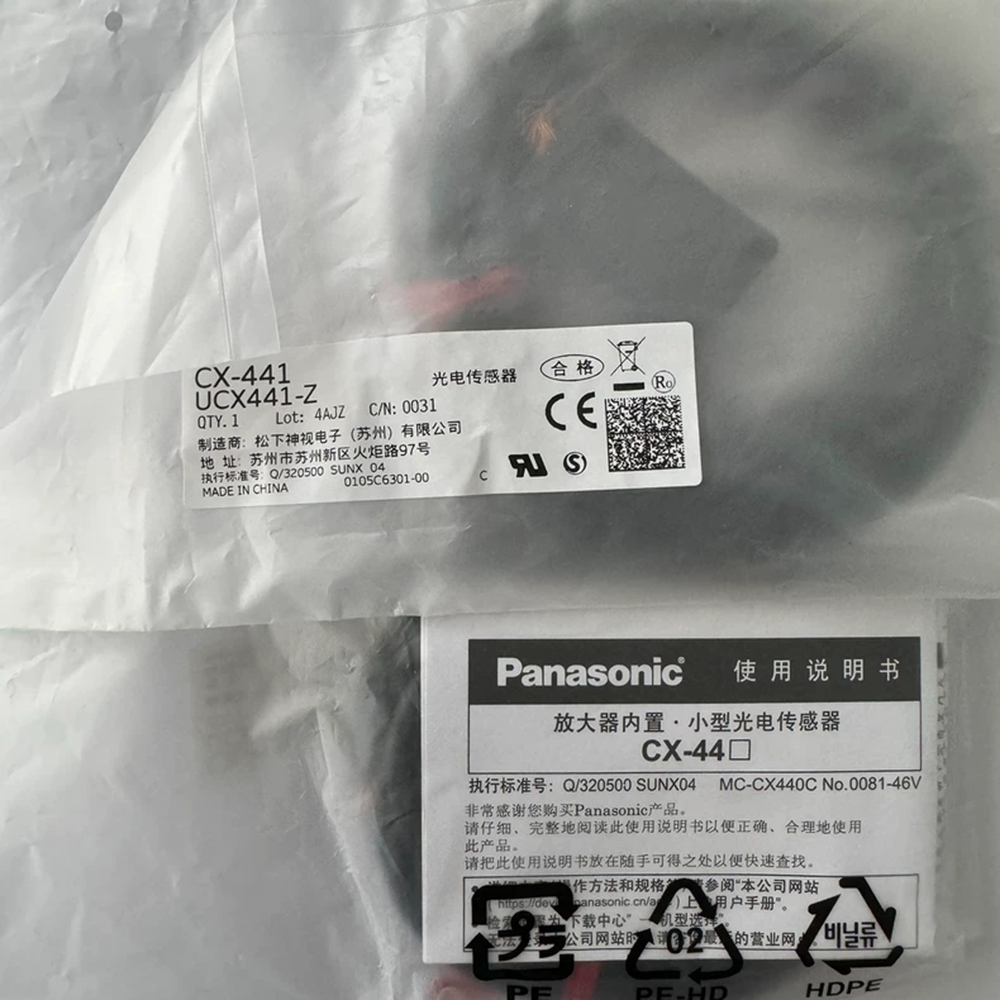

New Original Panasonic CX-441 Compact Photoelectric Sensor
"*" indicates required fields
New Original Panasonic CX-441 Compact Photoelectric Sensor
Product Overview
CX-441 is an original amplifier-built-in compact distance-setting reflective photoelectric sensor belonging to Panasonic CX-400 Ver.2 industrial sensor series. Designed with ultra-small focused light spot structure, this diffuse reflective optical sensor adopts modulated red LED light source, dedicated for precise detection of tiny workpieces, pins, electronic components and miniature parts in narrow installation spaces. It supports continuously adjustable sensing distance via 5-turn precision adjuster, with built-in mutual interference prevention circuit and IP67 waterproof dustproof housing. Equipped with NPN transistor output and switchable Light-ON / Dark-ON operation modes, it transmits object presence/absence digital signals to PLC input modules for automated logic control. The product complies with CE, RoHS and UKCA industrial safety directives, widely used in precision assembly equipment, PCB production lines, packaging machinery, automated testing jigs and small-scale factory automation detection scenarios requiring high-precision micro-object identification.
Main Technical Specifications
| Parameter Item | Detailed Specification |
|---|---|
| Full Model | CX-441 |
| Detection Type | Distance-setting reflective (small spot diffuse reflection) |
| Light Source | Modulated Red LED, wavelength 650 nm |
| Effective Sensing Range | 2 mm ~ 50 mm continuously adjustable |
| Light Spot Diameter | Approx. Ø2 mm at 50 mm detection distance |
| Power Supply | DC 12 V ~ 24 V |
| Current Consumption | ≤ 20 mA |
| Output Mode | NPN open-collector transistor output |
| Operation Mode | Light-ON / Dark-ON switchable |
| Response Time | ≤ 1 ms |
| Hysteresis | ≤ 2% of set sensing distance |
| Ambient Light Resistance | 3000 lx incandescent lamp, 10000 lx sunlight |
| Protection Grade | IP67 |
| Operating Temperature | -25 ℃ ~ +55 ℃ (non-condensing) |
| Storage Temperature | -30 ℃ ~ +70 ℃ |
| Ambient Humidity | 35% ~ 85% RH |
| Vibration Resistance | 10–55 Hz, 1.5 mm amplitude, 2 hours per X/Y/Z axis |
| Shock Resistance | 500 m/s² acceleration impact resistance |
| Cable Specification | 4-core rubber cable, standard length 2 m |
| Certification | CE, RoHS, UKCA |
Overall Dimensions & Net Weight
| Dimension & Weight Parameter | Data |
|---|---|
| Body Overall Size | 31 mm (Height) × 11.2 mm (Width) × 20 mm (Depth) |
| Mounting Hole Standard | M6 screw mounting holes reserved on two sides |
| Single Unit Net Weight | Approx. 55 g |
| Gross Weight with Package | Approx. 65 g |
| Max Extendable Cable Length | 100 m with qualified extension wire |
Primary Main Functions
- Ultra-Precise Tiny Object Detection: The Ø2 mm tiny focused light spot realizes stable detection of micro pins, small electronic parts and slim workpieces that ordinary diffuse reflective sensors cannot identify.
- Continuous Distance Calibration: 5-turn precision adjustment knob enables fine tuning of detection range, eliminating false triggering caused by background reflection or different object surface reflectivity.
- Dual Working Mode Switching: Freely toggle Light-ON and Dark-ON modes to match various PLC control logic requirements flexibly.
- Mutual Interference Prevention: Built-in anti-crosstalk circuit allows multiple CX series sensors to be installed closely together without signal interference.
- Waterproof & Dustproof Environmental Adaptation: IP67 sealed casing resists water splashing, dust accumulation and oil mist erosion inside production workshops.
- Real-Time Working Status Indication: LED indicator lights display power supply, received light and output switching status for convenient on-site debugging and fault checking.
- Wide Voltage Stable Operation: 12~24VDC wide input voltage adapts to industrial power grid fluctuation without performance attenuation.
- Non-Contact Position Triggering: No physical contact with measured objects, avoiding workpiece scratch and mechanical wear for long-term continuous production.
Key Technical Features
- Miniature square compact structure occupies extremely small installation space, perfectly suitable for dense layout inside precision automation equipment and narrow fixture positions.
- High-brightness visible red light spot makes optical axis alignment and sensing position calibration intuitive and efficient, greatly shortening equipment debugging period.
- Reinforced PBT plastic housing and polycarbonate lens deliver excellent impact resistance, wear resistance and aging resistance for long-term workshop operation.
- Modulated light emission technology effectively suppresses interference from ambient sunlight and workshop lighting sources.
- Low hysteresis characteristic ensures consistent detection stability even for objects with slight color or thickness differences.
- Standard M6 mounting hole design is compatible with universal sensor brackets for flexible installation angle adjustment.
- Low power consumption circuit design reduces overall equipment power load and extends service life of internal electronic components.
- Unified CX-400 series hardware platform achieves full interchangeability of spare parts for equipment maintenance and upgrading.
List of 10 Panasonic CX Series Similar Functional Compact Photoelectric Sensors
- CX-442: Distance-setting reflective small spot sensor, adjustable range 20 mm ~ 300 mm
- CX-421: Standard diffuse reflective photoelectric sensor, max sensing distance 300 mm
- CX-422: Long-range diffuse reflective type, maximum detection distance up to 800 mm
- CX-411: Through-beam opposed photoelectric sensor, 10 m long-distance detection range
- CX-481: Retro-reflective photoelectric switch with polarizing filter, 3 m sensing distance
- CX-441-P: PNP output version of CX-441 for different PLC wiring requirements
- CX-423: Narrow-view high-precision reflective sensor for small component positioning
- CX-491: Retro-reflective sensor dedicated for transparent object stable detection
- CX-412: Long-distance through-beam infrared sensor, maximum 15 m detection distance
- CX-483: Wide-range retro-reflective photoelectric sensor suitable for door and conveyor control
