New Original Autonics PR08-1.5DP PR Series M8 Shielded Inductive Proximity Sensor
"*" indicates required fields
New Original Autonics PR08-1.5DP PR Series M8 Shielded Inductive Proximity Sensor
1. Product Overview

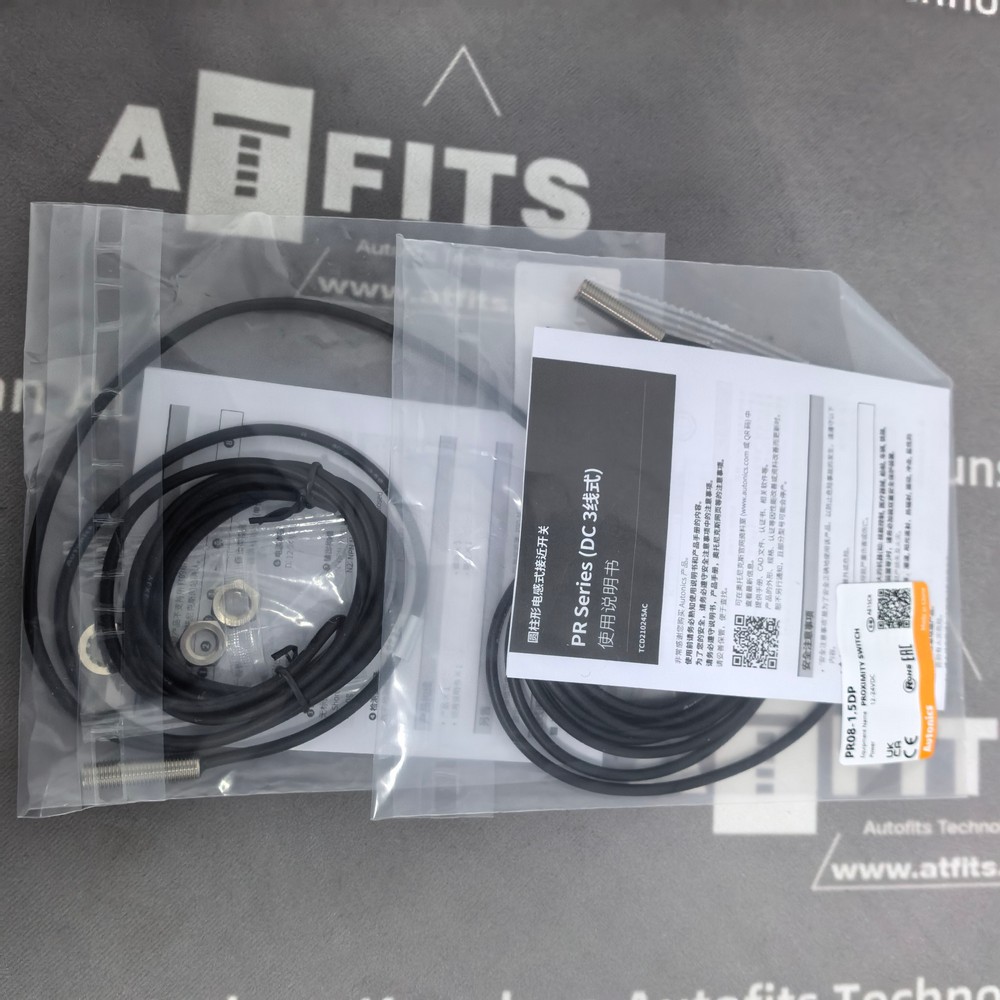

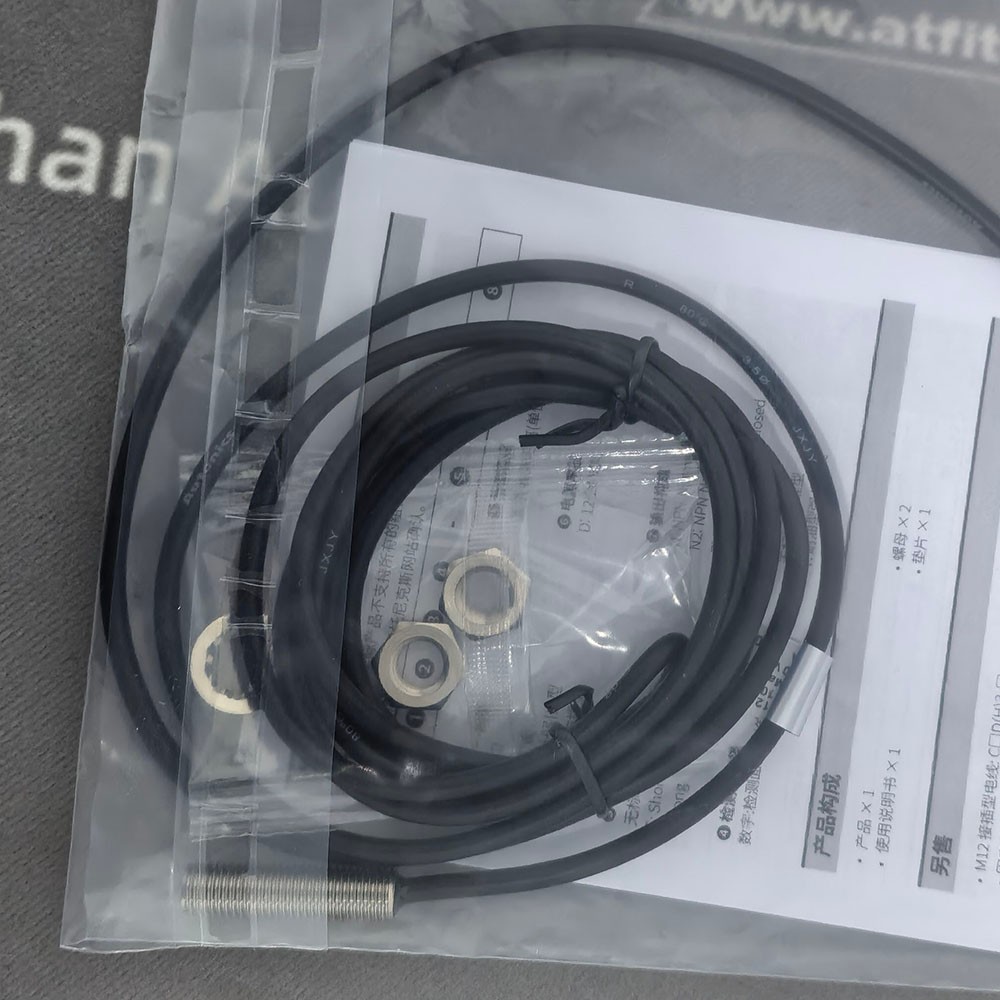

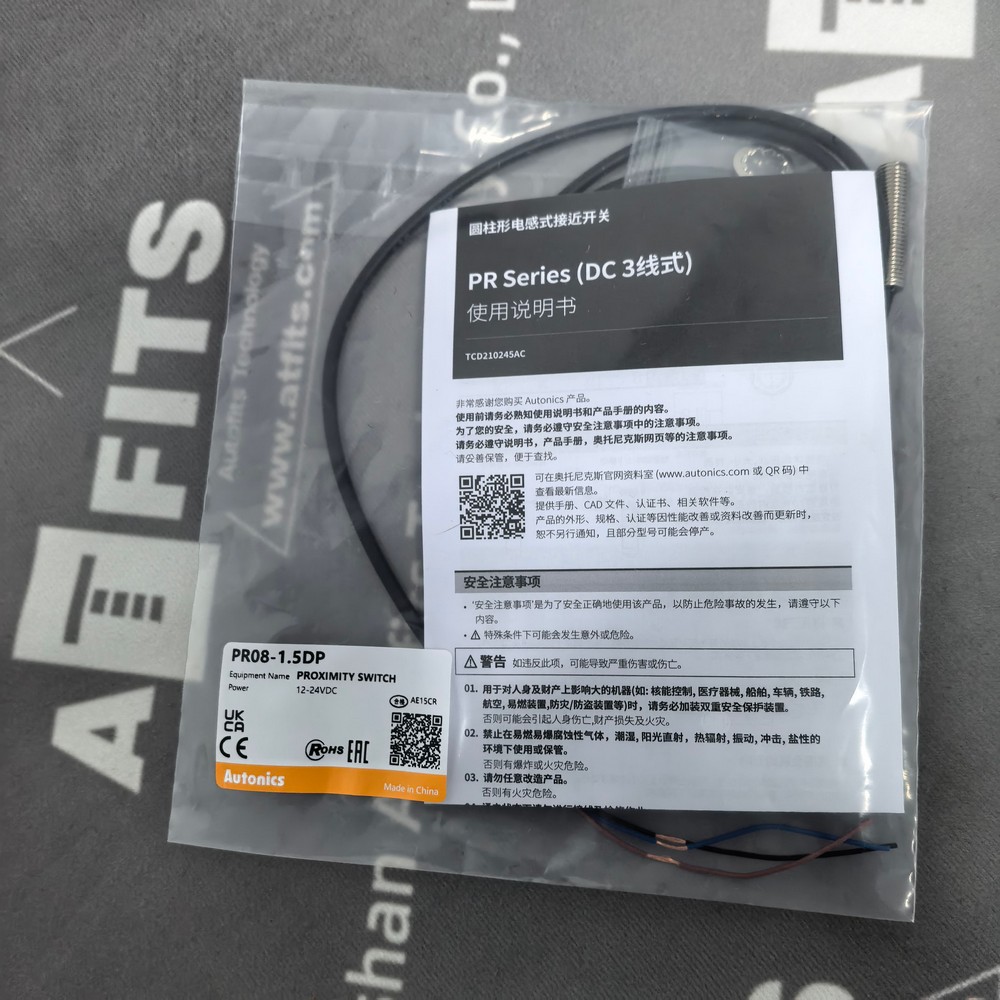

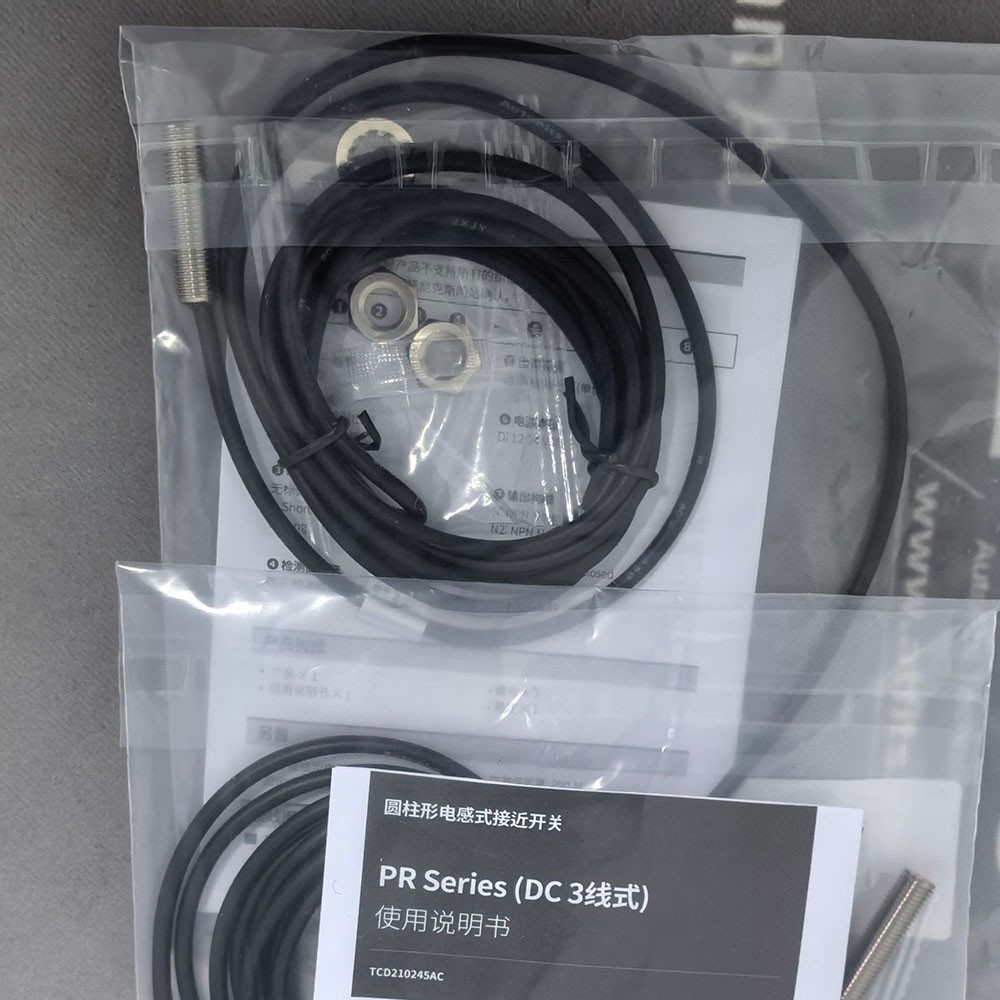

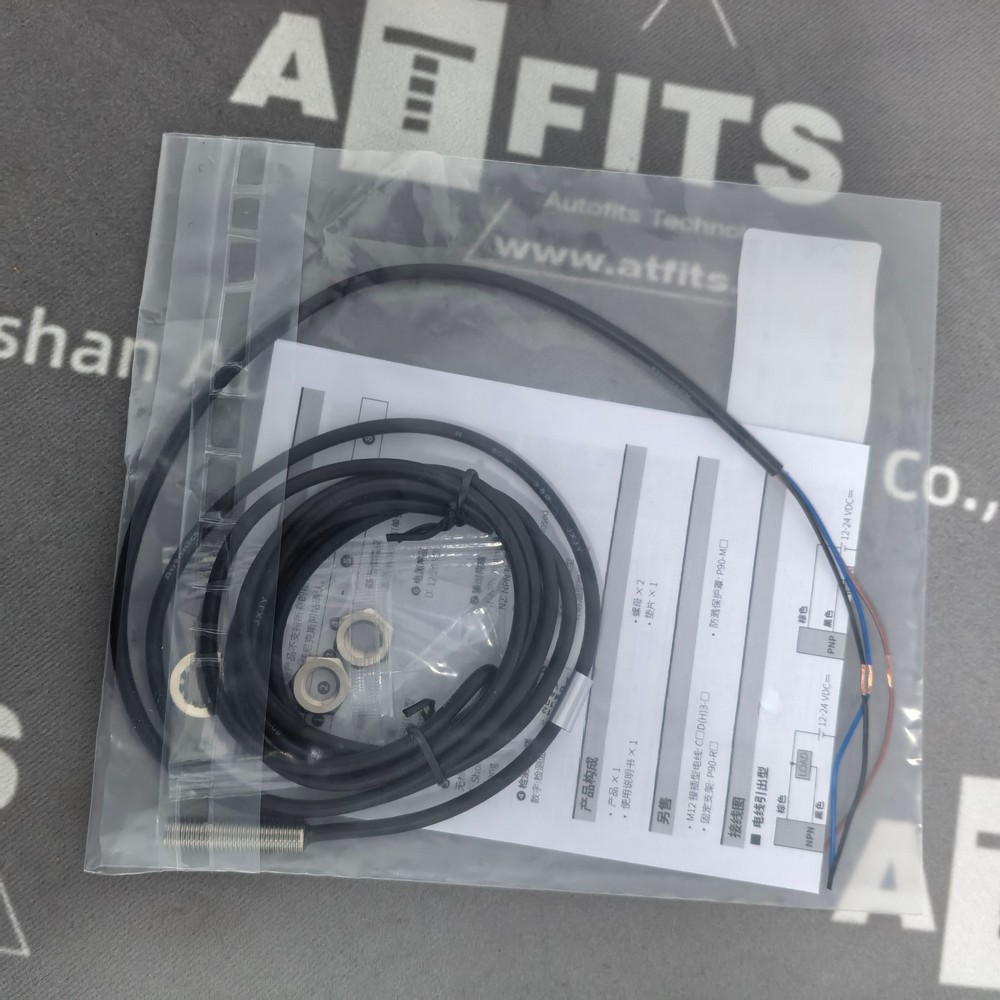

The Autonics PR08-1.5DP belongs to the PR series cylindrical inductive proximity sensor. It adopts shielded M8 threaded metal housing, with rated sensing distance of 1.5 mm. The output type is 3-wire DC PNP Normally Open, equipped with built-in short-circuit protection. This sensor detects ferromagnetic metal objects without physical contact and converts metal proximity signals into digital switching signals. It is widely used for workpiece presence detection, position confirmation, counting and stroke limit monitoring on automated assembly lines, conveyor machinery, machine tools and packaging equipment. The supplied unit is brand new original genuine Autonics product.
2. Main Technical Specifications
| Item | Parameter |
|---|---|
| Model | PR08-1.5DP |
| Series | PR Cylindrical Inductive Proximity Sensor |
| Housing Size | M8 cylindrical, shielded type |
| Rated Sensing Distance | 1.5 mm |
| Mounting Type | Shielded (Flush mountable) |
| Output Configuration | 3-wire DC, PNP NO (Normally Open) |
| Supply Voltage | 12 V DC ~ 24 V DC |
| Load Current | Max 200 mA |
| Max Switching Frequency | 800 Hz |
| Connection Type | Cable type |
| Built-in Protection | Short-circuit protection, reverse polarity protection |
| Protection Class | IP67 |
| Operating Temperature | -25 °C ~ +70 °C |
| Housing Material | Nickel-plated brass |
| Status Indicator | Red LED operation indicator |
| Overall Length | 45 mm |
| Net Weight | Approx. 28 g |
| Compliance Standards | CE, RoHS |
3. Main Functions
- Achieve non-contact detection of ferromagnetic metal targets to avoid mechanical collision and wear.
- Output PNP digital switching signals to PLC input modules, relays and other control components.
- Visible red LED indicator displays working status for convenient on-site inspection and troubleshooting.
- Realize position feedback, workpiece counting and travel limit control in automatic production processes.
- Support frequent repeated switching to meet continuous cyclic operation requirements of automation equipment.
- Shielded structure allows flush installation to prevent mechanical impact damage to the sensing face.
- Provide reliable detection signals for equipment safety interlock and automatic logic control.
4. Technical Features
- Standard M8 nickel-plated brass threaded housing with lock nut for flexible installation and position adjustment.
- Shielded design supports flush mounting without performance attenuation of sensing distance.
- IP67 sealing performance prevents dust, splash water and oil mist inside industrial workshops.
- Multiple built-in circuit protection prevents sensor damage caused by wrong wiring and load short circuit.
- Excellent anti-electromagnetic interference capability, stable operation under complex industrial electromagnetic environment.
- High repeat accuracy of sensing distance, ensuring consistent detection performance for long-term operation.
- Compact cylindrical structure, suitable for installation in narrow mechanical spaces.
- Wide operating temperature range, adaptable to various indoor industrial workshop environments.
- Low residual voltage and stable output characteristics under variable load conditions.
- Rugged mechanical structure with good vibration resistance for factory floor applications.
5. 10 Autonics Similar Inductive Proximity Sensors
- PR08-1.5DN, M8 shielded type, 1.5 mm, 3-wire NPN NO inductive proximity sensor
- PR08-2DP, M8 shielded, 2 mm, PNP NO inductive proximity switch
- PR12-4DP, M12 shielded 4 mm PNP NO inductive sensor
- PR18-8DN, M18 shielded NPN NO inductive proximity sensor
- PR08-1.5DP2, M8 shielded PNP NC inductive proximity sensor
- PRT08-1.5DO, M8 unshielded long-distance inductive proximity sensor
- PR30-15DP, M30 shielded high-sensing-distance inductive sensor
- PR08-1.5AC, M8 AC 2-wire inductive proximity switch
- PR12-4DN2, M12 shielded NPN NC inductive proximity sensor
- PR08-1.5DP-V, M8 shielded proximity sensor with improved EMC performance
