New Original Keyence KV-SAD04 PLC High-Speed Analog Input Acquisition Module

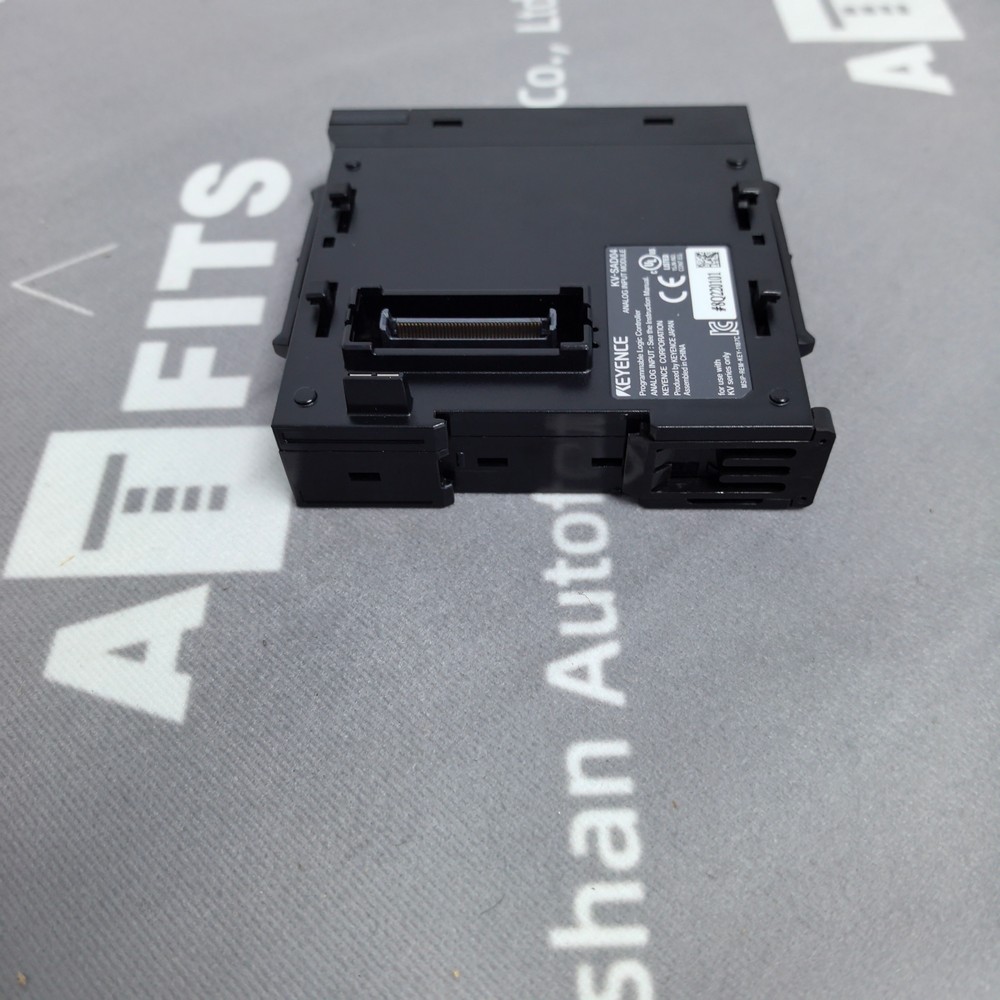

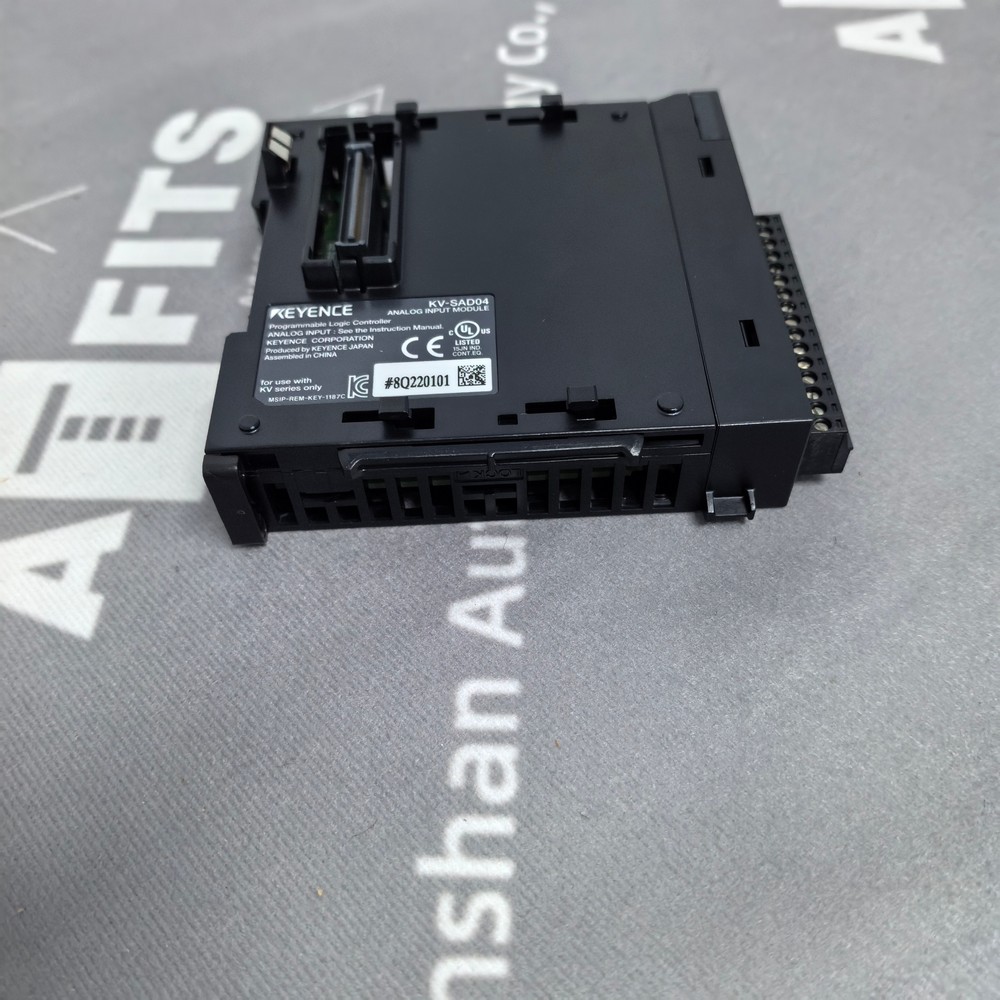

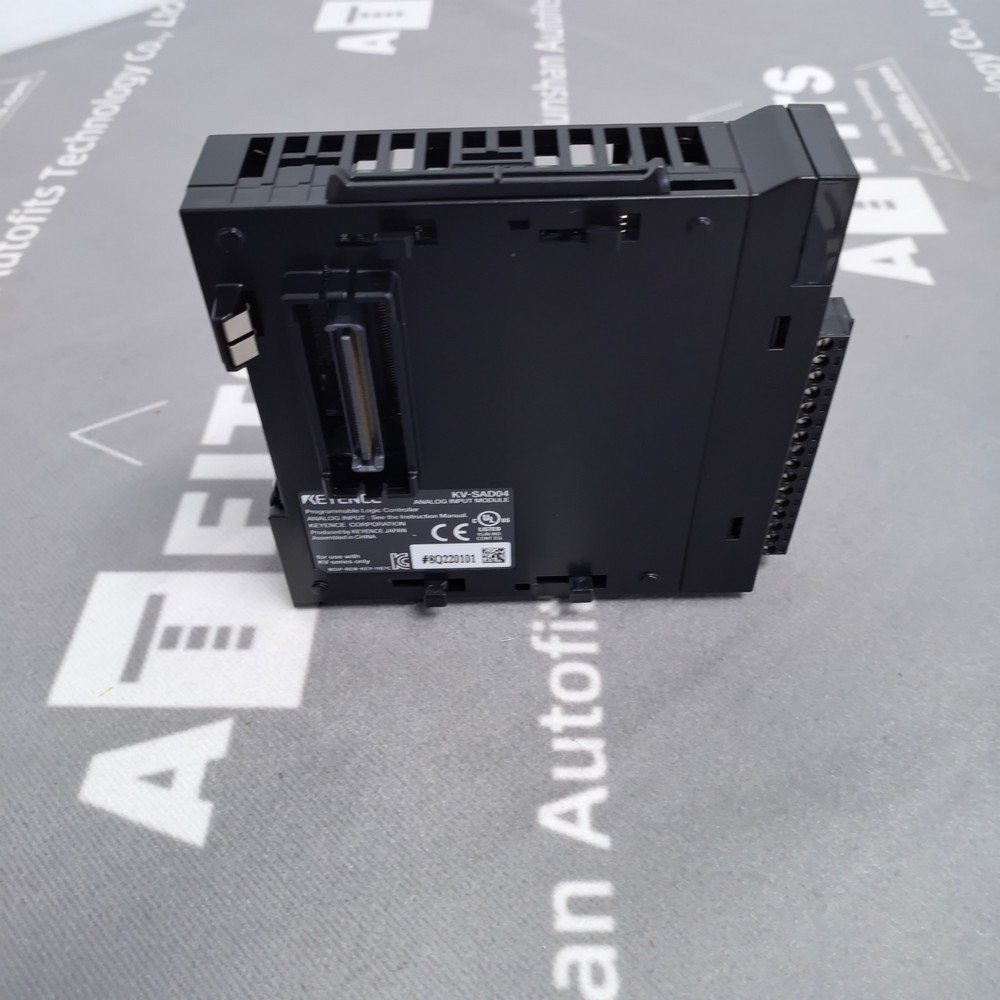

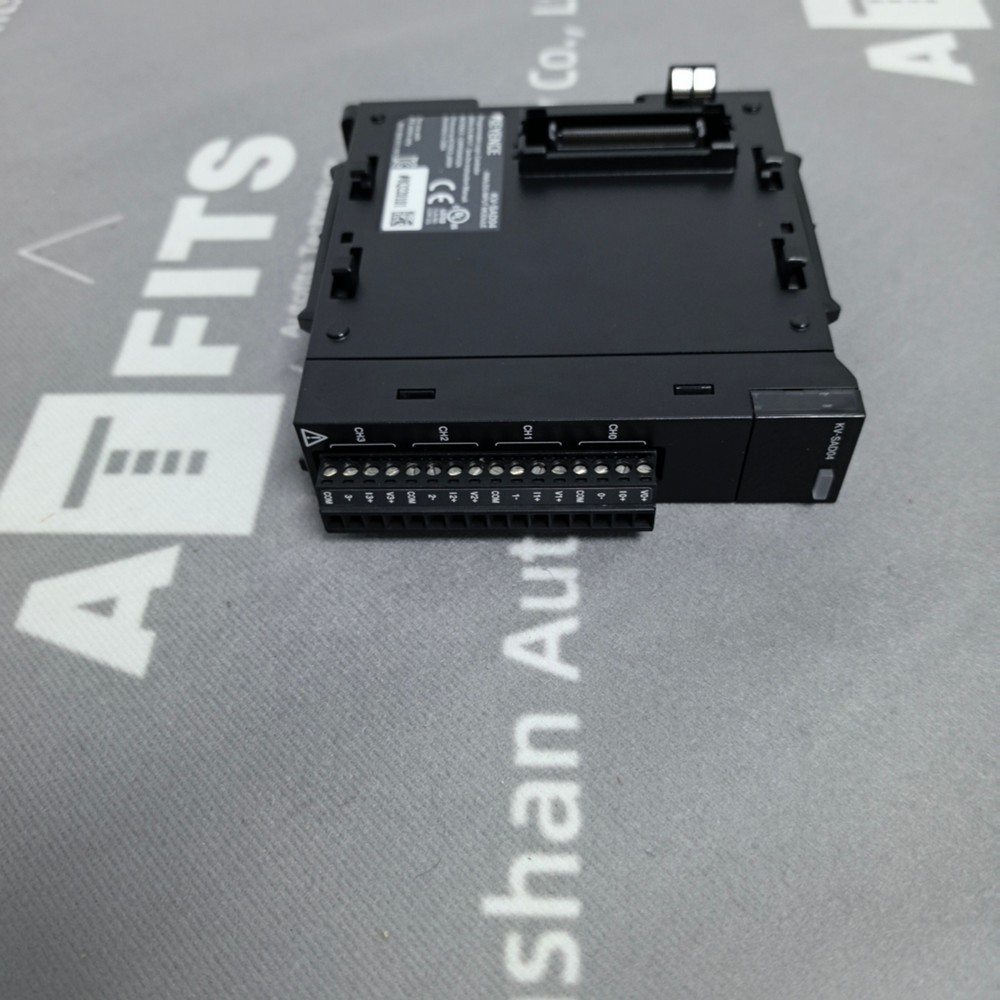

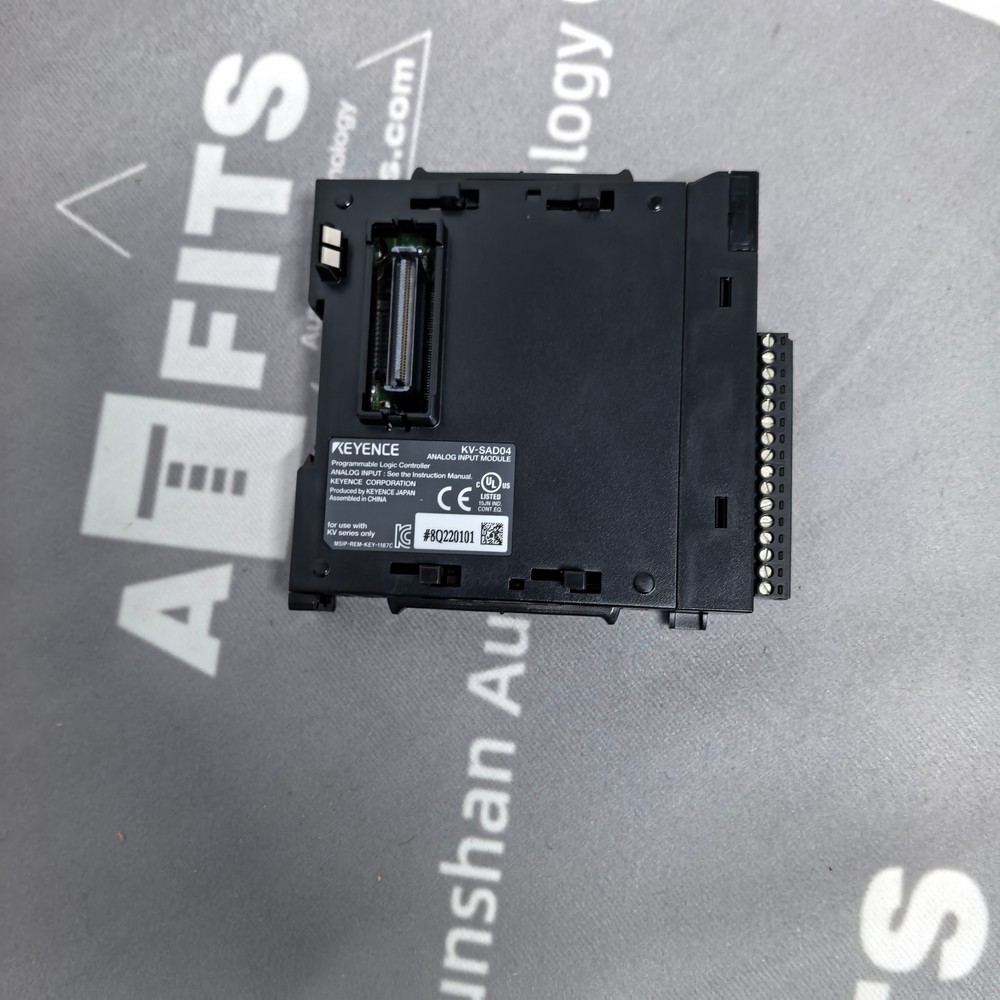

Product Overview
KV-SAD04 is an original high-speed differential analog input expansion module designed exclusively for Keyence KV-3000, KV-5000, KV-7000 and KV-8000 series modular PLC systems. As a dedicated analog signal collection unit, it is equipped with 4 independent differential input channels, capable of converting continuous analog voltage and current signals from industrial field sensors into digital data readable by the PLC main CPU. It supports universal industrial standard signal ranges including ±10V voltage and 4–20mA current, featuring ultra-fast A/D conversion speed and high conversion resolution. Connected to the PLC backplane high-speed bus, it independently completes analog signal sampling and digital conversion tasks to reduce the calculation load of the main controller. Compliant with UL, CE, RoHS and IEC industrial control standards, it delivers outstanding anti-interference performance, temperature stability and mechanical durability. It is widely adopted in precision assembly lines, packaging equipment, temperature & pressure monitoring systems, fluid control machinery, testing automation devices and all industrial scenarios requiring multi-channel analog parameter collection and closed-loop regulation基恩士.
Main Technical Specifications
| Parameter Item | Detailed Specification |
|---|---|
| Full Model Number | KV-SAD04 |
| Product Category | 4-Ch High-Speed Differential Analog Input Module |
| Compatible PLC Host | KV-3000 / KV-5000 / KV-7000 / KV-8000 Series CPU Units |
| Number of Input Channels | 4 channels (differential anti-noise input) |
| Supported Voltage Input Ranges | -10~+10V, -5~+5V, 0~10V, 0~5V, 1~5V, 0~30V |
| Supported Current Input Ranges | 0~20mA, 4~20mA |
| Maximum Resolution | 1/40000 (0.5mV) |
| A/D Conversion Speed | 10 μs per single channel |
| Conversion Accuracy | ±0.1% full scale (25°C±5°C); ±0.2% full scale (0~55°C) |
| Input Impedance | Voltage input: 1 MΩ; Current input: 250 Ω |
| Absolute Maximum Input Limit | Voltage: -15V ~ +35V; Current: 30mA |
| Insulation Design | Photocoupler insulation between module and PLC CPU; No insulation between internal channels |
| Internal Current Consumption | ≤ 80 mA |
| Operating Ambient Condition | 0°C ~ +55°C, non-condensing humidity 5%~95% RH |
| Storage Temperature | -20°C ~ +70°C |
| Vibration Resistance | 5–150 Hz, 4.9 m/s² continuous vibration on X/Y/Z axes |
| Shock Resistance | 150 m/s² acceleration, 11ms duration impact resistance |
| Protection Class | IP20 (for indoor cabinet installation only) |
| Status Indicators | Power, Running, Error LED indicators |
Overall Dimensions & Net Weight
- Module Width: 35 mm (standard single DIN rail module width)
- Overall Height: 119 mm
- Overall Depth: 115 mm
- Mounting Standard: International 35 mm DIN rail mounting
- Single Unit Net Weight: Approximately 130 gキーエンス
Primary Main Functions
- Multi-Channel Analog Signal Acquisition: Collect real-time analog signals from temperature transmitters, pressure sensors, flow meters, displacement sensors and liquid level sensors across 4 independent channels simultaneously.
- High-Precision A/D Conversion: Convert continuous analog signals into high-resolution digital values for PLC to execute calculation, comparison and closed-loop control logic.
- Differential Input Anti-Interference: Differential circuit design effectively eliminates common-mode electromagnetic noise, ensuring stable sampling data in environments with inverters and servo motors.
- Universal Signal Range Adaptation: Freely configure voltage or current input modes to match all mainstream industrial analog output sensors without extra signal converters.
- Built-In Sampling Average Filter: Digital filtering function suppresses signal fluctuation and jitter caused by field vibration or electrical interference for stable sampled values.
- System Fault Self-Diagnosis: Automatically detect open-circuit sensor wiring, over-range input and module hardware failures, with LED indicators displaying fault information for rapid troubleshooting.
- Real-Time Data Upload to CPU: Transmit converted digital data to the PLC main unit via high-speed backplane bus with ultra-low transmission delay.
- Plug-and-Play Modular Expansion: The PLC host automatically identifies the module after installation; no complicated programming configuration is required for quick system expansion.
Key Technical Features
- Ultra-fast 10μs/channel conversion speed realizes high-frequency dynamic signal collection, perfectly suitable for fast pressure fluctuation and transient displacement detection applications.
- Up to 40000-step high resolution captures tiny signal changes, meeting strict precision requirements for fine adjustment and closed-loop process control.
- Independent dedicated A/D processing chip undertakes all sampling and conversion work separately, greatly reducing the operational burden of the motion control PLC CPU.
- Compact 35mm slim body occupies minimal cabinet space, supporting dense arrangement of multiple analog, digital and communication expansion modules.
- Optocoupler isolation between module and PLC internal circuit blocks surge voltage and noise from field sensors to protect the main control unit.
- Reinforced flame-retardant industrial plastic casing with internal shielding layer adapts to dusty, oily and vibration-prone workshop long-term operation.
- Wide temperature working range maintains consistent sampling accuracy under high-temperature sealed cabinets and low-temperature cold production workshops.
- Full compatibility with all Keyence KV series PLC platforms facilitates equipment upgrading, system reconstruction and spare parts replacement during maintenance.
List of 10 Keyence Similar Functional Analog I/O Modules
- KV-SAD08 8-channel high-speed differential analog input module
- KV-DA04 4-channel analog output module for voltage/current signal output
- KV-DA08 8-channel multi-point analog output expansion unit
- KV-SAD02 Compact 2-channel economy analog input module
- KV-AD4 Thermocouple & RTD temperature dedicated analog input module
- KV-XSAD04 New-generation KV-X series upgraded high-precision analog input unit
- KV-AH04 Combined 2-in+2-out mixed analog I/O module
- KV-SAD04H High-temperature enhanced version analog input module for harsh environments
- KV-TH8 8-channel multi-point temperature acquisition module
- KV-DA02 Small-size dual-channel analog output module for simple control systems
