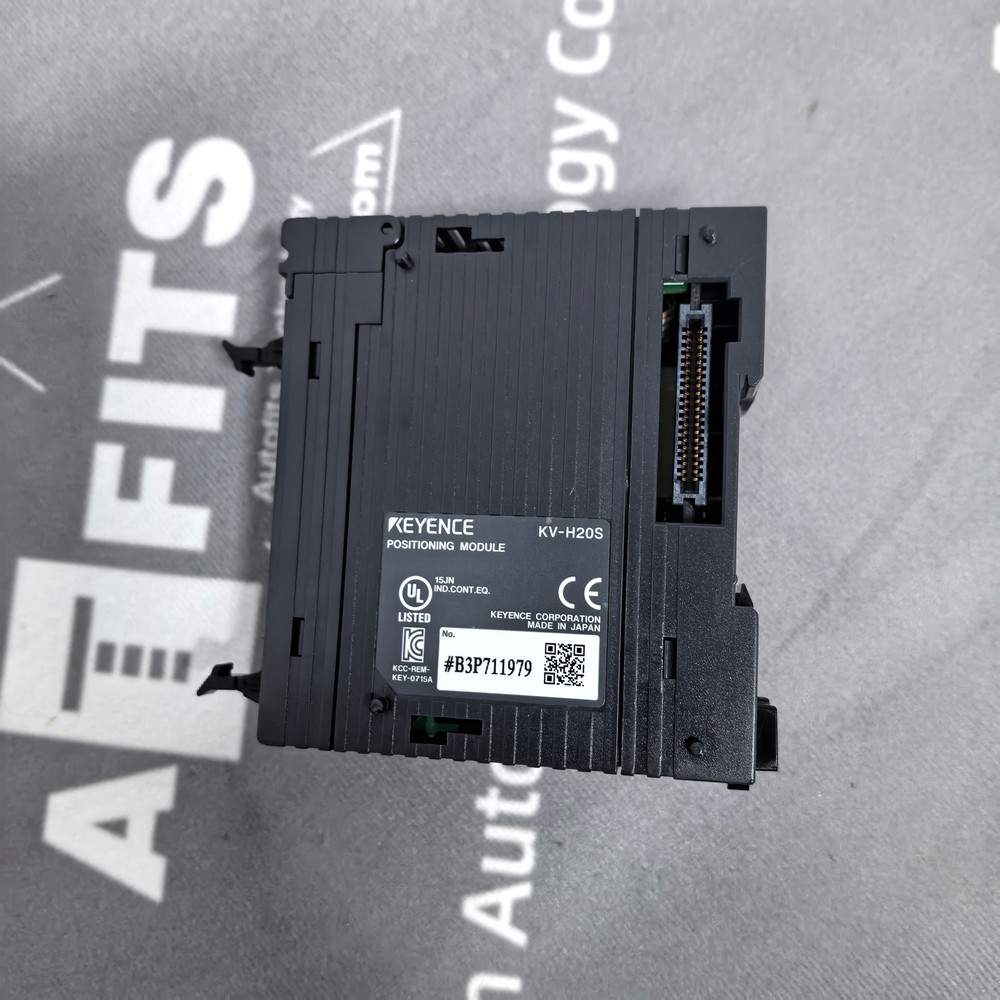

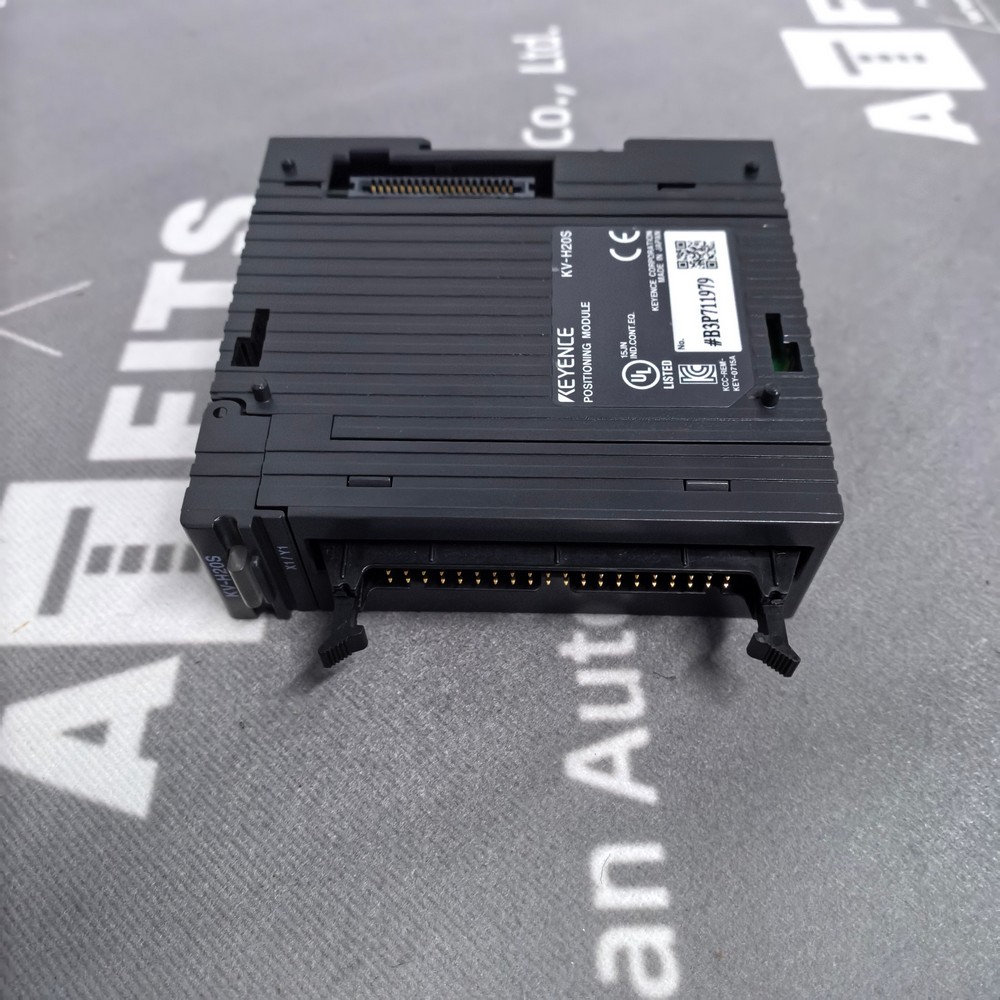

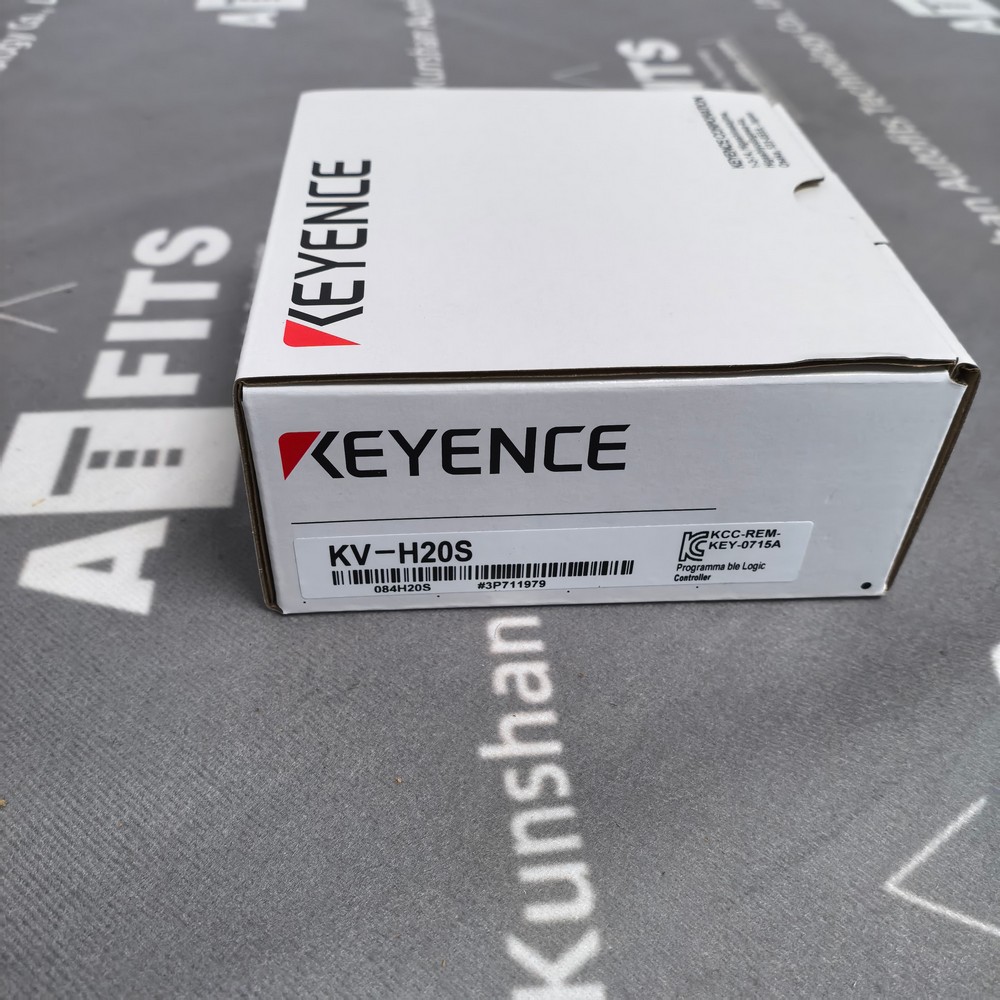

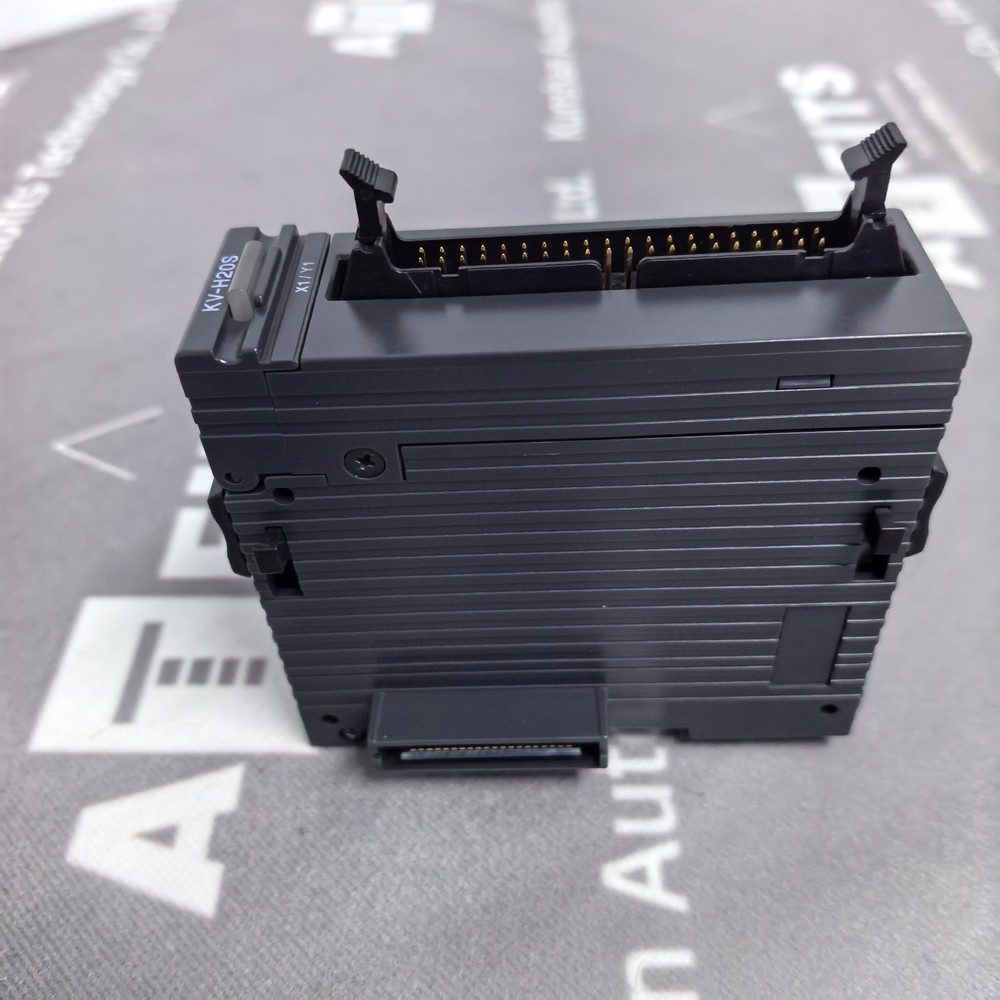

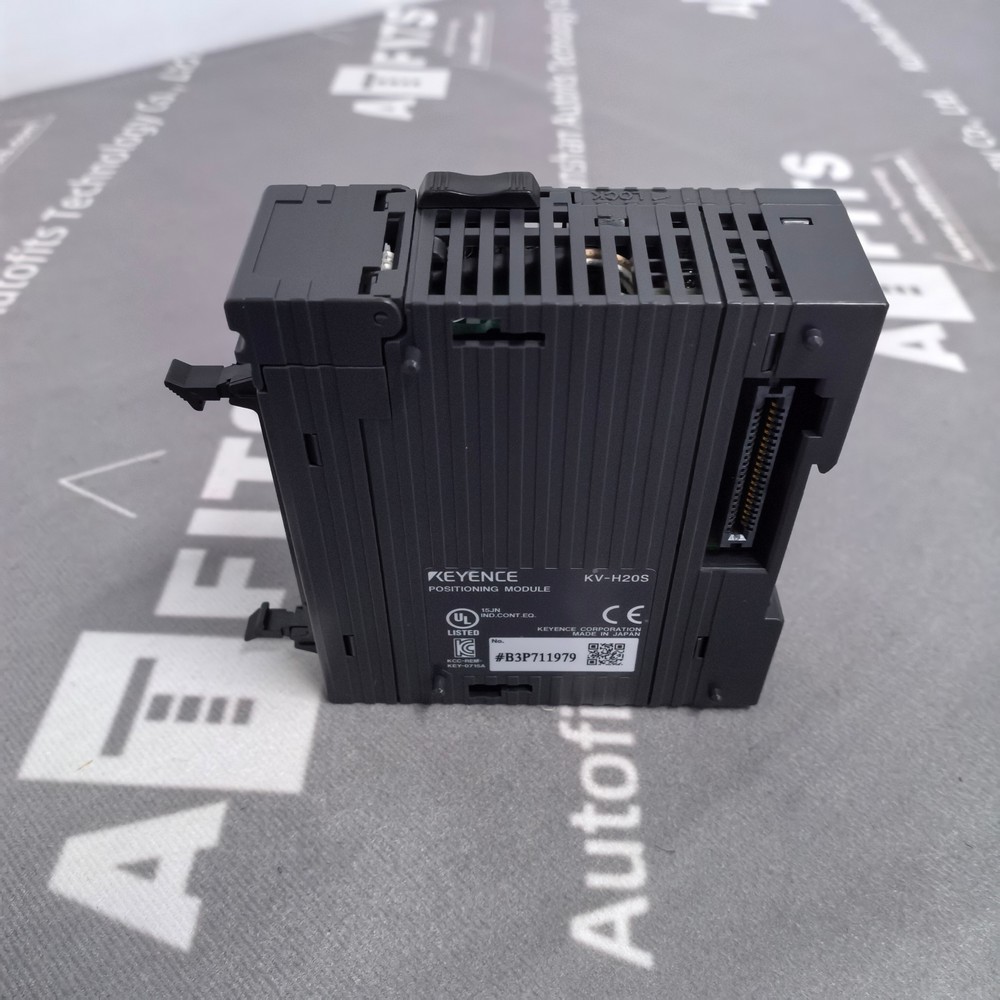

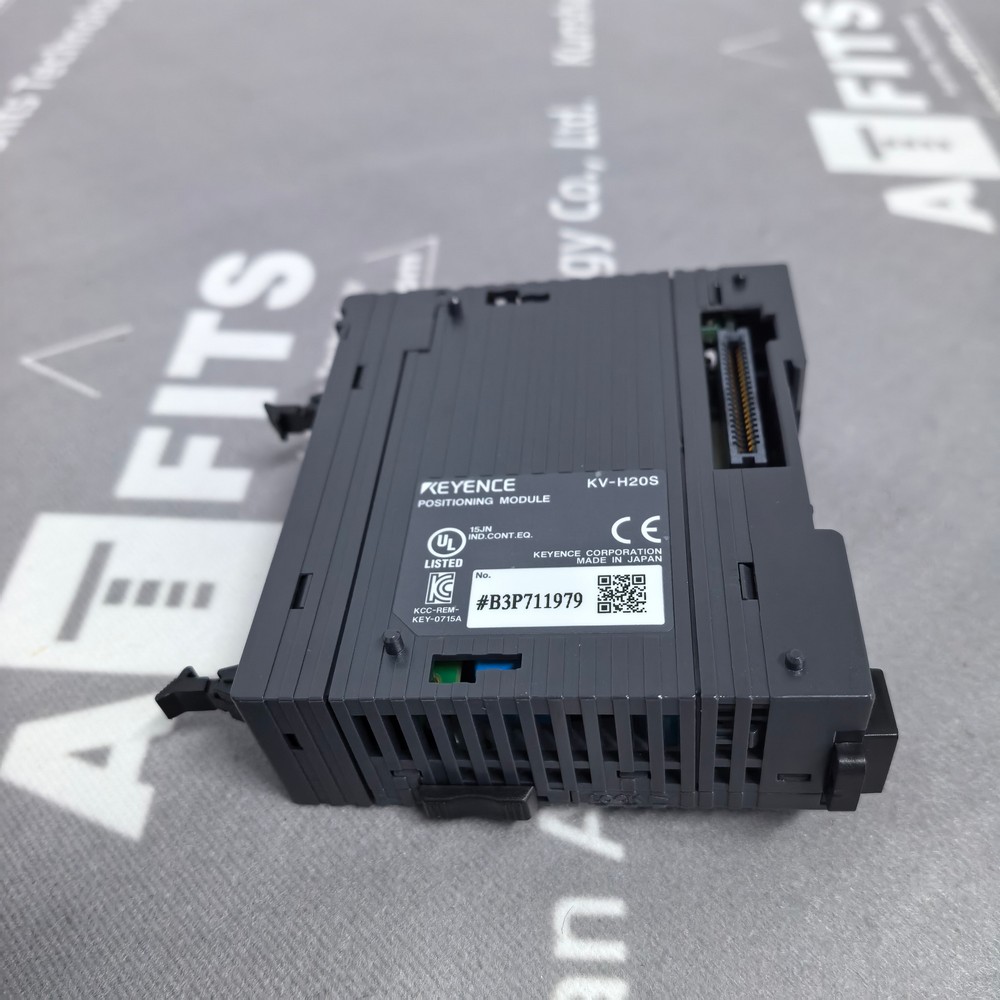

New Original Keyence KV-H20S PLC High-Speed Counter & 2-Axis Positioning Module
Product Overview
KV-H20S is a brand-new original dedicated expansion module designed for Keyence KV-7000, KV-8000 and KV-5000 series modular PLC platforms. It integrates dual functions: 2-channel high-speed pulse counter and 2-axis independent pulse positioning control unit. This module adopts differential line driver pulse output design, supporting linear and circular interpolation motion trajectory calculation, built-in 2 independent high-speed counting channels to receive encoder feedback signals. It connects to the PLC main CPU via internal high-speed backplane bus, undertaking all high-frequency pulse counting and servo stepping motor positioning tasks separately to reduce the calculation load of the main controller CPU. Compliant with IEC 61131-2 international industrial control standards, CE and RoHS certifications, it features excellent anti-vibration, anti-electromagnetic interference and wide temperature adaptability. Widely applied in automated assembly equipment, packaging machinery, conveyor positioning systems, printing devices, testing jigs and precision automation production lines requiring dual-axis linkage positioning and high-speed pulse signal acquisition.
Main Technical Specifications
| Parameter Item | Detailed Specification |
|---|---|
| Full Model Number | KV-H20S |
| Product Category | 2-Axis Positioning Module with Built-in 2-Ch High-Speed Counter |
| Supported PLC Series | KV-3000 / KV-5000 / KV-7000 / KV-8000 Series Main CPU |
| Number of Control Axes | 2 independent servo/stepper axes |
| Built-in Counter Channels | 2 channels 32-bit high-speed counters |
| Max Pulse Output Frequency | 1,000,000 pulses per second (1 MHz) |
| Pulse Output Mode | Differential line driver, switchable between 1-pulse and 2-pulse mode |
| Interpolation Function | Linear interpolation, circular interpolation supported |
| Acceleration & Deceleration Profiles | Linear curve, Sine (S-curve) acceleration/deceleration |
| Position Storage Capacity | 400 positioning program points per single axis |
| Internal Current Consumption | ≤ 120 mA |
| Memory Backup Medium | Flash ROM for parameter & position data retention |
| Power Flicker Detection | Equipped with instantaneous power interruption detection & emergency stop function |
| Operating Ambient Temperature | 0 ℃ ~ +55 ℃ (non-condensing) |
| Storage Temperature Range | -20 ℃ ~ +70 ℃ |
| Vibration Resistance | 5–150 Hz, 4.9 m/s² continuous vibration on X/Y/Z axes |
| Shock Resistance | 150 m/s² acceleration, 11 ms duration |
| Protection Class | IP20 (indoor cabinet installation only) |
Overall Dimensions & Net Weight
- Module Width: 35 mm (standard DIN rail single module width)
- Overall Height: 95 mm
- Overall Depth: 102 mm
- Mounting Standard: 35 mm international standard DIN rail mounting
- Single Unit Net Weight: Approximately 150 grams
Primary Main Functions
- Dual-Axis Precision Positioning Control: Executes independent positioning, jog movement, origin return and continuous reciprocating motion for two stepping or servo motors; realizes two-dimensional linear & circular linkage interpolation.
- High-Speed Pulse Counting Acquisition: Two 32-bit counters collect pulse signals from rotary encoders to detect rotating speed, displacement length and workpiece position in real time.
- Multi-Mode Acceleration Regulation: Supports linear and S-curve acceleration/deceleration to avoid mechanical impact caused by sudden speed changes and protect transmission structures.
- Position Parameter Teaching Function: Three teaching modes including JOG coordinate teaching, direct counter value teaching and PLC external teaching for convenient on-site parameter setting.
- Sensor Interrupt Emergency Stop: Triggers immediate axis stop when limit sensors or proximity switches are activated during automatic operation.
- Flash Memory Data Preservation: Position programs, speed parameters and counter values are permanently stored in flash memory without data loss after power outage.
- Instantaneous Power Failure Protection: Detects brief power fluctuations automatically and halts axis movement to prevent equipment collision or workpiece scrapping.
- Plug-and-Play Modular Expansion: The PLC main unit automatically identifies the module after installation, no complicated system configuration required.
Key Technical Features
- Independent dedicated motion processing chip handles all pulse generation and counting tasks, greatly lowering the operational burden of the PLC main CPU and ensuring stable system response.
- Differential pulse output effectively resists electromagnetic interference from inverters and high-power equipment, maintaining accurate pulse transmission over long wiring distances.
- Compact 35mm slim body design occupies minimal cabinet space, allowing dense arrangement of multiple expansion modules inside electrical control boxes.
- Reinforced flame-retardant industrial plastic casing with internal shielding layer adapts to dusty, oily and vibration-prone workshop environments.
- Optimized interpolation algorithm realizes ultra-smooth two-axis linkage trajectory, suitable for contour cutting, dispensing and precise filling processes.
- Unified backplane bus protocol achieves full compatibility with all Keyence KV series PLC main controllers for flexible equipment upgrade and spare part replacement.
- LED status indicator lights clearly display pulse output, counter operation and fault alarm status for rapid daily troubleshooting and maintenance.
- Wide voltage and temperature tolerance guarantees consistent performance under high-temperature enclosed cabinets and low-temperature cold production workshops.
List of 10 Keyence Similar Functional High-Speed Counter & Positioning Modules
- KV-H20 Basic 2-axis positioning module without optimized S-curve function
- KV-H20G Synchronous dual-axis linkage enhanced positioning module
- KV-H40S 4-axis high-speed pulse positioning module with 4 built-in counter channels
- KV-MX1 Multi-function high-speed counter unit for encoder signal acquisition only
- KV-H10S Single-axis economy positioning module with 1-channel counter
- KV-H60 High-end 6-axis pulse motion control expansion module
- KV-NC1L Position control bus link module for remote distributed axes
- KV-HP1 Hand-held teaching unit matched with KV-H series positioning modules
- KV-XH20S New-generation KV-X series 2-axis high-speed counter positioning module
- KV-H20SP High-speed version with 2 MHz maximum pulse output frequency
