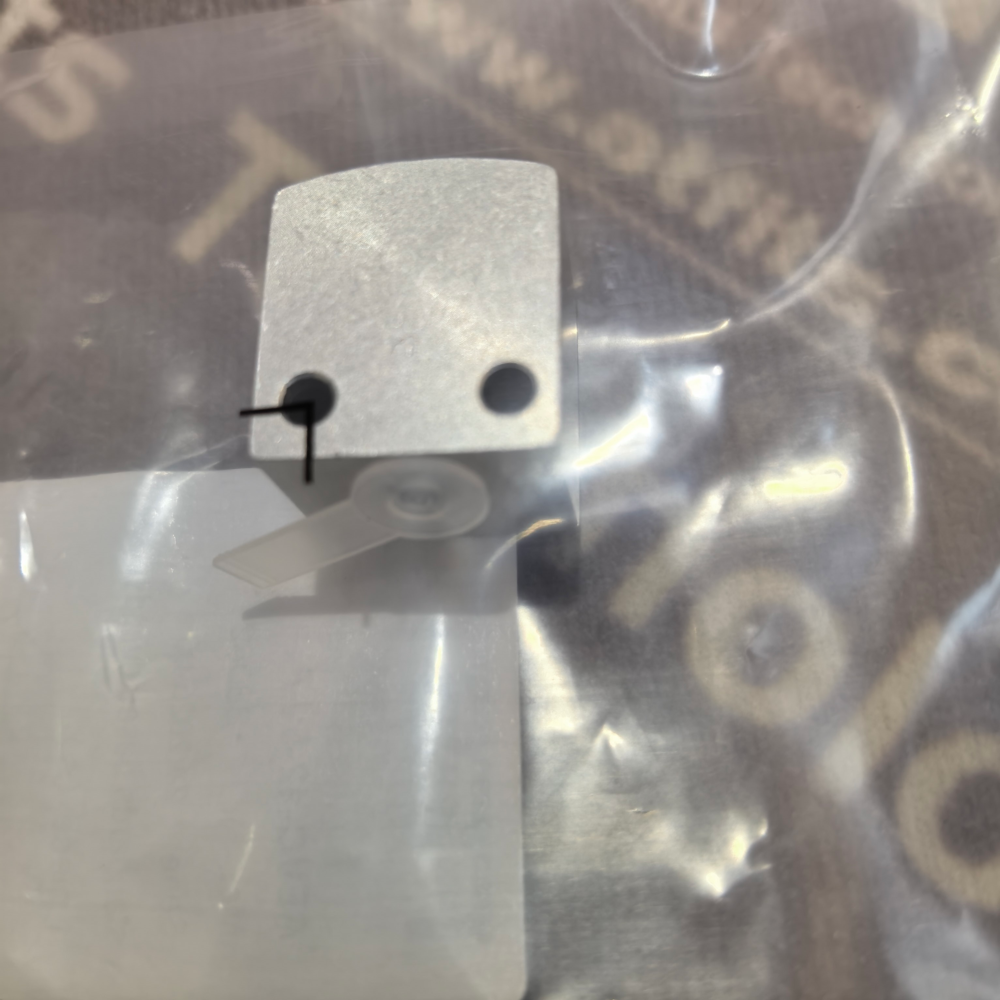

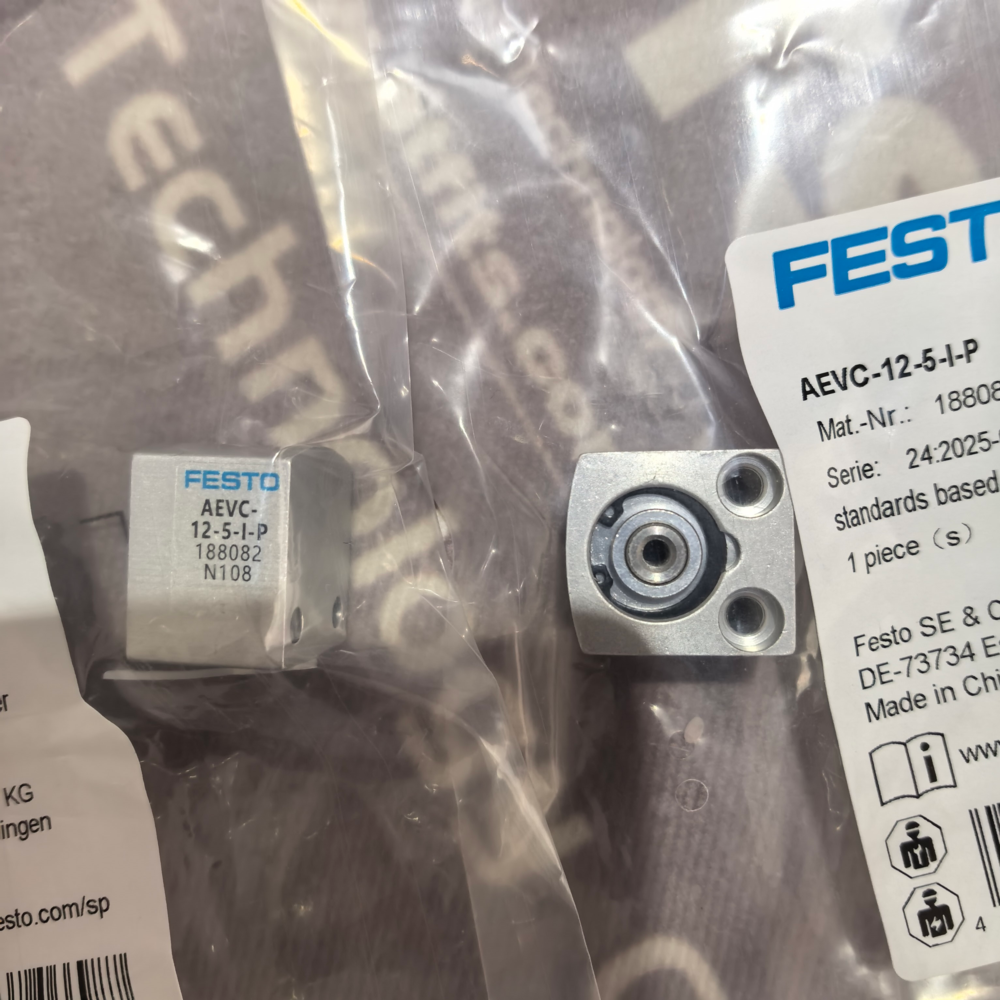

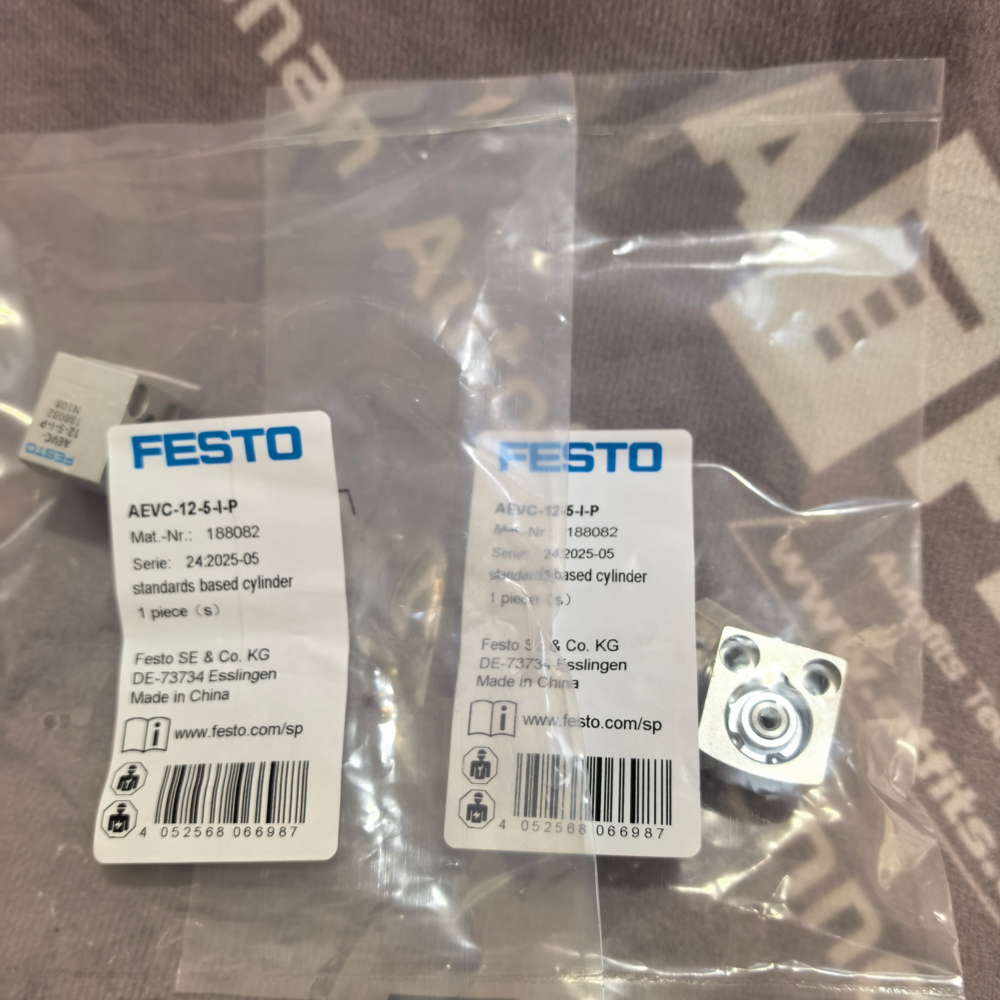

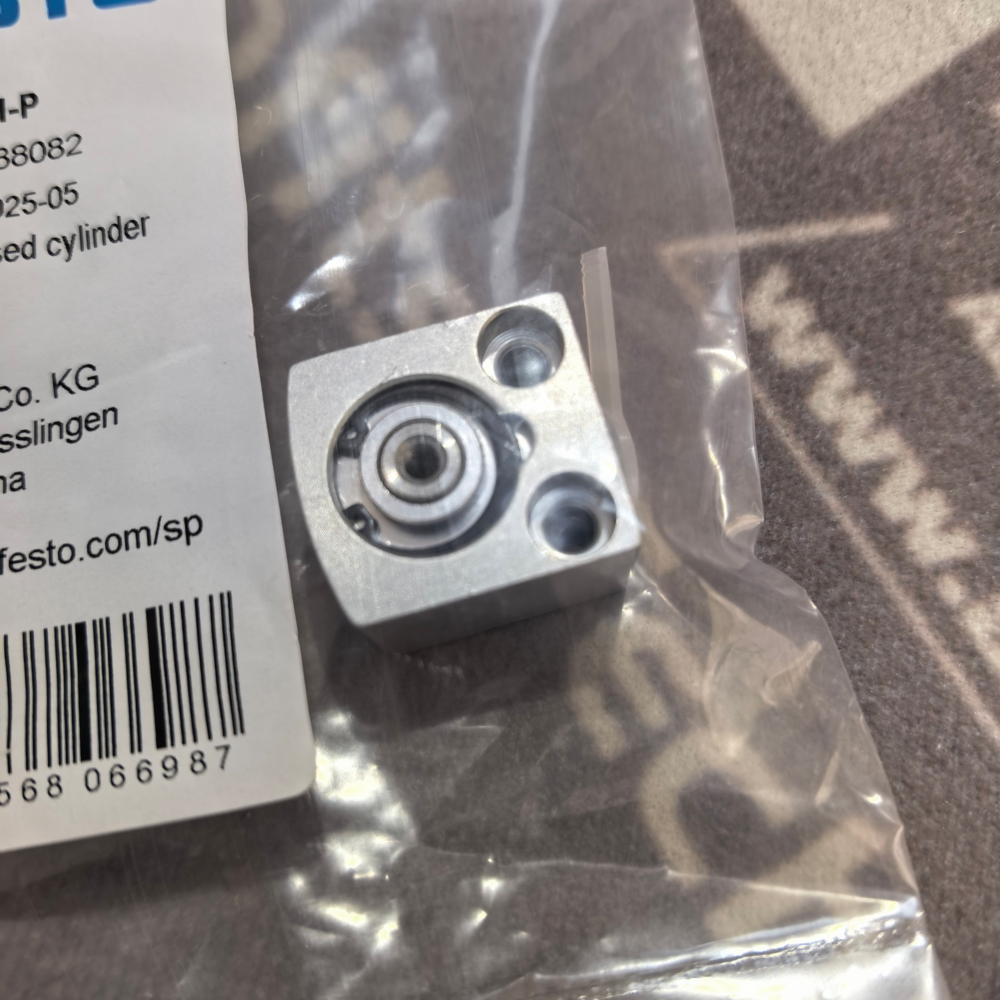

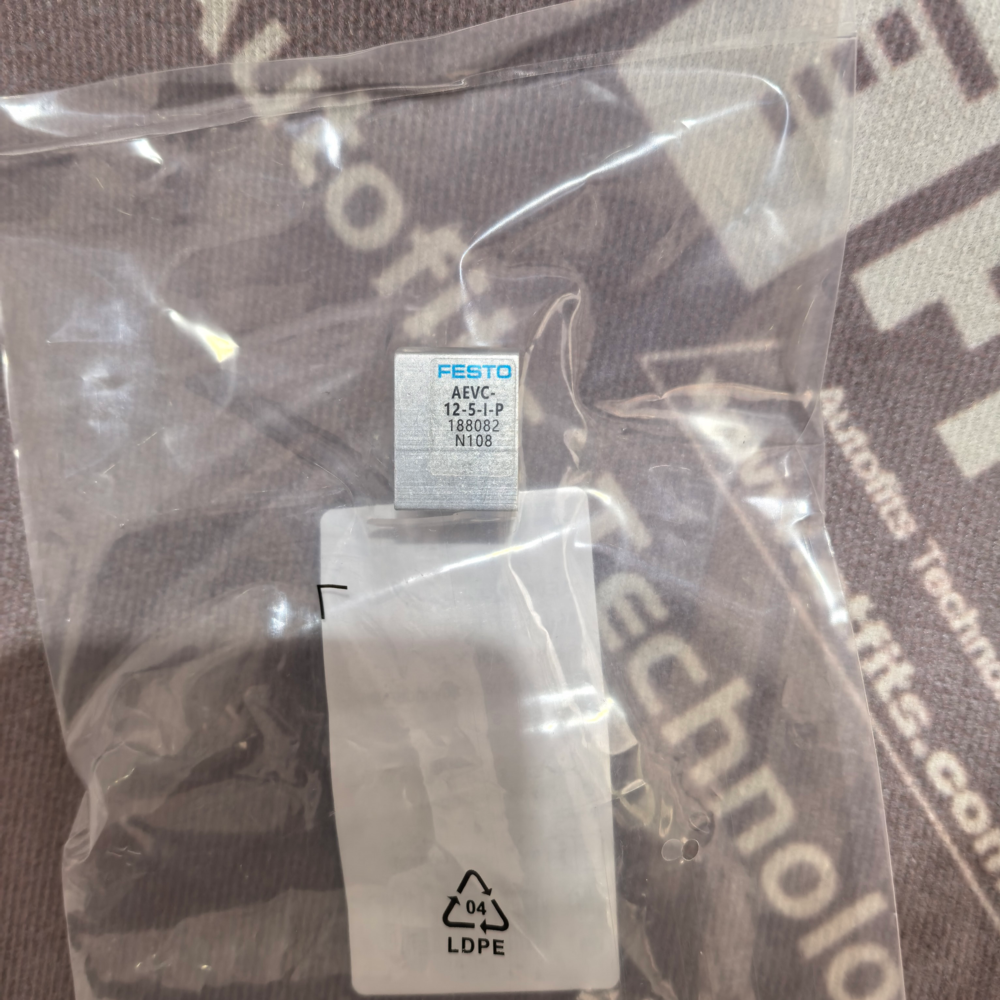

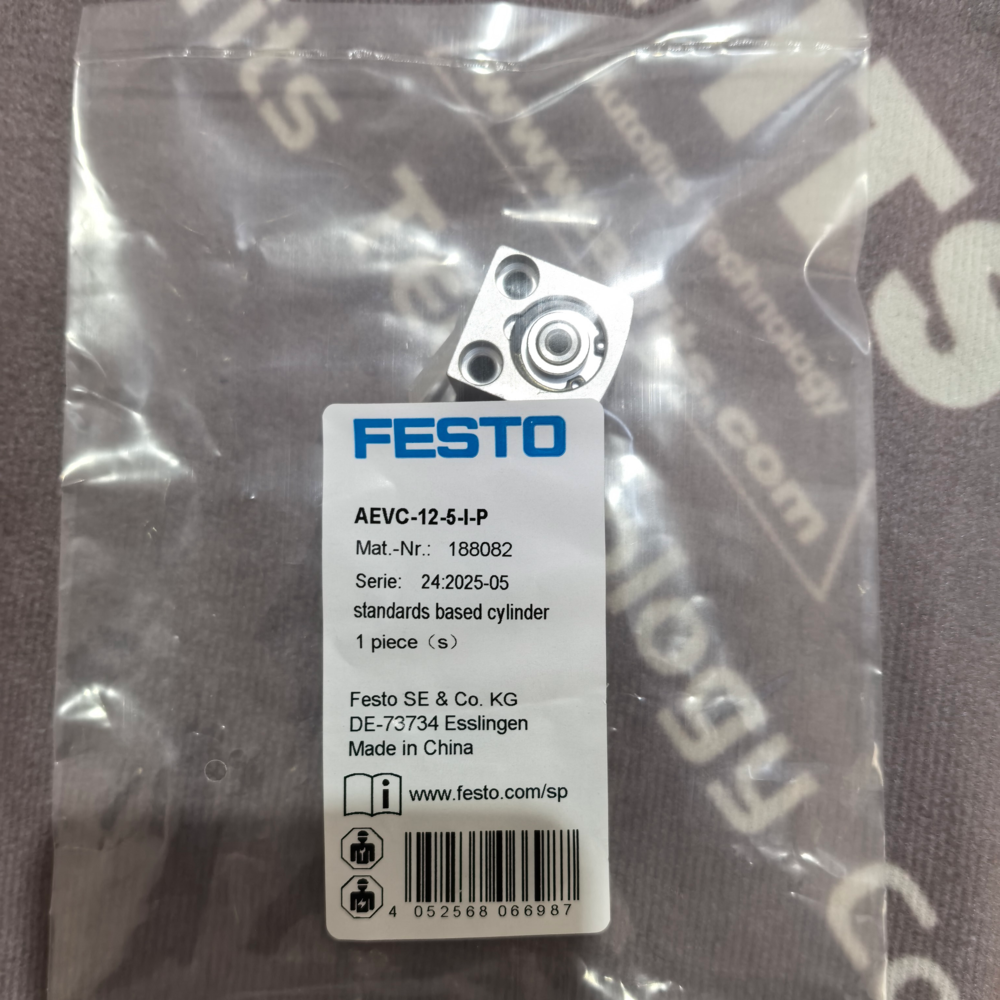

New Original Festo 188082 AEVC-12-5-I-P Short-stroke cylinder
"*" indicates required fields
Product Introduction of New‑Original Festo 188082 AEVC‑12‑5‑I‑P Short‑Stroke Cylinder
1. Product Overview
AEVC‑12‑5‑I‑P (Part‑No.188082) belongs to the AEVC series single‑acting short‑stroke cylinder produced by Festo Germany. It is a compact pneumatic actuator designed for short‑travel pushing‑only applications. The cylinder extends under compressed‑air force and retracts by built‑in return spring without extra air supply for retraction. With ultra‑small overall size and lightweight structure, this unit fits tight installation spaces in automated assembly jigs, fixture clamping devices, small sorting machines, packaging equipment and testing stations. The model code meaning: AEVC = single‑acting short‑stroke cylinder; 12 mm piston bore; 5 mm stroke; I = internal thread on piston rod; P = elastic end cushioning. This original German‑made component complies with RoHS and VDMA‑24364‑B1/B2‑LABS standard for general‑industrial environmentsFesto.
2. Main Functions
- Short‑stroke linear pushing: Generate stable thrust to complete clamping, pushing, positioning and ejection actions within 5‑mm short travel.
- Spring‑powered automatic reset: Built‑in coil spring pulls piston rod back to original position once air pressure is released.
- Vibration and noise reduction: Equipped with elastic polymer cushion pads on both ends to buffer piston impact during operation and prolong service life.
- Simple installation: Through‑holes on cylinder housing allow direct mounting onto mounting plates or fixture bases without complicated brackets.
- Optional position monitoring: The cylinder body reserves sensor slots to install proximity switches if position‑feedback function is required for automated control systems.
3. Technical Parameters
| Items | Detailed Specifications |
|---|---|
| Part number | 188082, Model AEVC‑12‑5‑I‑P |
| Operation mode | Single‑acting, push‑type with spring return |
| Piston bore | 12 mm |
| Rated stroke | 5 mm |
| Working pressure range | 1.5 bar –10 bar (0.15 MPa‑1.0 MPa) |
| Theoretical thrust at 6‑bar working pressure | 61 N |
| Spring reset force (retracted state) | 4 N |
| Pneumatic port thread | M5 internal thread |
| Cushioning type | Elastic polymer cushion at both ends |
| Working medium | Filtered compressed‑air conforming to ISO8573‑1:2010 [7:4:4]; oil‑lubricated air is allowed |
| Ambient operating temperature | ‑20°C to +80°C |
| Corrosion resistance class | CRC‑1 for low‑corrosion industrial environment |
| Main housing material | Anodized wrought aluminum alloy |
| Sealing material | NBR and TPE‑U polyurethane |
| Piston‑rod material | High‑strength alloy steel |
| Moving mass of internal piston assembly | 4.4 g |
4. Physical Dimensions and Net Weight
| Dimension Description | Value |
|---|---|
| Overall height | 22 mm |
| Overall width | 20 mm |
| Overall depth | 17 mm |
| Length of internal‑thread piston rod | 11 mm |
| Single‑piece net weight | 19 g |
5. Product Advantages
- Ultra‑compact and lightweight design greatly reduces occupied installation space compared with standard‑size cylinders.
- Anodized aluminum housing provides good wear‑resistance and anti‑oxidation performance.
- Reliable NBR seals resist compressed‑air with oil mist and prevent internal air leakage for long‑time continuous‑cycle operation.
- Internal‑thread piston rod brings flexible connection for custom‑made pushing fixtures.
- Standard through‑hole layout realizes quick installation and convenient replacement on automated production lines.
6. Ten Festo Products with Similar Short‑Stroke‑Cylinder Function
- Festo 188083 AEVC‑12‑10‑I‑P: Single‑acting short‑stroke cylinder, bore‑12 mm, stroke‑10 mm, internal rod thread, elastic cushioning.
- Festo 188099 AEVC‑16‑5‑I‑P: Single‑acting cylinder with 16‑mm bore and 5‑mm stroke for higher‑force clamping jobs.
- Festo 188090 ADVC‑12‑5‑I‑P: Double‑acting short‑stroke cylinder with 12‑mm bore and 5‑mm stroke, air‑driven for both extension and retraction.
- Festo 188131 AEVC‑20‑5‑I‑P: Single‑acting cylinder with 20‑mm bore and 5‑mm stroke for heavy‑load short‑stroke pushing tasks.
- Festo 188087 AEVC‑12‑10‑A‑P: Single‑acting short‑stroke cylinder with external‑thread piston rod, bore‑12 mm, stroke‑10 mm.
- Festo 188163 AEVC‑25‑5‑I‑P: 25‑mm‑bore single‑acting short‑stroke cylinder with internal‑thread rod and 5‑mm stroke.
- Festo 188100 AEVC‑16‑10‑I‑P: 16‑mm‑bore, 10‑mm‑stroke single‑acting short‑stroke cylinder with internal‑thread piston rod.
- Festo 188198 AEVC‑32‑5‑A‑P: Large‑bore short‑stroke cylinder with 32‑mm bore, 5‑mm stroke and external‑thread rod for heavy‑duty clamping.
- Festo 8076479 AEN‑S‑12‑5‑I‑P: Updated‑version single‑acting short‑stroke cylinder as functional replacement for AEVC‑12‑5‑I‑P.
- Festo 188128 AEVC‑20‑5‑I‑P‑A: 20‑mm‑bore short‑stroke cylinder with built‑in magnetic piston for position‑sensor installation.
