New Original Festo 165004 UC-1.4 PNEUMATIC MUFFLER
"*" indicates required fields
Product Introduction for New Original Festo 165004 UC‑1.4 Pneumatic Muffler
1. Product Overview

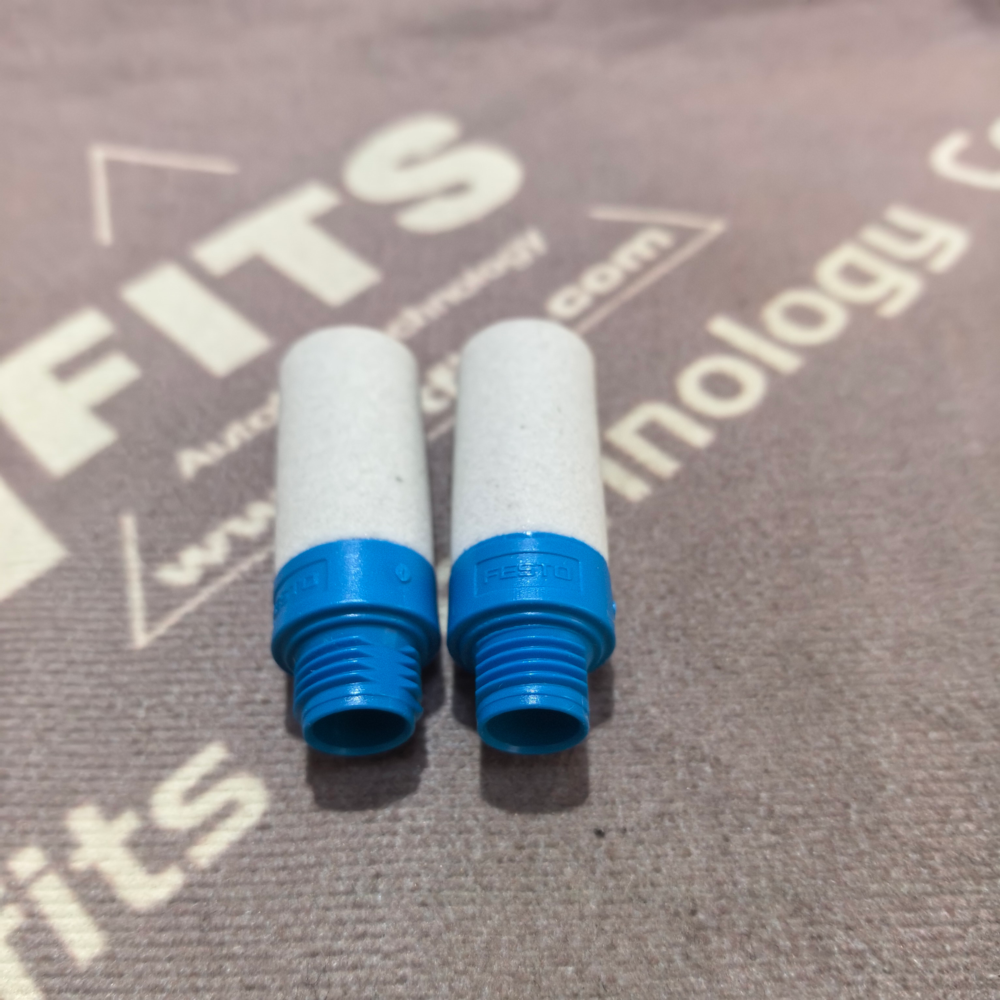

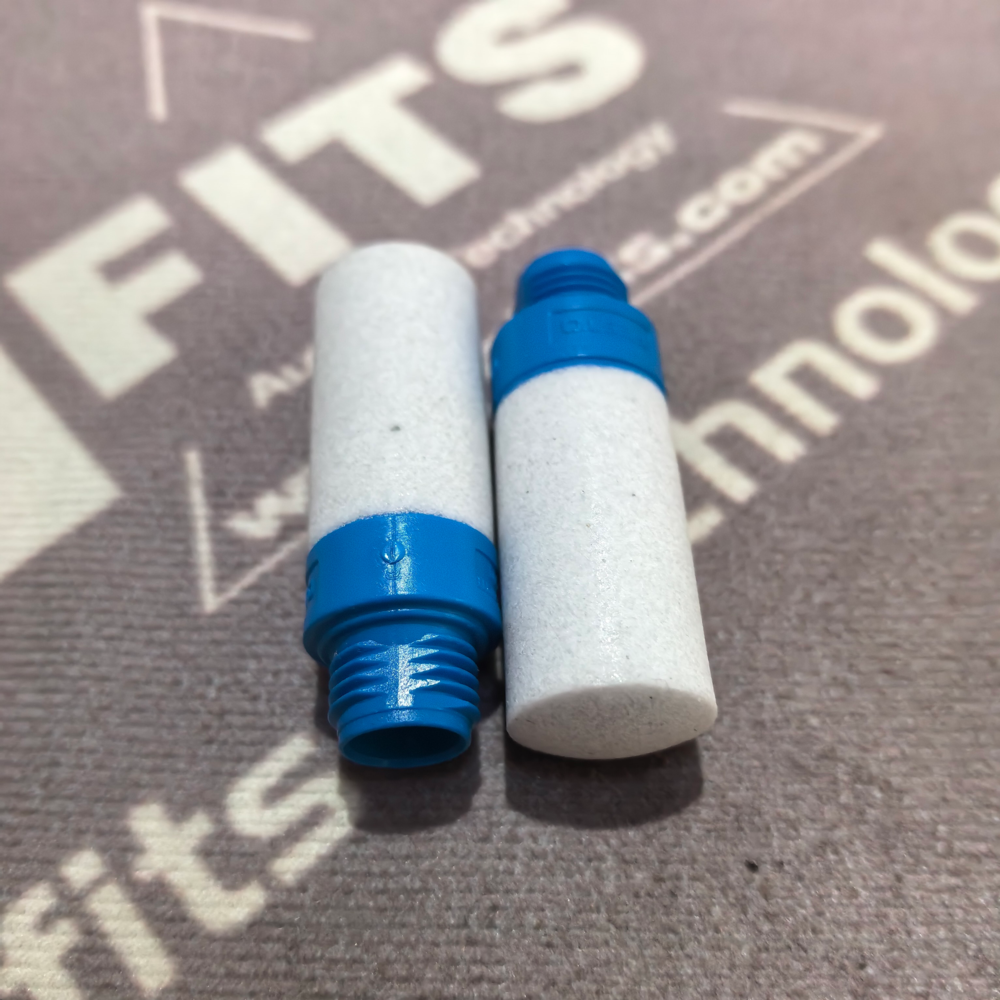

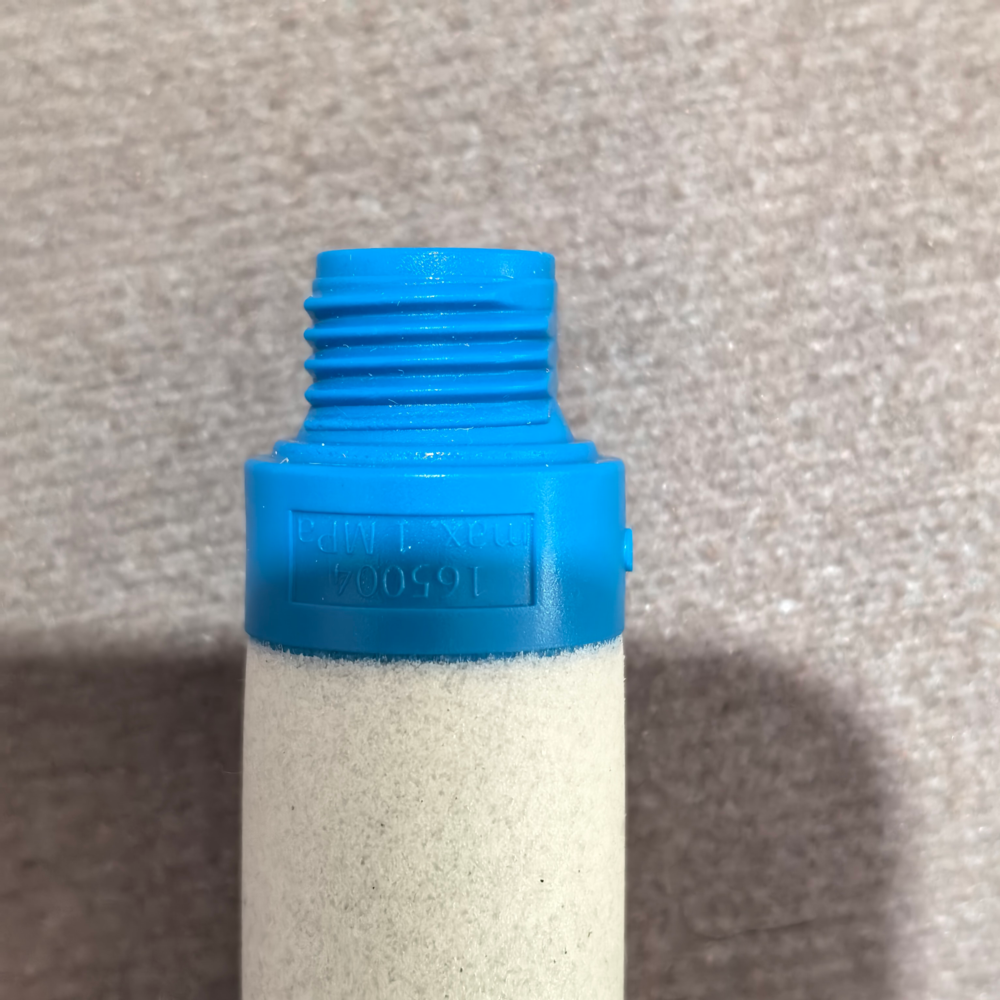

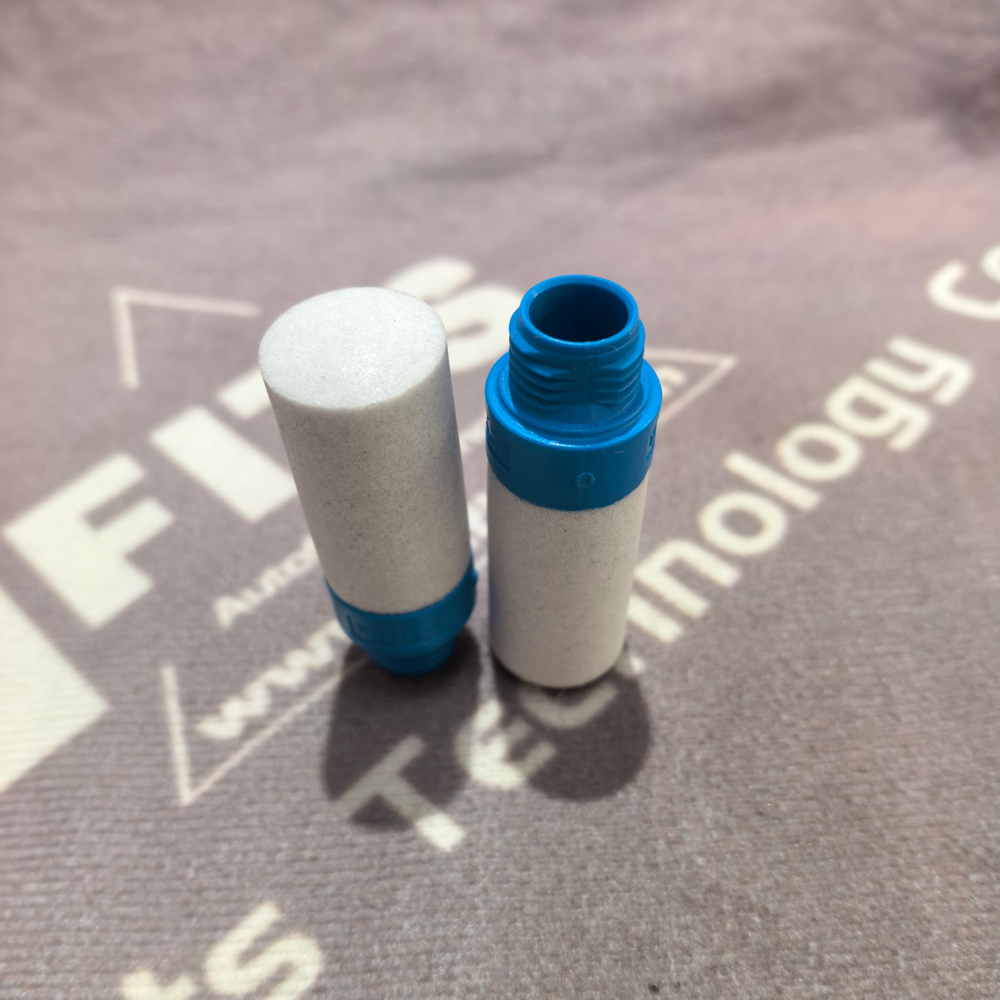

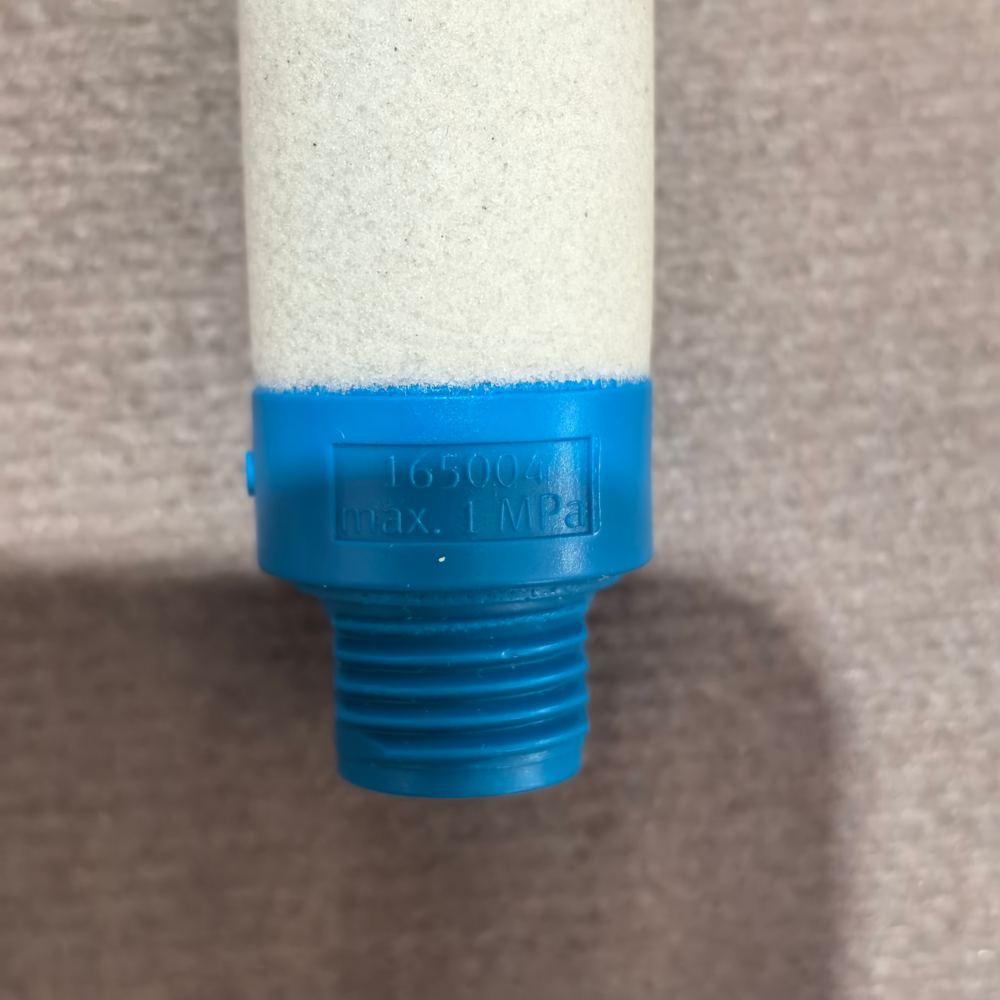

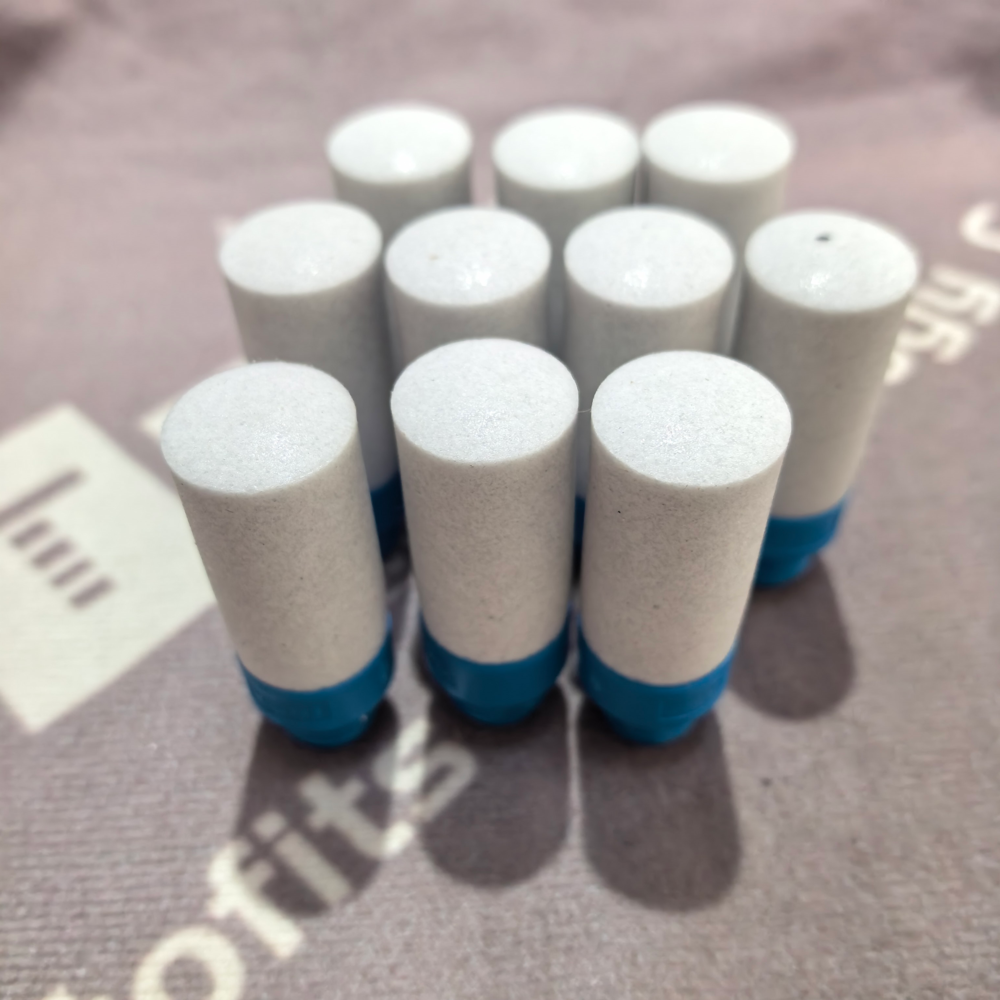

The Festo UC‑1.4 (Part No.165004) is a genuine‑original pneumatic muffler manufactured by Festo Germany. It is installed on the exhaust port of solenoid valves, pneumatic cylinders and air control components. The component reduces high‑speed exhaust‑air noise generated during pneumatic system operation and filters tiny carbon‑dust particles from exhausted compressed‑air. It is widely applied in automated production lines, machine‑tool equipment, packaging machinery and robotic pneumatic circuits with G1/4 thread connection standard.
2. Main Functions
- Noise reduction: Dissipate high‑velocity exhaust airflow to lower working noise down to a permitted industrial noise level.
- Debris filtration: Block fine wear‑out particles from internal pneumatic parts to avoid environmental pollution.
- Air‑flow stabilization: Prevent excessive exhaust back‑pressure from affecting switching response of pneumatic valves.
- Protection for internal valve components: Avoid outside dust entering the valve body through exhaust ports during equipment standby period.
3. Technical Features
表格
| Item | Parameter Details |
|---|---|
| Part Number | 165004, Model UC‑1.4 |
| Connection Thread | G1/4 external thread |
| Permissible Operating Pressure | 0‑10 bar |
| Operating Temperature Range | −10 °C to +80 °C |
| Internal Filter Material | Porous sintered bronze |
| Housing Material | Black plastic polyamide |
| Maximum Exhaust Flow | 750 l/min at 6‑bar working pressure |
| Noise‑Reduction Effect | 18‑23 dB |
| Installation Type | Screw‑in direct mounting |
4. Physical Dimensions and Weight
表格
| Dimension Parameter | Value |
|---|---|
| Total overall length | 34 mm |
| Outer diameter of main body | 20 mm |
| Thread length | 11 mm |
| Net weight of single unit | 24 g |
5. Product Advantages
- Sintered‑bronze filter structure delivers stable noise‑absorbing performance and long‑term service life without rapid aging.
- Compact size fits narrow installation space around valve terminals and small‑size cylinders.
- Resistant against compressed‑air with standard lubricated oil mist, not easy to corrode.
- Standard G‑thread complies with international pneumatic‑component standards for convenient replacement.
- Original Festo production ensures consistent performance with low failure rate for long‑time continuous‑running conditions.
6. List of 10 Festo Mufflers with Similar Functions
- Festo 165005 UC‑1.8 (G1/8 thread sintered bronze muffler)
- Festo 165006 UC‑2.0 (G3/8 pneumatic exhaust muffler)
- Festo 165007 UC‑2.5 (G1/2 heavy‑duty muffler for high‑flow exhaust)
- Festo 534222 U‑1/8 (plastic‑body muffler with G1/8 thread)
- Festo 534223 U‑1/4 (G1/4 compact plastic‑type muffler)
- Festo 534224 U‑3/8 (medium‑flow‑rate muffler for valve islands)
- Festo 12058 U‑1/2 (large‑flow muffler for big‑bore cylinders)
- Festo 8001785 AMTE‑M5‑S (mini‑size muffler with M5 thread for small valves)
- Festo 8001786 AMTE‑M7‑S (thread‑type miniature muffler for compact pneumatic modules)
- Festo 543274 OV‑1/4‑10 (long‑type high‑attenuation muffler with G1/4 thread)
