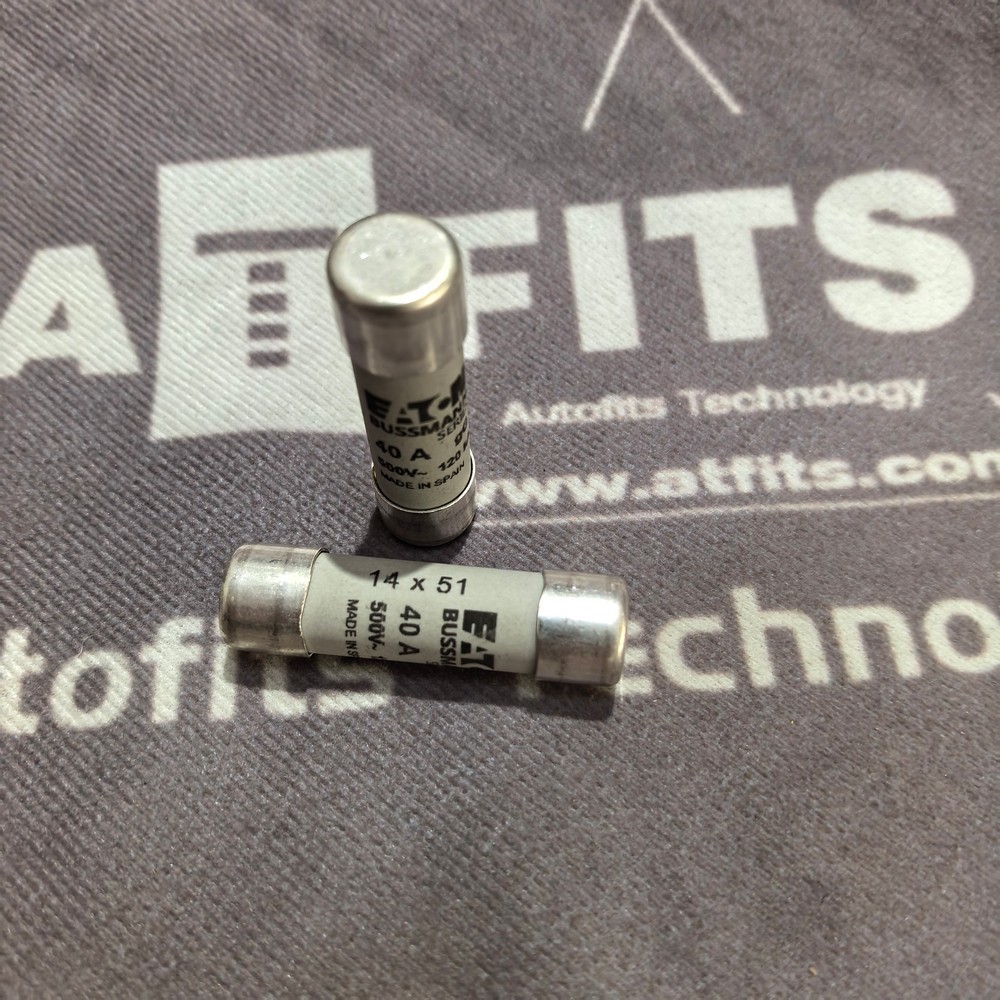

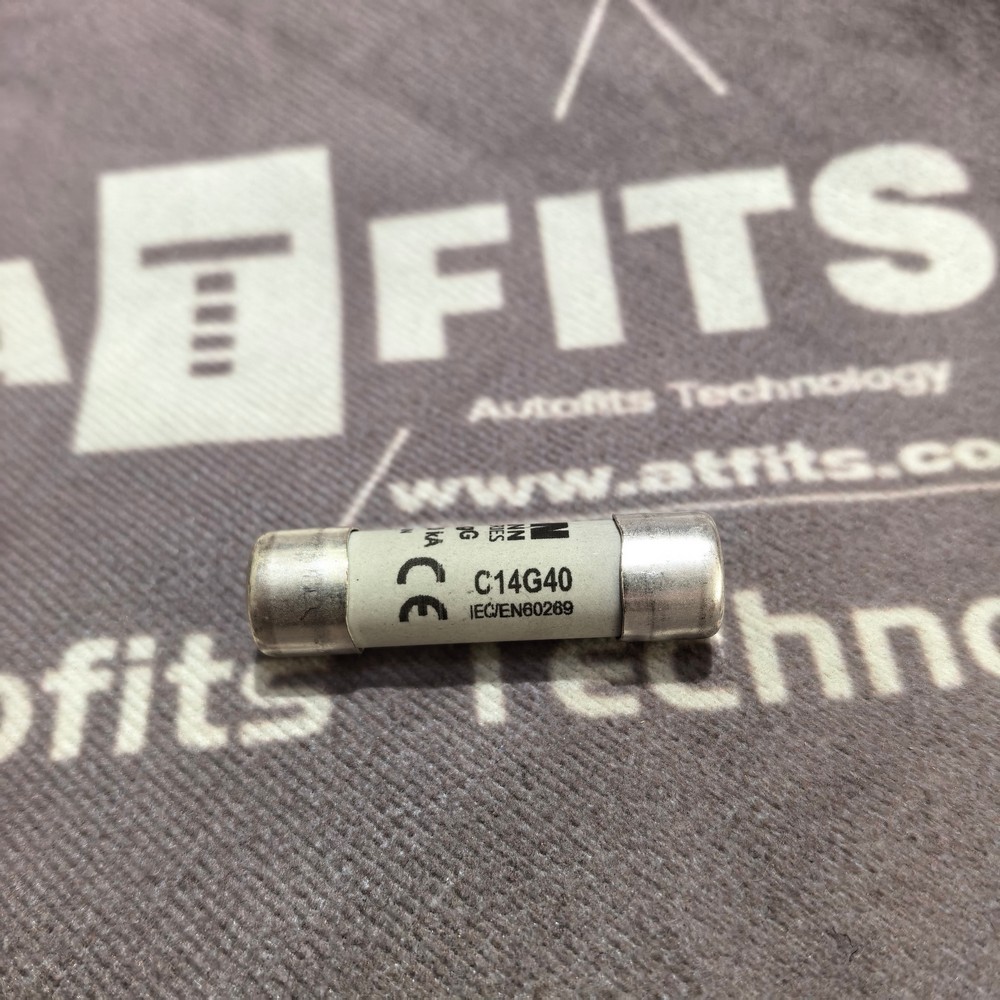

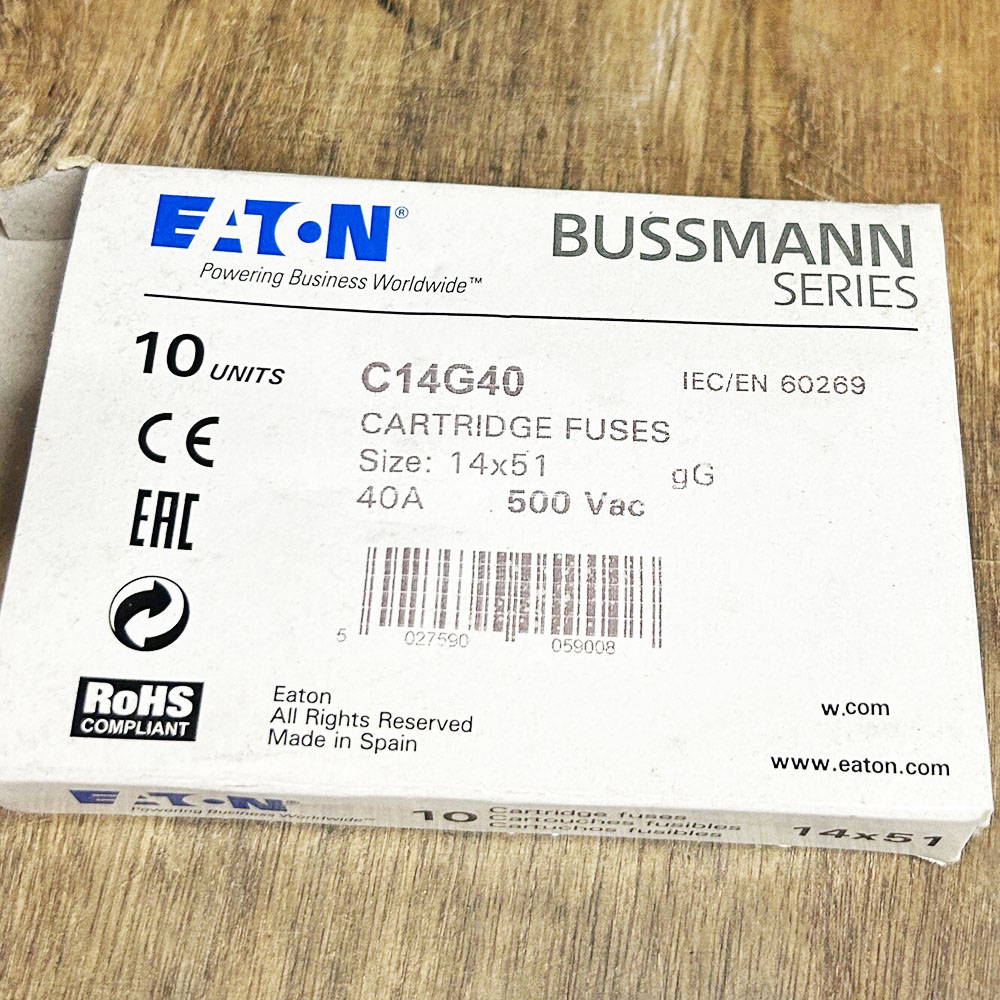

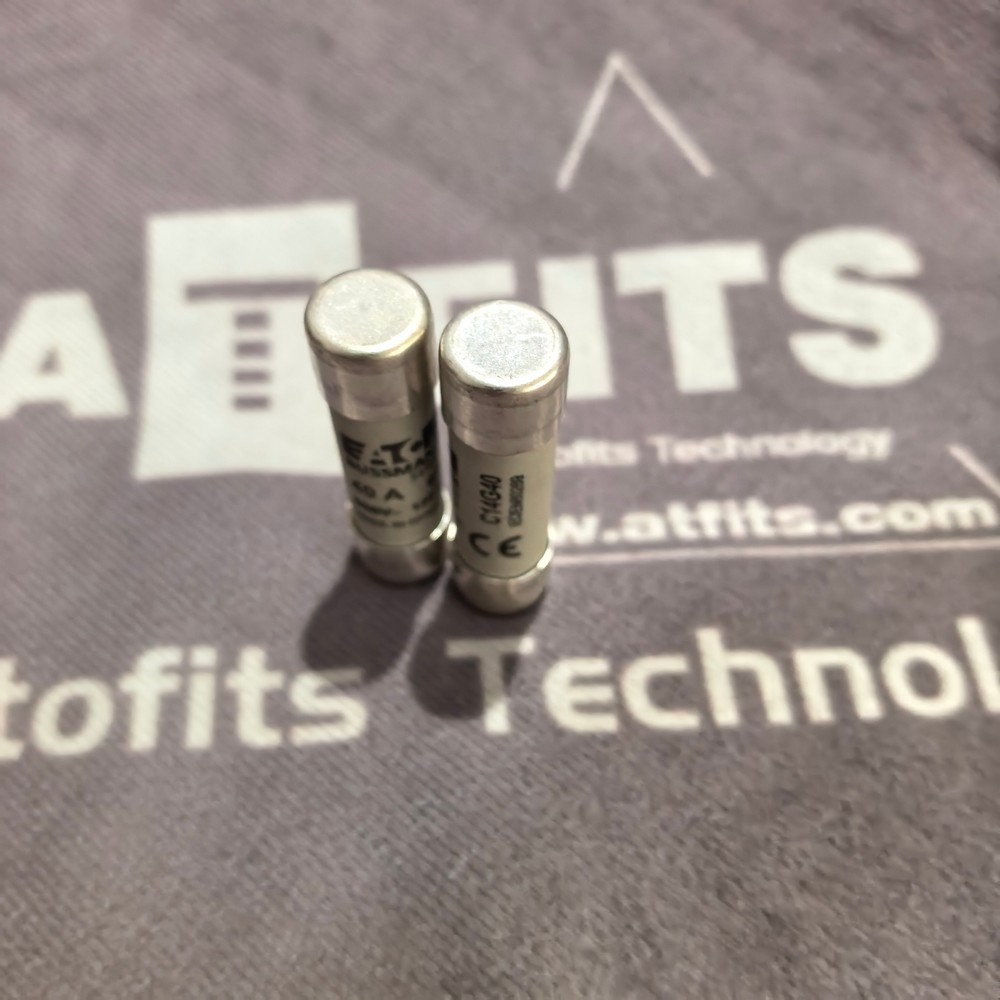

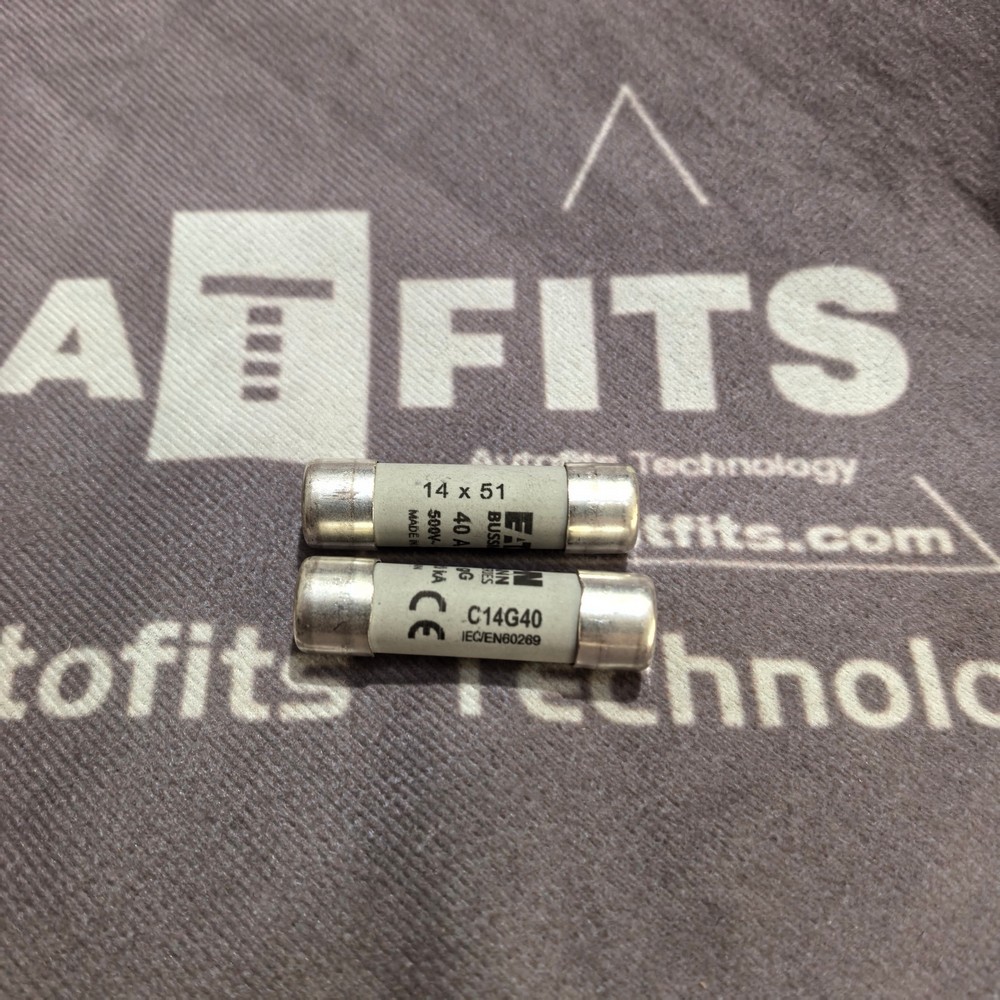

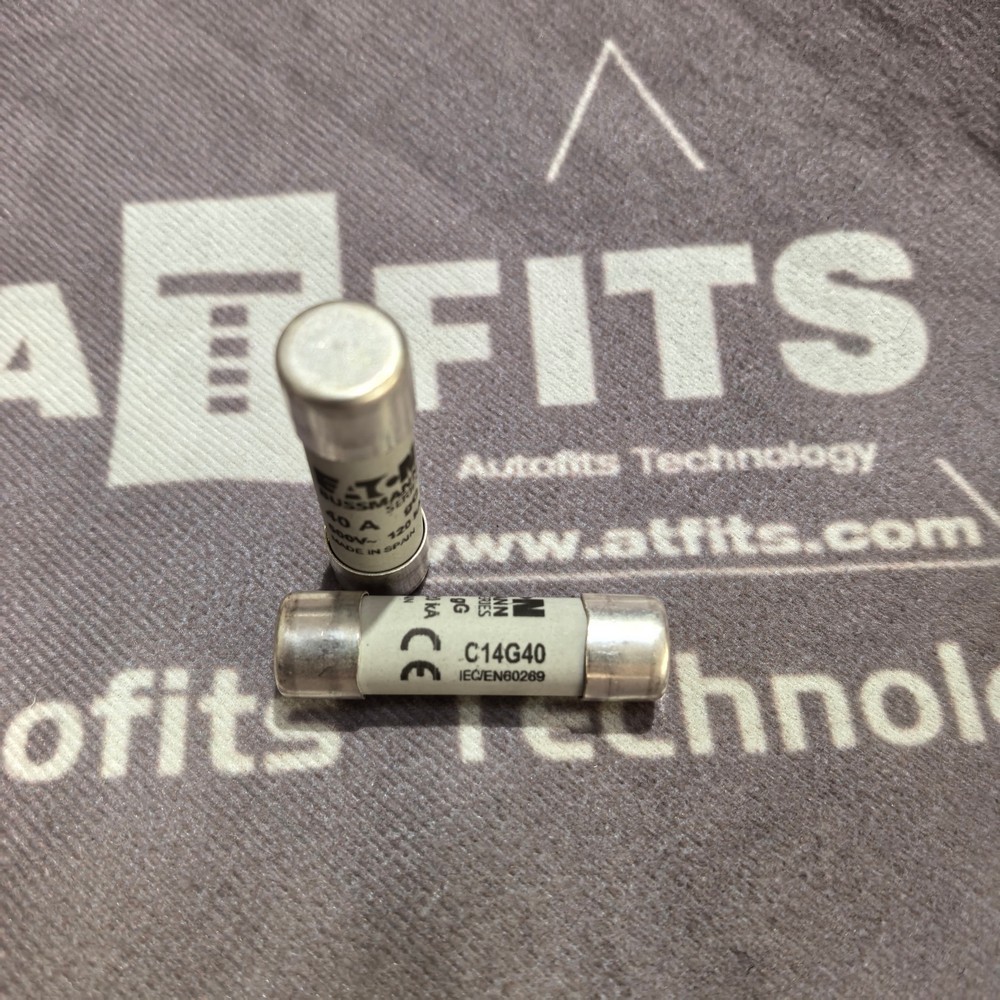

New Original EATON C14G40 High Breaking Capacity Cylindrical Fuse
1. Product Overview
The EATON C14G40 belongs to the C14G series IEC standard cylindrical cartridge fuse. It adopts high-strength heat-resistant ceramic tube with silver-plated metal ferrule terminals and features gG general-purpose protection characteristic with high breaking capacity. This unit has a rated current of 40 A and rated voltage of 500 V AC, with standard dimension 14 mm × 51 mm, designed to match corresponding 14×51 mm modular fuse holders. It provides reliable overload and short-circuit protection for low-voltage distribution branches, automation equipment, frequency converter peripheral circuits and medium-power auxiliary control systems. Widely applied in packaging machinery, conveyor production lines and industrial control cabinets. The supplied unit is brand-new original genuine EATON product.
2. Main Technical Specifications
| Item | Parameter |
|---|---|
| Model | C14G40 |
| Series | C14G IEC Standard Cylindrical Fuse |
| Physical Dimension | 14 mm Diameter × 51 mm Length |
| Rated Current | 40 A |
| Rated Voltage | 500 V AC |
| Rated Breaking Capacity | 120 kA |
| Utilization Category | gG / gL General Circuit Protection |
| Housing Material | High-temperature resistant ceramic tube |
| Terminal Type | Silver-plated metal ferrules |
| Blown Indicator | Without blown indicator |
| Compatible Fuse Holder | Standard 14×51 mm modular fuse holder |
| Operating Ambient Temperature | -20 °C ~ +60 °C |
| Storage Temperature | -40 °C ~ +70 °C |
| Net Weight | Approx. 16.5 g |
| Compliance Standards | IEC 60269, CE, RoHS |
3. Main Functions
- Achieve dual protection against overload and short-circuit faults for low-voltage alternating current circuits.
- Rapidly interrupt extreme fault current to prevent irreversible damage to power modules, controllers and electrical loads.
- Stable gG time-current characteristic avoids accidental blowing caused by normal motor starting inrush current.
- Standard 14×51 mm form factor supports interchangeable installation with matched fuse holders.
- Effectively isolate circuit faults and prevent fault propagation inside control enclosures.
- Suitable for branch protection of medium-power motors, frequency inverters and industrial auxiliary power circuits.
- Serve as reliable circuit protection for general automation equipment and low-voltage distribution terminals.
4. Technical Features
- Ultra-high breaking capacity handles severe short-circuit current in industrial power distribution networks.
- Robust ceramic housing provides excellent arc quenching performance during fuse operation.
- Silver-plated end ferrules reduce contact resistance and restrain temperature rise under continuous load.
- Optimized internal fuse element structure ensures consistent fusing performance under variable loads.
- Standardized 14×51 mm size meets mainstream industrial modular installation requirements.
- Fully compliant with IEC 60269 international standards for low-voltage cylindrical fuses.
- Convenient plug-in structure allows quick replacement during equipment maintenance.
- Low power loss minimizes heat accumulation under long-term rated operating conditions.
- Good temperature stability adapts to various factory workshop operating environments.
- Stable manufacturing quality supports non-stop continuous operation of industrial machinery.
5. 10 EATON Similar 14×51 mm Cylindrical Fuses
- C14G16, C14G series 16A gG cylindrical fuse, 500 V AC, size 14×51 mm
- C14G20, C14G series 20A high breaking capacity general-purpose cartridge fuse
- C14G25, C14G series 25A industrial control circuit fuse
- C14G32, C14G series 32A gG cylindrical fuse
- C14G50, C14G series 50A medium-load protection fuse
- C14G63, C14G series 63A maximum specification gG cylindrical fuse
- C14M20, C14M series aM characteristic fuse for motor short-circuit protection
- C14M32, aM type 32A fuse dedicated to motor branch circuit protection
- C14G40I, C14G 40A fuse equipped with blown status indicator
- C14G10, C14G series 10A low-current gG cylindrical fuse
