New Original EATON C10G25 High Breaking Capacity Semiconductor Fuse
"*" indicates required fields

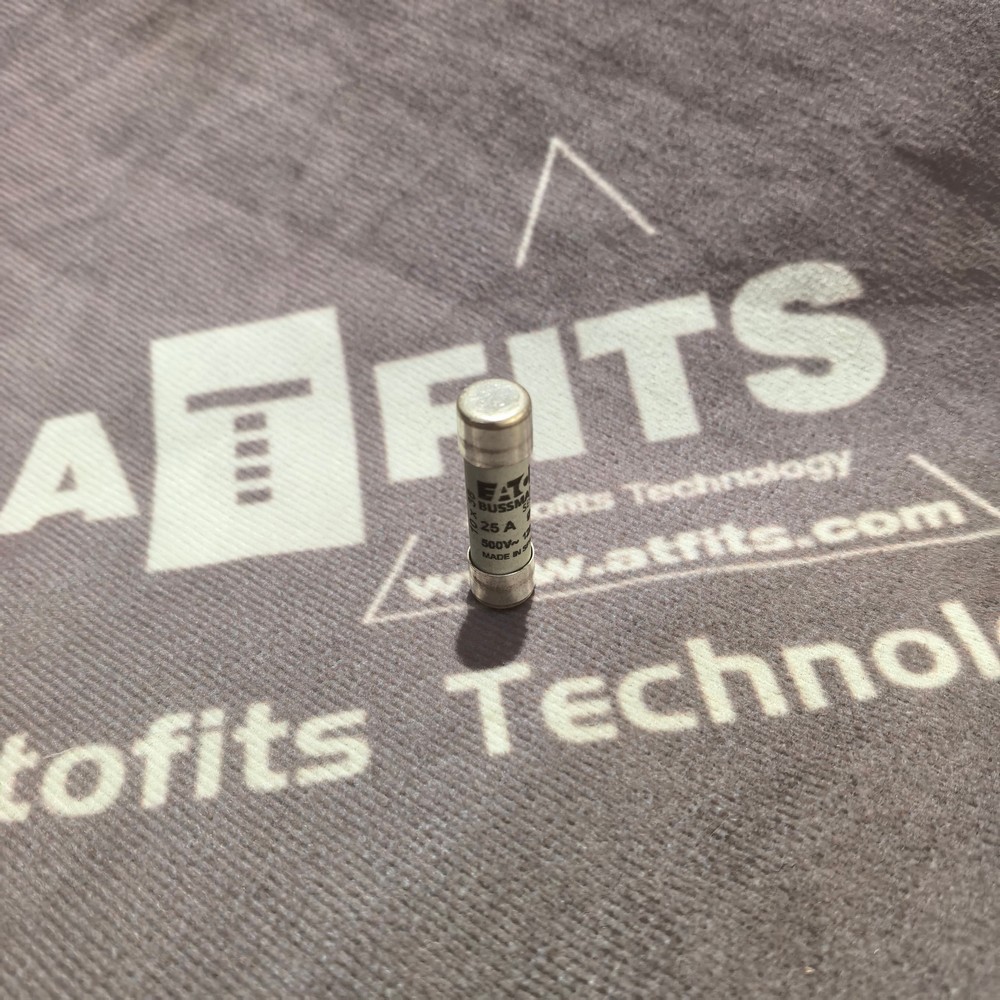

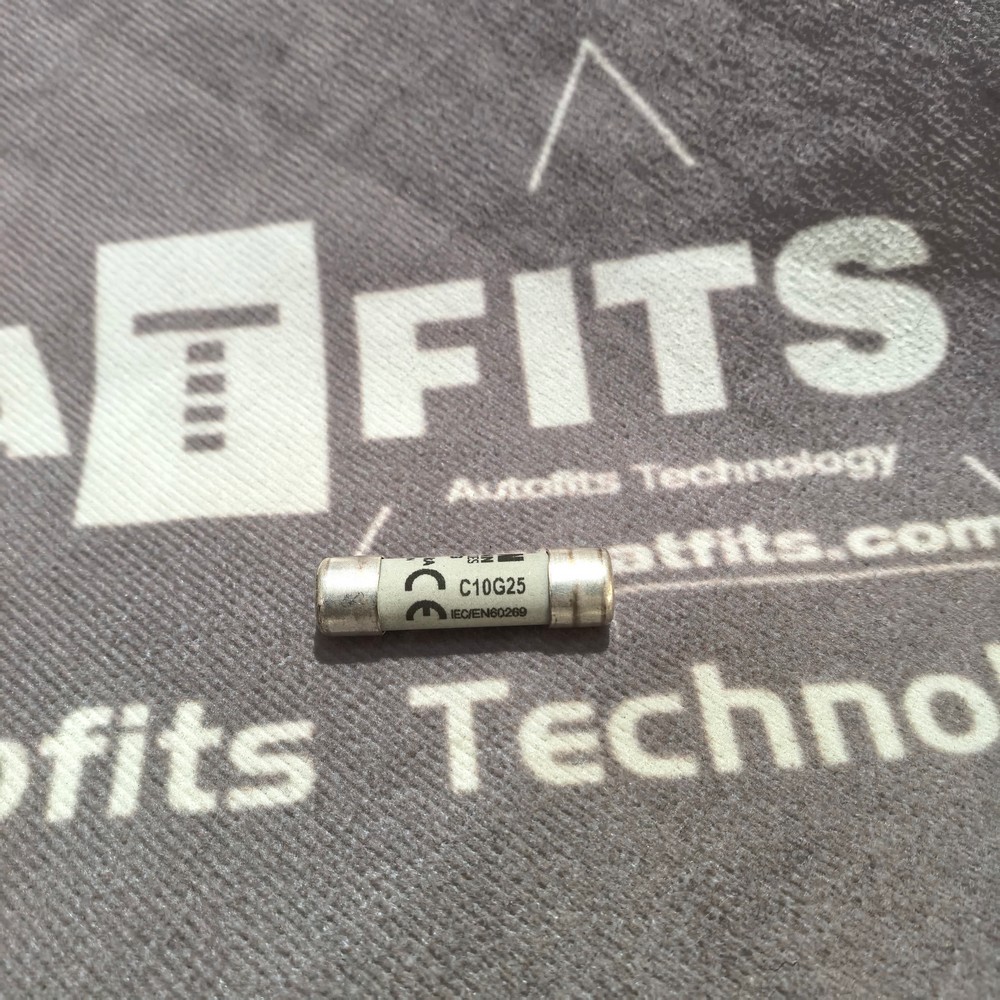

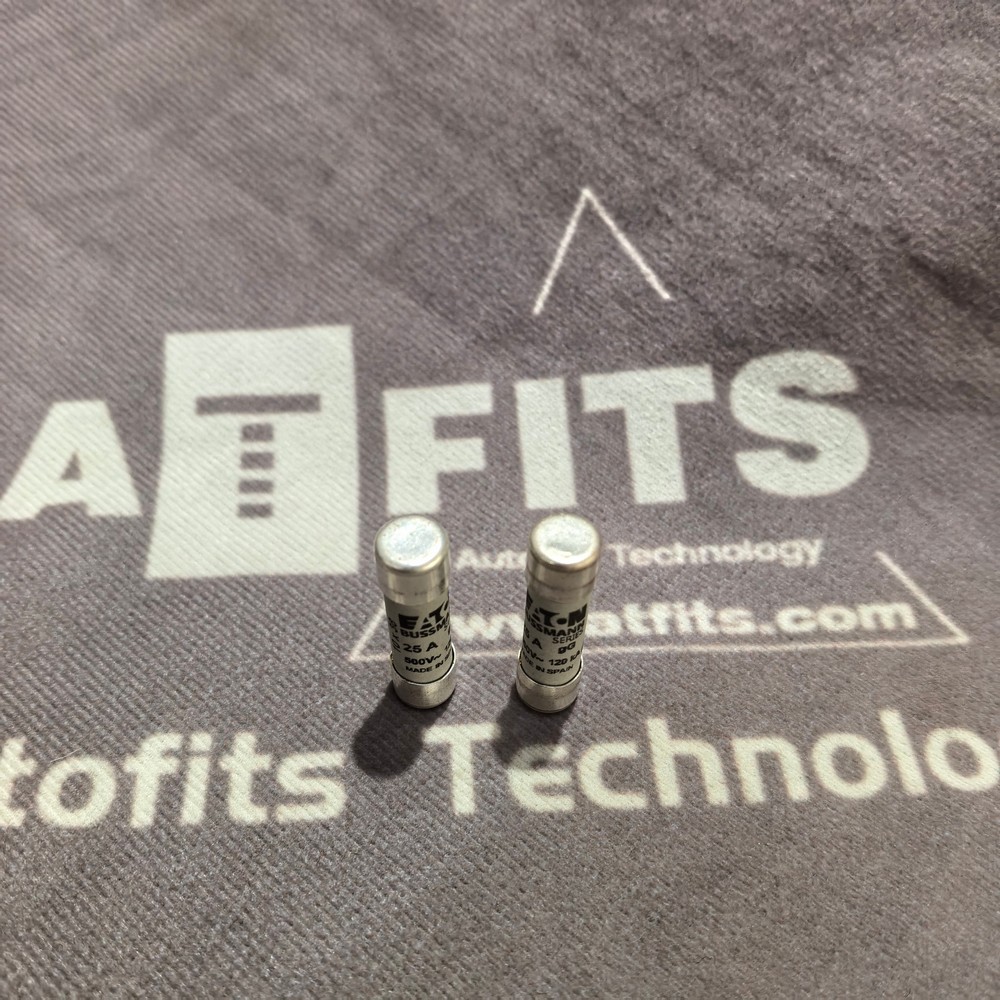

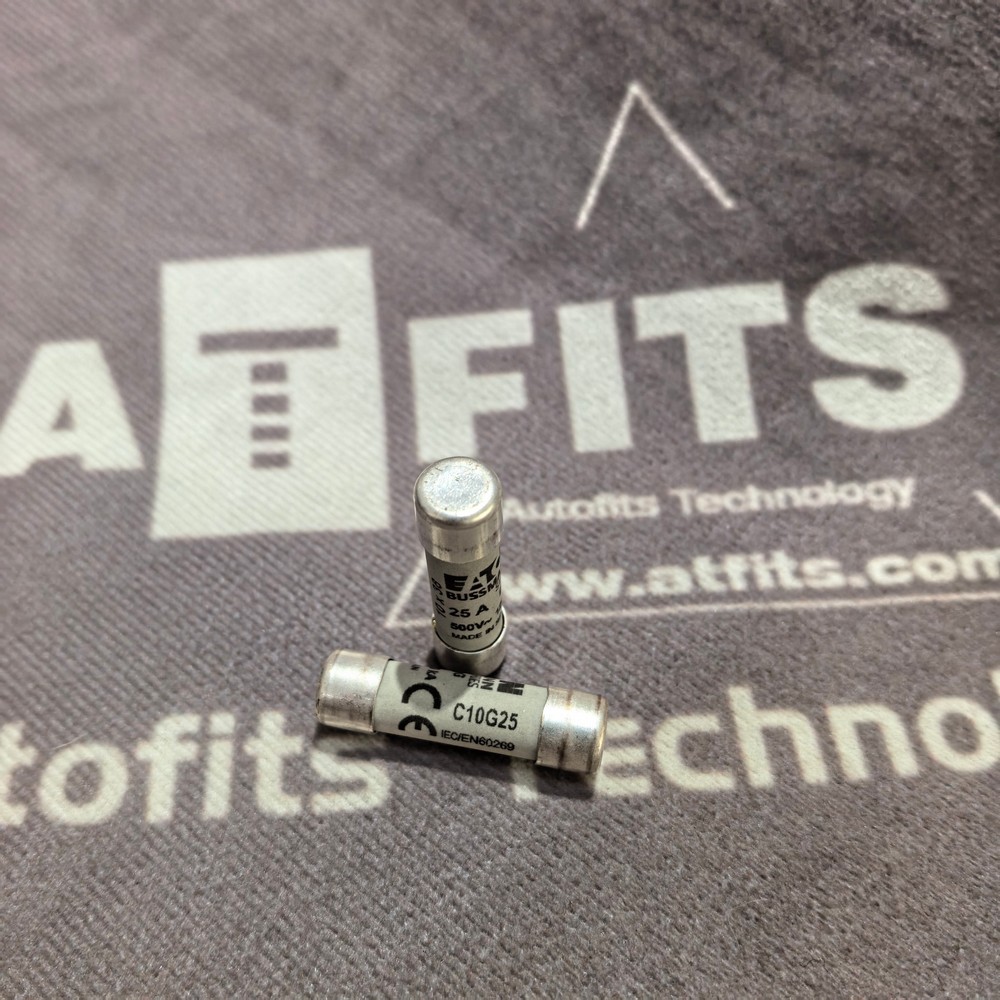

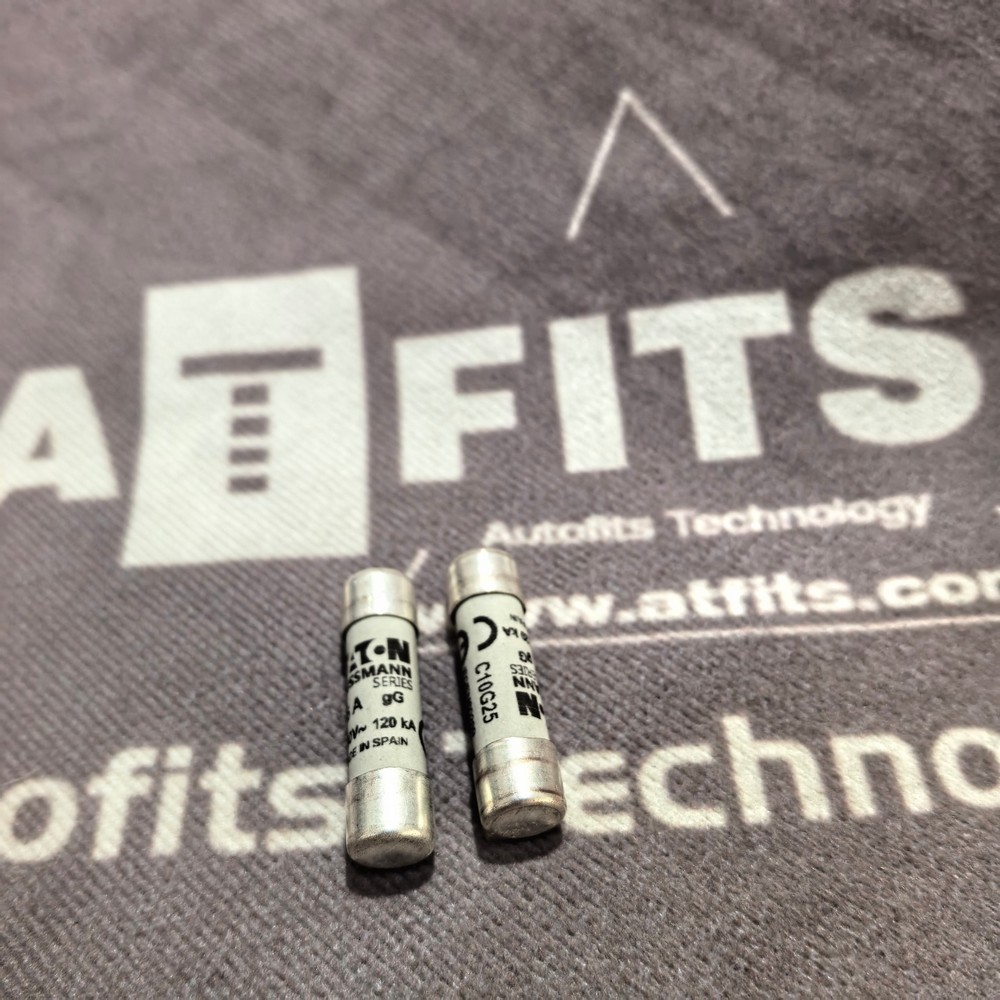

New Original EATON C10G25 High Breaking Capacity Cylindrical Fuse
1. Product Overview
The EATON C10G25 belongs to the C10G series IEC standard cylindrical cartridge fuse. It adopts high-strength ceramic tube construction with silver-plated metal ferrule terminals, featuring gG general-purpose protection characteristic and high breaking capacity. This model has a rated current of 25 A and rated voltage of 500 V AC, with standard physical dimension of 10 mm × 38 mm, compatible with universal 10×38 mm modular fuse holders. It provides reliable overload and short-circuit protection for low-voltage control loops, automation equipment, power supply modules and auxiliary power circuits. It is widely deployed on conveying machinery, packaging production lines, peripheral circuits of frequency converters and general industrial control cabinets. The supplied unit is brand-new original genuine EATON product.
2. Main Technical Specifications
| Item | Parameter |
|---|---|
| Model | C10G25 |
| Series | C10G IEC Standard Cylindrical Fuse |
| Dimension | 10 mm Diameter × 38 mm Length |
| Rated Current | 25 A |
| Rated Voltage | 500 V AC |
| Rated Breaking Capacity | 120 kA |
| Utilization Category | gG / gL General Circuit Protection |
| Housing Material | High-temperature resistant ceramic tube |
| Terminal Structure | Silver-plated metal ferrules |
| Blown Indicator | Without blown indicator |
| Matching Accessory | Standard 10×38 mm modular fuse holder |
| Operating Ambient Temperature | -20 °C ~ +60 °C |
| Storage Temperature | -40 °C ~ +70 °C |
| Net Weight | Approx. 8.8 g |
| Compliance Standards | IEC 60269, CE, RoHS |
3. Main Functions
- Offer dual protection against overload current and short-circuit faults for low-voltage alternating current circuits.
- Rapidly cut off abnormal fault current to avoid permanent damage to power modules, controllers and other electrical components.
- Stable gG time-current characteristic prevents unnecessary blowing caused by normal transient starting inrush current.
- Standard 10×38 mm outline supports interchangeable installation with matched fuse holders.
- Effectively isolate circuit faults and prevent fault spread inside control enclosures.
- Suitable for branch protection of medium-load small motors, frequency inverters and auxiliary industrial control systems.
- Serve as main circuit protection for general automation equipment and low-voltage distribution terminals.
4. Technical Features
- High breaking capacity can withstand severe short-circuit current in industrial power distribution systems.
- Heat-resistant ceramic housing delivers outstanding arc quenching performance during fusing action.
- Silver-plated end ferrules reduce contact resistance and suppress temperature rise under continuous load.
- Compact body structure saves installation space inside compact control cabinets.
- Consistent time-current characteristic ensures stable performance under long-term fluctuating load conditions.
- Fully manufactured in accordance with IEC 60269 international standards for low-voltage fuses.
- Simple plug-in design enables quick replacement during equipment maintenance.
- Low power loss reduces heat accumulation during continuous rated operation.
- Wide ambient temperature adaptability for various factory workshop environments.
- Stable quality to meet the demand of non-stop continuous operation of industrial machinery.
5. 10 EATON Similar 10×38 mm Cylindrical Fuses
- C10G2, C10G series 2A gG cylindrical fuse, 500 V AC, size 10×38 mm
- C10G10, C10G series 10A high breaking capacity general-purpose fuse
- C10G16, C10G series 16A 10×38 mm ceramic cartridge fuse
- C10G20, C10G series 20A gG cylindrical fuse for control circuit protection
- C10G32, C10G series 32A maximum specification gG cylindrical fuse
- C10M6, C10M series aM characteristic fuse for motor short-circuit protection
- C10M16, aM type 16A fuse dedicated to motor branch circuit protection
- C10G25I, C10G 25A fuse equipped with blown status indicator
- C10G4, C10G series 4A low-current gG cylindrical fuse
- C10G6, C10G series 6A industrial control circuit cartridge fuse
