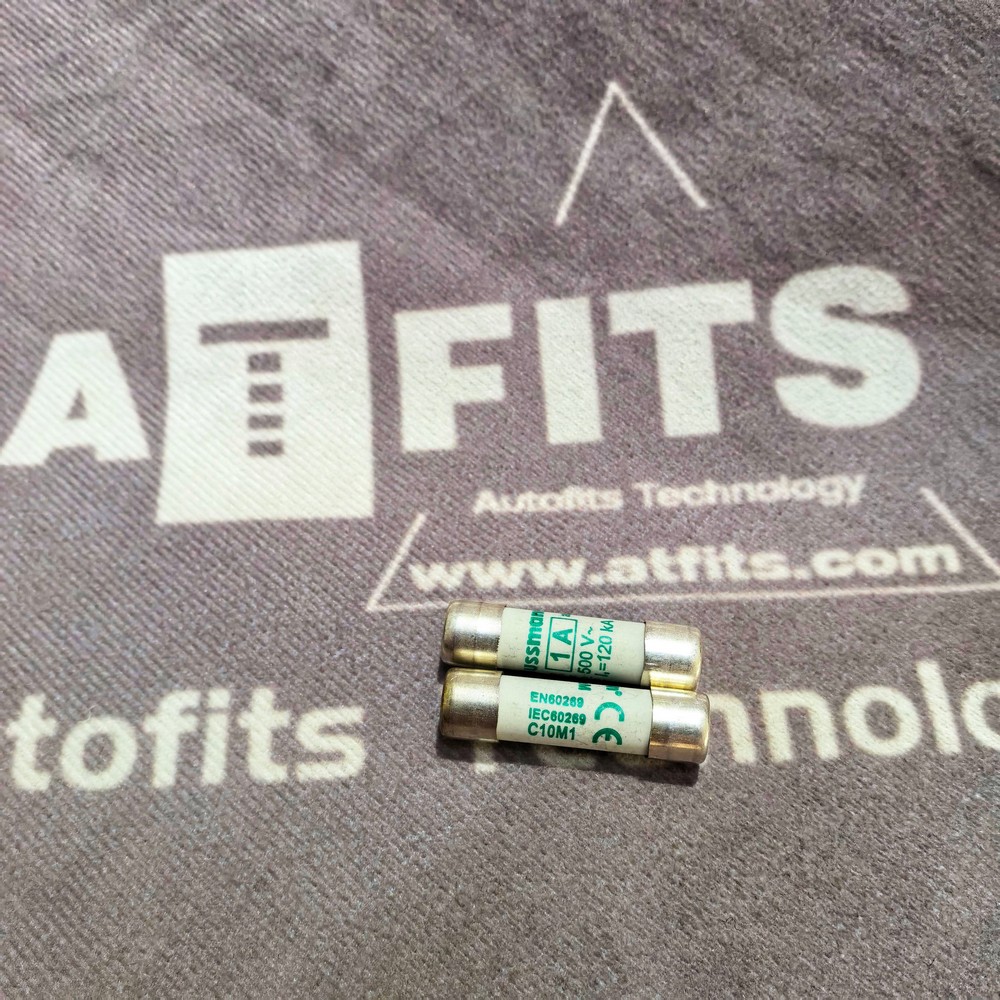

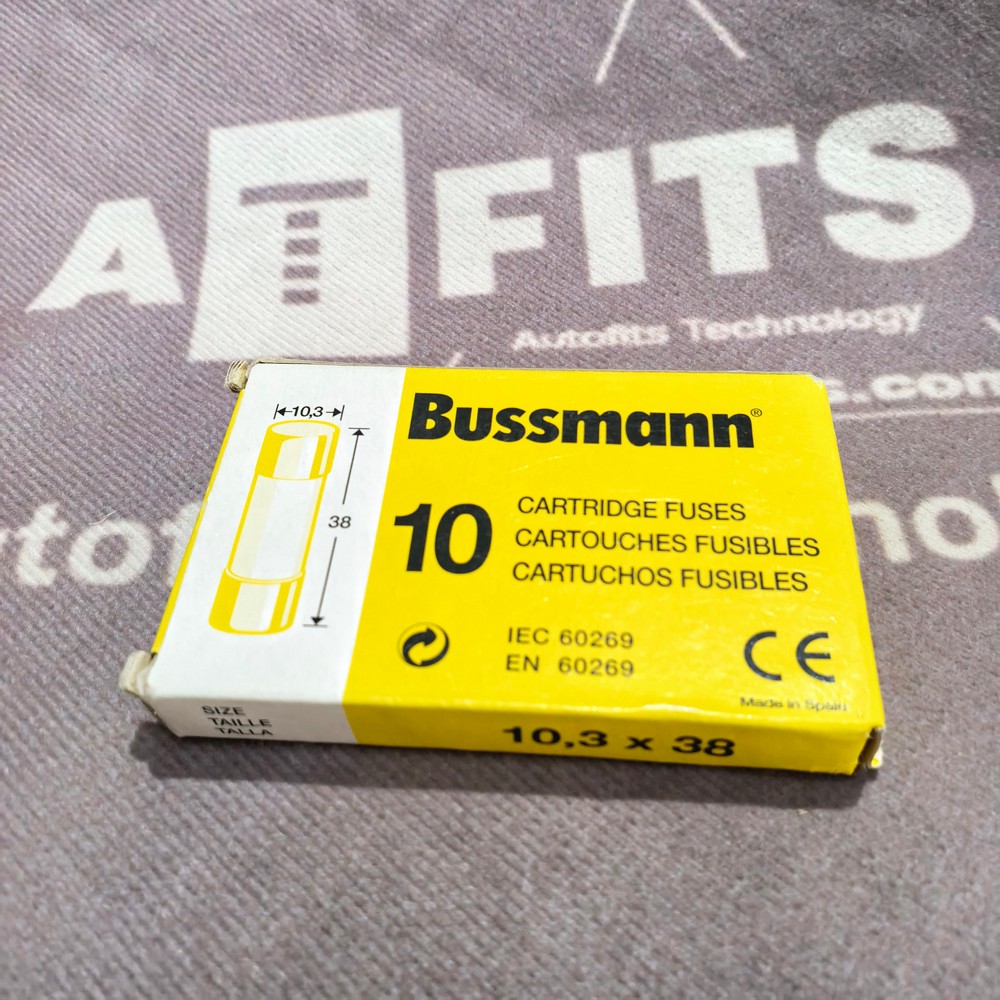

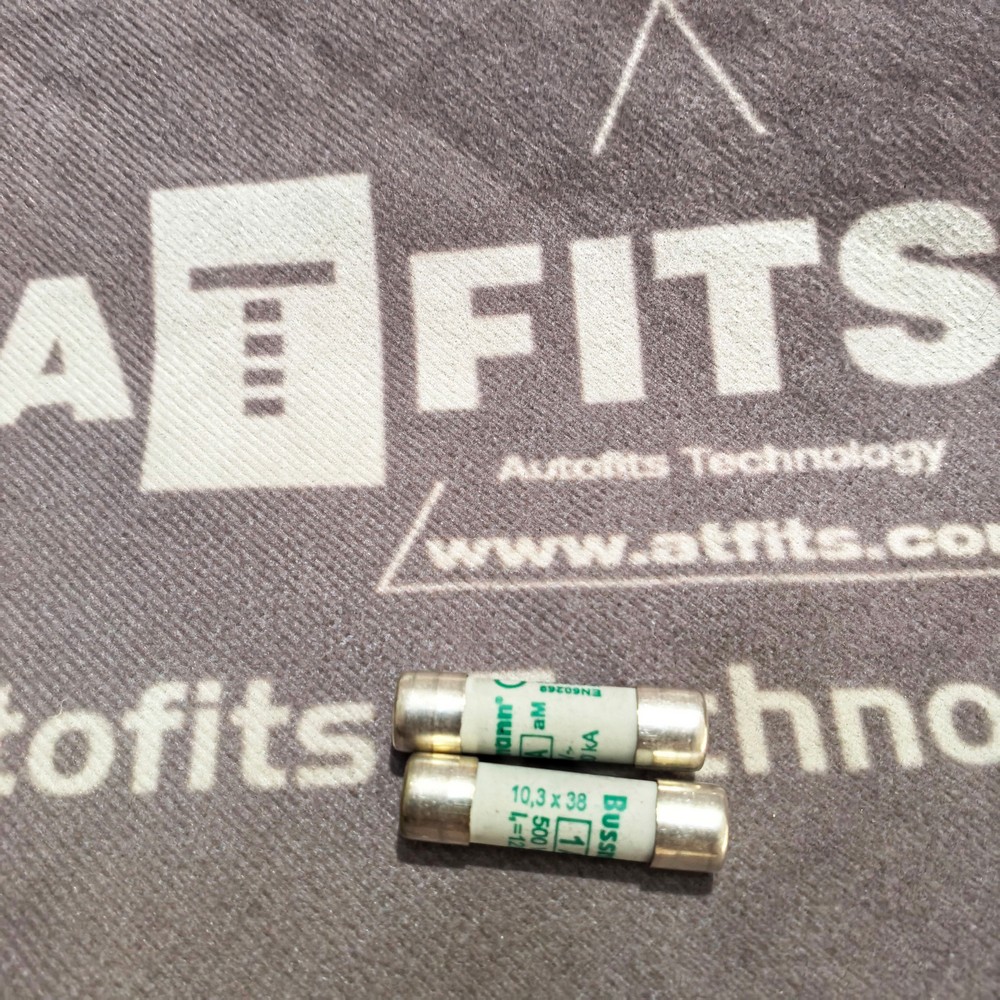

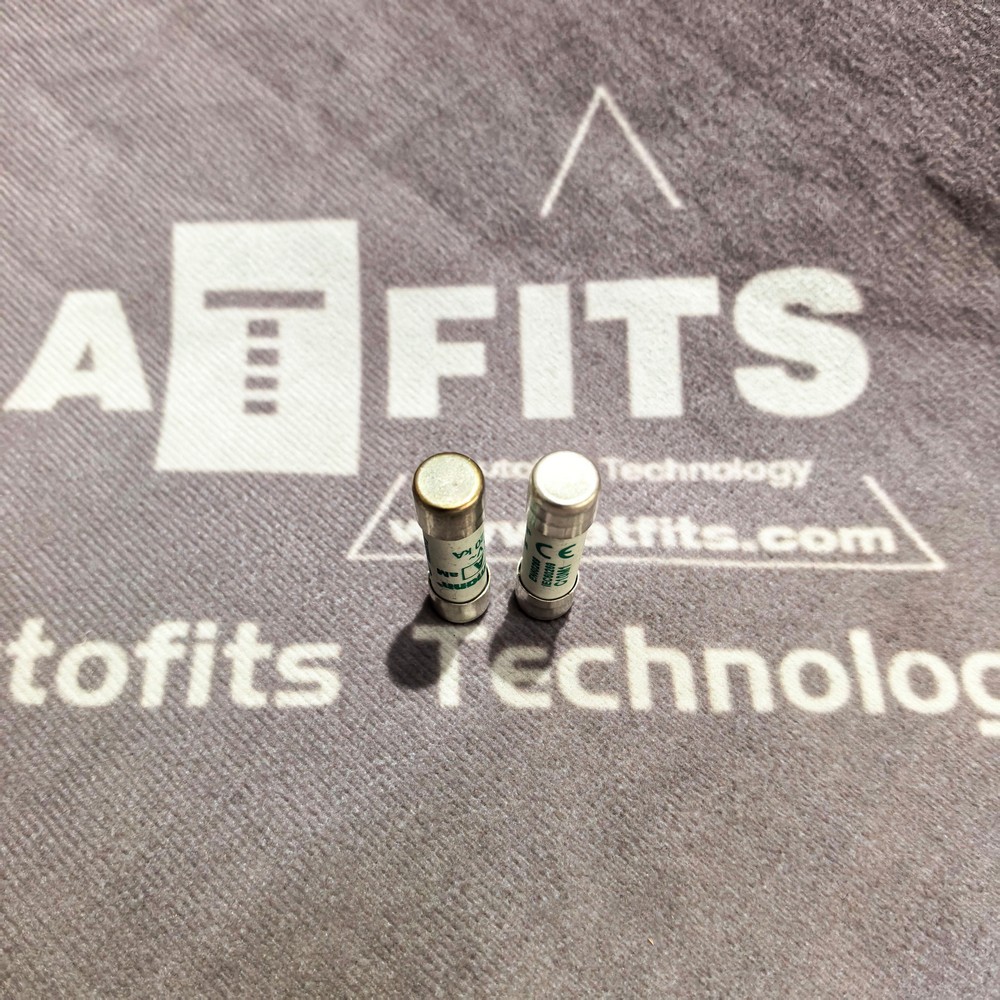

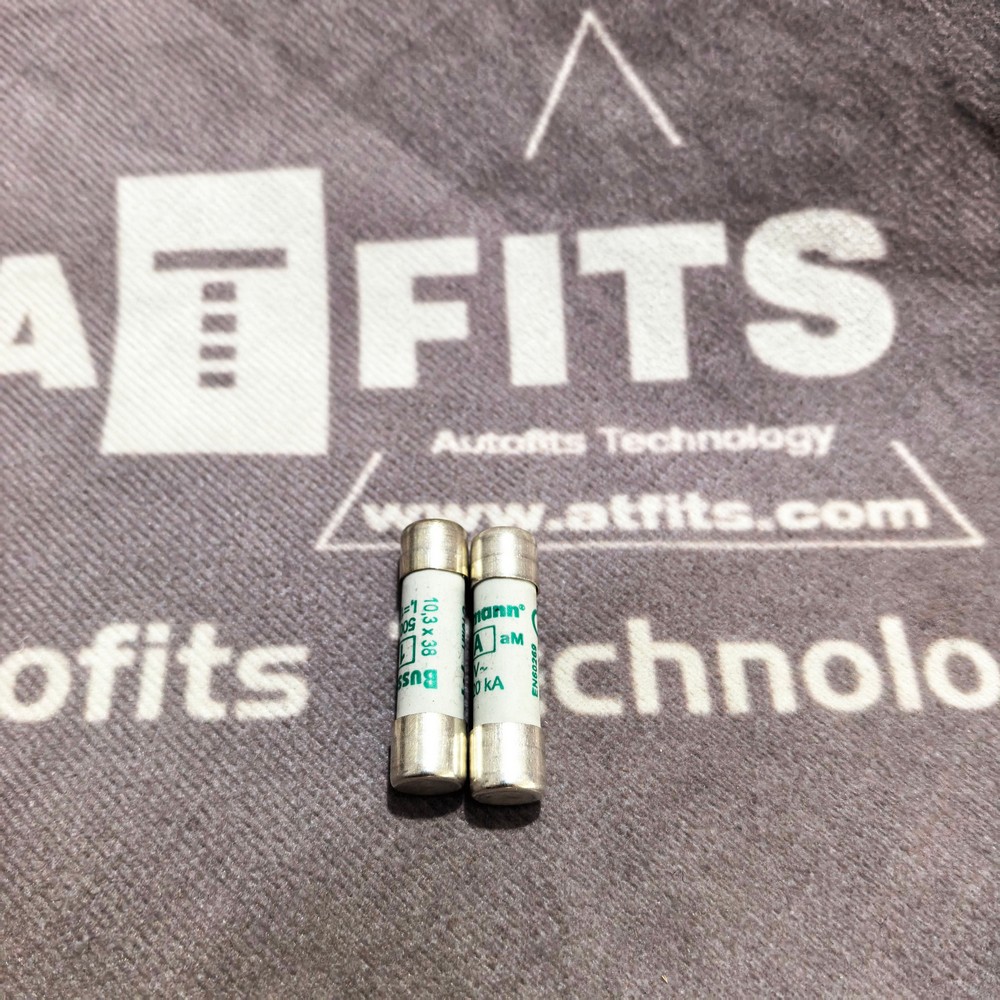

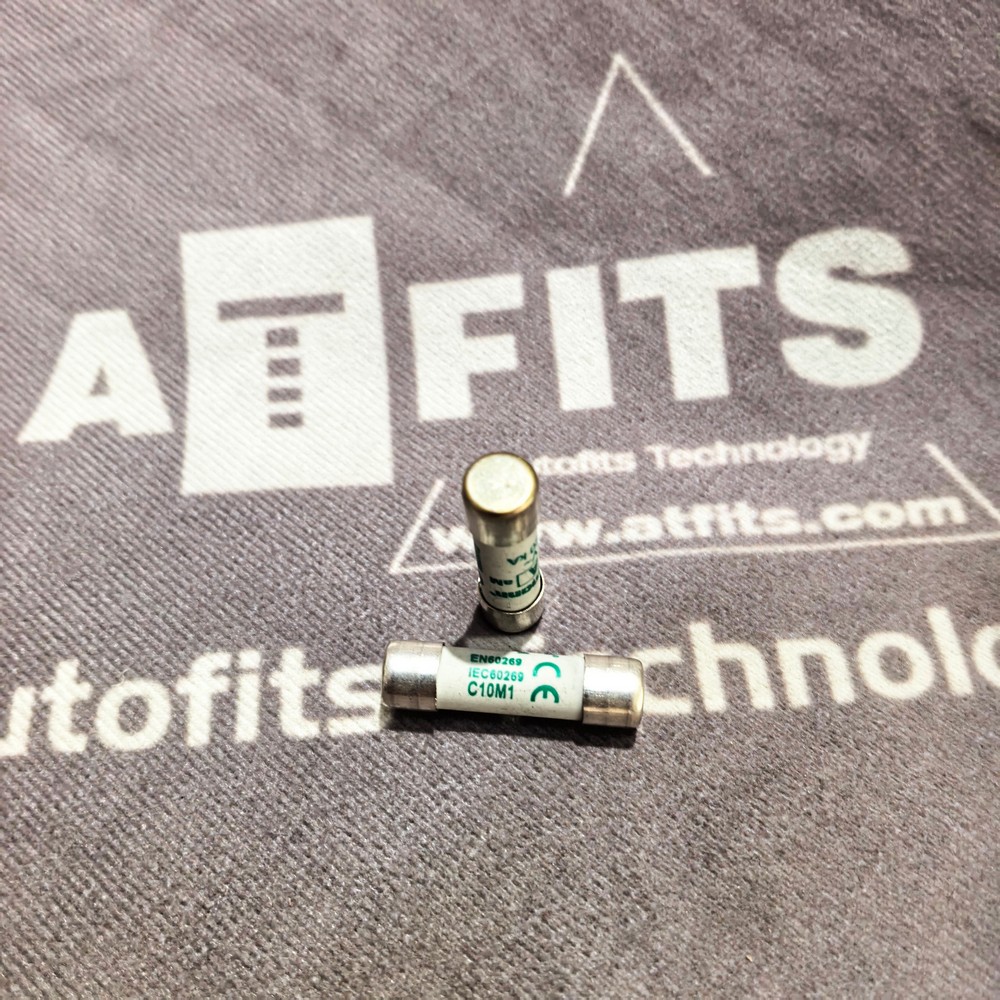

New Original Bussmann C10M1 AC Cylindrical Ceramic Fuse
1. Product Overview
The Bussmann C10M1 belongs to the C10M series IEC standard cylindrical ceramic fuse link. It is an aM characteristic fuse rated 1 A, 500 V AC with physical size 10×38 mm. Equipped with high-temperature ceramic body and nickel-plated copper end caps, this fuse is specially designed for motor circuits and auxiliary control circuits. It tolerates motor starting inrush current and provides reliable short-circuit protection. It can be matched with standard 10×38 mm DIN rail fuse holders and widely used in automation control cabinets, machine tools, conveyor systems, fan and pump control equipment. The supplied unit is brand-new original genuine Bussmann product.
2. Main Technical Specifications
| Item | Parameter |
|---|---|
| Model | C10M1 |
| Series | C10M Cylindrical Ceramic Fuse Link |
| Rated Current | 1 A |
| Rated Voltage | 500 V AC |
| Utilization Class | aM (Motor circuit short-circuit protection) |
| Body Dimension | Ø10 mm × 38 mm |
| Breaking Capacity | 120 kA |
| Housing Material | High-temperature resistant ceramic tube |
| Terminal | Nickel-plated copper ferrule |
| Fault Indicator | Without blown indicator |
| Matching Fuse Holder | Standard 10×38 mm modular fuse base |
| Applicable Frequency | 45 Hz ~ 62 Hz |
| Operating Ambient Temperature | -20 °C ~ +70 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Net Weight | Approx. 8 g |
| Compliance | IEC 60269, CE, RoHS |
3. Main Functions
- Offer short-circuit protection for AC control circuits, contactor coils and small motor loads.
- aM characteristic withstands transient startup surge current and avoids unnecessary nuisance tripping.
- Quickly interrupt short-circuit current to protect PLC, sensors and other precision control components.
- Standard 10×38 mm dimension supports interchangeability with IEC standard fuse holders.
- Ceramic tube effectively suppresses electric arc during circuit breaking to reduce fire risk.
- Plug-in installation mode enables fast replacement during equipment maintenance.
- Realize distributed circuit protection for multi-loop electrical control cabinets.
4. Technical Features
- High-strength ceramic housing resists high arc temperature generated under fault conditions.
- Optimized aM time-current curve fits motor loads with high inrush current.
- High breaking capacity adapts to industrial power distribution systems with high prospective short-circuit current.
- Nickel-plated end caps maintain low contact resistance and prevent surface oxidation.
- Compact 10×38 mm form factor saves internal cabinet installation space.
- Stable melting characteristic ensures consistent protection performance after long-term standby.
- Internal arc-quenching filler restrains arc expansion and improves safety performance.
- Wide working temperature range adapts to fluctuating factory environmental conditions.
- Standard IEC dimensional specification for convenient spare part management.
- Simple structure with high reliability for continuous long-time industrial operation.
5. 10 Bussmann Similar Cylindrical Ceramic Fuse Links
- C10M2, 10×38 mm, 2 A, aM characteristic 500 V AC cylindrical ceramic fuse
- C10M4, 10×38 mm, 4 A aM series industrial fuse link
- C10M1I, 1 A 10×38 mm aM fuse with blown indicator
- C10G1, 10×38 mm, 1 A gG general-purpose circuit protection fuse
- C10M0.5, 0.5 A, 10×38 mm aM ceramic fuse for low-current control loops
- C10M6, 10×38 mm, 6 A aM cylindrical fuse for medium-power motor circuits
- C08M2, 8×31 mm compact size aM type ceramic fuse
- C14M10, 14×51 mm larger dimension aM industrial fuse link
- C10M10, 10 A, 10×38 mm aM cylindrical ceramic fuse
- C10M16, 16 A, 10×38 mm aM characteristic AC fuse
