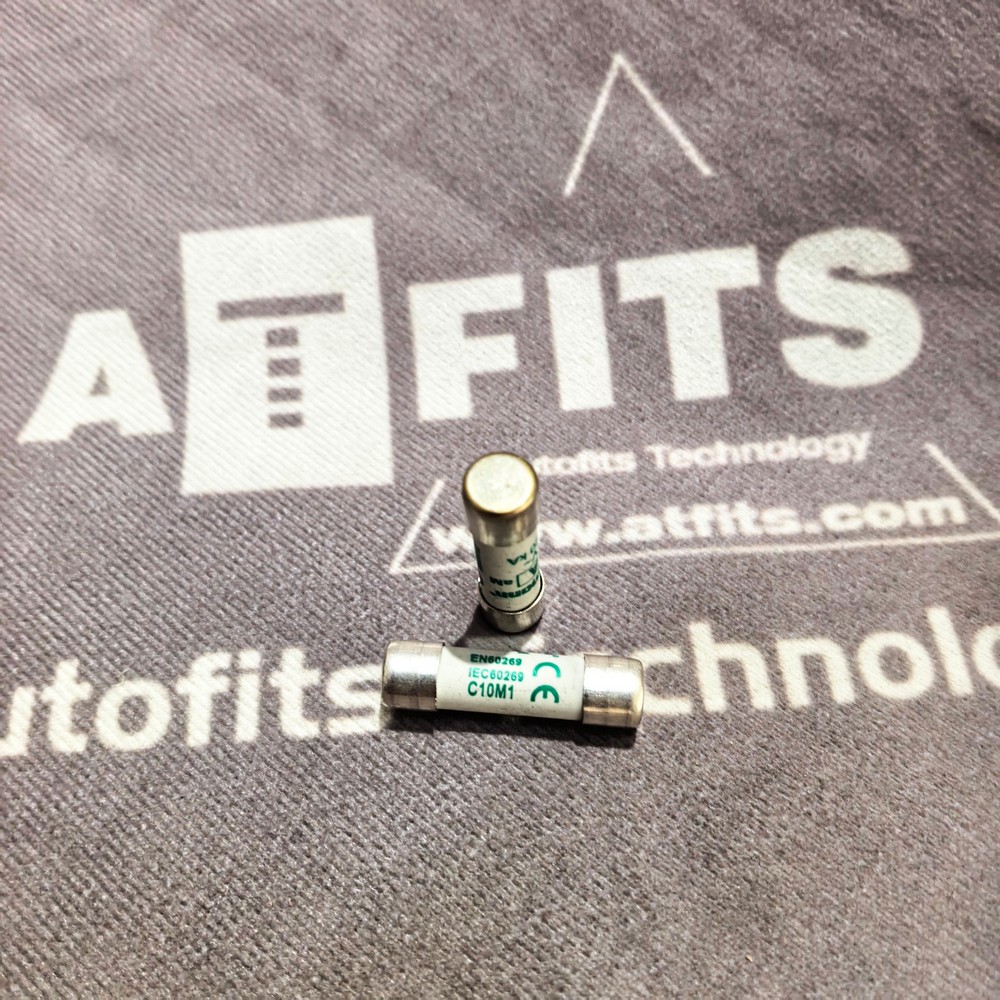

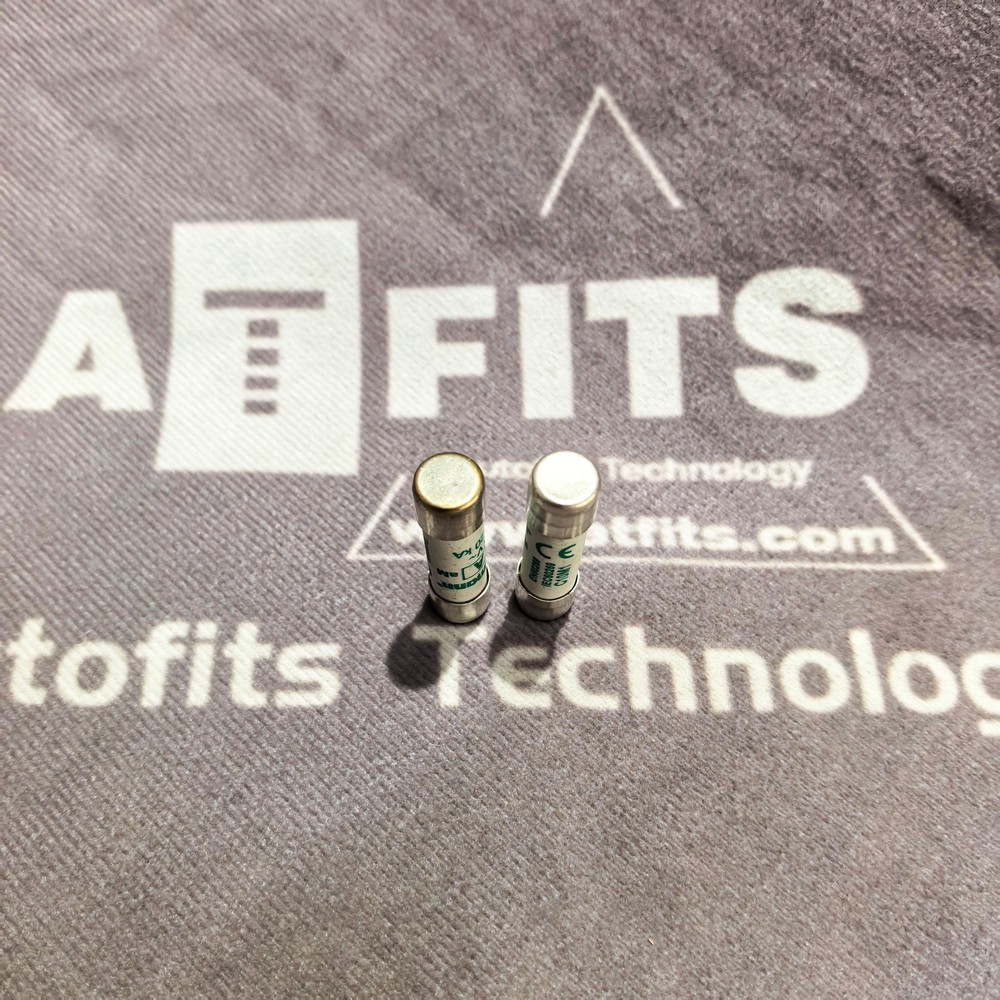

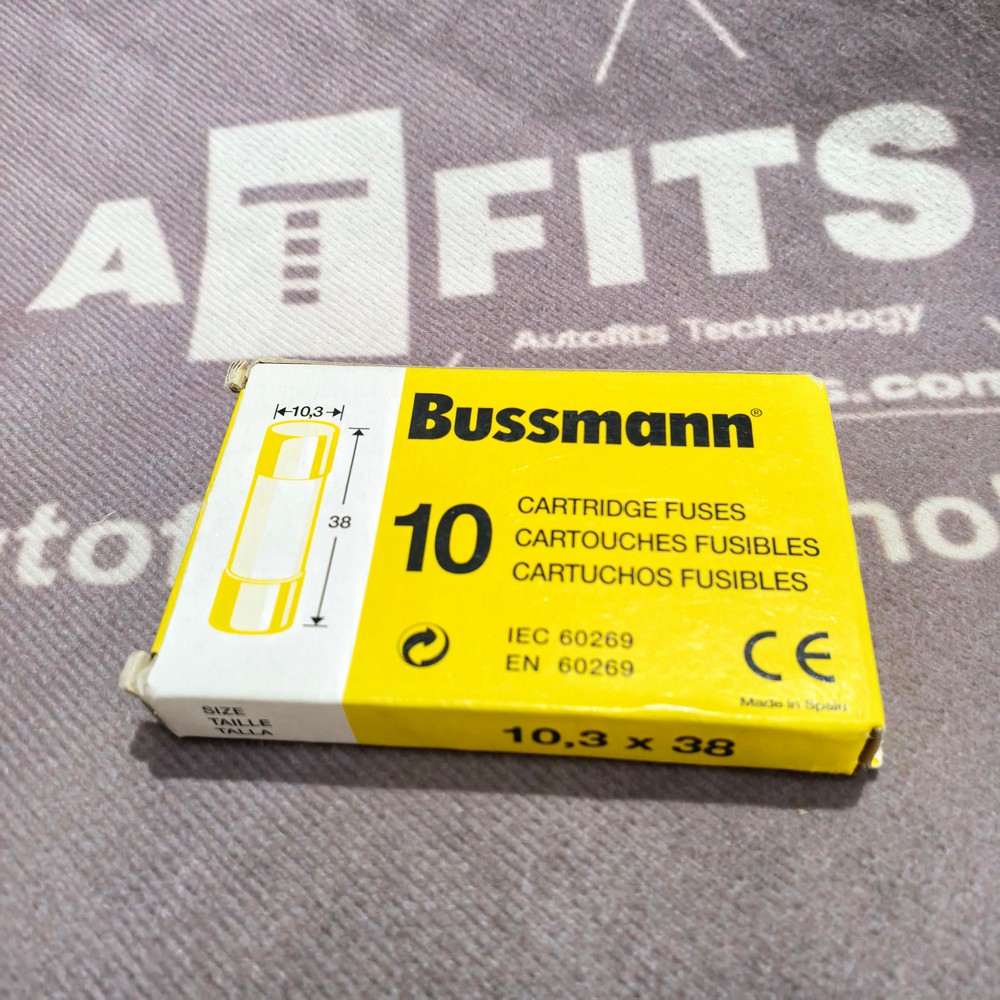

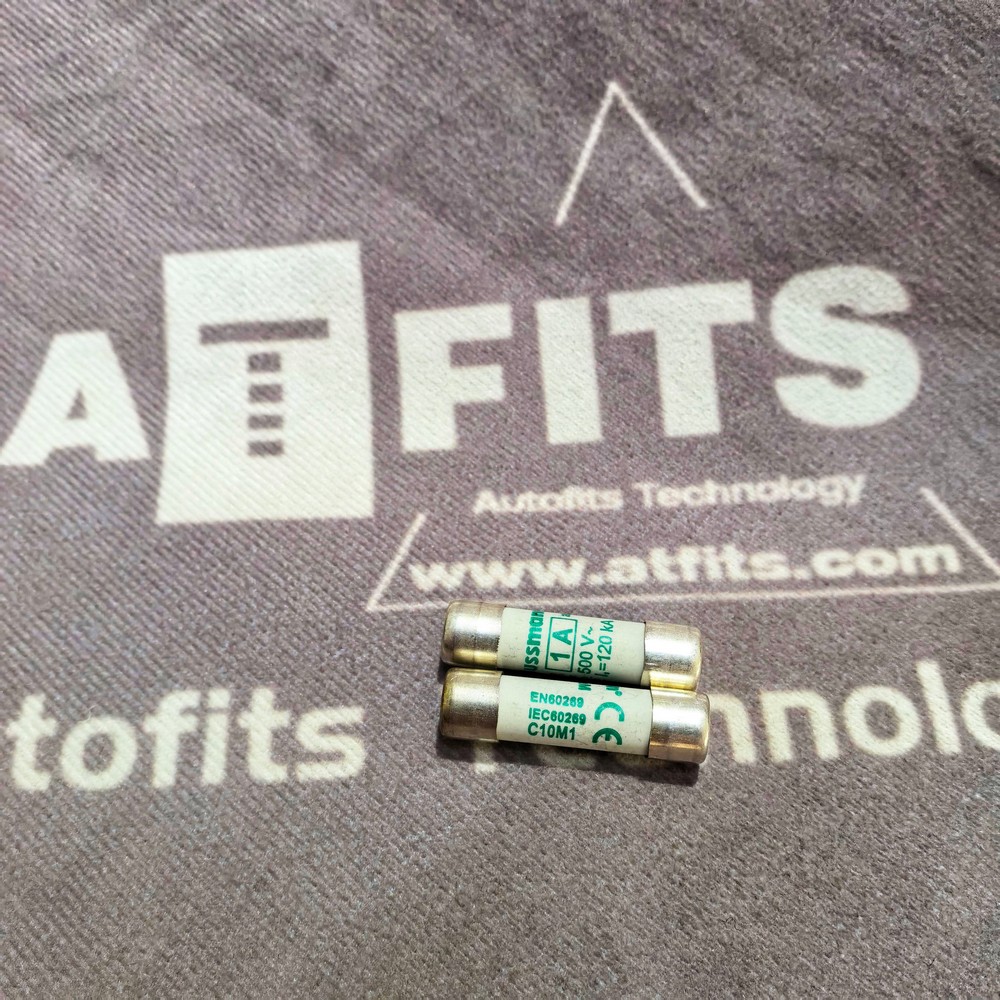

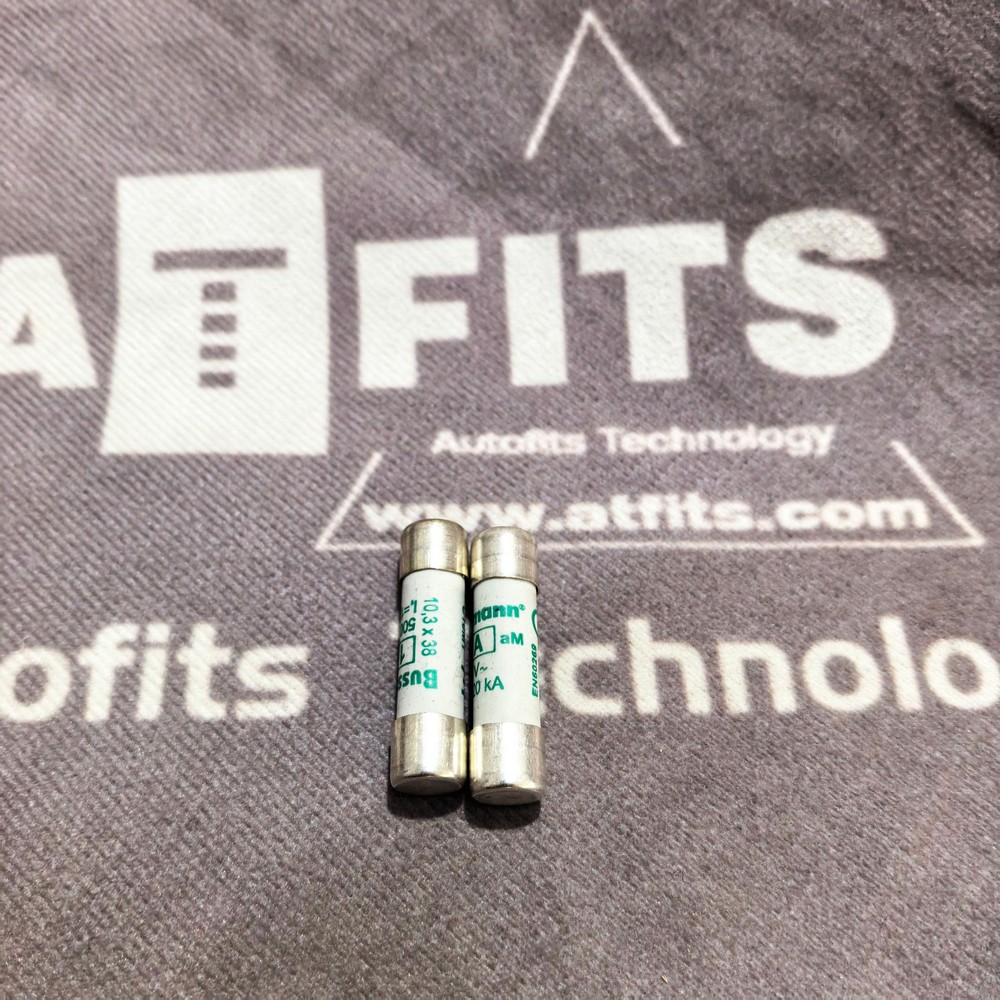

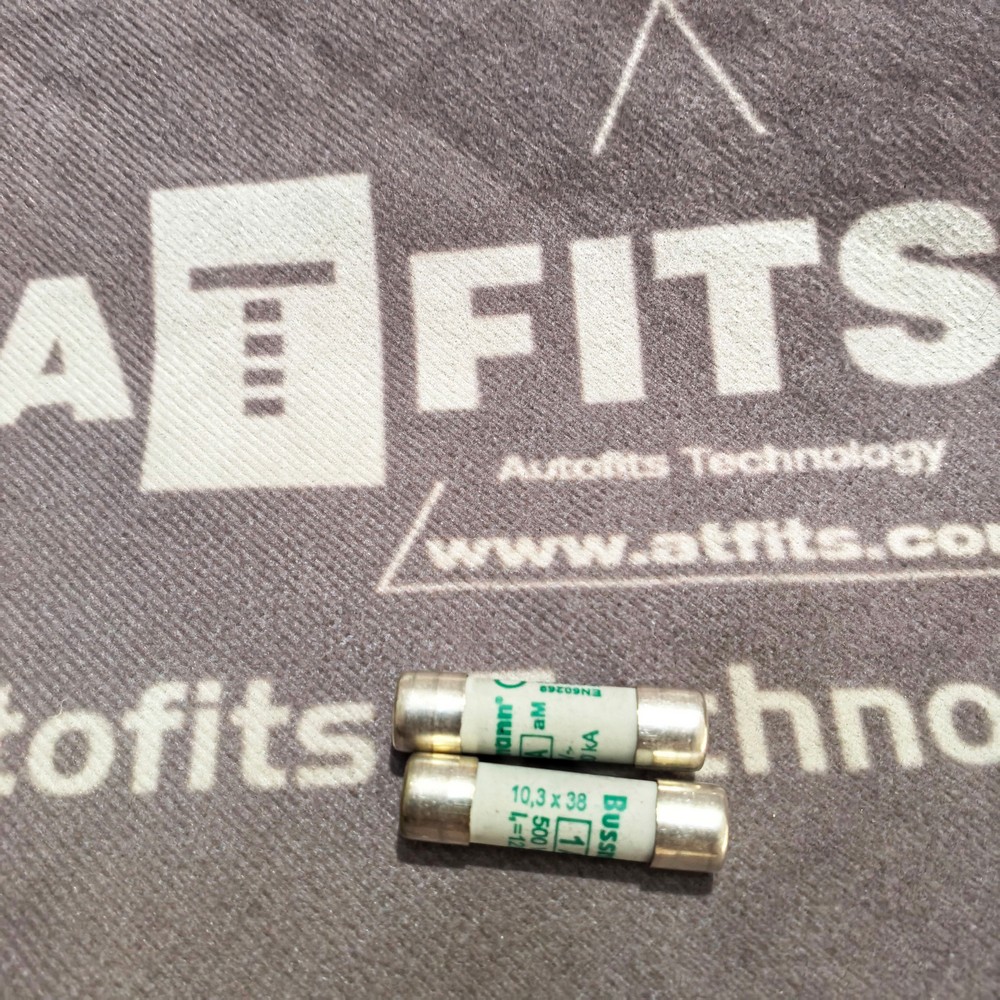

New Original Bussmann C10M1 AC Cylindrical Ceramic Fuse
1. Product Overview
The Bussmann C10M1 belongs to the C10M series IEC standard cylindrical ceramic fuse link. It is an aM characteristic industrial fuse rated 1 A, 500 V AC with standard 10×38 mm dimension. Constructed with high-temperature resistant ceramic tube and nickel-plated copper ferrules, this fuse is engineered for short-circuit protection of motor circuits and AC auxiliary control loops. The aM time-current characteristic tolerates high motor startup inrush current and avoids nuisance tripping. It can be installed in standard CHM series DIN-rail modular fuse holders and widely used in automation control cabinets, machine tools, fan and pump control panels. The delivered unit is brand-new original genuine Bussmann product.
2. Main Technical Specifications
| Item | Parameter |
|---|---|
| Model | C10M1 |
| Series | C10M Cylindrical Ceramic Fuse Link |
| Rated Current | 1 A |
| Rated Voltage | 500 V AC |
| Utilization Class | aM (Motor circuit short-circuit protection) |
| Body Dimension | Ø10 mm × 38 mm |
| Breaking Capacity | 120 kA |
| Housing Material | High-temperature resistant ceramic tube |
| Terminal Material | Nickel-plated copper ferrule |
| Blow Indicator | Without blown indicator |
| Compatible Fuse Holder | Standard 10×38 mm CHM modular fuse base |
| Applicable Frequency | 45 Hz ~ 62 Hz |
| Operating Ambient Temperature | -20 °C ~ +70 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Net Weight | Approx. 8.2 g |
| Compliance Standards | IEC 60269, CE, RoHS |
3. Main Functions
- Provide reliable short-circuit protection for AC control circuits, contactor coils and small motor loads.
- aM characteristic withstands transient startup surge current to prevent unnecessary fuse blowing.
- Rapidly interrupt dangerous short-circuit current to protect PLC, sensors and other precision control components.
- Standard 10×38 mm IEC dimension supports interchangeability with universal cylindrical fuse holders.
- Ceramic tube effectively suppresses electric arc during fault breaking and reduces fire hazard risk.
- Plug-in structure allows quick replacement during equipment maintenance and downtime.
- Realize distributed multi-loop overcurrent protection inside electrical control cabinets.
4. Technical Features
- High-strength ceramic housing withstands extreme arc temperature generated under short-circuit fault conditions.
- Optimized aM time-current curve perfectly matches motor loads with large inrush current.
- Ultra-high breaking capacity adapts to industrial power distribution systems with high prospective short-circuit current.
- Nickel-plated copper end caps maintain low contact resistance and resist surface oxidation.
- Compact 10×38 mm form factor saves limited installation space inside control cabinets.
- Stable melting characteristic ensures consistent protection performance after long-term standby operation.
- Internal arc-quenching filler restrains arc expansion and improves overall safety.
- Wide working temperature range adapts to fluctuating environmental conditions in industrial workshops.
- Standard IEC dimensional specification simplifies spare part procurement and inventory management.
- Simple and robust mechanical structure delivers high reliability for continuous long-time operation.
5. 10 Bussmann Similar Cylindrical Ceramic Fuse Links
- C10M2, 10×38 mm, 2 A, aM characteristic 500 V AC cylindrical ceramic fuse
- C10M4, 10×38 mm, 4 A aM series industrial fuse link
- C10M1I, 1 A 10×38 mm aM fuse equipped with blown indicator
- C10G1, 10×38 mm, 1 A gG general-purpose circuit protection fuse
- C10M0.5, 0.5 A, 10×38 mm aM ceramic fuse for low-current control loops
- C10M6, 10×38 mm, 6 A aM cylindrical fuse for medium-power motor circuits
- C08M2, 8×31 mm compact size aM type ceramic cylindrical fuse
- C14M10, 14×51 mm larger dimension aM industrial fuse link
- C10M10, 10 A, 10×38 mm aM cylindrical ceramic fuse
- C10M16, 16 A, 10×38 mm aM characteristic AC ceramic fuse
