New Original BELIMO NV24A-SR-TPC Modulating Globe Valve Actuator
"*" indicates required fields
New Original BELIMO NV24A-SR-TPC Modulating Globe Valve Actuator
1. Product Overview

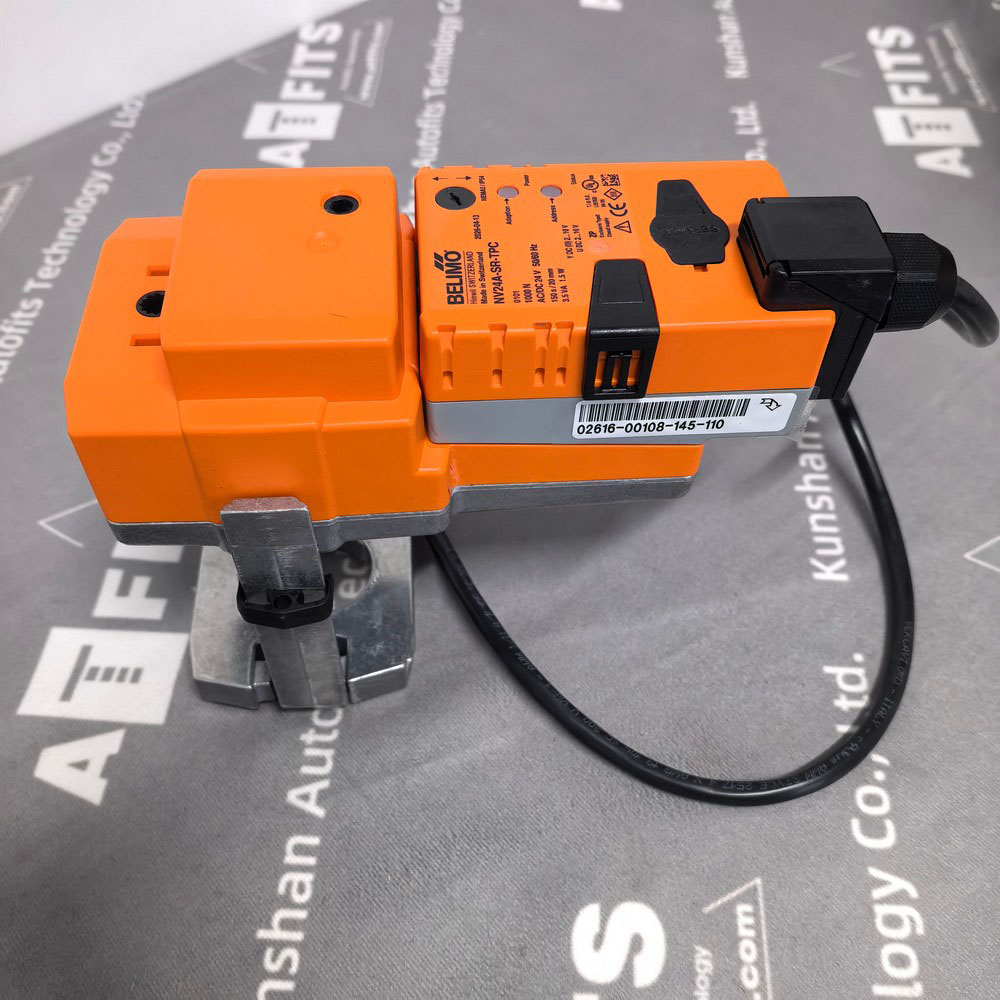

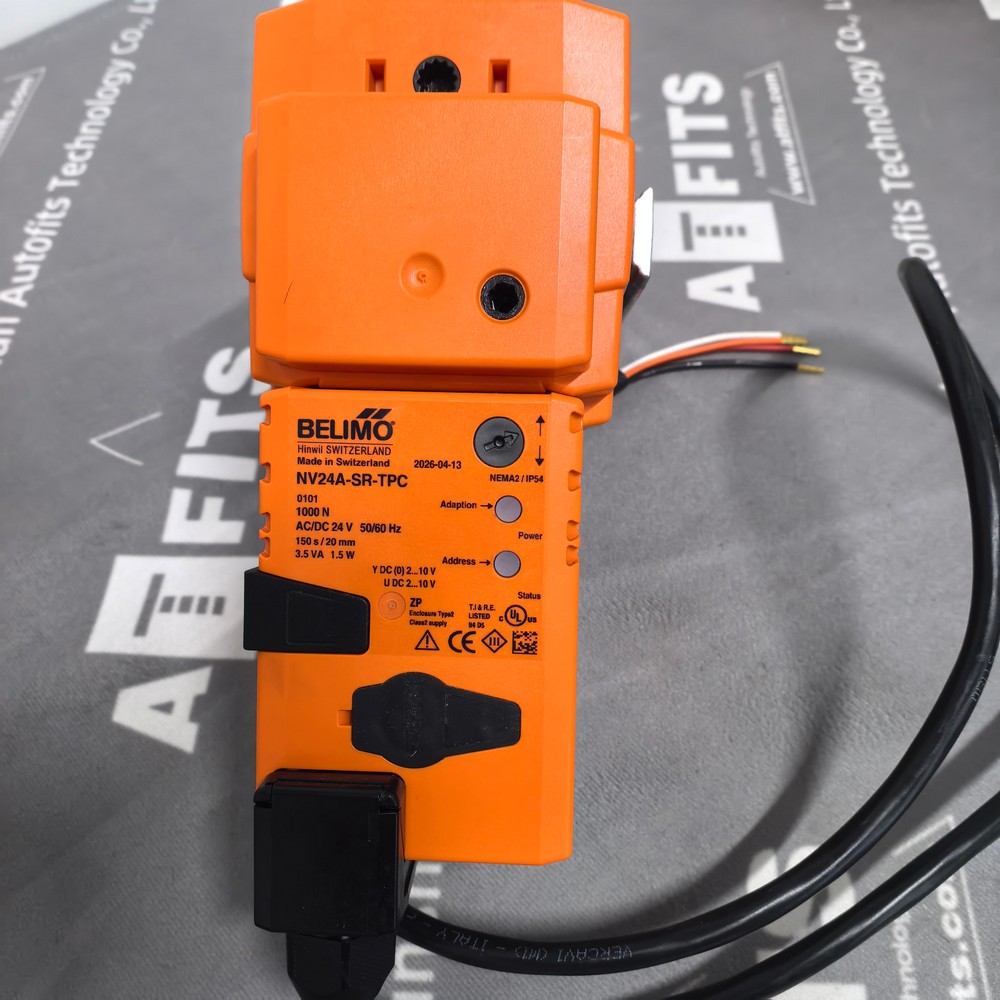

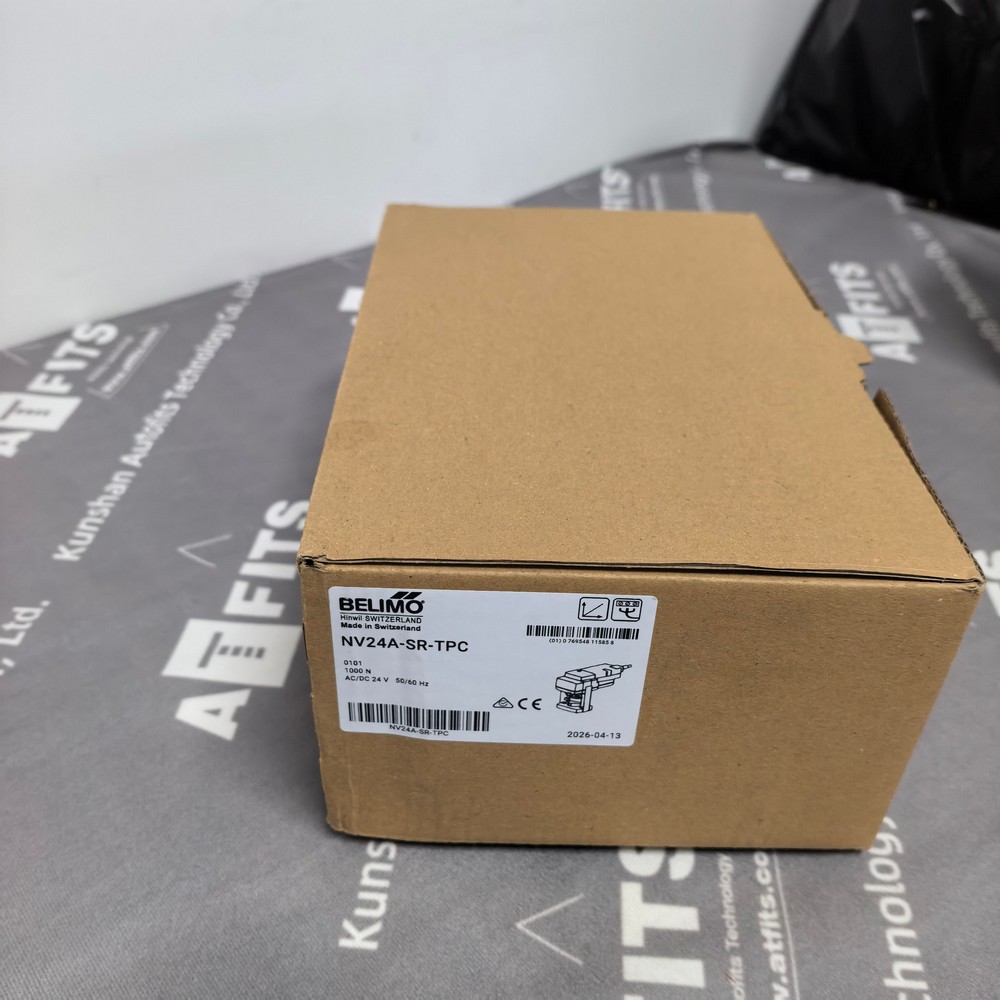

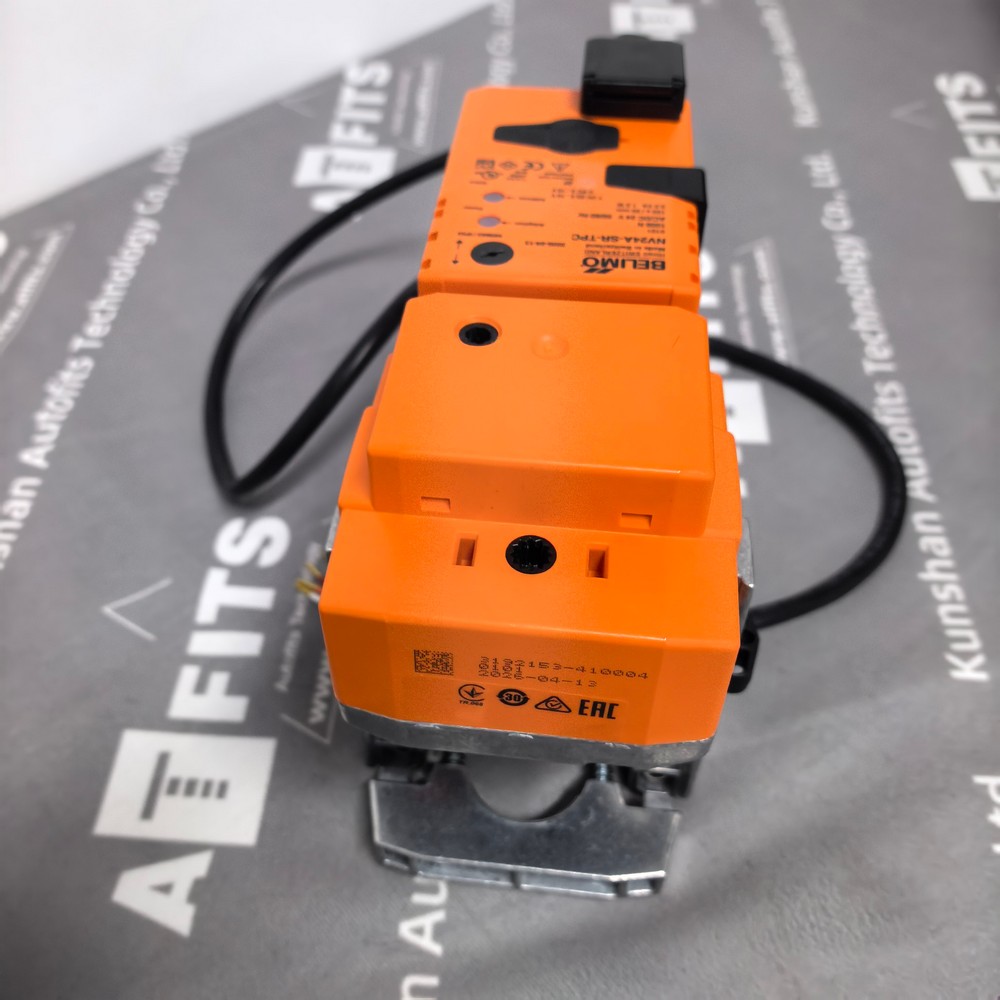

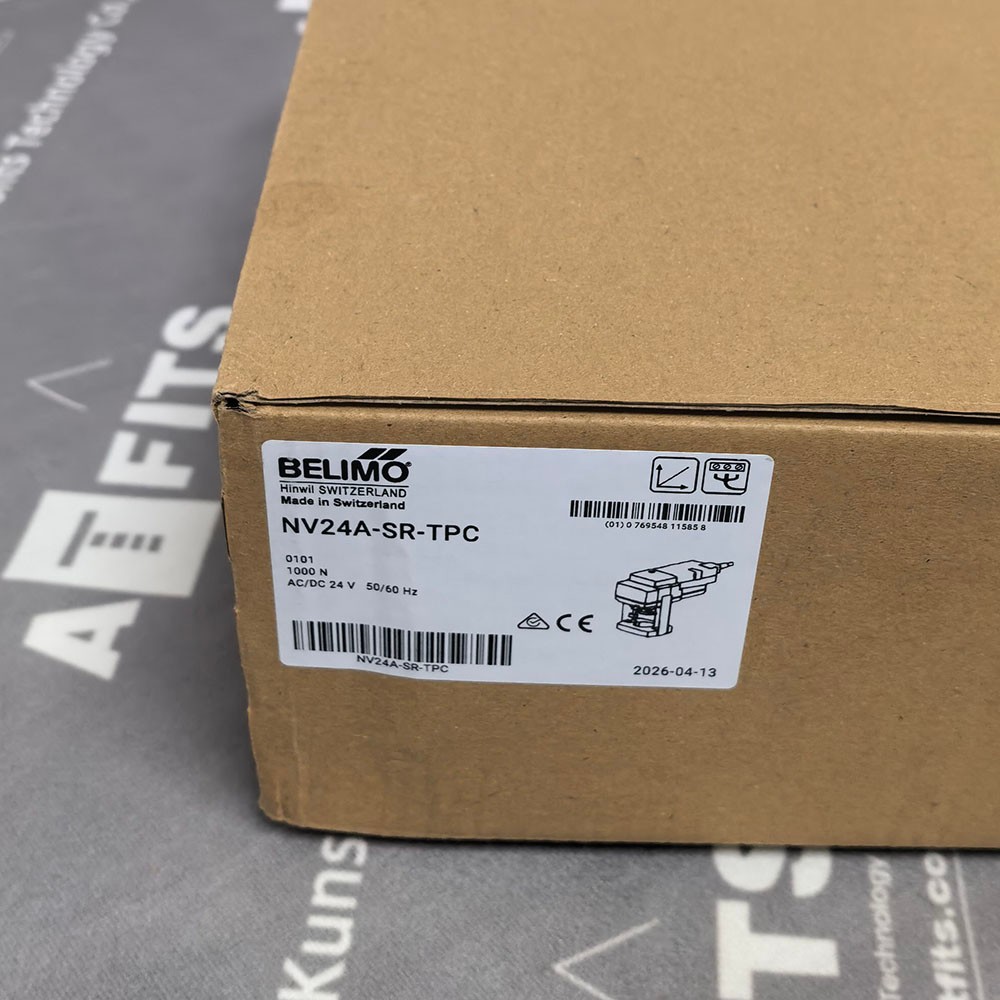

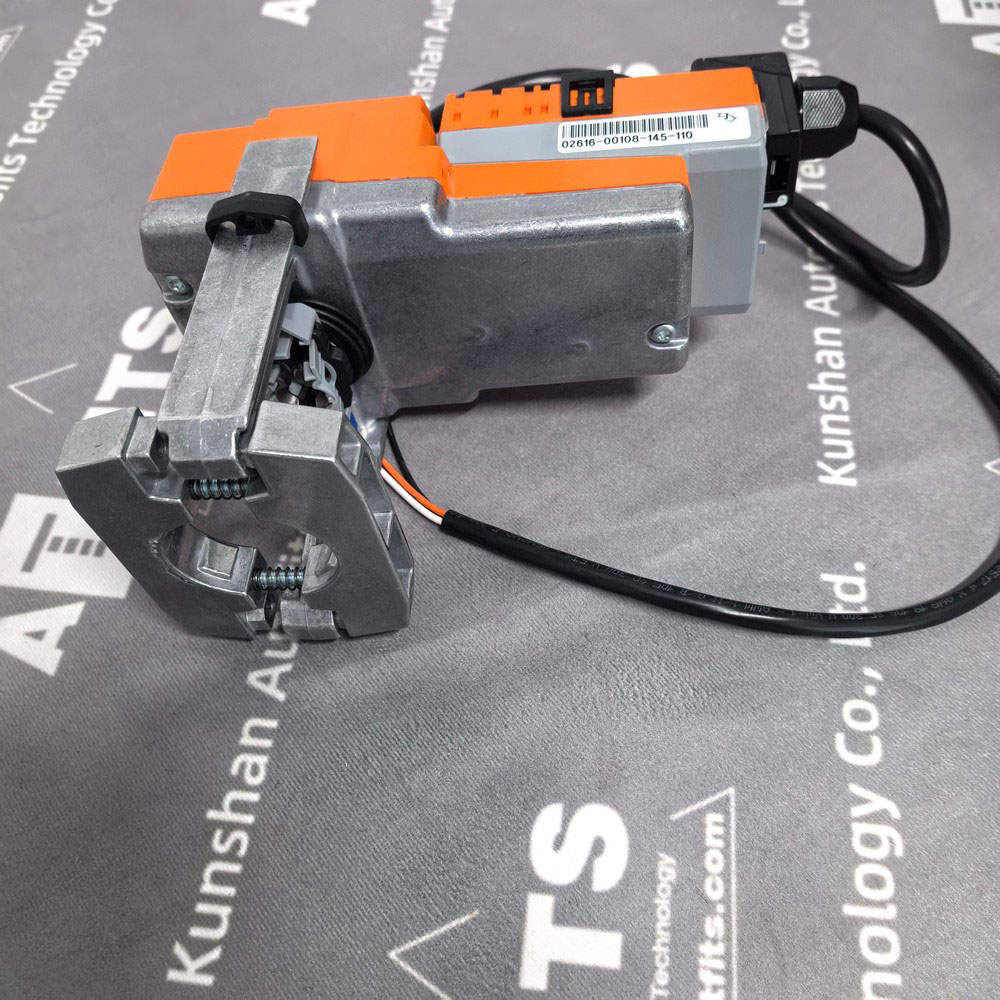

The Belimo NV24A-SR-TPC belongs to the NV series non-spring return modulating globe valve actuator. It delivers 1000 N thrust force with a maximum stroke of 20 mm, powered by universal AC/DC 24 V supply. The unit accepts standard 2…10 V DC modulating control signal for continuous flow regulation on 2-way and 3-way globe valves. Equipped with lockable push-button manual override and 1-meter fixed cable terminal connection, it is widely used in HVAC chilled water, hot water and district heating systems for precise temperature and flow control. The supplied unit is brand-new original genuine Belimo product.
2. Main Technical Specifications
| Item | Parameter |
|---|---|
| Model | NV24A-SR-TPC |
| Product Type | Modulating Globe Valve Actuator (Non Fail-Safe) |
| Nominal Supply Voltage | AC/DC 24 V (AC 19.2–28.8 V / DC 21.6–28.8 V) |
| Control Signal | 2…10 V DC Modulating |
| Actuating Thrust Force | 1000 N |
| Nominal Stroke | 20 mm |
| Running Time | 150 seconds for full 20 mm stroke |
| Power Consumption | 1.5 W (running); 0.5 W (holding) |
| Electrical Connection | 1 m cable, 4×0.75 mm² wiring terminals |
| Manual Override | Push-button type, lockable position |
| Position Feedback | Built-in mechanical stroke indicator |
| Protection Class | IP54, NEMA 2, UL Enclosure Type 2 |
| Operating Temperature | 0 °C ~ +50 °C |
| Storage Temperature | -20 °C ~ +70 °C |
| Safety Standard | SELV Safety Extra-Low Voltage, UL Class 2 compliant |
| Net Weight | Approx. 720 g |
| Compliance Standards | CE, RoHS, cULus |
3. Main Functions
- Drive 2-way and 3-way globe valves to adjust fluid flow continuously via 2–10 V modulating control signal.
- Realize precise closed-loop temperature regulation for air handling units, fan coil units and heating/cooling pipelines.
- Lockable manual override enables on-site valve commissioning and maintenance without power supply.
- Mechanical stroke indicator visually displays valve opening degree for quick status checking.
- Support parallel connection of multiple actuators under compatible control system design.
- Stable linear positioning reduces flow fluctuation and improves energy efficiency of HVAC systems.
- Directly match Belimo standard globe valve series for seamless mechanical assembly.
4. Technical Features
- Compact cast housing structure with stable 1000 N thrust for medium-size globe valve applications.
- Linear modulating characteristic ensures accurate proportional flow adjustment.
- Low power consumption during static holding to reduce long-term energy consumption.
- IP54 enclosure prevents dust and splash water inside mechanical equipment rooms.
- Automatic stroke adaptation during initial power-up simplifies field calibration.
- Low noise motor design suitable for indoor building service environments.
- Standard mechanical mounting interface for fast installation and replacement.
- Wide acceptable supply voltage range tolerates minor power grid fluctuation.
- Robust internal gear train with long service life for uninterrupted HVAC operation.
- Modular wiring terminal design facilitates wiring inspection and modification.
5. 10 Belimo Similar Globe Valve Actuators
- NVC24A-SR-TPC, 1000 N, 2…10 V modulating, fast 35-second stroke actuator
- NVK24A-SR-TPC, Spring return fail-safe NV series modulating globe valve actuator
- SV24A-SR-TPC, 1500 N thrust modulating globe valve actuator, 20 mm stroke
- EV24A-SR-TPC, High-thrust 2500 N modulating actuator with 40 mm maximum stroke
- NV24A-MP-TPC, NV series multi-function protocol actuator with communication capability
- NV230A-SR-TPC, 230 V AC power supply modulating globe valve actuator
- LV24A-SR, Small-thrust modulating globe valve actuator for compact valve bodies
- RV24A-SR-TPC, Long-stroke modulating actuator for large-size globe valves
- NV24A-SR, NV series modulating actuator without TPC cable terminal version
- NVC230A-SR-TPC, 230 V AC fast-operation modulating globe valve actuator
