LL3-TS08 5308061 Through Beam Fiber Optic Cable 90 Degree Head
"*" indicates required fields
New Original SICK LL3-TS08, Order No. 5308061 Through Beam Fiber Optic Cable with 90 Degree Deflection Head
Product Overview

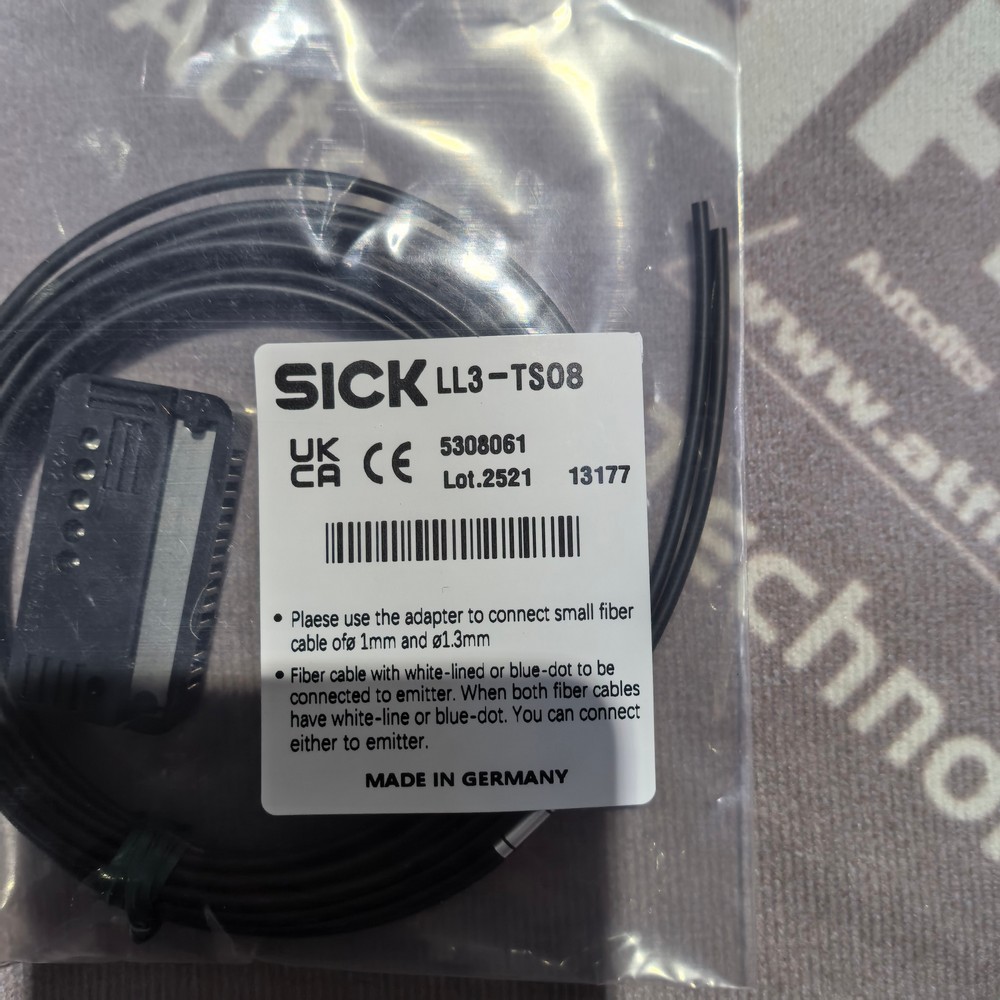

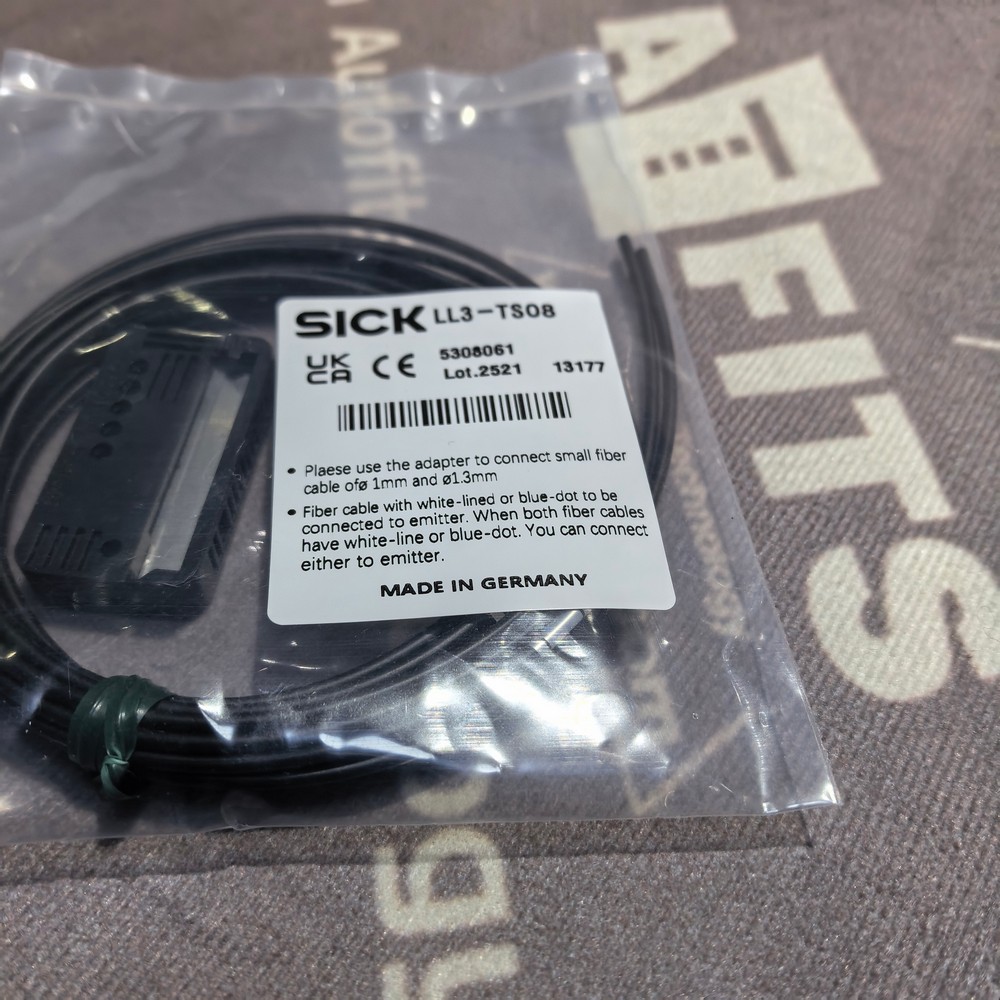

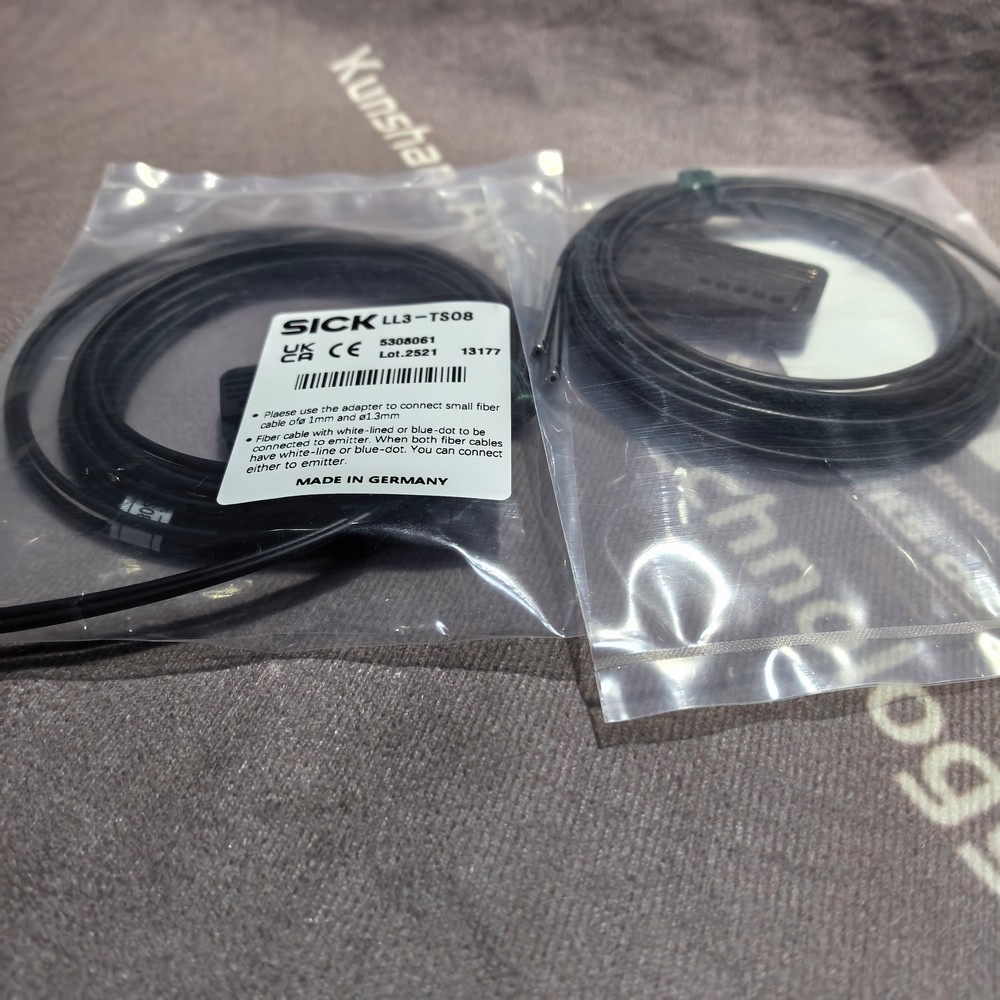

LL3-TS08 (Part No. 5308061) belongs to the SICK LL3 series plastic fiber optic cable. It adopts the through-beam detection principle, consisting of paired transmitter and receiver fiber assemblies equipped with integrated 90° deflection stainless steel sensing heads. This fiber cable needs to cooperate with SICK fiber amplifiers including WLL80, WLL180T, GLL170(T) and WLL24 Ex to realize object detection. The 90° angled head design solves installation restrictions in narrow, confined mechanical spaces where straight fiber probes cannot be arranged. The monofilament PMMA optical fiber can be cut on-site to adapt to required wiring length. Widely used in electronics assembly equipment, packaging machinery, semiconductor production lines, precision automation fixtures for tiny workpiece counting, material presence detection and edge monitoring. This product complies with RoHS industrial standards.
Main Technical Specifications
| Parameter Item | Detailed Specification |
|---|---|
| Model Code | LL3-TS08 |
| Order Number | 5308061 |
| Detection Principle | Through-beam system (Transmitter + Receiver pair) |
| Fiber Type | Monofilament plastic fiber, Core diameter Ø1.0 mm PMMA |
| Total Standard Cable Length | 2,000 mm |

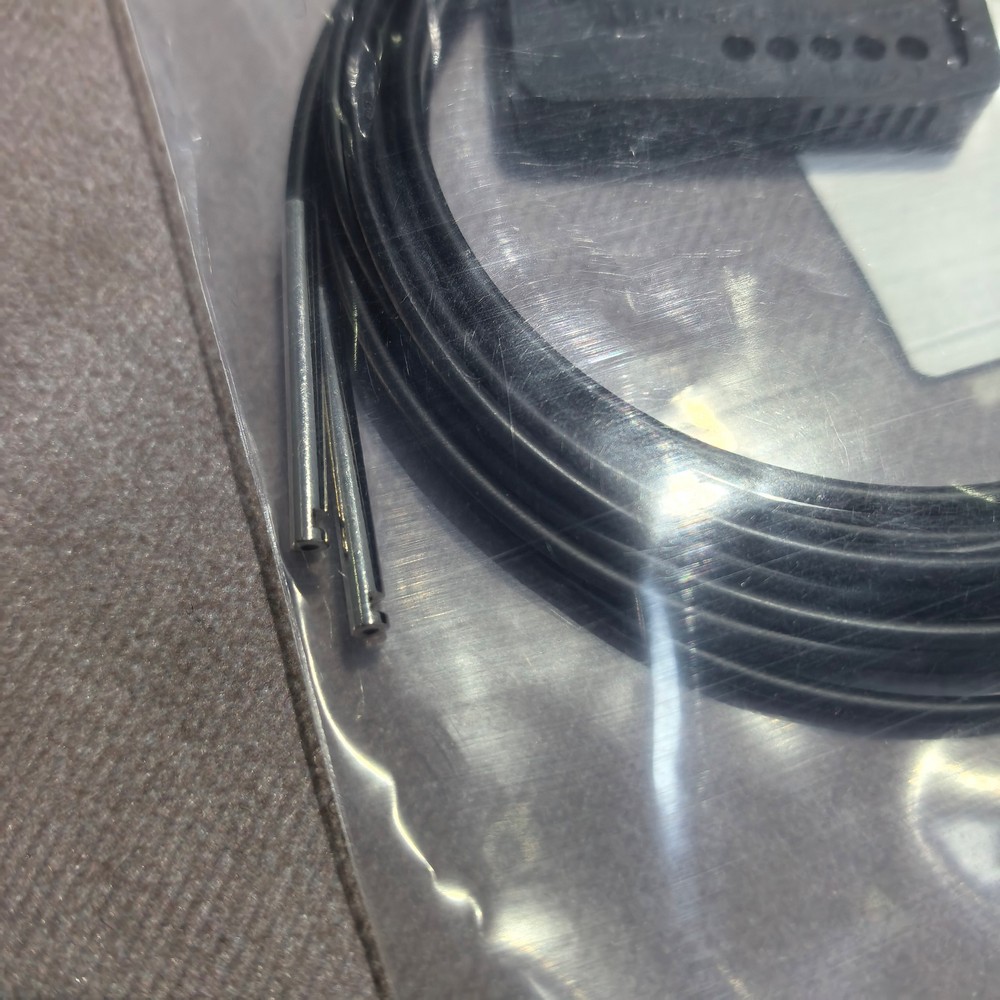

| Fiber Head Structure | Smooth sleeve, integrated 90° optical deflection |
| Maximum Sleeve Outer Diameter | 3 mm |
| Fiber Connection Outer Diameter | 2.2 mm |
| Minimum Detectable Object Diameter | 0.2 mm |
| Maximum Sensing Distance | Up to 2,640 mm (Matched with WLL80 amplifier) |
| Minimum Bend Radius of Fiber | 25 mm |
| Fiber Cutting Feature | Field-cuttable with dedicated fiber cutter |
| Material – Optical Fiber | PMMA (Polymethylmethacrylate) |
| Material – Outer Sheath | PE (Polyethylene) |
| Material – Sensing Head | Stainless Steel |
| Operating Ambient Temperature | -40 ℃ ~ +70 ℃ |
| Storage Temperature | -40 ℃ ~ +75 ℃ |

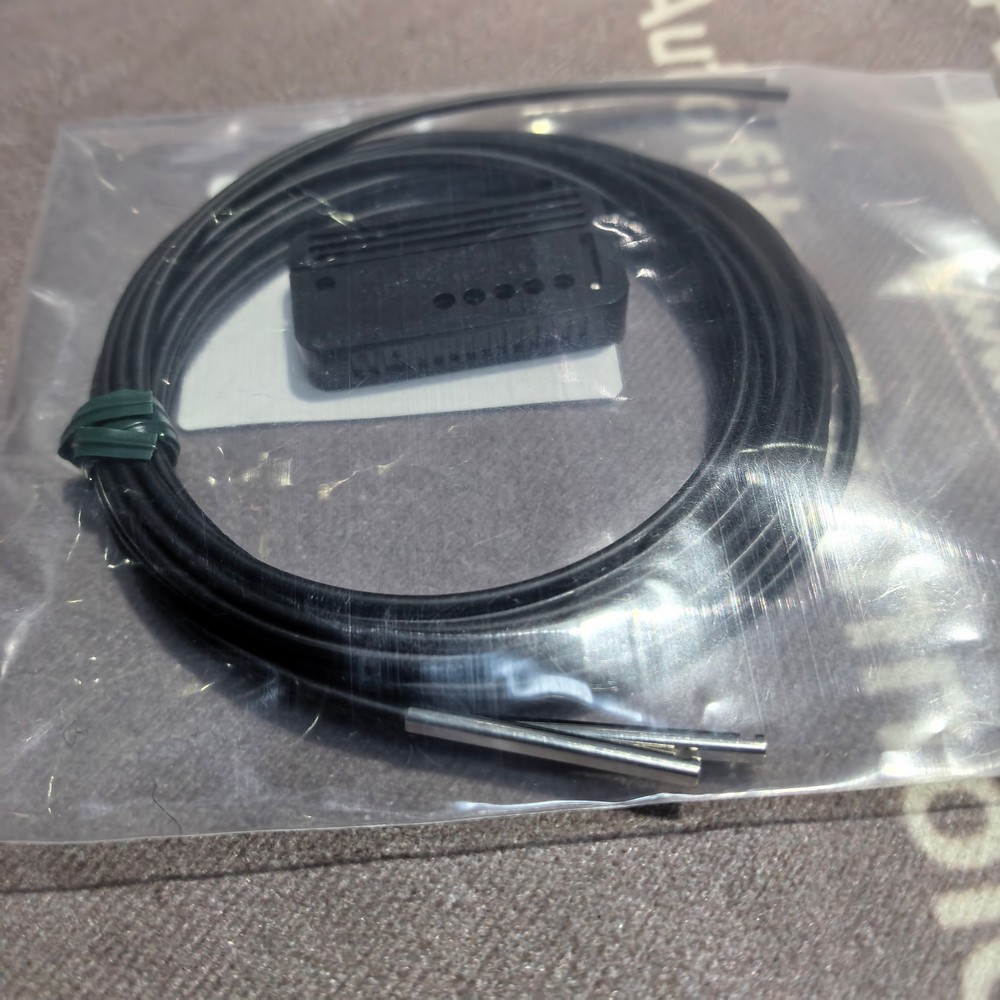

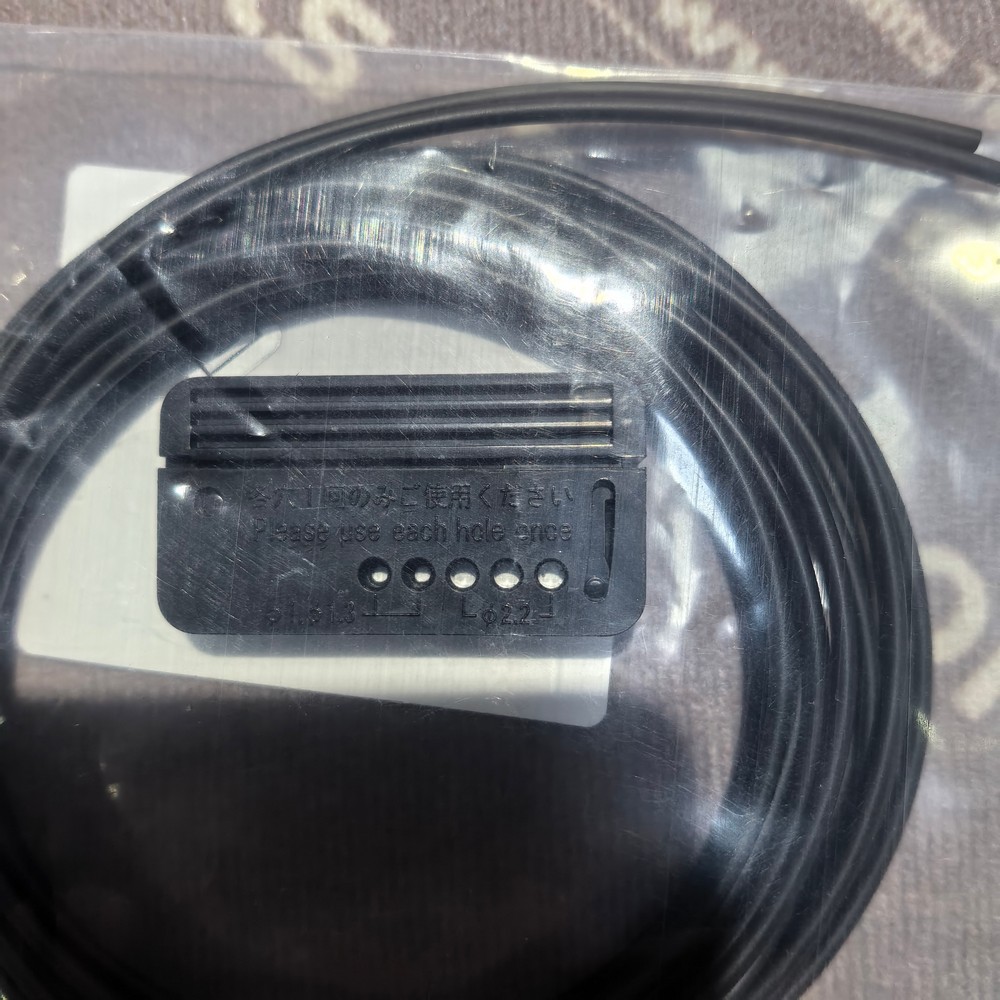

| Included Accessories | 1 piece of FC fiber cutter |
Overall Dimensions & Net Weight
| Dimension & Weight Parameter | Exact Data |
|---|---|
| Fiber Head Length | 30 mm |
| Head Outer Diameter | 3 mm |
| Cable Total Length | 2000 mm |
| Single Pair Net Weight | 29 g |
| Packaged Gross Weight | Approximately 36 g |
| Installation Form | Smooth sleeve mounting, fixed by set screws |
Primary Main Functions
- Tiny Object Through-beam Detection: Detect micro workpieces down to 0.2 mm diameter; stable detection result barely affected by object color and surface reflectivity.
- Space-saving 90° Angle Layout: Integrated 90° deflection head realizes horizontal or vertical optical path conversion for narrow installation cavities inside fixtures.
- On-site Length Customization: The plastic fiber can be cut freely to shorten cable length according to actual mechanical layout requirements.
- Flexible Amplifier Compatibility: Compatible with multiple mainstream SICK fiber amplifiers, supporting different response speed and sensing range configurations.
- Stable Long-distance Optical Transmission: Achieve reliable signal transmission over long distances, suitable for large frame automation equipment.
- Mechanical Protection for Optical Path: Stainless steel probe head resists scratch, collision and slight wear during long-term equipment operation.
- Wide Temperature Adaptability: Operate normally under low temperature and moderately high temperature workshop environments.
- Convenient Mechanical Installation: Smooth cylindrical sleeve can be fixed easily via mounting holes and locking screws without complicated brackets.
Key Technical Features
- Integrated 90° deflection optical design eliminates extra angle adapters, reduces mechanical assembly parts and avoids optical loss caused by external connectors.
- Stainless steel fiber sensing head provides outstanding mechanical strength compared with plastic heads, improving service life on production lines.
- PMMA plastic monofilament fiber features low optical attenuation and flexible routing inside automation machines.
- Compact slim 3 mm diameter probe fits ultra-narrow mounting holes widely used in precision processing equipment.
- Through-beam optical structure delivers better anti-interference performance than diffuse reflection fiber, less sensitive to dust and oil mist.
- Standard LL3 series interface achieves full interchangeability among different fiber variants for equipment upgrade.
- PE outer sheath has good wear resistance, protecting internal optical fiber during repeated equipment movement.
- Optimized beam divergence angle ensures stable light alignment between transmitter and receiver fiber heads.
List of 10 Similar Functional SICK Fiber Optic Cables
- LL3-TS05: Straight smooth sleeve through-beam fiber without 90° deflection head
- LL3-TS10: 90° through-beam fiber with 3,000 mm extended cable length
- LL3-DS08: 90° deflection diffuse reflection fiber optic cable
- LL3-TS08-HT: High-temperature resistant variant for thermal processing equipment
- LL3-TS08-TF: Teflon sheath chemical-resistant through-beam fiber
- LL3-LM37450: Flat 90° head diffuse reflection fiber for flat surface detection
- LL3-TS06: Mini slim-diameter 90° through-beam fiber for ultra-small installation space
- LL3-TS08-M: Threaded sleeve 90° through-beam fiber with external mounting thread
- LL3-GS08: Focused lens equipped through-beam fiber for enhanced long-distance detection
- LLX-TS08: Glass fiber through-beam cable with 90° head for harsh chemical environment
