New Original Turck BI4-M12-AN6X-H1141 Inductive Sensor, Order No.46071
1. Product Overview

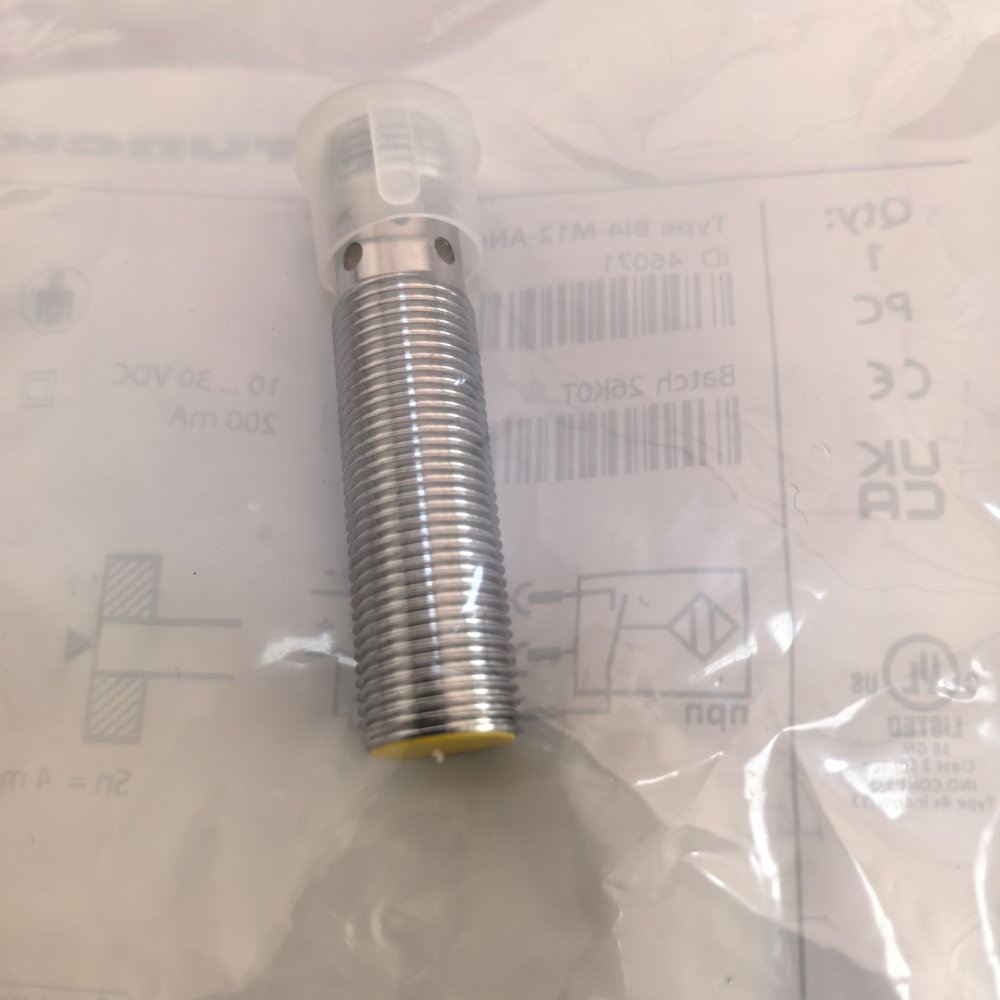

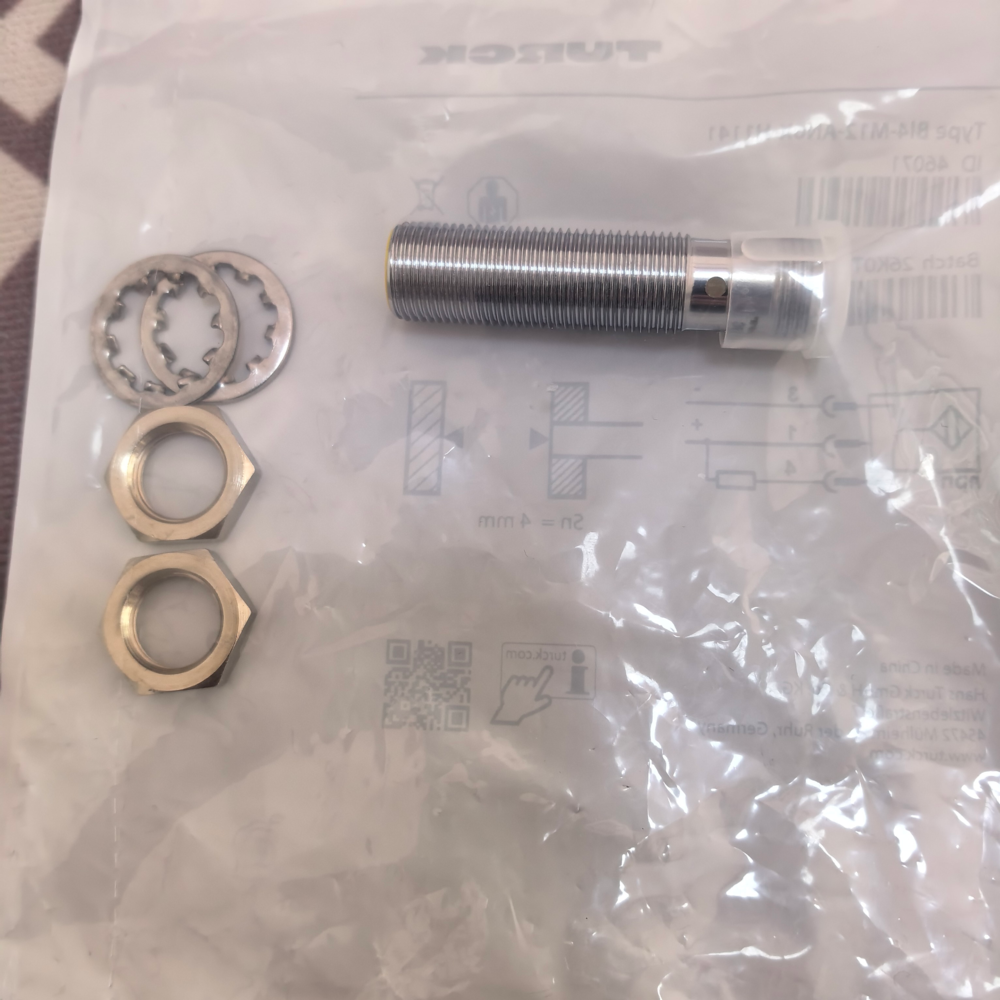

The Turck BI4-M12-AN6X-H1141 (Item No.46071) is a cylindrical shielded inductive proximity sensor of Turck BI standard series. It adopts M12×1 chrome-plated brass threaded housing, flush mounting design, 3-wire DC NPN Normally Open output, equipped with M12 4-pin male connector. The sensor detects ferromagnetic metal targets without physical contact. It converts metal approaching signals into digital switching signals and transmits signals to PLC, relays and industrial control systems. Widely used for workpiece detection, position feedback, counting and stroke limit control on automated assembly lines, machine tools, conveyor systems and packaging equipment. The supplied unit is brand new original Turck genuine product.
2. Main Technical Specifications
| Item | Parameter |
|---|---|
| Model | BI4-M12-AN6X-H1141 |
| Order Number | 46071 |
| Series | BI Standard Inductive Proximity Sensor |
| Housing Structure | Cylindrical M12×1 threaded barrel |
| Housing Material | Chrome-plated CuZn brass |
| Mounting Type | Flush mount (shielded) |
| Rated Sensing Distance (Sn) | 4 mm |

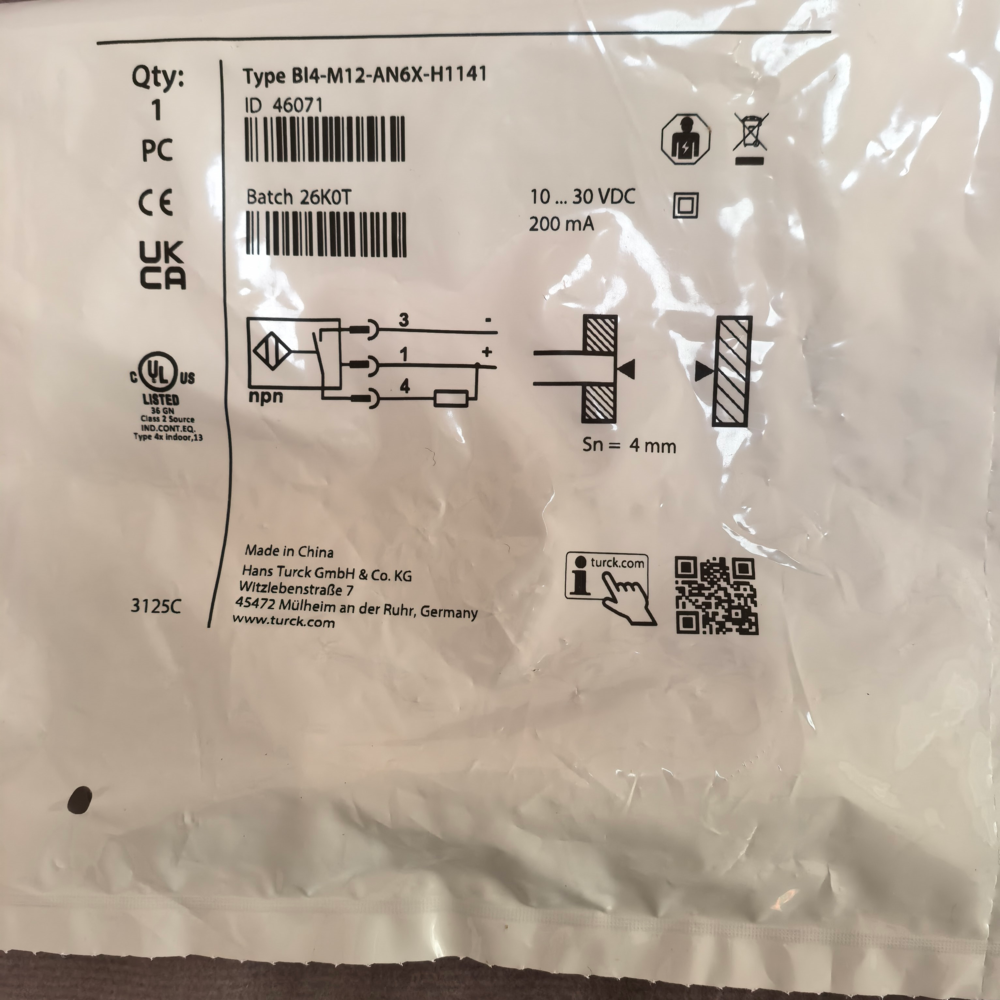

| Output Mode | 3-wire DC, NPN NO (Normally Open) |
| Supply Voltage | 10 V DC – 30 V DC |
| Max Load Current | ≤ 200 mA |
| Maximum Switching Frequency | 2000 Hz |
| Connection Type | M12 × 1, 4-pin plug connector |
| Protection Class | IP67 |
| Operating Temperature | -25 °C ~ +70 °C |
| Overall Length | 52 mm |
| Net Weight | Approx. 31 g |
| Status Indicator | Yellow LED switching indicator |
| Built-in Protection | Reverse polarity protection, short-circuit protection, overload protection |
| Compliance Standards | IEC 60947-5-2, CE, RoHS |
3. Main Functions
- Non-contact detection of ferromagnetic metal objects to avoid mechanical friction, collision and wear.
- Output NPN digital switching signals for PLC input modules and control relay triggering.
- Visible yellow LED status indicator facilitates on-site inspection and rapid fault diagnosis.
- Realize position confirmation, workpiece counting and travel limit protection for automatic production equipment.
- Support high-frequency repeated switching, adapting to continuous cyclic operation of automation machinery.
- M12 plug-in connection simplifies wiring and enables quick disassembly and replacement during maintenance.
- Provide reliable detection signals for equipment safety interlock and automatic process logic control.
4. Technical Features
- Flush mounting structure allows full embedding installation to prevent mechanical impact damage.
- Chrome-plated brass threaded housing provides excellent mechanical strength, impact resistance and corrosion resistance.
- IP67 sealing design prevents dust, splash water and coolant from invading internal circuits.
- Complete built-in circuit protection prevents sensor damage caused by wiring errors and load short circuit.
- Low temperature drift and high repeat accuracy, maintaining stable detection performance under long-time operation.
- Optimized internal coil design delivers stable sensing performance under industrial electromagnetic interference.

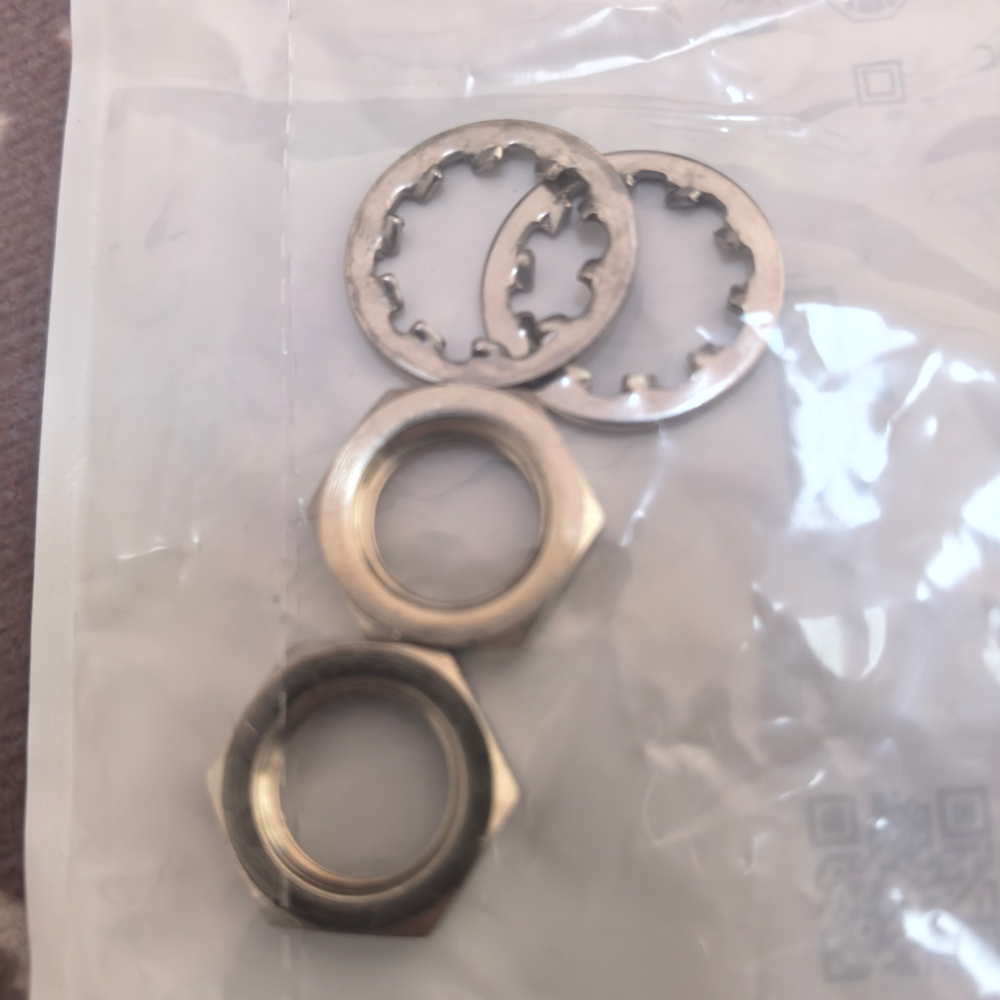

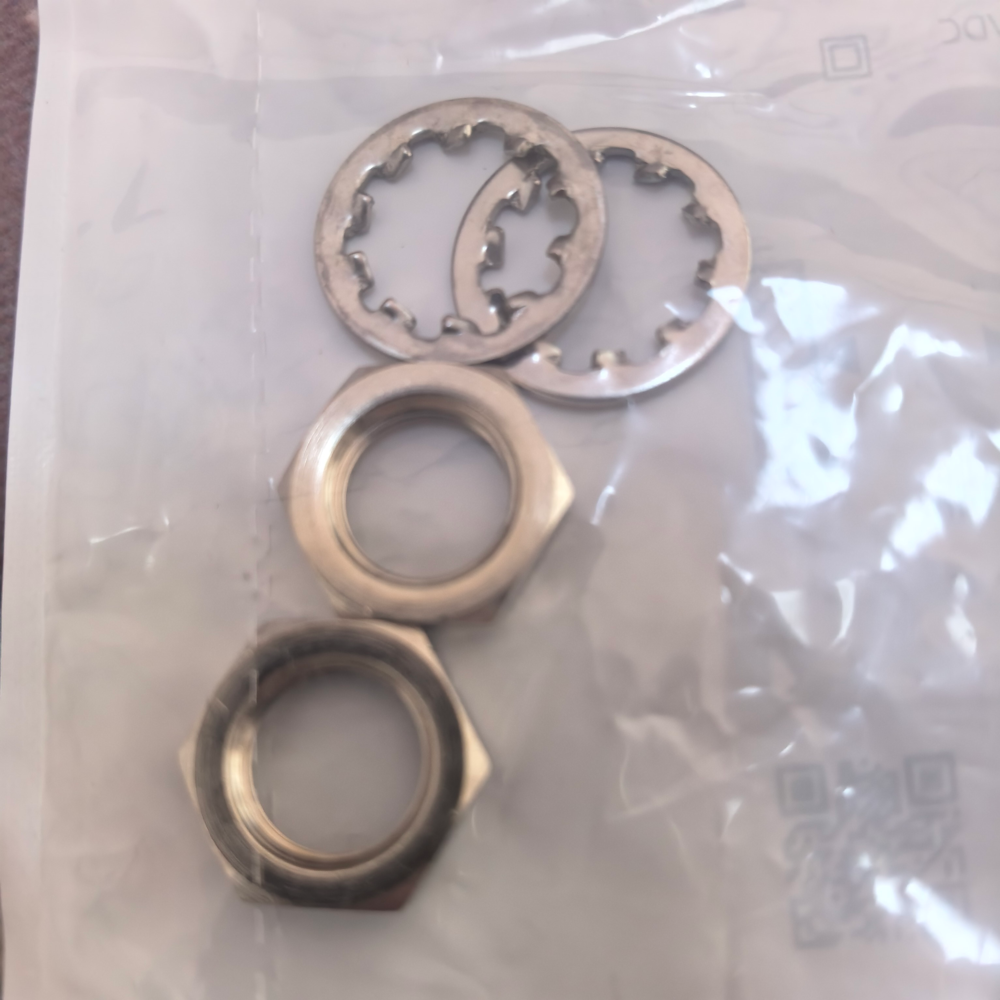

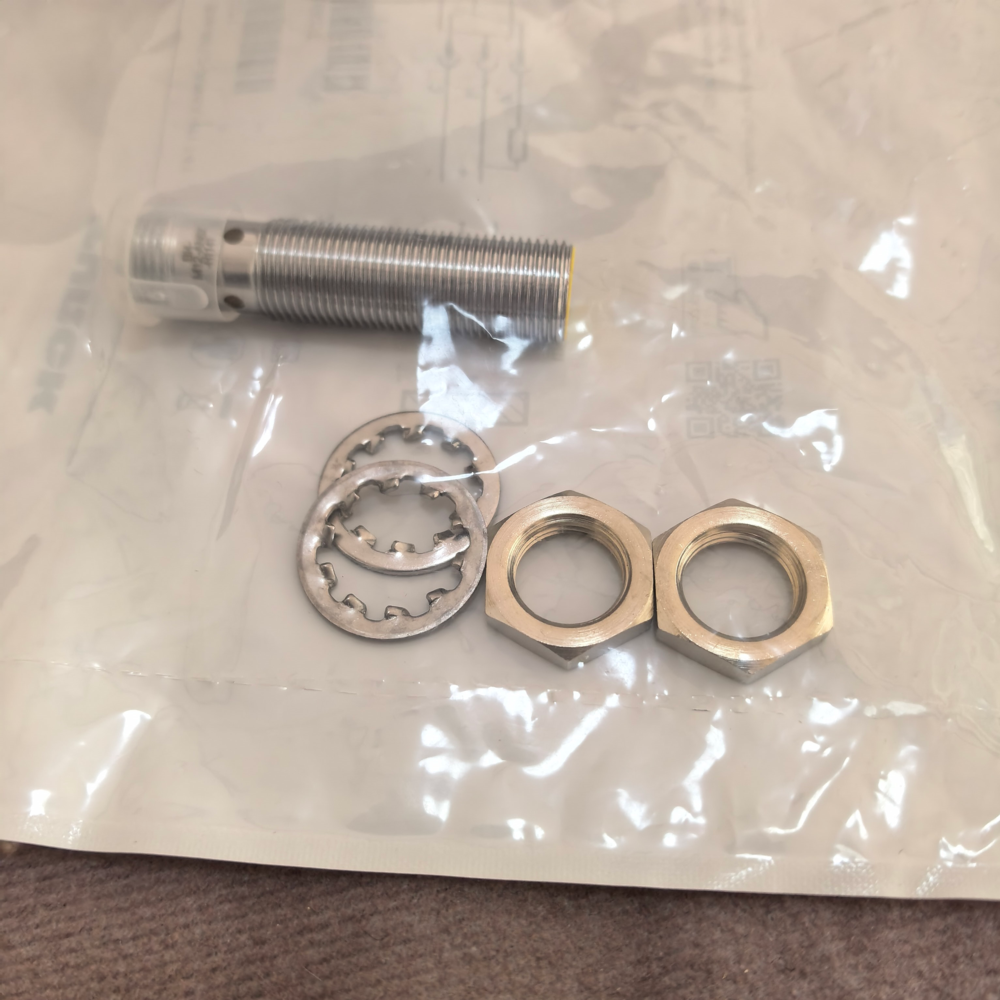

- Standard M12 thread and matching lock nuts support flexible installation position adjustment.
- Compact cylindrical structure, suitable for installation in narrow mechanical spaces.
- Wide operating temperature range, applicable to various indoor industrial workshop environments.
- Plug-type wiring reduces assembly time and improves equipment maintainability.
5. 10 Turck Similar Inductive Proximity Sensors
- BI4-M12-AP6X-H1141, M12 flush mount, 4 mm, PNP NO inductive sensor with M12 connector
- BI4-M12-AN6X, M12 flush mount NPN NO sensor with fixed cable instead of plug
- BI2-M12-AN6X-H1141, M12 flush mount, 2 mm NPN NO inductive proximity sensor
- BI5-M18-AN6X-H1141, M18 cylindrical flush NPN NO inductive sensor
- NI8-M12-AN6X-H1141, M12 non-flush extended sensing distance inductive sensor
- BI4U-M12-AN6X-H1141, Uprox all-metal factor 1 M12 inductive sensor
- BI4-M12-AZ3X-H1141, M12 flush mount 2-wire AC/DC inductive proximity sensor
- BI8-M18-AP6X-H1141, M18 flush mount PNP NO inductive sensor
- BI1.5-M08-AN6X-H1141, M8 miniature cylindrical NPN NO proximity sensor
- BI4-M12-BN6X-H1141, M12 flush mount 4 mm NPN NC inductive sensor
