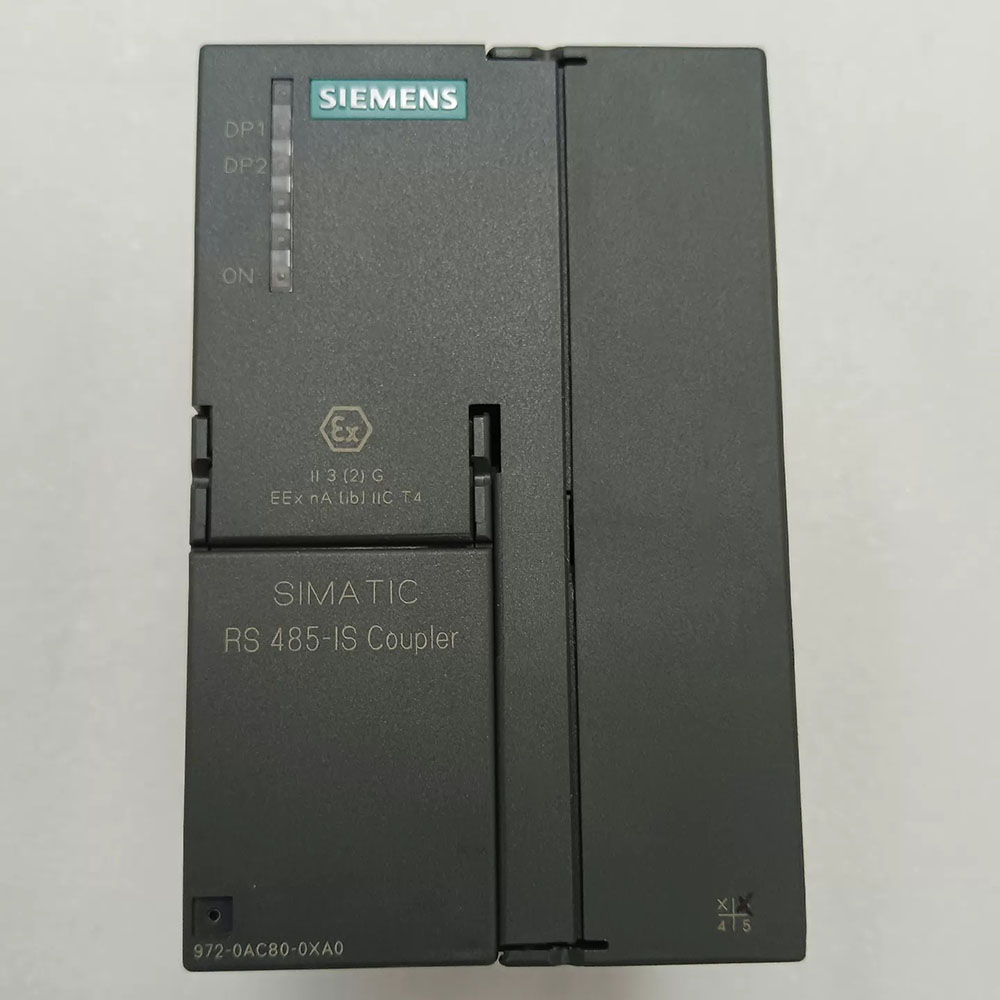

Siemens 6ES7 972‑0AC80‑0XA0 RS485‑IS PROFIBUS‑DP Coupler
Product Overview
Siemens 6ES7 972‑0AC80‑0XA0 is an RS485‑IS intrinsically‑safe fieldbus coupler for SIMATIC DP PROFIBUS‑DP networks It creates galvanic isolation between standard non‑intrinsically‑safe PROFIBUS‑DP segments and RS485‑IS intrinsically‑safe bus segments for hazardous‑area field devices such as ET200iSP remote I/O stations. The unit can be installed in Zone 2 hazardous locations and supports PROFIBUS‑DP baud rates up to 1.5 Mbit/scache.indu…. It converts standard PROFIBUS‑DP signals into intrinsically‑safe RS485‑IS bus signals to operate explosion‑proof field nodes in chemical, petrochemical and process‑industry plants. It is DIN‑rail mountable inside control cabinets with IP20 protection.
Main Functions
- Galvanic isolation and electrical safety separation between standard PROFIBUS‑DP and intrinsically‑safe RS485‑IS bus segments.
- Signal regeneration and transmission for PROFIBUS‑DP communication to drive intrinsically‑safe fieldbus participants.
- Supports multiple PROFIBUS‑DP baud‑rate settings from 9.6 kbit/s up to 1.5 Mbit/s.
- LED diagnostic indicators for power status, bus activity and fault conditions for on‑site troubleshooting.
- Reverse‑polarity protection for DC 24 V power supply input.
- Screw‑type terminal blocks for PROFIBUS‑DP side, RS485‑IS field‑bus side and power‑supply wiring.
- Complies with ATEX / IECEx requirements, permitting installation within hazardous Zone 2 locations.
- Extends maximum cable length for intrinsically‑safe PROFIBUS‑DP field segments under different communication baud rates.
Technical Features
- ATEX and IECEx certification Ex ec [ib Gb] IIC T4 Gc for Zone 2 installation
- Complete galvanic isolation between non‑safe primary bus and intrinsically‑safe secondary bus circuit.
- Reverse‑polarity protection on power supply input terminals.
- Status LED array for power supply, bus communication and error indication.
- DIN‑rail mounting design for standard cabinet installation.
- IP20 housing protection for indoor cabinet‑only deployment.
- Supports intrinsically‑safe parameters U0=4.2 V, I0=93 mA, P0=0.1 W for RS485‑IS field side
- No configuration software required; plug‑and‑run after correct wiring and baud‑rate matching.
- Extended operating ambient temperature range for harsh process‑industry cabinet environments.
Technical Data Table
| Item | Specification |
|---|---|
| Model | RS485‑IS Coupler |
| Order Code | 6ES7 972‑0AC80‑0XA0 |
| Brand | Siemens |
| Bus Interface | PROFIBUS‑DP / RS485‑IS intrinsically‑safe |
| Supported Baud Rate | 9.6 kbit/s ~ 1.5 Mbit/s |
| Power Supply | DC 20.4 V ~ 28.8 V (nominal DC24V) |
| Rated Current Consumption | Max 120 mA |
| Intrinsic‑Safety Parameters | U0=4.2 V, I0=93 mA, P0=0.1 W |
| Explosion‑Proof Type | Ex ec [ib Gb] IIC T4 Gc (Zone 2 installation) |
| Protection Class | IP20 |
| Operating Ambient Temperature | -25 °C ~ +60 °C |
| Storage & Transport Temperature | -40 °C ~ +85 °C |
| Mounting Method | Standard 35 mm DIN‑rail |
| Dimensions (W × H × D) | 80 mm × 125 mm × 67.5 mm |
| Net Weight | Approx 0.52 kg |
