Siemens 6ES7 336‑4GE00‑0AB0 SIMATIC S7‑300 SM336 6AI HART Fail‑Safe Analog Input Module

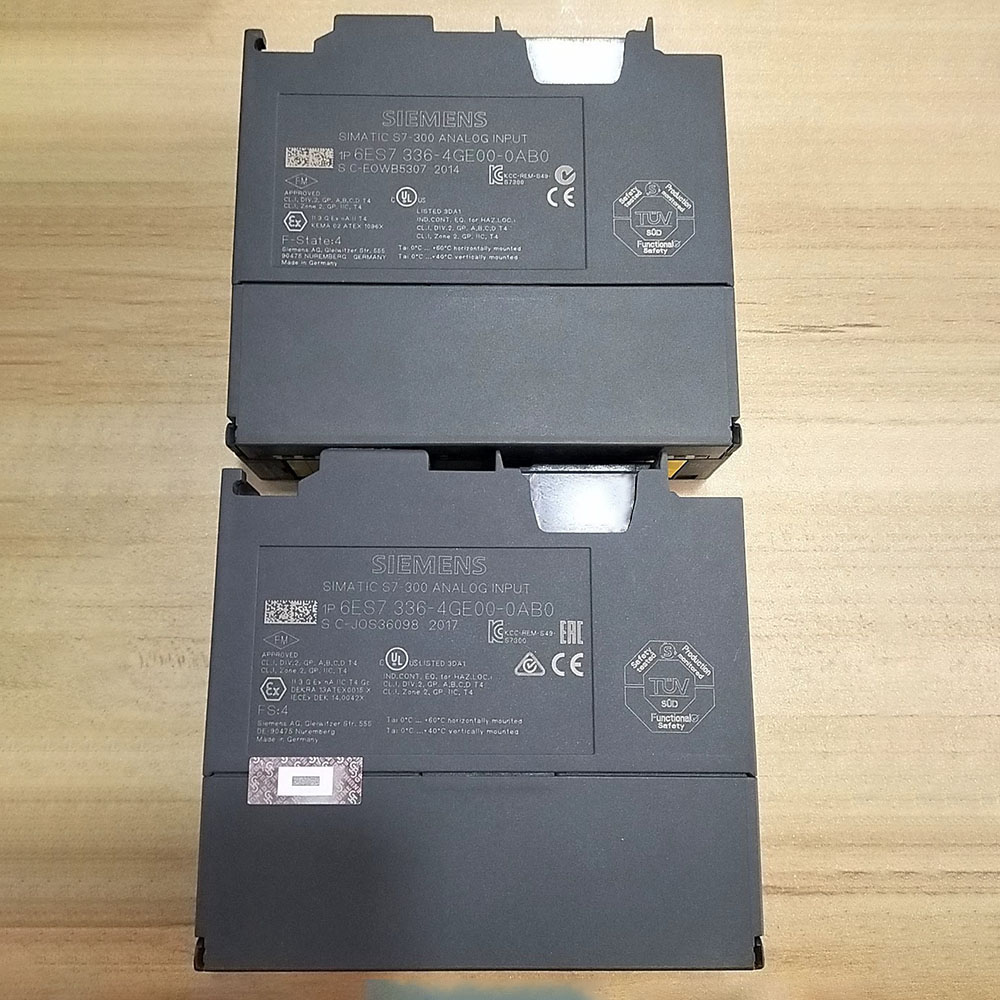

Product Overview
Siemens 6ES7 336‑4GE00‑0AB0 is a SIMATIC Safety‑integrated fail‑safe analog input module for the SIMATIC S7‑300F PLC system, also known as SM336 F‑AI 6×0/4‑20 mA HART. It provides 6 channels of safety‑oriented current signal acquisition for 2‑wire and 4‑wire HART smart transmitters with 15‑bit measurement resolution. It achieves safety integrity up to SIL 3, Category 4 and PL e, and is mainly used for safety‑related process measurement in chemical, petrochemical and machinery safety applications. This module is normally deployed in ET200M distributed I/O stations paired with IM153‑2 interface modules, supporting HART protocol to read additional diagnostic and parameter data from field smart instruments. It adopts standard S7‑300 U‑rack installation and requires a 20‑pin front connector for field wiring.
Main Functions
- Six‑channel fail‑safe acquisition for 0‑20 mA and 4‑20 mA analog current signals, supporting both 2‑wire and 4‑wire HART transmitters.
- HART protocol communication for reading process variables, device parameters and diagnostic information from HART‑capable field instruments.
- Comprehensive per‑channel diagnostics: wire‑break detection, short‑circuit monitoring and signal range overflow diagnosis.
- Safe signal evaluation according to SIMATIC Safety requirements; passivation of corresponding channels when safety‑relevant faults are detected.
- Galvanic isolation between channels, between channels and backplane bus to improve anti‑interference performance in industrial environments.

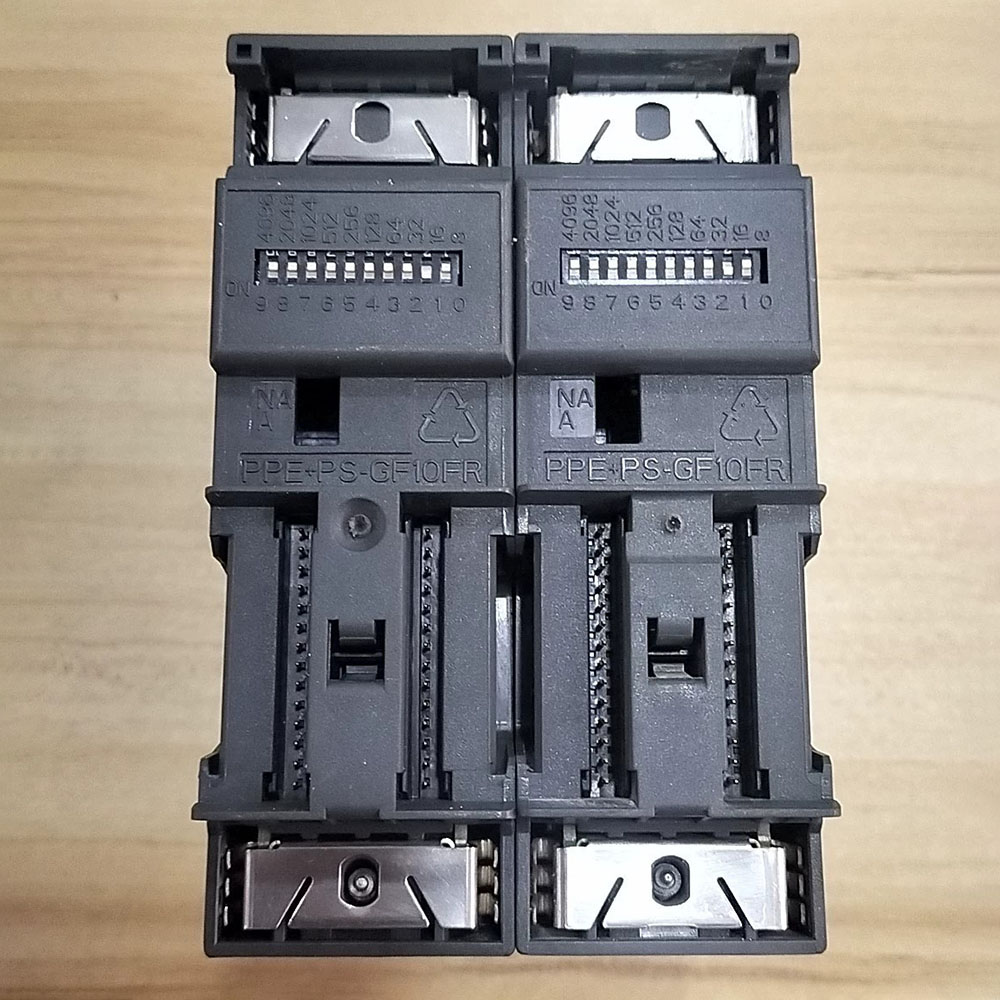

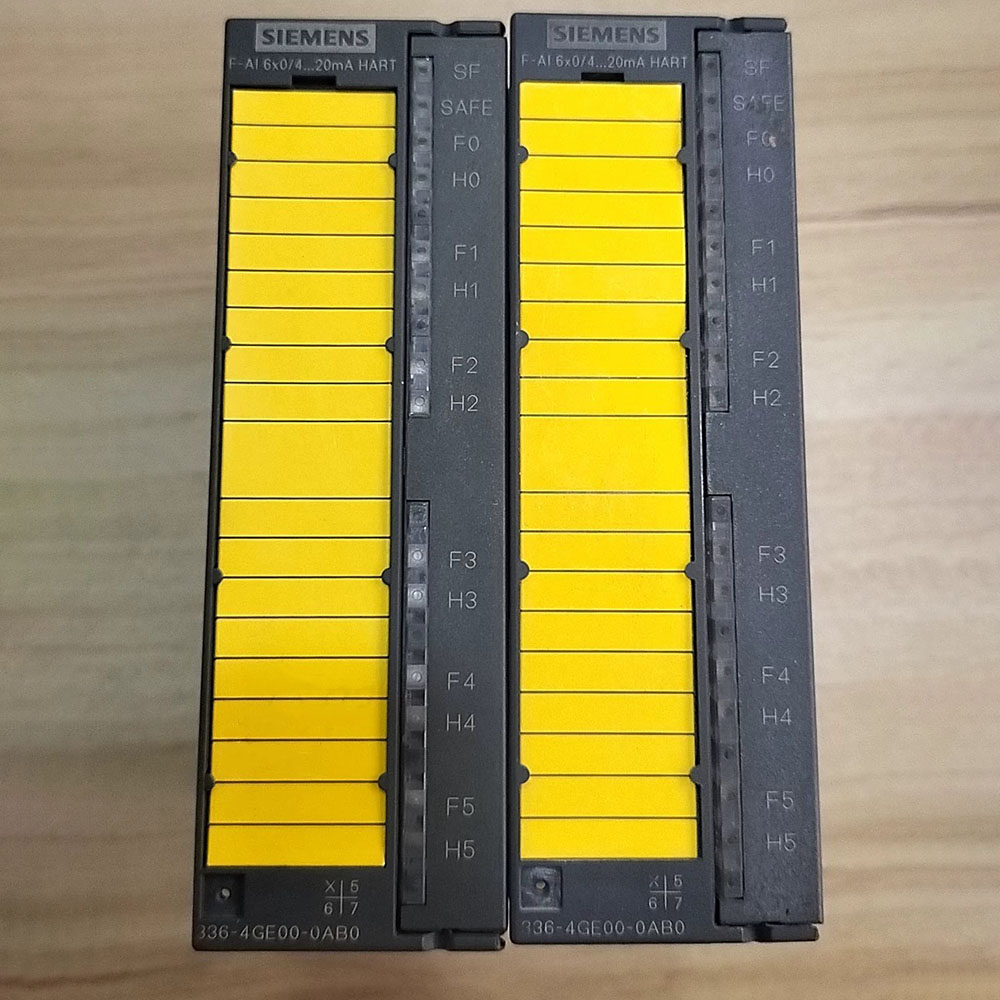

- Red LED SF group‑fault indicator for module‑level fault status feedback for on‑site troubleshooting.
- Short‑circuit‑protected sensor power supply for connected 2‑wire transmitters.
- Supports firmware update via STEP 7 hardware configuration tool.
Technical Features
- Safety certification: SIL 3 (IEC 61508), Category 4 (EN 954‑1), PL e (ISO 13849‑1) for safety‑related automation tasks.
- Full galvanic isolation: channel‑to‑channel, channel‑to‑backplane‑bus, channel‑to‑module‑power‑supply isolation, isolation test voltage 370 V for 1 minute.
- Reverse‑polarity protection on DC24V load power input.
- 15‑bit plus sign measurement resolution for high‑precision current signal conversion.
- Shielded field cable support up to 1000 m maximum length.
- Requires 20‑pin front connector for field wiring connection.
- Designed for S7‑300 standard U‑rack mounting, compatible with ET200M distributed I/O stations.
- Compliant with CE and EMC industrial standards.
Technical Data Table
| Item | Specification |
|---|---|
| Model | SM336 F‑AI 6×0/4‑20 mA HART |
| Order Code | 6ES7 336‑4GE00‑0AB0 |
| Brand | Siemens |
| Number of Input Channels | 6 fail‑safe analog inputs |
| Input Signal | 0‑20 mA, 4‑20 mA, HART compatible |
| Resolution | 15 bit + sign |
| Safety Level | SIL 3, Category 4, PL e |
| Transmitter Type | 2‑wire / 4‑wire HART transmitters |
| Load Power Supply | DC 24 V, reverse‑polarity protected |
| Current Consumption (L+) | Typ. 150 mA |
| Current Consumption (backplane 5 V) | Max. 90 mA |
| Power Loss | Typ. 4.5 W |
| Galvanic Isolation | Yes, channel‑wise & bus‑side isolation |
| Protection Class | IP20 |
| Operating Ambient Temperature | 0 °C ~ +60 °C |
| Storage & Transport Temperature | -40 °C ~ +85 °C |
| Max Shielded Cable Length | 1000 m |
| Required Front Connector | 20‑pin |
| Dimensions (W × H × D) | 40 mm × 125 mm × 120 mm |
| Net Weight | Approx. 0.35 kg |
10 Similar‑function Siemens Fail‑Safe Analog Input Modules
- 6ES7336‑1HE00‑0AB0: SM336, 6‑channel fail‑safe analog input, non‑HART version for S7‑300F system
- 6ES7138‑7FA00‑0AB0: ET200iSP 4‑channel intrinsically‑safe F‑AI HART module for hazardous explosion zones
- 6ES7136‑6AA00‑0CA1: ET200SP F‑AI 4×I 0(4)‑20 mA HF, PROFINET PROFIsafe analog input module
- 6ES7136‑6AJ00‑0CA0: ET200SP F‑AI HART 4‑channel, PROFIsafe HART analog input for distributed I/O
- 6ES7536‑5AA00‑0AB0: S7‑1500F F‑AI 8‑channel fail‑safe analog input module for S7‑1500 safety PLC
- 6ES7436‑4GE00‑0AB0: S7‑400F fail‑safe analog input module for high‑end process safety control system
- 6ES7331‑7TF01‑0AB0: S7‑300 8‑channel standard HART analog input module, non‑safety type
- 6ES7136‑6AB00‑0CA1: ET200SP F‑AI 4×U 0‑10 mV HF, 4‑channel voltage‑type PROFIsafe analog input
- 6AG1336‑4GE00‑2AB0: SIPLUS SM336‑4GE00‑0AB0, extended‑temperature conformal‑coated variant
- 6ES7326‑2BF01‑0AB0: S7‑300F 10‑channel fail‑safe digital output module for safety‑related signal output
