New Original Schneider KAD1PZ KAD Series Rotary Operating Handle

1. Product Overview

2. Main Functions

1. External Cabinet Door Remote Switch Operation

   It transmits rotary torque through an extension shaft to control the ON and OFF actions of the internal switch-disconnector, realizing circuit switching outside the electrical cabinet door conveniently and safely.

2. LOTO Padlock Safety Locking Function

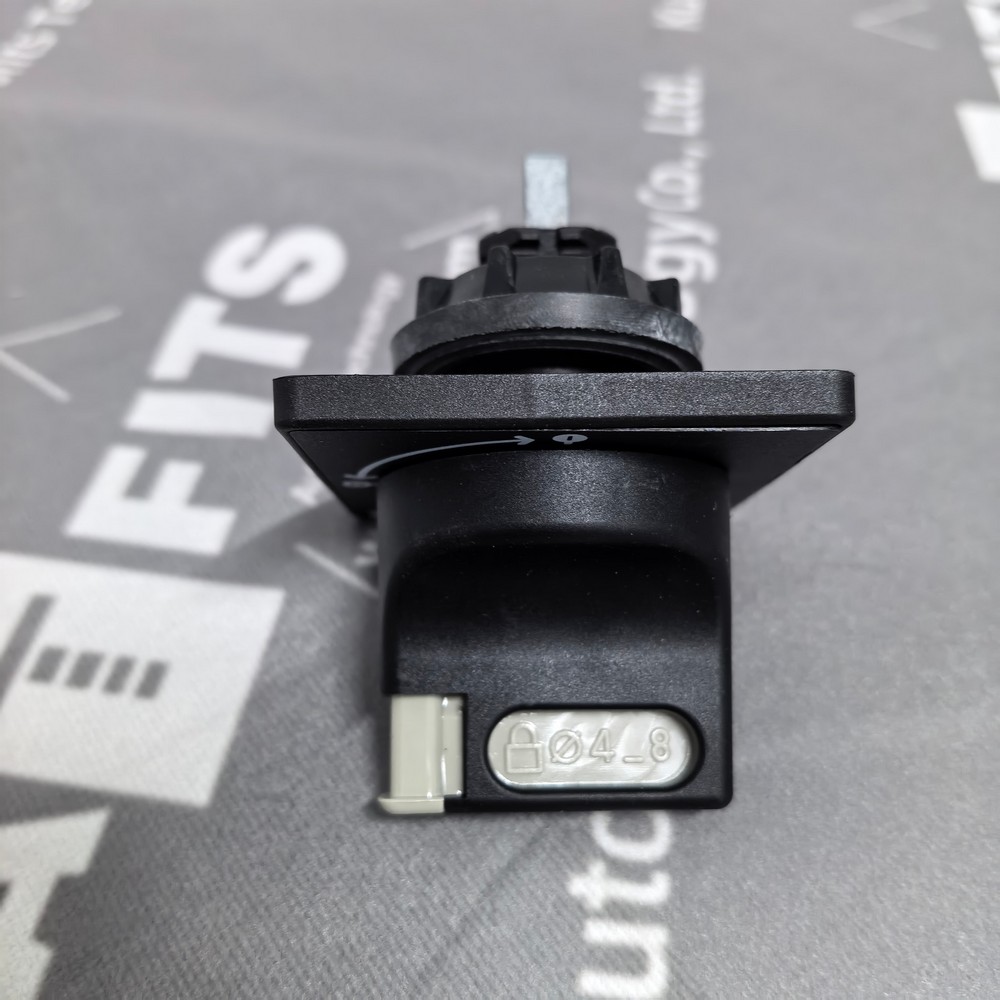

   The handle can be locked stably at the OFF position; it supports installation of 1 to 3 padlocks simultaneously, applicable for padlock shackle diameter ranging from 4 mm to 8 mm. Locking prevents accidental closing of the switch during equipment overhaul to avoid accidental energization hazards.

3. High-Grade Environmental Sealing Protection

   Integrated sealing rubber ring structure delivers IP65 protection performance, effectively blocking dust, splashing water and moisture intrusion into the cabinet interior, suitable for moderately harsh workshop environments.

4. Clear Working Position Indication

   The front panel is printed with standard ON and OFF symbols, allowing operators to directly check the current circuit connection status at a glance.

5. Universal Standard Mounting Compatibility

   Central hole fixing via Ø22.5 mm standard aperture, compatible with most electrical cabinet door panel opening sizes; matched with optional extension shafts to adapt cabinets of different depths.

6. Long-Term Stable Mechanical Operation

   Optimized internal rotating mechanical structure ensures smooth rotation and durable service life under frequent daily switching operations.

3. Technical Characteristics

Core Technical Advantages

• Integrated one-piece locking structure, no extra accessories required for safety lock configuration;
• Elastic silicone sealing ring ensures lasting waterproof and dustproof performance without aging failure easily;
• Compact square modular design, neat layout on cabinet panels;
• Universal shaft connection interface, freely matched with various length extension shafts for deep cabinets.

4. Product Overall Dimensions & Weight

External Dimensions

Weight Parameters

5. 10 Schneider Similar Functional Rotary Operating Handles (TeSys VARIO Series)

1. KCD1PZ 60×60mm Red-Yellow Padlockable Rotary Handle (1-3 padlocks)
2. KAF1PZ 45×45mm Black Rotary Handle (4-screw fixing, 1 padlock)
3. KCC1YZ 45×45mm Red-Yellow Small Size Rotary Operating Handle
4. KBD1PZ Black Handle Without Padlocking Function, 60mm Panel
5. KFD1PZ Red Emergency Stop Rotary Handle with Locking Structure
6. KAD2PZ Extended Shaft Adapted Black Rotary Handle for Deep Cabinets
7. KCD2PZ Red-Yellow Handle with Dual Padlock Position Limitation
8. KAF2PZ 45mm Panel Lockable Handle with Single Padlock Only
9. KDD1PZ Discontinued Standard Black Non-Locking Rotary Handle
10. KZD1PZ Weatherproof Enhanced Version IP66 Black Padlockable Rotary Handle
