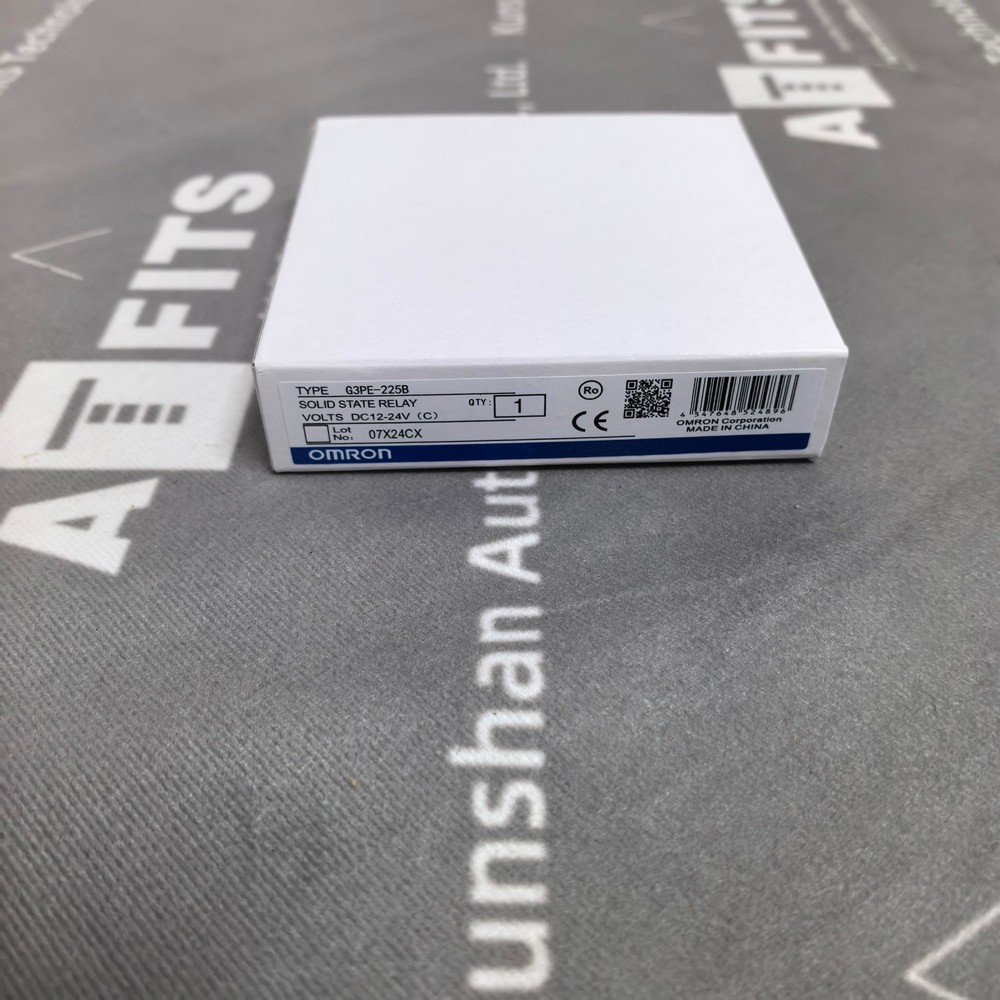

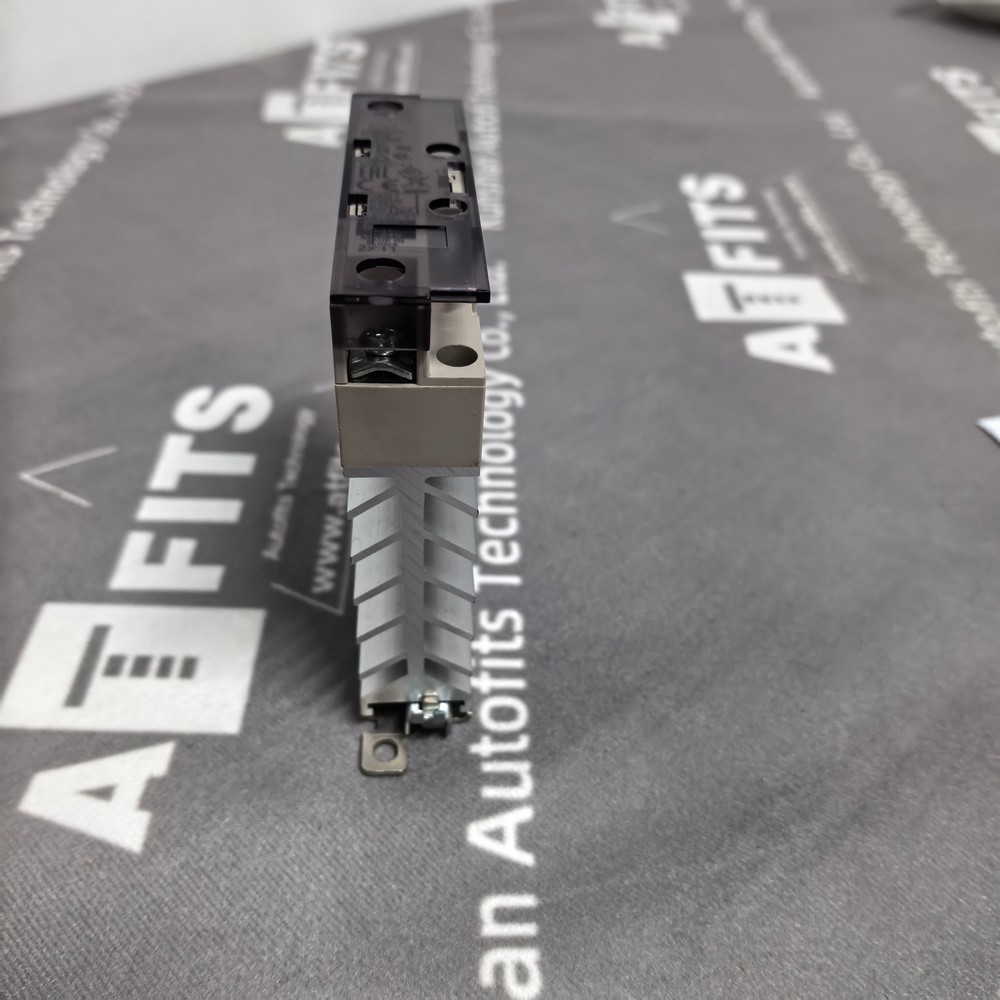

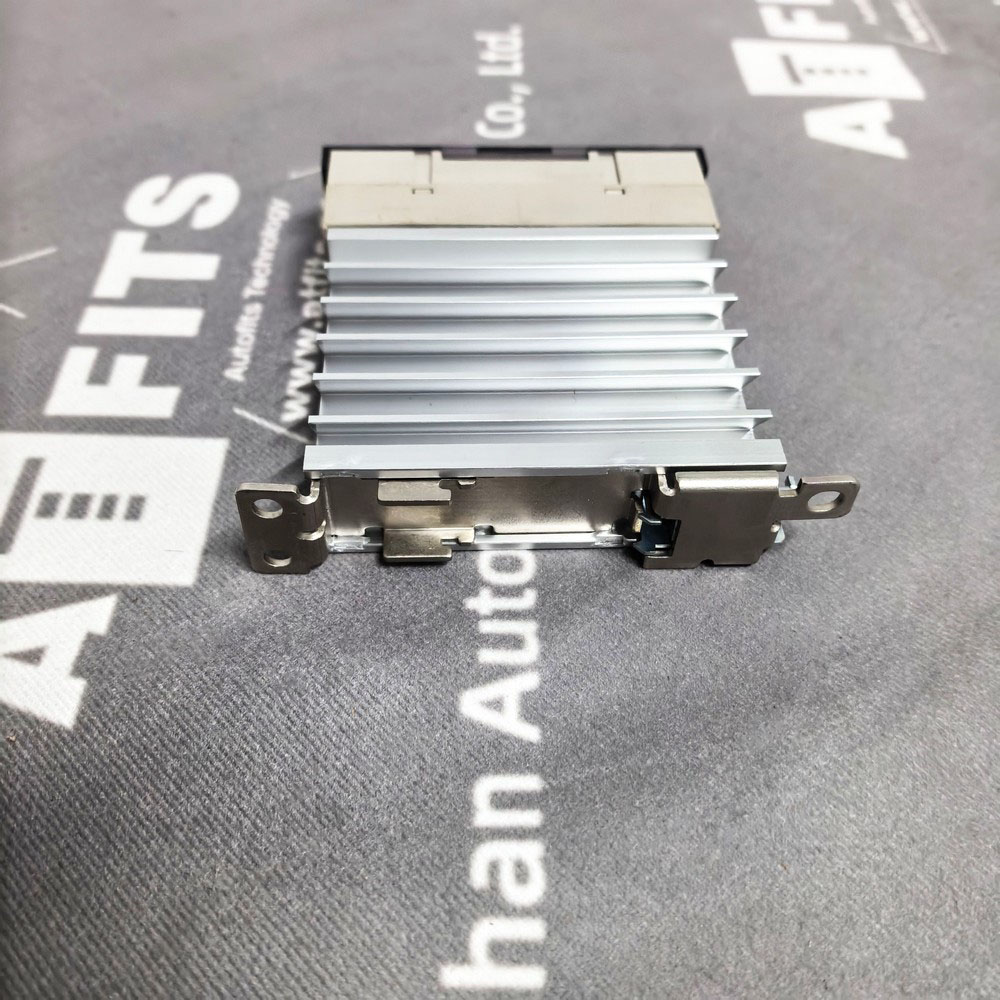

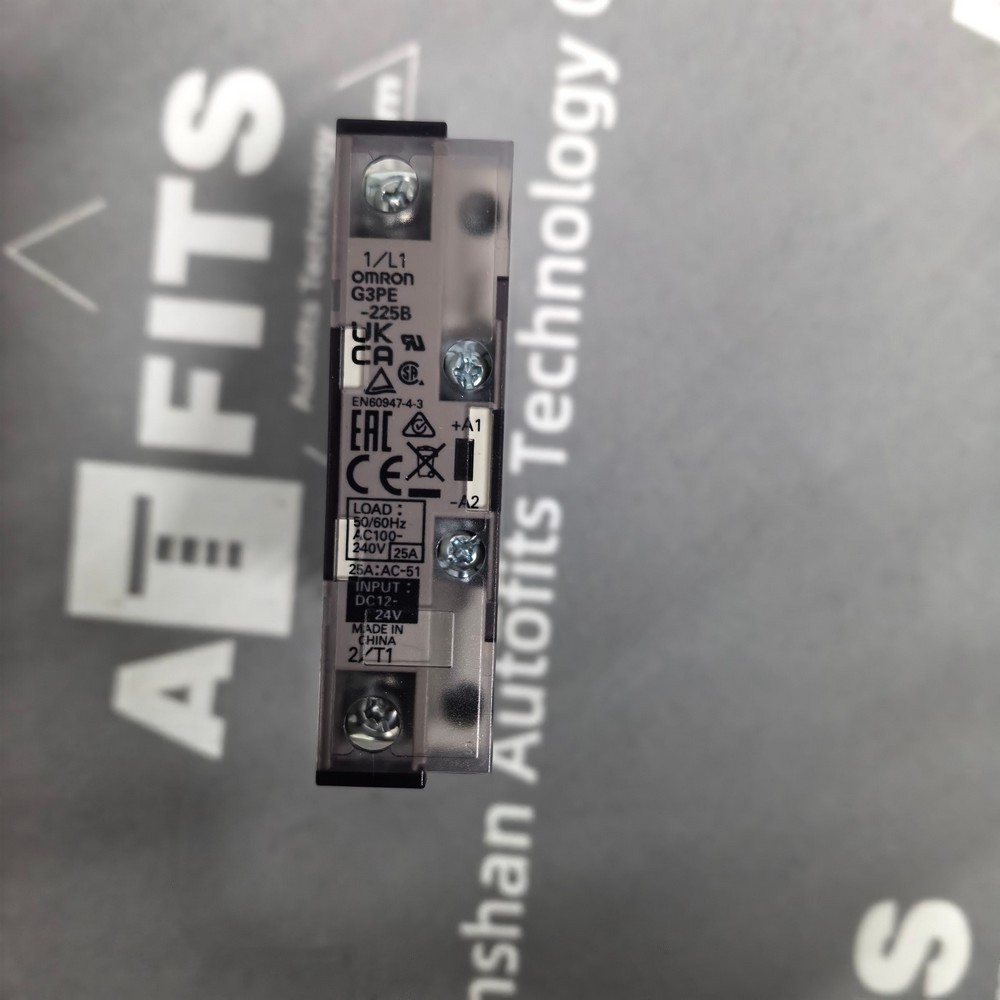

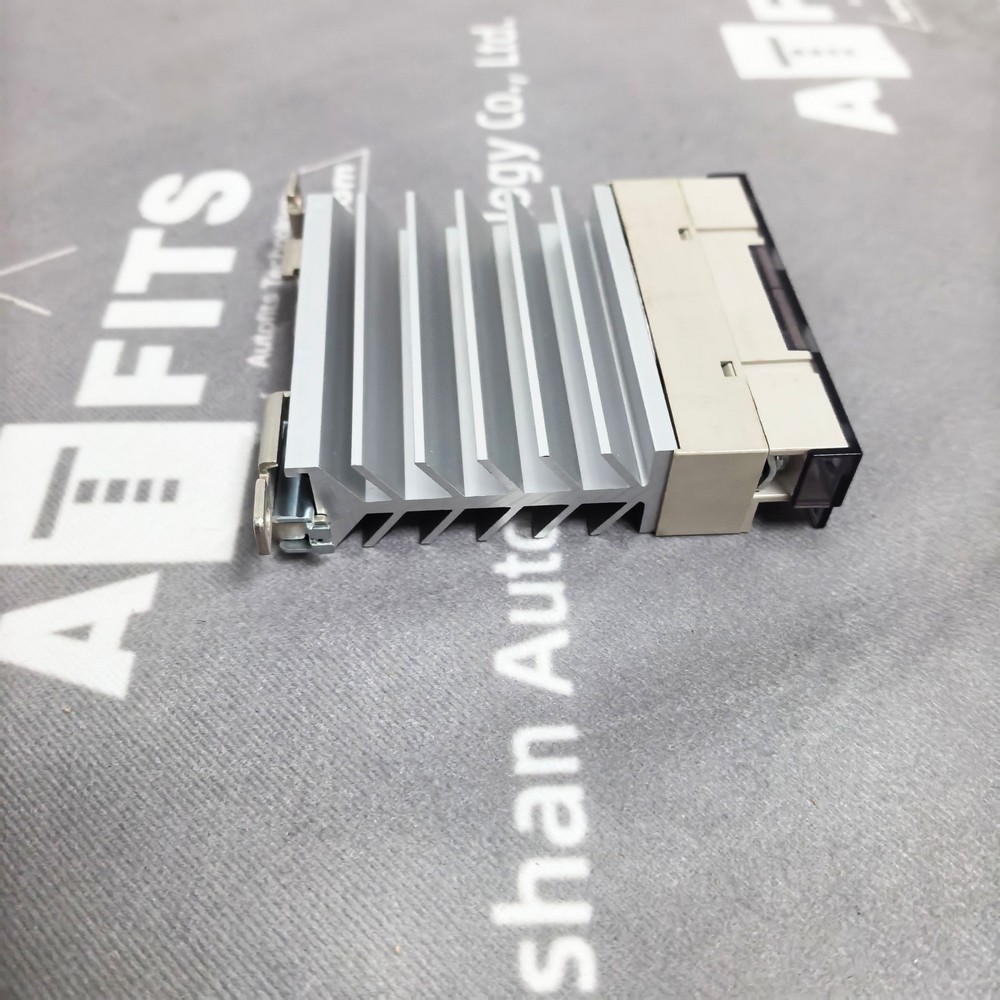

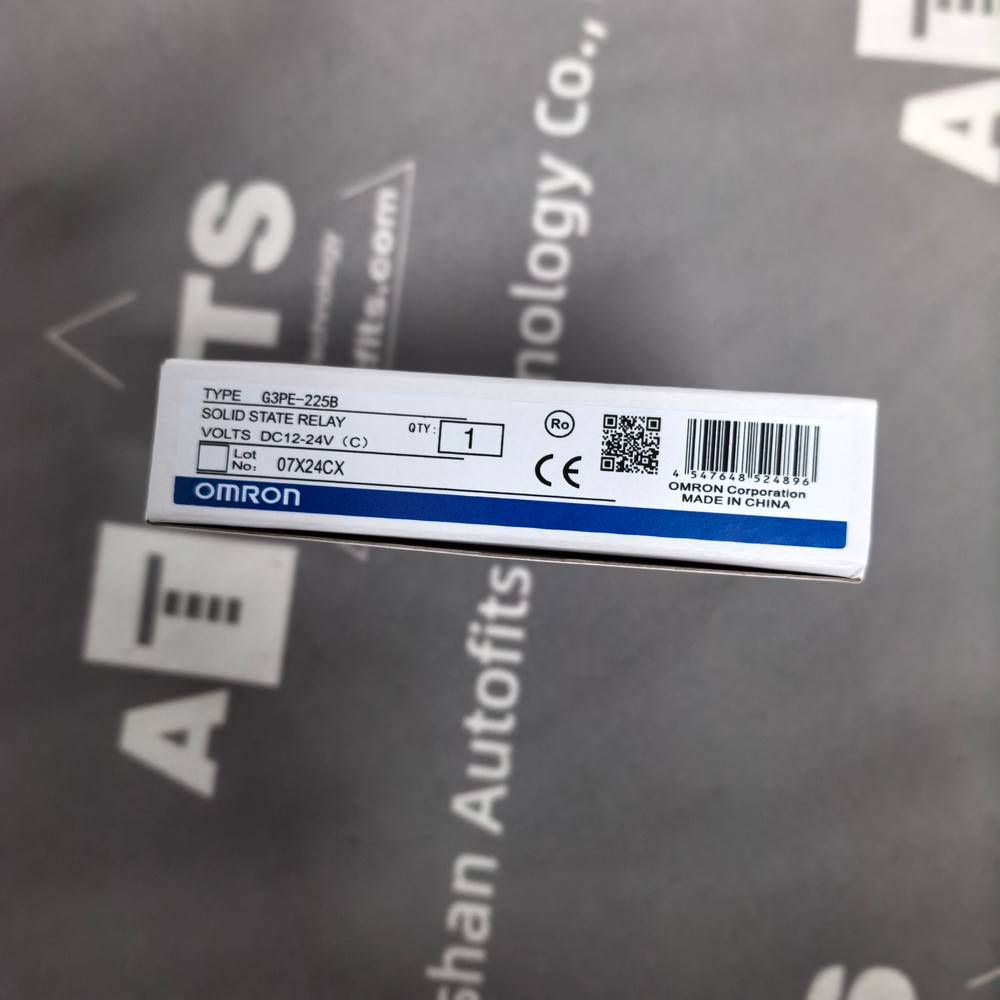

New Original OMRON G3PE‑225B DC12‑24V 25A Three‑phase Solid‑State Relay
Product Overview
The OMRON G3PE‑225B DC12‑24V is a brand‑new original three‑phase solid‑state relay (SSR) belonging to the OMRON G3PE series. This solid‑state contactor integrates a built‑in heat sink and adopts phototriac isolation structure. It receives DC control signal input and switches three‑phase AC resistive loads without mechanical contact points. Mainly applied for heater on‑off control in packaging machines, thermal processing equipment, plastic molding machinery and industrial oven systems. Marked as “New Original”, it represents genuine factory‑produced unit with full‑range factory performance testing, complete internal power semiconductor components, free of refurbished or second‑hand assemblies. It realizes long‑life high‑frequency switching for three‑phase resistive loads and avoids mechanical contact ablation existing in traditional electromagnetic relaysOMRON.
Main Functions
- Three‑phase AC load switching: Controls on‑off status of three‑phase resistive loads such as heating tubes and heating elements.
- Zero‑cross switching function: Turns on output at AC voltage zero‑cross point to suppress inrush current and electromagnetic interference.
- Phototriac‑based isolation: Realizes complete electrical isolation between DC control input side and AC load output side.
- Working status indication: Built‑in yellow LED indicator visually shows relay ON/OFF working state for on‑site inspection.
- Integrated heat‑dissipation management: Built‑in heat sink simplifies external heat‑sink configuration for cabinet installation.
- Screw‑terminal connection: Screw‑type terminals provide reliable wiring for control signal and power‑loop circuits.
- Multi‑mounting support: Supports DIN‑rail mounting and direct screw‑fastened panel mounting.
- Surge‑resistant protection: Internal surge‑suppression components improve capacity against load‑side voltage surges.
Technical Characteristics
- Contact‑free semiconductor switching structure, no mechanical wear, suitable for frequent cyclic switching scenarios.
- Zero‑cross turn‑on design effectively reduces switching noise and inrush current impact for heating‑load circuits.
- Integrated aluminum heat sink for heat dissipation, no extra external heat sink required under rated working conditions.
- Photocoupler isolation between input and output circuits; dielectric withstand voltage reaches 2500 VAC for one minuteOMRON Indu….
- Wide operating ambient temperature range, adapts to ordinary industrial cabinet‑installation environments.
- RoHS‑compliant material composition, meets global industrial‑equipment environmental‑protection requirements.
- Screw terminals support convenient field wiring and maintenance.
- IP20 protection grade for internal cabinet‑installation application only, not for direct exposed‑field deploymentOMRON Indu….
Core Technical Parameters
| Item | Parameter Value |
|---|---|
| Part Number | G3PE‑225B DC12‑24V |
| Product Type | Three‑phase solid‑state relay / solid‑state contactor |
| Control Input Voltage | DC 12‑24 V |
| Rated Load Current | 25 A (AC‑1 resistive load) |
| Rated Load Voltage | AC 100‑240 V |
| Switching Mode | Zero‑cross turn‑on |
| Isolation Method | Phototriac coupler |
| Input Control Current | Max.10 mA |
| Must‑operate Input Voltage | 9.6 V DC |
| Must‑release Input Voltage | 1 V DC |
| Operating Time | Max. half load‑power cycle +1 ms |
| Release Time | Max. half load‑power cycle +1 ms |
| Output ON‑state Voltage Drop | Max.1.6 V RMS |
| Insulation Resistance | Min.100 MΩ (500 VDC) |
| Dielectric Strength | 2500 VAC, 50/60 Hz for 1 min |
| Ambient Operating Temperature | ‑30 °C ~ +80 °C (non‑icing, non‑condensing) |
| Ambient Humidity | 45%‑85% RH, no condensation |
| Protection Class | IP20 |
| Weight | 300 g |
Product Dimensions
All dimension values are given in millimetres.
- Overall height: 100 mm
- Overall width: 44.5 mm
- Overall depth: 100 mm
- DIN‑rail compatible width: 44.5 mm
- Mounting‑screw hole horizontal pitch: 36 mm
- Mounting‑screw hole vertical pitch: 86 mm
- Terminal screw specification: M4 screw
Note: Maintain sufficient surrounding ventilation space. Do not install this SSR in fully‑sealed narrow cabinet without heat dissipation channel. Derate load current under high‑ambient‑temperature conditions.
10 OMRON Similar‑function G3PE‑series Three‑phase Solid‑State Relays
Below are ten original OMRON three‑phase solid‑state relays from G3PE product family, covering different load‑current ratings, load‑voltage grades and element‑quantity configurations for heater‑control applications:
- G3PE‑215B‑3 DC12‑24V: Three‑phase 15 A, AC100‑240 V, three‑element zero‑cross‑type SSR for small‑power heating equipment.
- G3PE‑235B‑3 DC12‑24V: Three‑phase 35 A, AC100‑240 V, three‑element solid‑state contactor for medium‑large heater loads.
- G3PE‑245B‑3 DC12‑24V: Three‑phase 45 A, AC100‑240 V, three‑element high‑current SSR for high‑power three‑phase heating loops.
- G3PE‑515B‑3 DC12‑24V: Three‑phase 15 A, AC200‑480 V, three‑element high‑voltage‑grade SSR for high‑voltage heating‑system control.
- G3PE‑525B‑3 DC12‑24V: Three‑phase 25 A, AC200‑480 V, three‑element zero‑cross‑type solid‑state relay for 480VAC industrial heating equipment.
- G3PE‑535B‑3 DC12‑24V: Three‑phase 35 A, AC200‑480 V, three‑element high‑voltage large‑current SSR.
- G3PE‑545B‑3 DC12‑24V: Three‑phase 45 A, AC200‑480 V, three‑element high‑power high‑voltage solid‑state contactor.
- G3PE‑225B‑2 DC12‑24V: Three‑phase 25 A, AC100‑240 V, two‑element version for cost‑optimized three‑phase heater control.
- G3PE‑235B‑2 DC12‑24V: Three‑phase 35 A, AC100‑240 V, two‑element solid‑state relay for three‑phase resistive‑load switching.
- G3PE‑525B‑2 DC12‑24V: Three‑phase 25 A, AC200‑480 V, two‑element high‑voltage‑grade SSR for high‑voltage‑loop heater‑control.
