New Original FREUDENBERG CFW BAUMSLX7 sealing ring
"*" señala los campos obligatorios
New Original Freudenberg CFW BAUMSLX7 Radial Shaft Sealing Ring
Product Overview

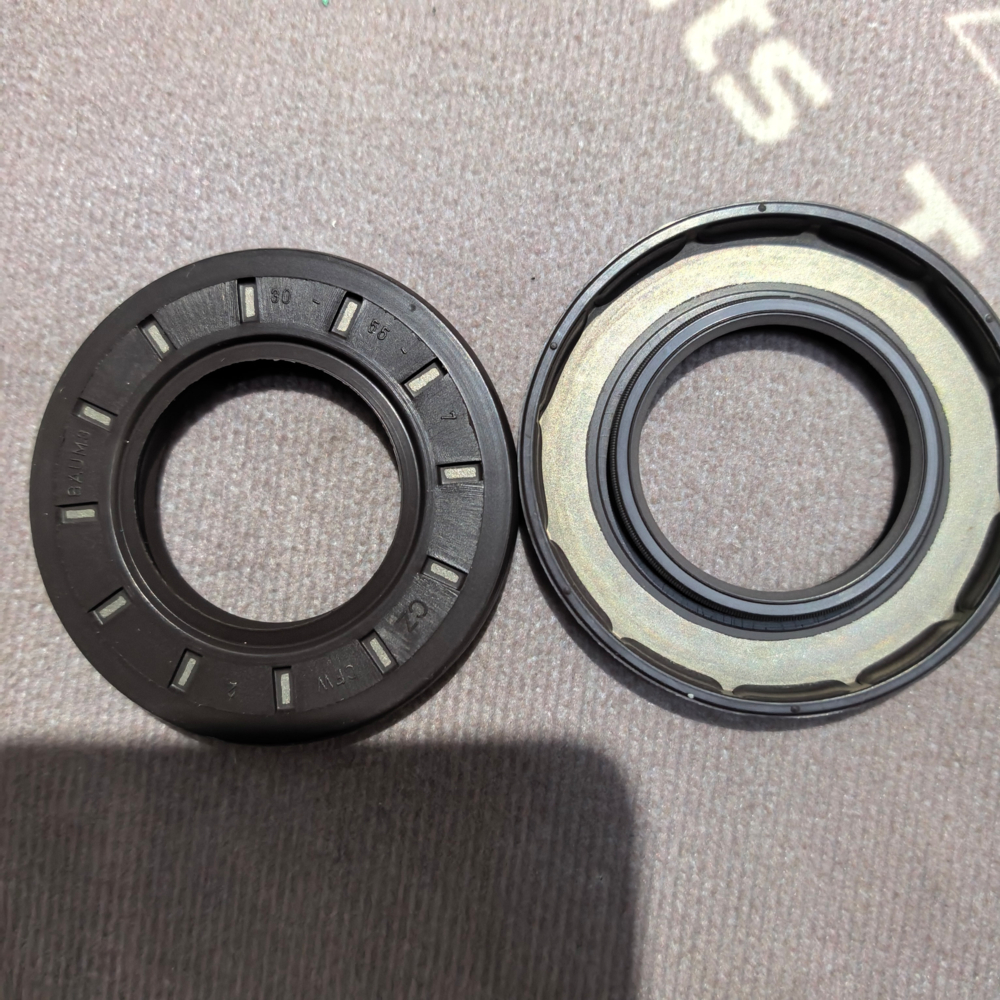

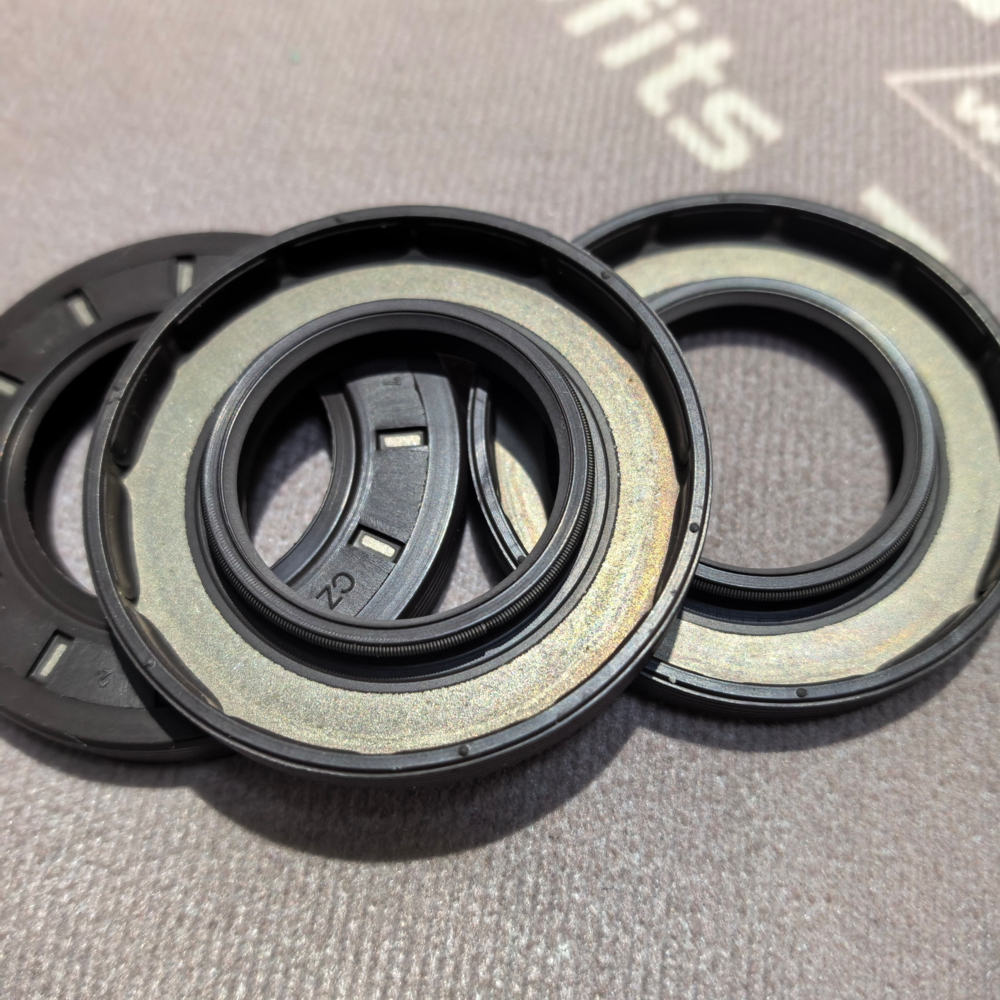

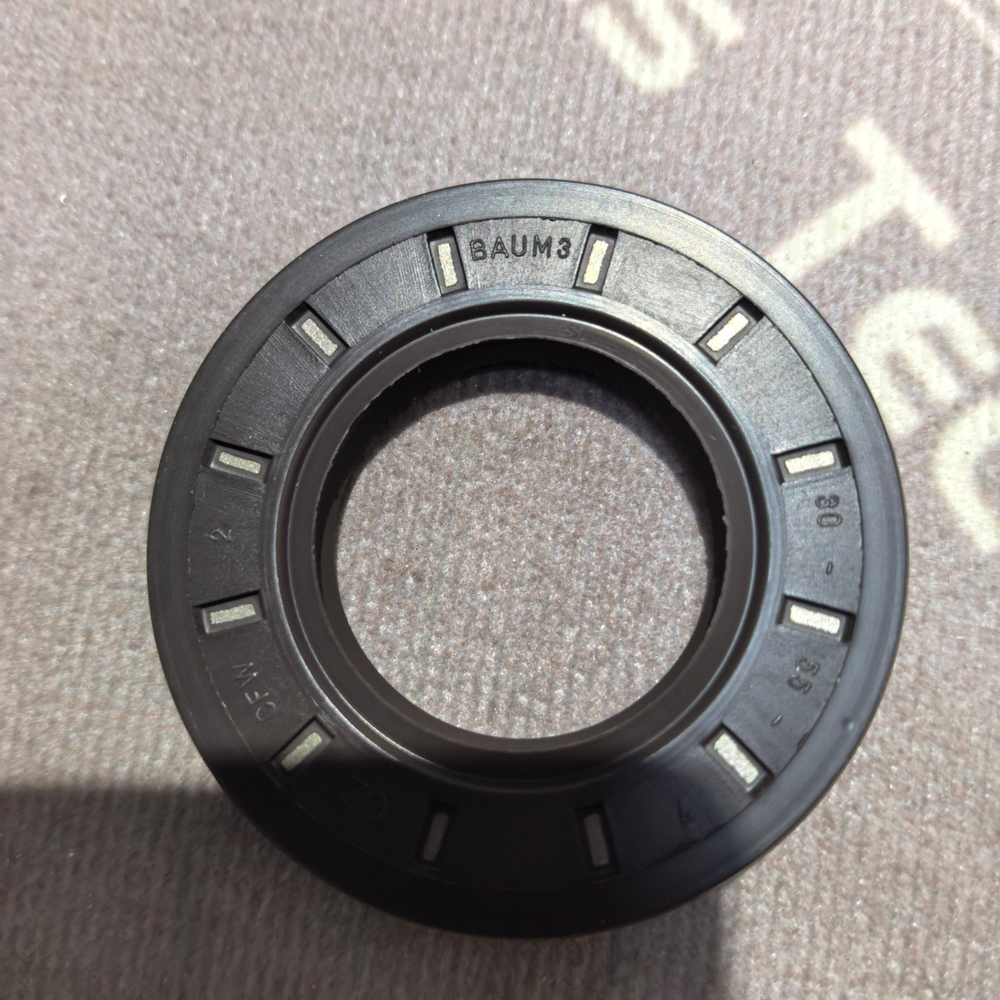

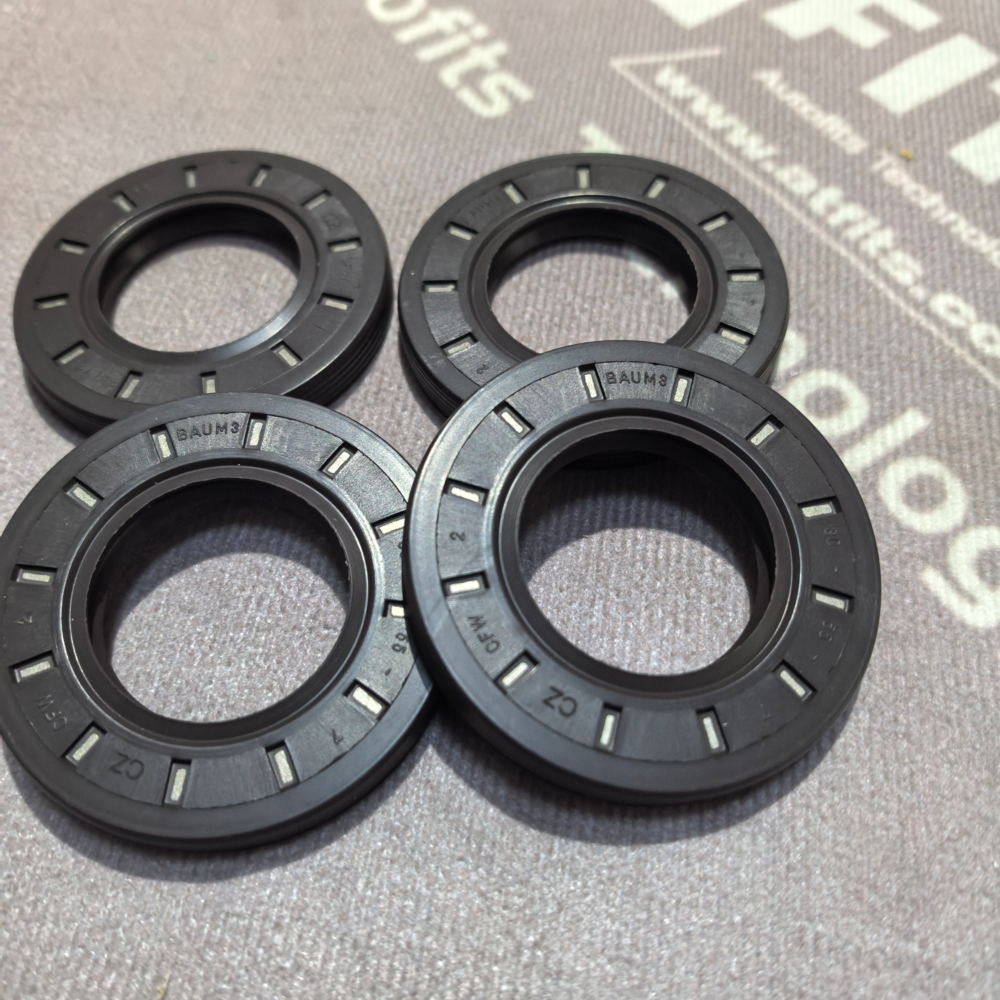

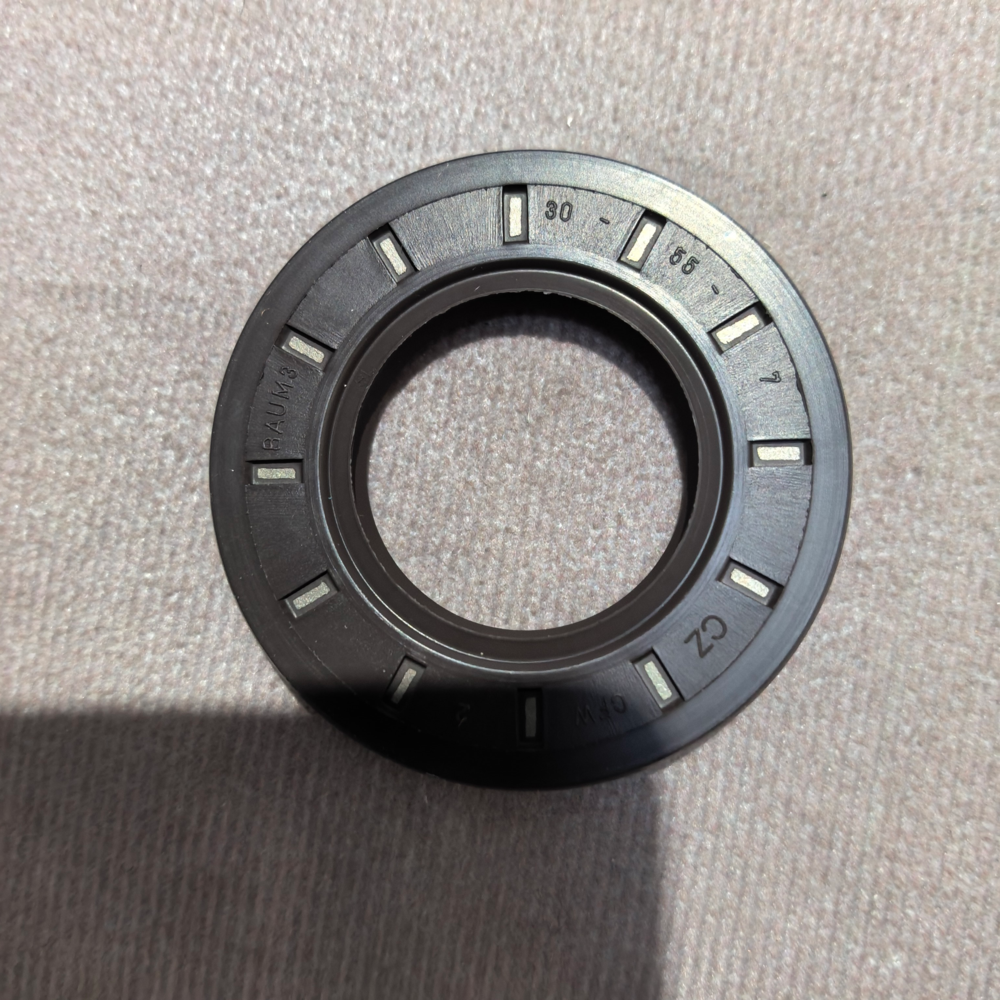

BAUMSLX7 is an original Simmerring® radial shaft oil seal developed and manufactured by Freudenberg CFW, belonging to the classic BAUM series rotary shaft sealing product line. Complying strictly with DIN 3760 international industrial standards, this sealing component adopts integrated composite construction: wave-shaped elastomer outer casing, built-in stainless steel tension spring, primary sealing lip and an additional external dust-proof auxiliary lip (SL structure). It is specially designed for dynamic sealing of rotating shafts, applied to prevent leakage of lubricating oil, hydraulic fluid and low-viscosity media inside gearboxes, motors and hydraulic equipment, while blocking external dust, dirt, splash water and particulate contaminants from invading the internal lubrication chamber. The X7 structural design optimizes contact pressure distribution for both static and dynamic sealing scenarios. Widely used in machine tools, automated production equipment, construction machinery, agricultural vehicles, gear reducers, hydraulic pumps, packaging machinery and general industrial transmission systems. Two mainstream rubber materials (NBR and FKM) are optional to adapt to diverse temperature and chemical medium environments.
Main Technical Specifications
| Parameter Item | Standard Specification Details |
|---|---|
| Full Model Code | BAUMSLX7 (Simmerring AS Type) |
| Product Type | Radial Shaft Oil Seal / Rotary Shaft Sealing Ring |
| Standard Structural Composition | Metal reinforcing shell + rubber outer jacket + tension spring + main sealing lip + external dust lip |
| Optional Elastomer Materials | 72 NBR 902 (Nitrile Butadiene Rubber); 75 FKM 585 (Fluorocarbon Rubber) |
| Applicable Shaft Surface Speed | Max 12 m/s |
| Operating Temperature Range | NBR: -35 ℃ ~ +100 ℃; FKM: -20 ℃ ~ +180 ℃ |
| Applicable Medium | Gear oil, hydraulic oil, grease, low-viscosity liquid, gaseous media |
| Permissible Working Pressure | ≤ 0.05 MPa |
| Rotation Direction | Bidirectional rotation available |
| Outer Surface Design | Wavy corrugated rubber outer layer |
| Compliance Standards | DIN 3760, REACH, RoHS industrial certification |
| Sealing Performance | Zero obvious oil leakage under rated working conditions |
Dimensions and Net Weight (Standard Universal Size: 16×32×7 mm)
- Inner Diameter (Shaft Matching Size): 16 mm
- Outer Diameter (Housing Bore Size): 32 mm
- Overall Axial Width: 7 mm
- Single Seal Net Weight: approximately 8.5 grams
Note: Multiple metric dimension specifications are customizable according to shaft and housing installation requirements.
Core Main Functions
- Dynamic Lubricant Sealing: The main lip tightly fits the rotating shaft surface to prevent internal lubricating oil and hydraulic fluid from leaking outward continuously during shaft operation.
- External Dust & Contamination Prevention: Independent SL dust lip intercepts dust, metal chips, muddy water and particulate impurities to avoid abrasion of the main sealing lip and premature seal failure.
- Static Sealing at Standstill: Maintains stable contact pressure on the shaft surface when equipment stops running, eliminating static oil seepage.
- Thermal Expansion Compensation: Wavy rubber outer jacket offsets dimensional changes caused by housing thermal expansion and slight bore roughness deviation.
- Split Housing Adaptability: Achieves reliable sealing performance even for split aluminum alloy or cast iron gearbox housings.
- Bidirectional Rotation Adaptation: Works stably under both clockwise and counterclockwise shaft rotation without sealing efficiency attenuation.
- Low Friction Operation: Optimized lip contour reduces rotational resistance, lowering equipment power consumption and shaft surface wear.
- Easy Installation & Replacement: Standardized dimensional layout enables direct replacement for all same-size Freudenberg radial shaft seals.
Key Technical Features
- Patented X7 lip profile design uniformly distributes contact stress, greatly extending service life under long-term continuous rotation.
- Built-in stainless steel coil spring keeps the sealing lip closely attached to the shaft surface all the time, compensating lip wear automatically.
- Wavy elastomer outer casing enhances static sealing between the seal outer circle and housing bore, adapting to rough bore surfaces and temperature deformation.
- Dual-lip structure (main sealing lip + dust lip) realizes integrated sealing and dustproof functions, ideal for dusty industrial workshop environments.
- Two premium rubber formulas available: NBR for general oil-resistant scenarios; FKM for high-temperature, acid and alkali chemical-resistant harsh working conditions.
- Precision ground sealing lip edge minimizes friction torque, effectively reducing heat generation and oil carbonization inside the equipment.
- Reinforced metal inner skeleton guarantees overall circular rigidity, preventing seal deformation during press-fit installation.
- Optimized backflow groove structure delivers excellent oil pumping back effect, thoroughly avoiding oil accumulation beside the lip and leakage risk.
List of 10 Freudenberg CFW Similar Functional Radial Shaft Seals
- BAUMX7 (Single main lip, no external dust lip)
- BAUMSL (Standard dust lip structure without X7 optimized lip contour)
- BABSL (High-pressure resistant reinforced radial shaft seal)
- BAUX2 (Economy general-purpose single-lip oil seal)
- BAU (Basic standard single-lip Simmerring seal)
- BAUM6SLX7 (Large-diameter heavy-duty BAUMSLX7 variant)
- B2U (Double-lip symmetrical rotary shaft sealing ring)
- BAFUD (Low-temperature anti-freezing radial seal)
- B1FUD (High-speed low-friction dedicated shaft seal)
- BAUM3SLX7 (Medium-size multi-purpose dustproof oil seal)
