Showing 25–36 of 960 resultsSorted by latest

Show sidebar
Show 12 24 36

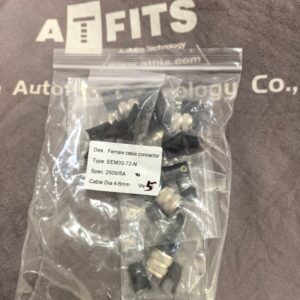

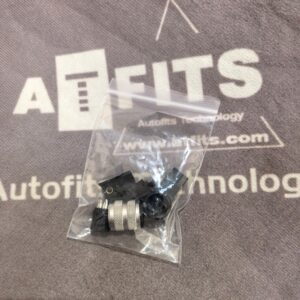

# New Original Novotechnik EEM33-72-N M16 5Pin Angled Female Connector IP40 ## 1. Product Overview EEM33-72-N is an original Novotechnik angled female circular connector, designed for signal connection with Novotechnik linear position transducers, rotary sensors and potentiometers. It features M16 thread interface, 5 electrical pins and 90-degree angled housing structure. The protection rating is IP40, suitable for indoor control cabinet and general machinery installation environments without direct exposure to water spray. This connector serves as a mating cable end for many Novotechnik position sensors. It provides stable transmission for analog voltage, current or resistance signals between displacement sensors and PLC or measurement controllers. The angled housing effectively avoids sharp cable bending and saves installation space in narrow mechanical structures. Widely applied in injection molding machines, hydraulic equipment, automated assembly equipment, test rigs and mobile machinery position feedback systems. ## 2. Main Functions 1. **Reliable Signal Transmission Connection** Establishes electrical connection between Novotechnik position sensors and external control cables, transmitting measurement signals continuously and stably. 2. **90-Degree Angled Cable Outlet Design** Right-angle housing layout reduces cable bending stress, prevents wire breakage caused by repeated movement and limited installation space. 3. **M16 Standard Thread Locking Mechanism** Threaded coupling ensures secure locking onto the sensor socket, resisting slight vibration loosening under normal operating conditions. 4. **5-Pin Contact Layout** Matches standard pin assignment of Novotechnik analog sensors, supporting power supply, signal output and auxiliary wiring circuits. 5. **IP40 Environmental Protection** Blocks solid foreign objects larger than 1 mm; prevents dust accumulation that may cause poor contact, suitable for clean indoor industrial environments. 6. **Convenient On-Site Cable Assembly** Allows field wiring termination for customized cable lengths, flexible for different machine wiring layouts. 7. **Anti-Vibration Contact Structure** Precision spring contact design maintains stable electrical continuity under low-frequency mechanical vibration. ## 3. Technical Characteristics 表格 | Technical Parameter | Detailed Specification | | --- | --- | | Full Model | EEM33-72-N | | Product Type | Angled Female Circular Connector | | Thread Size | M16 × 1.0 | | Pin Quantity | 5 Pins | | Housing Shape | 90° Angled (Right Angle) | | Connector Gender | Female | | Protection Class | IP40 (mated condition) | | Rated Voltage | 60 V DC | | Rated Current per Pin | 4 A | | Contact Material | Copper Alloy, Gold Plated | | Housing Material | Thermoplastic | | Cable Entry Range | 4 mm ~ 7 mm outer cable diameter | | Connection Method | Screw terminal assembly | | Operating Ambient Temperature | -20 ℃ ~ +80 ℃ | | Storage Temperature Range | -40 ℃ ~ +85 ℃ | | Application Target | Novotechnik linear / rotary position sensors | | Compliance Standards | RoHS | ### Core Technical Advantages 1. Optimized right-angle structure solves wiring difficulties in confined installation positions; 2. Gold-plated contacts guarantee low contact resistance and stable analog signal transmission; 3. Standard M16 interface compatible with a wide range of Novotechnik sensor series; 4. Field-assemblable design supports flexible cable configuration without fixed moulded cables; 5. Compact size occupies minimum space on machine frames and sensor mounting positions. ## 4. Product Dimensions and Weight ### External Dimensions (Unit: Millimeter) 表格 | Dimension Item | Exact Size | | --- | --- | | Overall Length | 52 | | Overall Width | 22 | | Overall Height | 36 | ### Weight Parameters 表格 | Weight Category | Specific Value | | --- | --- | | Single Unit Net Weight | 32 g | | Original Packaged Gross Weight | 38 g | ## 5. 10 Novotechnik Similar Sensor Circular Connectors All items are M16 series connectors for Novotechnik position transducers, available in straight or angled types with different pin counts and protection grades: 1. EEM33-70-N M16 5Pin Straight Female Connector IP40 2. EEM33-73-N M16 5Pin Angled Male Connector IP40 3. EEM33-71-N M16 5Pin Straight Male Connector IP40 4. EEM34-72-N M16 4Pin Angled Female Connector IP40 5. EEM35-72-N M16 6Pin Angled Female Connector IP40 6. EEM33-82-N M16 5Pin Angled Female Connector IP67 7. EEM33-80-N M16 5Pin Straight Female Connector IP67 8. EEM36-72-N M16 8Pin Angled Female Connector IP40 9. EEM33-72-N-01 M16 5Pin Angled Female Connector with Strain Relief 10. EEM37-72-N M16 12Pin Angled Female Circular Connector IP40
Read more

New Original Novotechnik EEM33-72-N M16 5Pin Angled Female Connector IP40

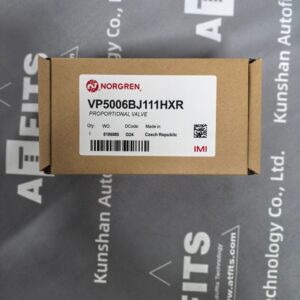

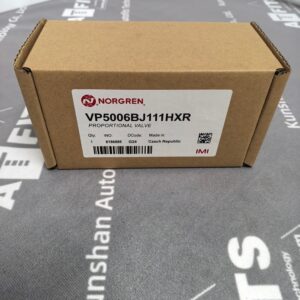

New Original Norgren VP5006BJ111HXR VP50 Series Proportional Pressure Control Valve
Read more

New Original Norgren VP5006BJ111HXR VP50 Series Proportional Pressure Control Valve

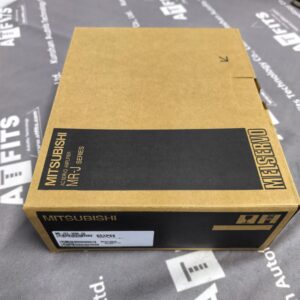

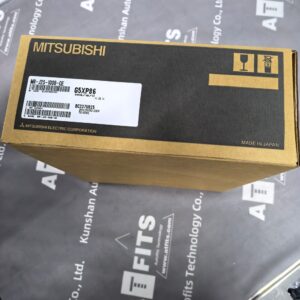

New Original Mitsubishi BC337U025 MR-J2S-100B-QE 1kW SSCNET AC Servo Drive
Read more

New Original Mitsubishi BC337U025 MR-J2S-100B-QE 1kW SSCNET AC Servo Drive

New Original Lenze EMF2178IB CANopen Communication Bus Module
Read more

New Original Lenze EMF2178IB CANopen Communication Bus Module

New Original Lenze EMF2177IB USB-CAN System Bus Debug Adapter
Read more

New Original Lenze EMF2177IB USB-CAN System Bus Debug Adapter

New Original Lenze E82EV551K4C 8200 Vector AC Drive Frequency Inverter
Read more

New Original Lenze E82EV551K4C 8200 Vector AC Drive Frequency Inverter

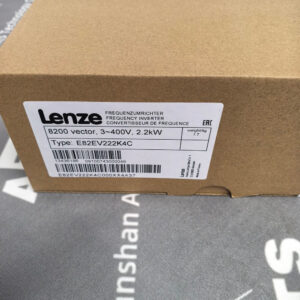

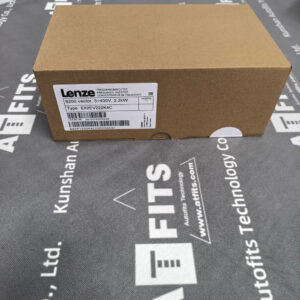

New Original Lenze E82EV222K4C 8200 Vector AC Drive Frequency Inverter
Read more

New Original Lenze E82EV222K4C 8200 Vector AC Drive Frequency Inverter

New Original Lenze E82EV152K4C 8200 Vector Frequency Inverter
Read more

New Original Lenze E82EV152K4C 8200 Vector Frequency Inverter

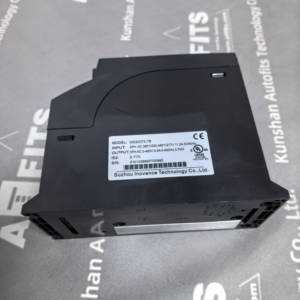

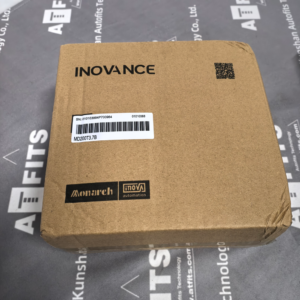

New Original Inovance MD200T3.7B MD200 Series Compact VFD
Read more

New Original Inovance MD200T3.7B MD200 Series Compact VFD

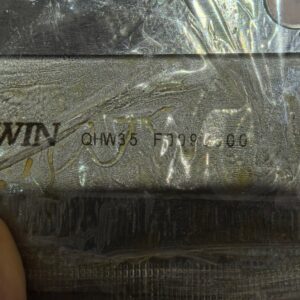

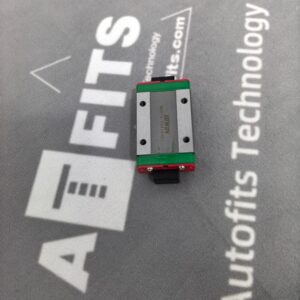

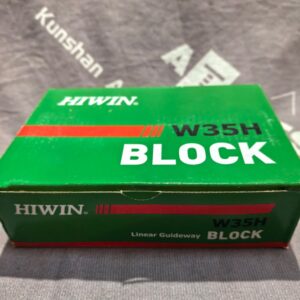

New Original HIWIN W35H HGW35HC Flange Linear Bearing Block
Read more

New Original HIWIN W35H HGW35HC Flange Linear Bearing Block

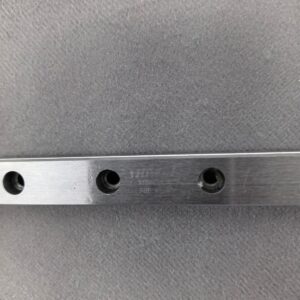

New Original HIWIN MGNR12C Mini Linear Rail Guide
Read more

New Original HIWIN MGNR12C Mini Linear Rail Guide

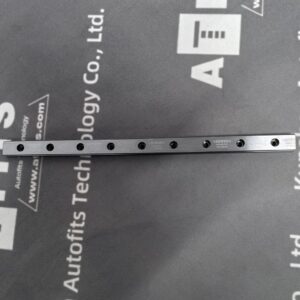

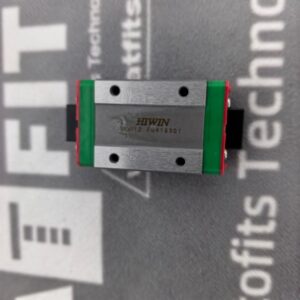

New Original HIWIN MGN12 Mini Linear Rail Guide
Read more

New Original HIWIN MGN12 Mini Linear Rail Guide
