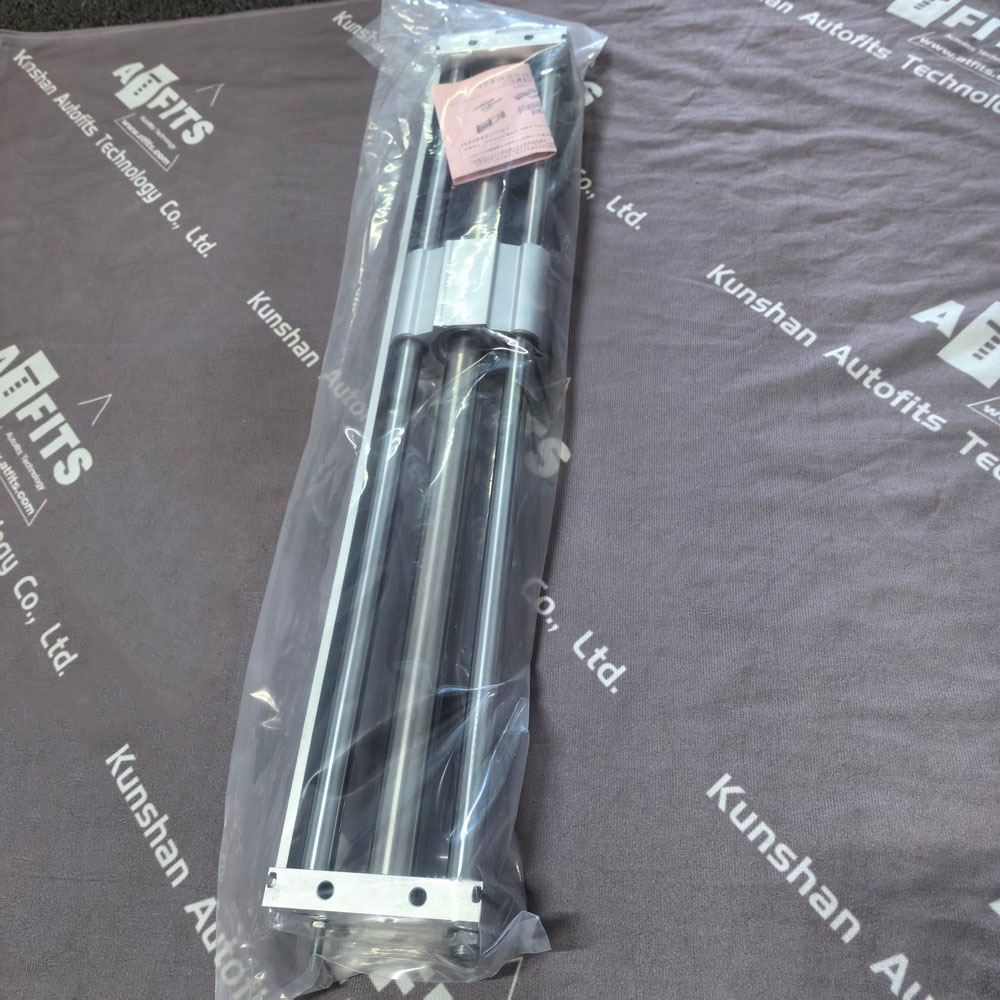

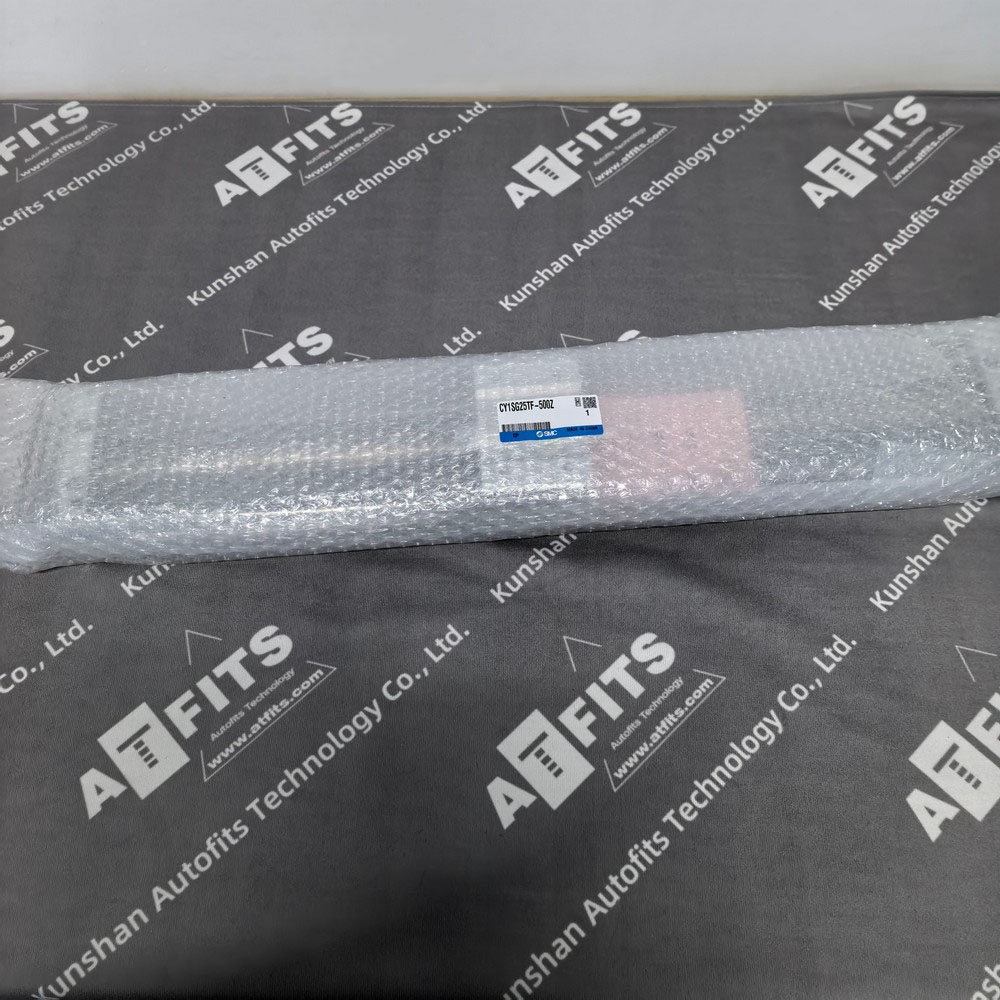

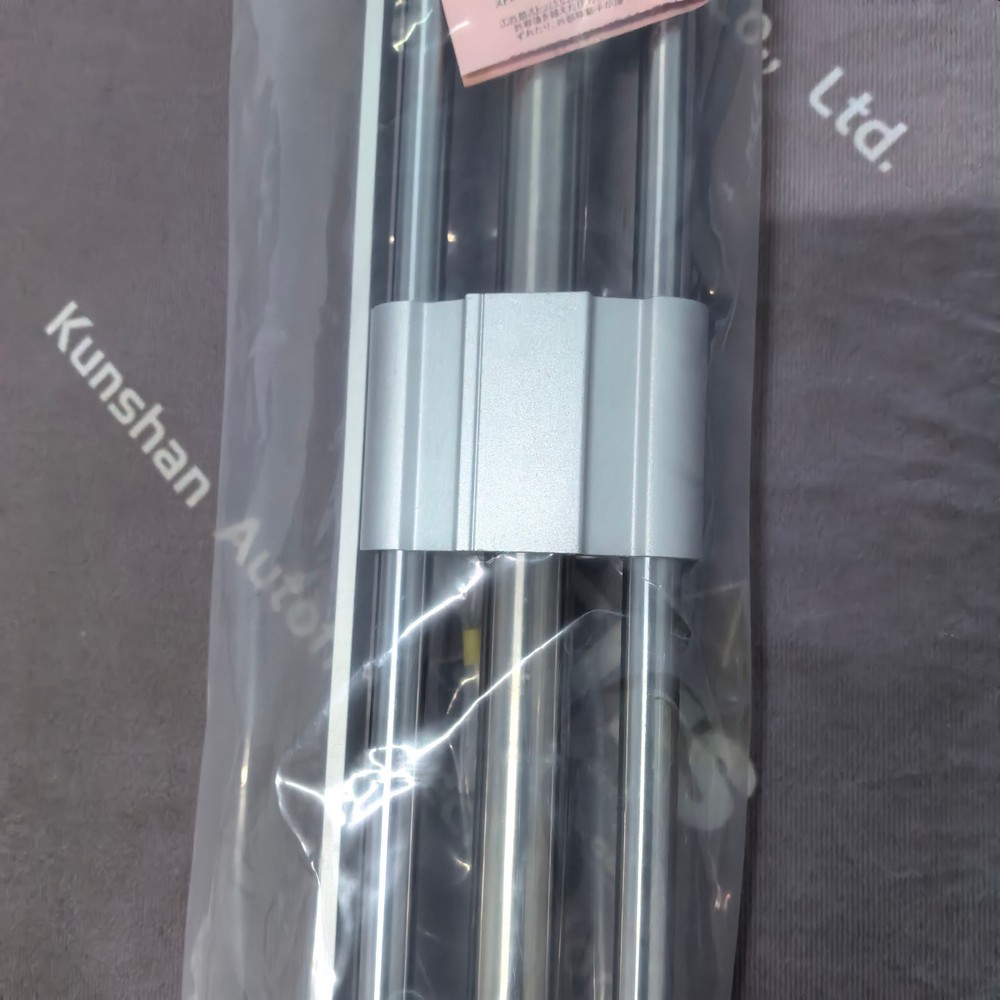

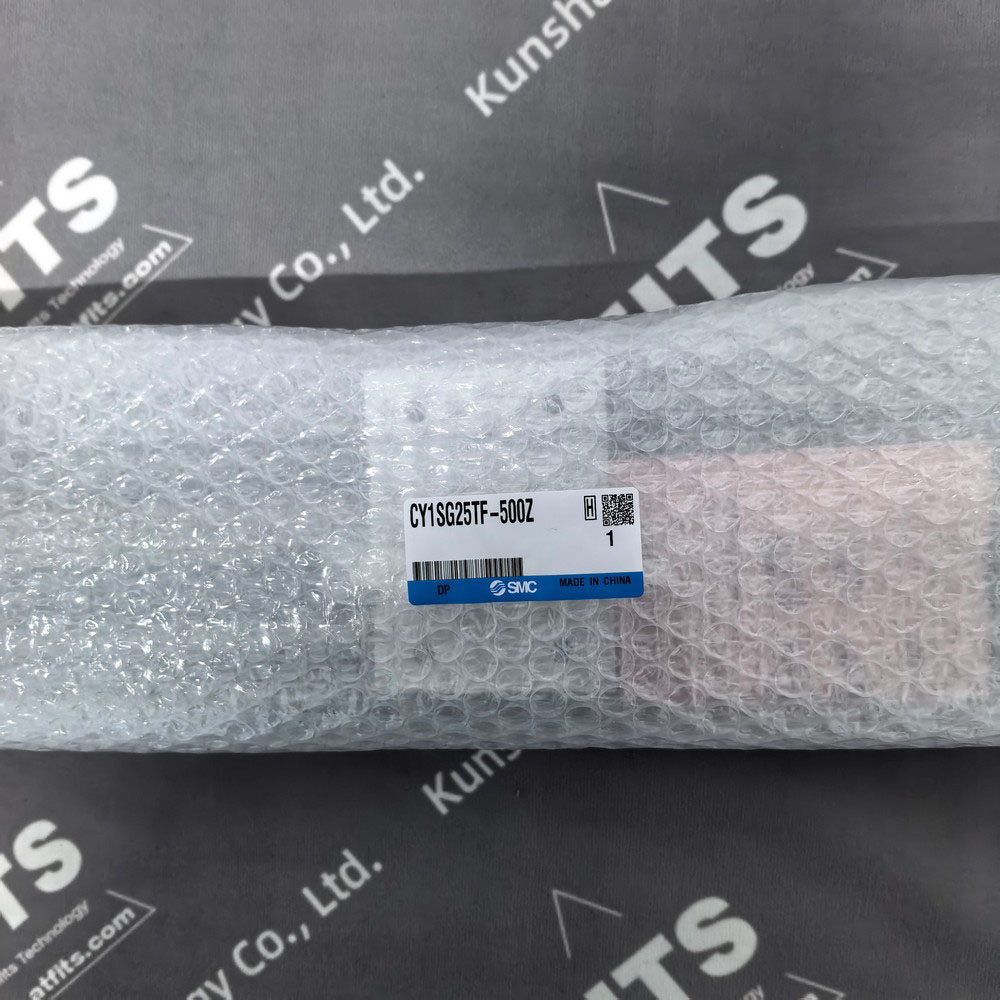

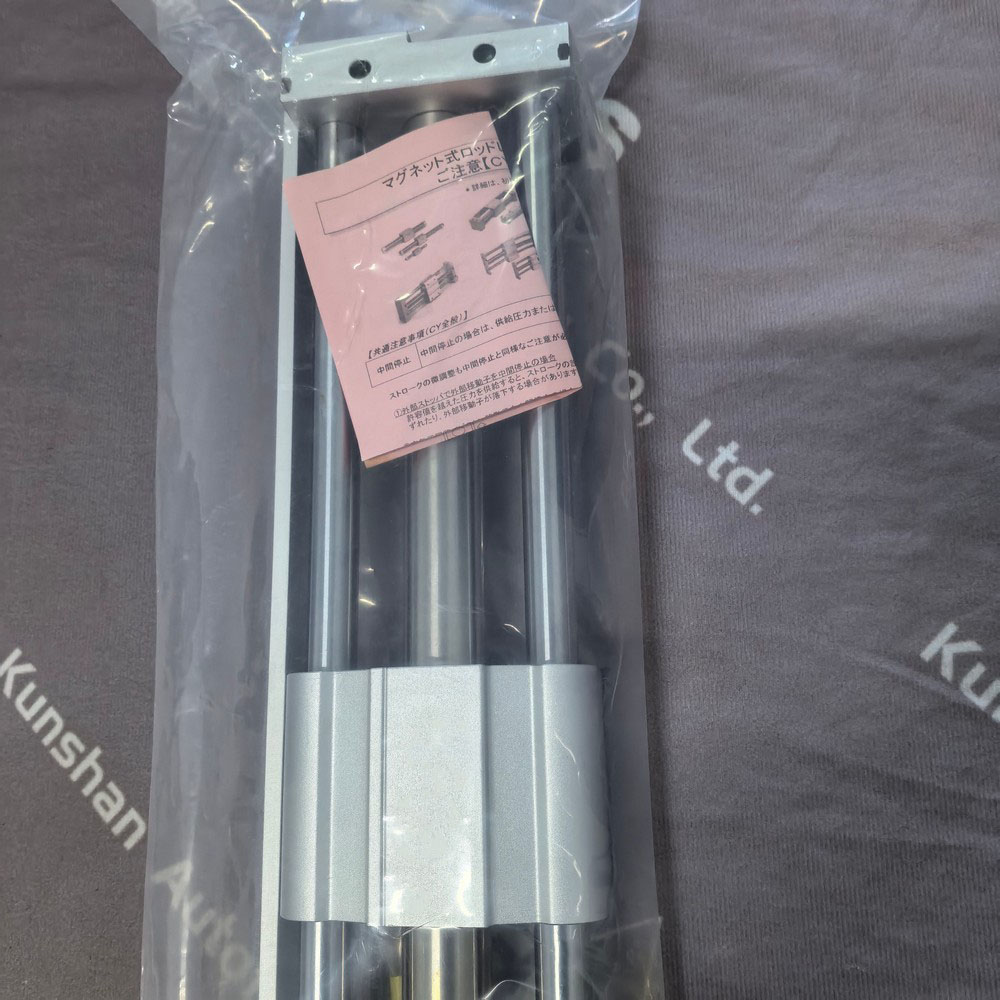

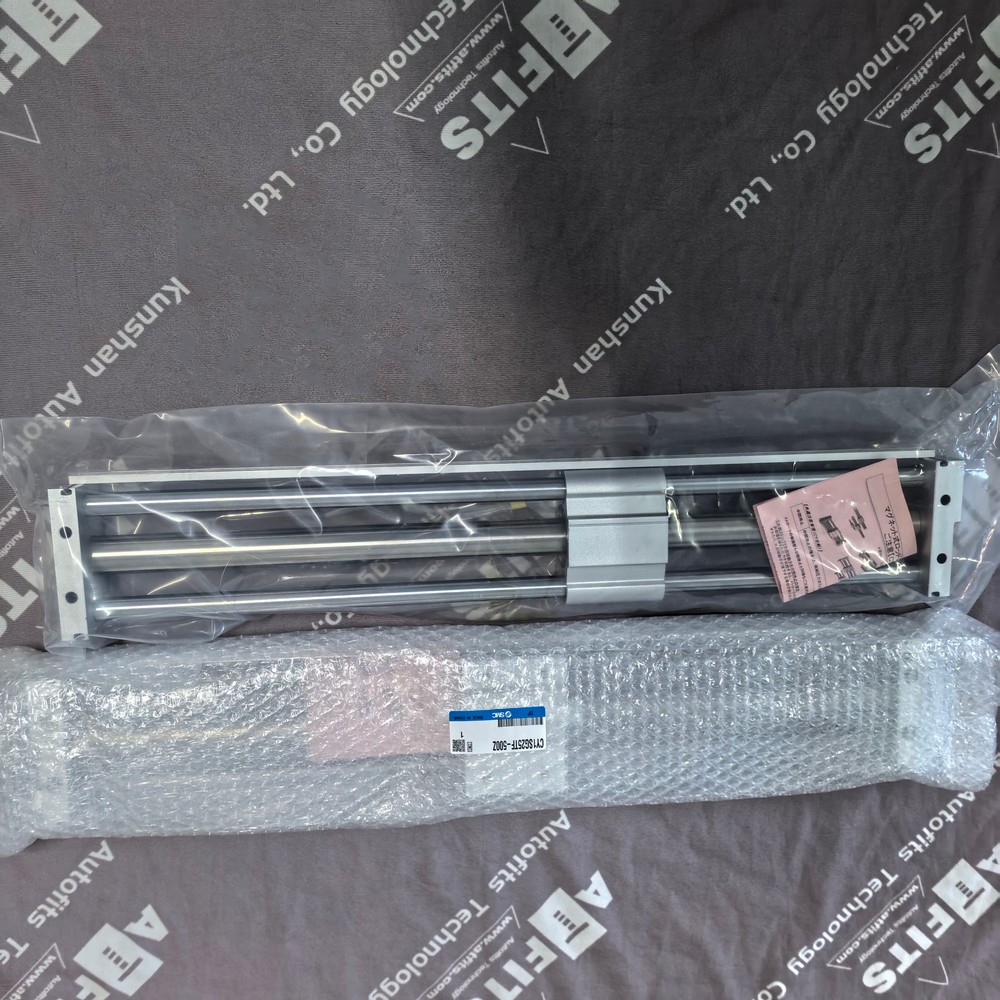

New Original SMC CY1SG25TF‑500Z Rodless Pneumatic Cylinder
"*" indicates required fields
New Original SMC CY1SG25TF‑500Z Rodless Pneumatic Cylinder
Product Overview
The SMC CY1SG25TF‑500Z is a magnetically coupled rodless pneumatic cylinder of CY1S‑Z series. It uses internal magnetic force to drive slider movement without external piston rod. Centralized piping design optimizes space layout. It applies to material transfer equipment, automated assembly lines and linear motion mechanisms. It realizes long stroke linear drive with compact installation space.
Main Functions
- Provide stable long‑distance linear reciprocating motion driven by compressed air
- Support external load installation directly on moving slider surface
- Realize bidirectional movement controlled by pneumatic directional valve
- Allow installation of magnetic switches for position signal feedback
- Reduce overall mechanical length compared with conventional rod type cylinder
Technical Features
| Item | Parameter |
|---|---|
| Bore Size | 25 mm |
| Rated Stroke | 500 mm |
| Operating Pressure Range | 0.18 MPa to 0.7 MPa |
| Max Allowable Thrust | 814 N |
| Max Operating Speed | 400 mm per second |
| Operating Temperature Range | -10 degree Celsius to +60 degree Celsius |
| Guide Structure | Slide bearing |
| Piping Type | Centralized piping |
Product Dimension and Weight
The cylinder tube outer width is 54 mm, overall height is 62 mm. Total assembled length equals stroke plus fixed end dimension. The total unit weight is 3.44 kilogram. Multiple mounting holes are reserved on base for cabinet or frame installation.
