Product Description for Siemens BPZ:RLE162 Wall‑Mount Immersion Temperature Controller
1. Product Overview
BPZ:RLE162 (Order code RLE162) is a new‑original compact wall‑mounted and pipe‑installable electronic controller under Siemens Synco 100 series for HVAC and heating‑water control systems. This integrated unit combines LG‑Ni1000 immersion temperature sensor, built‑in PI controller, manual set‑point adjustment slider and control electronic components in one single housing. It runs on AC24 V control power and outputs DC 0‑10 V analogue signals to drive mixing valves, circulating pumps and modulating actuators for hot‑water circuits, chilled‑water pipelines and heating‑loop systems. It supports external input signals for remote set‑point modification, outside‑temperature compensation and temperature limitation. Besides analogue outputs, it provides an extra relay switching contact for auxiliary equipment control such as alarm triggers or pump start‑stop commands. It can be installed either on control‑cabinet walls or directly mounted to pipelines via a G½A threaded immersion sleeve for heating‑system applications in residential buildings, hotels, factory workshops and district heating stationshit.sbt.si…. It works independently without relying on higher‑level building management system and complies with European HVAC industry standards.
2. Main Functions
- PI Proportional‑Integral Temperature Regulation
Built‑in PI algorithm automatically adjusts DC 0‑10 V analogue outputs Y1 and Y2 to change opening of water‑mixing valves, maintaining stable flow‑water temperature. Users can select heating mode or cooling mode by internal configuration settings.
- Multi‑Input Signal Processing
It receives sensor signals from built‑in immersion probe and external inputs: remote set‑point potentiometer, outside‑air temperature sensor and 0‑10 V limitation signals to realize weather‑compensated temperature adjustment and upper/lower temperature limit protection.
- Adjustable Switching Relay Output
The Q13‑Q14 relay contact activates when heating or cooling demand exceeds 5% of control span. It can control circulation pumps, auxiliary heaters and fault‑indication devices. The contact resets automatically after 12 minutes with zero demand.
- Manual Operation and Test Mode

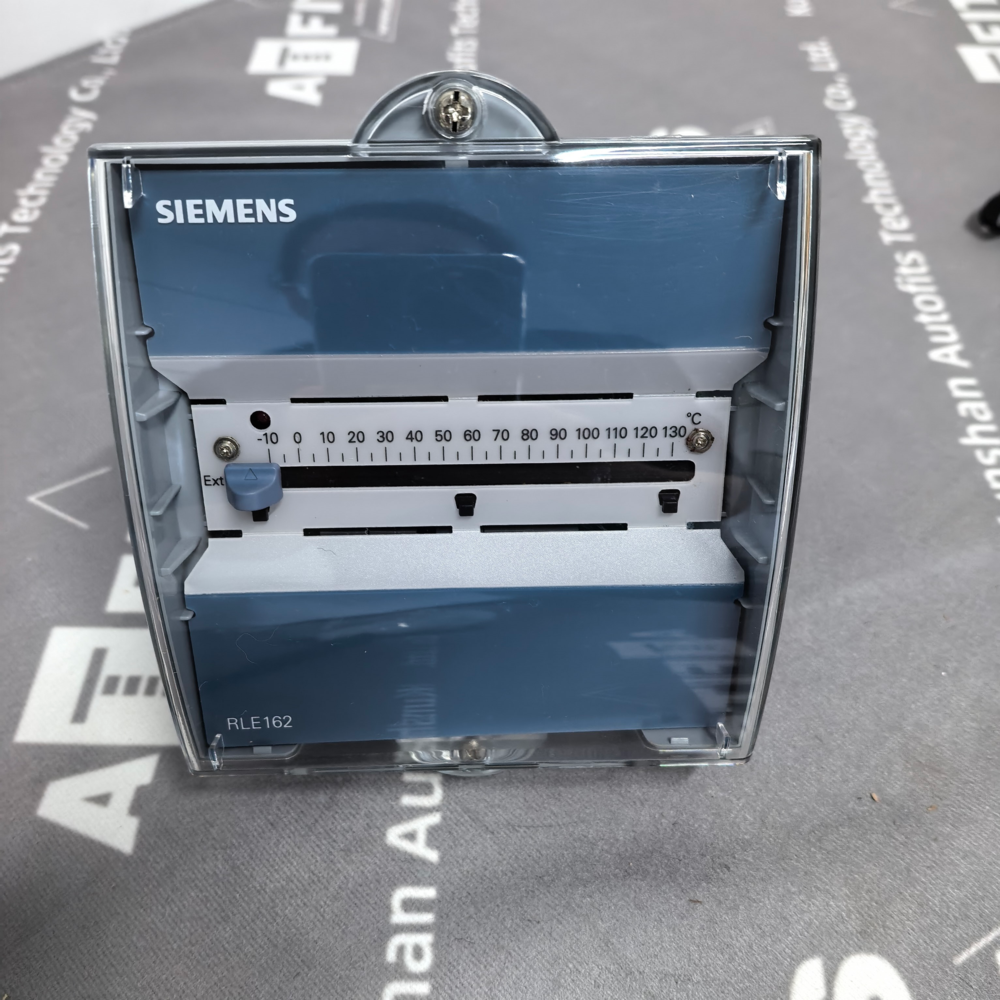

The front‑side slider enables manual set‑point configuration. Under test mode indicated by flashing LED, users manually drive actuators to check equipment running status during commissioning without connecting upper‑level controllers. Solid‑on LED means normal working statehit.sbt.si….
- Legionella Protection Function
When parameter is enabled, the controller triggers high‑temperature periodic disinfection cycles for domestic hot‑water circuits to suppress legionella bacteria in hot‑water storage tanks.
- Flexible Installation Options

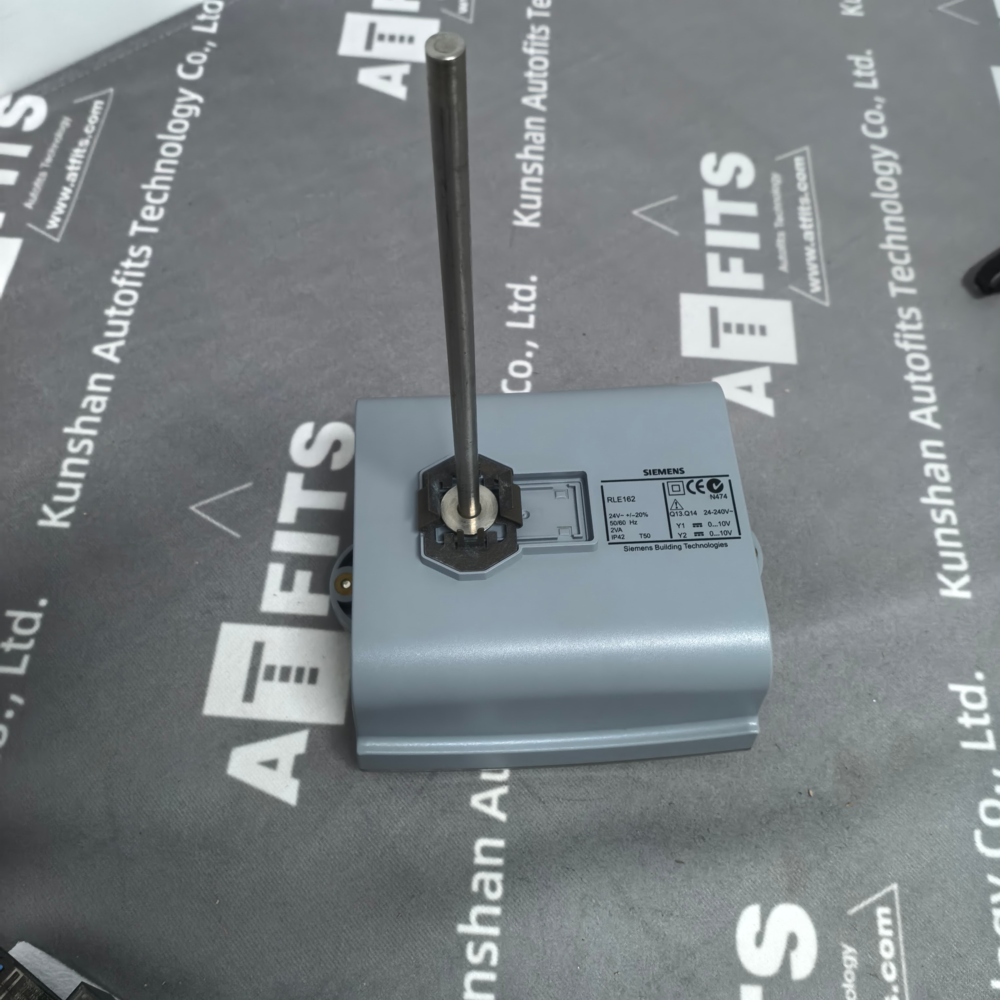

Two installation ways are available: wall‑mount installation inside control cabinets or immersion installation on water pipes with stainless‑steel probe; stainless‑steel sensing rod complies with DIN‑17440 standard for long‑term contact with hot‑water mediumhit.sbt.si….
- Short‑Circuit and Over‑Temperature Protection
Internal circuit protection prevents electronic damage caused by short‑circuited outputs and over‑high ambient temperature to extend service life.
3. Technical Characteristics
表格
| Item | Specific Parameters |
|---|---|
| Part Number | BPZ:RLE162 (RLE162) |
| Product Series | Siemens Synco 100 immersion‑type temperature controller |

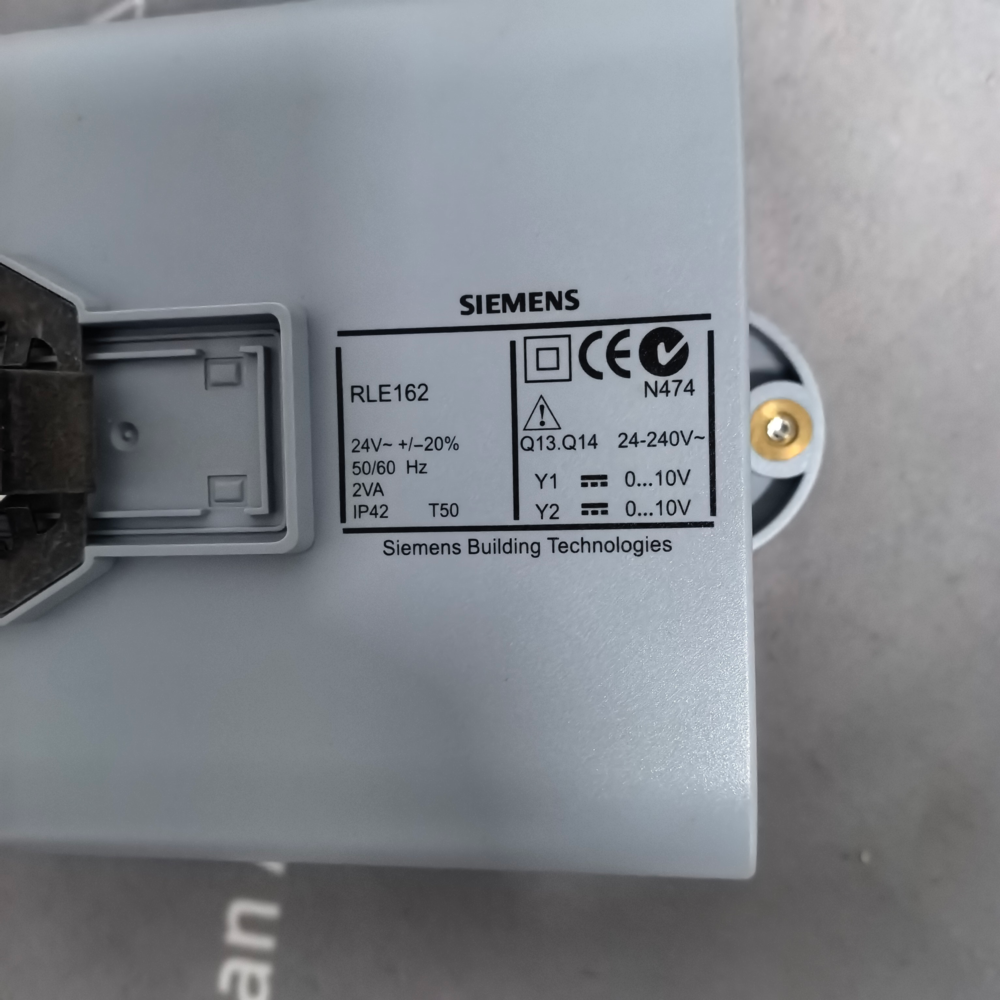

| Supply Voltage | AC 24 V, 50/60 Hz |
| Sensor Element | LG‑Ni1000 immersion temperature sensor |
| Temperature Measuring Range | ‑10 ℃ to +130 ℃ |
| Time Constant | 6 seconds without protection sleeve; 30 seconds with protection sleeve |
| Analogue Outputs | 2‑channel DC 0‑10 V (Y1,Y2) for modulating actuators |
| Digital Relay Output | One SPST switch contact (max 3 A, AC24‑230 V) |
| Input Terminals | External set‑point input, outside‑temperature input, two limitation signal inputs (DC0‑10 V) |
| Control Algorithm | PI control with adjustable integral time |
| Operating Ambient Temperature | 0 ℃ ~ +50 ℃ for cabinet‑mount installation |
| Medium Working Pressure | PN10 maximum pipeline pressure |
| Thread Connection Size | G½A stainless‑steel threaded nipple (material 1.4404) |
| Protection Class | IP65 for main housing; IP40 when installed inside cabinet |
| Storage and Transportation Temperature | ‑40 ℃ to +70 ℃ |
| EMC Compliance | EN61000‑6‑2 and EN61000‑6‑3 industrial‑grade standards |
| Housing Material | Flame‑retardant ABS plastic; stainless‑steel probe rod |
| Certifications | CE, UL and RoHS approved; Made in Switzerland |
4. Product Dimensions and Weight
表格
| Physical Parameter | Actual Value |
|---|---|
| Controller Housing Dimensions (Width × Height × Depth) | 125 mm × 152 mm ×78 mm |
| Immersion Probe Length | 130 mm maximum |
| Net Weight of complete unit | Approximately 300 g |
| Gross Weight with original‑factory packing | Around 380 g |
| Installation Type | Wall‑mount by screws or pipeline‑mount via G½A thread connector |
5. Application Scope
RLE162 is designed for hydronic HVAC systems. Typical applications include domestic hot‑water temperature control, heating‑circuit supply‑water temperature regulation, chilled‑water loop control, heat‑exchanger control and secondary‑circuit mixing‑valve management for hotels, office buildings, industrial workshops and district heating systemsSiemens.
6. 10 Siemens similar‑function temperature controllers for heating and hydronic systems
- RLE161: Compact single‑output version with only one DC0‑10 V analogue output for simple single‑valve heating‑loop projects without second actuator control.
- RLE172: Upgraded high‑performance model with three DC0‑10 V outputs and built‑in BACnet communication for building management system connection.
- RLE262: SIPLUS conformal‑coated variant adapted for high‑humidity industrial boiler rooms with anti‑corrosion property.
- RLE162‑01: 0‑10 V input‑only limited‑control version used purely for temperature‑limiting tasks without PID adjustment.
- RLE182: Weather‑dependent controller with built‑in outside‑temperature calculation program for large‑scale district‑heating networks.
- RWD62: Wall‑mount room‑temperature standalone controller for fan‑coil units with on‑off and 0‑10 V outputs for terminal HVAC equipment.
- RLE192: High‑temperature‑adapted model supporting medium temperature up to 150 ℃ for high‑temperature industrial hot‑water circuits.
- RLE163: Low‑power‑consumption variant with reduced power draw for energy‑saving cabinet‑installation environments.
- RLE261: DIN‑rail mounting type instead of wall‑mount design for compact PLC‑integrated control cabinets.
- RLE162‑KNX: KNX‑bus compatible RLE162 version for smart‑building KNX network‑based remote monitoring and parameter modification.
