New Original Siemens 6ES7400-1JA11-0AA0 SIMATIC S7-400 PLC Module
"*" indicates required fields
Product Description for Siemens 6ES7400‑1JA11‑0AA0 SIMATIC S7‑400 Rack Module
1. Product Overview

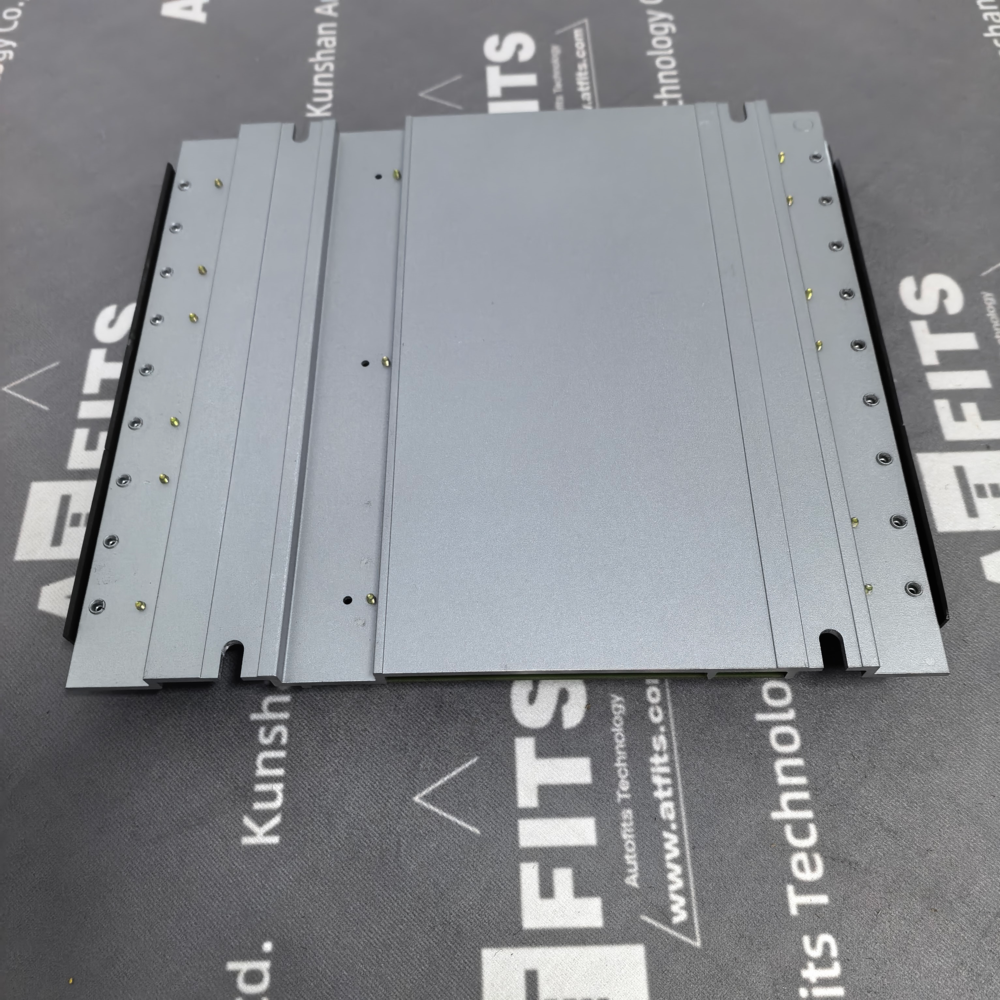

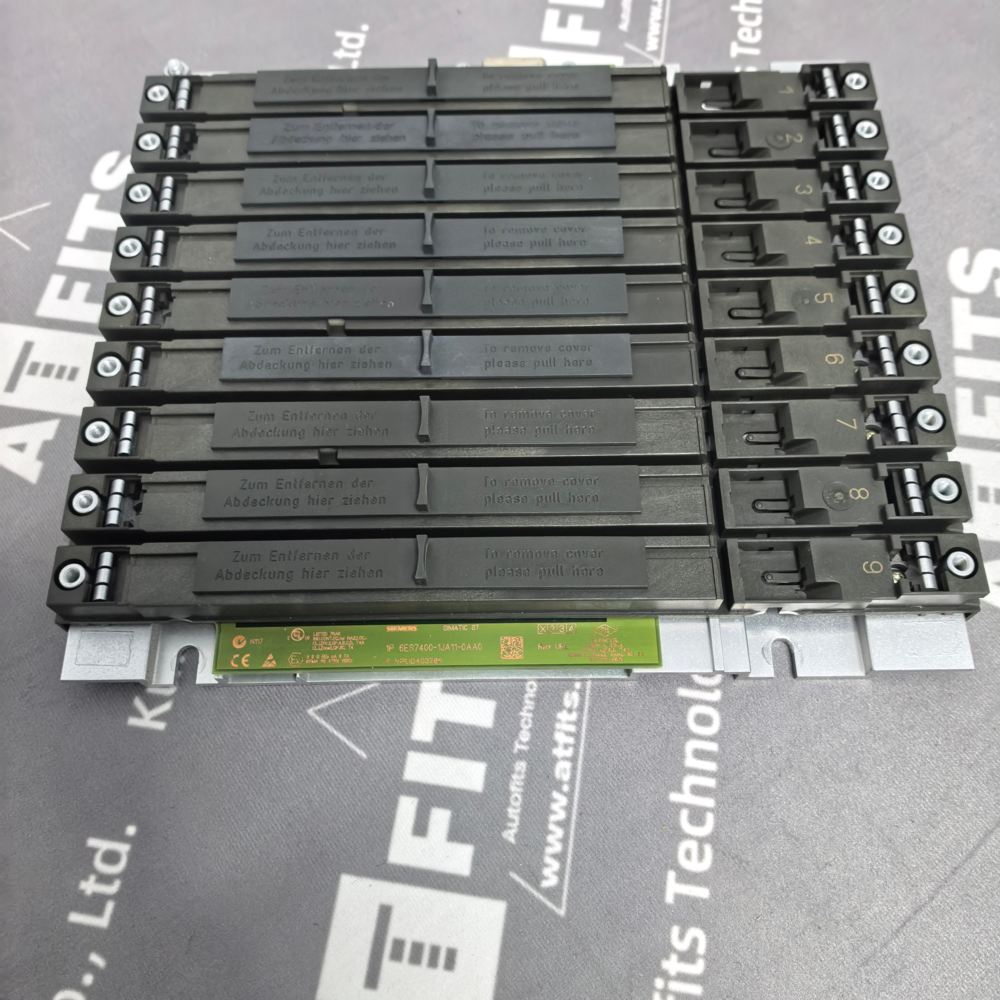

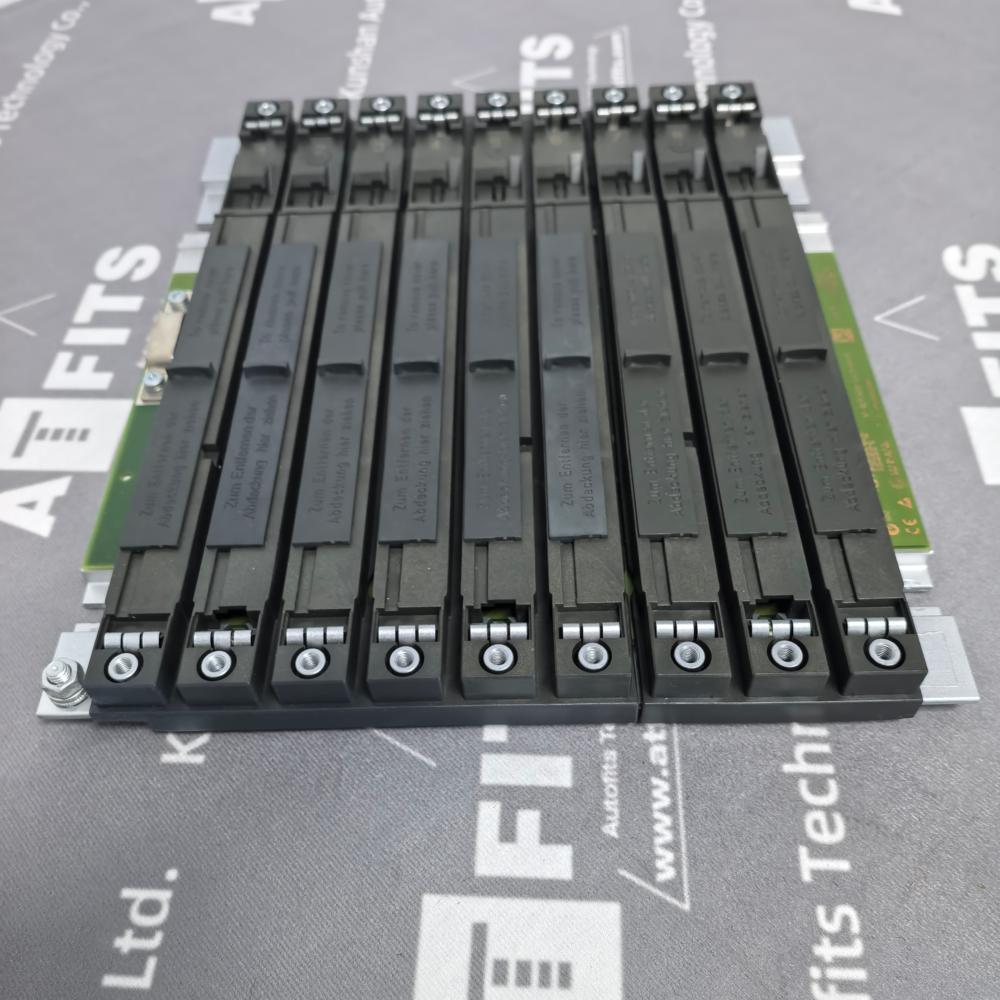

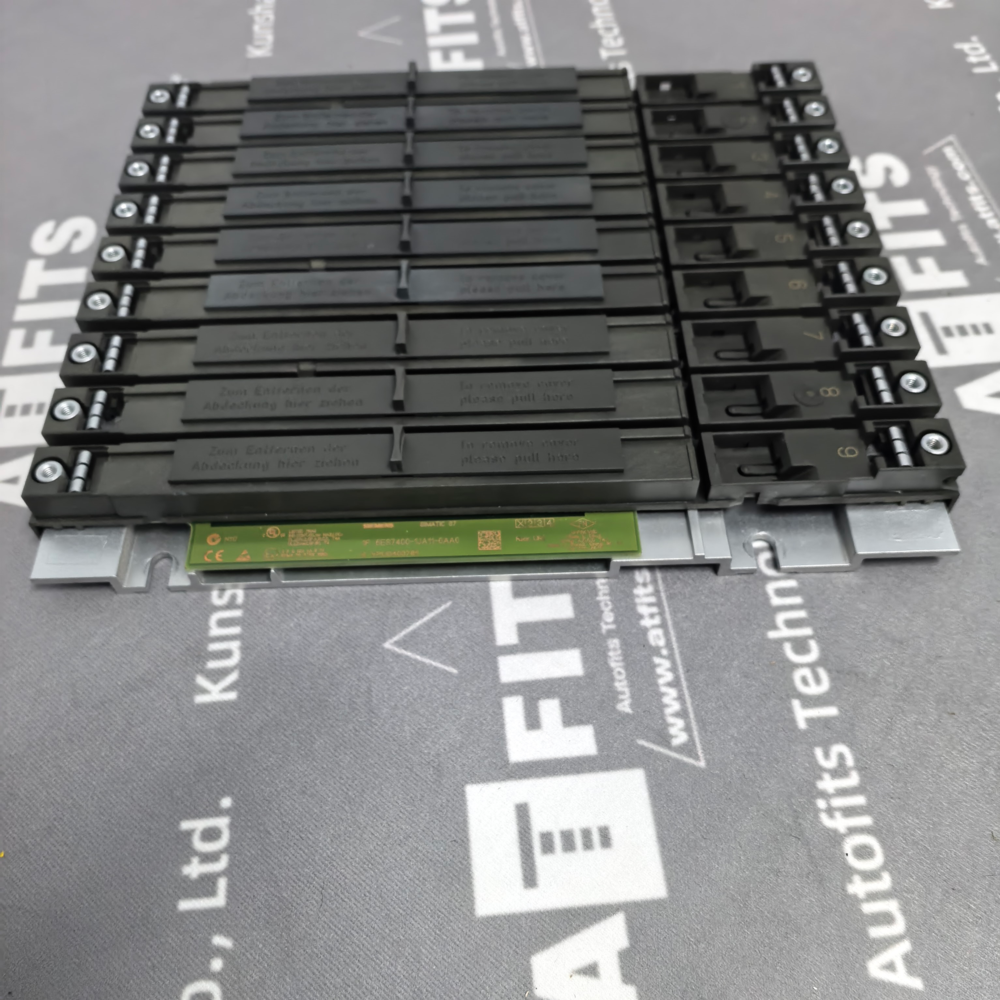

6ES7400‑1JA11‑0AA0 is a brand‑new original aluminum‑made UR2 rack belonging to SIMATIC S7‑400 PLC system. It serves as the fundamental mechanical and back‑plane bus carrier for S7‑400 controllers. This UR2 rack contains 9 module slots and supports both central rack (CR) and distributed expansion‑rack (ER) installation modes. It can accommodate two S7‑400 power‑supply modules for redundant power configuration, as well as CPU modules, communication processors, digital and analogue I/O modules and interface modules. The built‑in P‑bus and K‑bus transmit power and high‑speed bus signals among all plugged‑in modules. It builds the hardware foundation for high‑end PLC control systems widely deployed in petro‑chemical plants, power stations, metallurgy equipment, large‑scale production lines and PCS7 process‑control projects. The whole rack is mounted inside industrial control cabinets and forms a compact modular‑structure S7‑400 automation system.
2. Main Functions
- Mechanical Fixing and Positioning
It provides standard slot positions to firmly install S7‑400 series modules. Anti‑vibration aluminum‑alloy structure prevents modules from loosening under workshop vibration conditions.
- Back‑Plane Bus Transmission
Integrated P‑bus (Process bus) and K‑bus (Communication bus) deliver 5 V DC power, internal data signals and MPI communication signals between all inserted modules.
- Redundant Power‑supply Support
Two PS407 power‑supply modules can be mounted on this rack. Hot‑standby redundant power supply ensures continuous system running when one power‑supply unit fails.
- System Expansion Realization
When used as an expansion rack together with IM460‑IM461 interface modules, it expands installation slots away from the central rack to reduce long‑distance wiring.
- Heat‑Dissipation Structure
Aluminum profile accelerates heat dissipation for CPUs and high‑power modules, avoiding overheating failures for long‑term continuous operation.
- Compatibility Guarantee
It matches all standard S7‑400 series modules and works with STEP‑7 software for hardware configuration and system diagnosis.
- Galvanic Isolation Design
Internal bus structure isolates field‑side interference to protect back‑plane circuits against surge currents from high‑power actuators.
3. Technical Characteristics
表格
| Item | Specific Parameters |
|---|---|
| Order Number | 6ES7400‑1JA11‑0AA0 |
| Model Designation | UR2 Aluminum Rack for SIMATIC S7‑400 |
| Total Number of Slots | 9 slots for S7‑400 standard modules |
| Supported Bus | P‑Bus and K‑Bus integrated inside rack |
| Allowed Power‑supply Quantity | Up to two PS400 power‑supply modules for redundancy |
| Material | High‑strength aluminum alloy frame |
| Operating Ambient Temperature | 0 ℃ to +60 ℃ inside control cabinet |
| Storage and Transportation Temperature | ‑40 ℃ to +85 ℃ |
| Protection Class | IP20 (Install inside control cabinet only) |
| Mounting Method | DIN‑rail or screw‑fixed installation inside cabinet |
| Vibration Resistance | Complies with IEC60068‑2‑6 industrial vibration standard |
| EMC Standard | EN61000‑6‑2, EN61000‑6‑3 |
| Certification | CE, UL, FM, CCC approved; Made in Germany |
| Supported Modules | S7‑400 CPU, CP communication modules, SM I/O modules, IM interface modules |
4. Product Dimensions and Weight
表格
| Physical Parameter | Actual Value |
|---|---|
| Overall Width | 257.5 mm |
| Overall Height | 290 mm |
| Overall Depth | 27.5 mm |
| Net Weight of the rack | Approximately 1.5 kg |
| Gross Weight with original factory packing | Around 1.9 kg |
| Installable Module Type | Full‑size S7‑400 plug‑in modules |
5. Application Scope
This UR2 rack is the essential installation base for S7‑400 PLC stations. It applies to high‑requirement industrial sites including power‑generation equipment, chemical processing systems, cement production lines, ship‑board automation, automobile assembly workshops and municipal water‑treatment control systems with high‑availability requirements.
6. 10 Siemens S7‑400 Rack Modules with Similar Functions
- 6ES7400‑1JA01‑0AA0: Standard‑version UR2 rack without optimized aluminum structure, used for replacement of old‑generation S7‑400 projects.
- 6ES7403‑1TA11‑0AA0: UR1 rack with 4 slots, compact‑size rack for small‑capacity expansion racks with limited cabinet space.
- 6ES7400‑2JA11‑0AA0: UR5 rack with 18 slots for large‑scale S7‑400 stations equipped with multiple CPUs and communication modules.
- 6ES7403‑1JA11‑0AA0: ER2 expansion‑only rack which cannot install power‑supply modules, used as remote expansion rack matched with IM‑461 modules.
- 6ES7400‑1JA11‑0AA1: XTR high‑temperature‑resistant UR2 rack that can run steadily under 0℃‑70℃ for high‑temperature workshops.
- 6ES7400‑0TA11‑0AA0: UR‑H redundant‑special rack designed for S7‑400H hot‑standby fault‑tolerant PLC systems.
- 6ES7403‑0TA11‑0AA0: ER1 expansion‑only rack with four slots for small remote I‑O expansion stations.
- 6ES7400‑2TA11‑0AA0: UR8 heavy‑duty rack with 36 slots for ultra‑large PCS‑7 process‑control systems.
- 6ES7400‑1JA21‑0AA0: Reinforced anti‑shock UR2 rack for offshore and onboard vibration‑intensive environments.
- 6ES7400‑1JA31‑0AA0: Low‑temperature‑adapted UR2 rack working from ‑20 ℃ to +60 ℃ for outdoor control cabinets in cold‑climate areas.
