New Original Siemens 6ES7215-1AG40-0XB0 S7-1200 CPU 1215C Industrial PLC CPU Module
"*" indicates required fields

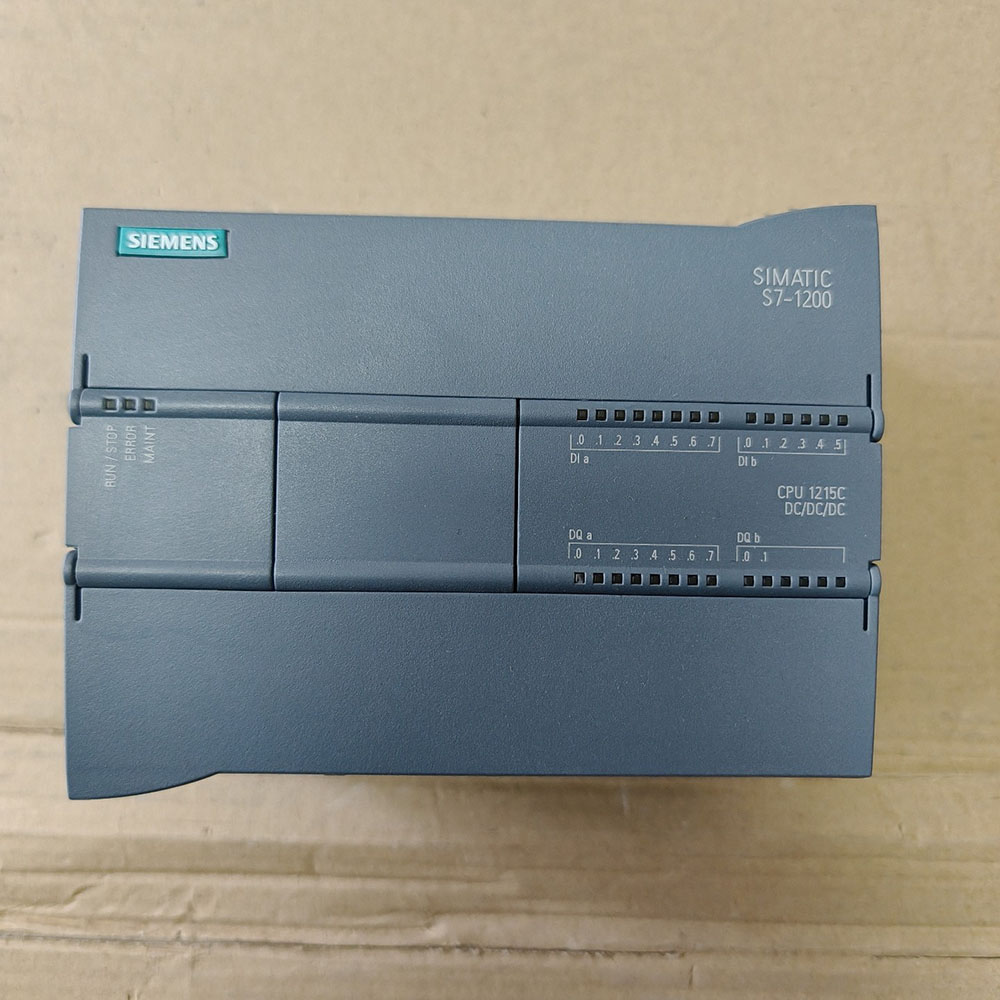

New Original Siemens 6ES7215-1AG40-0XB0 SIMATIC S7-1200 CPU 1215C Industrial PLC CPU Module
Product Overview
6ES7215-1AG40-0XB0 is the SIMATIC S7-1200 CPU 1215C (DC/DC/DC), a compact modular programmable logic controller developed by Siemens for small and medium automated machinery. This integrated CPU comes with built-in digital and analog I/O, dual PROFINET interfaces, and abundant onboard technology functions. Powered by 24 V DC, it adopts transistor DC output design and supports flexible hardware expansion with signal modules, communication modules and signal boards. Program development is implemented via TIA Portal engineering software. It delivers reliable closed-loop control, motion control, network communication and data processing capabilities. Widely used in packaging machines, conveyor systems, machine tools, plastic molding equipment, food processing machinery and general automation production lines. The product complies with CE, UL, cULus and RoHS standards for global industrial deployment.
Main Technical Specifications
| Parameter Item | Detailed Specification |
|---|---|
| Model Code | 6ES7215-1AG40-0XB0 |
| Product Designation | SIMATIC S7-1200 CPU 1215C DC/DC/DC |
| Rated Power Supply | 24 V DC, allowable range: 20.4 V ~ 28.8 V DC |
| Working Memory | 200 KB program & data memory |
| Integrated Load Memory | 4 MB, expandable via SIMATIC memory card |
| Onboard Digital Input | 14 DI, 24 V DC |
| Onboard Digital Output | 10 DO, 24 V DC transistor output, 0.5 A per channel |
| Onboard Analog Input | 2 AI, 0 ~ 10 V DC |
| Onboard Analog Output | 2 AO, 0 ~ 20 mA DC |
| Communication Interface | 2 integrated PROFINET ports with built-in switch function |
| Technological Functions | Up to 6 high-speed counters, up to 4 PTO pulse output channels, built-in PID control function |
| Maximum Expansion Capacity | 8 signal modules (SM), 3 communication modules (CM), 1 signal board (SB) |
| Processing Speed | Bit operation: 0.08 μs; Word operation: 1.7 μs; Floating-point operation: 2.3 μs |

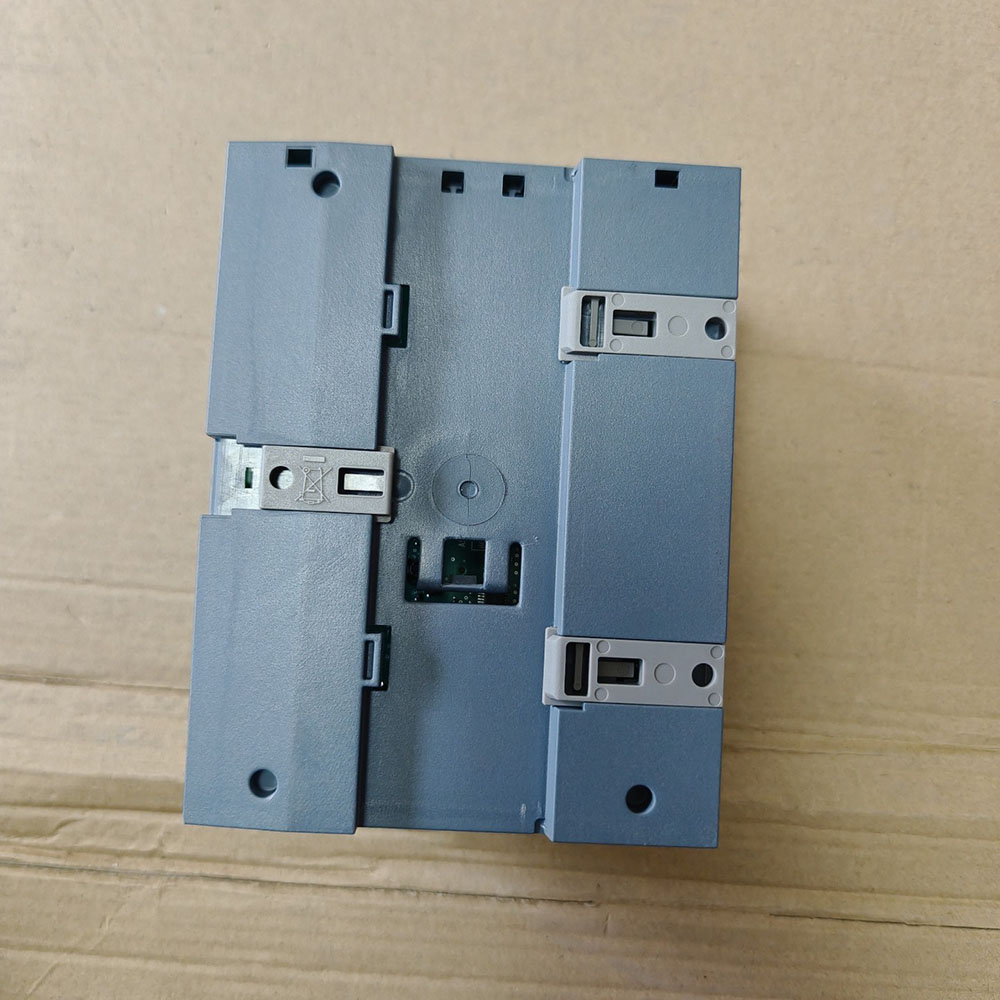

| Mounting Standard | 35 mm standard DIN rail |
| Protection Class | IP20 (for cabinet installation) |
| Operating Ambient Temperature | -20 ℃ ~ +60 ℃ (vertical installation) |
| Storage Temperature | -40 ℃ ~ +85 ℃ |
| Programming Software | TIA Portal (STEP7 Basic / Professional) |
| Certifications | CE, UL, cULus, RoHS |
Overall Dimensions & Net Weight
| Dimension & Weight Parameter | Exact Data |
|---|---|
| Outer Dimensions | Width 130 mm × Height 100 mm × Depth 75 mm |
| Single Unit Net Weight | 500 g |
| Packaged Gross Weight | Approximately 580 g |
| Housing Material | Flame-retardant industrial plastic |
| Installation Clearance | Keep minimum 25 mm top and bottom ventilation space |
Primary Main Functions
- Logic Sequence Control: Execute user control programs to realize automatic logic control of actuators, sensors and auxiliary equipment.
- Integrated Motion Control: Support pulse train output for stepping motors and servo drives to complete positioning, speed and homing control.
- PID Closed-loop Process Regulation: Built-in PID function blocks for stable temperature, pressure, flow and liquid level adjustment.
- Industrial Network Communication: Dual PROFINET ports support PROFINET IO, TCP/IP, ISO-on-TCP and Modbus TCP for data exchange with HMI, upper computers and other controllers.
- Flexible Hardware Expansion: Expand digital/analog I/O and serial communication interfaces by adding external modules according to field requirements.
- High-speed Signal Acquisition: High-speed counter channels capture pulse signals from encoders for speed and position monitoring.
- Data Recording & Fault Diagnosis: Automatically store system fault information, run logs and alarm records for equipment maintenance.
- Real-time Clock Function: Integrated hardware real-time clock supports timing tasks, time-based production scheduling and timestamp recording.
Key Technical Features
- Compact all-in-one integrated design with onboard I/O reduces cabinet space and lowers hardware configuration cost for small automation equipment.
- Dual-port PROFINET switch architecture saves extra Ethernet switches and simplifies field network wiring layout.
- Powerful built-in technological functions reduce demand for external special modules and shorten on-site program debugging cycle.
- Uniform TIA Portal engineering platform realizes integrated configuration, programming, diagnosis and network setup for PLC, HMI and drives.
- No battery required for basic operation; program and parameter data are permanently stored in non-volatile memory.
- Robust anti-interference circuit design ensures stable operation near inverters, solenoid valves and servo systems.
- Multiple built-in system diagnostics provide real-time fault alarm and channel diagnosis for fast troubleshooting.
- Complete product series with multiple CPU specifications supports seamless performance upgrade for equipment iteration.
List of 10 Similar Functional Siemens S7-1200 PLC CPU Products
- 6ES7211-1AE40-0XB0: S7-1200 CPU 1211C DC/DC/DC, entry-level compact CPU
- 6ES7212-1AE40-0XB0: S7-1200 CPU 1212C DC/DC/DC, medium small-scale controller
- 6ES7214-1AG40-0XB0: S7-1200 CPU 1214C DC/DC/DC, mid-range standard CPU
- 6ES7217-1AG40-0XB0: S7-1200 CPU 1217C DC/DC/DC, high-performance S7-1200 CPU
- 6ES7215-1BG40-0XB0: CPU 1215C AC/DC/Relay, relay output variant of 1215C
- 6ES7215-1HG40-0XB0: CPU 1215C DC/DC/Relay, DC powered relay output model
- 6ES7214-1BG40-0XB0: CPU 1214C AC/DC/RLY with relay outputs
- 6ES7212-1HE40-0XB0: CPU 1212C DC/DC/RLY low-cost relay type CPU
- 6ES7211-1BE40-0XB0: CPU 1211C AC/DC/RLY entry-level relay output controller
- 6ES7215-1AF40-0XB0: S7-1200F CPU 1215F safety fail-safe PLC for machinery safety applications
