Full‑English Product Description for Siemens 6ES7151‑1BA02‑0AB0
1. Product Overview
6ES7151‑1BA02‑0AB0 is a new‑original Siemens IM151‑1 High‑Feature (HF) interface module under SIMATIC DP family, commonly defined as a PLC processor‑linked communication module for ET200S distributed I‑O stations. It acts as a bridge between Siemens S7‑300/400 main CPU and field‑side ET200S electronic modules via PROFIBUS‑DP field‑bus. This unit collects digital and analogue signals from field devices and transfers data to central PLC; meanwhile it executes control commands issued by CPU to local I‑O modules, motor starters and sensors. It is widely deployed in automated assembly lines, packaging machinery, automobile production workshops, conveyor‑handling equipment and process‑control cabinets with PROFIBUS‑DP network. It adopts plug‑in installation matching ET200S standard terminal bases and forms decentralized automation control systems to shorten field wiring and improve system expansibility.
2. Main Functions
- PROFIBUS‑DP communication connection: Build high‑speed bus connection between central PLC and ET200S station with maximum transmission rate up to 12 Mbit/s.
- Back‑plane bus power supply and data distribution: Provide working power and internal bus signals for all mounted ET200S electronic modules. Up to 63 pieces of I‑O modules can be installed in one single ET200S station.
- Isochronous mode support: Realize synchronous clock control for high‑speed motion‑control applications such as positioning and servo‑driven production processes. Input and output data each reach 244‑byte addressing capacity.

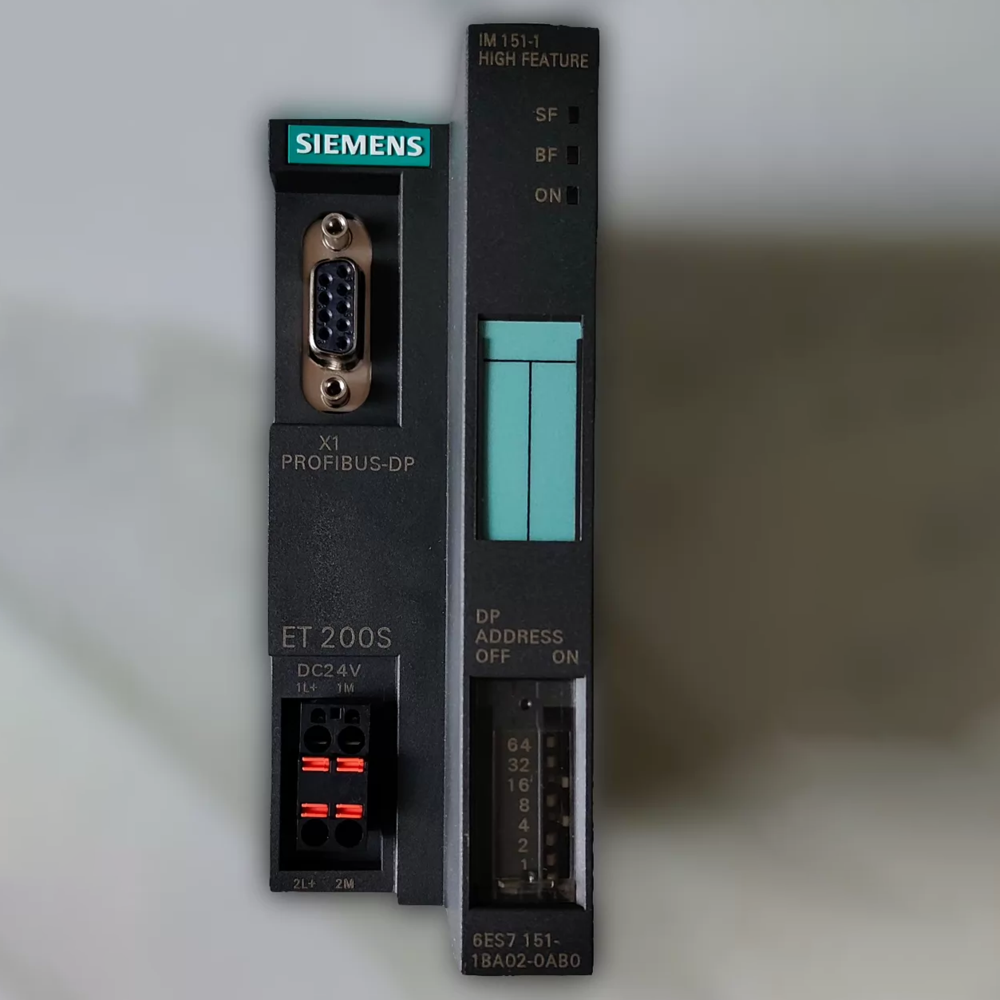

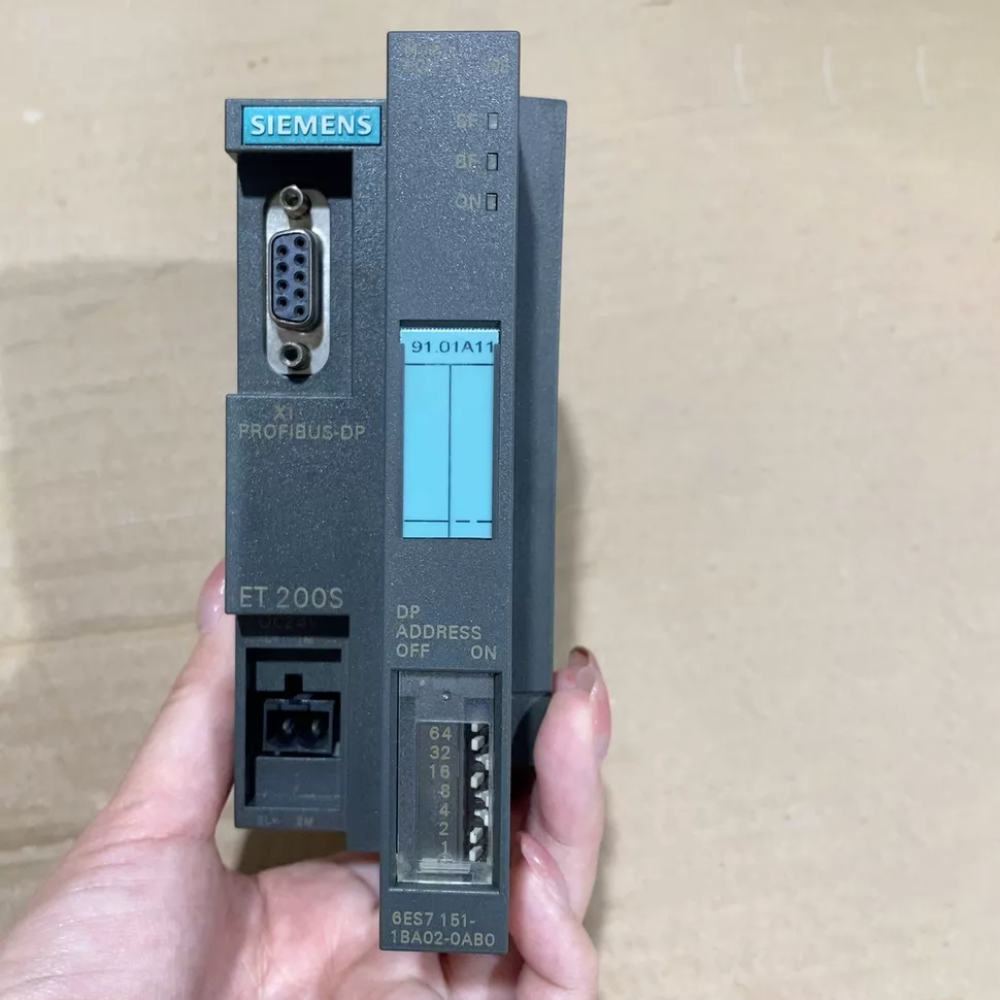

- Comprehensive diagnostic and fault feedback: Built‑in status indicator LEDs and slave diagnosis function. BF‑LED monitors bus faults, SF‑LED displays group errors, and green LED shows 24 V power supply status; fault information can be uploaded to PLC via STEP‑7 software for troubleshooting.
- Galvanic isolation: Implement electrical isolation between PROFIBUS‑DP bus and internal electronic circuit with 500‑V DC isolation test to suppress field‑side interference.
- Voltage‑failure buffering: Maintain normal data transmission for 20 ms during short‑term power‑supply fluctuation to avoid unexpected system downtime.
- Interrupt processing: Process hardware interrupts generated by field I‑O modules and send alarm messages to main controller timely.
3. Technical Characteristics
表格
| Item | Technical Parameter |
|---|---|
| Order No. | 6ES7151‑1BA02‑0AB0 |
| Product Series | SIMATIC DP IM151‑1 HF for ET200S |
| Communication Protocol | PROFIBUS‑DP |
| Rated Supply Voltage | DC 24 V |
| Operating Voltage Range | DC 19.2 V‑28.8 V |
| Input Current | Max 200 mA |
| Typical Power Loss | 3.3 W |
| Maximum Station Capacity | 63 ET200S modules per station |
| I‑O Data Volume | Input:244 Bytes; Output:244 Bytes |

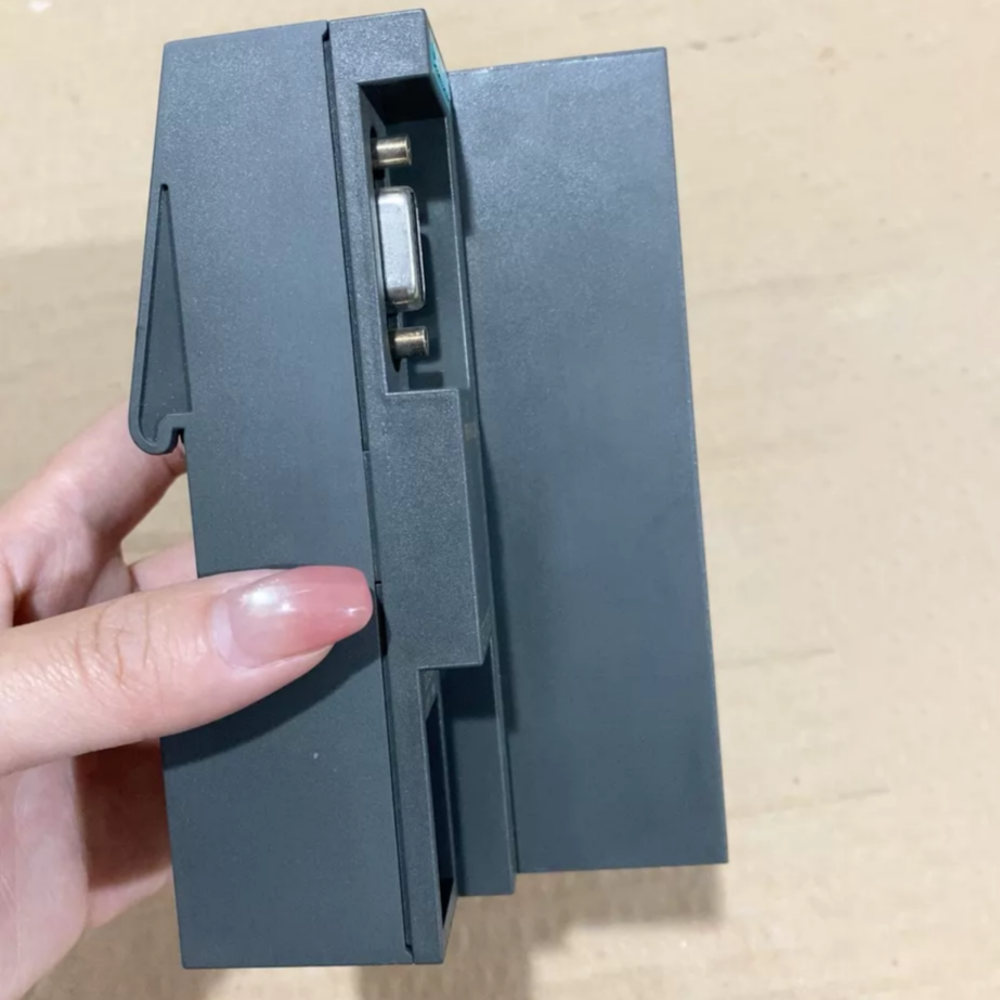

| Bus Connector | 9‑pin D‑Sub connector with terminator |
| Operating Ambient Temperature | 0 ℃ ~ +60 ℃ |
| Storage and Transportation Temperature | ‑40 ℃ ~ +85 ℃ |
| Protection Grade | IP20 (Install inside control cabinet only) |
| Anti‑vibration Standard | Comply with IEC60068‑2‑6 industrial‑grade vibration test |
| EMC Standard | EN61000‑6‑2, EN61000‑6‑3 |
| Certification | CE, UL approved |
| Housing Material | Flame‑retardant plastic with UL94‑V0 grade |
4. Product Dimensions and Weight
表格
| Physical Parameter | Actual Value |
|---|---|
| Module Width | 45 mm |
| Module Height | 119.5 mm |
| Module Depth | 75 mm |
| Net Weight of Single Module | Approximately 150 g |
| Original‑Package Gross Weight | Around 230 g |

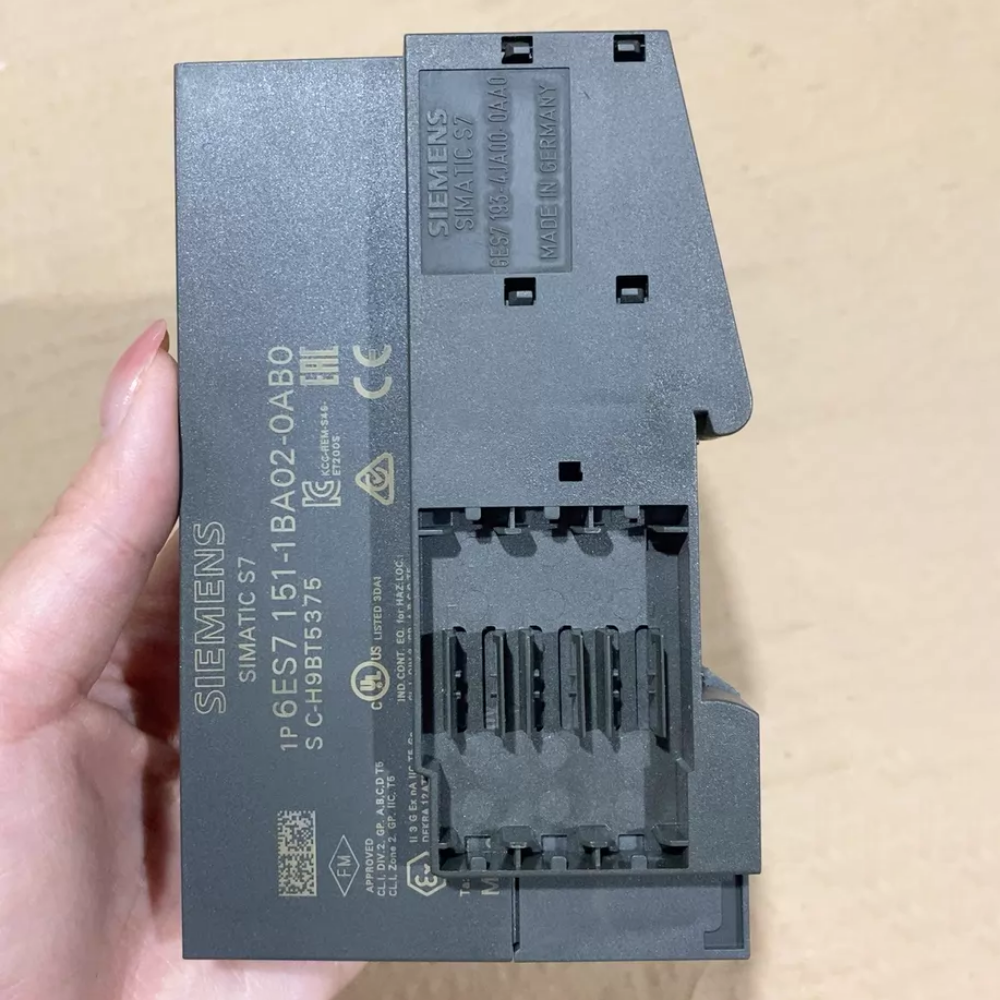

| Installation Method | Plug‑in assembly on ET200S terminal base |
5. Application Range
This IM151‑1 HF interface module is applicable for distributed PLC control systems based on PROFIBUS‑DP network, including automotive welding lines, material‑sorting systems, textile machines, printing equipment, robot auxiliary stations and automatic testing equipment. It reduces long‑distance wiring costs and improves overall system anti‑interference capability.
6. 10 Siemens Similar‑Function ET200S Interface Modules
- 6ES7151‑1AA03‑0AB0: IM151‑1 standard‑version DP interface module without isochronous function; max transmission speed 1.5 Mbit/s for ordinary‑speed automation stations.
- 6ES7151‑1CA00‑3BL0: Compact IM151‑1 DP module for short‑ET200S stations, only supports up to 12 I‑O modules for narrow control cabinets.
- 6ES7151‑3AA23‑0AB0: IM151‑3 PROFINET‑based interface module, adopts RJ45 Ethernet port instead of DP connector to connect with PLC via PROFINET IO.
- 6ES7151‑3BB22‑0AB0: IM151‑3 PN‑FO fiber‑optic interface module; uses POF optical cable for long‑distance communication to avoid electromagnetic interference in high‑noise workshops西门子工业….
- 6ES7151‑7AA00‑0AB0: IM151‑7 CPU‑integrated ET200S interface module with local PLC control function; can run standalone without upper‑level CPU.
- 6ES7151‑1BA01‑0AB0: Early‑generation IM151‑1 HF module with basic isochronous function; lower firmware version for old‑project replacement.
- 6ES7151‑4AB00‑0AB0: IM151‑4 high‑current‑type interface module which can supply higher back‑plane bus current for heavy‑load ET200S stations with multiple motor starters.
- 6ES7151‑5AA00‑0AB0: IM151‑5 PROFIsafe‑compliant interface module; supports safety‑related F‑modules for safety‑critical production lines.
- 6ES7151‑2AA00‑0AB0: IM151‑2 extended‑diagnosis DP interface module; provide detailed channel‑level fault information for on‑site maintenance.
- 6ES7151‑8AB01‑0AB0: Updated IM151‑8 HF module with optimized firmware; shorten isochron cycle time for high‑precision motion‑control projects.
