New Original Siemens 6AV2124-0GC01-0AX0 SIMATIC HMI TP700 Comfort Panel
1. Product Overview

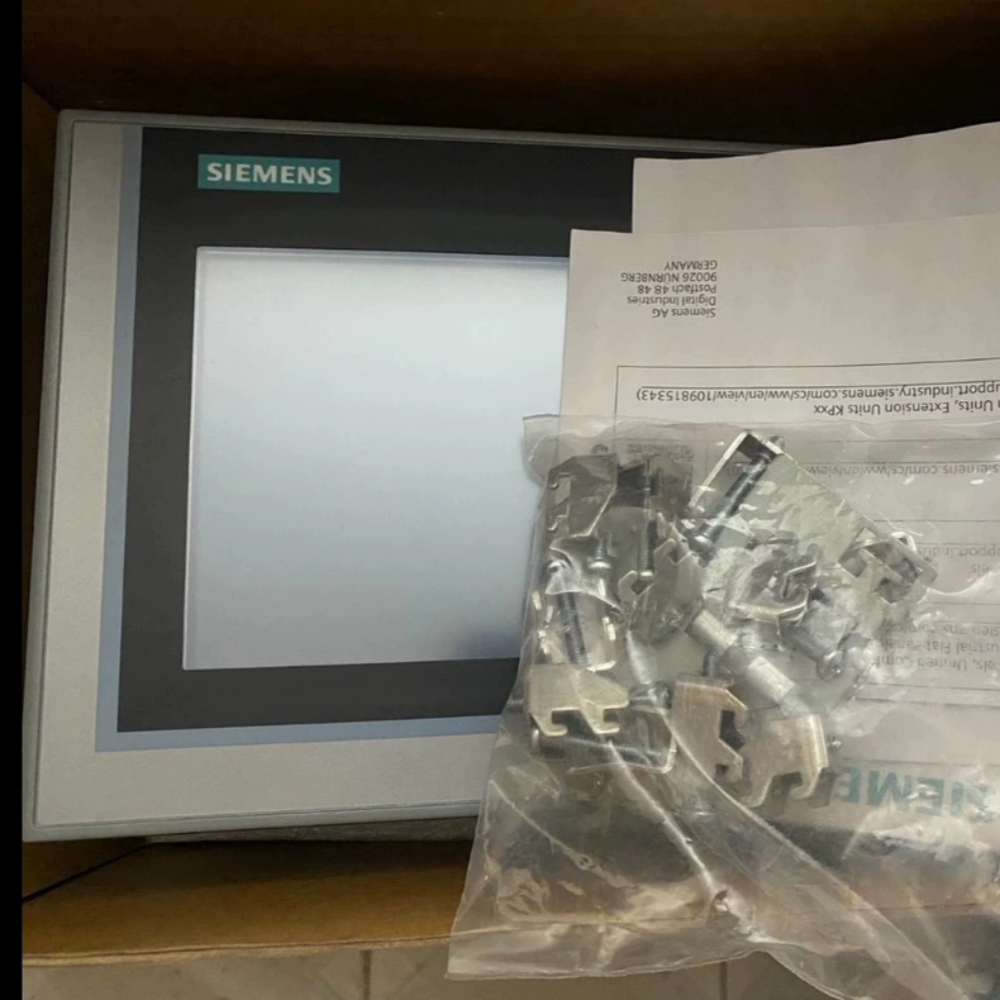

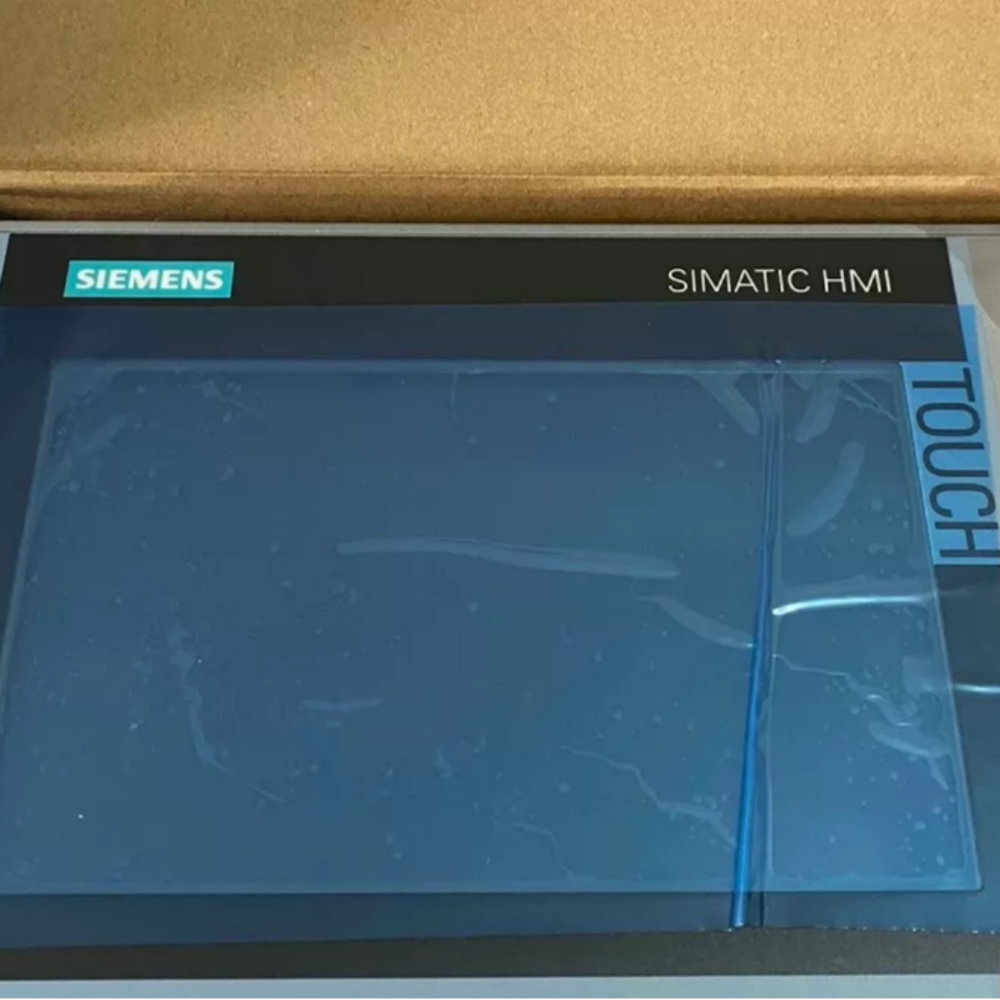

The Siemens 6AV2124-0GC01-0AX0 is a brand-new original SIMATIC TP700 Comfort Panel, belonging to Siemens high-end Comfort HMI series for industrial automation visualization. It is a full-touch 7-inch human-machine interface designed for medium and large automated production equipment, packaging lines, CNC machine tools, hydraulic stations, process skids and intelligent assembly workstations. This panel adopts capacitive multi-touch technology with high-resolution wide TFT display, built with powerful industrial processor and abundant internal storage. It integrates multiple industrial communication ports including PROFINET, and fully matches Siemens S7-1200, S7-1500, S7-300, S7-400, ET200SP and other PLC families. All project configuration is completed via TIA Portal WinCC Comfort software, supporting advanced functions such as complex script logic, high-speed trend recording, user management with multi-level authority and remote web access. The front panel reaches IP65 protection grade to resist dust, splashing water and light oil mist in factory environments. Compared with entry-level Basic Panels, TP700 Comfort provides larger storage capacity, richer communication expansion and more advanced data processing capabilities for complex process monitoring and control tasks.
2. Main Functions
- Capacitive Multi-Touch Operation
Supports multi-point touch gesture control including zoom, slide and page switching; supports operation with industrial gloves for on-site maintenance staff. No physical function keys, full-screen touch layout for flexible screen design.
- High-Definition Real-Time Process Visualization
Displays analog values, digital status indicators, bar charts, real-time and historical trend curves, production counters, recipe parameter windows and equipment fault animation with millions of display colors for vivid industrial interface presentation.
- Multi-Layer User Access Authorization
Customizable multi-user groups with independent access levels; separate authority control for viewing data, modifying parameters, downloading recipes and clearing alarms to prevent unauthorized misoperation.
- Comprehensive Alarm System
Real-time pop-up fault alarms, time-stamped historical alarm archives, alarm classification filtering, alarm acknowledgment and automatic alarm export to external storage devices.
- Local Recipe Management & Batch Transfer
Large-capacity internal storage for massive recipe data; support recipe import, export and backup via front USB port; fast batch parameter copying for multiple identical production machines.
- High-Speed Continuous Data Logging
Automatically record analog process data, equipment running states and production yield data; store logs internally or export to USB drive for offline quality analysis and production traceability.
- Integrated Web Server Function
Built-in web server allows remote monitoring via PC or mobile browser within factory LAN without additional configuration software; realize remote equipment status checking and alarm viewing.
- Advanced Script Programming Support
Run VB script inside the panel to realize complex logical judgment, mathematical calculation and automatic control linkage that cannot be completed by basic HMI configuration.
- Rich Industrial Communication Compatibility
Communicate with Siemens PLCs through PROFINET; support third-party device connection via optional communication accessories, realize cross-brand equipment data exchange.
- Adjustable LED Backlight & Energy Saving Mode
Stepless adjustable screen brightness; configurable automatic backlight shutdown timer during standby to reduce power consumption and extend display service life.
3. Technical Characteristics
表格
| Technical Parameter | Specification of 6AV2124-0GC01-0AX0 TP700 Comfort |
|---|---|
| Complete Model Code | 6AV2124-0GC01-0AX0 |
| Official Name | SIMATIC TP700 Comfort Panel |
| Display Screen | 7-inch widescreen TFT LED backlight |
| Screen Resolution | 800 × 480 pixels |
| Display Color | 16 million colors |
| Touch Technology | Capacitive multi-touch, glove operation support |
| Built-in Storage | 12 MB user memory, large flash memory for logs and recipes |

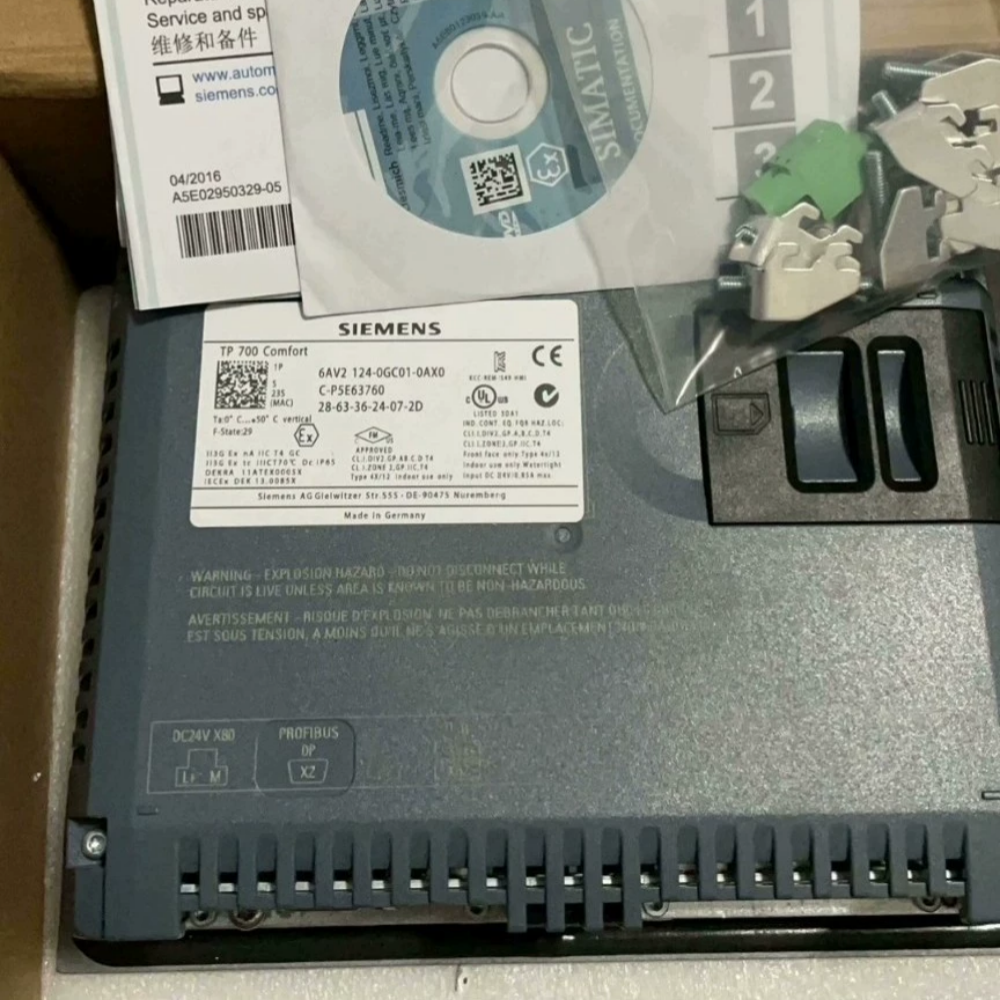

| Standard Interfaces | 1 × PROFINET RJ45 Ethernet, 1 × front USB Type A, back USB port |
| Rated Power Supply | DC 24 V (operating range: 19.2 V ~ 28.8 V DC) |
| Typical Operating Current | 250 mA |
| Front Protection Grade | IP65 |
| Rear Housing Protection Grade | IP20 |
| Operating Ambient Temperature | 0 °C ~ +55 °C vertical installation |
| Storage & Transportation Temperature | -20 °C ~ +70 °C |
| Configuration Software | TIA Portal WinCC Comfort V13 or higher version |
| Supported Controllers | S7-1200, S7-1500, S7-300, S7-400, ET200SP, ET200MP |
| Built-in Function | Web server, VB script, data logging, historical trend, multi-user management |
| Backlight Service Life (25°C) | 50,000 hours MTBF |
| Mounting Style | Cabinet embedded installation |
| EMC Standard | Industrial anti-interference standard for workshop with inverter and servo drives |
4. Product Dimensions & Weight
4.1 Overall Dimensions & Cabinet Cutout Size
表格
| Dimension Item | Exact Measurement |
|---|---|
| Front Panel Width | 193 mm |
| Front Panel Height | 139 mm |
| Total Device Depth | 40 mm |
| Cabinet Embedding Cutout Width | 176 mm |
| Cabinet Embedding Cutout Height | 122 mm |
| Visible Display Area Width | 154 mm |
| Visible Display Area Height | 86 mm |
4.2 Weight Specifications
- Single unit net weight (no package): 0.62 kg

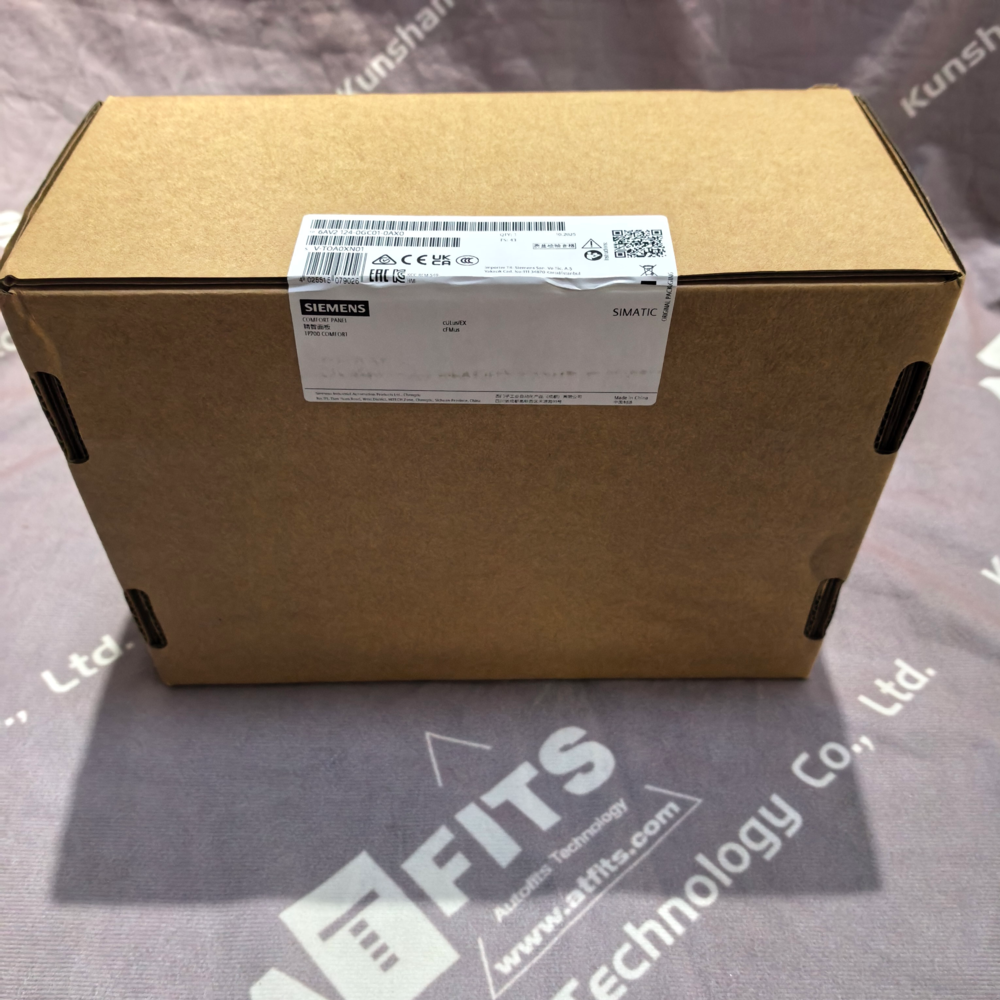

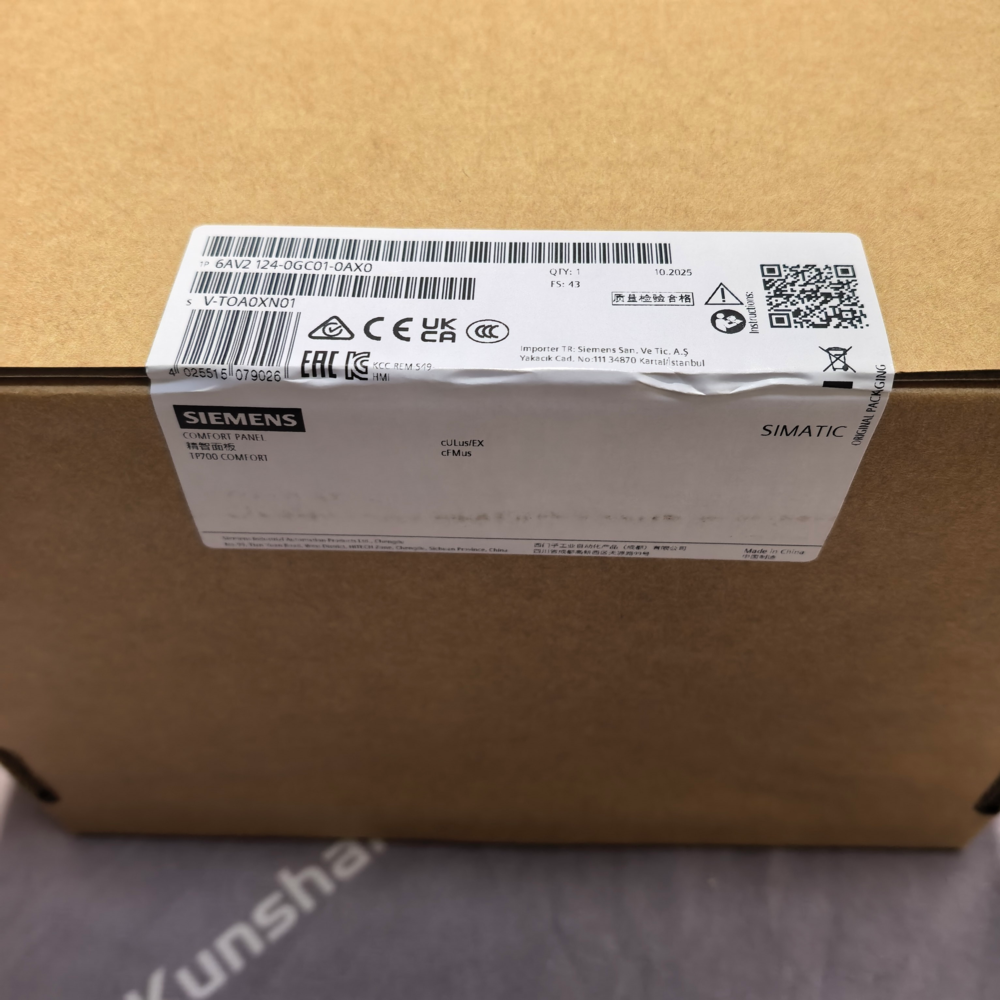

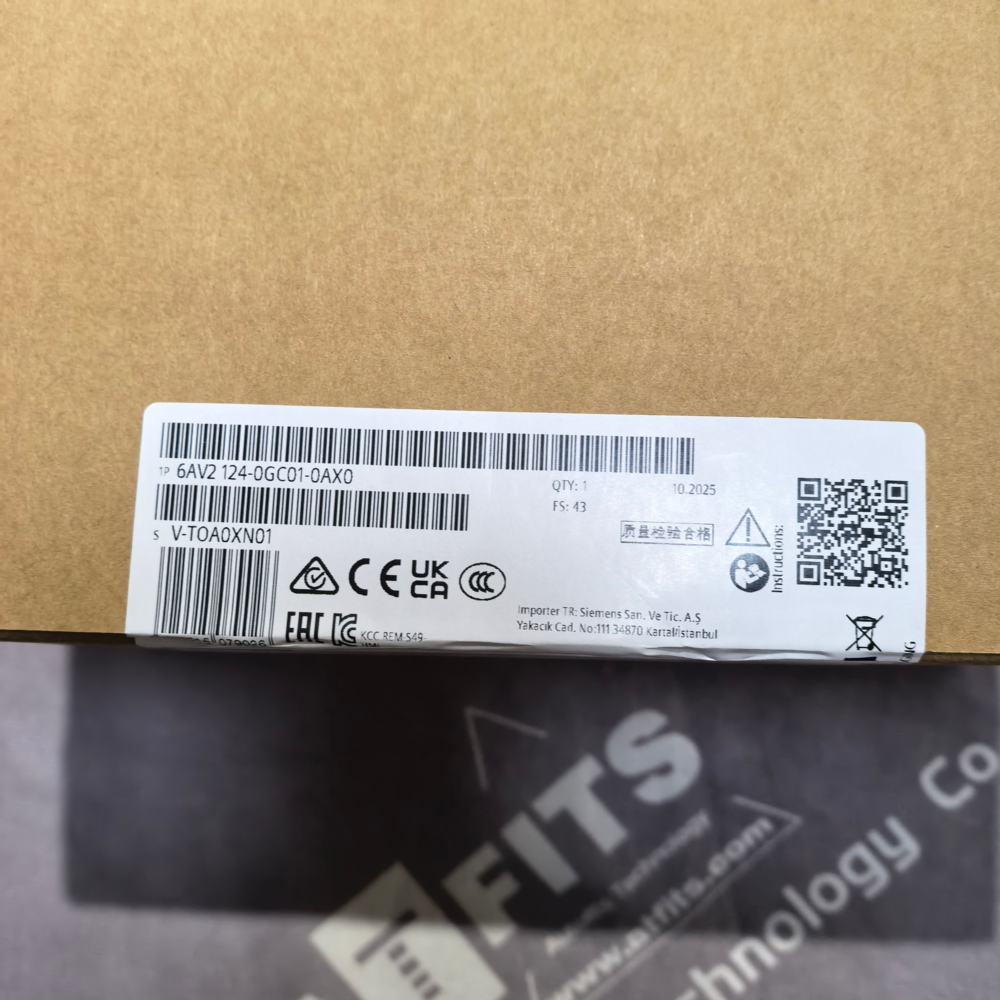

- Original individual carton gross weight: 0.78 kg
5. Core Structural & Design Advantages
- Industrial capacitive touch screen: Stable recognition under industrial gloves, anti-scratch tempered glass surface, resistant to minor collision in production workshops.
- Compact thin embedded structure: Small rear depth saves cabinet internal space, suitable for compact machine operation panels.
- Front accessible USB interface: Operate program download, recipe backup and log export without opening the rear cabinet door, greatly improving maintenance efficiency.
- Unified TIA Portal engineering platform: Share variable tables, screen templates and PLC program data with Siemens controllers, reduce repeated configuration workload.
- Powerful on-board processor: Support long-term continuous high-speed data recording and complex script operation without screen lagging or crash.
- Sealed front panel structure: Effectively block dust, coolant splashes and light oil mist, adapt to harsh machining and packaging production environments.
- Complete global industrial certifications: Pass CE, UL and other international certifications, applicable to automation equipment exported to all regions worldwide.
6. 10 Similar Functional Siemens SIMATIC Comfort HMI Products
All listed items belong to SIMATIC Comfort series full-touch HMIs, equipped with capacitive multi-touch, WinCC Comfort configuration, built-in web server, script and data logging functions; differences mainly lie in screen size, resolution and communication ports:
- Siemens 6AV2124-0JC01-0AX0 TP900 Comfort: 9-inch capacitive touch HMI, higher resolution, larger storage capacity
- Siemens 6AV2124-0MC01-0AX0 TP1200 Comfort: 12-inch widescreen Comfort panel for medium-sized central control cabinets
- Siemens 6AV2124-0QC02-0AX0 TP1500 Comfort: 15-inch large-size touch screen for central monitoring stations
- Siemens 6AV2124-0UC02-0AX0 TP1900 Comfort: 19-inch ultra-large Comfort HMI for multi-equipment centralized monitoring
- Siemens 6AV2124-0XC02-0AX0 TP2200 Comfort: 22-inch top-tier Comfort panel for factory master control room
- Siemens 6AV2124-0GC01-2AX0 TP700 Comfort SIPLUS: Extended wide-temperature corrosion-resistant version for harsh outdoor industrial sites
- Siemens 6AV2124-1GC01-0AX0 TP700 Comfort with PROFIBUS DP interface, dual communication ports
- Siemens 6AV2124-0DC01-0AX0 TP400 Comfort: 4-inch small-size full-touch Comfort HMI for compact small machines
- Siemens 6AV2124-0NC01-0AX0 TP1200 Comfort SIPLUS: Enhanced anti-humidity and anti-dust special model
- Siemens 6AV2124-0LC01-0AX0 TP900 Comfort with additional SD card slot for expanded data storage
