New Original Schneider XPSAF5130 Preventa Safety Relay Module
Product Overview

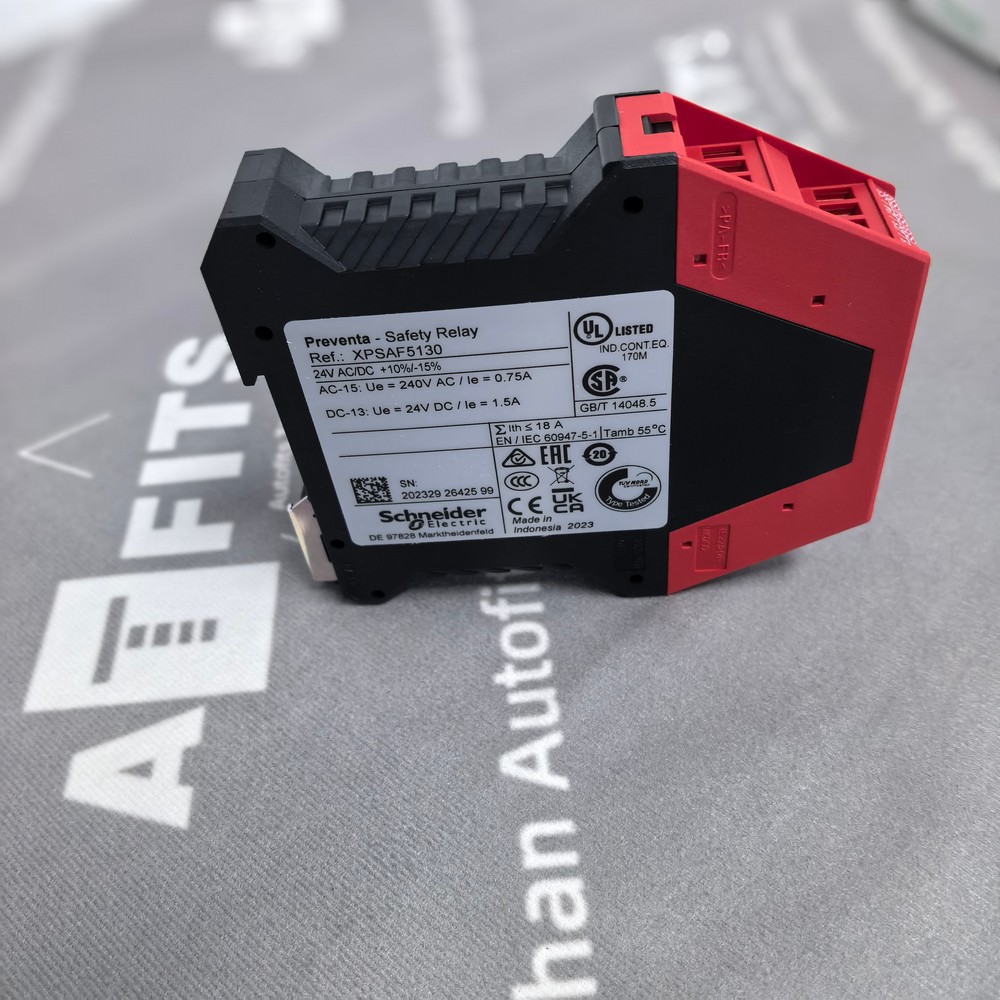

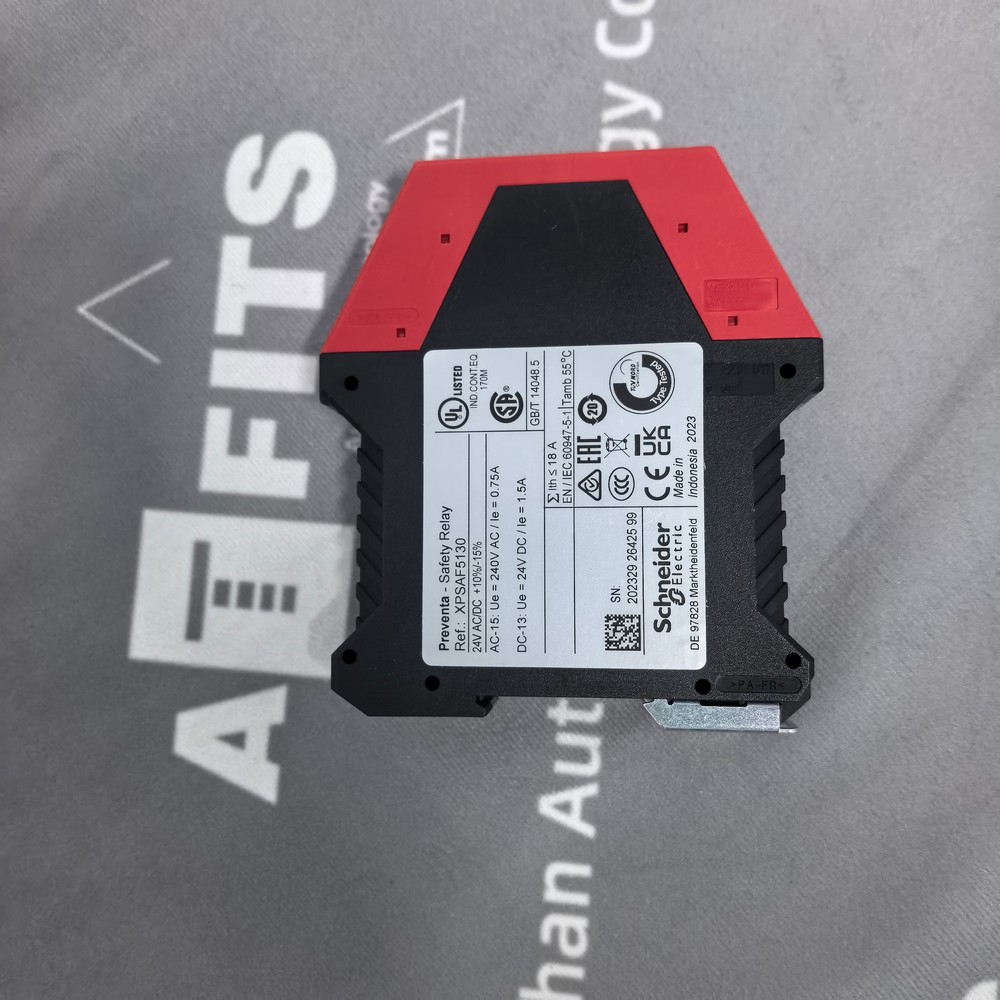

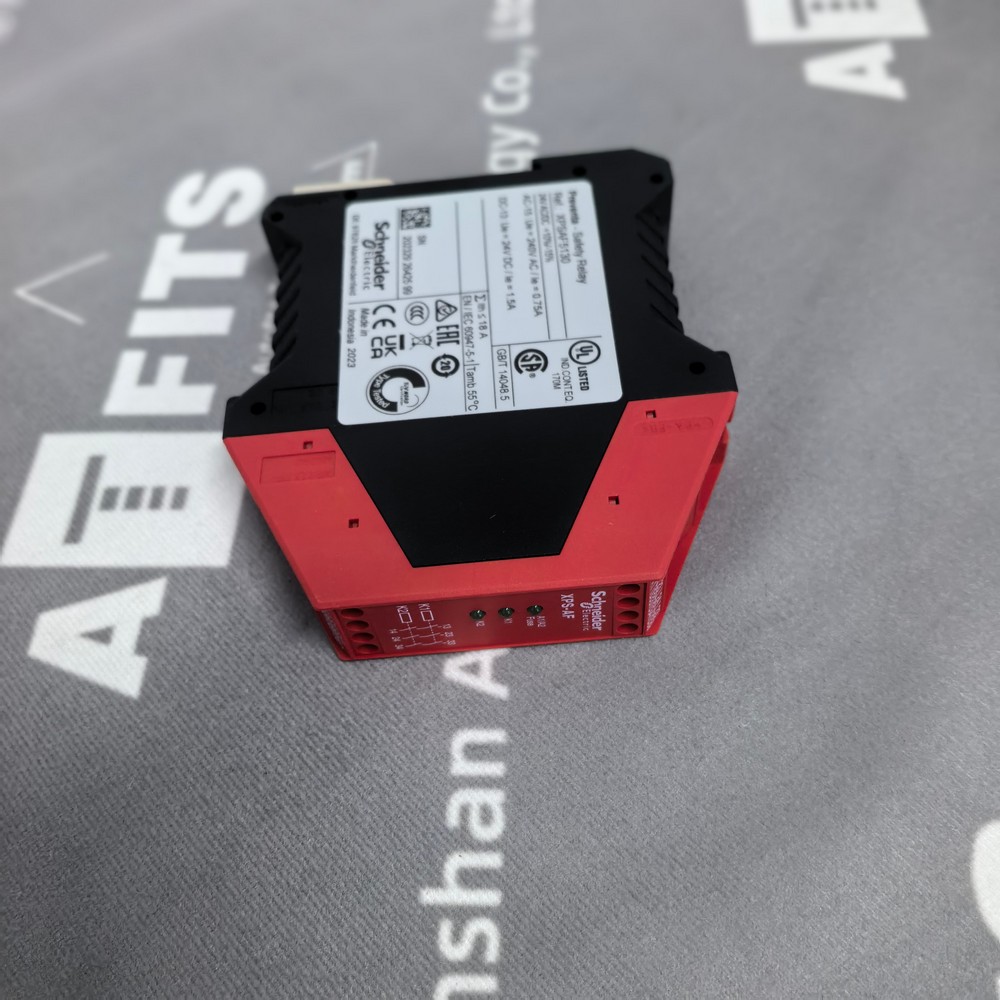

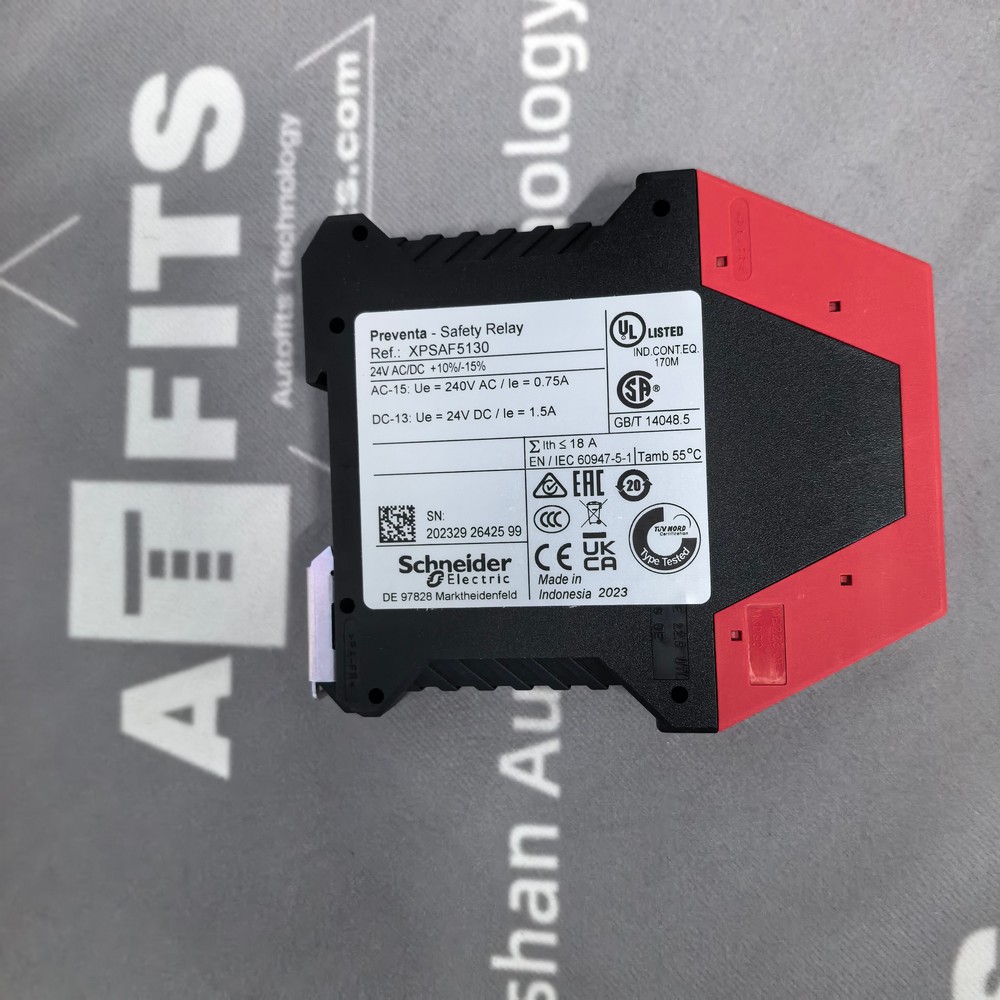

The Schneider XPSAF5130 is a brand‑new original Preventa series safety relay module for emergency‑stop and safety‑guard door monitoring. This safety module supports both single‑channel and dual‑channel safety input wiring, achieving PL e / Category 4 safety performance level and SIL CL 3 safety integrity level. It is widely used in machine tools, packaging machines, conveyor systems and automated production lines to monitor emergency‑stop push‑buttons, safety door switches and safety interlock devices. Marked as “New Original”, it stands for genuine factory‑produced unit with complete internal safety contact groups, full‑factory functional testing, free of refurbished or second‑hand assemblies. When safety input triggers a fault condition, the module quickly cuts off safety output circuits to protect operators and equipment.
Main Functions
- Emergency‑stop circuit monitoring: Supports single‑channel or dual‑channel emergency‑stop button signal detection.
- Safety guard‑door interlock monitoring: Monitors mechanical safety‑door switches for machine protection enclosures.
- Dual‑channel input fault detection: Detects short‑circuit and cross‑wiring faults of safety input loops.
- Configurable start‑up mode: Supports automatic start or manual monitored reset mode by wiring setup.
- Multiple safety relay outputs: 3 normally‑open safety relay contacts for cutting off machine power circuits.
- Auxiliary solid‑state feedback output: Provides status signal for PLC diagnostic reading.

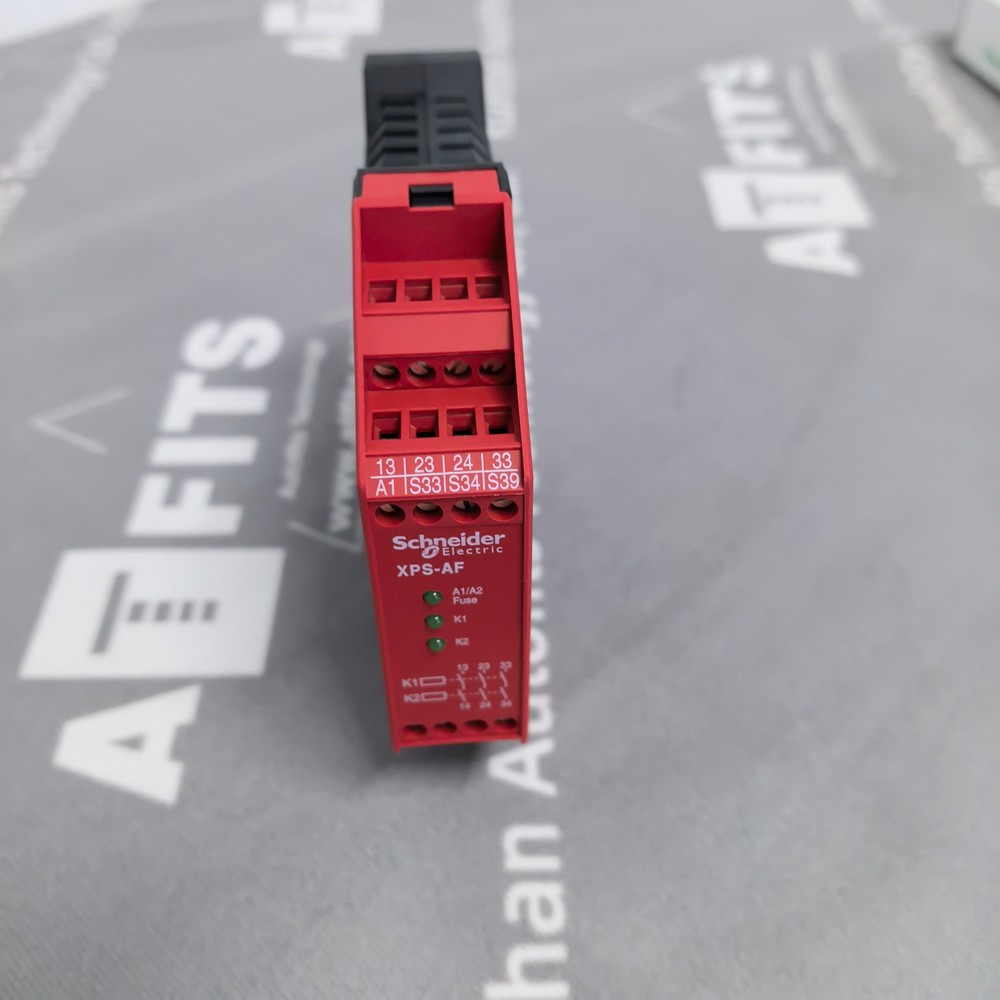

- LED status indication: Three front‑panel LEDs display power supply, safety‑channel status and fault alarm information for quick troubleshooting.
- Safe forced‑guided relay contacts: Mechanically linked safety contacts comply with international machine‑safety standards to prevent contact‑welding failure risks.
Technical Characteristics
- Achieves PL e, Category 4 (ISO 13849‑1), SIL CL 3 (IEC 62061) safety level for high‑risk machinery applications.
- Fast response time, maximum 40 ms for safety‑input opening trigger.
- DIN‑rail 35 mm standard mounting, compact slim‑body design for cabinet installation.
- Captive screw‑clamp terminals for reliable field wiring, suitable for solid and stranded conductors.
- Enclosure IP40 protection grade; terminals IP20 protection grade for cabinet‑internal deployment only.
- Complies with IEC 60204‑1, ISO 13849‑1, IEC 60947‑5‑1 standards; certified by TÜV, UL and CSA.
- RoHS‑compliant flame‑retardant plastic housing.
- Internal electronic input protection, no extra external fuse required for input circuit.
Core Technical Parameters
| Item | Parameter Value |
|---|---|
| Part Number | XPSAF5130 |
| Product Type | Preventa safety relay module |
| Supply Voltage | 24 V AC / DC, 50‑60 Hz |
| Safety Output Contacts | 3 NO safety relay contacts |
| Auxiliary Output | Solid‑state diagnostic output |
| Safety Level | PL e / Category 4, SIL CL 3 |
| Thermal Conventional Current(Ith) | 18 A |
| Rated Output Breaking Capacity | AC‑15:180 VA; DC‑13:1.5 A@24 V DC |
| Response Time | ≤40 ms |
| Ambient Operating Temperature | ‑10 °C ~ +55 °C (non‑condensing) |
| Storage Temperature | ‑25 °C ~ +85 °C |
| Protection Class | IP40 housing, IP20 terminals |
| Mounting Method | 35 mm DIN‑rail mounting |
| Weight | 250 g |
Product Dimensions
All dimension values are given in millimetres.
- Overall height: 99 mm
- Overall width: 22.5 mm
- Overall depth: 114 mm
- DIN‑rail mounting compatible width: 22.5 mm
- Terminal wire cross‑section range: 0.14‑2.5 mm² solid / stranded wire
- Terminal screw specification: M3 captive screw‑clamp terminal
Note: This safety relay must be installed inside electrical cabinets. Adopt correct wiring for safety‑related circuits to meet PL e safety requirements. Do not exceed rated contact breaking capacity.
10 Schneider Similar‑function Preventa Safety Relay Modules
Below are ten original Schneider Preventa series safety relay modules for emergency‑stop, safety‑door and safety‑sensor monitoring applications:
- XPSAF5130P: 24 V AC/DC safety relay, same function as XPSAF5130 with removable terminal block.
- XPSAFL5130: 24 V AC/DC safety module, compatible for safety‑light‑curtain (ESPE) input monitoring.
- XPSAC5121: 24 V DC safety relay for emergency‑stop and safety‑door monitoring, 2 safety NO contacts.
- XPSAV11113: Universal safety relay with multiple safety contacts for multi‑channel safety‑signal processing.
- XPSAT3410: Safety relay for safety‑door interlock monitoring, manual reset function.
- XPSAR31111: Safety relay with time‑delay safety outputs for controlled machine‑stop scenarios.
- XPSUAF13AP: New‑generation replacement model for XPSAF5130, PL e Category 4 safety level.
- XPSBC3110: Safety relay for two‑hand control button monitoring for press‑machine safety protection.
- XPSBF1132: Safety module for safety light‑barrier / light‑curtain signal evaluation.
- XPSDMB1132: Safety relay for motor‑feedback‑based safety‑stop monitoring applications.
