New Original Schneider XB4BA31 XB4 modular green push button

New Original Schneider XB4BA31 XB4 modular green push button - Image 2

New Original Schneider XB4BA31 XB4 modular green push button - Image 3

New Original Schneider XB4BA31 XB4 modular green push button - Image 4

New Original Schneider XB4BA31 XB4 modular green push button

"*" indicates required fields

Category: Schneider

. Product Overview

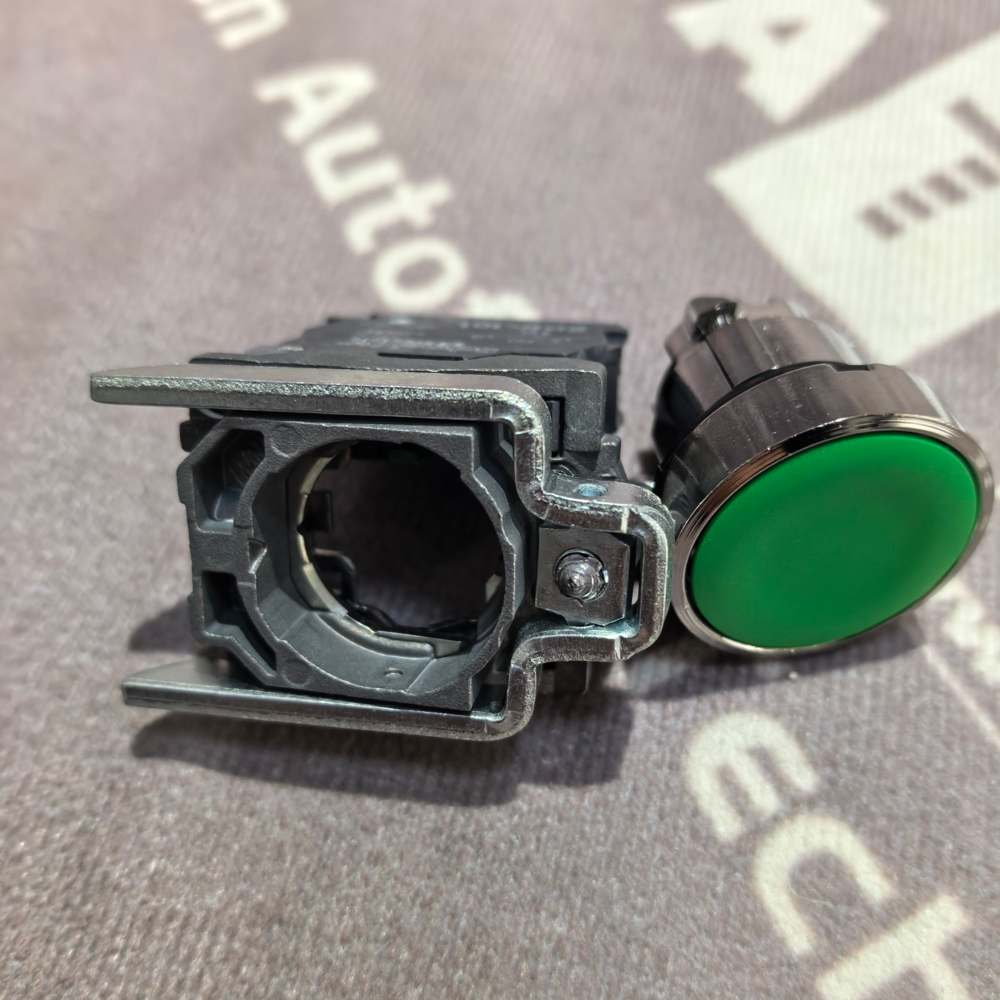

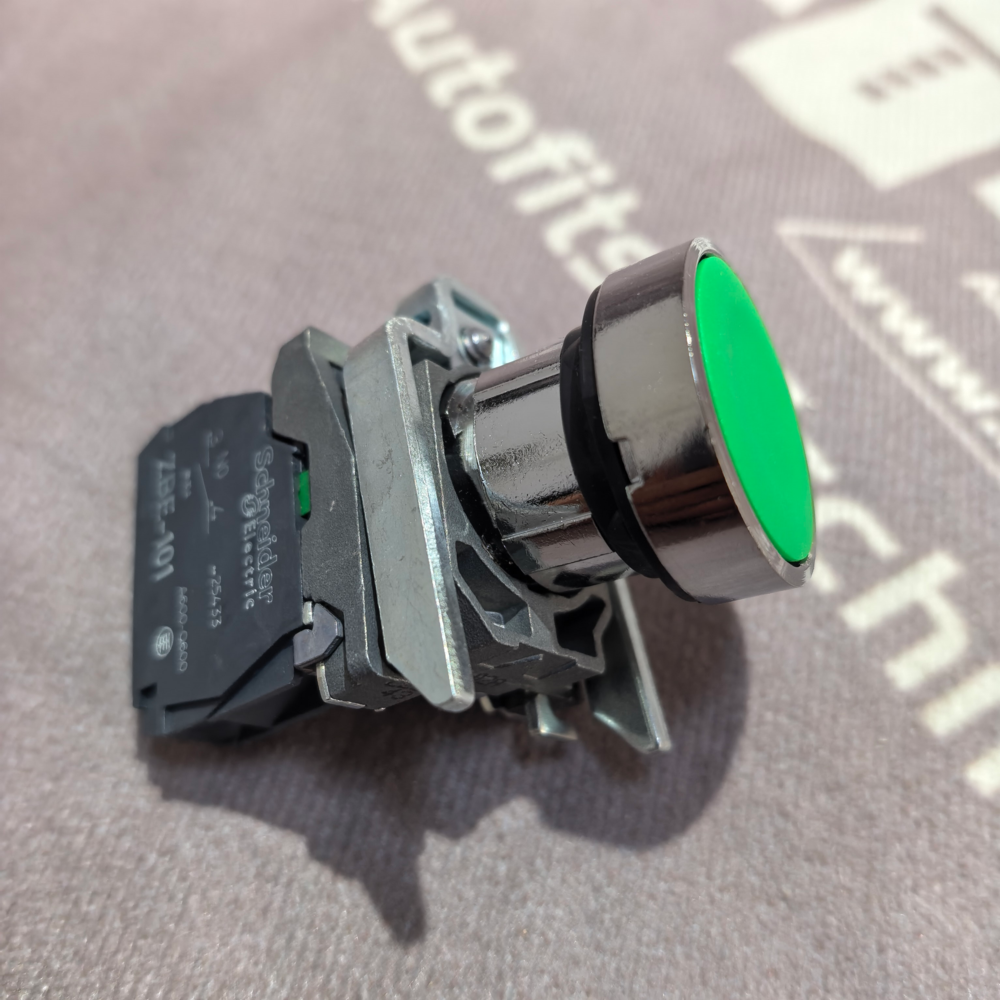

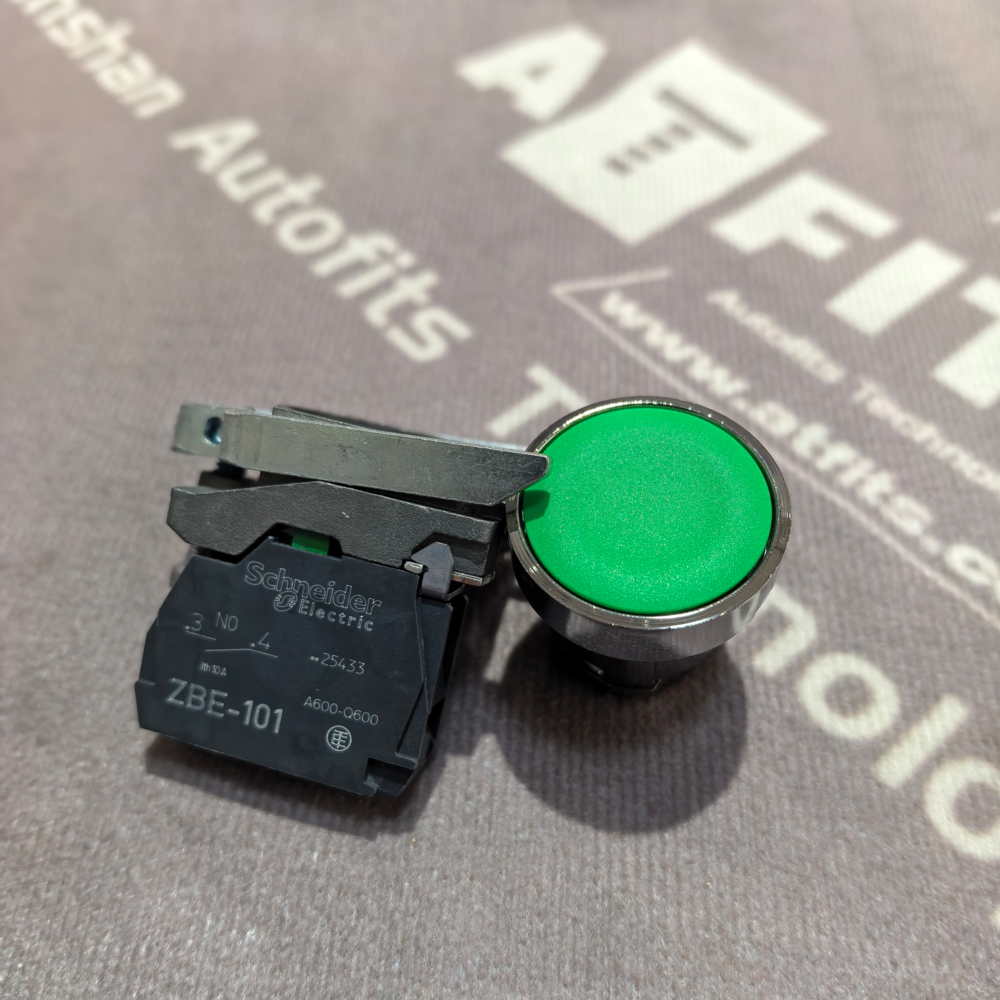

The XB4BA31 is a brand-new genuine non-illuminated momentary push button belonging to Schneider Electric Harmony XB4 modular control component series. It adopts 22 mm standard panel installation structure with chromium-plated metal bezel, flush-type unmarked green round actuator and built-in 1 normally open (1NO) slow-break contact block. This spring return push button is assembled as an integrated unit, widely installed on control cabinet panels, machine operation consoles, automation equipment local control stations, pumping and fan control boxes, and mechanical equipment start-stop operation panels. It executes manual signal triggering for industrial control logic circuits, featuring strong mechanical impact resistance, high ingress protection level, stable contact conduction performance and standardized modular assembly design to meet demanding industrial working conditions.

2. Main Functions

Momentary Start Signal Triggering

When the button is manually pressed, the internal normally open contact closes to output switch-on signal; after releasing external force, the built-in spring automatically resets the actuator, and the contact returns to open state. It is commonly used as main start button for motors, conveyors and automated equipment.
Control Circuit Logic Switching

Transmits manual operation signals to intermediate relays, contactor coils or PLC digital input terminals to realize manual intervention, program triggering and sequential logic control of automatic systems.
Local Manual Operation Control

Provides on-site manual operation mode independent of remote control, facilitating equipment commissioning, trial run and emergency local start operation on production sites.
Modular Combination Expansion

Compatible with full range of XB4 series contact modules, contact holders and auxiliary accessories, allowing flexible expansion of multiple normally open / normally closed contacts according to complex control circuit requirements.
Clear Operation Identification

Standard green color conforms to international electrical safety color specification, representing start and enable function for easy operator recognition and standardized operation management.

3. Technical Features

Core Electrical & Performance Specification Table

表格

Specification Item	Detailed Parameter
Full Model Number	XB4BA31
Product Series	Schneider Harmony XB4 Modular Control Unit
Actuator Type	Flush round, unmarked, non-illuminated
Actuator Color	Green
Operation Mode	Spring return (momentary)
Contact Configuration	1 Normally Open (1NO), slow-break type
Terminal Marking	Terminal 13-14 for NO contact
Rated Insulation Voltage (Ui)	600 V
Rated Impulse Withstand Voltage (Uimp)	6 kV
AC Rated Current (AC-15)	6 A @ 120 V; 3 A @ 240 V
DC Rated Current	0.55 A @ 125 V DC
Mechanical Endurance	10,000,000 operating cycles
Electrical Endurance	1,000,000 operating cycles under rated load
Ingress Protection Grade	IP66, IP67, IP69K
Mechanical Impact Resistance	IK06
Operating Ambient Temperature	-40 °C ~ +70 °C
Storage Temperature Range	-45 °C ~ +85 °C
Panel Mounting Hole Diameter	22 mm standard
Wiring Terminal Type	Screw clamp terminal
Applicable Wire Cross Section	0.22 ~ 2.5 mm² single wire; max 2×1.5 mm² wire with ferrule
Compliance Standards	IEC 60947-1, IEC 60947-5-1

Structural & Design Advantages

High-Strength Metal Outer Structure

Chromium-plated anti-corrosion bezel paired with Zamak fixing collar provides excellent wear resistance, scratch resistance and anti-rust performance, suitable for workshop, humid and dust-prone industrial environments.
Silver Alloy Contact System

Ag/Ni silver alloy contacts effectively resist arc ablation and oxidation, maintaining stable contact resistance after frequent long-term switching, avoiding signal interruption caused by poor contact.
High Water & Dust Protection Performance

Multi-layer sealing structure realizes IP66/IP67/IP69K protection grade, resistant to splashing water, dust invasion and high-pressure water flushing cleaning on equipment surfaces.
Simple & Reliable Panel Installation

Single locking nut fastening design for quick front-panel mounting and disassembly, no complex tools required for on-site replacement and maintenance.
Anti-Vibration Wiring Terminals

Anti-loosening screw terminal structure prevents wire loosening under equipment vibration, ensuring reliable long-term wiring connection.
Universal Modular Compatibility

Standard XB4 series interface supports free matching with extra contact blocks, contact bases and locking accessories for customized circuit design.

4. Product Dimensions and Weight

Overall Dimension Table (Unit: mm)

表格

Dimension Description	Dimension Value
Overall Width	30
Overall Height	47
Overall Mounting Depth (Panel Rear Protrusion)	52
Complete Outer Dimension	30 (W) × 47 (H) × 52 (D)

Weight Parameters

Single unit net weight: approximately 80 grams
Single unit gross weight with individual packaging: approximately 92 grams
