New Original Schneider I3DM-WRDUWZ EOCR Motor Protector Relay
"*" indicates required fields

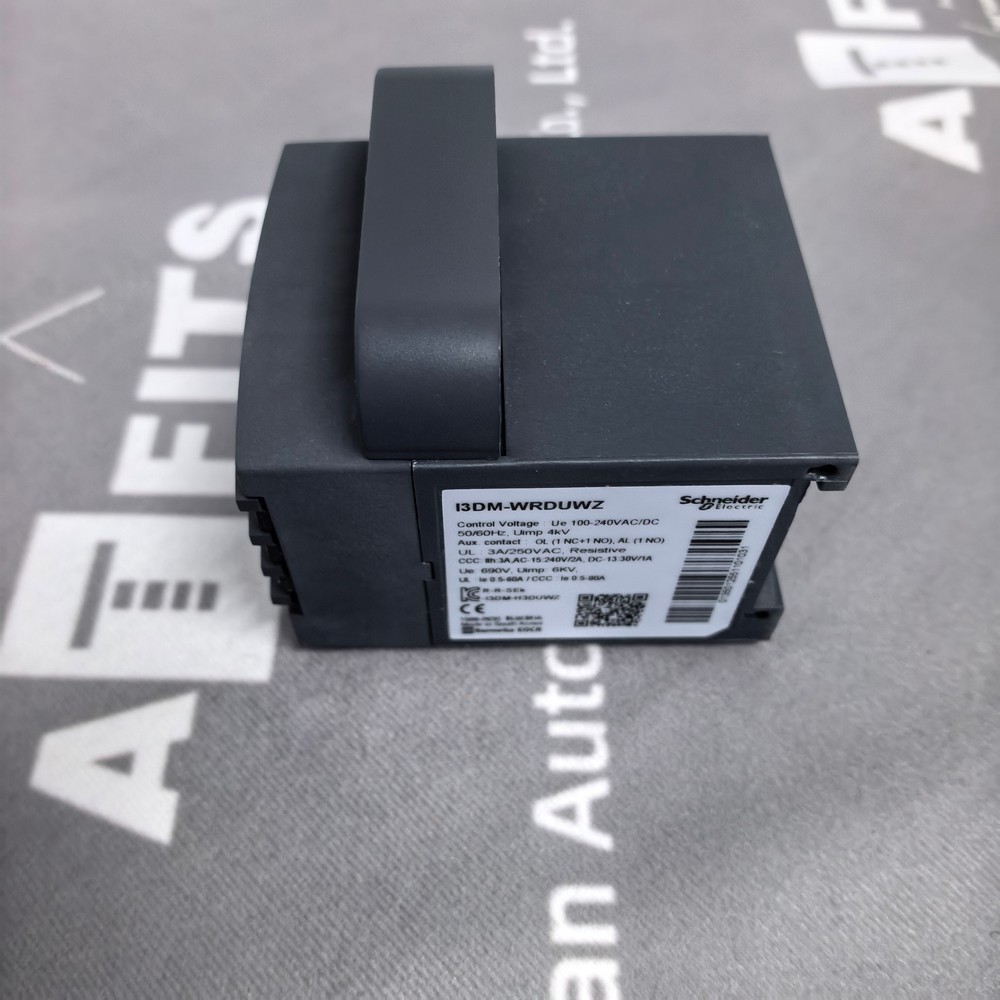

New Original Schneider EOCR-I3DM-WRDUWZ Digital Motor Protector Relay
1. Product Overview
EOCR-I3DM-WRDUWZ is an original Schneider Electric multifunctional digital motor protection relay belonging to the EOCR intelligent protection series. This window-through type unit integrates built-in three current transformers, a digital display panel and RS485 Modbus RTU communication function. The control power supply supports 100–240 V AC/DC, with an internal measurable current range of 0.5–80 A for definite time protection and 0.5–32 A for inverse time protection.
It provides comprehensive monitoring and protection for three-phase AC motors, widely adopted in water treatment equipment, conveyor systems, pump units, fan systems, packaging machinery and automated production lines. The digital screen displays real-time three-phase current, fault codes and operation records, supporting remote data access and equipment management via communication bus.
2. Main Functions
- Full-range Motor Fault Protection Covers overcurrent, undercurrent, phase loss, phase reversal, current unbalance, motor stall and locked rotor protection.
- Selectable Tripping Characteristics Supports definite time, inverse time and thermal inverse time curves to match different motor thermal load requirements.
- Digital Real-time Monitoring & Fault Recording Cyclic display of three-phase operating currents; stores the latest three fault records including fault type and current value.
- Modbus RTU RS485 Communication Upload operating data, fault information and receive parameter settings remotely for PLC and SCADA system integration.
- Dual Output Contact Configuration OL trip contact (1NO+1NC) and AL alarm contact (1NO) to separate pre-alarm and emergency shutdown logic.
- Multiple Reset Modes Supports manual local reset, electrical remote reset and automatic reset configurable according to site demands.
- Operation Hour Accumulation Records total motor running time to facilitate maintenance scheduling and equipment lifecycle management.

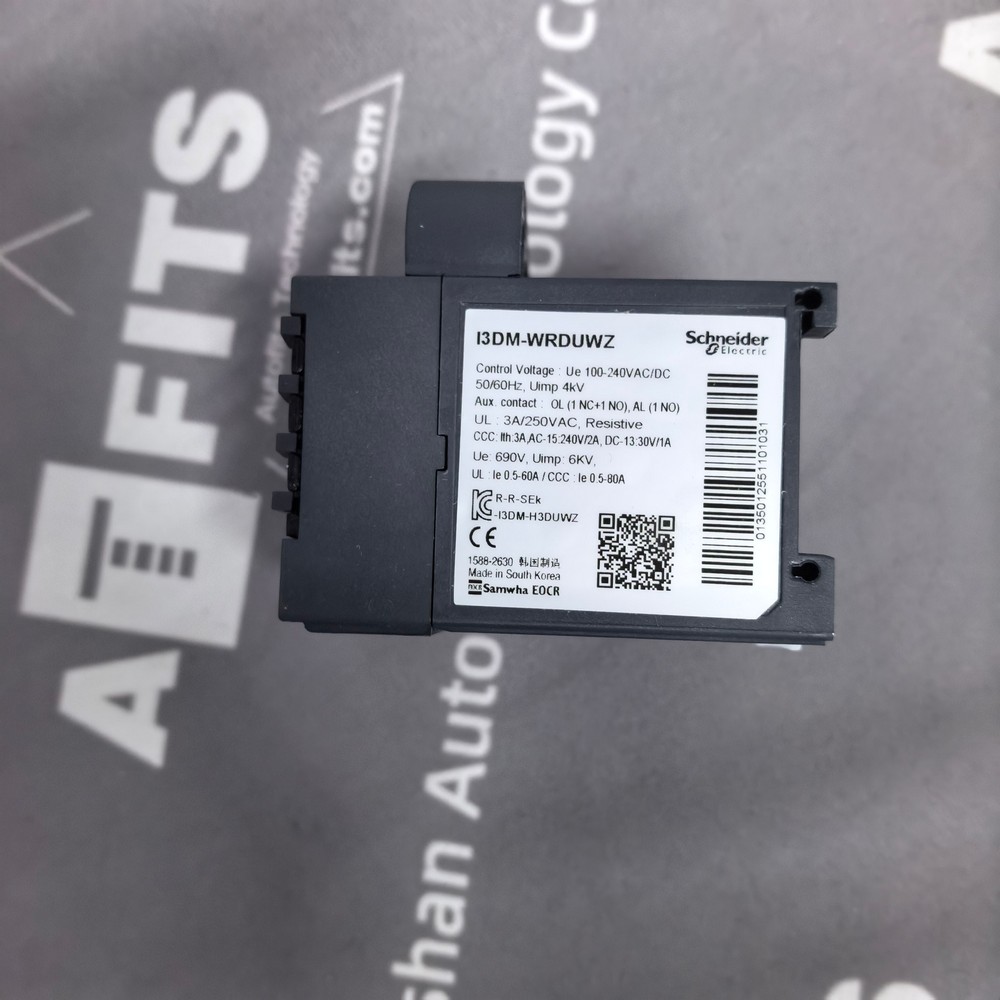

3. Technical Characteristics

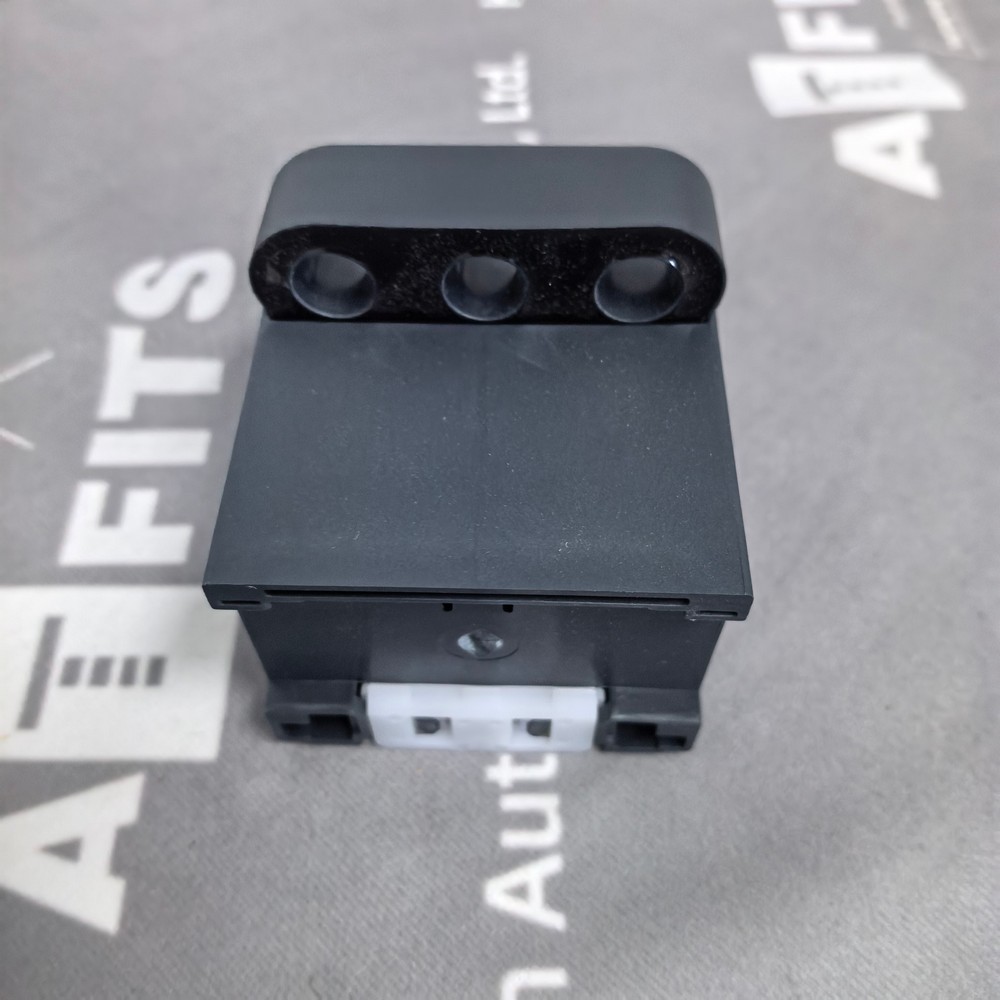

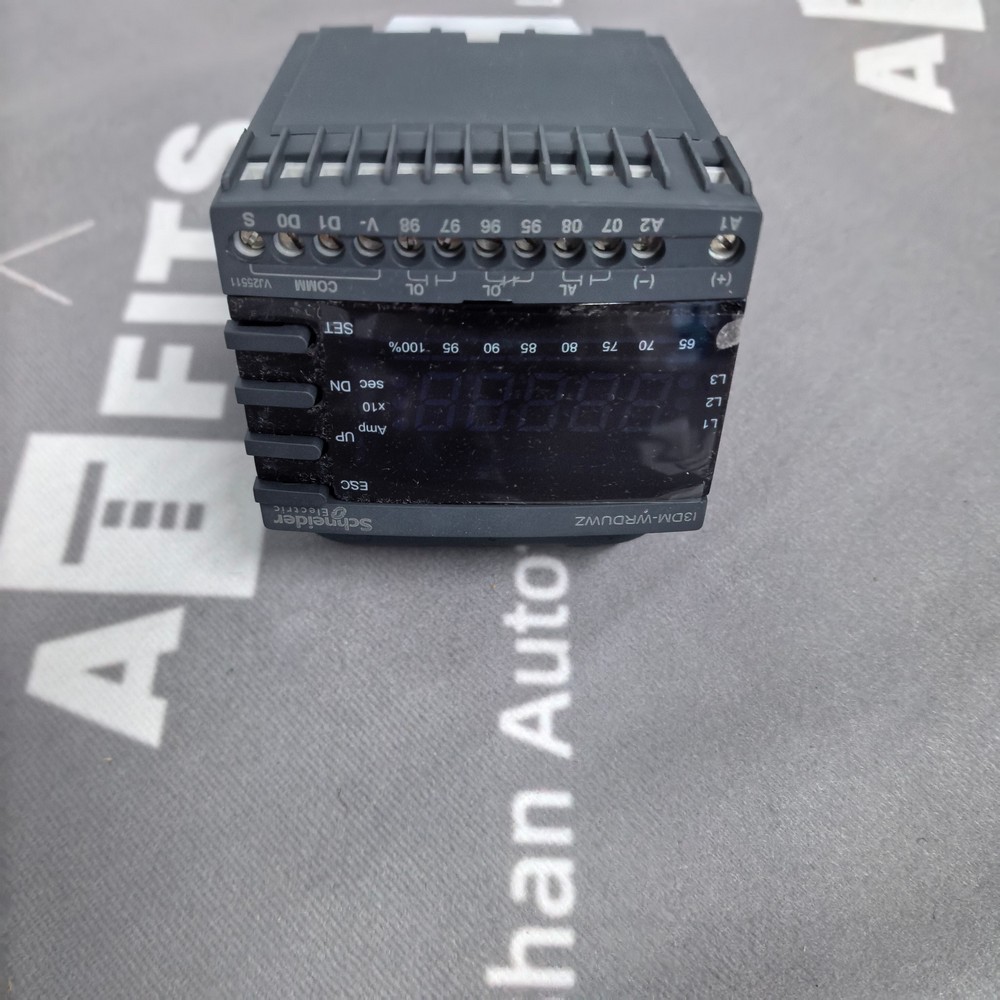

| Technical Parameter | Detailed Specification |
|---|---|
| Full Model | EOCR-I3DM-WRDUWZ |
| Product Series | EOCR I3DM Digital Motor Protection Relay |
| Installation Type | Window-through built-in CT type |
| Control Supply Voltage | 100 V ~ 240 V AC/DC, 50/60 Hz |
| Measuring Current Range | 0.5 ~ 80 A (Definite Time); 0.5 ~ 32 A (Inverse Time) |
| Communication Interface | RS485, Modbus RTU Protocol |
| Output Contacts | OL:1NO+1NC; AL:1NO |
| Contact Rated Capacity | 3 A / 250 V AC |
| Protection Functions | Overcurrent, Undercurrent, Phase Loss, Phase Reversal, Current Unbalance, Stall Locked Rotor |
| Trip Curve Mode | Definite Time / Inverse Time / Thermal Inverse Time |
| Display | Digital 7-segment LED screen |
| Mounting Method | 35 mm DIN rail or direct screw mounting |
| Operating Temperature | -20 ℃ ~ +75 ℃ |
| Protection Class | IP20 (front panel) |
| Compliance Standard | IEC 60947-4-1, CE, RoHS |
Core Technical Advantages
- Integrated window-type current transformers simplify wiring and eliminate external CT configuration for medium-small motors;
- Built-in Modbus communication realizes centralized remote monitoring for intelligent automation projects;
- Multiple configurable tripping curves adapt to various types of induction motors;
- Fault memory function helps technicians quickly locate abnormal root causes during equipment maintenance;
- Wide-range universal AC/DC control power supply fits diversified industrial power supply environments.
4. Product Dimensions and Weight
External Dimensions (Unit: Millimeter)
| Dimension Item | Exact Size |
|---|---|
| Overall Width | 70 |
| Overall Height | 74.5 |
| Overall Depth | 83.8 |
Weight Reference
| Weight Category | Specific Value |
|---|---|
| Single Relay Net Weight | 397 g |
| Original Packaged Gross Weight | 417 g |
5. 10 Schneider Similar EOCR Series Motor Protection Relays
All variants are electronic motor protection relays; differences lie in installation form, communication function and protection options:
- EOCR-I3DM-WRDUHZ Through-type I3DM Relay without display split cable
- EOCR-I3DM-WRDUTZ Terminal connection I3DM motor protector
- EOCR-I3MS-WRDUWZ EOCR with earth fault leakage current protection
- EOCR-I3M420-WRDUWZ High-current version supporting external CT
- EOCR-3DM2-WRDUWZ New generation upgraded digital motor protector
- EOCR-PMZ-WRDBW Simple economical motor protection relay without communication
- EOCR-DG-WRD Through-type basic electronic overload relay
- EOCR-SS-30S Compact miniature overload protection relay
- EOCR-iFDM-WRDUWZ Motor protector with enhanced stall protection
- EOCR-I3DM-WRDBWZ Low power supply variant 24V AC/DC control model
