New Original Phoenix Contact 2963912 Solid State Relay Module
"*" indicates required fields

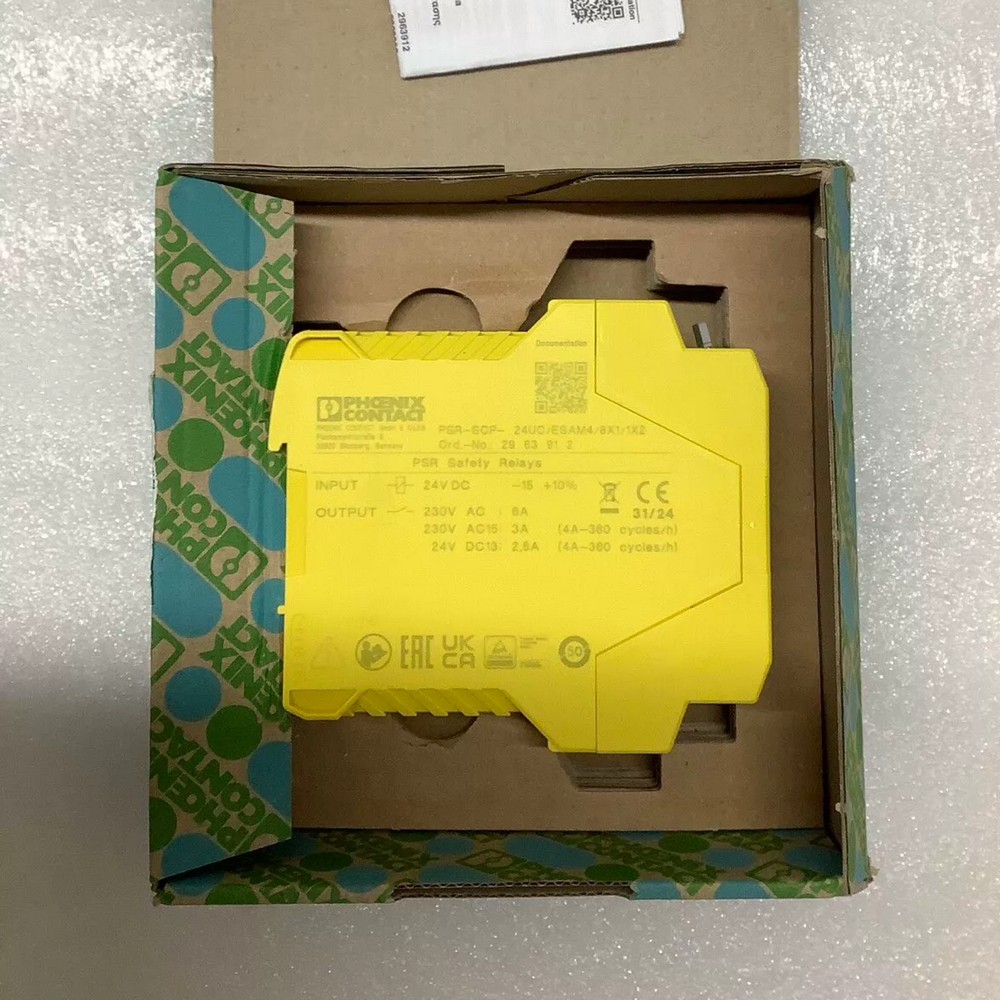

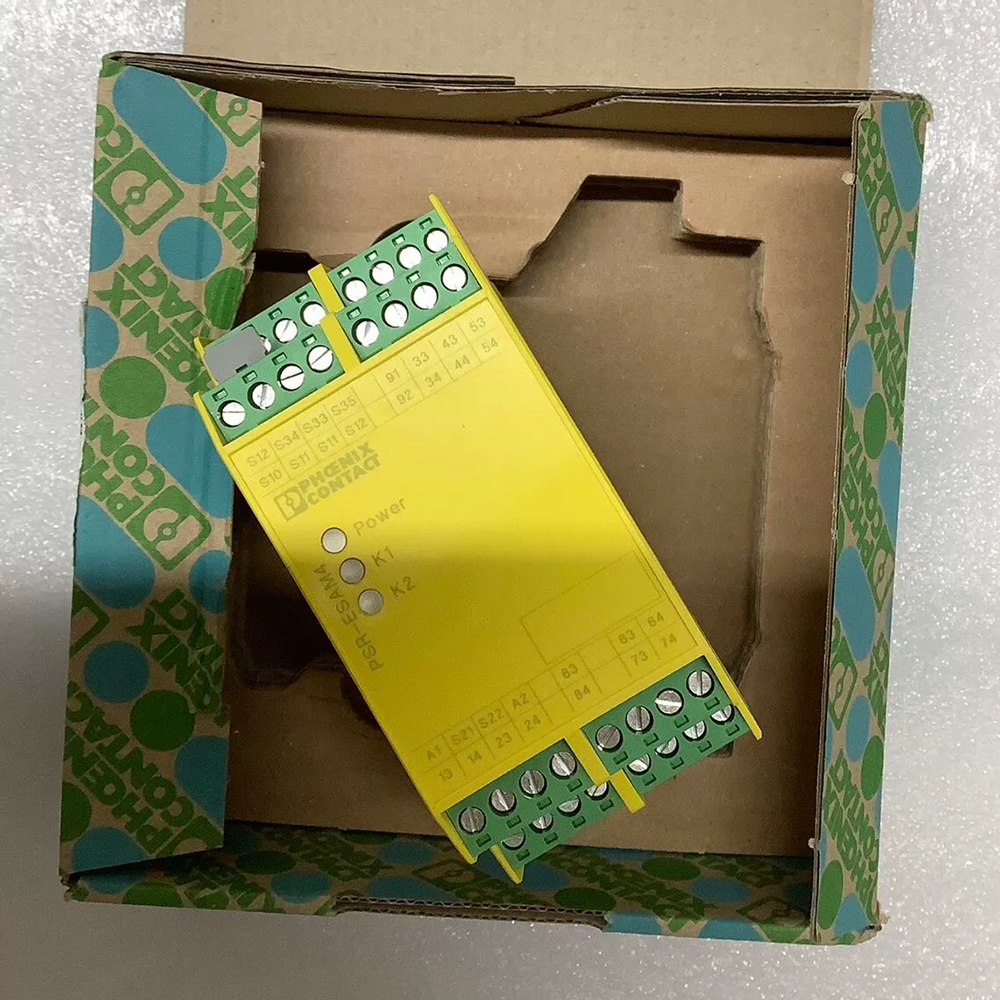

New Original Phoenix Contact 2963912 Safety Relay Module (PSR-SCP-24UC/ESAM4/8X1/1X2)
Product Overview
The 2963912 is a certified safety relay module belonging to Phoenix Contact PSRclassic series, widely deployed for machine safety control in industrial automation equipment. Though often categorized alongside switching relay components, this unit is a functional safety relay designed for emergency stop circuits, safety door interlock monitoring, and safe machine shutdown protection. It accepts universal 24 V AC/DC control supply, supports both single-channel and dual-channel safety signal input, integrates 8 normally open safety enabling contacts plus 1 auxiliary signal contact, and complies with top international machinery safety standards including EN ISO 13849, IEC 61508. Rated for PL e / Category 4 and SIL 3 safety levels, it adopts force-guided mechanical contact structure to avoid dangerous contact welding faults. Mounted on standard DIN rail with pluggable screw terminals, it features robust anti-interference performance and long service life, extensively applied in packaging machinery, automated assembly lines, machine tools, robotic workstations and all equipment requiring mandatory safety circuit protectionPhoenix Co….
Main Technical Specifications
| Parameter Item | Detailed Specification |
|---|---|
| Order No. | 2963912 |
| Full Model | PSR-SCP-24UC/ESAM4/8X1/1X2 |
| Rated Supply Voltage | 24 V AC / DC universal input |
| Power Consumption | 4.25 W |
| Safety Level | PL e, Cat.4, SIL 3 |
| Input Mode | 1-channel / 2-channel safety signal selectable |
| Output Contacts | 8 × NO safety contacts; 1 × NC auxiliary feedback contact |
| Rated Switching Current | 6 A per contact (250 V AC resistive load) |
| Contact Structure | Force-guided positive-driven safety contacts |
| Response Time | 60 ms (manual reset); 250 ms (automatic reset) |
| Reset Modes | Manual reset / automatic reset switchable |
| Insulation Withstand Voltage | 2.5 kV between input and output circuits |
| Protection Class | IP54 (housing interior) |
| Operating Ambient Temperature | -20 ℃ ~ +55 ℃ (non-condensing) |
| Storage Temperature | -25 ℃ ~ +70 ℃ |
| Vibration Resistance | 10–55 Hz, 1.5 mm amplitude, 2 hours X/Y/Z axis test |
| Shock Resistance | 500 m/s² acceleration impact resistance |

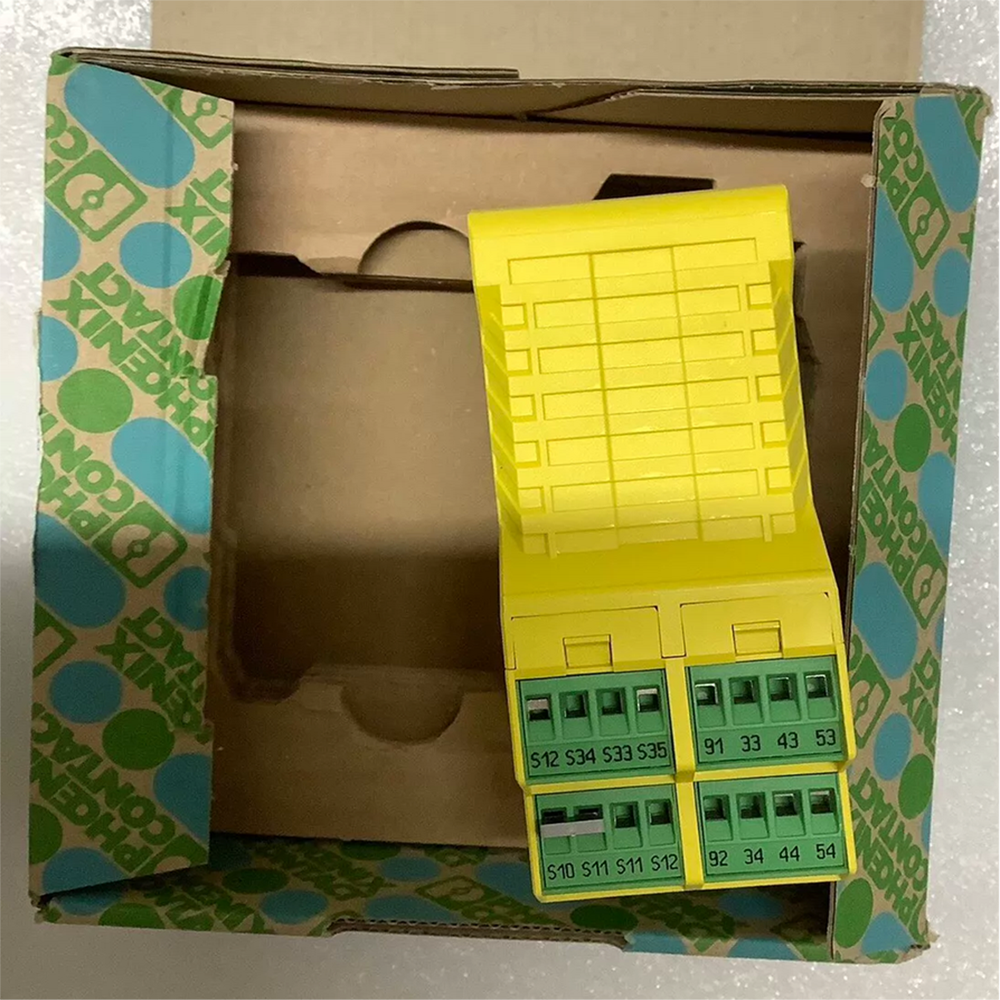

| Termination Type | Pluggable screw connection terminals |
| Certifications | UL, CSA, CE, RoHS |
Overall Dimensions & Net Weight
| Dimension & Weight Parameter | Exact Data |
|---|---|
| Module Width | 45 mm |
| Overall Height | 114.5 mm |
| Overall Depth | 120 mm |
| Mounting Standard | NS 35 DIN rail snap-on installation |
| Single Unit Net Weight | 429 g |
| Packaged Gross Weight | Approximately 470 g |
Primary Main Functions
- Emergency Stop Circuit Monitoring: Continuously detects emergency stop button status; immediately cuts off all safety output loops once the emergency button is pressed to halt dangerous machine movement.
- Safety Door Interlock Control: Monitors safety gate switches on protective enclosures; equipment cannot start when safety doors are open, and power cuts off instantly during running if doors are opened accidentally.
- Dual Reset Logic Management: Supports manual reset to prevent unintended automatic restart after fault elimination, and automatic reset for simple safety scenarios to meet diverse production demands.
- Multi-Channel Safe Output Distribution: 8 independent safety contacts can control multiple actuators including contactors, valves and drive systems synchronously for complete power cutoff.
- Fault Diagnostic Feedback: The auxiliary contact transmits safety circuit fault signals to PLC for upper system alarm, fault recording and status monitoring.
- Cross-Channel Fault Detection: Built-in cross-check function for dual-channel input lines to identify wire breakage, short-circuit and wiring errors automatically.
- Wide Voltage Stable Operation: Tolerates industrial power grid voltage fluctuation, maintaining reliable safety performance under unstable workshop power supply conditions.
- Anti-Fault Contact Protection: Force-guided contacts prohibit simultaneous closing of NO and NC contacts, eliminating hidden dangers caused by contact adhesion failures.
Key Technical Features
- High-grade safety certification (SIL3 / PL e / Cat.4) satisfies strict European and global machinery safety compliance requirements for equipment export.
- Modular compact DIN rail design saves cabinet internal space, easy for integration into standard electrical control cabinets.
- Pluggable screw terminals enable fast wiring, disassembly and maintenance without removing the entire module from the rail.
- Optimized internal circuit with strong EMC anti-interference capability works steadily near inverters, servo drives and high-power electromagnetic equipment.
- Long mechanical service life up to 10 million switching cycles, adapting to 24-hour uninterrupted cyclic industrial operation.
- Clear LED status indicators display power supply, input signal, fault and relay actuation states for rapid on-site troubleshooting.
- Unified PSRclassic series platform achieves full compatibility and interchangeability of spare parts within the product family.
- Flame-retardant reinforced plastic housing delivers excellent impact resistance, dustproof and oil-proof performance for harsh workshop environments.
List of 10 Phoenix Contact Similar Safety & Relay Modules
- PSR-SPP-24UC/ESM4/3X1/1X2/B (2963925): Compact 3 safety contact safety relay with narrower body width
- PSR-SCP-24UC/ESAM4/4X1/1X2: Mid-range 4 safety contact version with fewer output channels
- PSR-MC40-24UC/ESAM2: Multi-function configurable safety relay for flexible logic customization
- PLC-OPT-24DC/24DC/10/R: DIN rail solid-state relay module for wear-free high-frequency switching
- RIF-0-RPT-24DC/1: Miniature plug-in electromagnetic relay module for general signal switching
- PSR-SCP-110UC/ESAM4/8X1/1X2: 110 V AC power supply variant of the 2963912 model
- PSR-TRISAFE-M: Expandable modular safety system for large automated production lines
- OPT-60DC/48DC/100: Ultra-small solid state relay for low-current signal isolation switching
- PSR-SCP-24DC/ESAM4/8X1/1X2: DC-only power supply safety relay for pure DC control systems
- PLC-OSC-24DC/230AC/1/ACT: AC output solid state relay module for AC load driving
