New Original PeeiMoger M-51K150U-CFV 150W 220V Variable Speed AC Motor
"*" indicates required fields

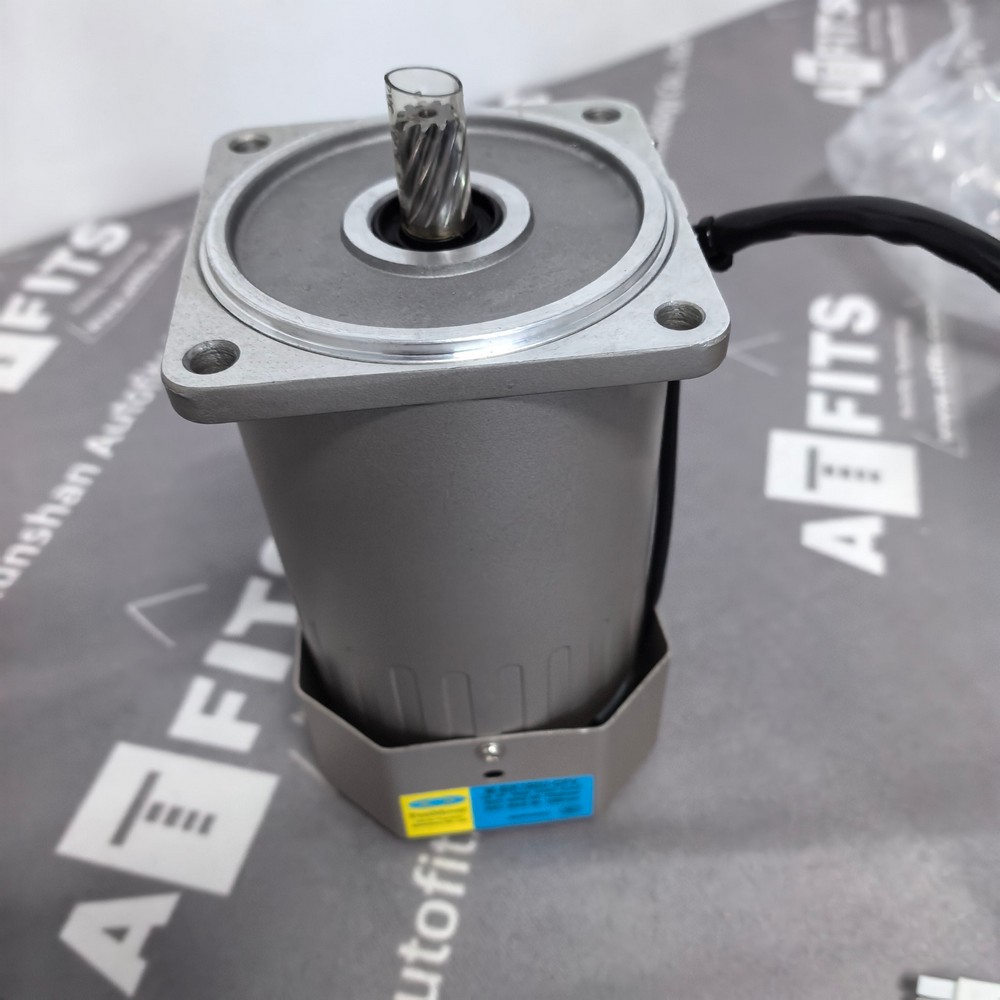

New Original PeeiMoger M-51K150U-CFV 150W 220V Variable Speed AC Motor
1. Product Overview

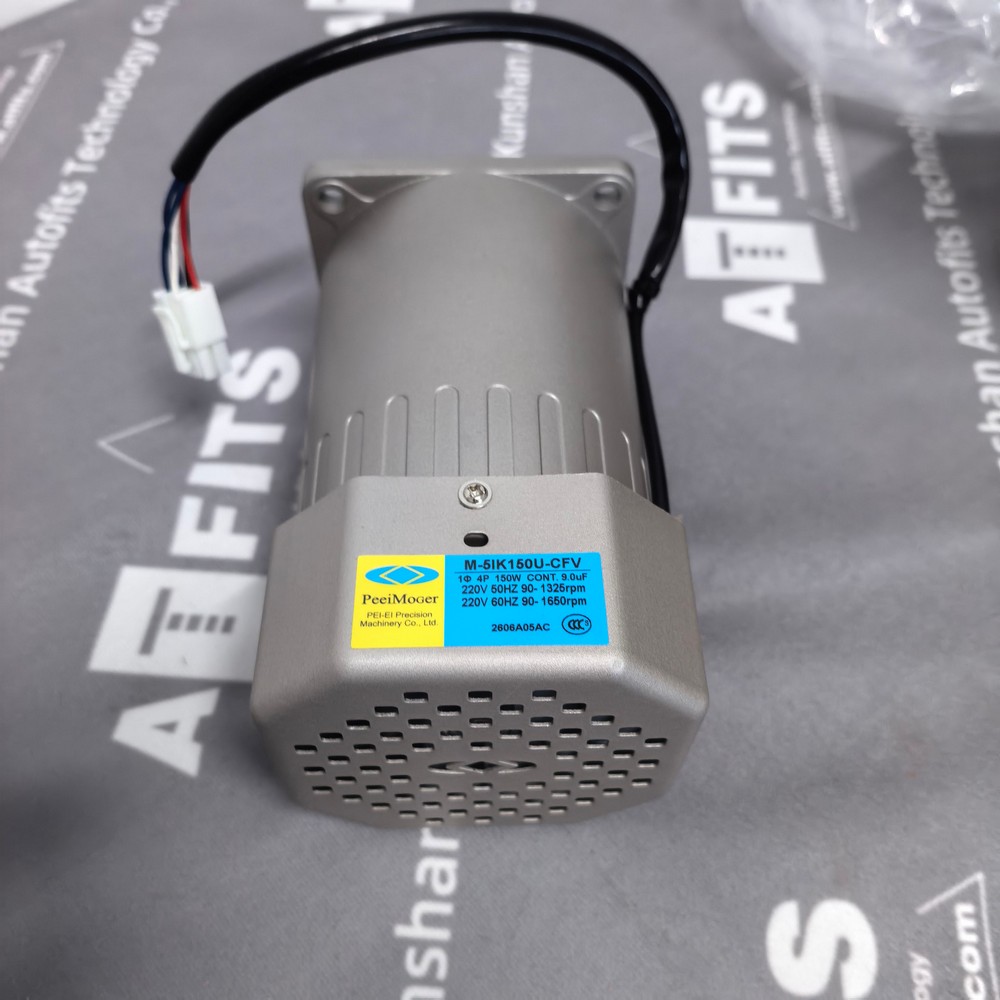

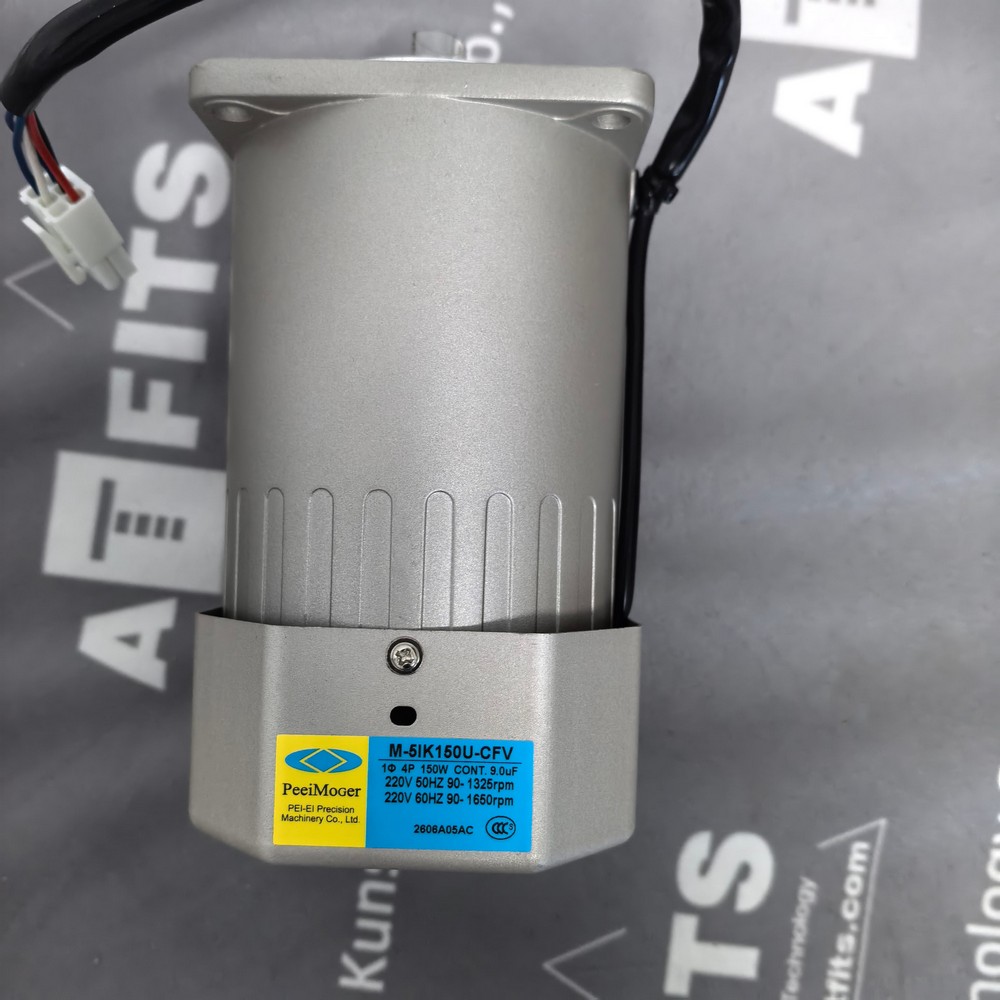

M-51K150U-CFV is an original PeeiMoger single-phase variable speed AC induction motor belonging to the K series. Rated power reaches 150W with single-phase 220V AC power supply. This 4-pole speed control motor adopts enhanced helical output shaft design, and the suffix CFV stands for built-in speed feedback structure matching dedicated US series speed controllers.
It cannot run independently and must be paired with a supporting speed controller to realize continuous stepless speed regulation. The square aluminum frame features compact structure, low noise and stable torque output. It can be directly installed or matched with corresponding gearheads to obtain low-speed high-torque output. Widely applied in automated assembly equipment, conveyor lines, packaging machinery, printing equipment and small processing machinery that requires adjustable operating speed.
2. Main Functions
- Stepless Variable Speed Regulation Works with matched speed controller to achieve continuous adjustable rotation speed within specified range, adapting to different production process requirements.
- Stable Continuous Torque Output Maintains stable output torque within the main speed regulation section, suitable for constant load operation of automation equipment.

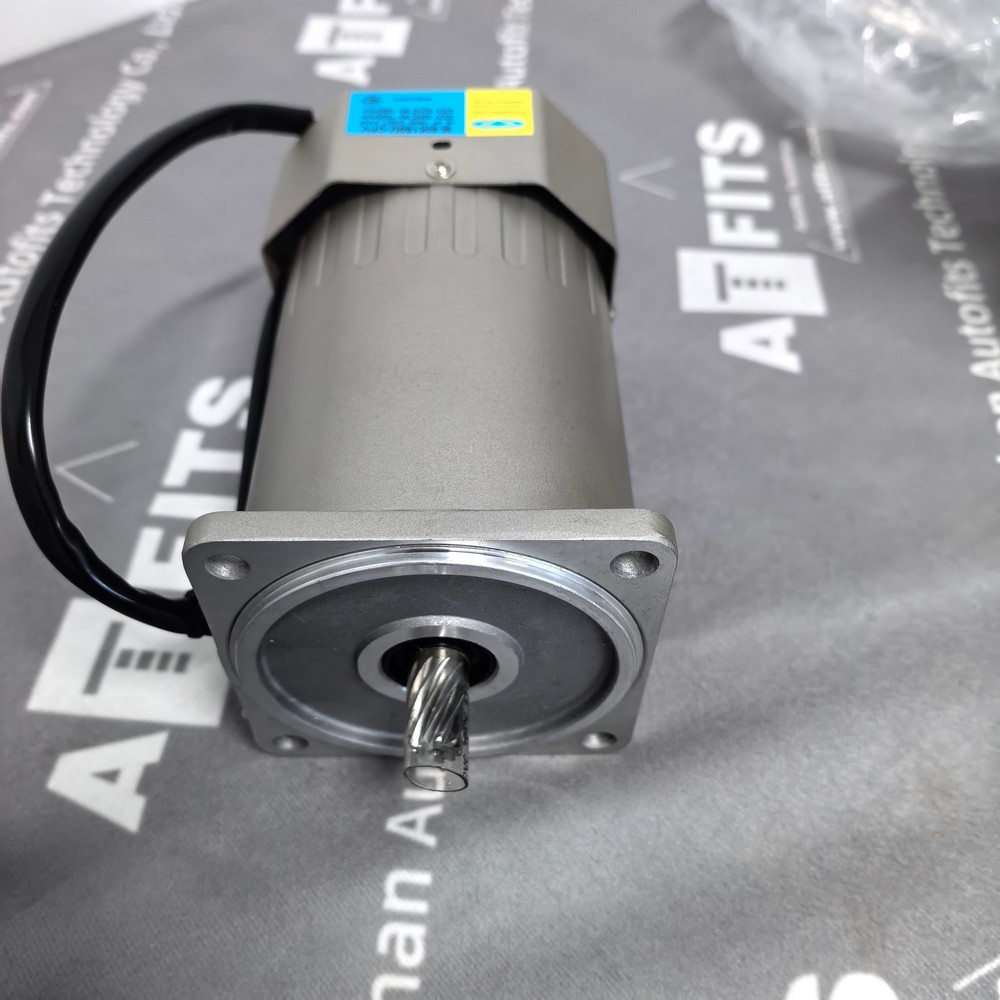

- Enhanced Helical Output Shaft U-type reinforced shaft structure improves load capacity and anti-fatigue performance for long-term cyclic operation.
- Forward & Reverse Rotation Switchable Supports clockwise and counter-clockwise rotation switching through controller wiring setting.
- Built-in Speed Feedback Function Internal signal feedback module transmits real-time speed signal to the controller for closed-loop speed stabilization.
- Wide Compatibility with Gear Reducers Supports assembly with matched K series gearheads to realize diversified low-speed output ratios.
- Low Vibration & Low Noise Operation Optimized stator and rotor structure reduces electromagnetic noise, suitable for indoor workshop continuous operation.
3. Technical Characteristics
| Technical Parameter | Detailed Specification |
|---|---|

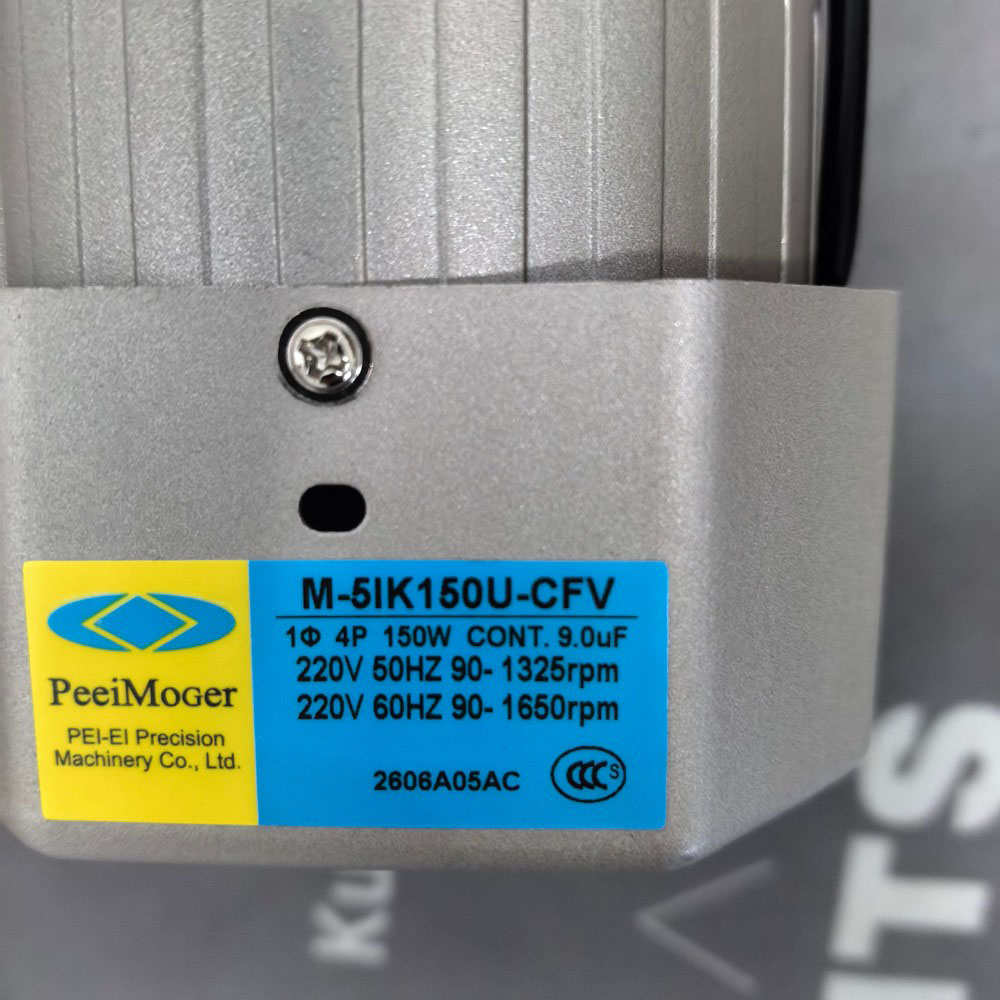

| Full Model | M-51K150U-CFV |
| Product Series | K Series Variable Speed AC Induction Motor |
| Power Rating | 150 W |
| Power Supply | Single-phase AC 220 V, 50/60 Hz |
| Pole Number | 4 Poles |
| Synchronous Speed | 1500 rpm (50 Hz) / 1800 rpm (60 Hz) |
| Adjustable Speed Range | 90 ~ 1350 rpm (50 Hz) |
| Shaft Type | U Reinforced Helical Shaft |
| Matching Controller | US-51150A-C |
| Operation Mode | Continuous duty |
| Frame Size | 90 mm Square Aluminum Housing |
| Insulation Class | Class E |
| Protection Class | IP20 |
| Operating Ambient Temperature | -10 ℃ ~ +40 ℃, non-condensing |
| Storage Temperature | -20 ℃ ~ +60 ℃ |
| Ambient Humidity | Less than 85% RH, no condensation |
| Compliance Standards | RoHS |
Core Technical Advantages
- Closed-loop speed feedback suppresses speed fluctuation caused by load variation;
- Reinforced helical shaft enhances bending resistance for heavy load transmission;
- Square standardized frame supports convenient installation and gearhead assembly;
- Low noise and stable performance for long-time non-stop industrial operation;
- Complete series power specifications facilitate model selection for automation projects.
4. Product Dimensions and Weight
External Dimensions (Unit: Millimeter)
| Dimension Item | Exact Size |
|---|---|
| Mounting Square Width | 90 |
| Overall Body Length | 142 |
| Output Shaft Diameter | 15 |
Weight Parameters
| Weight Category | Specific Value |
|---|---|
| Single Motor Net Weight | 3.6 kg |

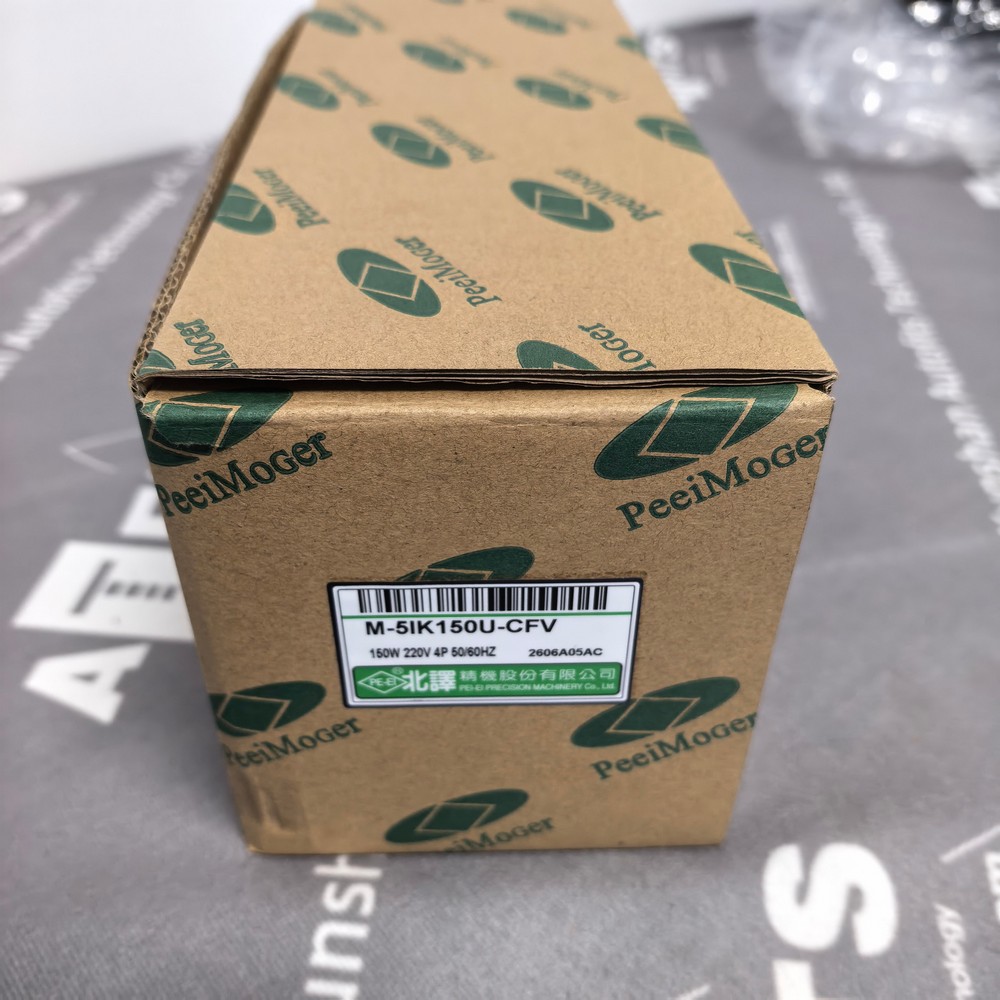

| Original Packaged Gross Weight | 4.1 kg |
5. 10 PeeiMoger Similar Variable Speed AC Motors
All models are K series single-phase 220V variable speed induction motors; differences lie in power, shaft specification and suffix variant:
- M-51K60U-CFV 60W 220V Variable Speed AC Motor
- M-51K90U-CFV 90W 220V Variable Speed AC Motor
- M-51K120U-CFV 120W 220V Variable Speed AC Motor
- M-51K150N-CFV 150W Standard Shaft Variable Speed Motor
- M-41K25U-CFV 25W 220V Variable Speed AC Motor
- M-41K40U-CFV 40W 220V Variable Speed AC Motor
- M-31K15U-CFV 15W 220V Variable Speed AC Motor
- M-21K6U-CFV 6W 220V Small Variable Speed Motor
- M-51K150U-CF 150W Non-feedback Variable Speed Motor
- M-51K150U-AFV 110V 150W Variable Speed AC Motor
