New Original Parker 801-6 BLU 801 Series Push-Lok Thermal Rubber Hose
"*" indicates required fields
New Original Parker 801-6 BLU 801 Series Push-Lok Thermal Rubber Hose
1. Product Overview

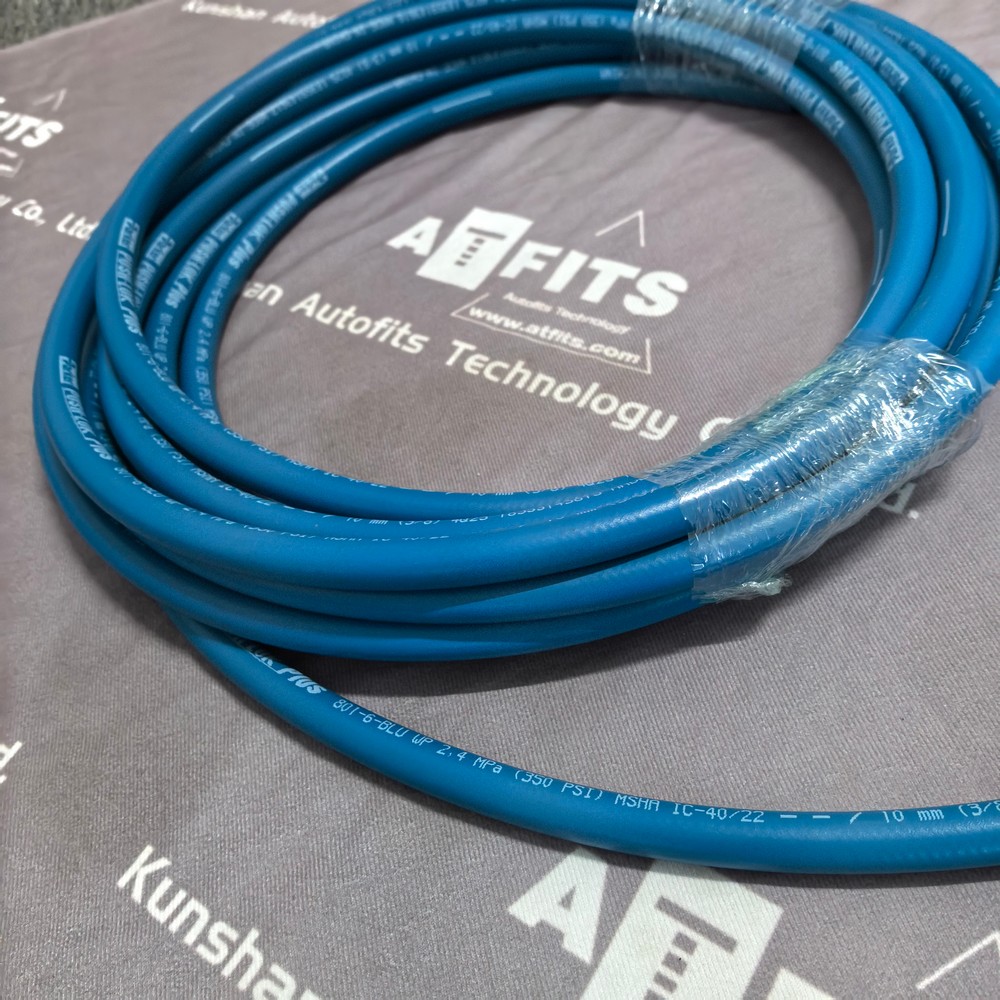

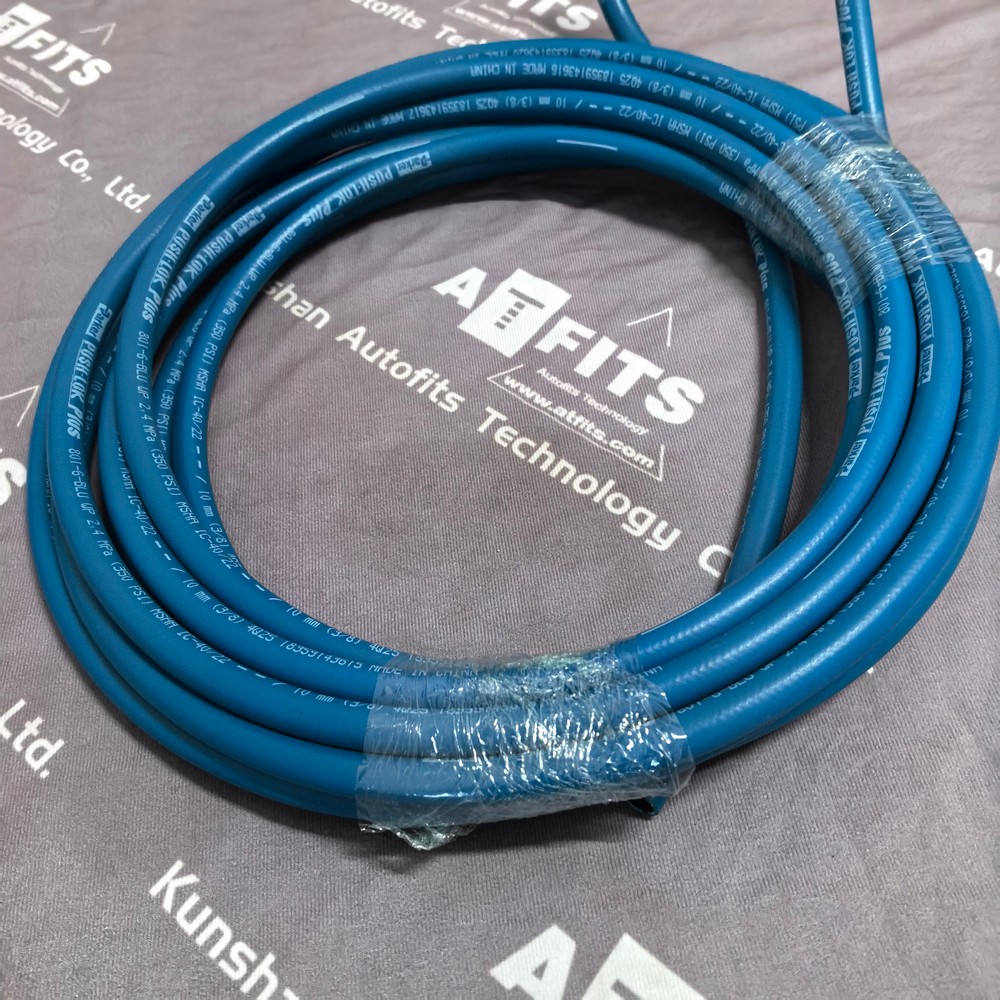

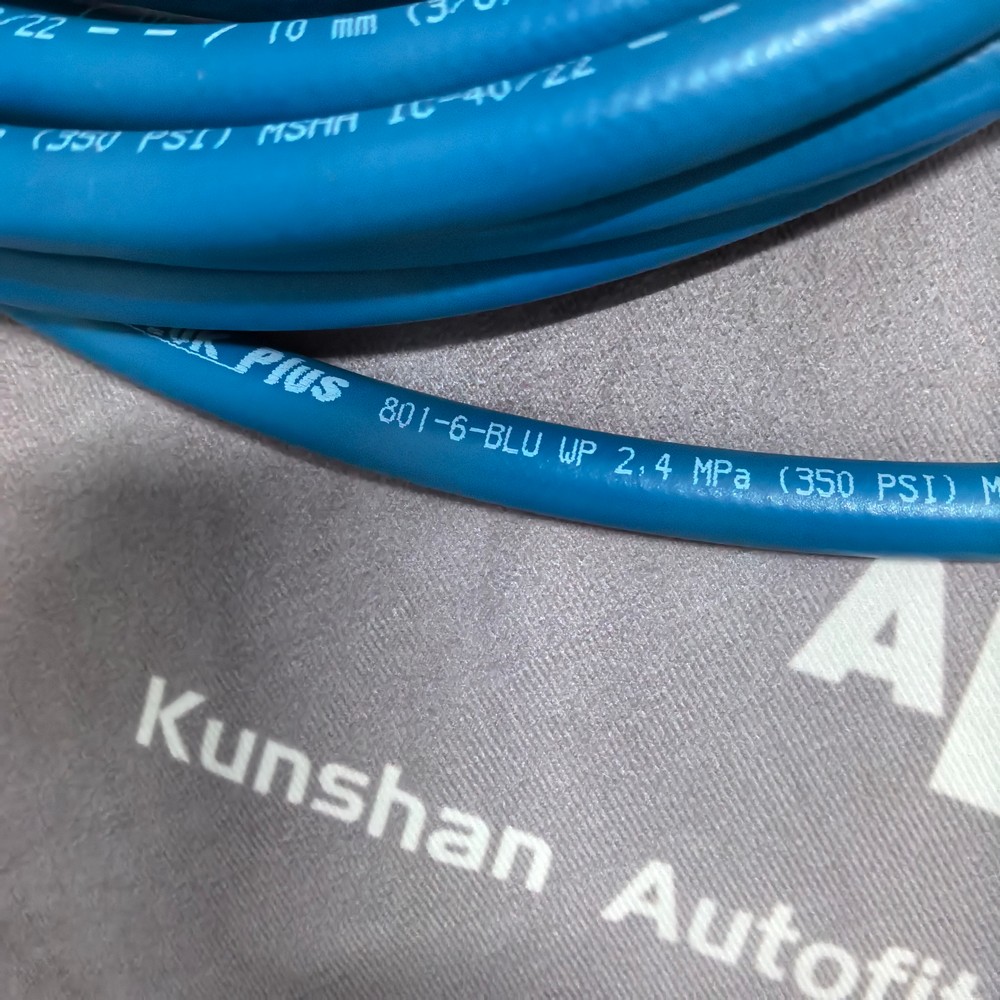

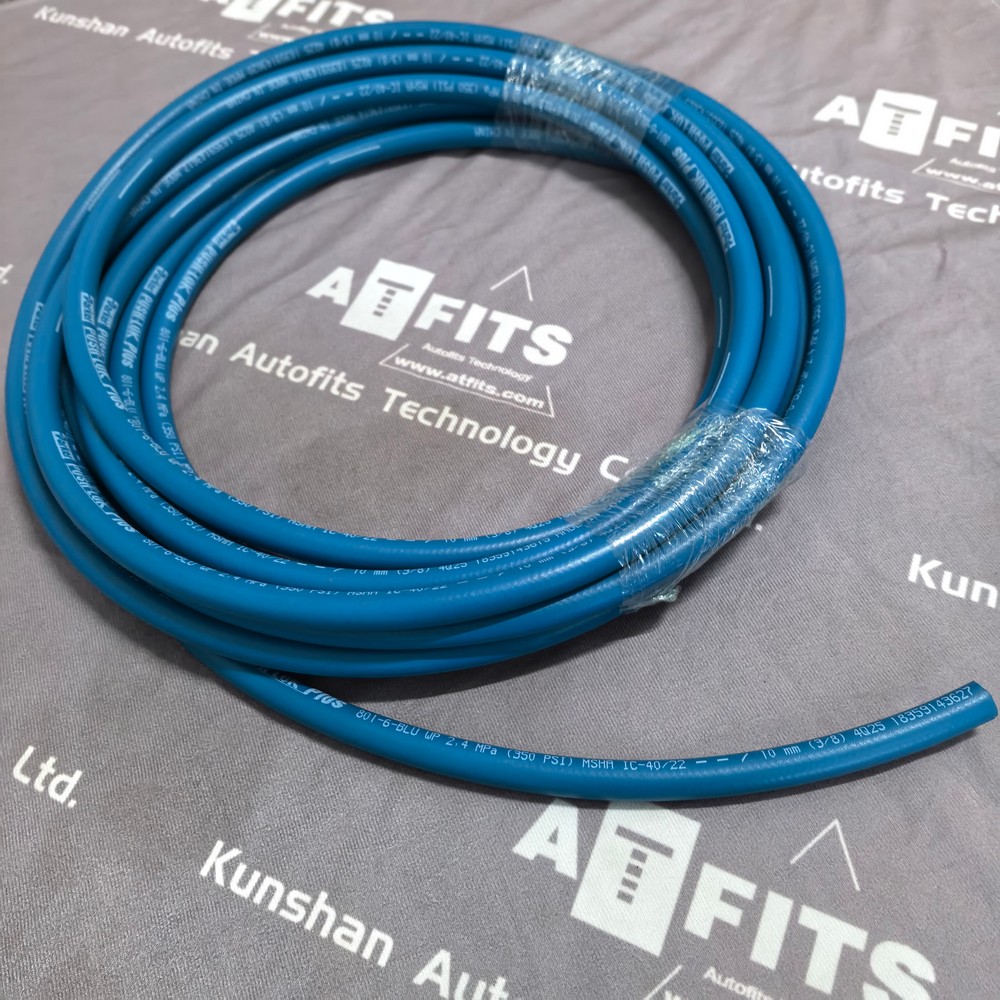

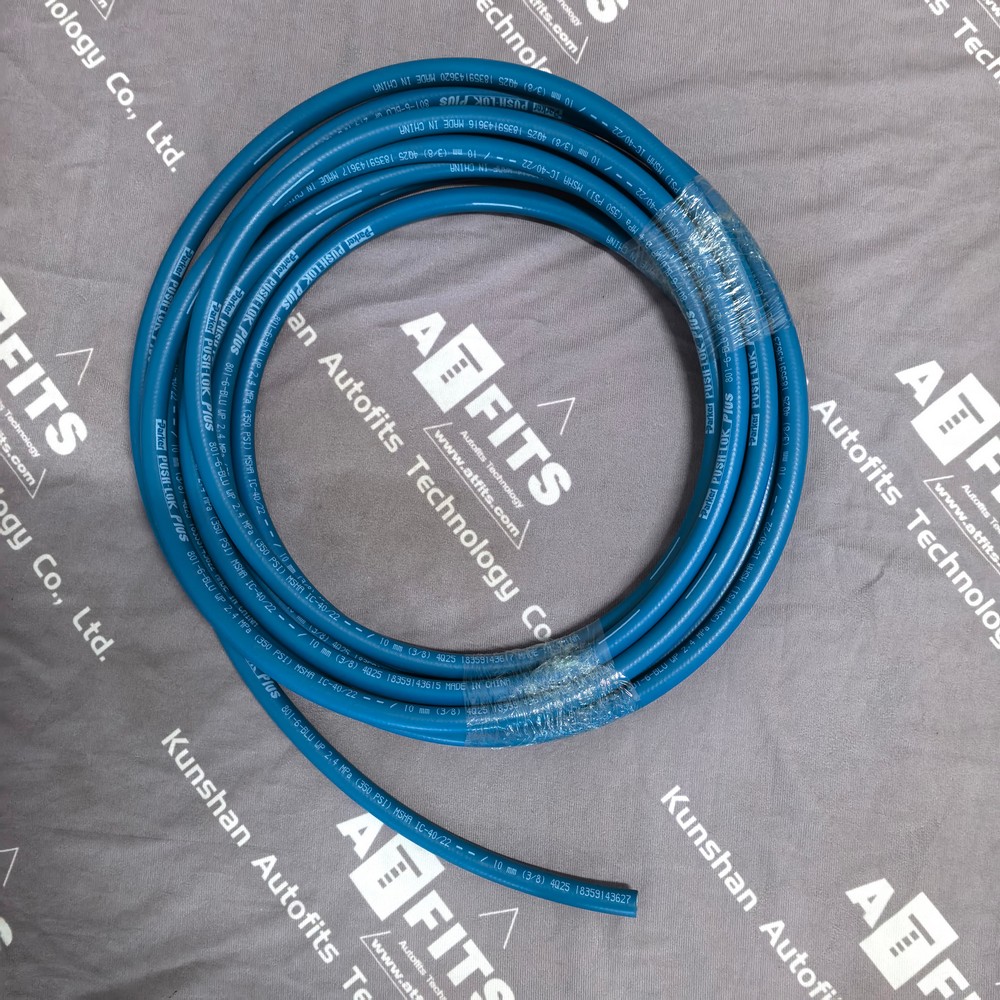

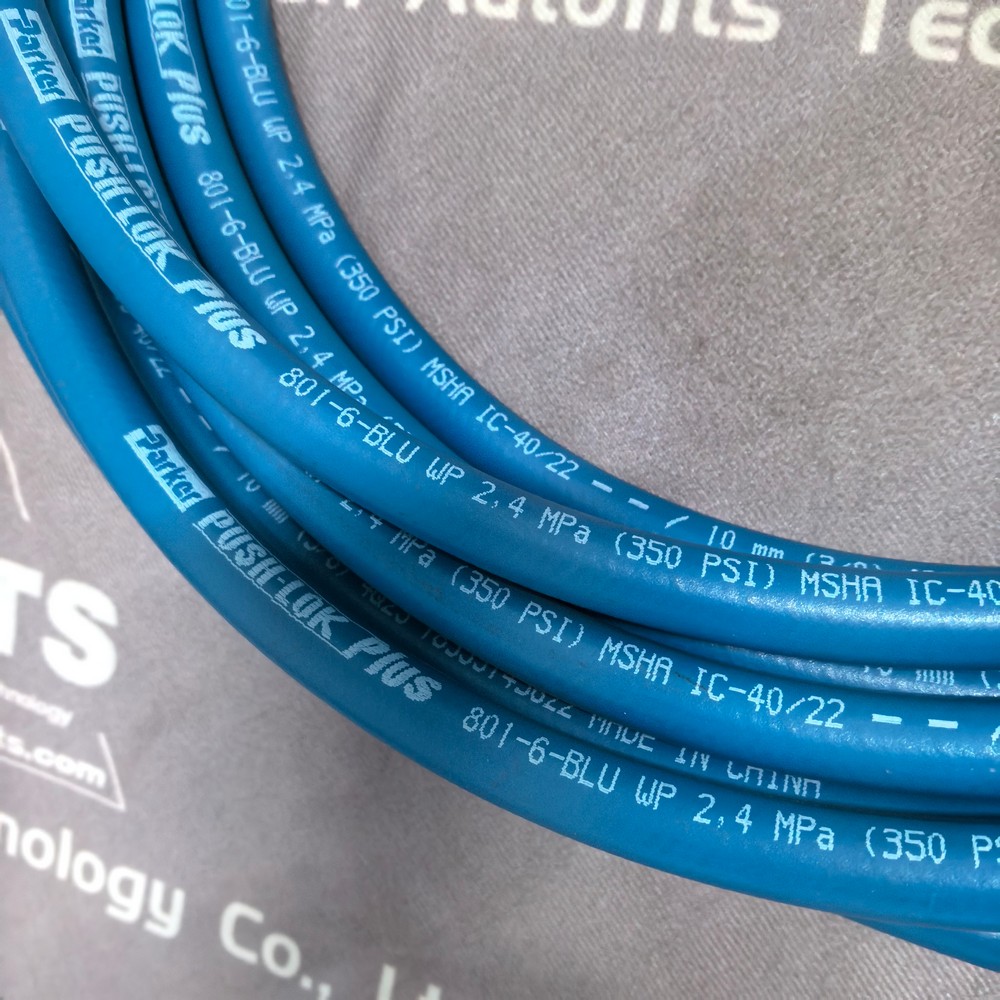

801-6 BLU is an original Parker Push-Lok Plus multipurpose low-pressure rubber hose belonging to the 801 series. The suffix BLU represents blue outer cover color, and size -6 stands for 3/8 inch (10 mm) nominal inner diameter. It adopts single fiber braid reinforcement, synthetic rubber inner tube and outer cover with MSHA certification.
This hose is designed to work with Parker 82 Series and HY Series Push-Lok push-on fittings, enabling quick hose assembly without special crimping equipment. It conveys compressed air, lubricating oil, petroleum-based hydraulic fluid, cooling water, antifreeze and water-glycol coolant. Widely used in machine tools, automated production lines, packaging equipment, general pneumatic systems and thermal management circuits. Color-coded blue cover helps distinguish different fluid circuits for convenient equipment maintenance.
2. Main Functions
- Low-Pressure Multi-Medium Fluid Transmission Stably transports compressed air, industrial water, lubricants, petroleum hydraulic oil and coolant solutions under specified working pressure and temperature range.
- Push-Lok Quick Assembly System Compatibility Supports direct push connection with 82 / HY series fittings, simplifying on-site hose fabrication and reducing assembly time.
- Color Identification for Circuit Classification Blue outer jacket facilitates visual differentiation of pipeline loops, avoiding wrong connection during equipment assembly and maintenance.
- Good Flexibility & Continuous Circulation Delivery Balanced structural design achieves small minimum bend radius, suitable for compact installation space inside machine frames and control cabinets.
- Vacuum Resistance Performance Supplies vacuum service up to 711 mm Hg, applicable for negative pressure suction circuits.
- Broad Temperature Adaptability Works reliably under wide temperature variation for oil, water and compressed air working media.
- Anti-Abrasion & Dust-Resistant Outer Cover MSHA-approved synthetic rubber cover improves wear resistance against mechanical friction and workshop dust.
3. Technical Characteristics
| Technical Parameter | Detailed Specification |
|---|---|
| Full Model | 801-6 BLU |
| Product Series | 801 Series Push-Lok Multipurpose Rubber Hose |
| Nominal Inner Diameter | 3/8 inch (10 mm) |
| Outer Diameter | 15.9 mm (0.630 inch) |
| Reinforcement | Single high-tensile fiber braid |
| Inner Tube Material | Synthetic rubber |
| Cover Material | Synthetic rubber, MSHA accepted, Blue |
| Maximum Working Pressure | 350 psi (2.4 MPa) |
| Burst Pressure | 1400 psi, Design Factor 4:1 |
| Minimum Bend Radius | 75 mm (3 inch) |
| Vacuum Rating | Max. 711 mm Hg (28 inch-Hg) |
| Compatible Fittings | Parker 82 Series, HY Series Push-Lok fittings |
| Temperature Range-Oil | -40 ℃ ~ +125 ℃ |
| Temperature Range-Water | Max. +85 ℃ |
| Temperature Range-Air | Max. +70 ℃ |
| Weight per Meter | 0.16 kg/m |
| Standard Supply Form | Reel packing or cut-to-length |
| Compliance Standards | MSHA, RoHS |
Core Technical Advantages
- Push-Lok push-in structure eliminates crimping machines, convenient for field modification and spare part replacement;
- Single fiber braid structure delivers excellent flexibility while maintaining stable pressure resistance;
- Multiple color options support standardized pipeline identification for automation equipment;
- Wide fluid compatibility covers pneumatic, cooling and low-pressure hydraulic circuits;
- Mature industrial grade formulation guarantees long service life under general factory environment.
4. Product Dimensions and Weight
Standard Section Dimensions (Unit: Millimeter)
| Dimension Item | Exact Size |
|---|---|
| Nominal Inner Diameter | 10 |
| Outer Diameter | 15.9 |
| Minimum Bend Radius | 75 |
Weight Reference
表格
| Weight Category | Specific Value |
|---|---|
| Unit Weight | 0.16 kg per meter |
| Packaged Reel Weight | Subject to custom cutting length |
5. 10 Parker Similar Push-Lok Multipurpose Hoses
All models belong to Parker Push-Lok low-pressure hose platform with push-on fitting compatibility; differences exist in inner diameter, cover color and special variant specifications:
- 801-4 BLU 1/4″ Blue Push-Lok Multipurpose Rubber Hose
- 801-6 BLK 3/8″ Black 801 Series Push-Lok Hose
- 801-6 RED 3/8″ Red Push-Lok Thermal Rubber Hose
- 801-8 BLU 1/2″ Blue Push-Lok Multipurpose Hose
- 801-10 BLU 5/8″ Blue Push-Lok Rubber Hose
- 801-12 BLU 3/4″ Blue 801 Series Push-Lok Hose
- 801-6 GRN 3/8″ Green Color-Coded Push-Lok Hose
- 801PLUS-6-BLU Enhanced Push-Lok Multipurpose Hose
- 801TM-6-BLU Thermal Management Special Push-Lok Hose
- 804-6 BLU High Temperature Push-Lok Rubber Hose
